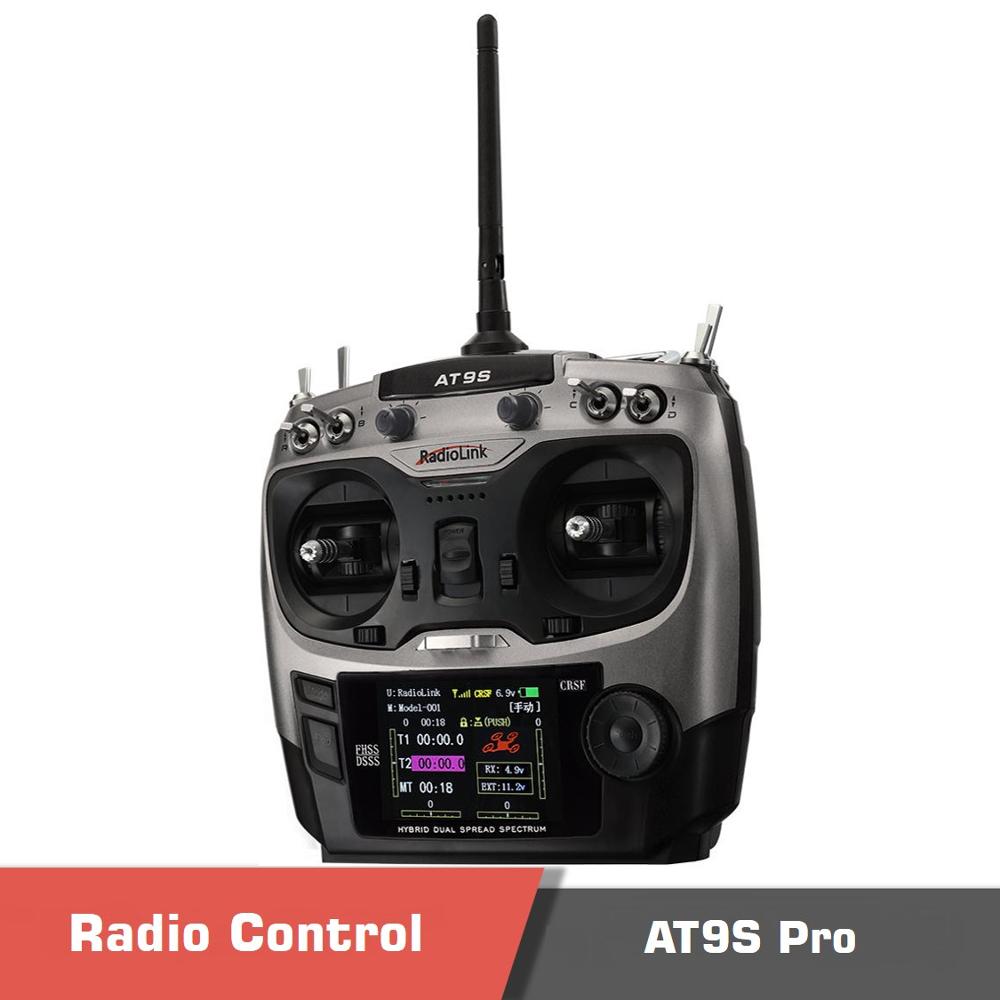

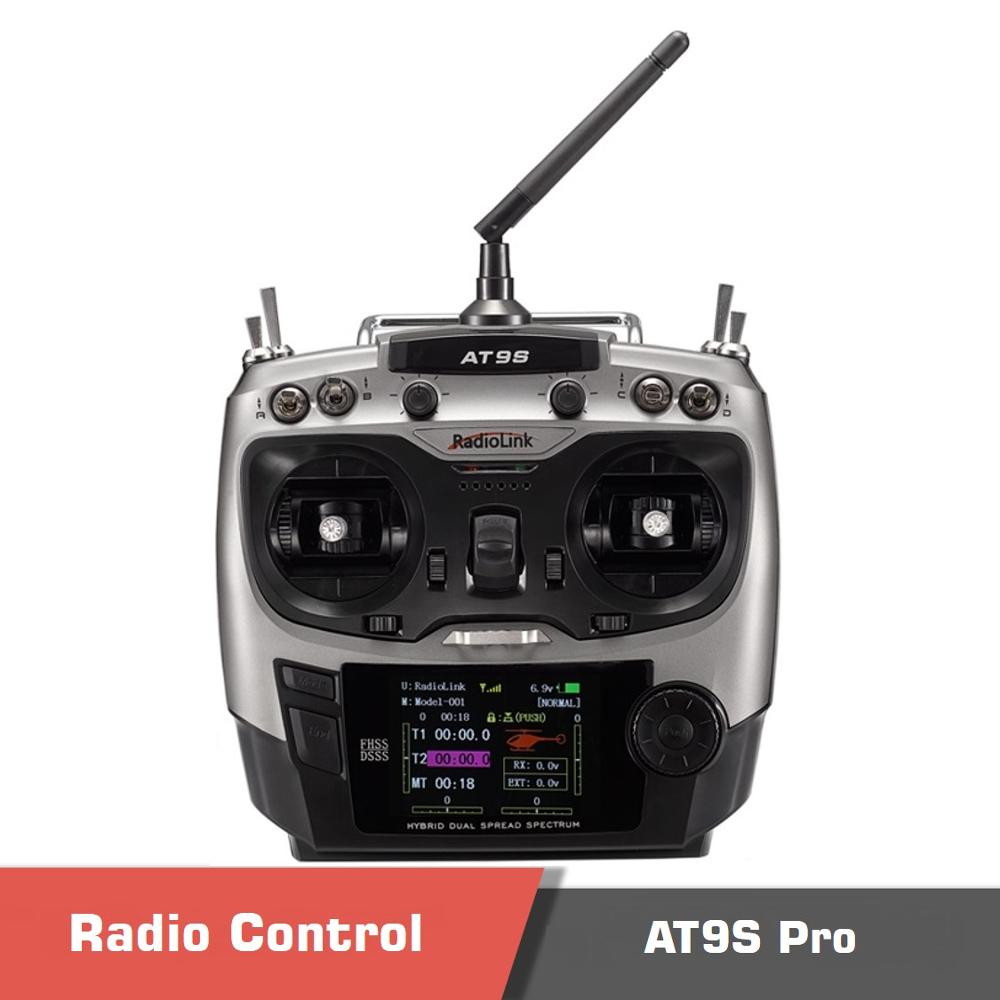

Radiolink AT9s Pro 12 Channels 2.4GHz

102.93 $

Out of stock

Description

AT9S Pro 10CH/12CH

Optional DSSS&FHSS/CRSF Protocols

Ideal for Flying Virtually any Type of Aircraft

DSSS and FHSS Hybrid Spread Spectrum

DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 12 channels of AT9S Pro.

The actual control distance of AT9S Pro is 3400 meters air.

These features allow the AT9S to produce a highly constant and stable transmission signal present on all 12 channels.

* Direct Sequence Spread Spectrum transmissions multiply the data by a “noise” signal. This noise signal is a pseudorandom sequence of 1 and -1 at a frequency higher than that of the original signal.

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

Top Configuration

The MCU (microcontroller unit) is STM32F103VET6 (32bits ARM 72MH Basic Frequency, 512K Flash Capacity, 12bits ADC).

TI CC2533 from the US is used as the wireless chip.QPSK modulation helps ensure stable control.

Transmitter Quickly Adapts to All Types of Aircraft

Easy to understand user software makes quick work of change aircraft types.

Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, and Robot.

Transmitter automatically switches layout depending on the selected mode.

SBUS, PPM, PWM and CRSF Signals Support

With the DSSS&FHSS protocol, SBUS, PPM, and PWM can operate simultaneously for seamless user control.

With the CRSF protocol, TBS Crossfire needs to bind to the BLACKSHEEP receiver.

Standard receiver R9DS packed is the receiver with SBUS and PWM signal output.

AT9S Pro is also compatible with R6DSM, R6DS, R12DSM, and R12DS receivers of RadioLink.

Compatible receivers cover a wide range of aircraft to meet the most demanding applications of customers.

Mini Receiver Support

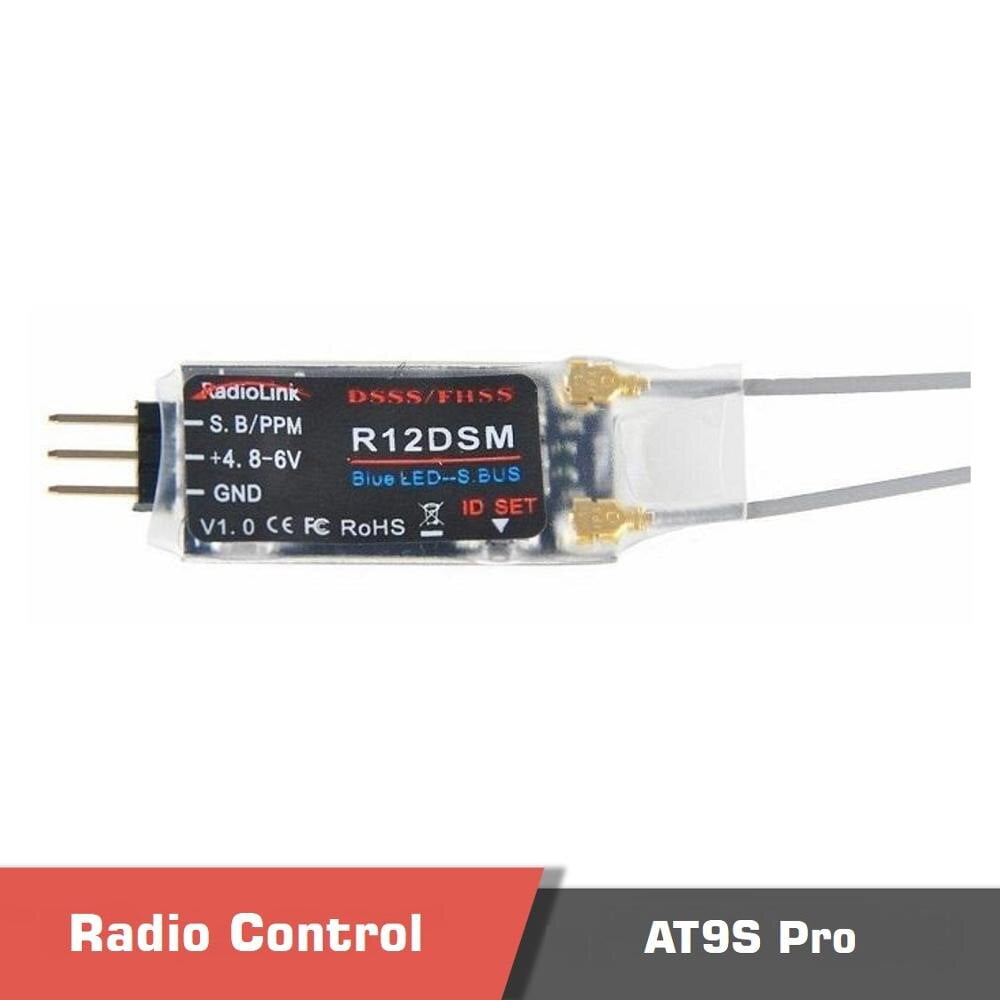

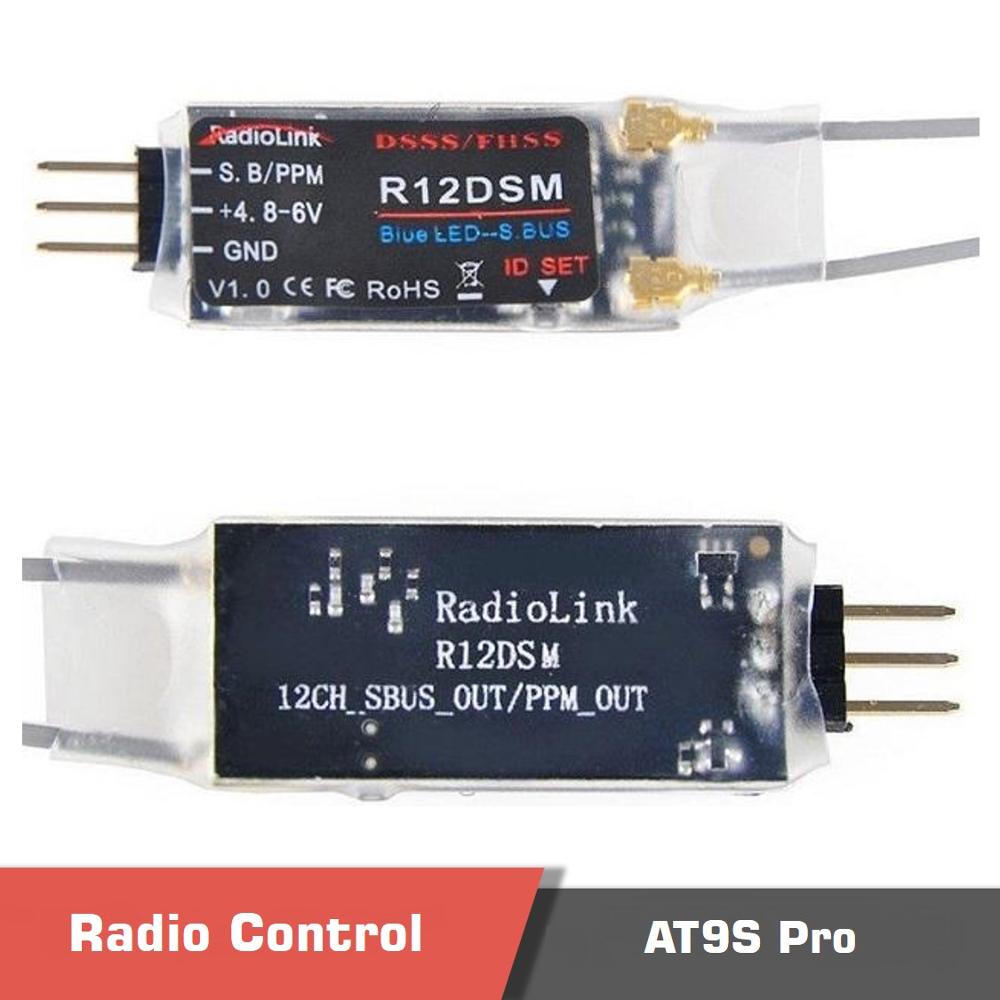

AT9S Pro is compatible with the 12 channels receiver R12DM, which supports SBUS or PPM signal output, detachable antennas.

R12DSM, with a super-lightweight of 2.5g and a small size of 30*15mm, is tiny enough even for a mini racing drone.

3400 meters control distance enables all possible RC fun.

Real-time Telemetry

Real-time model data allows users to receive crucial information on the display of AT9S Pro.

When paired with the flight module PRM-01, the model voltage will display.

With the flight module PRM-03, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance will display.

Multiple Language Menu

Optional language menu available including Chinese, English, Spanish, Italian, German, French, Turkish, Russian and Korean.

High Quality Components and Efficient Circuit Design Ensures Maximum Precision

All-new 4096 IC circuit minimizes servo jitter.

Optimal PCB layout design and the same potentiometer of FUTABA produce a very stable signal output, that maximum PWM jitter is 1.84us with a standard of just 0.5us, which is critical to precision flying.

Anti-polarity Connect Protection

The voltage protection software technology of RadioLink ensures both the transmitter and receiver are protected from a reverse polarity connection.

Industry-standard JST connector makes AT9S Pro is adapt for various battery layouts, 8pcs AA battery or a 2S-4S LiPo battery.

When a TBS Crossfire is connected, the maximum 3S LiPo battery is supported.

The new power supply circuit provides longer battery life, 12 hours of fun with a 1800mAh 3S LiPo battery.

Programmable Mix Control

Easy to understand graph view for parameter setting.

All twelve channels can be programmed to any advanced setting*.

An Airbrake function can set by using pre-programmed mixes.

Multi mix such as aileron mix with elevator or flap mix with aileron for Fixed Wings or V-Shaped tail models.

Multiple Alarms

Configurable sound, message, vibration alarms signal potential problems such as low RSSI value, low model voltage, low receiver voltage, or low transmitter voltage.

USB Online Upgrade

AT9S Pro is easy to update to the latest firmware with a USB cable and a computer.

Simulator Ready

AT9S Pro includes a simulator interface feature that compatible with the majority of aircraft simulator software packages*.

While in simulator mode, the RF of AT9S Pro can turn off to save battery power.

The simulator port (at the back of AT9S Pro) is not only capable of communication with the simulator but also with the Wireless Trainer Link*.

Ergonomically Designed

AT9S Pro designed for both the experts and the beginners.

Switches in various lengths for easy recognition and usage

Long gimbal sticks increase precision movements.

Completely customizable 8 pieces switches, 2 pieces dials, and 2 pieces sliders to meet their specific needs.

User-friendly design for each of operation and handling makes AT9S Pro becomes an excellent transmitter for recreation, sport, competition, or 3D flying.

Ueec60c37727f4bebb15bb3ec48f7d3d9o - at9s pro,radio control,radiolink at9s pro - motionew - 5U63d1f88645274dc7a1b79bb278e788b6h - at9s pro,radio control,radiolink at9s pro - motionew - 6Ud0405126704047d1865747e4ff5d923dp - at9s pro,radio control,radiolink at9s pro - motionew - 7Uddcb040a924243bc9075900a9491902e0 - at9s pro,radio control,radiolink at9s pro - motionew - 8U388d6471583b488bbb8d30905f2795271 - at9s pro,radio control,radiolink at9s pro - motionew - 9Ue57b7c7a2e0945659ccb6cb183488788i - at9s pro,radio control,radiolink at9s pro - motionew - 10U164a438f9d37403c90b53741a39ad96ef - at9s pro,radio control,radiolink at9s pro - motionew - 11U4c29a4e9abe64b14ab379531aae04d210 - at9s pro,radio control,radiolink at9s pro - motionew - 12Ue361e1afaf354c49b9cee2f2077fe3cfn - at9s pro,radio control,radiolink at9s pro - motionew - 13U68beb85b1a77483a8103c2fbfc6ba948k - at9s pro,radio control,radiolink at9s pro - motionew - 14U7058168fdff843459b3aaf4cb9d15bb4c - at9s pro,radio control,radiolink at9s pro - motionew - 15U1869dc7f48ff45bda2cde0ff0f01af49q - at9s pro,radio control,radiolink at9s pro - motionew - 16U66df73e38c9c4a00a8f045d7a54a9483l - at9s pro,radio control,radiolink at9s pro - motionew - 17U4f90ed7154da4dd397be845002d5bb1cd - at9s pro,radio control,radiolink at9s pro - motionew - 18U44e7830c89ec44cfb7c00328d8874300f - at9s pro,radio control,radiolink at9s pro - motionew - 19





Additional information

Weight 0.880 kg
Dimensions 16 × 10 × 20 cm

Specifications



Size 183x100x193mm
Frequency 2.4GHz
Number of Channels 12
Weight 880g
