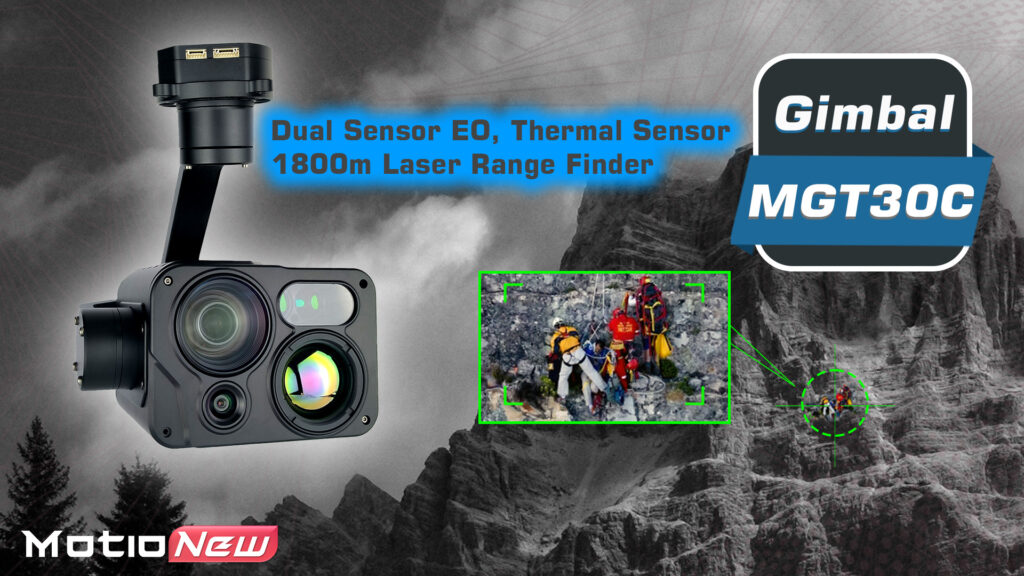

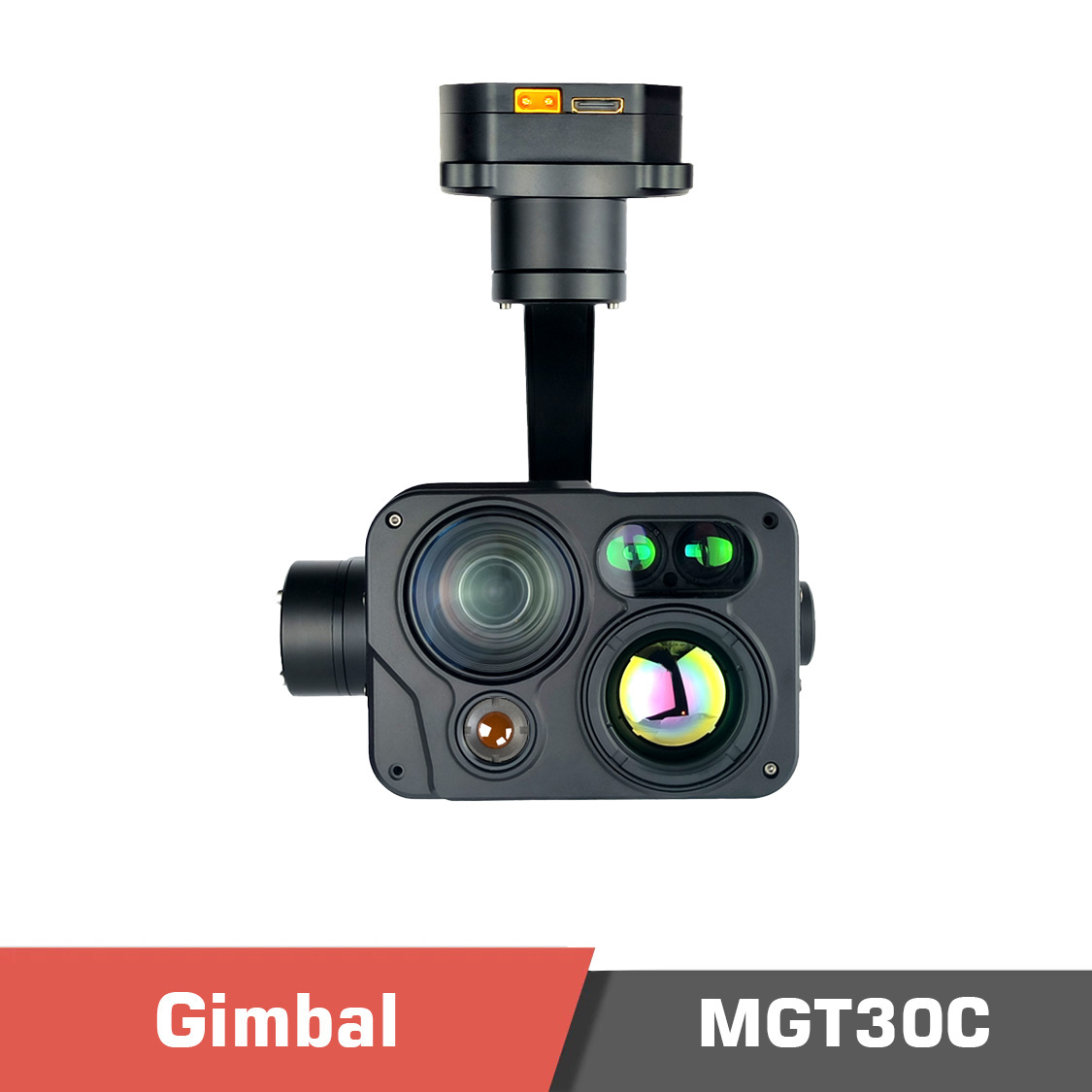

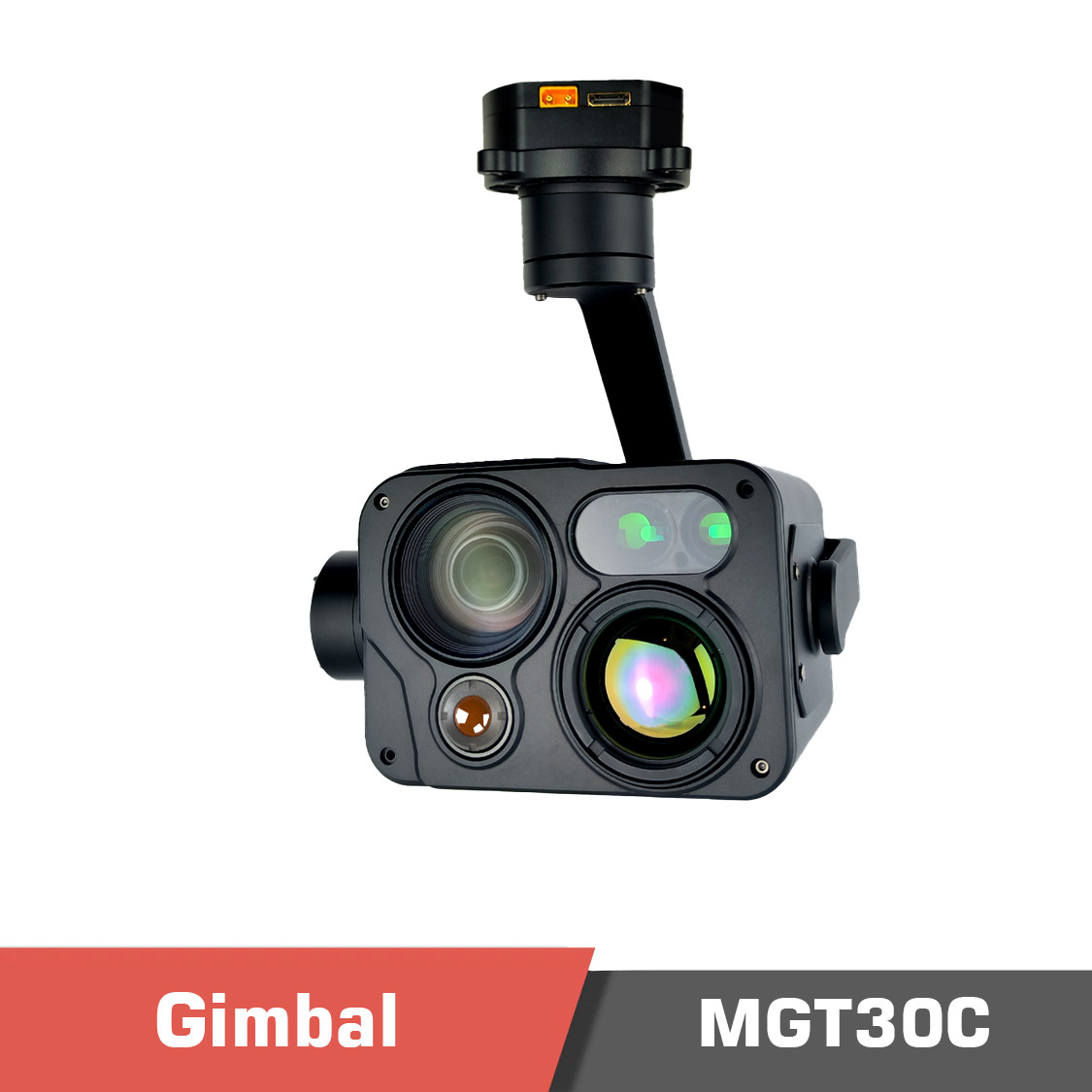

MGT30C Gimbal Camera, Dual EO with Thermal Sensor and Laser range finder

9379.00 $9679.00 $

PayPal
Visa
Master

Description

MGT30C Gimbal Camera Overview

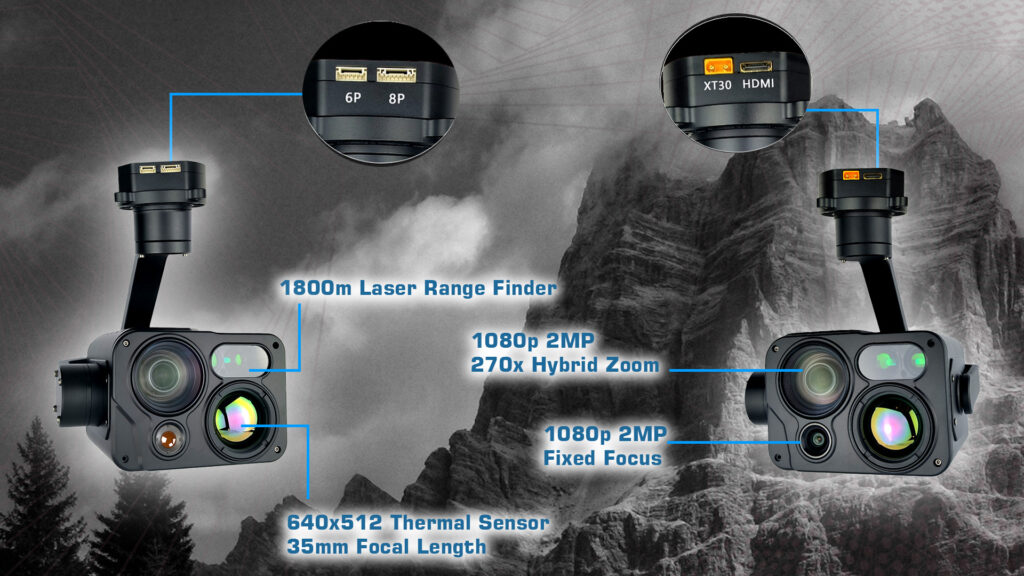

The MGT30C gimbal camera features multiple sensors and three-axis gimbal stabilization, suitable for applications where you need a drone with camera and gimbal. It integrates an EO sensor with 270x Hybrid zoom (30x HD optical zoom), a fixed-focus 1080P, a 640×512 thermal sensor with 35mm lens, and a 1800m laser ranging finder. It adopts a compact design and features high stability, high integration, and low power consumption. The visible light camera uses a wide dynamic sensor with 2MP resolution.

Thermal Sensor of MGT30C

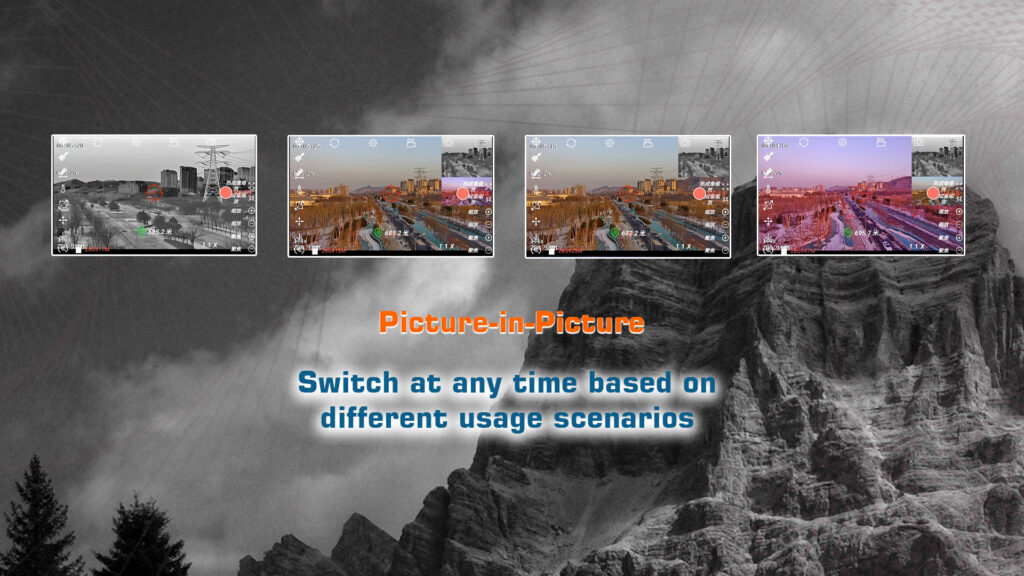

A vanadium oxide sensor is used as the thermal sensor with 640×512 resolution with a built-in baffle. A 1800m high precision laser range finder completes the other three sensors. The gimbal supports picture-in-picture display of video from dual channels. Different interfaces including ETHERNET, S.BUS, and UART are integrated to directly control the gimbal and camera.

Supports Recording Simultaneously from Dual Channels

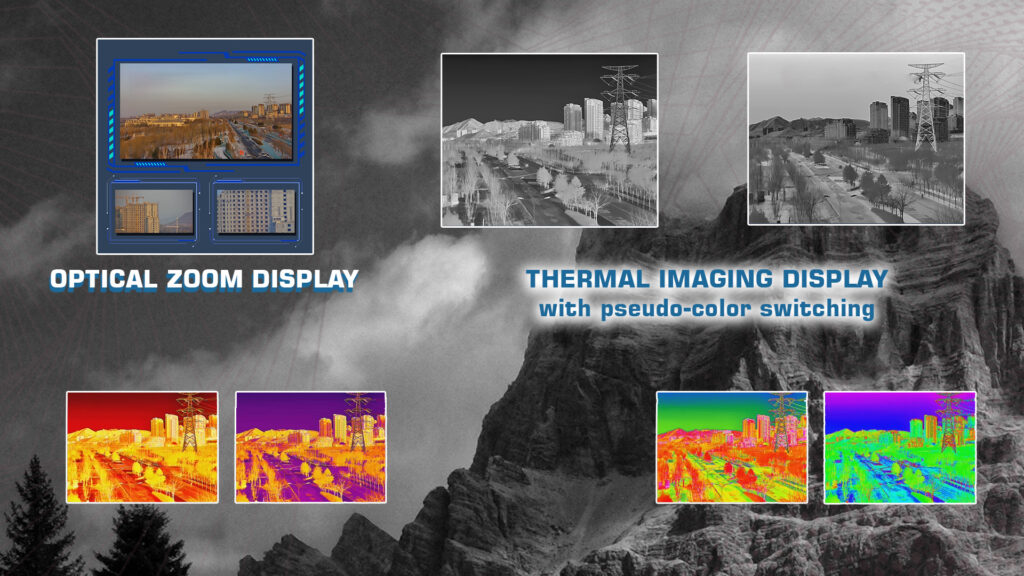

The MGT30C gimbal camera also supports recording simultaneously from dual channels on the local TF storage, as well as network file reading and writing operations. The thermal picture allows for pseudo-color switching.

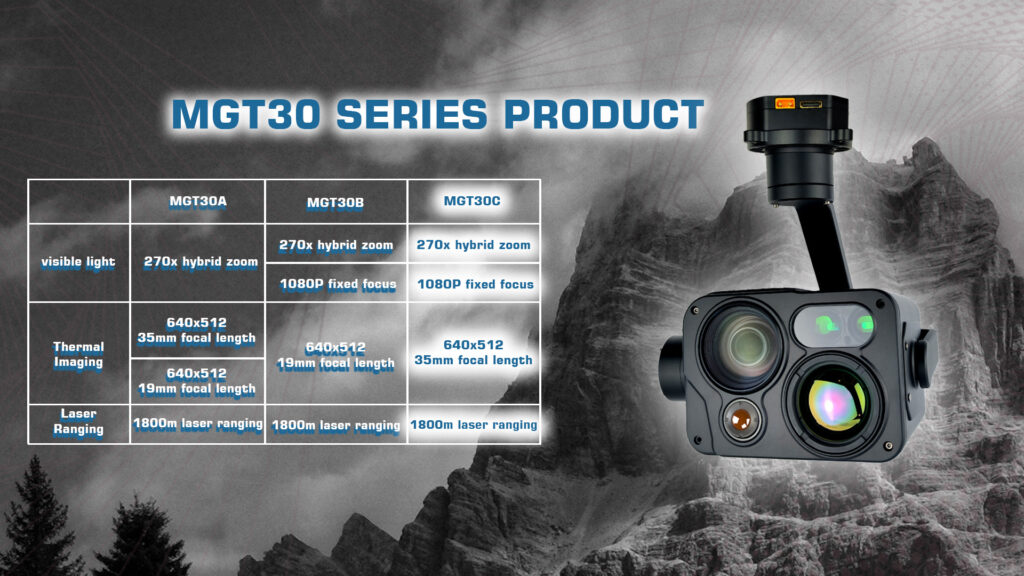

Mgt30c gimbal camera Specifications of mgt30c gimbal camera Lens of mgt30c gimbal camera Mgt30c gimbal camera eo basic parameters Mgt30c gimbal camera laser rangefinder Dual thermal imaging of mgt30c gimbal camera (35mm) Mgt30c gimbal camera display Pip of mgt30 gimbal camera (picture-in-picture) Angle action range yaw, roll, pitch of mgt30c gimbal camera Mgt30 series product mgt30a, mgt30b, mgt30c Mgt30c gimbal camera dimensions

For a comprehensive reading of related products, please visit the Motionew website.

Additional information

Weight 1.5 kg
Dimensions 21 × 21 × 21 cm
Bundle

Standard, Quick Release

Specifications

Hardware Parameter
Voltage DC 12~26.2V
Power Consumption 10W Dynamic

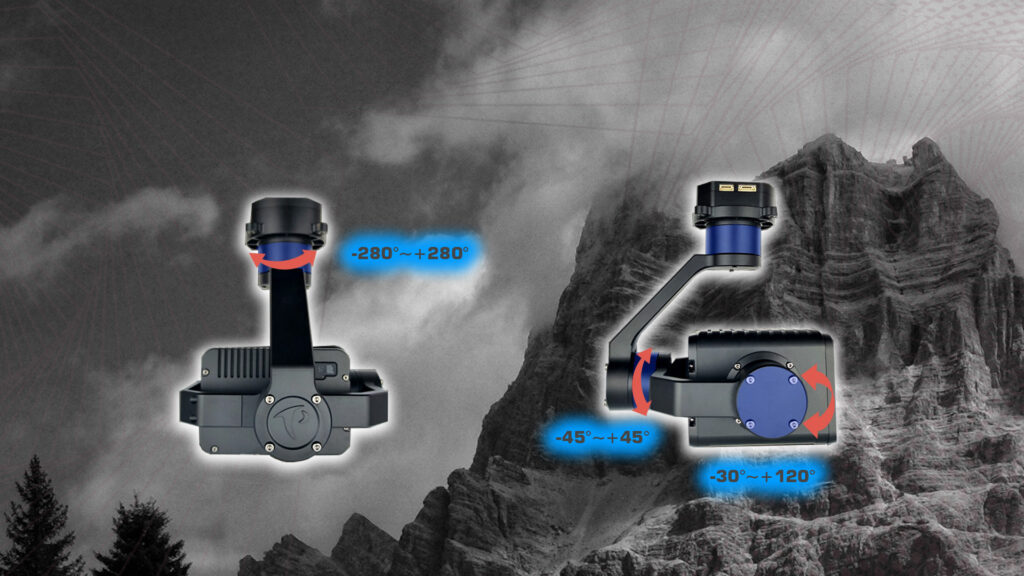

PTZ
Roll angle range -45~+45°
Pitch angle range  -30~+120°
Yaw angle action range -280~+280°
Pitch and Roll direction angular jitter ±0.02°
Amount of horizontal angular jitter ±0.03°
One-click return to center function One click automatic quick return to the initial potion lock/follow mode
PTZ control speed is adjustable When the gimbal rotates, it performs speed adaptation based on the current speed mode and visible light camera multiple
Control Mode Supports network IP control and serial port control (optional PWM control)

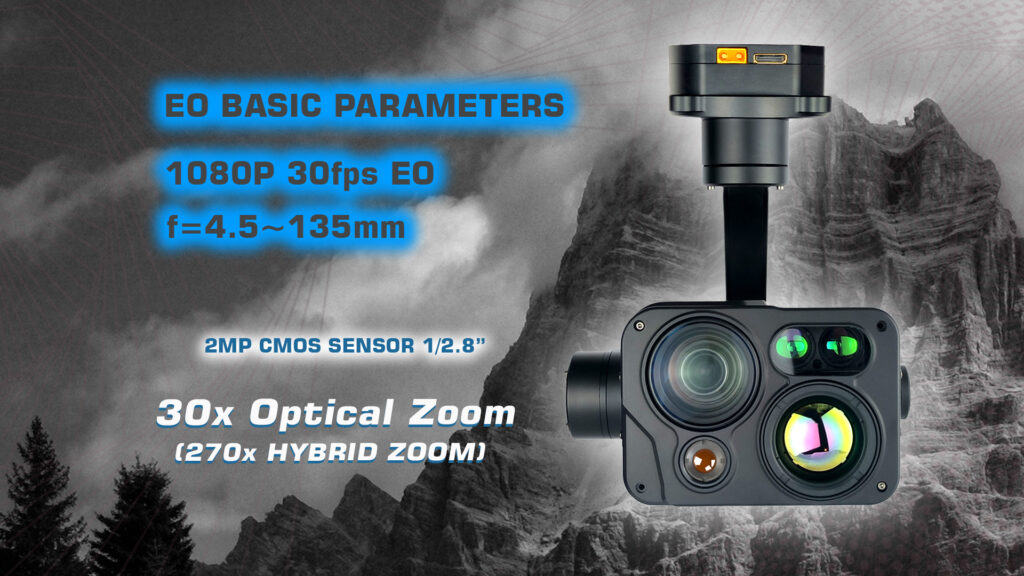

Optical Zoom EO Sensor
CMOS sensor 1/2.8 inch 200 mega pixels wide dynamic COMOS Senser
Optical zoom 30x HD optical zoom camera

f=4.5~135 mm±5%

Focus time Real-time fast focusing function, focusing time<1S
Video Output Network RTSP 1080P stream, local TF 1080Pstorage
Field of View (FOV) D: Wide 67.8°±5% Tele 2.77°±5%

H: Wide 59.8°±5% Tele 2.34°±5%

V: Wide 40.5°±5% Tele 1.48°±5%





1080P EO Fixed Sensor
CMOS sensor
CMOS SENSOR pixel: 2 mega pixel
Digital zoom Support 9x digital zoom
Compressed storage mode H264, H265,Video streaming local TF storage
(FOV)
FOV: 94.6° X 86.6°
Support mode 1080P 30fps

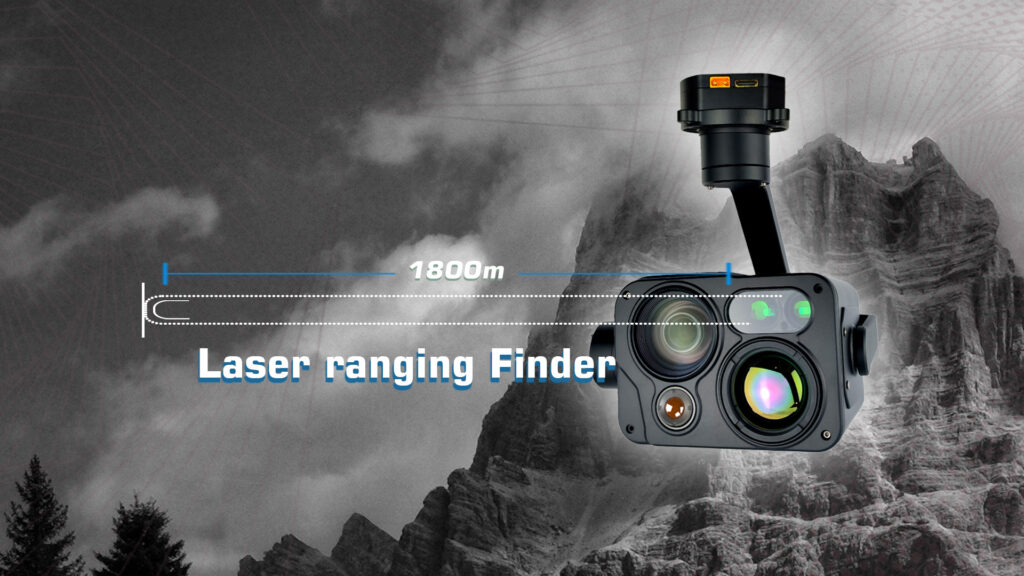

Laser Range Finder
Infrared Wavelength 905nm (class I Safety laser)
measuring range 5m~1800m
Accuracy/resolution Accurancy 400m innerside≤±1m

400m outside, ±0.4%

resolution 0.1m

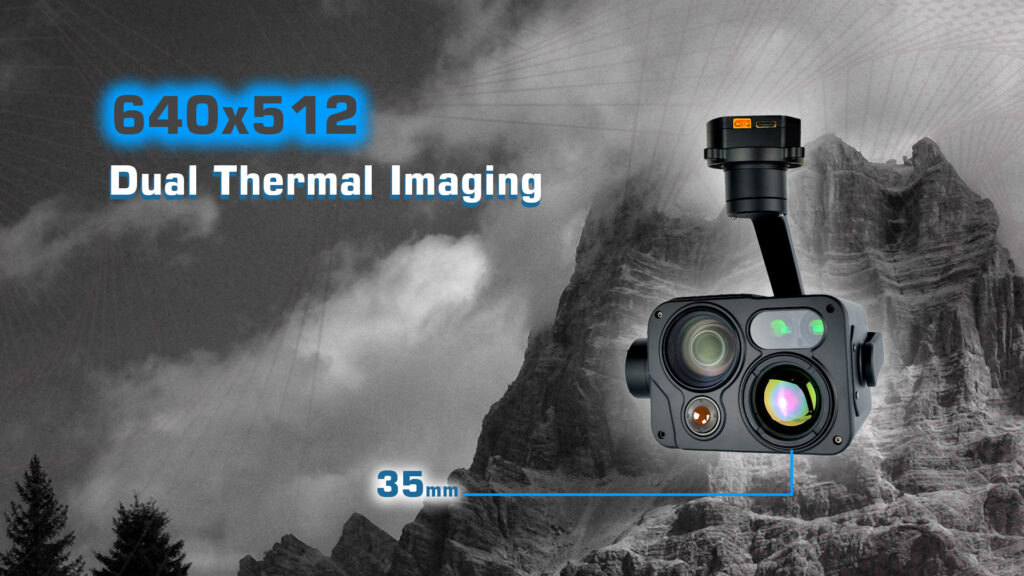

IR Thermal Imaging
resolution 640×512 pixel
Pixel spacing 12μm
Types Uncooled focal plane microbolometer
wavelength coverage 8~14μm
heat sensitivity(NETD) [email protected]
Contrast, pseudo-color Adjustable, multiple pseudo-color modes
FOV 35mm focal length, FOV: 12.52°x10.03°
Measuring function Support global temperature measurement, optional full pixel temperature saving function





Other Parameters

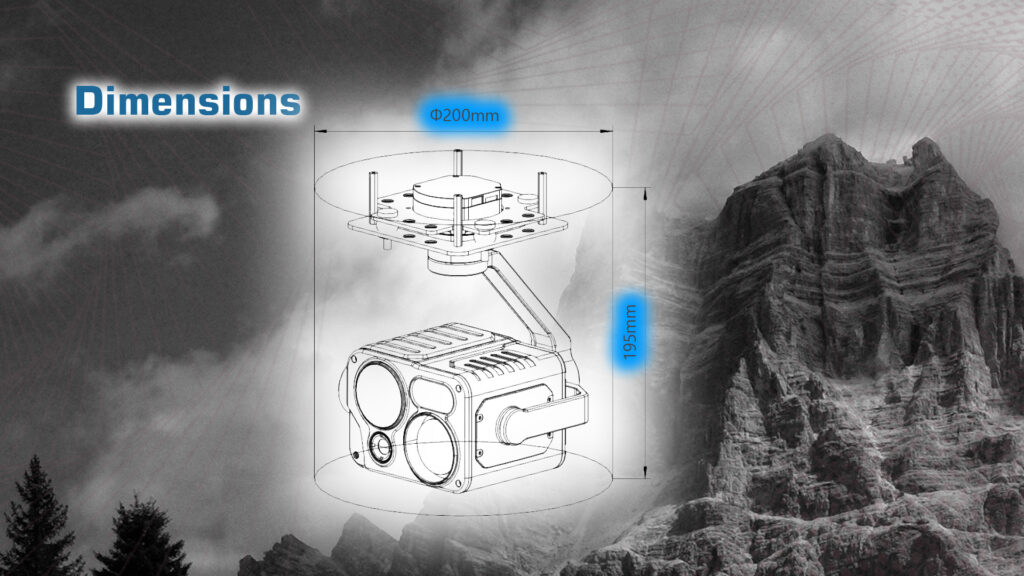

Size ϕ: 200mm, H:195mm
work environment -20°C to +45°C / 20% to 80% RH
Storage environment -30°C to +60°C / 20% to 95% RH

Product contents

1 set of MGT30C gimbal

Documents

Please contact us for more information.
