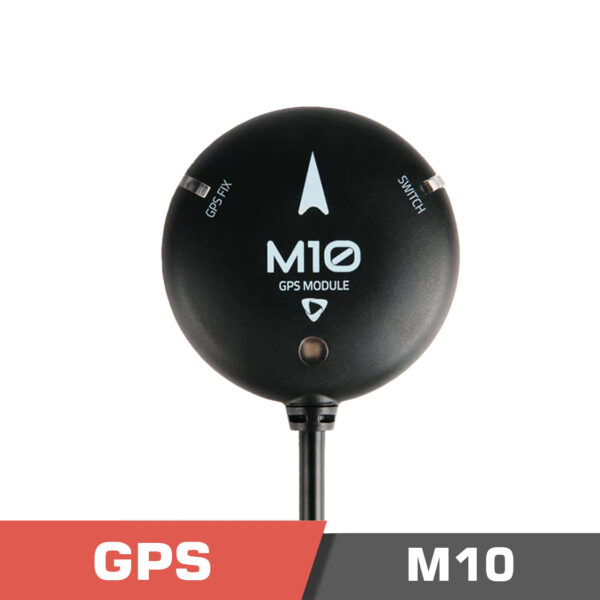

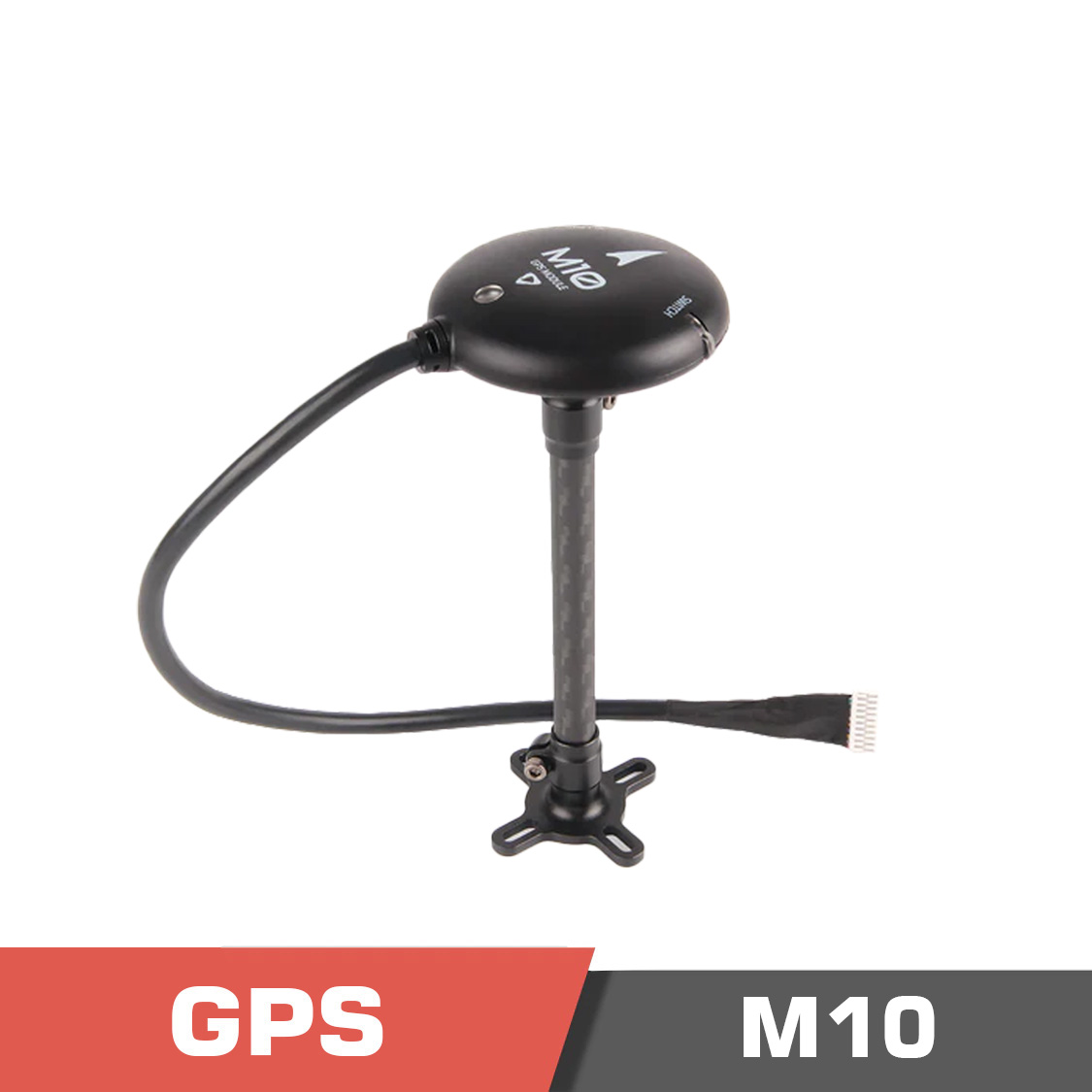

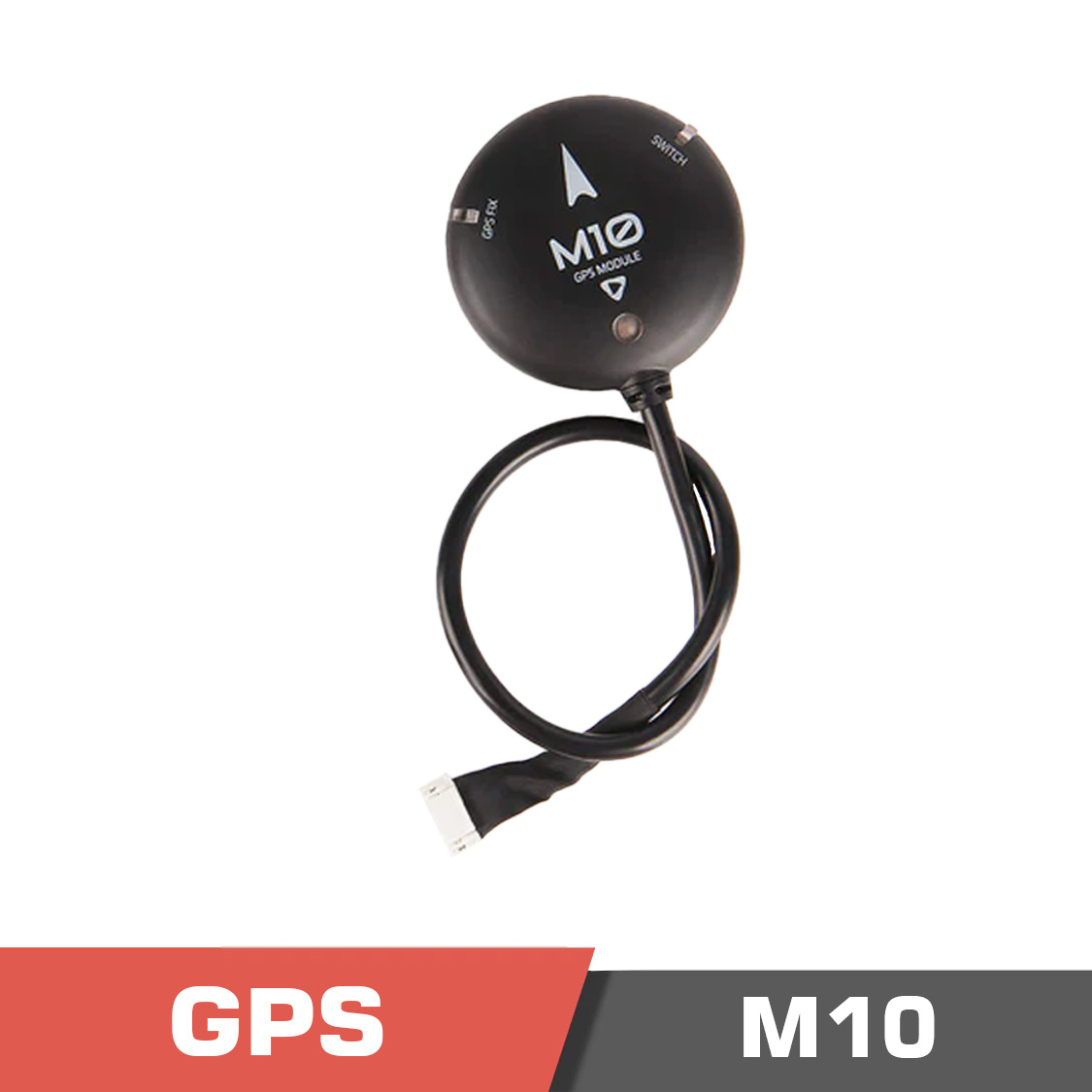

Holybro M10 GPS
Description
Holybro M10 GPS Overview
The Holybro M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It is equipped with a UBLOX M10 module, an IST8310 compass, a tricolored LED indicator, and a safety switch. Depending on the purpose, there are three different connector options available. A 115200 5Hz baud rate is provided with the module when purchased.

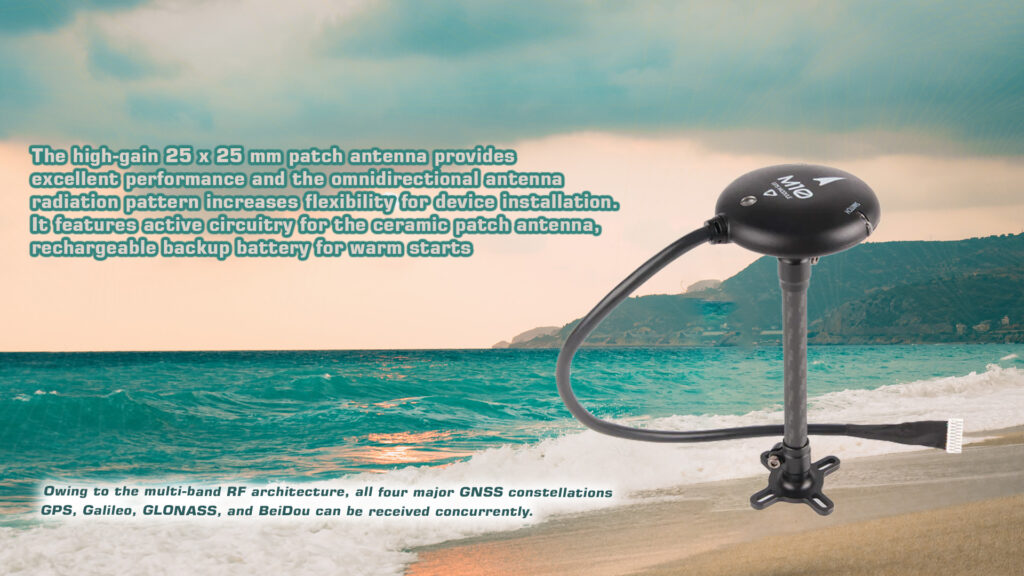

The high-gain 25×25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

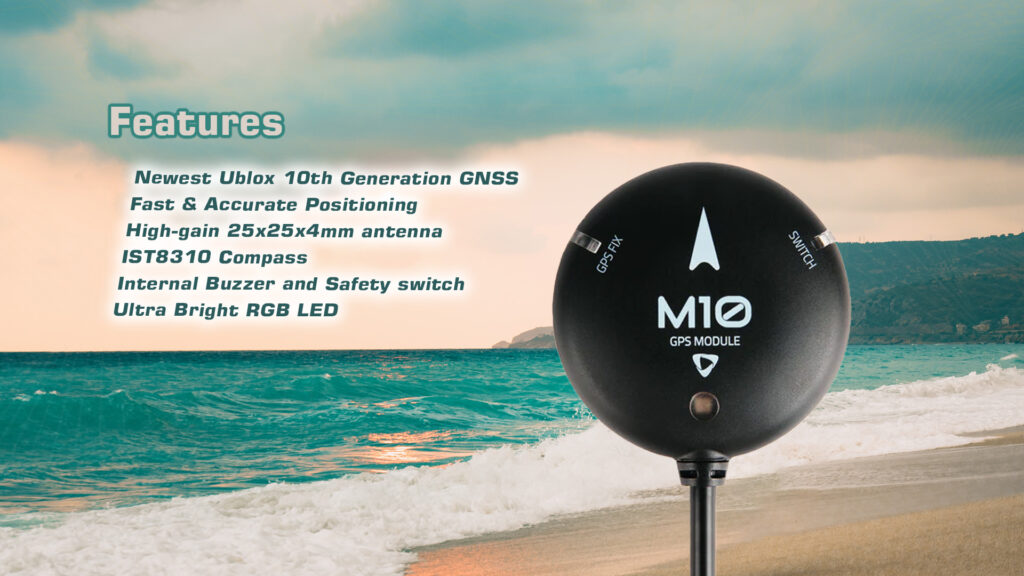

M10 GPS Features
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- High-gain 25x25x4mm antenna
- IST8310 Compass
- Internal Buzzer, Safety switch
- Ultra Bright UI RGB LED
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
Holybro M10 GPS – FAQ
1. What is the main function and architecture of the Holybro M10 GPS?
The Holybro M10 GPS is a high-precision, multi-constellation GNSS module powered by the u-blox M10 chipset. It provides fast, accurate, and stable positioning for UAV applications, supporting concurrent reception of multiple satellite systems.
2. Which satellite systems and technologies does the M10 GPS support?
It can receive GPS, Galileo, GLONASS, and BeiDou signals simultaneously through its multi-band RF front-end, ensuring robust and reliable positioning in various environments.
3. What components and features are integrated in the M10 GPS module?
The unit includes a u-blox M10 receiver, an IST8310 compass, a 25×25 mm high-gain patch antenna, an internal buzzer, a safety switch, and an ultra-bright RGB status LED. It also has a rechargeable backup battery for faster warm starts.
4. What are the available purchasing and delivery options for the Holybro M10 GPS?
It is available in different configurations, including standard, second GPS, and Pix32/Pixhawk compatibility options. Motionew provides international shipping with tracking and estimated delivery times shown during checkout.
5. Does Motionew support OEM and bulk purchase options for this model?
Yes. OEM and wholesale programs are available for UAV manufacturers and integrators. Buyers can request custom cabling, firmware setup, and bulk pricing through Motionew’s sales department.
6. What documentation and support resources are provided?
User manuals, pinout diagrams, and configuration guides are available in the documentation section. Firmware updates and technical support are provided through Holybro and Motionew’s engineering support teams.
Specifications
Specifications
| Holybro M10 GPS | Holybro M9N GPS | |
| GNSS Receiver | Ublox M10 | Ublox M9N |
| Number of Concurrent GNSS | Up to 4 GNSS | Up to 4 GNSS |
| BeiDou | BeiDou | |
| Galileo | Galileo | |
| GLONASS | GLONASS | |
| GPS | GPS | |
| QZSS | QZSS | |
| Frequency Band | GPS L1 | GPS L1 |
| Galileo E1 | Galileo E1 | |
| GLONASS L1 | GLONASS L1 | |
| BeiDou B1 | BeiDou B1 | |
| SBAS L1 | SBAS L1 | |
| QZSS L1 | QZSS L1 | |
| Compass | IST8310 | IST8310 |
| Output Protocol | UBX (U-blox) | UBX (U-blox) |
| NMEA | NMEA | |
| Accuracy | 2.0m CEP | 1.5m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS) | Up to 25 Hz (4 concerrent GNSS) |
| Up to 10 Hz (4 concurrent GNSS) | ||
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS | EGNOS, GAGAN, MSAS and WAAS |
| QZSS: L1S | QZSS: L1S | |
| Default Baud Rate | 115200 | 115200 |
| Input Voltage | 4.7-5.2V | 4.7-5.2V |
| Port Type | JST-GH-10P | JST-GH-10 |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
| Operating Temperature | -40~80℃ | -40~80℃ |

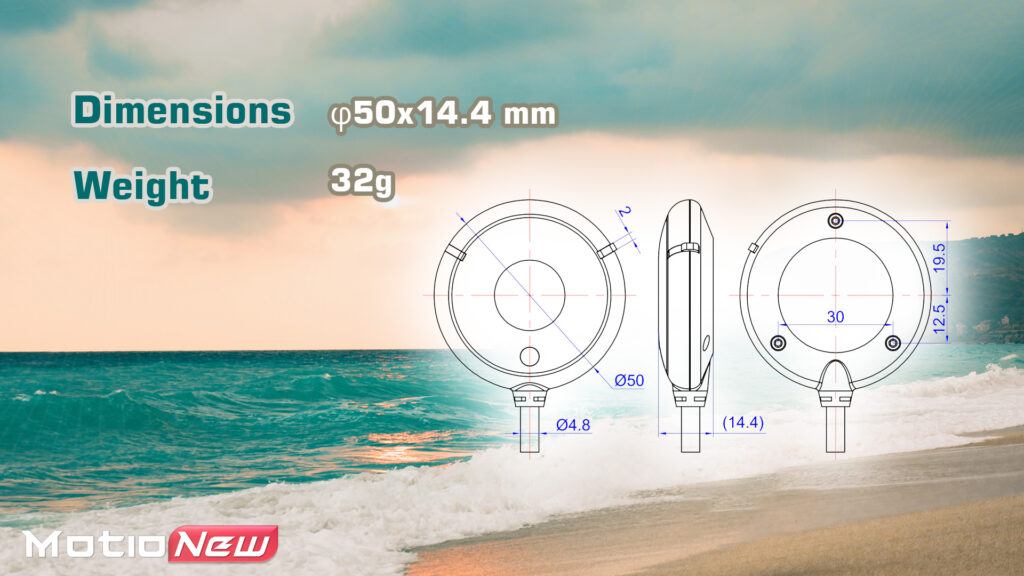

| Dimension | φ50 x14.4 mm | φ50 x14.4 mm |
| Weight | 32g | 32g |
| Cable Length | 26cm (42cm cable purchase separately) | 26cm (42cm cable purchase separately) |
| Other | Tri-color LED | Tri-color LED |
| Onboard Buzzer | Onboard Buzzer | |
| Safety Switch | Safety Switch | |
| LNA MAX2659ELT+ RF Amplifier | LNA MAX2659ELT+ RF Amplifier | |
| Rechargeable Farah capacitance | Rechargeable Farah capacitance | |
| Low noise 3.3V regulator | Low noise 3.3V regulator |
Documents
Documents
Please contact us for more information.

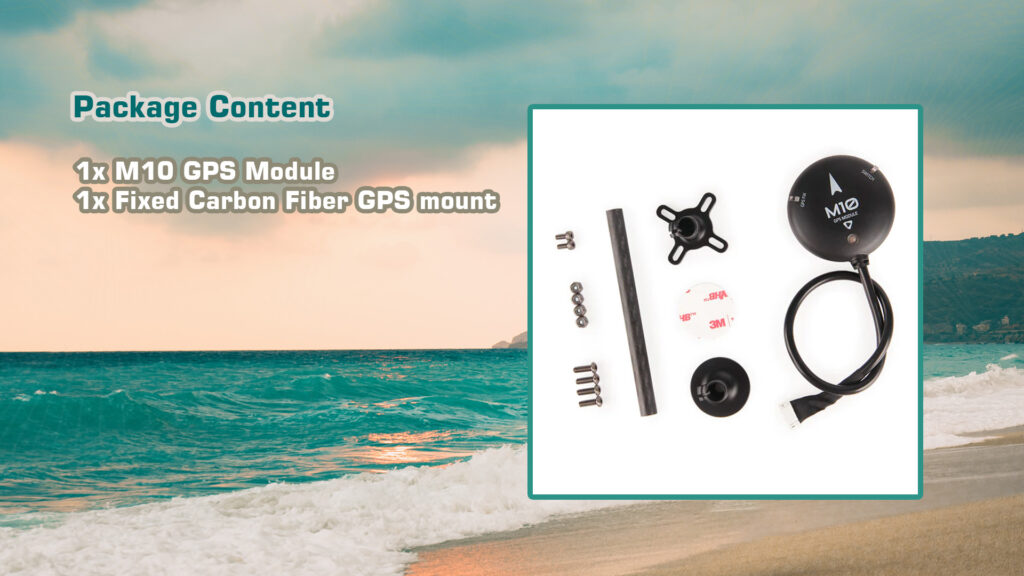

Product contents
Product contents
- 1x M10 GPS Module
- 1x Fixed Carbon Fiber GPS mount

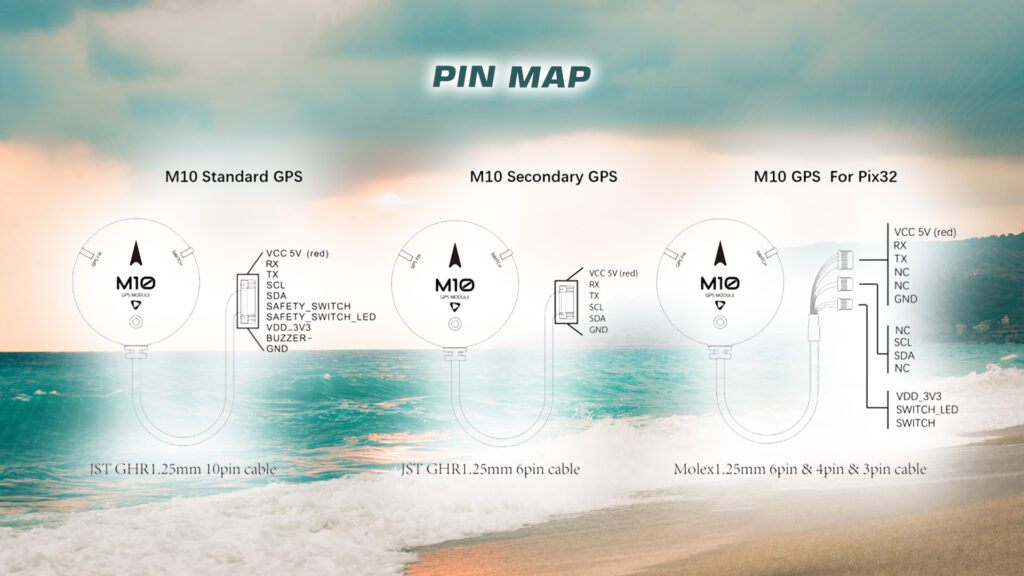

Bundle 1 – Holybro M10 GPS (JST GHR1.25mm 10pin cable):
This connector can be used on Pixhawk Standard Flight Controller 10pin “GPS Module” or “GPS1” input port.
Bundle 2 – Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable):
This connector can be used on Pixhawk Standard Flight Controller 6pin“UART & I2C” or “GPS2” input port as secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.
Bundle 3 – Holybro M10 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):
These connectors are for “Switch”, “GPS”, and “I2C” input ports on the Pix32/Pixhawk1/Pixhawk 2.4.6/2.4.8
Reviews
2 reviews for Holybro M10 GPS
Clear filtersYou must be logged in to post a review.
Related Products

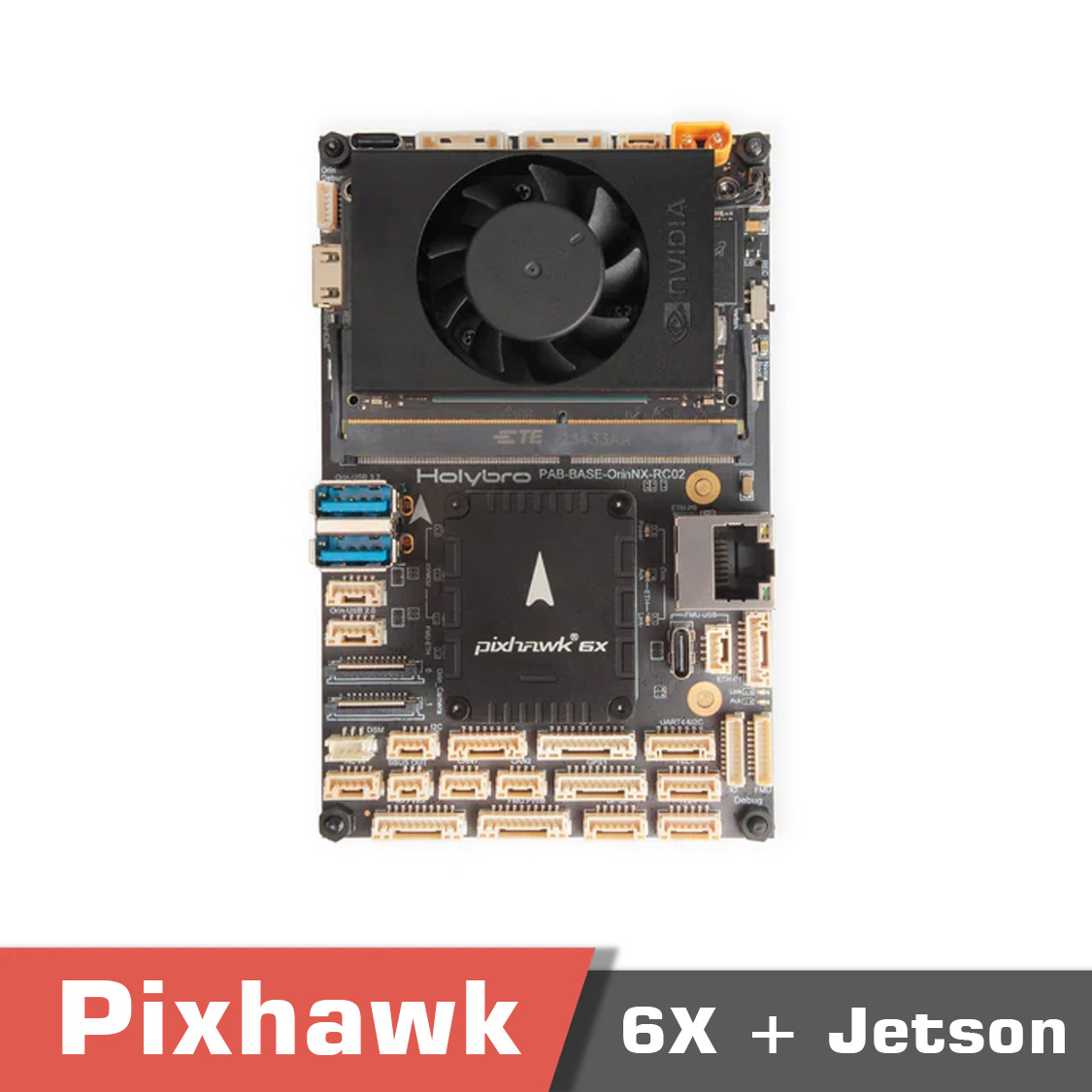

NEW Holybro Pixhawk 6X UAV Flight Controller ICM-45686
