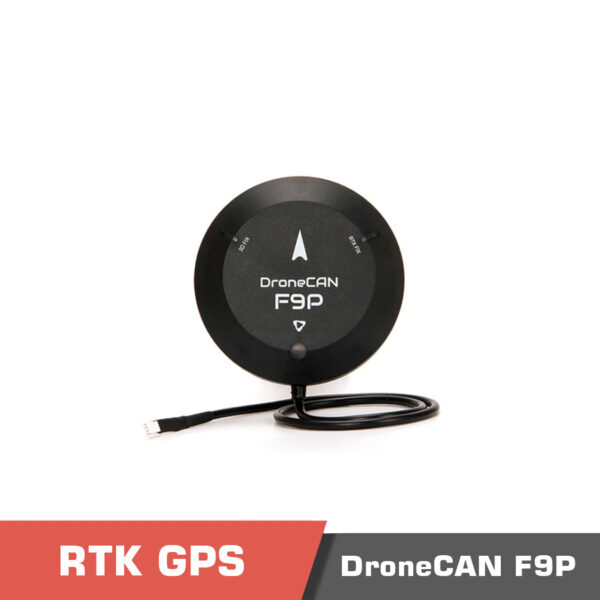

Holybro DroneCAN H-RTK F9P Rover

DroneCAN H-RTK F9P Rover Overview

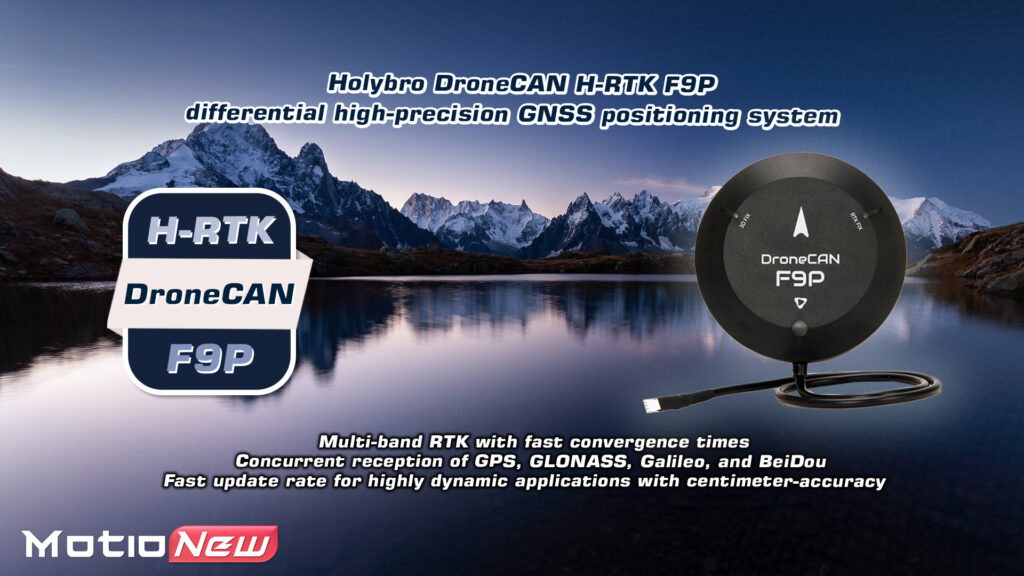

The DroneCAN H-RTK F9P Rover is the latest differential high-precision RTK GNSS positioning system from Holybro. It has adopted the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and a fast update rate for highly dynamic and high volume applications with centimeter-level accuracy.

Enhanced Navigation and Robust Connectivity with DroneCAN Protocol

Leveraging the DroneCAN Protocol, the system offers an 8Hz navigation update rate, enhanced upgradeability, and strong noise immunity. It provides real-time features and greater robustness compared to UART, thanks to its superior resistance to electromagnetic interference. Additionally, it frees up the flight controller‘s serial ports, allowing multiple CAN devices to be connected to a single CAN bus using a hub, simplifying device integration.

High-Performance Integration with Pixhawk Compatibility

The DroneCAN-GPS integrates a u-blox ZED-F9P module, a BMM150 compass, and a tri-color LED indicator, powered by the STM32G4 processor running at 170 MHz with 512 KB of Flash memory and 96KByte of RAM. It supports firmware upgrades through the DroneCAN GUI Tool and is fully compatible with the open-source Pixhawk flight controllers.

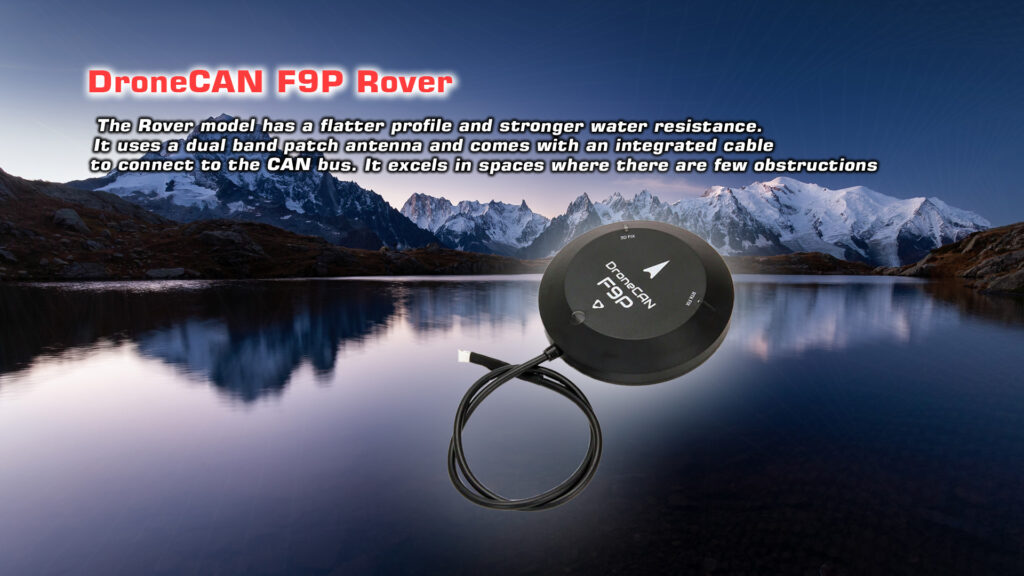

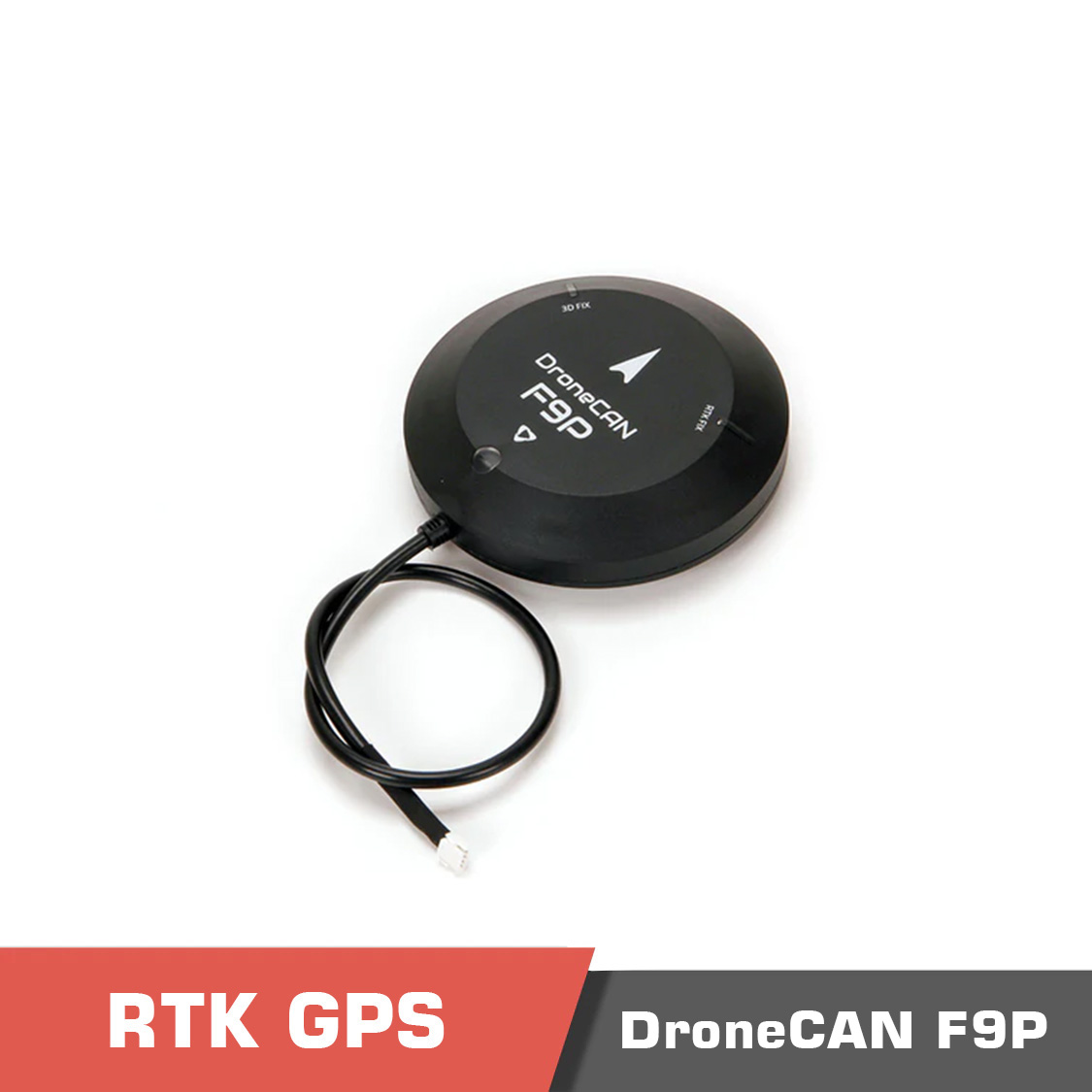

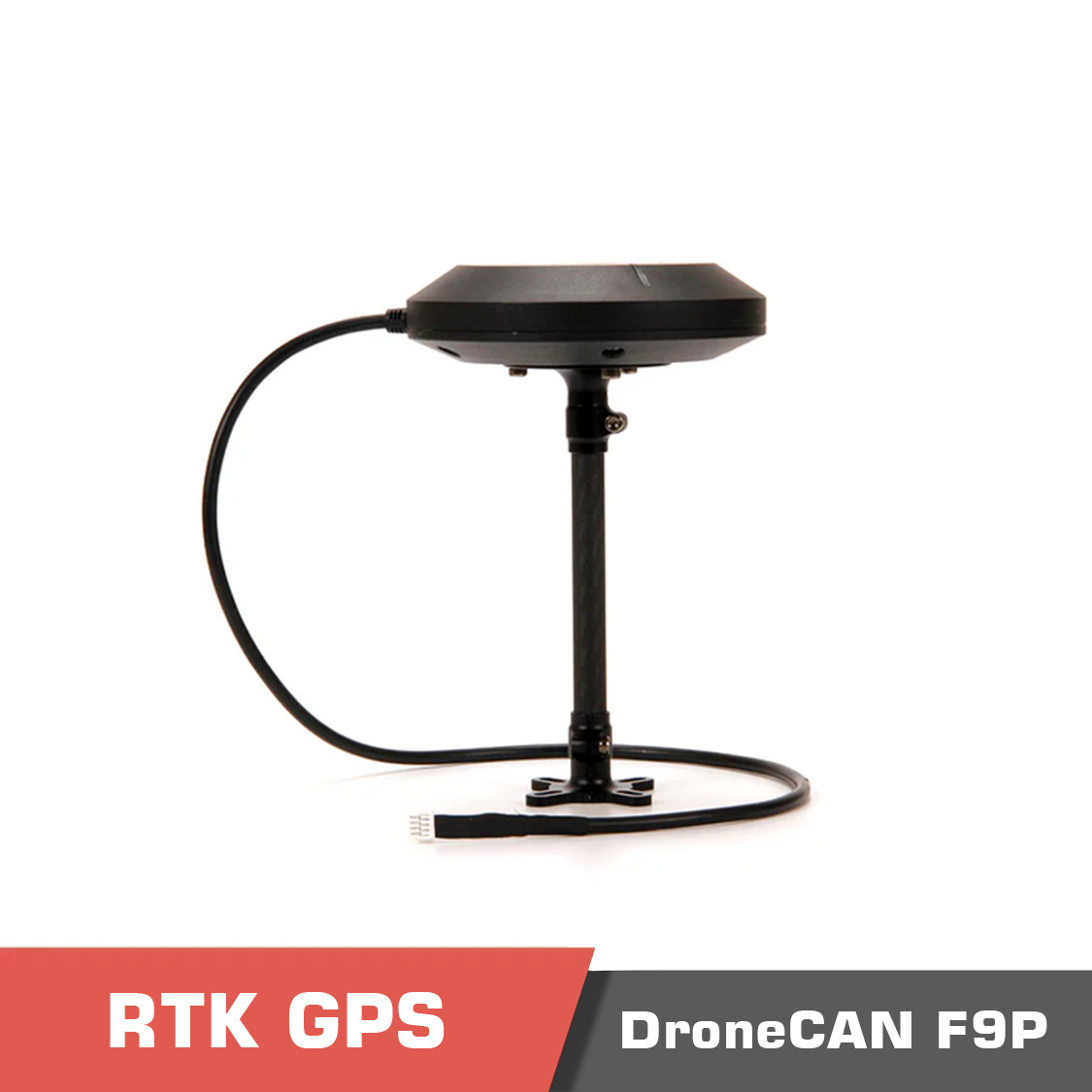

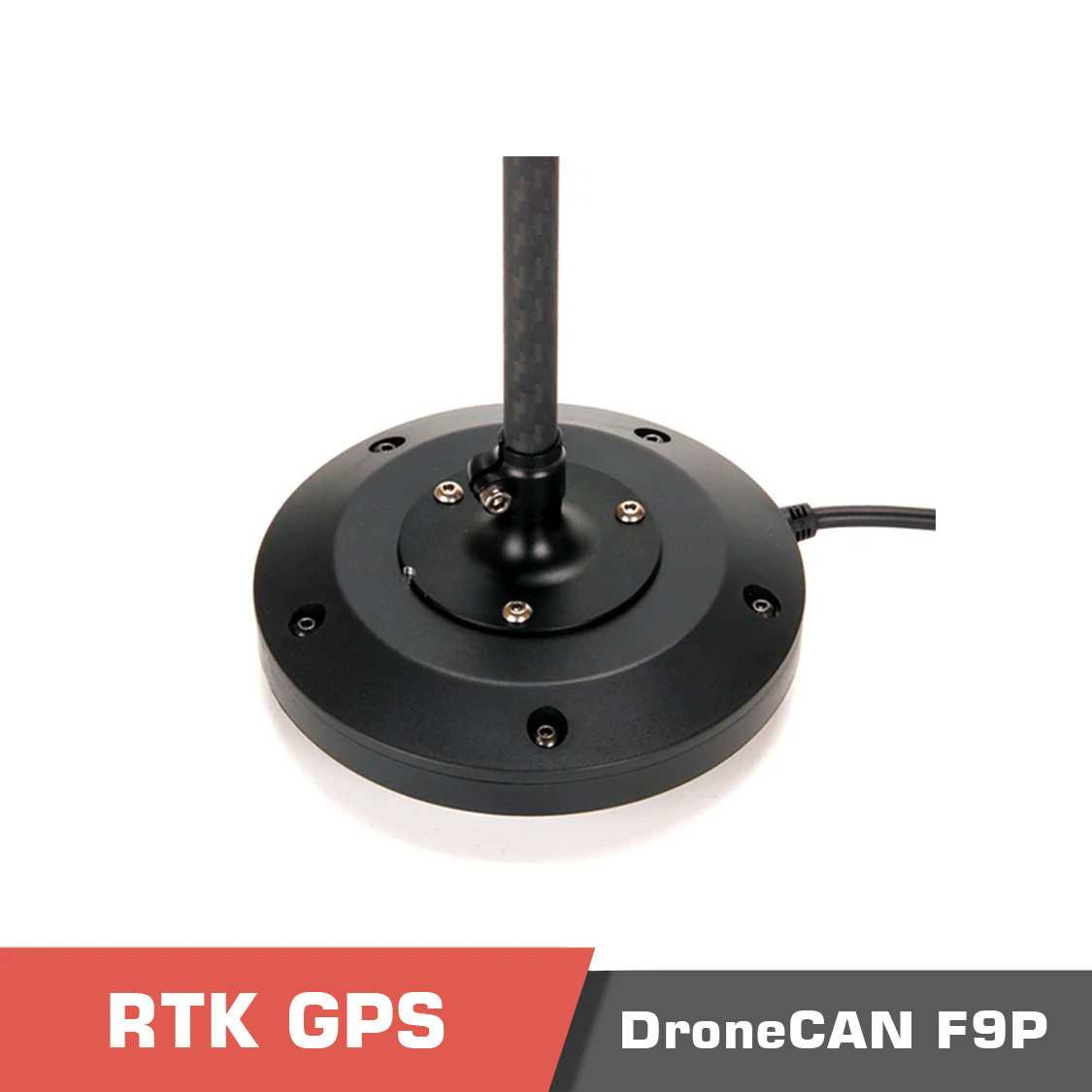

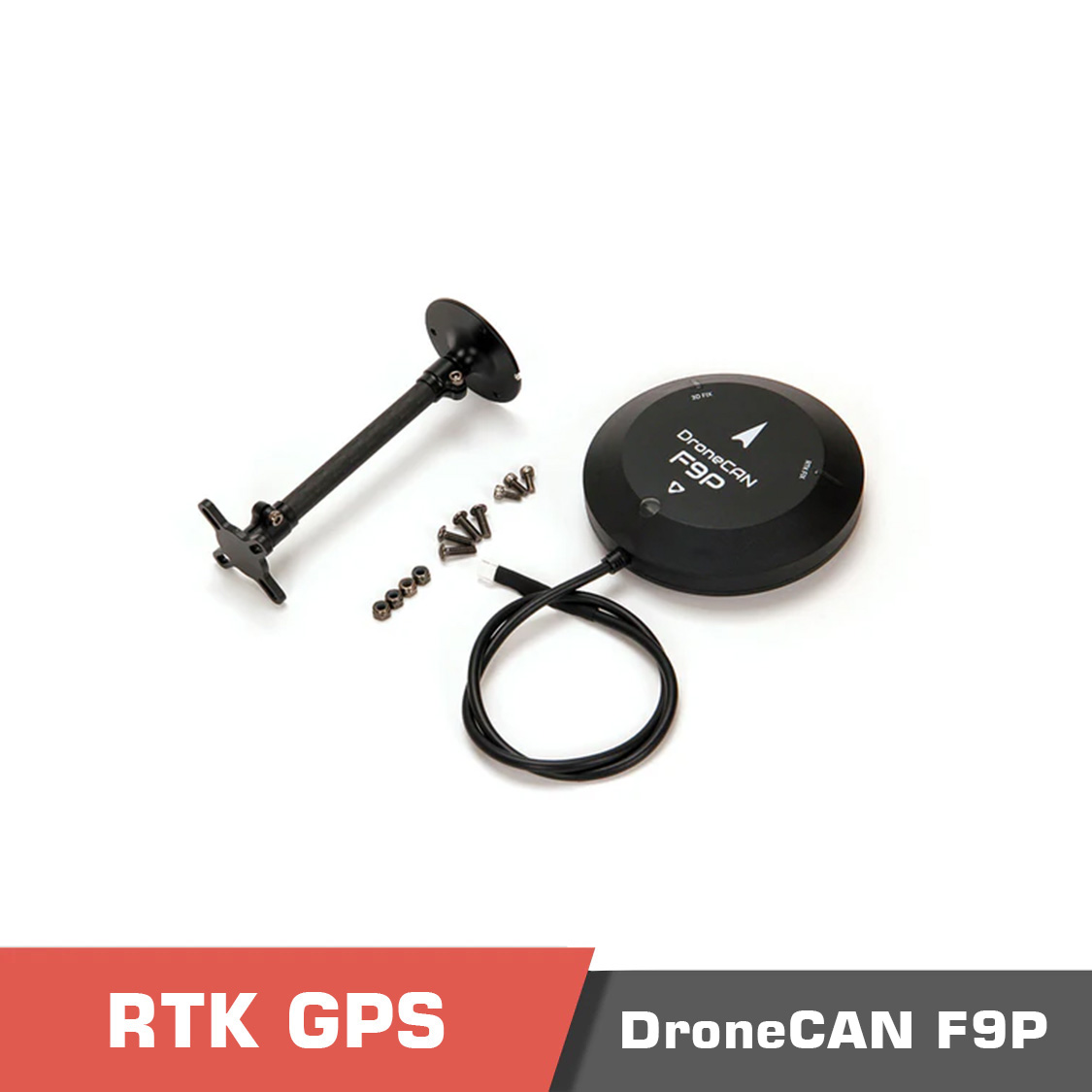

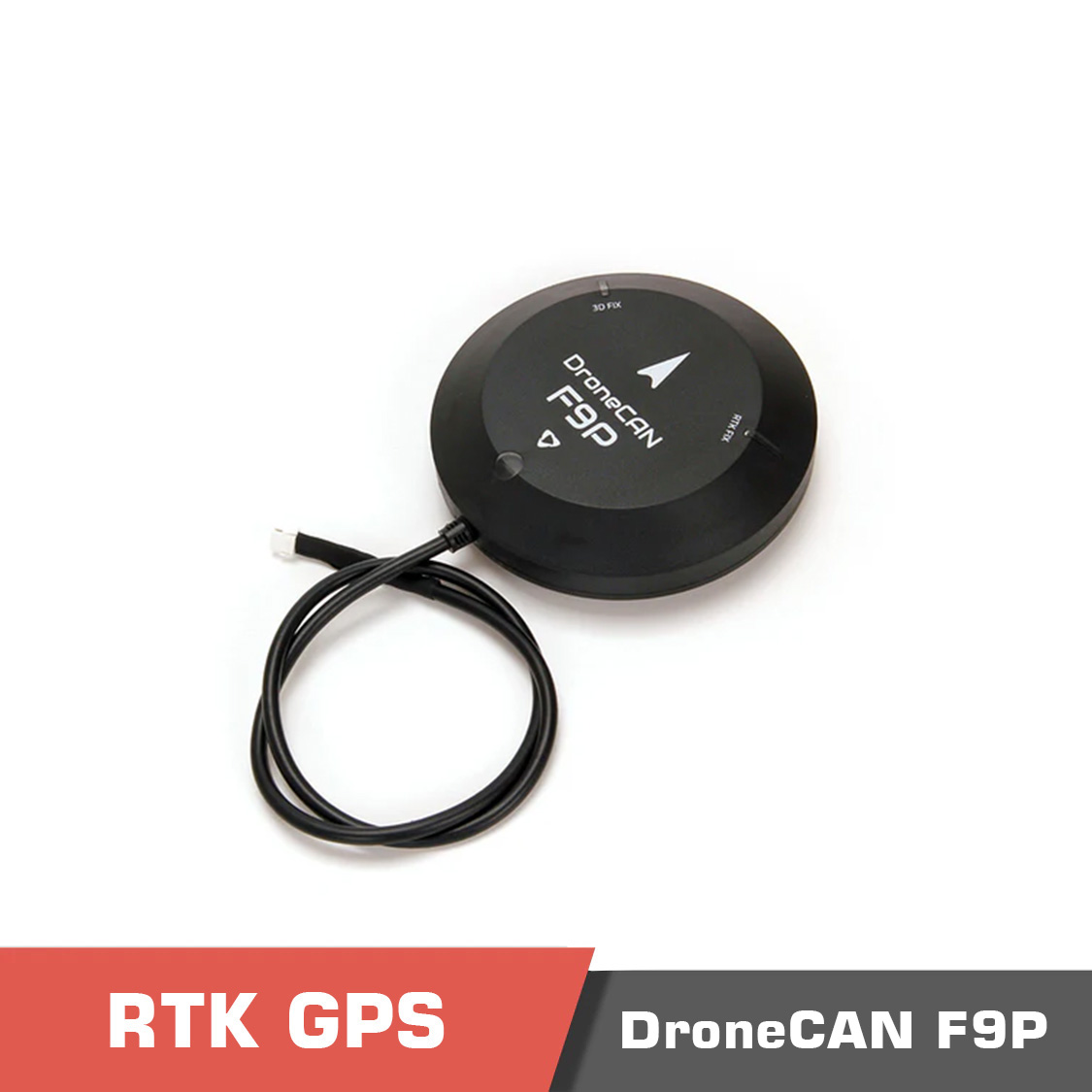

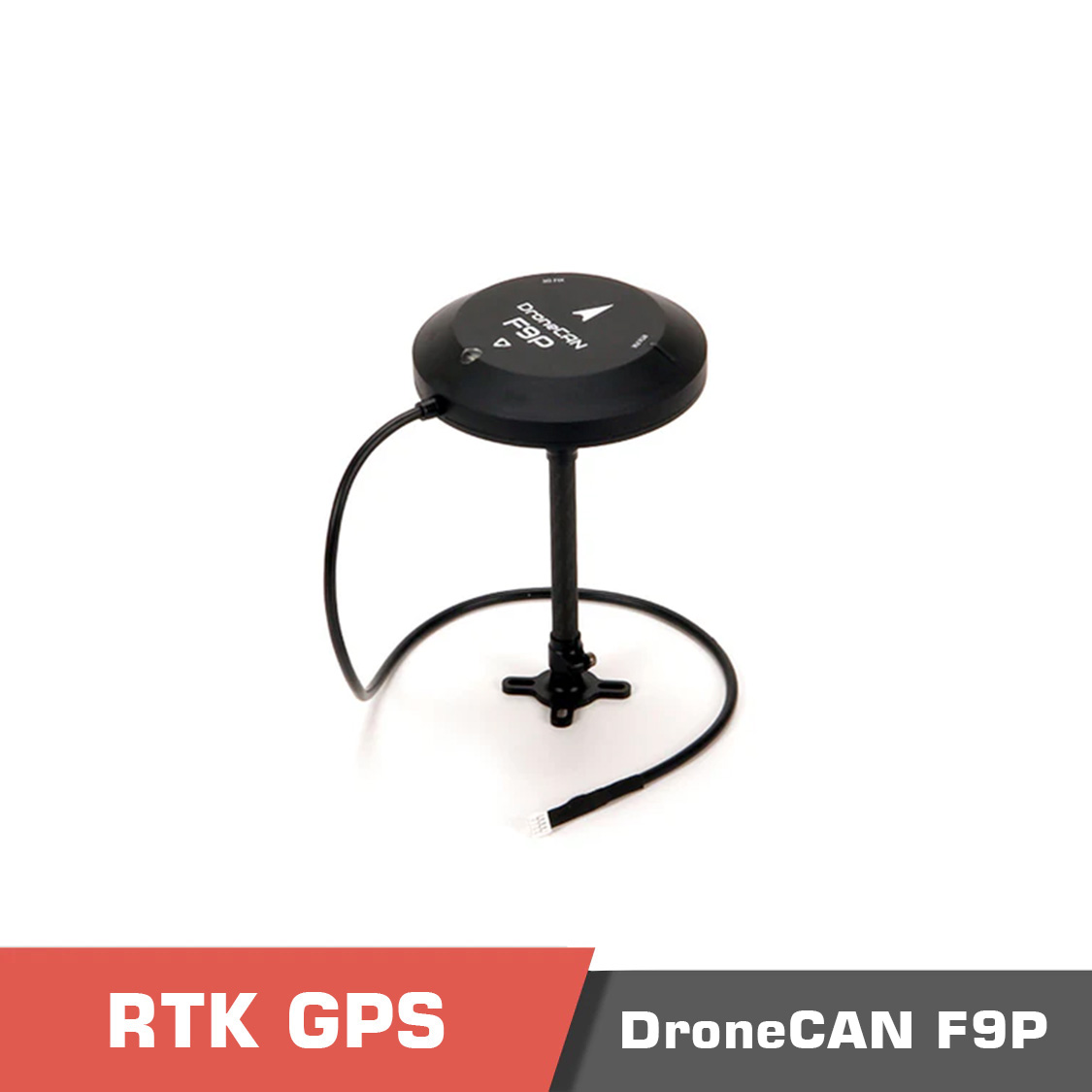

DroneCAN F9P Rover

The Rover model has a flatter profile and stronger water resistance. It uses a dual band patch antenna and comes with an integrated cable to connect to the CAN bus. It excels in spaces where there are few obstructions.

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

DroneCAN H-RTK F9P – FAQ

1. What is the main function and design of the DroneCAN H-RTK F9P?
The DroneCAN H-RTK F9P is a high-precision, multi-band GNSS module based on the u-blox F9P chipset. It provides centimeter-level accuracy and stable positioning for professional UAV navigation and mapping applications.

2. Which satellite systems and technologies does it support?
It supports GPS, Galileo, GLONASS, and BeiDou constellations with concurrent multi-frequency tracking (L1/L2 and equivalents), ensuring robust and reliable positioning performance.

3. What processing and communication capabilities are integrated?
The module includes a dedicated STM32 processor and DroneCAN interface, allowing efficient data transmission and easy integration with Pixhawk, CUAV, and other PX4-based flight controllers.

4. What are the purchasing and delivery options for the DroneCAN H-RTK F9P?
It is available as a standalone unit or as part of a base and rover kit. Motionew provides worldwide shipping with order tracking and estimated delivery times displayed during checkout.

5. Does Motionew support OEM and bulk purchasing for this model?
Yes. OEM and bulk order options are available for UAV manufacturers and mapping system developers. Buyers can request custom wiring, firmware setup, and quantity-based pricing through Motionew’s sales department.

6. What documentation and support resources are provided?
Detailed user manuals, wiring diagrams, and configuration guides are available in the product documentation section. Firmware updates, configuration tools, and technical support are provided by Motionew and u-blox developer resources.
