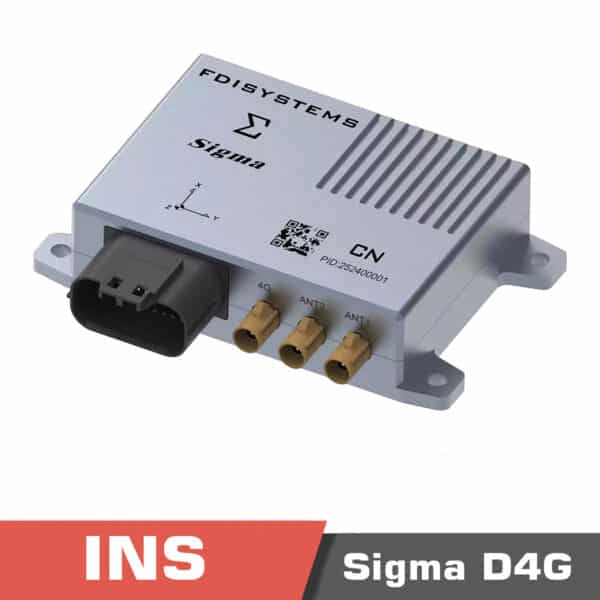

Sigma D4G FOG IMU

1,650.00 $

Payment Methods:

Payment methods - sigma d4g fog imu - motionew - 2
Description

Sigma D4G FOG IMU – High-Precision Navigation Module for UAV and Robotics Applications

The Sigma D4G FOG IMU is a cutting-edge flight controller accessory that delivers unmatched accuracy in navigation and inertial measurement for UAVs, autonomous vehicles, and robotics systems. Engineered with a fiber optic gyroscope (FOG) and enhanced GNSS RTK positioning, this module ensures rock-solid stability, real-time responsiveness, and centimeter-level accuracy even in challenging environments.

Key Features:

  • Ultra-precise orientation: 0.05° roll/lean accuracy, 0.1° absolute course with 2m baseline

  • High-accuracy positioning: Single-point: 1.5m H / 2.0m V | RTK: 0.8cm + 1ppm H / 1.5cm + 1ppm V

  • Reliable velocity tracking: Up to 0.03 m/s accuracy with RTK

  • Rapid GNSS acquisition: 1s warm start, with 20ns timed accuracy

  • Robust IMU output: Data rates up to 1000Hz for high-frequency control loops

Designed with versatile communication ports (RS232, RS422, CAN, USB) and multi-protocol support (FDILink, NMEA 0183/2000, RTCM, Simrad), the Sigma D4G ensures seamless integration with modern autopilot systems. Its rugged IP5X-rated casing and wide operating temperature range (-40°C to 85°C) make it a reliable choice for both aerial and ground operations.

Compact and power-efficient, the D4G runs on 8–48V input and consumes just 2.5W, making it ideal for mission-critical systems where performance and efficiency matter.

Optimize your UAV navigation performance with the Sigma D4G – a professional-grade IMU built for precision, durability, and fast data fusion.

Browse more flight controller accessories at Motionew’s UAV navigation systems to enhance your drone’s flight stability and control.

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Specifications

NAVIGATION
Leaning/Rolling 0.05°
Relative course’ (locked 10s) 0.1°
Absolute course 0.1 ° / 2m baseline
Horizontal position Single point: 1.5m | RTK: 0.8cm + 1ppm
Vertical position Single point: 2.0 m | RTK: 1.5cm + 1 ppm
Speed accuracy Single point:0.1 m/s | RTK:0.03 m/s
Navigation data output frequency 500 Hz, 1000 Hz (IMU data)
Warm start 1s
Position extrapolation accuracy 0.1 % or 0.05 m
Timed accuracy 20 ns



Specifications
Ports RS232*2, RS422*1 (up921600bps) , CAN*1 (1M) , USB*1 (blackbox) , SYNC*1 (1PPS), GPIO*2
Interface & Antenna
Protocol FDILink, NMEA 0183 / NMEA 2000(CAN), Simrad,RTCM / INTRIP
Working environment Protect: IP5X

Operating temperature: :-40°C ~ 85°C

Size 115 × 69 × 27 mm
Weight 200g
Voltage 8-48V@ Instantaneous load capacity ≥1A
Power consumption 2.5W





Product contents

Product contents

Please contact us for more information.

Documents

Documents

Please contact us for more information.
