NAV40P Inertial Navigation System (INS)

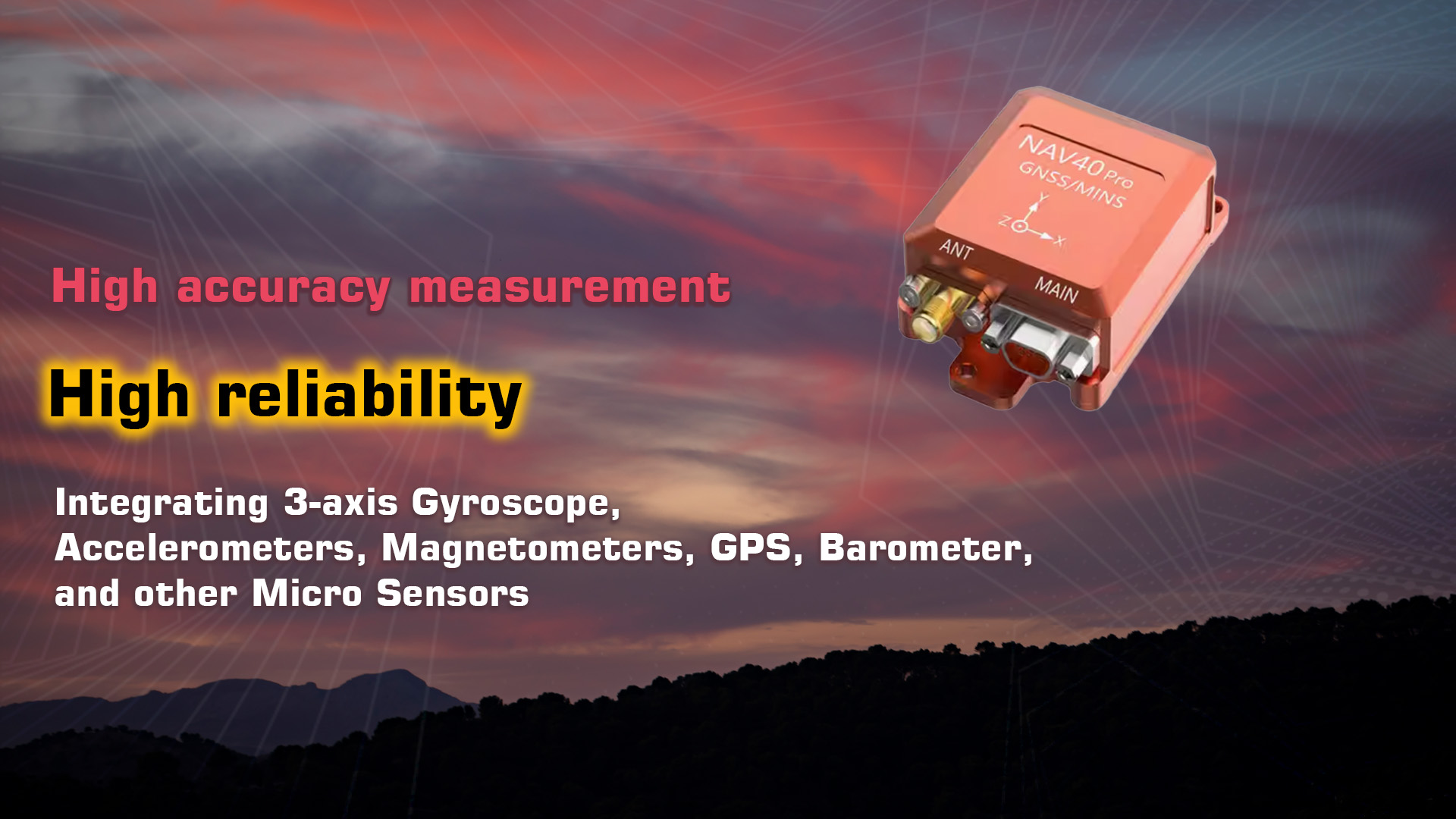

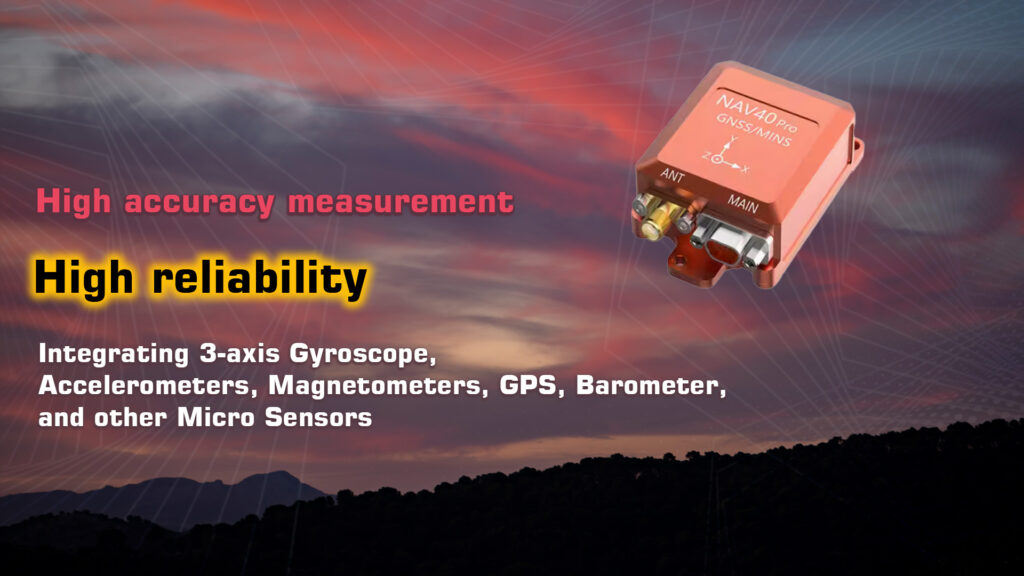

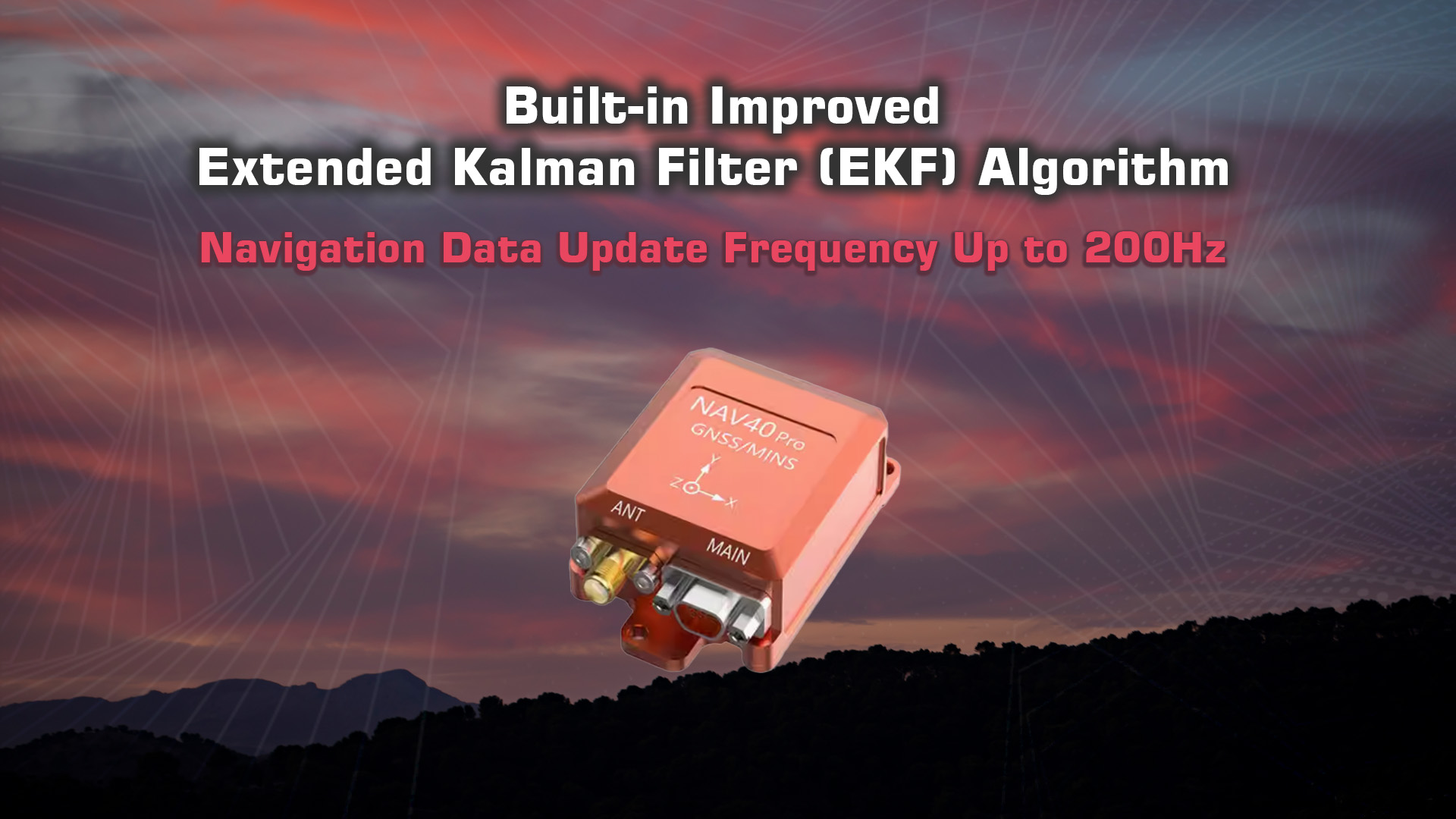

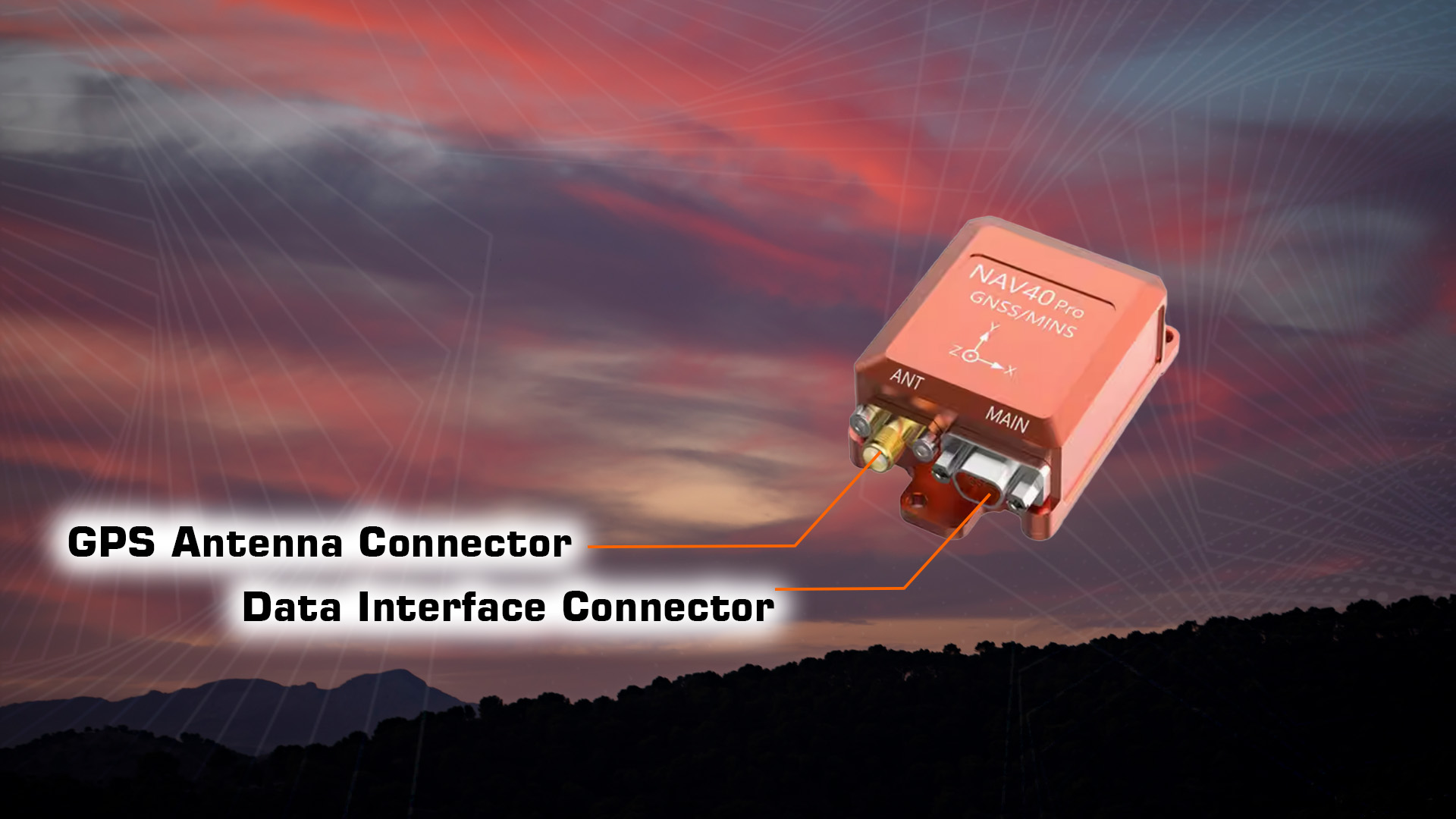

NAV40P Inertial Navigation System (Nav40Pro INS / NAV40P INS) integrates micro sensors such as a three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, GNSS receiver module, barometric altimeter, and a Drone Inertial Navigation System. It utilizes a built-in improved Extended Kalman Filter (EKF) algorithm for information fusion, effectively reducing the impact of carrier maneuvers, vibration, ambient temperature, and electromagnetic interference, and providing users with a complete and reliable three-dimensional position, three-axis attitude, three-axis speed, three-axis acceleration, and other information at up to 200Hz.

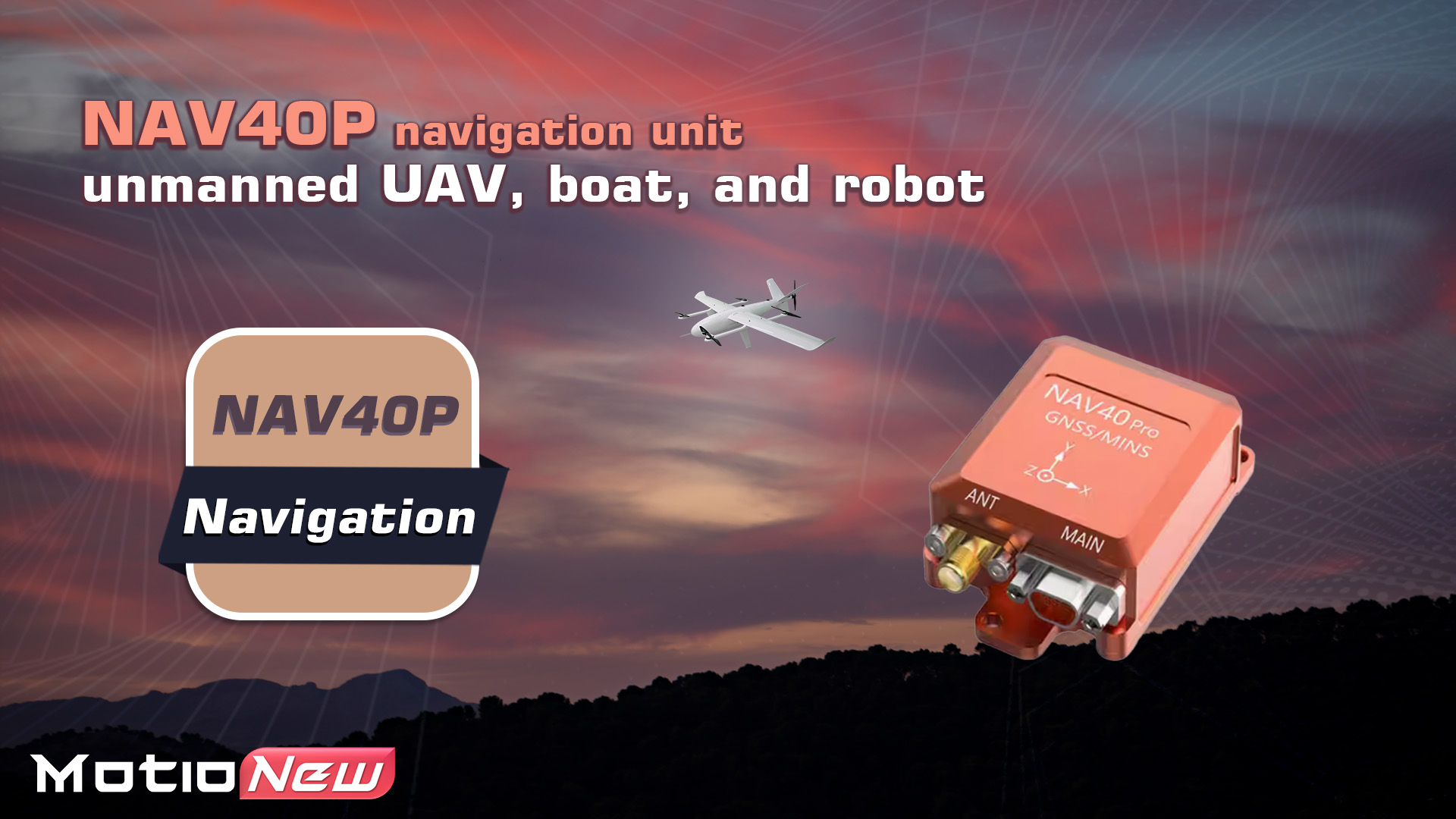

Application areas include UAVs, robots, marine areas, unmanned vehicles, unmanned ships, and human posture measurement.

Specifications:

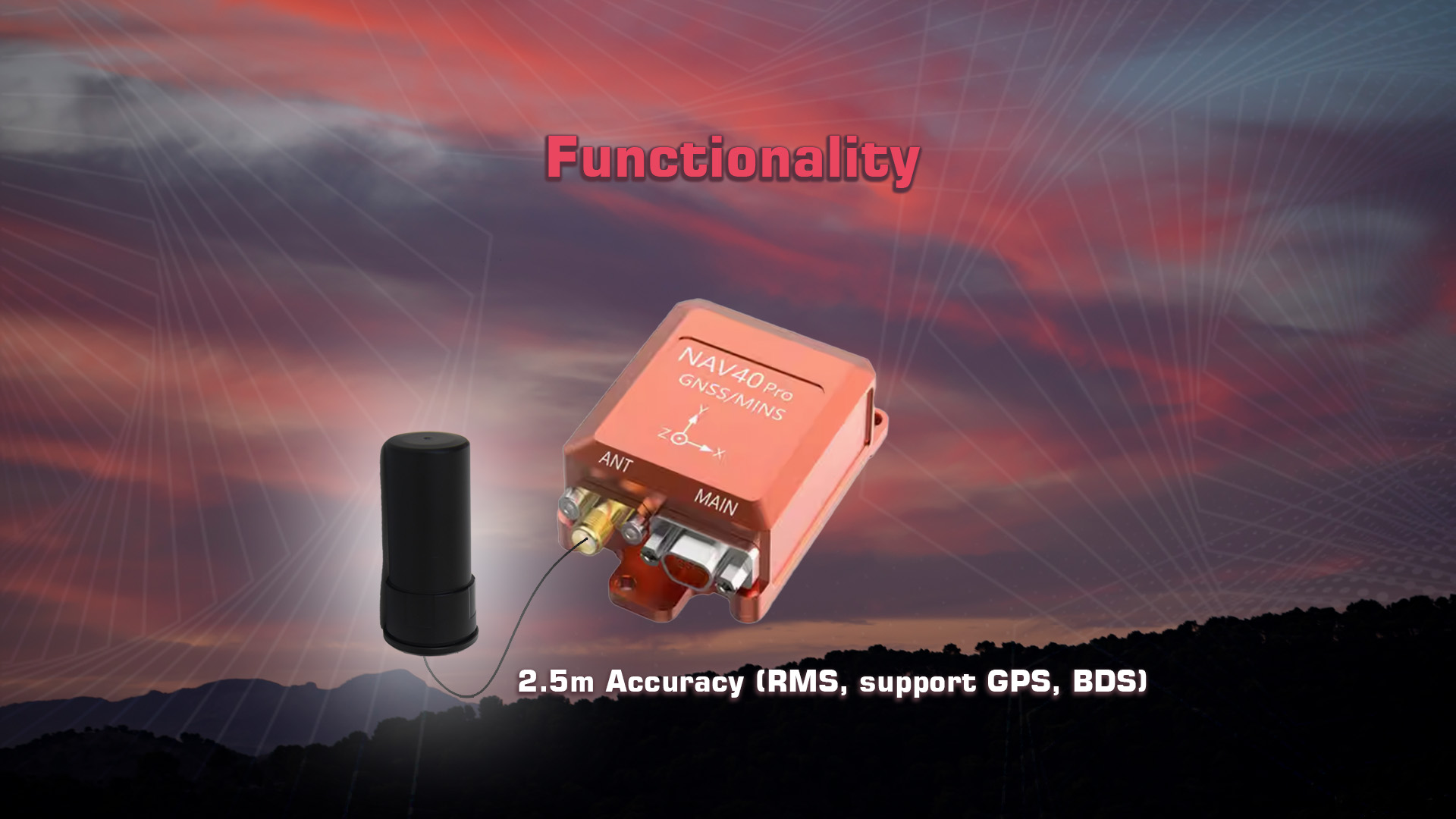

– Support external differential GPS
– Support external magnetic compass
– Support external dual antenna for direction estimation
– You can choose to output the information under different bases (coordinate systems) at the same time
– Up to 200Hz navigation data update frequency

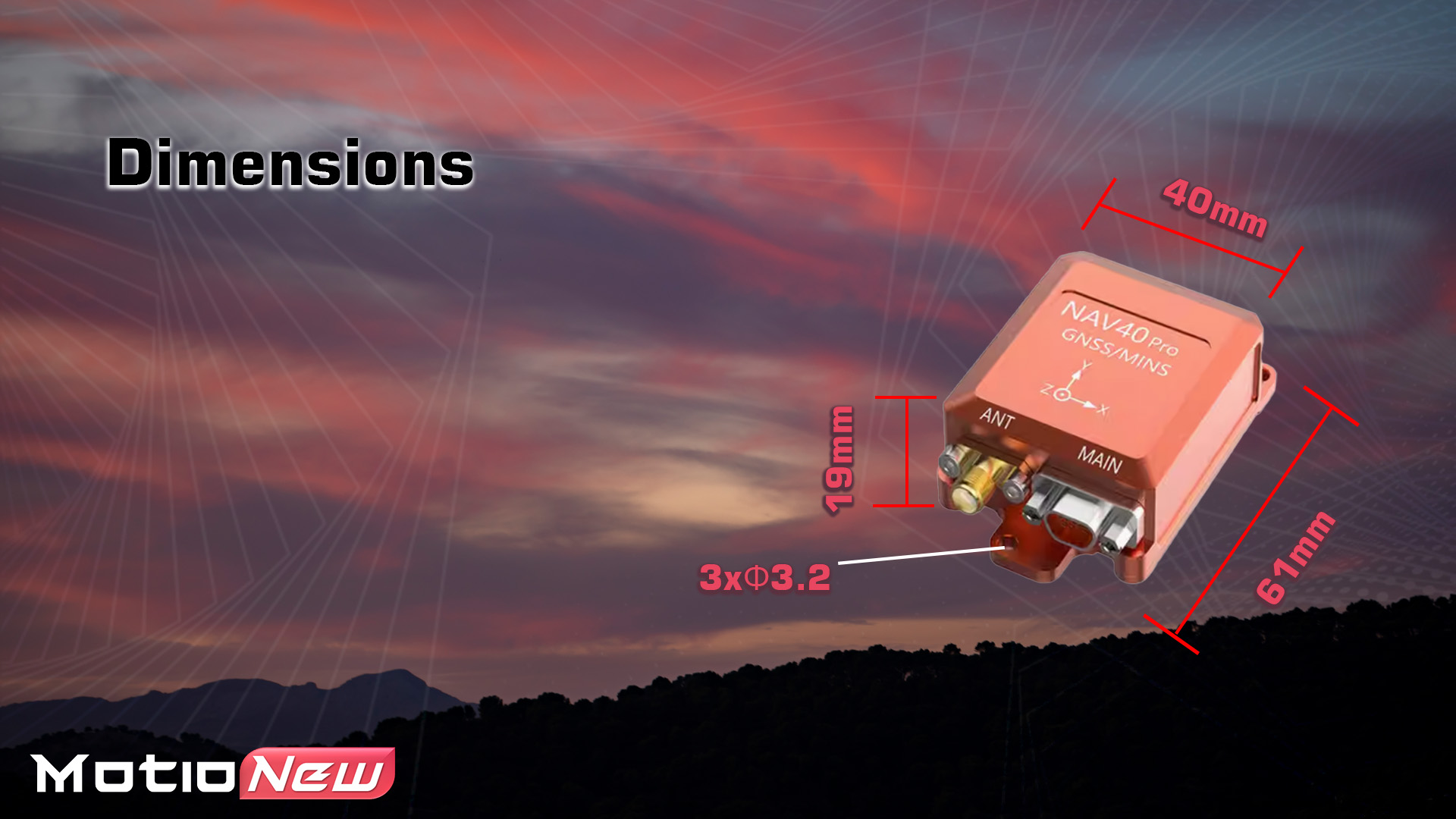

– Small size (61*40*19mm), lightweight (45g)
– Guaranteed accuracy over the full temperature range (-40°C-85°C)
– Support users’ customization of structure, size, and data format.

NAV40P Inertial Navigation System (INS) – FAQ

1. What is the main function and design of the NAV40P INS?
The NAV40P is a high-performance inertial navigation system that integrates a GNSS receiver with a precision IMU. It provides real-time 3D attitude, heading, and positioning data for UAVs, ground vehicles, and autonomous systems.

2. What technologies and sensors are integrated in the NAV40P?
It combines GNSS (GPS, GLONASS, Galileo, and BeiDou) with a 3-axis gyroscope, accelerometer, magnetometer, and barometer. Advanced EKF (Extended Kalman Filter) algorithms ensure accurate, drift-free navigation data even under challenging conditions.

3. What are the communication and integration capabilities?
The system supports UART, CAN, and Ethernet interfaces and is compatible with Pixhawk, CUAV, and other flight controllers running PX4 or ArduPilot. It can operate as a standalone navigation unit or integrated sensor suite.

4. What are the purchasing and delivery options for the NAV40P INS?
It is available as a complete module or as an OEM board set with optional dual-antenna GNSS configuration. Motionew provides global shipping with tracking and estimated delivery times shown during checkout.

5. Does Motionew offer OEM and bulk purchase options for this model?
Yes. OEM and bulk purchasing programs are available for UAV manufacturers and robotics developers. Buyers can request customized firmware configurations, data output formats, and quantity-based pricing through Motionew’s sales department.

6. What documentation and support resources are provided?
Comprehensive datasheets, wiring diagrams, and configuration guides are available in the product documentation section. Firmware tools, calibration utilities, and technical assistance are provided through Motionew’s engineering support teams.
