NAV30P Inertial Navigation System (INS)

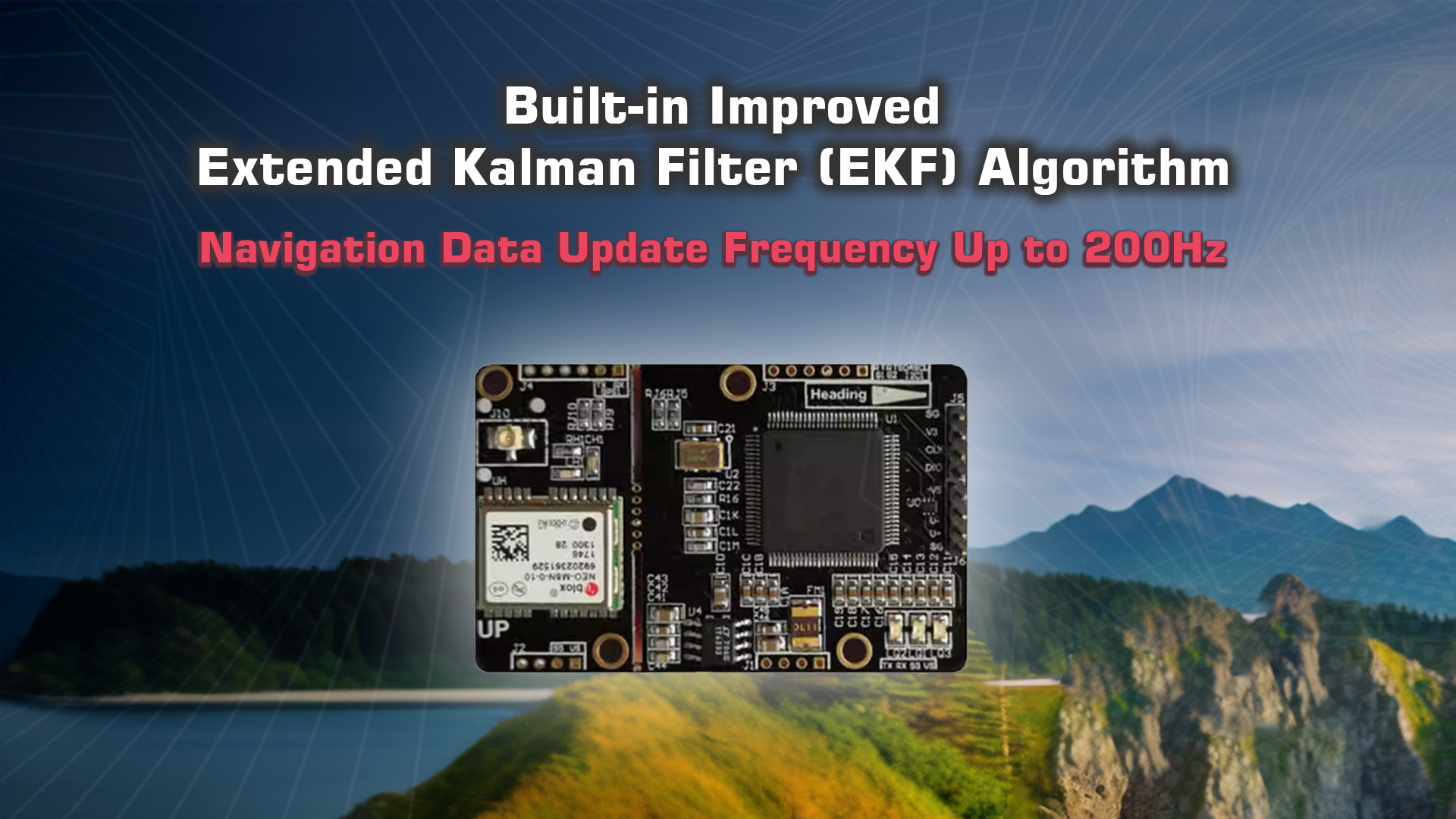

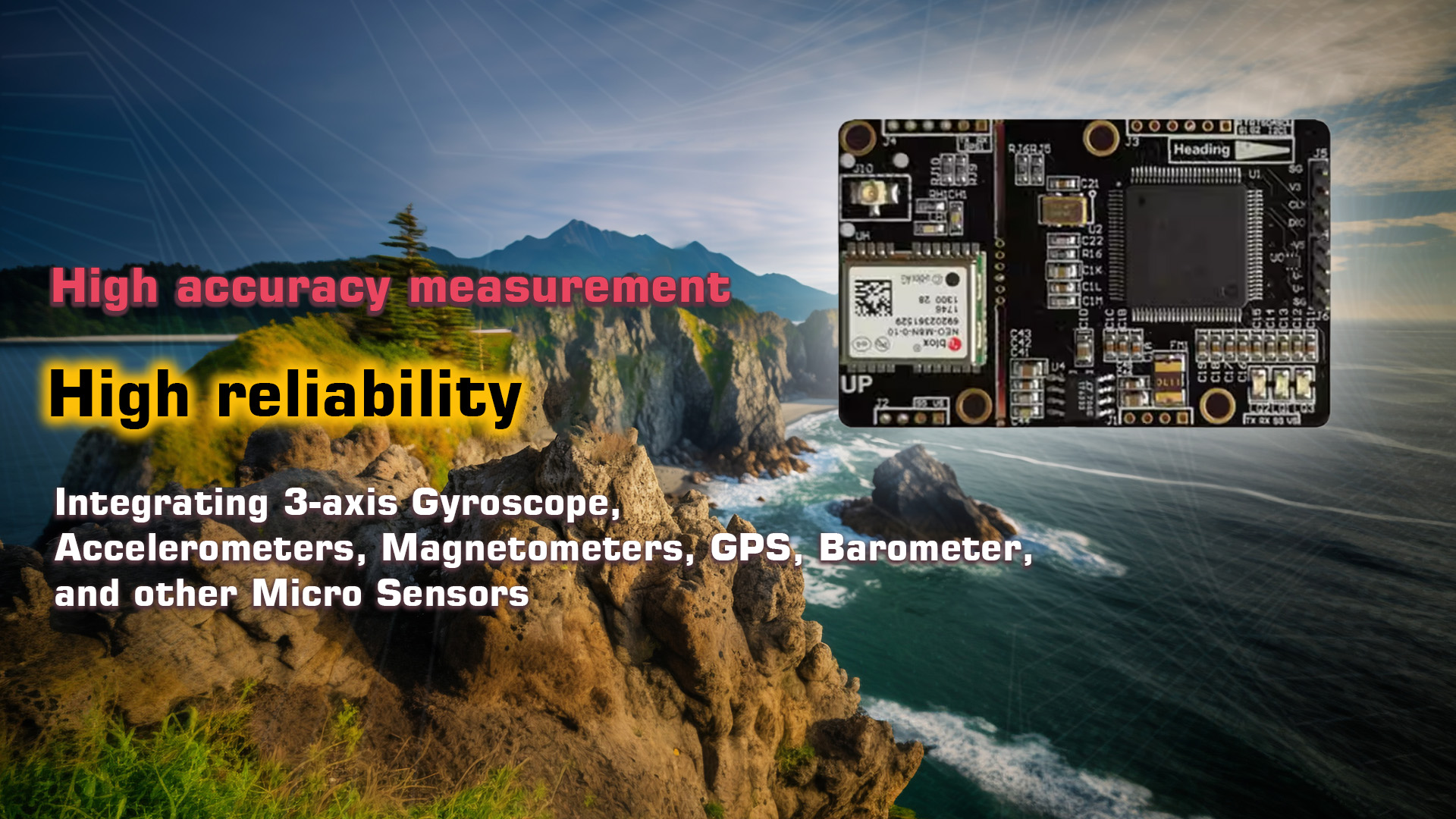

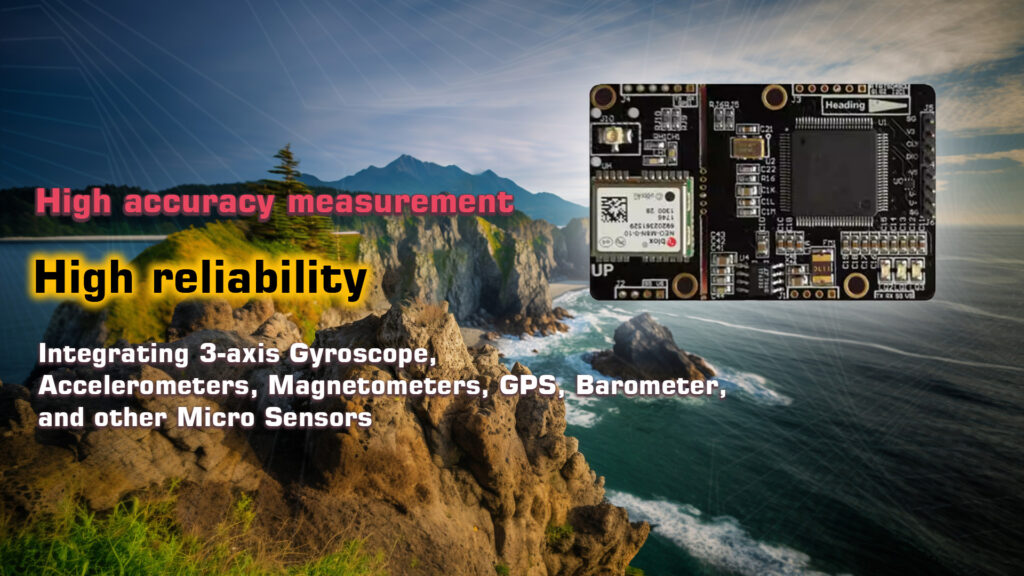

NAV30P Inertial Navigation System (NAV30 Pro INS, OEM type) integrates micro sensors such as three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, GNSS receiver module, barometric altimeter, and a Drone Inertial Navigation System. It utilizes a built-in improved Extended Kalman Filter (EKF) algorithm for information fusion, effectively reducing the impact of carrier maneuvering, vibration, ambient temperature, and electromagnetic interference, and providing users with complete and reliable three-dimensional position, three-axis attitude, three-axis speed, three-axis acceleration and other information up to 200Hz. NAV30 PRO (OEM type) is structurally divided into two parts: GPS module and inertial measurement module. It can be installed as a whole board, stacked, or used separately (the inertial measurement module can complete all functions without GPS), which is convenient for users to integrate with other systems.

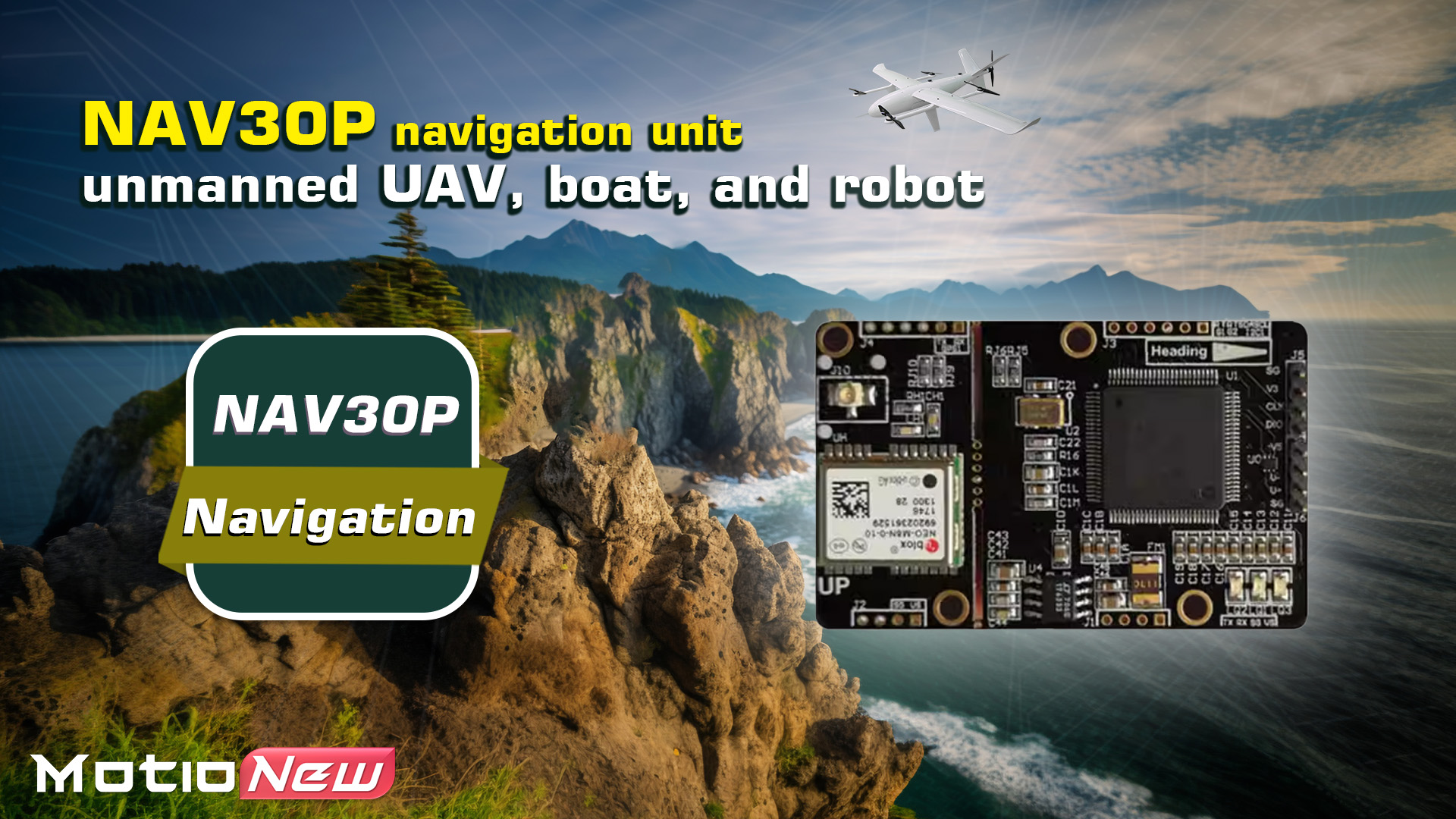

Application direction: UAV, robot, ocean, unmanned ship, unmanned vehicle, human posture measurement.

• High-cost performance
• Support external differential GPS
• Support external magnetic compass
• Support external dual antenna direction
• Up to 200Hz navigation data update frequency
• Support whole board installation or cascade installation
• Support users to customize structure, size, and data format

NAV30P Inertial Navigation System (INS) – FAQ

1. What is the main function and design of the NAV30P INS?
The NAV30P Inertial Navigation System integrates a 3-axis gyroscope, accelerometer, magnetometer, GNSS receiver, and barometric altimeter. It provides full 3D position, attitude, velocity, and acceleration data at up to 200Hz for UAVs, UGVs, marine vehicles, and robotics applications.

2. What technologies and algorithms are integrated in the NAV30P?
It features an advanced Extended Kalman Filter (EKF) for sensor fusion, minimizing errors from vibration, motion, temperature drift, and electromagnetic interference to deliver stable and precise navigation data.

3. What are its installation and integration options?
The NAV30P (OEM type) consists of two modules—a GNSS receiver and an inertial measurement unit (IMU). These can be installed as a combined board, stacked, or used separately. The IMU module alone can function independently without GNSS input.

4. What are the purchasing and delivery options for the NAV30P INS?
The product is sold as an OEM board set and includes the necessary cables and connectors. Motionew provides worldwide shipping with tracking and estimated delivery times displayed during checkout.

5. Does Motionew offer OEM and bulk purchasing for this model?
Yes. OEM and bulk purchase options are available for UAV manufacturers and system integrators. Buyers can request customized structure, size, or data output format through Motionew’s sales department.

6. What documentation and support resources are provided?
User manuals, electrical specifications, and integration guides are available in the documentation section. Firmware updates, data format customization, and technical assistance are provided through Motionew’s engineering support teams.
