NAV100 Inertial Navigation System (INS)

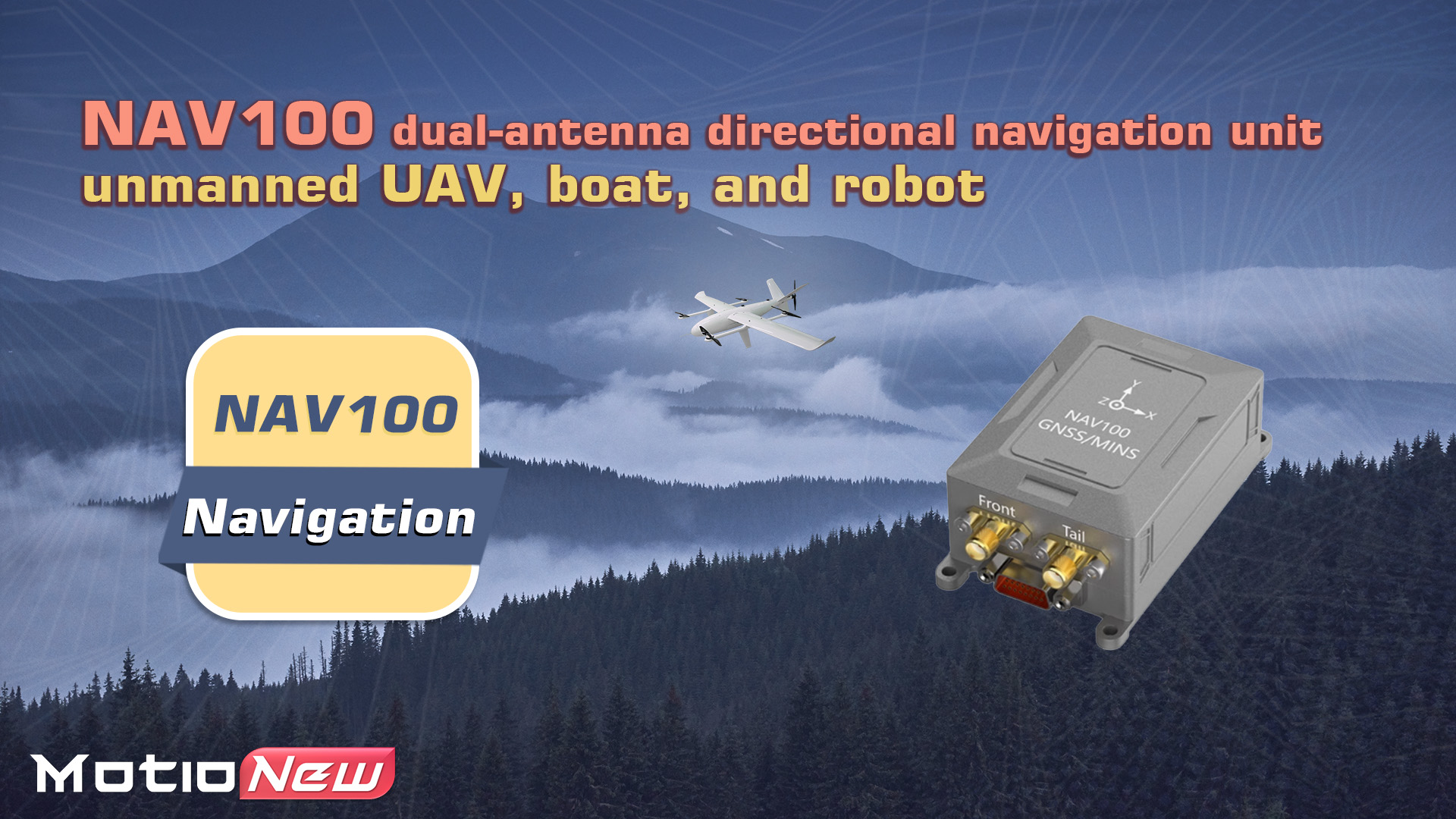

The NAV100 integrated navigation system has a built-in high-performance MEMS inertial measurement unit and a full-system full-frequency high-precision positioning and orientation module, which outputs the carrier’s attitude, heading, position, speed, and other essential flight parameters. Integrated with a Drone Inertial Navigation System, it ensures continuous position, speed, and heading output even when GNSS signals are unavailable, maintaining navigation accuracy for a short period through inertial calculations. The product is highly reliable and designed to withstand demanding environmental conditions.

Application areas: industrial drones, unmanned vehicles, unmanned ships, robots, mobile communications, surveying and mapping

• Guaranteed accuracy over the full temperature range (-40°C~70°C)
• Can output the raw data of IMU and satellite navigation board
• Suitable for harsh environments such as strong vibration and shock
• High reliability, finalized and mass-produced in various types of drones

NAV100 Inertial Navigation System (INS) – FAQ

1. What is the main function and design of the NAV100 INS?
The NAV100 is a high-performance inertial navigation system that integrates multi-constellation GNSS with an industrial-grade IMU. It provides real-time attitude, heading, and position data for UAVs, UGVs, and robotics applications.

2. What components and technologies are integrated?

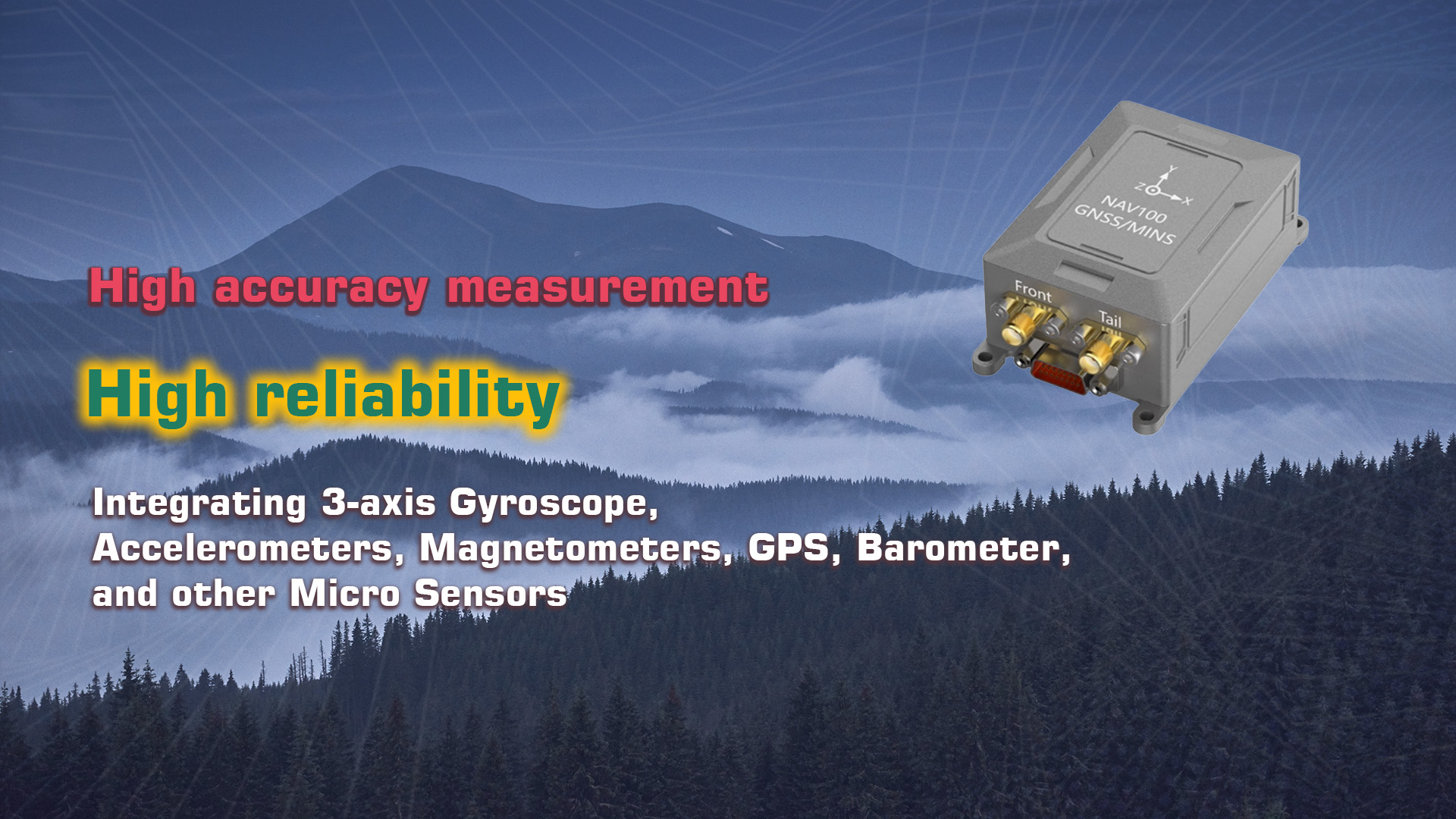

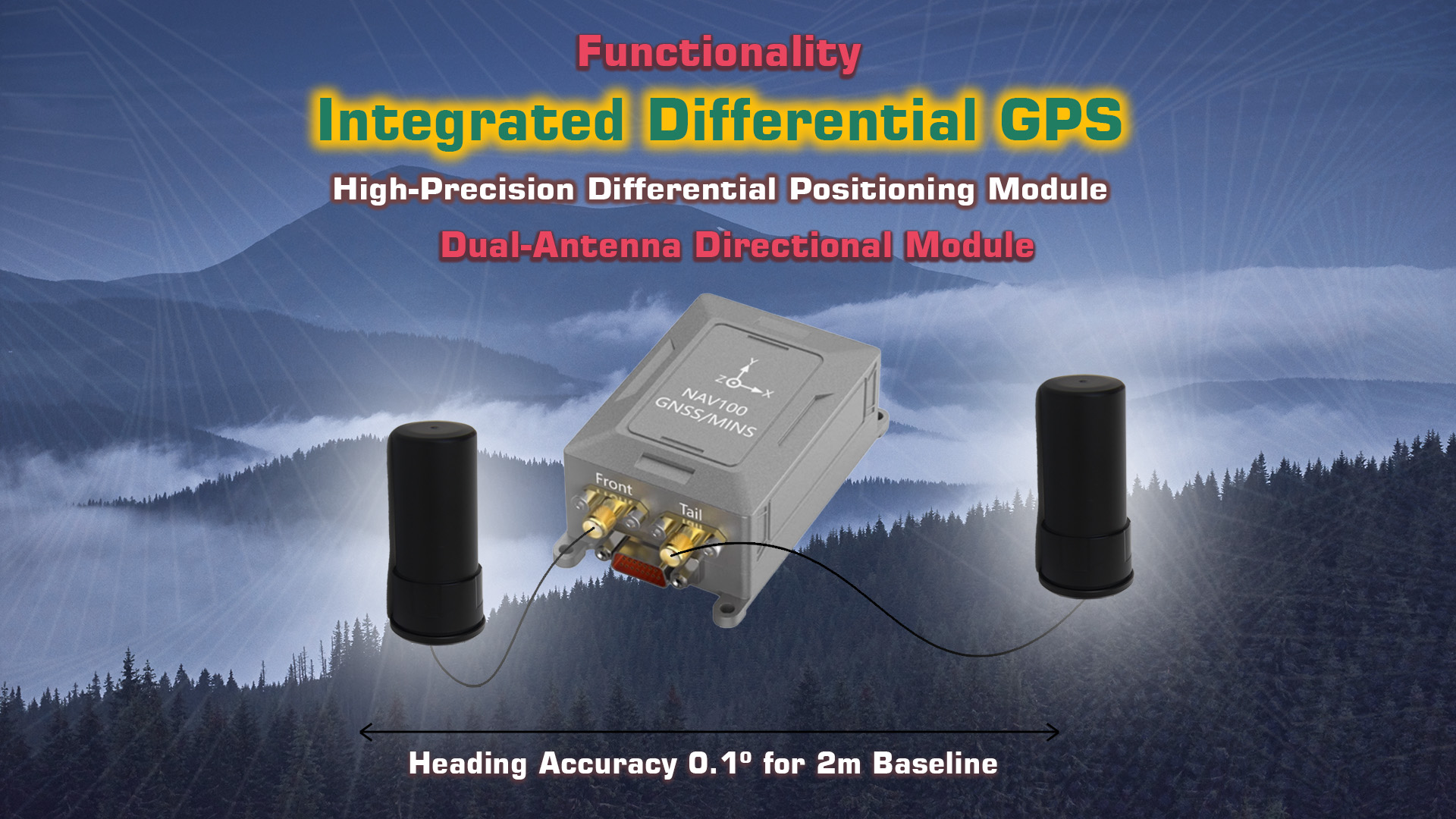

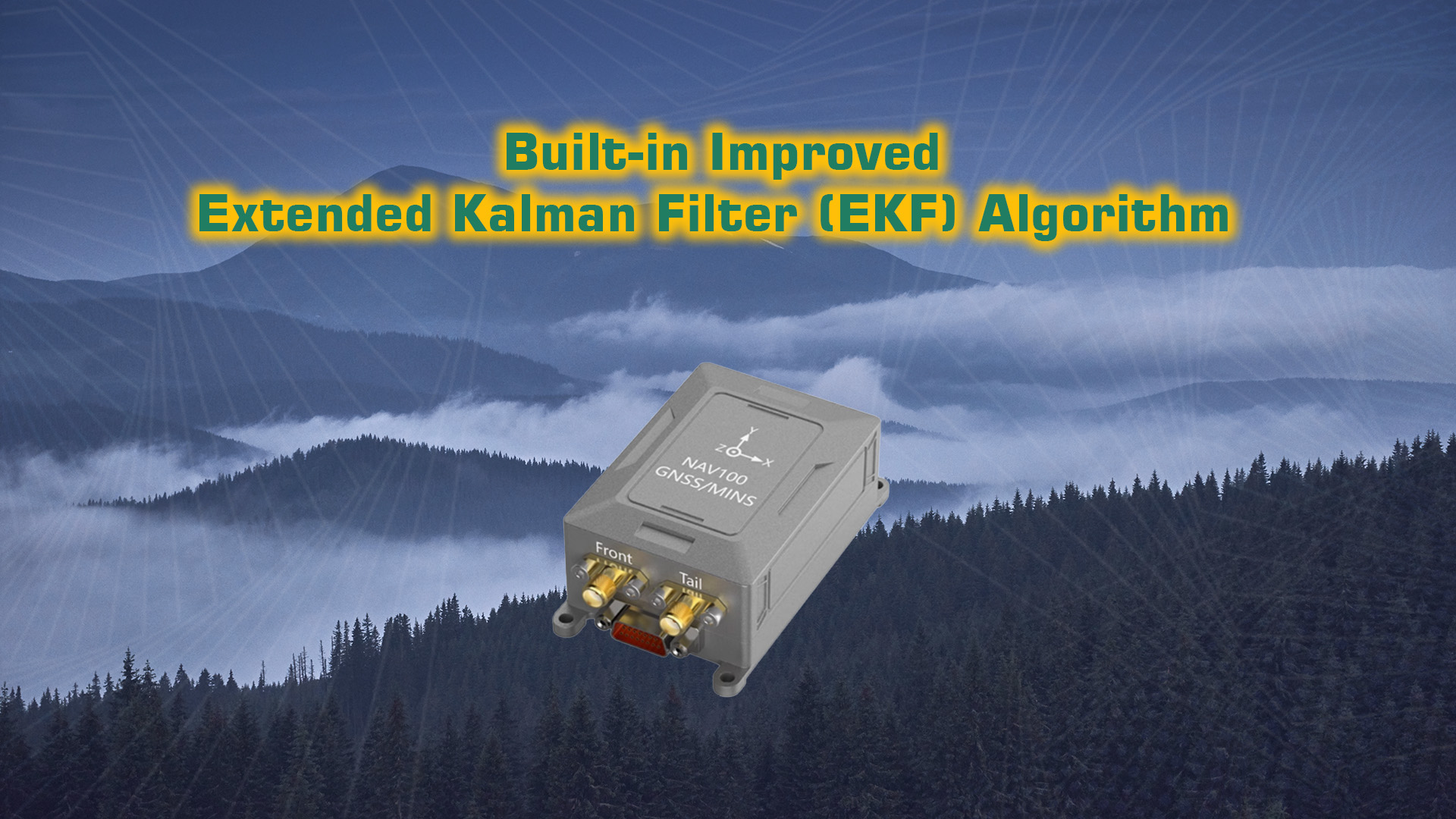

It combines GNSS (supporting GPS, GLONASS, Galileo, and BeiDou) with a precision MEMS-based IMU featuring 3-axis gyroscopes, accelerometers, and magnetometers. Advanced sensor fusion algorithms ensure accurate navigation even under GNSS-denied conditions.

3. What communication interfaces and compatibility options are supported?

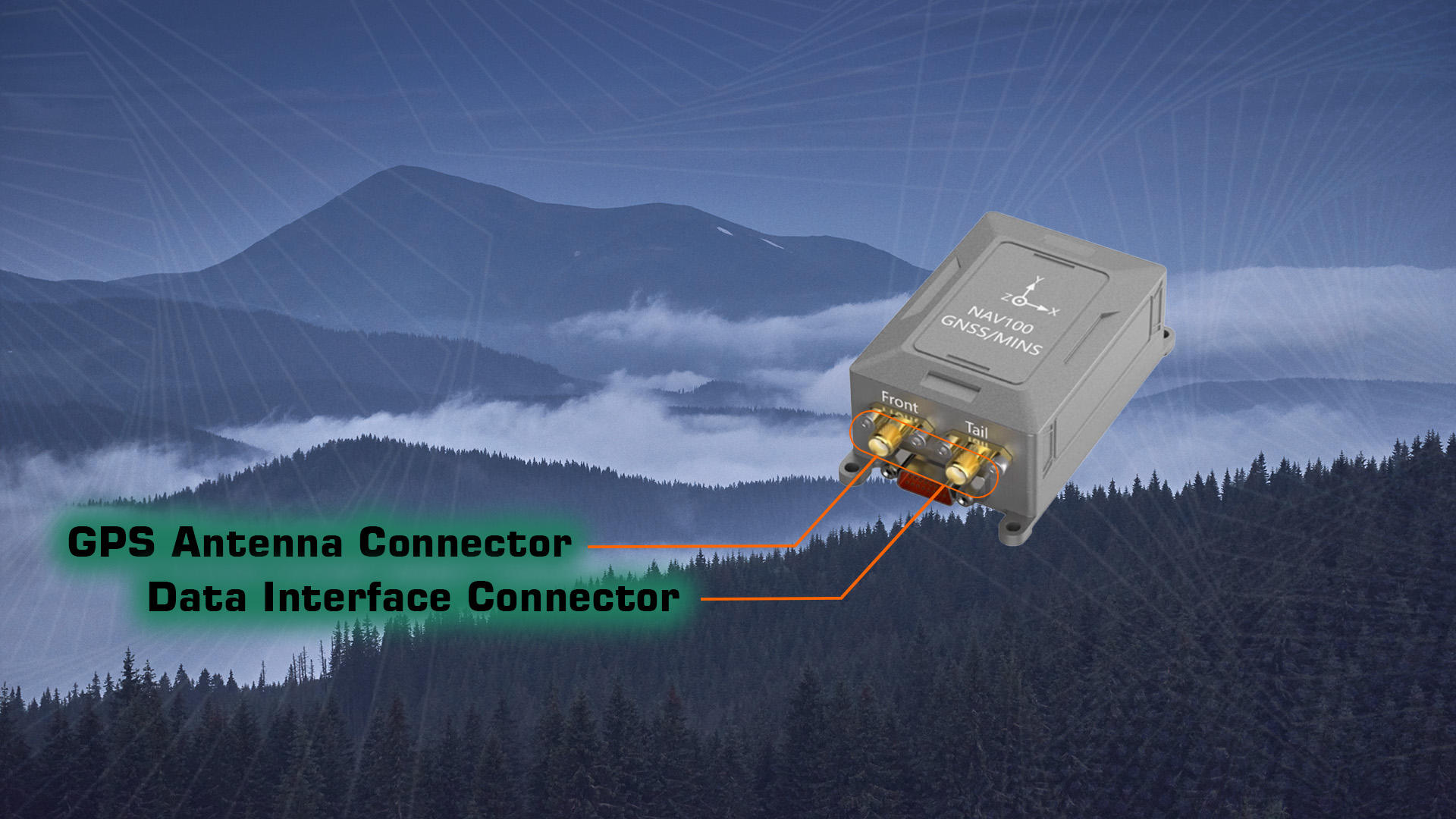

The NAV100 supports UART, CAN, and Ethernet interfaces, making it compatible with Pixhawk, CUAV, and other open-source flight controllers running PX4 or ArduPilot firmware.

4. What are the purchasing and delivery options for the NAV100 INS?
The unit is available as a standalone module or as part of integrated navigation packages. Motionew provides global shipping with tracking and estimated delivery times displayed during checkout.

5. Does Motionew support OEM and bulk purchasing for this model?
Yes. OEM and volume purchasing programs are available for UAV developers and system integrators. Buyers can request customized firmware configurations, connector types, and volume-based pricing through Motionew’s sales department.

6. What documentation and support resources are provided?
Comprehensive datasheets, setup manuals, and configuration software are available in the product documentation section. Firmware tools, calibration procedures, and technical support are provided through Motionew’s engineering support teams.
