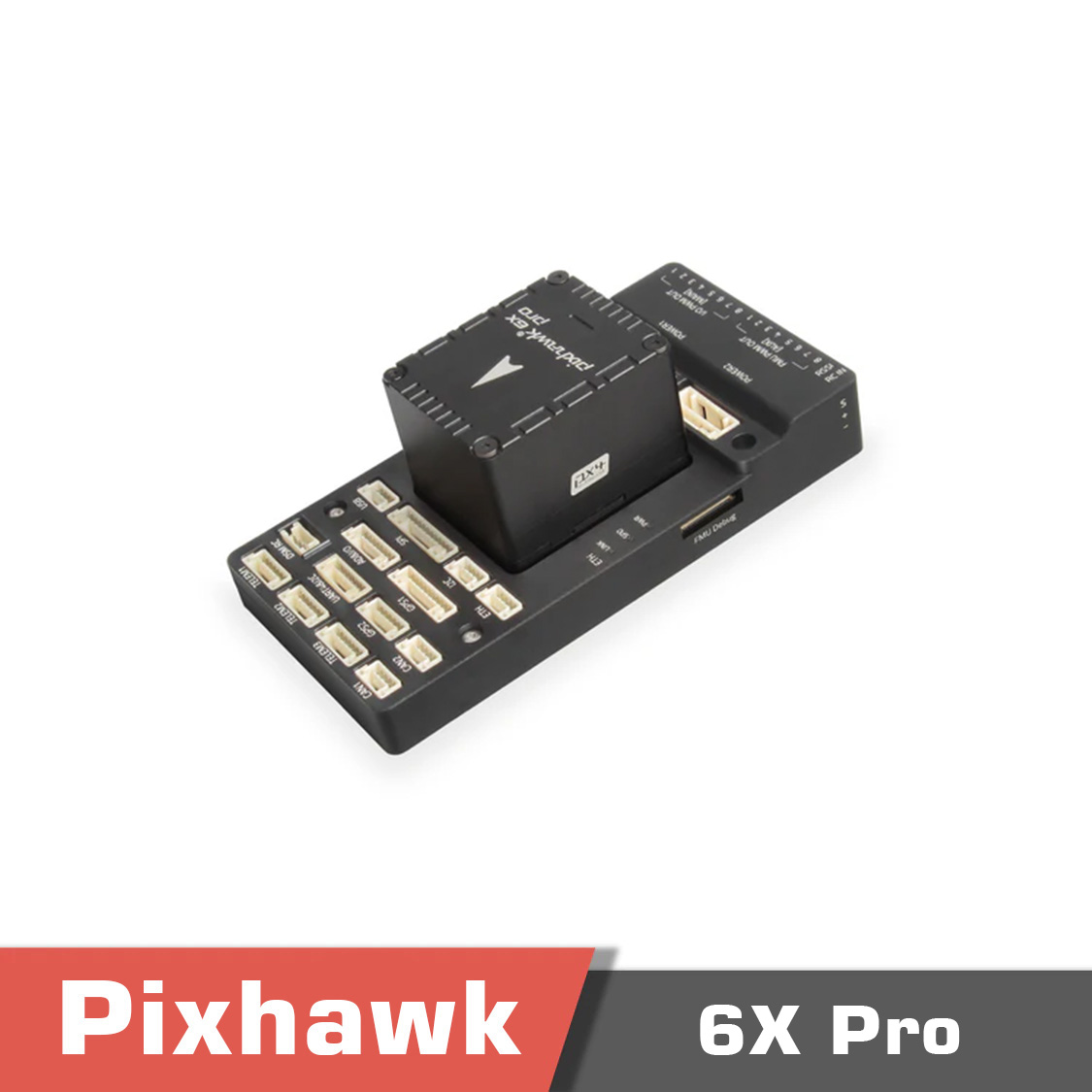

Overview of Holybro Pixhawk 6X pro

The Holybro Pixhawk 6X Pro is a state of the art flight controller designed for demanding UAV applications, featuring a high-performance ADIS16470 Industrial IMU. This IMU offers a high accelerometer dynamic range of ±40 g, ensuring accurate motion sensing even in the most challenging environments. The flight controller incorporates a new advanced durable vibration isolation material, which operates at a resonance frequency in the higher spectrum, making it ideal for industrial and commercial drone applications.

One of the standout features of the Pixhawk 6X Pro is its triple redundant IMU and double redundant barometer setup, with sensors on separate buses to enhance reliability and safety. The high-performance STM32H753 processor powers the system, ensuring smooth and efficient operations. Its modular design separates the IMU, FMU, and base system, providing flexibility and ease of maintenance.

Safety is a priority in the design of the Pixhawk 6X Pro. It incorporates sensors from different manufacturers and model lineups to reduce the risk of common-mode failures. Each sensor is powered by an independent LDO with individual power control, further enhancing the system’s robustness. The inclusion of an Ethernet interface facilitates high-speed integration with mission computers, making it suitable for advanced applications requiring fast data transfer.

Additionally, the IMU board is temperature-controlled, ensuring the IMUs operate at their optimal working temperature. This feature is crucial for maintaining performance and accuracy across varying environmental conditions. Overall, the Pixhawk 6X Pro is a high-performance, reliable, and flexible solution for sophisticated UAV operations, meeting the demands of both industrial and commercial applications.

All new Vibration Isolation Design

This new vibration isolation design uses a custom-formulated durabile silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone.



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Additional information

Weight 0.45 kg
Dimensions 13 × 8.5 × 6 cm
Bundles

FC Module Only, Standard Set, Mini Set

Specifications

Specifications

Processors & Sensors
FMU Processor STM32H753: 32 Bit Arm Cortex-M7, 480MHz, 2MB flash memory, 1MB RAM
IO Processor STM32F103: 32 Bit Arm Cortex-M3, 72MHz, 64KB SRAM
On-board sensors
Accelerometer/Gyroscope ADIS16470: ±40g, Vibration Isolated, Industrial IMU
Accelerometer/Gyroscope IIM-42652: ±16g, Vibration Isolated, Industrial IMU
Accelerometer/Gyroscope ICM-45686 with BalancedGyro™ Technology: ±32g, Hard Mounted
Barometer ICP20100
Barometer BMP388
Mag
BMM150



Electrical data
Voltage Ratings Max input voltage  6V
USB Power Input  4.75~5.25V
Servo Rail Input  0~36V
Current Ratings Telem1 output current limiter  1.5A
All other port combined output current limiter  1.5A



Mechanical data
Dimensions Flight Controller Module  38.8 x 31.8 x 30.1mm
Standard Baseboard  52.4 x 102 x 16.7mm (Aluminum)
Mini Baseboard  43.4 x 72.8 x 14.2 mm
Weight Flight Controller Module  50g
Standard Baseboard  72.5g (Aluminum)
Mini Baseboard  26.5g



Product contents

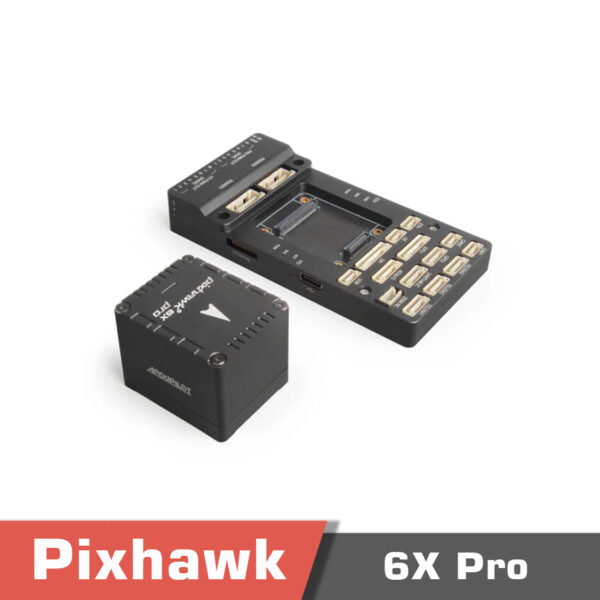

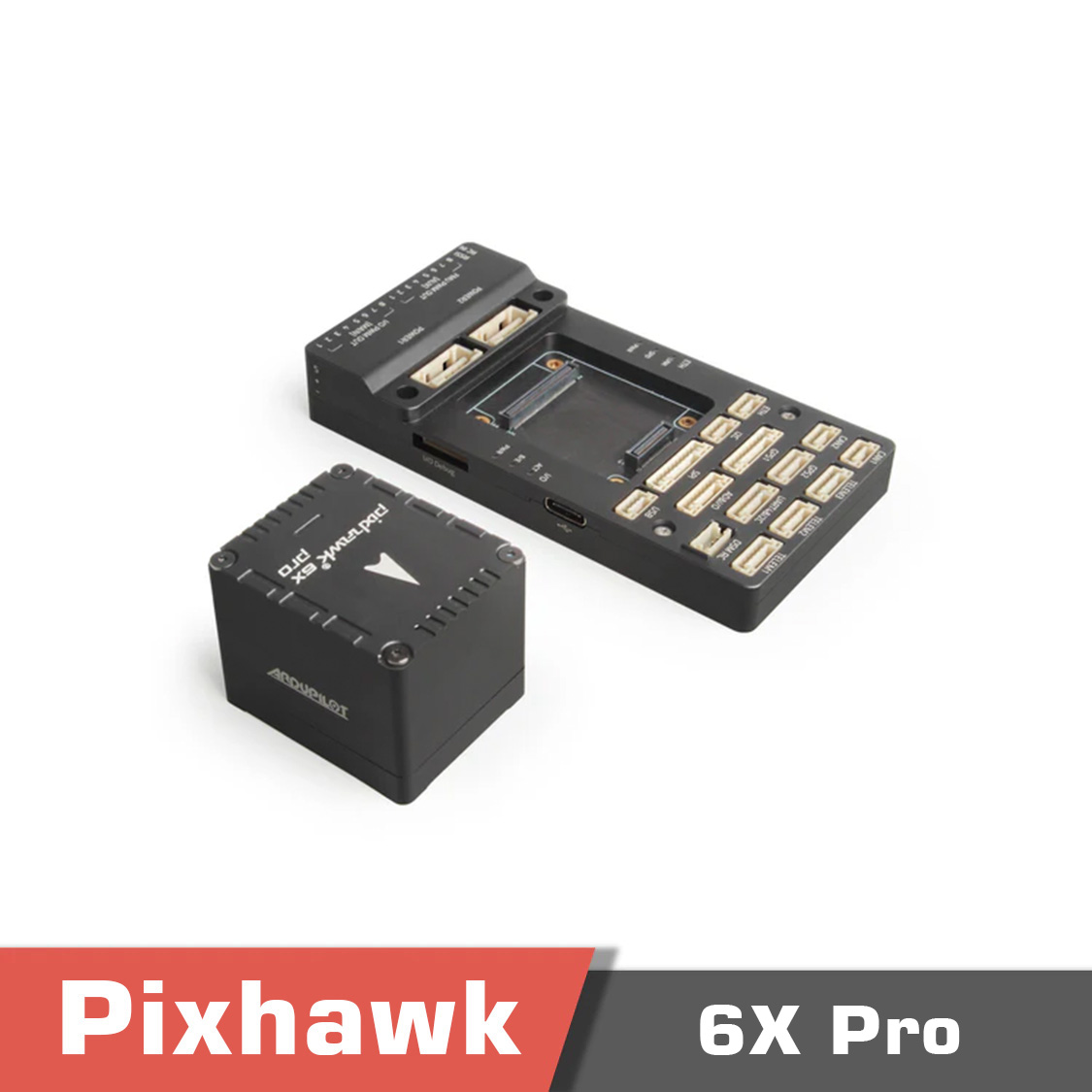

Pixhawk 6X pro FC Module Includes :

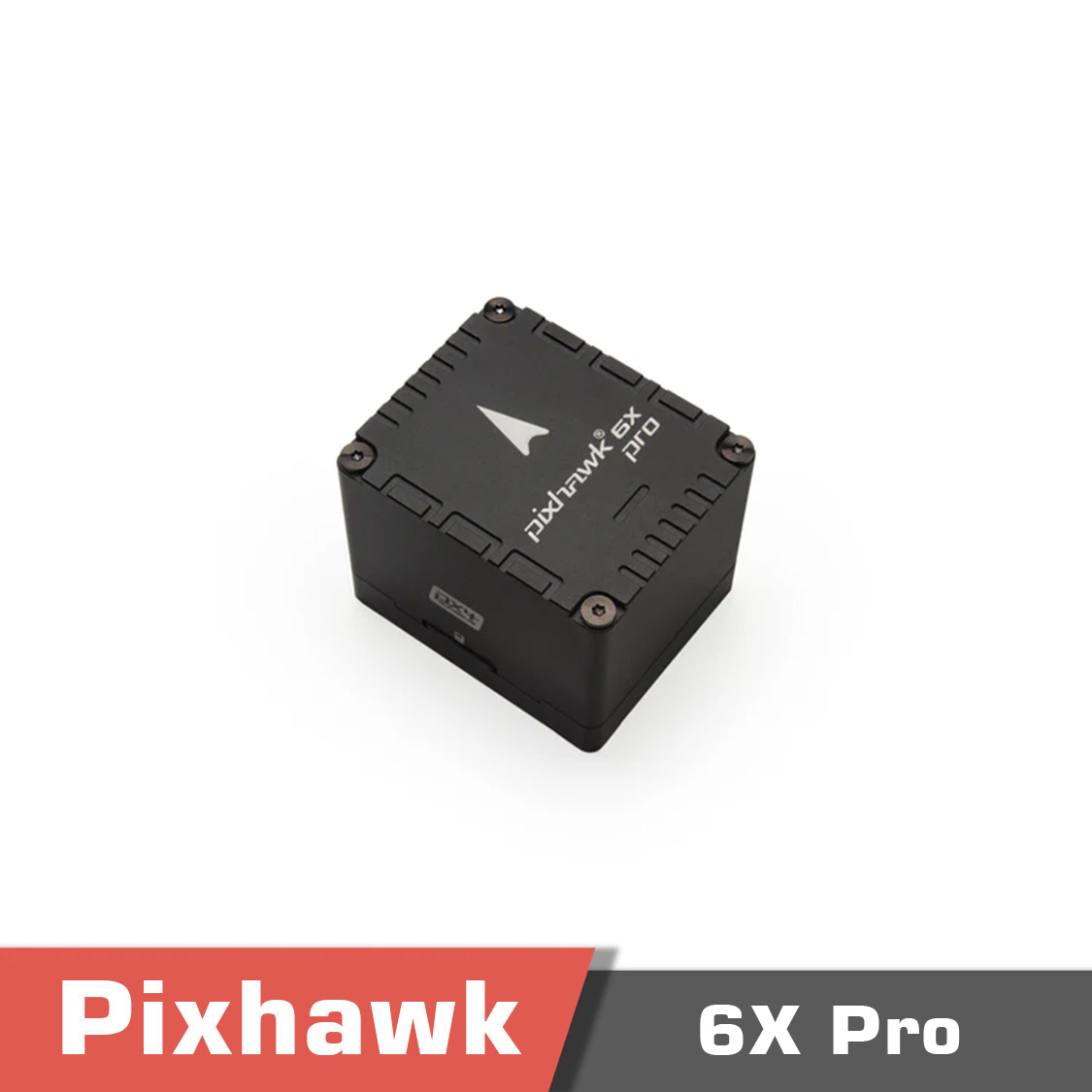

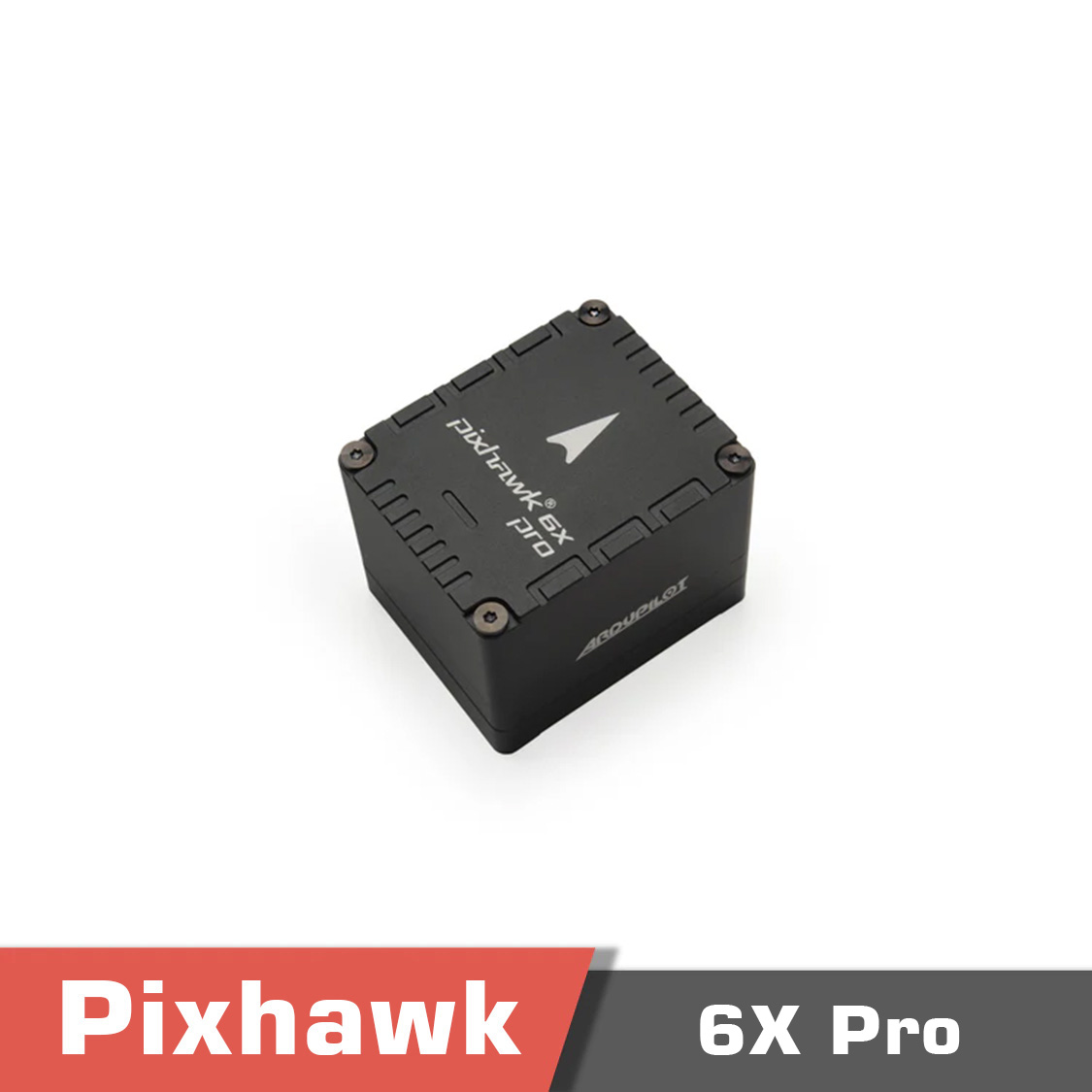

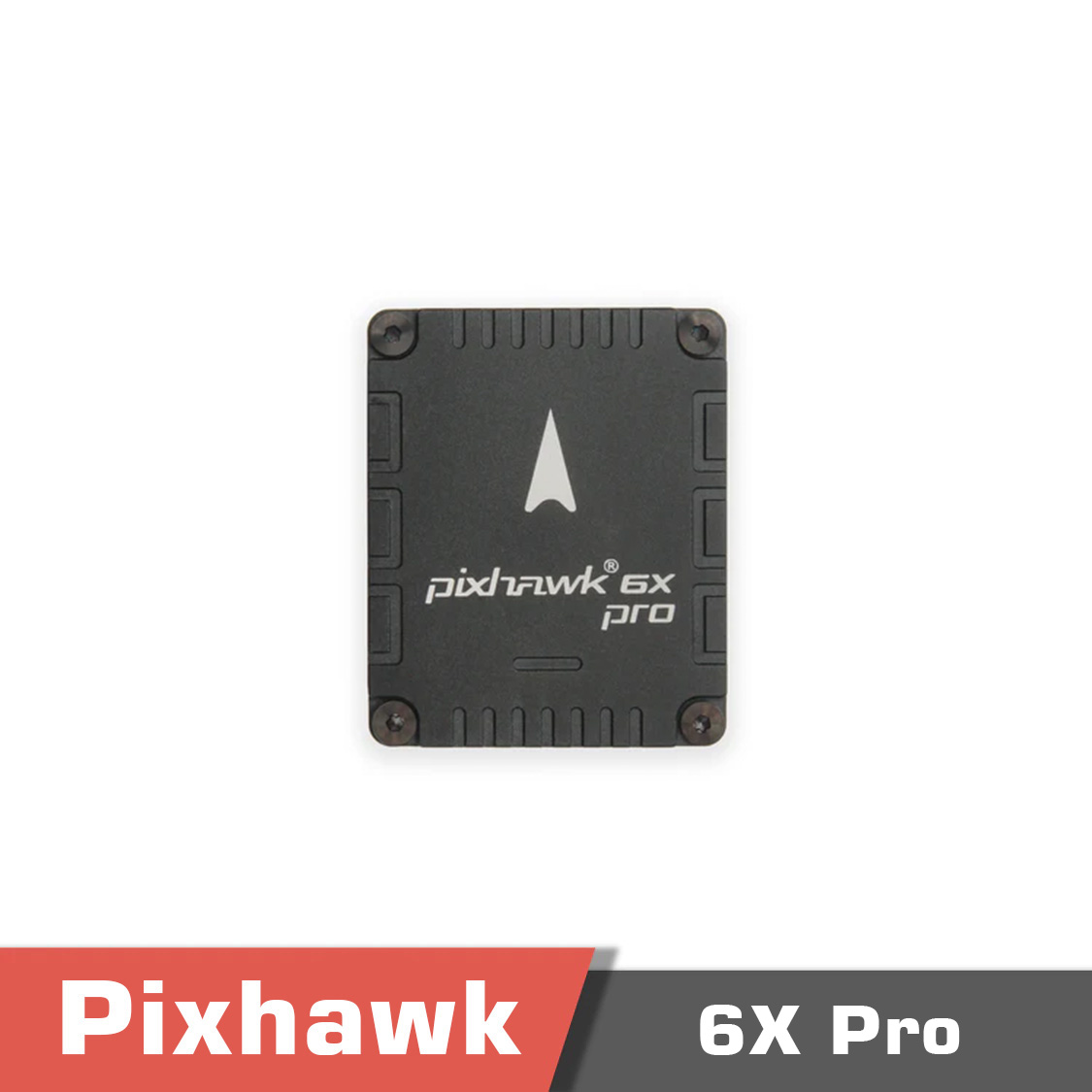

  • Pixhawk 6X Pro Flight Controller Module

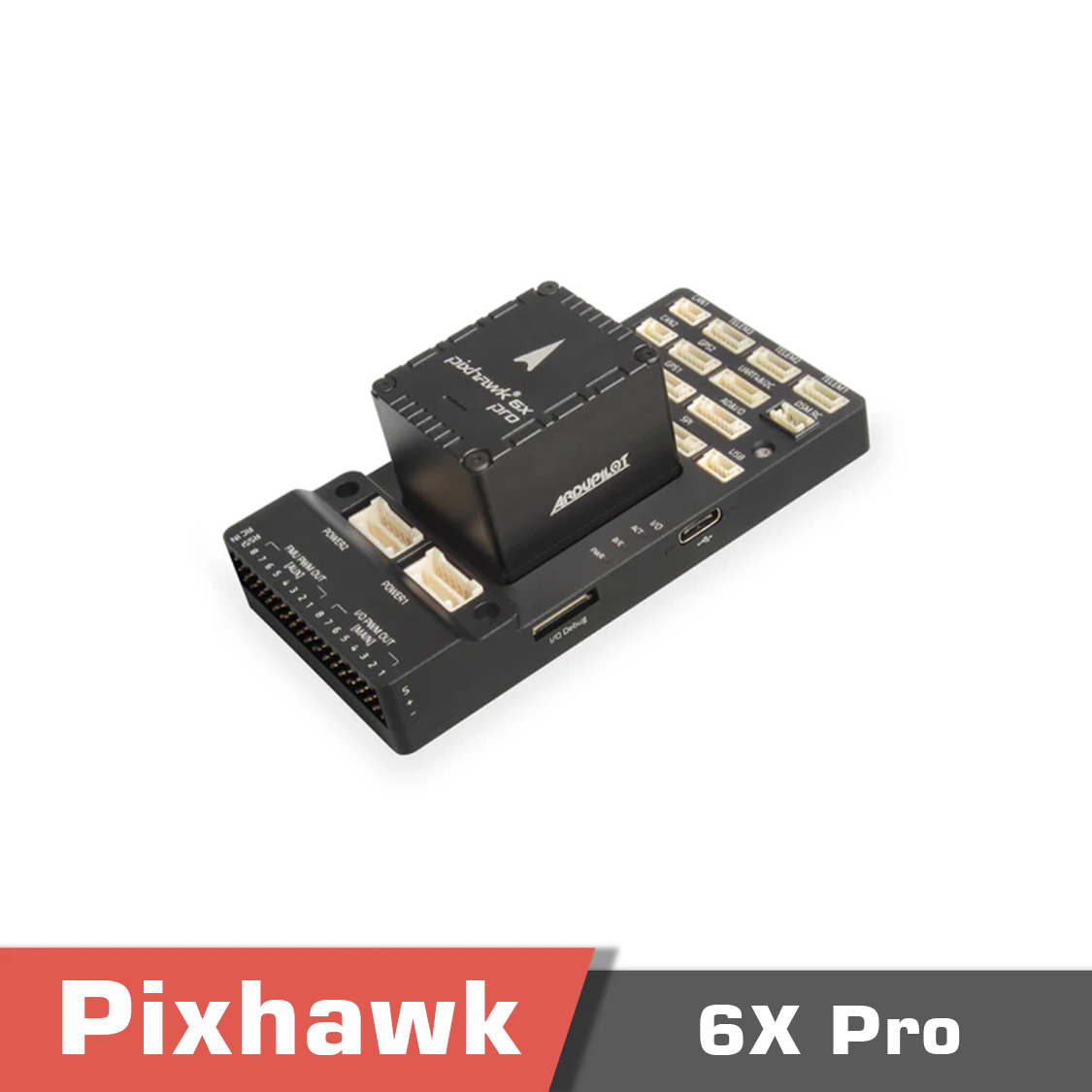

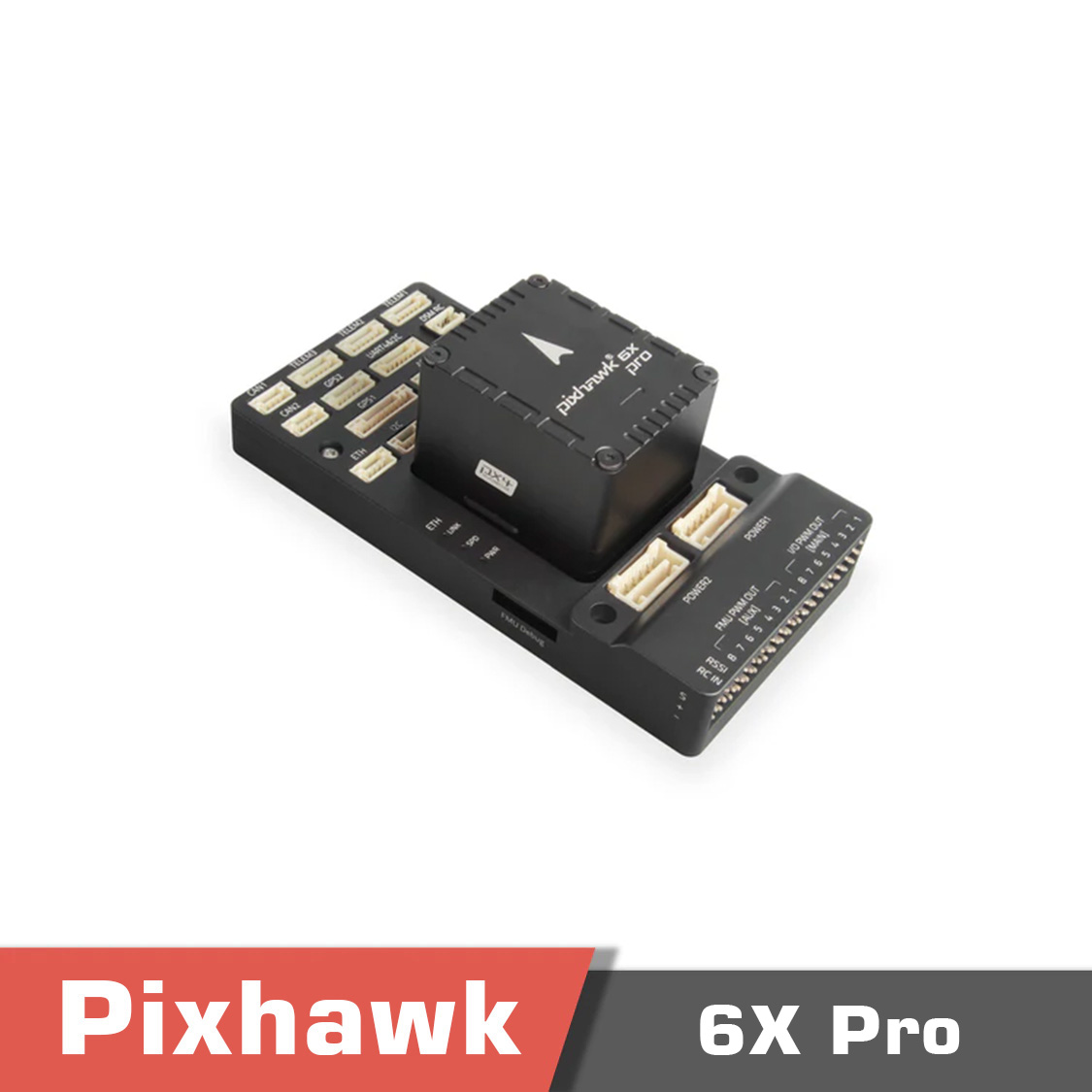

Pixhawk 6X pro with Standard Set Includes:

  • Pixhawk 6X Pro Flight Controller Module

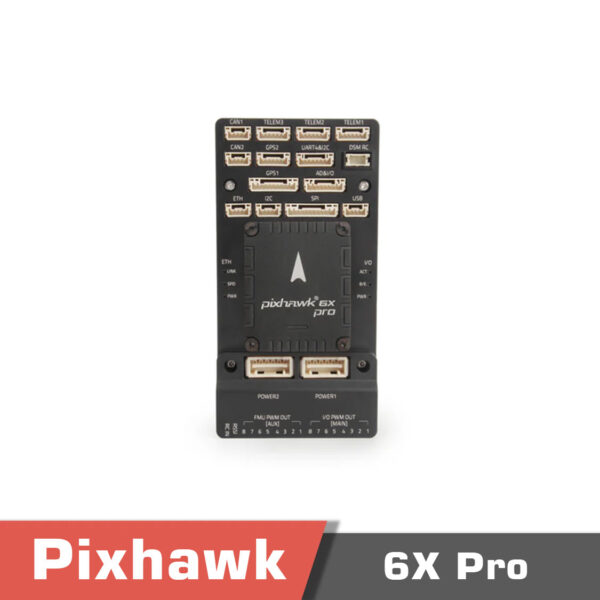

  • Pixhawk Standard Baseboard
  • PM02D HV Power Module
  • Cable Set



Pixhawk 6X pro with Mini Set Includes :

  • Pixhawk 6X Pro Flight Controller Module
  • Pixhawk Mini Baseboard
  • PM02D HV Power Module
  • Cable Set
