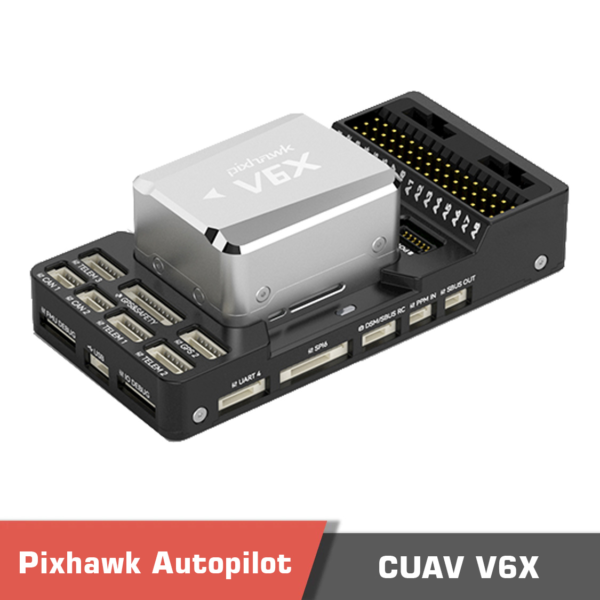

V6x lr1 - cuav pixhawk v6x - motionew - 1

Click to enlarge

V6x lr1 - cuav pixhawk v6x - motionew - 9

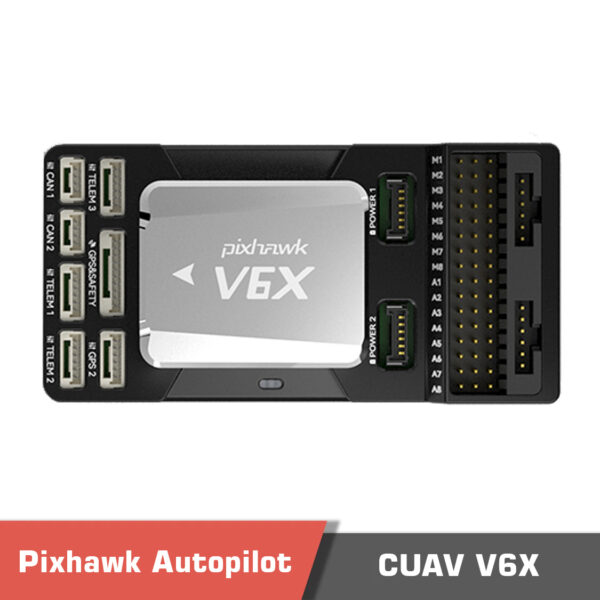

V6x 2 - cuav pixhawk v6x - motionew - 10

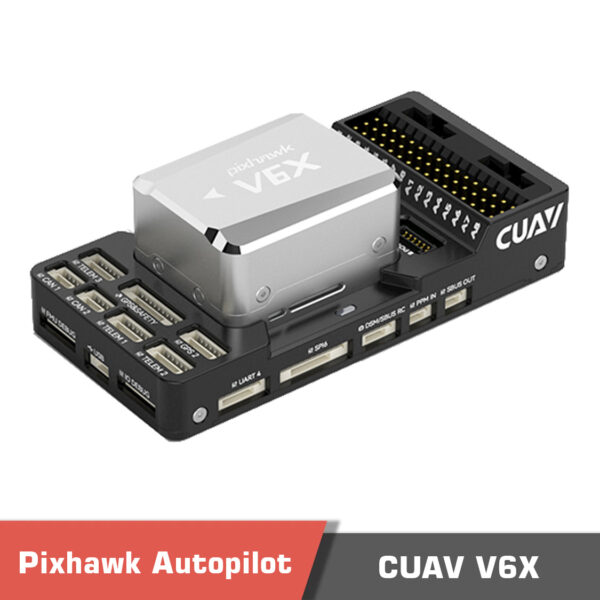

V6x 1 - cuav pixhawk v6x - motionew - 11

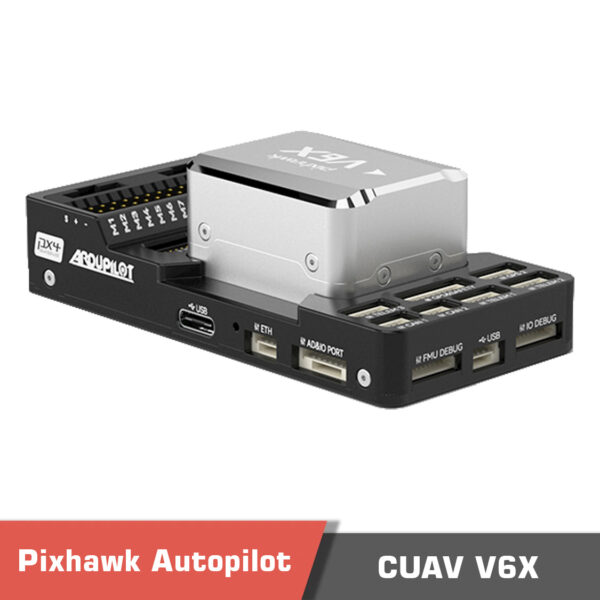

V6x 3 - cuav pixhawk v6x - motionew - 12

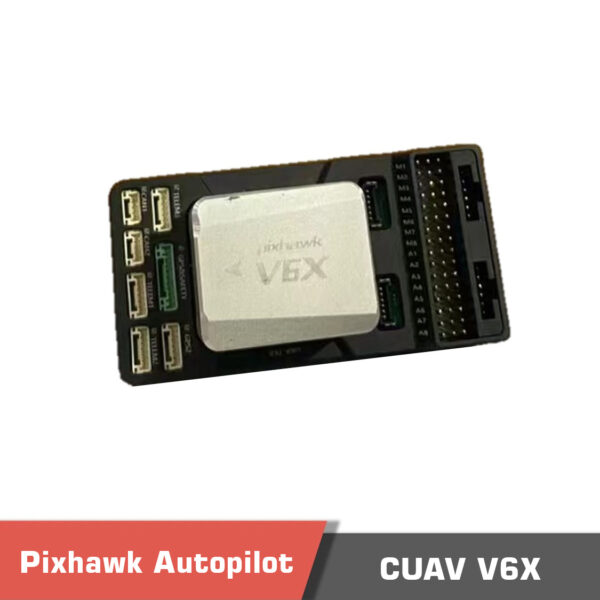

V6x 4 - cuav pixhawk v6x - motionew - 13

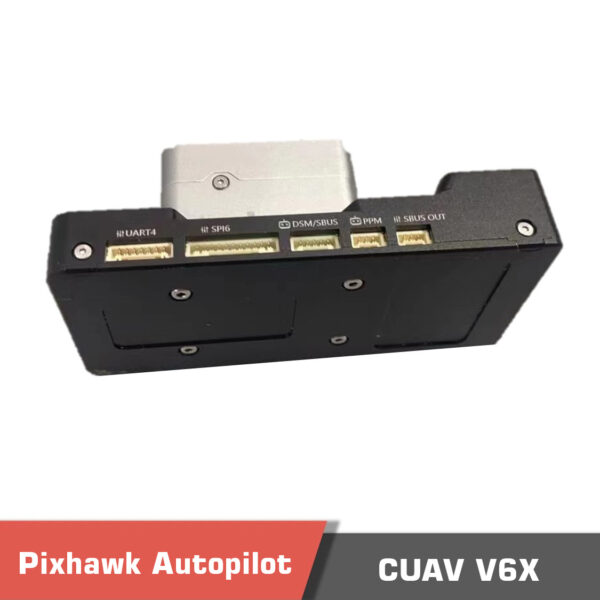

V6x 5 - cuav pixhawk v6x - motionew - 14

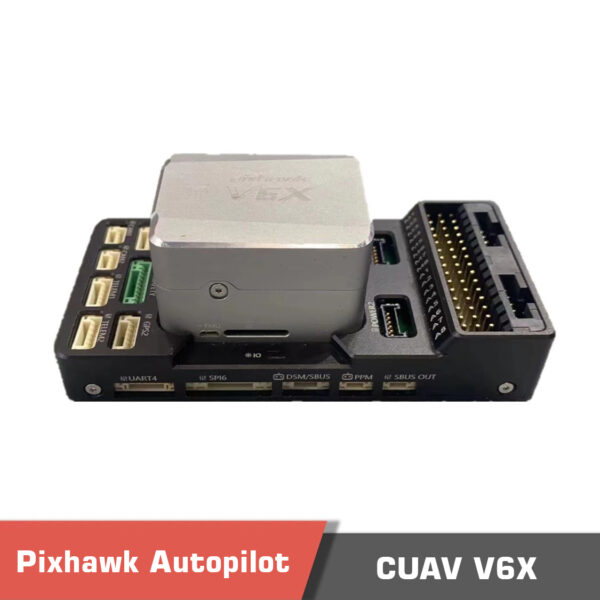

V6x 6 - cuav pixhawk v6x - motionew - 15

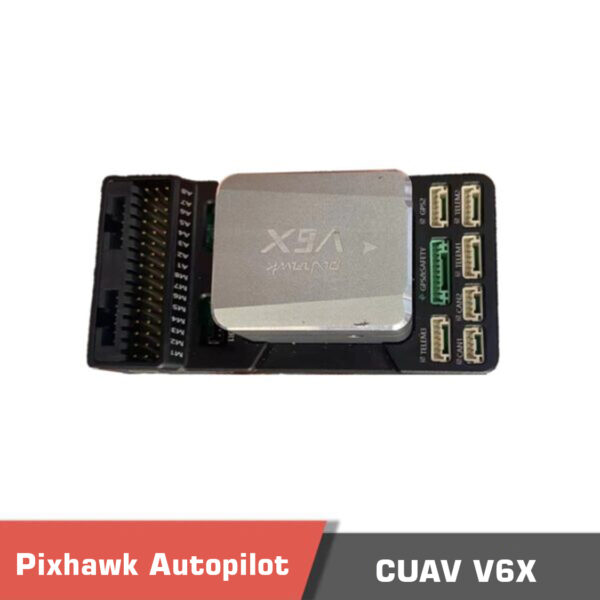

V6x 7 - cuav pixhawk v6x - motionew - 16

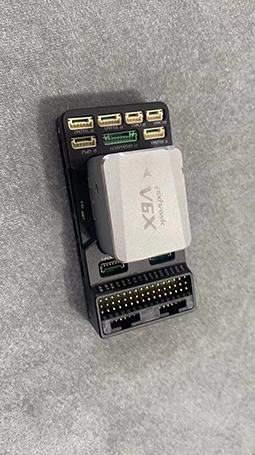

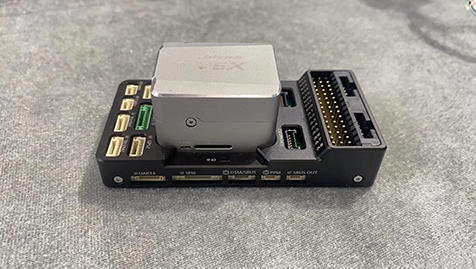

Customer Product Gallery

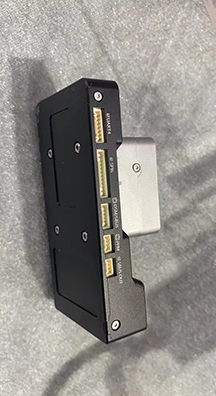

Wechat image 20220814123622 - cuav pixhawk v6x - motionew - 17

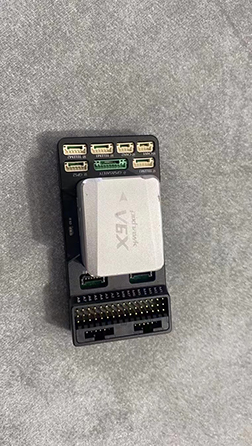

Wechat image 20220814123634 - cuav pixhawk v6x - motionew - 18

CUAV Pixhawk V6X

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

320.00 $ – 1,150.00 $

Bundle

Clear

Message on WhatsApp

Compare

Add to wishlist

Payment Methods:

Description

Introducing CUAV Pixhawk V6X

CUAV Pixhawk V6X autopilot (the latest product by CUAV) is a UAV Drone Flight Controller based on FMUv6 that is ideal for use by both experts and hobbyists in the drone field. The FMUv6X open-hardware standard includes high-performance and low-noise IMUs on board that helps improve stabilization.

Unmatched Performance and Reliability

CUAV Pixhawk V6X is designed to provide the ultimate performance, stability, and reliability in all aspects.

Redefining Performance and Reliability with STM32H7 CPU and Advanced Redundancy Features

CUAV Pixhawk V6X features STM32H7 CPU, and a new built-in shock absorption design isolates IMUs and other sensitive sensors. Everything inside V6X comes with redundancy and precision — redundant IMUs, and double redundant barometers with an independent bus. When one IMU fails, the system seamlessly switches to another IMU sensor safely without interrupting the flight. Moreover, IMU heating further improves performance. Integrated Ethernet feature for high-speed connections to companion computers — Raspberry Pi, BeagleBone, or other types of Mini PCs based on your requirements.

Military-Grade Magnetometer for Improved Maneuvering

Using a Military-Grade Magnetometer RM3100 is helpful in better maneuvering in noisy environments with extreme electromagnetic field interference.

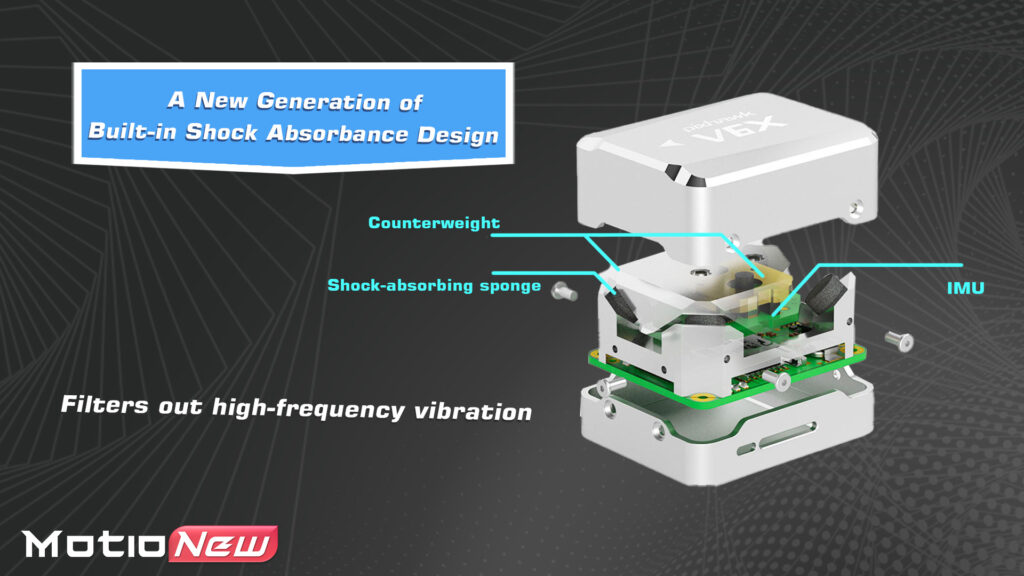

Cuav pixhawk v6x shock absorbance design

Cuav pixhawk v6x mulltiple redundancy design

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Specifications

Specifications
Main FMU Processor	STM32H753IIK6 STM32F103
Accelerometer/Gyroscope	Bosh BMI088 IMU (accel, gyro)
Accelerometer/Gyroscope	InvenSense ICM-20649 IMU (accel, gyro)
Accelerometer/Gyroscope	InvenSense ICM-42688-P IMU (accel, gyro)
Magnetometer	RM3100
Barometer	Dual ICP-20100 barometers

Other Characteristics
Weight	Flight Controller and Module	99g
	Core module	43g
	Baseboard	56g
Operating temperature		-20 ~ 85°c
Dimensions	Flight Controller and Module	90.13×29.24×44.95mm
	Core module	31.65×22.1×38.65mm
	Baseboard	90.13×29.24×17.48mm

Power System
Power	4.75~5.45V
Servo Rail Input	0~9.9V

Interfaces
PWM outputs	16x
TELEM Ports	3x with full flow control
2x GPS ports	1x full GPS plus Safety Switch Port(GPS1) 1x basic GPS port(with I2C,GPS2)
2x USB Ports	1x TYPE-C 1x JST GH1.25
Ethernet port	Transformerless Applications 100Mbps
1x SPI bus	2x chip select lines 2x data-ready lines 1x SPI SYNC line 1x SPI reset line
2x CAN Buses for CAN peripheral	CAN Bus has individual silent controls or ESC RX-MUX control
4x power input ports	2x DroneCAN/UAVCAN power inputs 2x SMBUS/I2C power inputs
1x AD & IO port	2x additional analog inputs (3.3 and 6.6v） 1x PWM/Capture input
2x Dedicated debug	FMU debug IO debug
1 Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
