CommuniNet MND-X40, asymmetric upstream and downstream transmission

Payment Methods:

Payment methods - communinet mnd-x40 - motionew - 3
Description

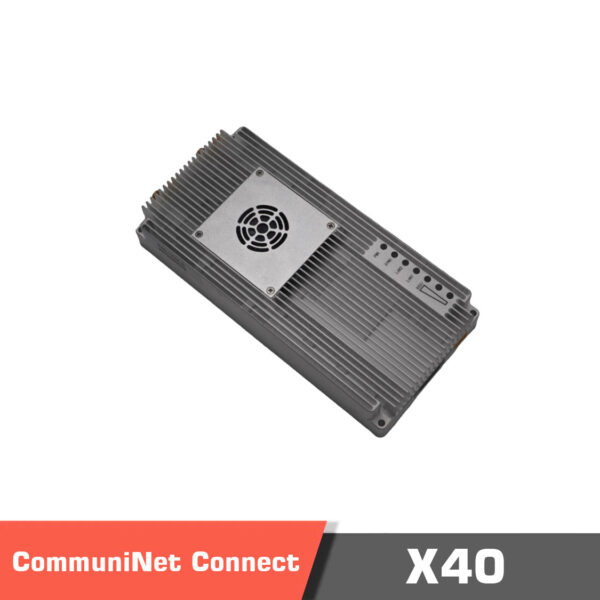

CommuniNet MND-X40 long range 10W wireless transmission system

CommuniNet MND-X40X is a self-developed TDD bidirectional graph data integration, while using upstream and downstream FDD wireless transmission equipment. The product has the functions of real-time interference detection, adaptive frequency selection, adaptive stream, automatic retransmission, and automatic power control, which greatly improves the ability of anti-multipath and anti-interference, and has the characteristics of high reliability, good stability, and low delay. This product is suitable for firefighting, inspection, monitoring and other scenarios, the transmission distance of 150KM when the environment is good.

  • Upstream and downstream asymmetric transmission: TDD+FDD mode for communication transmission.

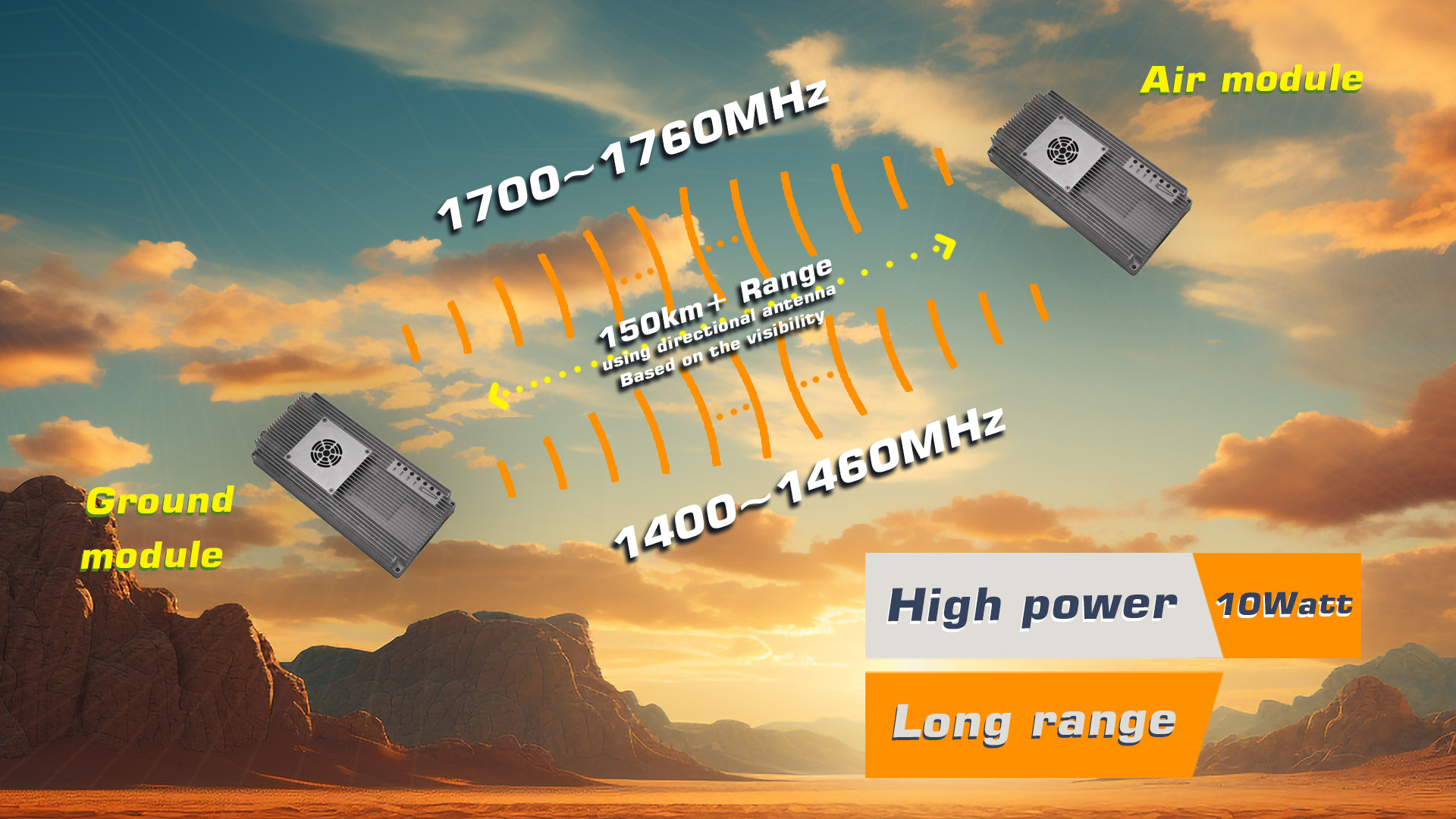

  • Support long-distance transmission: air-to-ground through the case of the maximum transmission distance of 150km.
  • Large bandwidth transmission: 16Mbps@10MHz is supported at most.
  • Automatic repeater transmission: Supports automatic repeater addition.

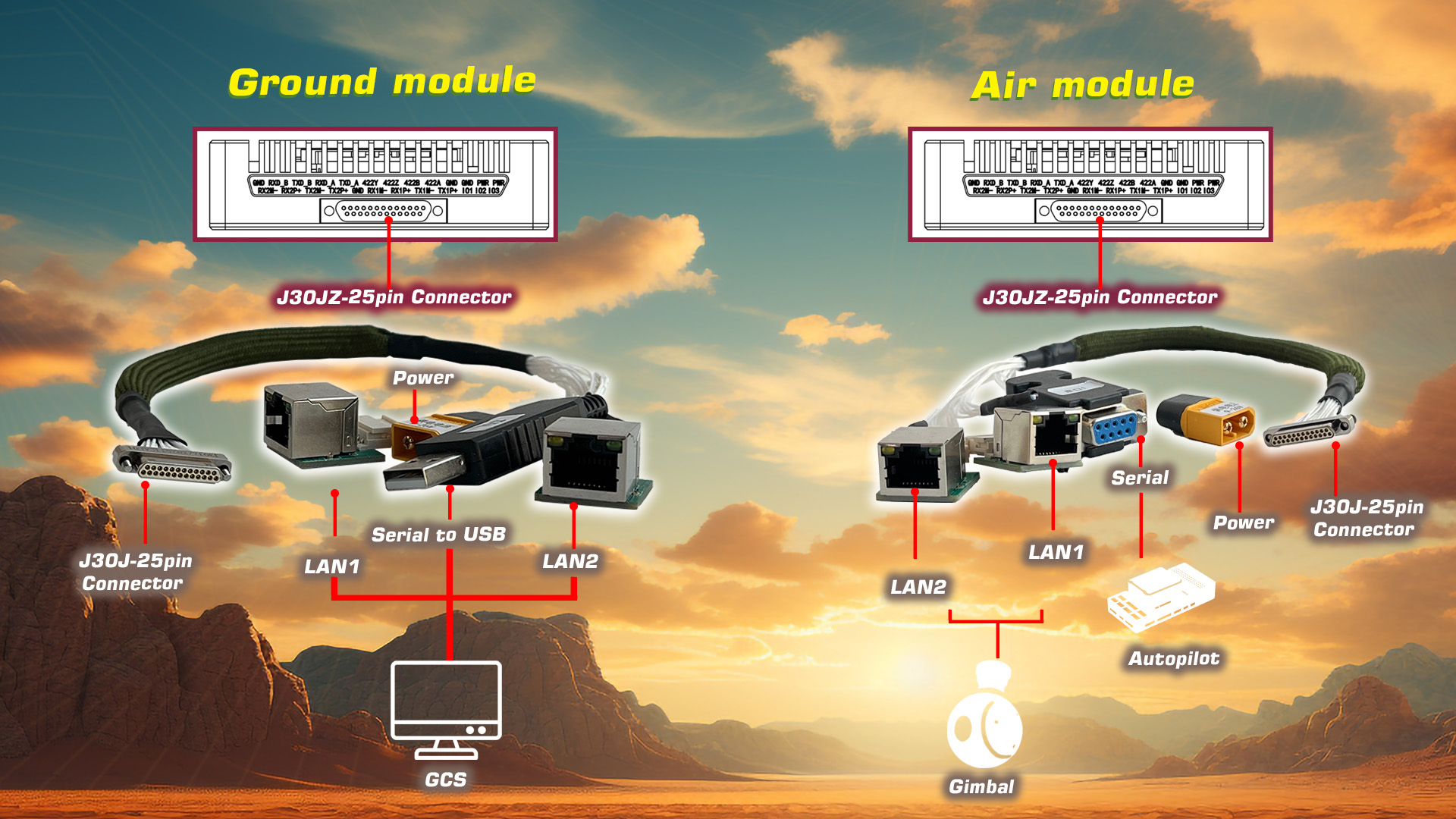

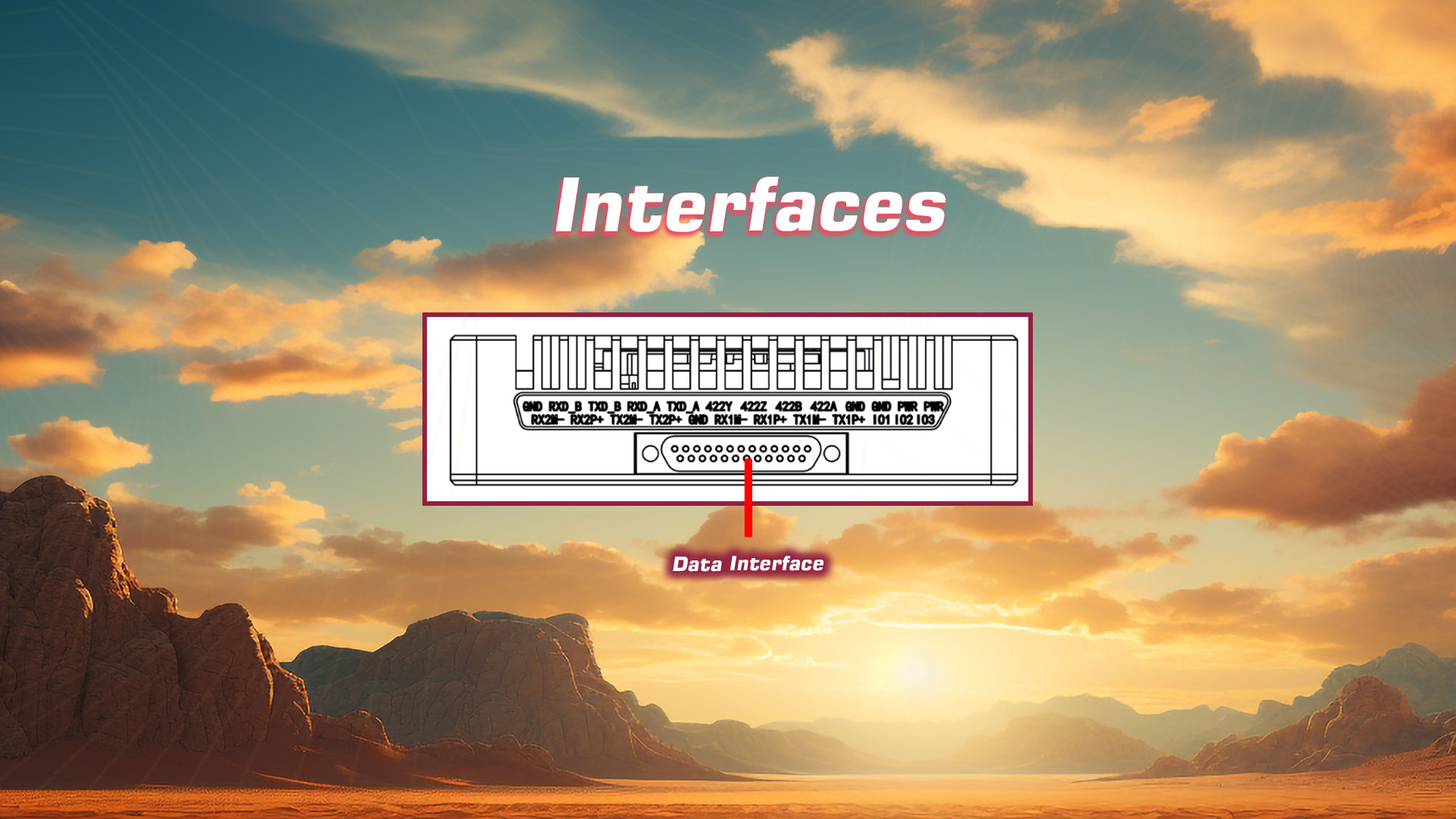

  • Support multi-interface design: The device has dual network ports and four serial ports, supporting RS232/TTL/RS422/SBUS.

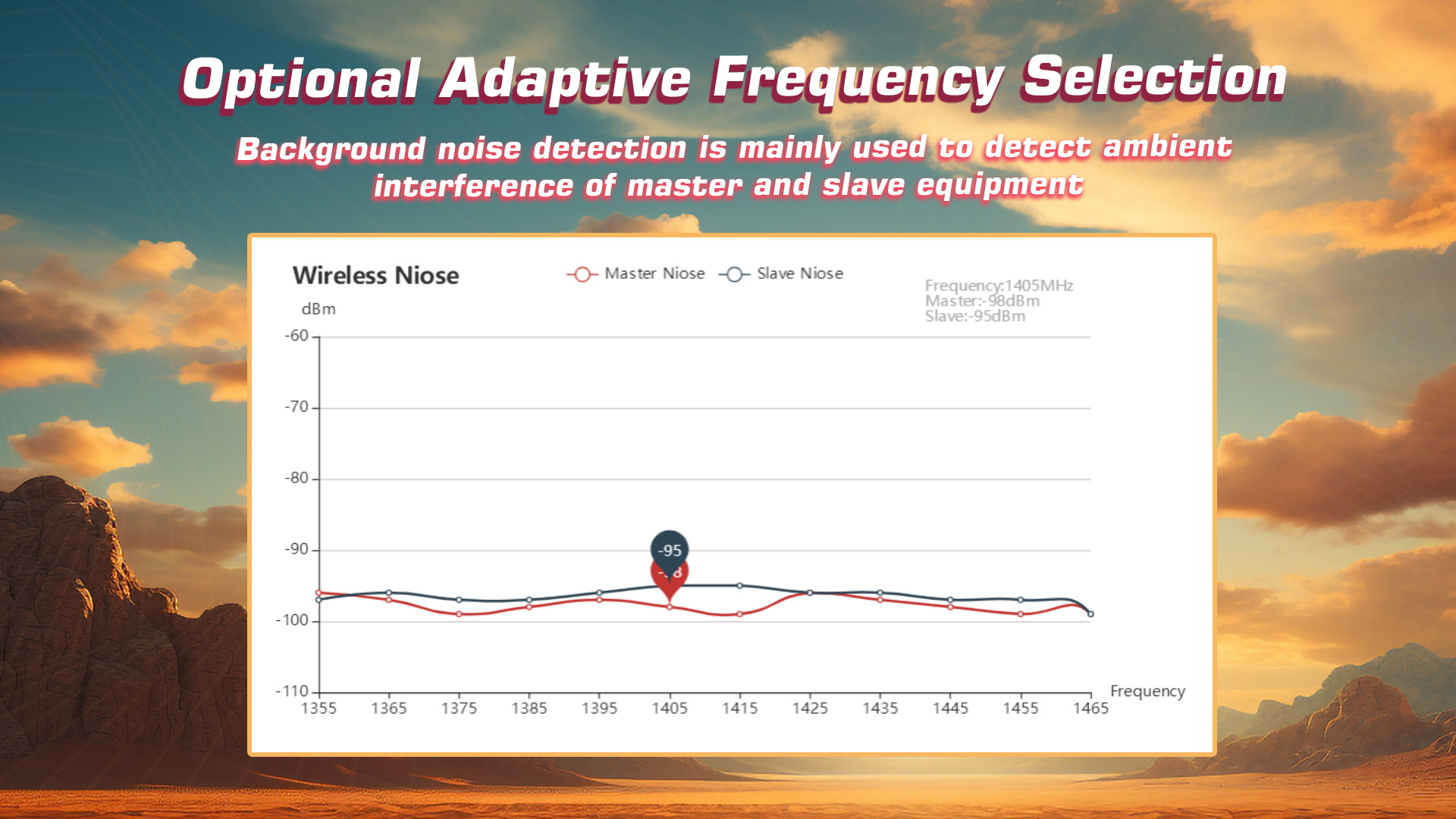

  • Support automatic frequency selection: automatic detection of interference signals, real-time selection of the optimal frequency point.
  • Automatic retransmission: Automatically retransmits burst error data to improve data reliability.
  • Support adaptive stream: automatically adjust channel modulation mode according to signal quality in real time.
  • Support automatic power control: The transmission power is automatically adjusted at a short distance to reduce power consumption.
  • Support automatic antenna selection: select the optimal antenna emission in real time according to the occlusion situation.
  • Support uplink and downlink dynamic allocation: master and slave uplink and downlink bandwidth proportion can automatically allocate bandwidth according to the actual downlink and uplink data volume.

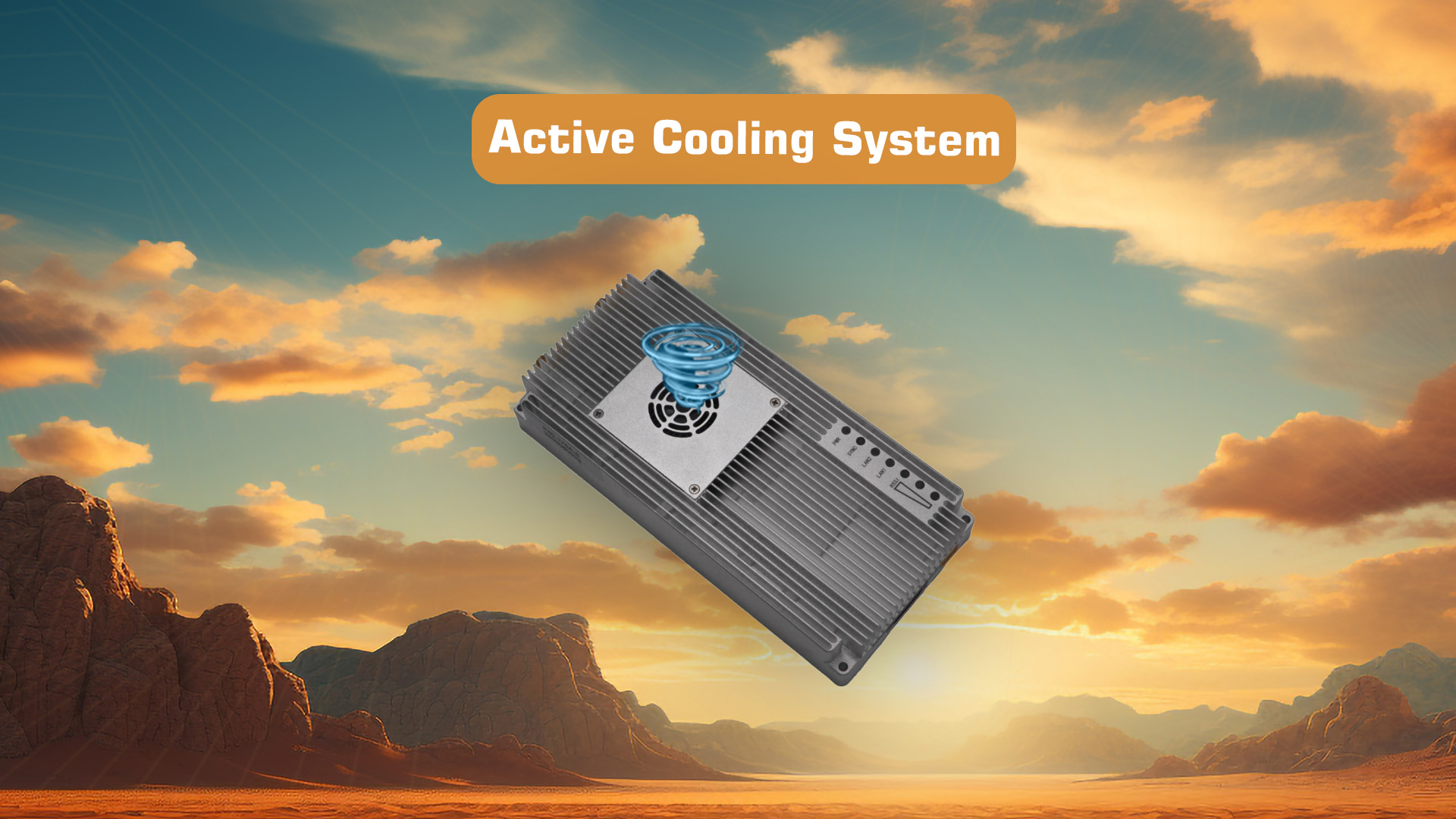

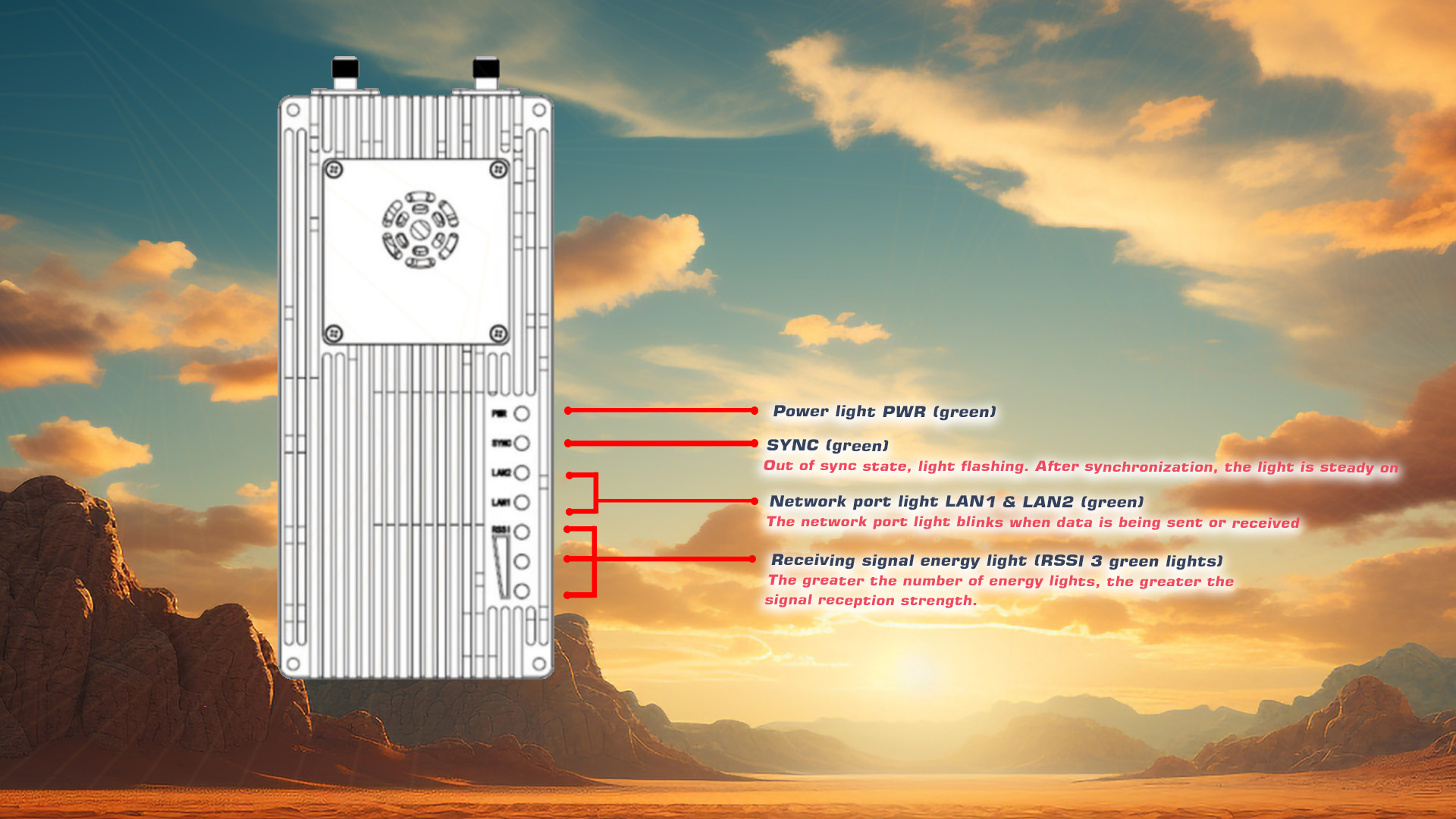

Communinet mnd-x40 Communinet mnd-x40 specification Communinet mnd-x40 parts Communinet mnd-x40 functionality Communinet mnd-x40 interfaces Communinet mnd-x40 moudle Communinet mnd-x40 acctive colling system P40x. 8 - communinet mnd-x40 - motionew - 2 Communinet mnd-x40 package Communinet mnd-x40 dimensions

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Specifications

Working frequency 1400~1460MHz&1700~1760MHz
Radio frequency 2T2R
Transmission power 40dBm(10W)
Transmission distance Air-to-ground 150km ( visibility )
Channel bandwidth 10MHz
Modulation mode QPSK/16QAM
Speed 16Mbps@16QAM3/4
Communication encryption AES256
Transmission delay ≤10ms
Radio frequency interface SMA*2
Equipment interface
Ethernet portX2
TTL/RS232X2
RS422X1
SUBS/TTL x1
Overall power consumption
≤ 66W@4Mbps(Air)
≤ 15W@1Mbps(Ground)
Dimension(L*W*H)

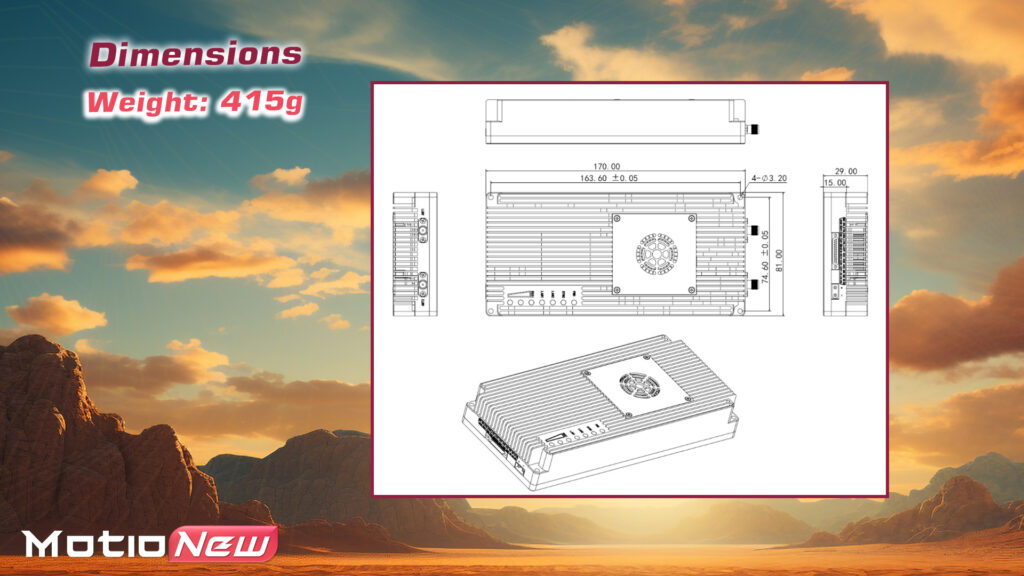

180mm x 81mm x 29mm
Weight
415g
Working voltage
DC 22~30V, Typical value: 28V@3A
Working temperature
-40°C~+65°C
Receiving sensitivity
MCS & Sensitivity(10MHz)
No. MCS Total uplink and downlink
throughput (Mbps)
Sensitivity (dBm)
1 QPSK1/3 3.8 -99
2 QPSK1/2 5.6 -98
3 QPSK2/3 6.8 -97
4 QPSK3/4 7.8 -96
5 16QAM1/3 7.6 -96
6 16QAM1/2 11.1 -95
7 16QAM2/3 13.7 -93
16QAM3/4 15.7 -91
Documents

Documents

Please contact us for more information.

Product contents

Product contents

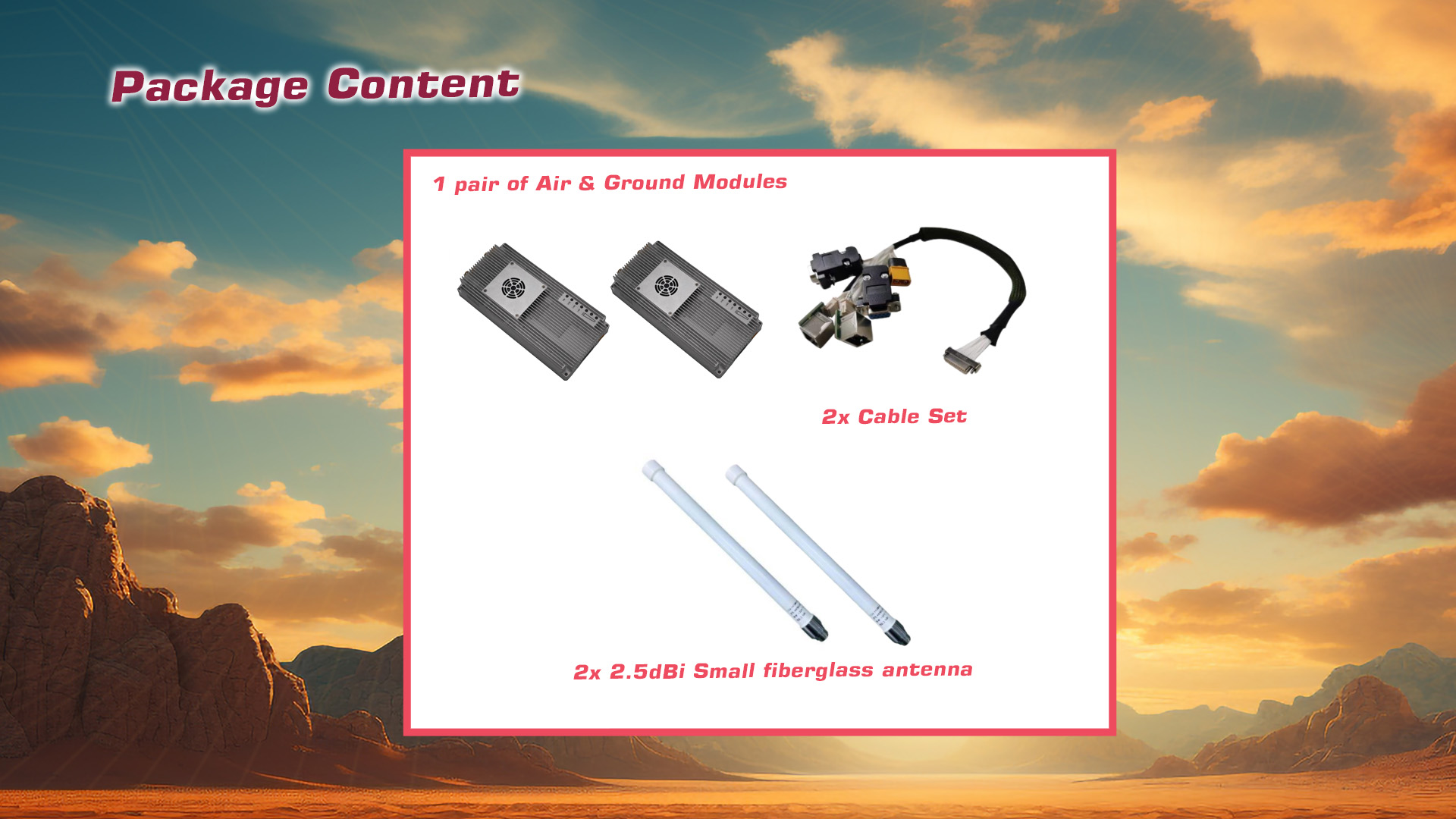

1 pair of ground and air unit with antenna and cable sets.

Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “CommuniNet MND-X40, asymmetric upstream and downstream transmission”

Specification:

Transmission Power

10W

Communication Range

150km

Operating Frequency

1.4GHz

,

1.7GHz

Transmission System Type

Video Link / Data Link

Transmission System Interfaces

Ethernet

,

SBUS

,

Serial

Data Encryption

AES256

Transmission System Dimensions

180 x 81 x 29mm

Transmission System Weight

415g

Channel Bandwidth

10MHz
