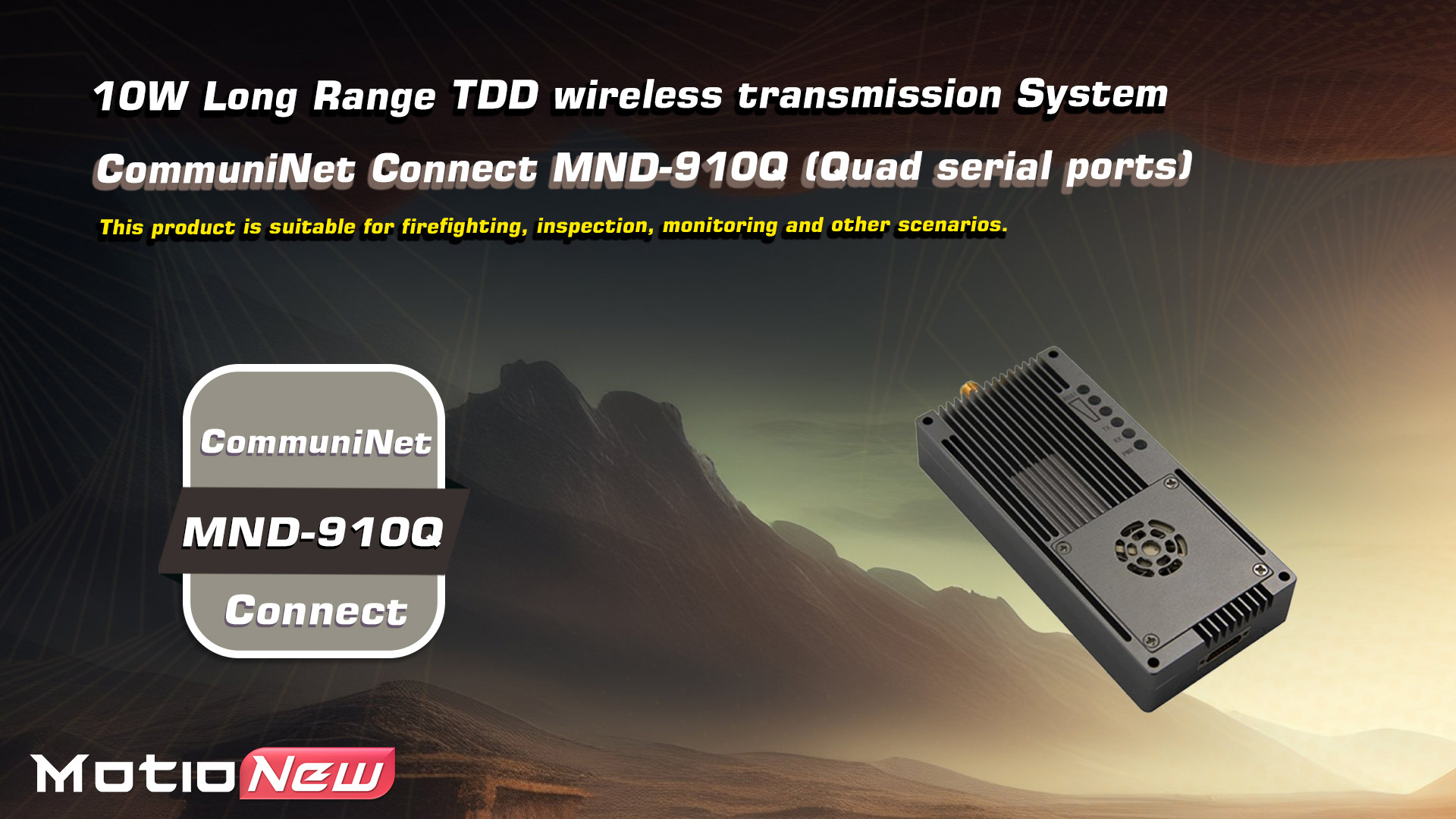

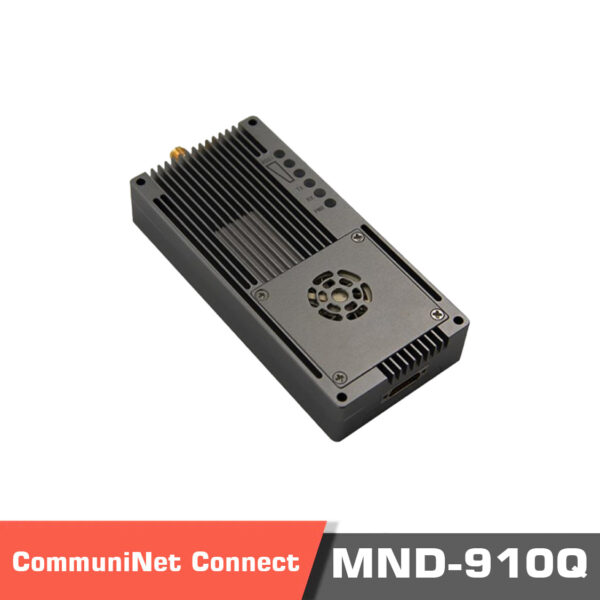

CommuniNet MND-910Q long range 10W wireless transmission system

CommuniNet MND-910Q (10W) is one of the digital radios in the CommuniNet series. It is mainly used for transmission of high-power long-distance industrial data. It has the advantages of small volume, high integration and high sensitivity. The CommuniNet MND-910Q works in the 902~928MHz band. It has two models: the CommuniNet MND-910QA and the CommuniNet MND-910QB. The only difference between them is the transmission distance. In good environment the maximum transmission distance of the CommuniNet MND-910QA is 100km, and that of the CommuniNet MND-910QB is 200km. This product is suitable for UAV, inspection, monitoring and more.

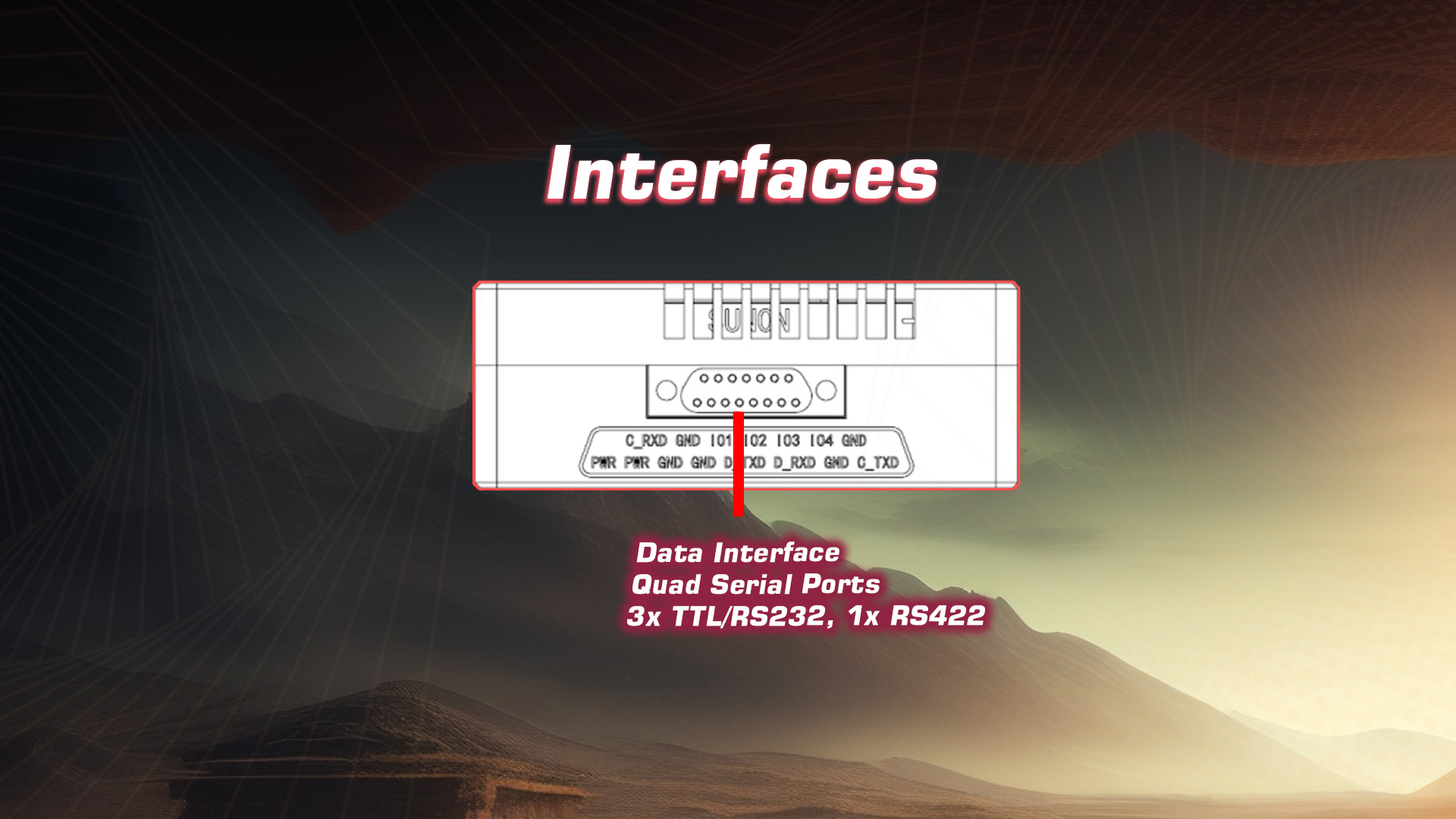

The only difference with MND-910 is that this model has quad serial ports compared to two that is available on MND-910.

PRODUCT FEATURES

• Frequency range: 902-928MHz
• Spread spectrum mode: FHSS
• Data encryption: AES256

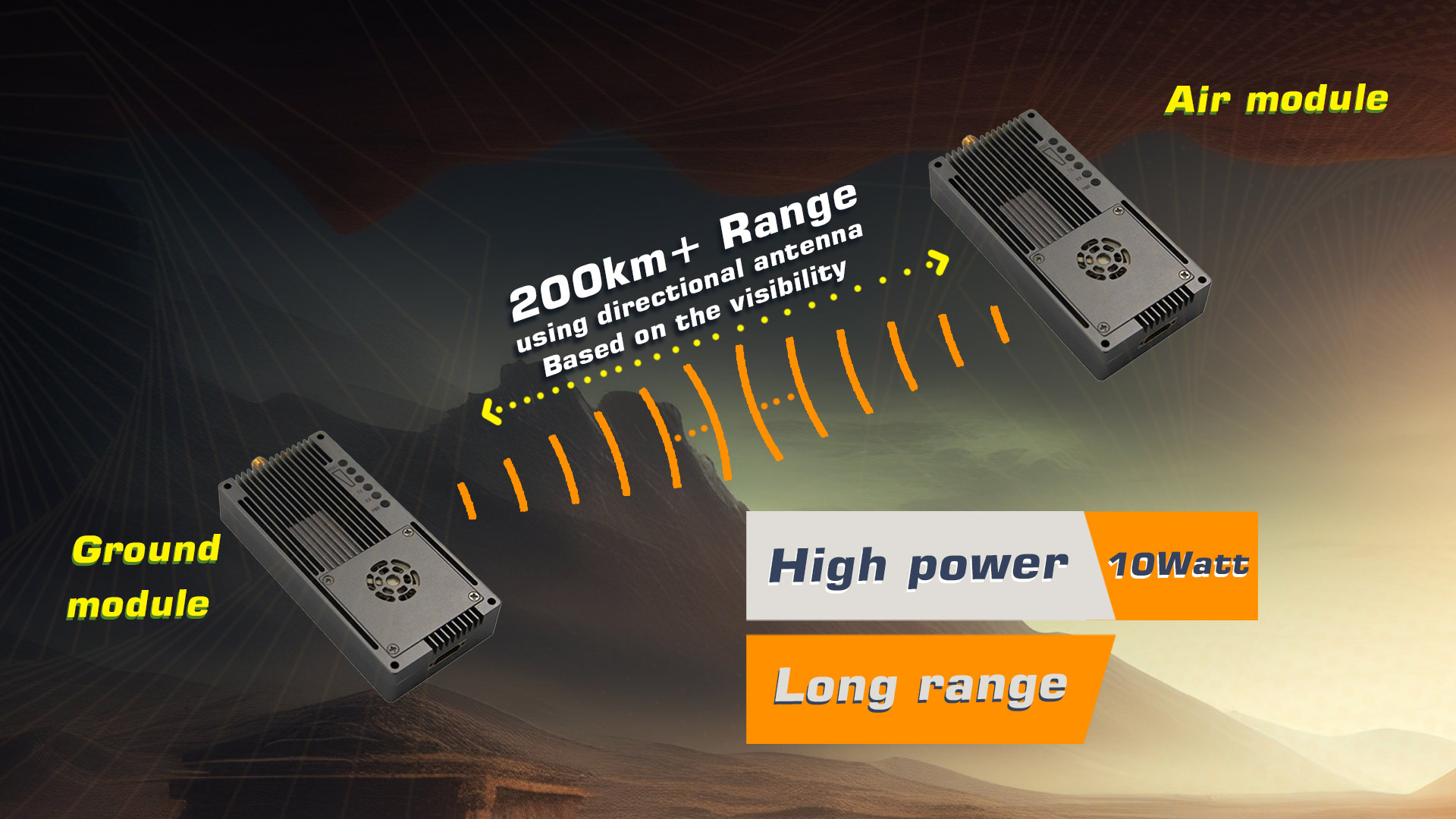

• Range of communication: up to 100km/200km
• Output power: 10W (40dBm）
• Bitrate speed: up to 276.4kbps
• Serial baud rate: up to 921.6kbps
• Working temperature: -40°C ~ +85°C

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

FAQ – CommuniNet MND-910Q Long Range 10W Wireless Transmission System

1. What are the main specifications of the CommuniNet MND-910Q?
The MND-910Q is a 10W long-range wireless transmission system designed for UAVs, UGVs, and industrial telemetry. Operating in the 902–928 MHz frequency band, it offers up to 200 km range with quad serial port (RS232/RS485) support and robust anti-interference FHSS technology.

2. What communication protocols and interfaces does it support?
The system includes Ethernet and four serial ports, allowing simultaneous transmission of telemetry, video, and control data. It supports IP-based communication, MavLink, and standard serial data protocols for UAV flight controllers and ground control systems.

3. What technologies ensure long-range and reliable communication?
The MND-910Q uses Frequency Hopping Spread Spectrum (FHSS) and adaptive modulation to maintain stable, interference-resistant connections. It also supports automatic retransmission and error correction for critical mission reliability.

4. What payment methods are accepted for purchasing the MND-910Q system?
Motionew accepts credit/debit cards, PayPal, and bank wire transfers. For OEM or enterprise buyers, proforma invoices are available for direct bank transactions.

5. Is OEM customization available for this system?
Yes. Motionew offers OEM customization, including frequency tuning, connector configuration, enclosure branding, and interface optimization. Contact the sales department for MOQ and delivery timelines.

6. Are datasheets and integration guides provided?
Yes. Motionew provides datasheets, wiring diagrams, and configuration manuals. Additional technical support is available for UAV integration, network setup, and range calibration.
