Description

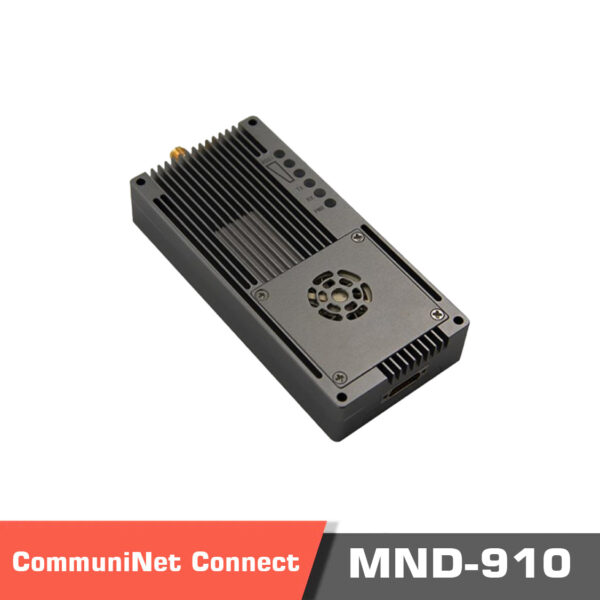

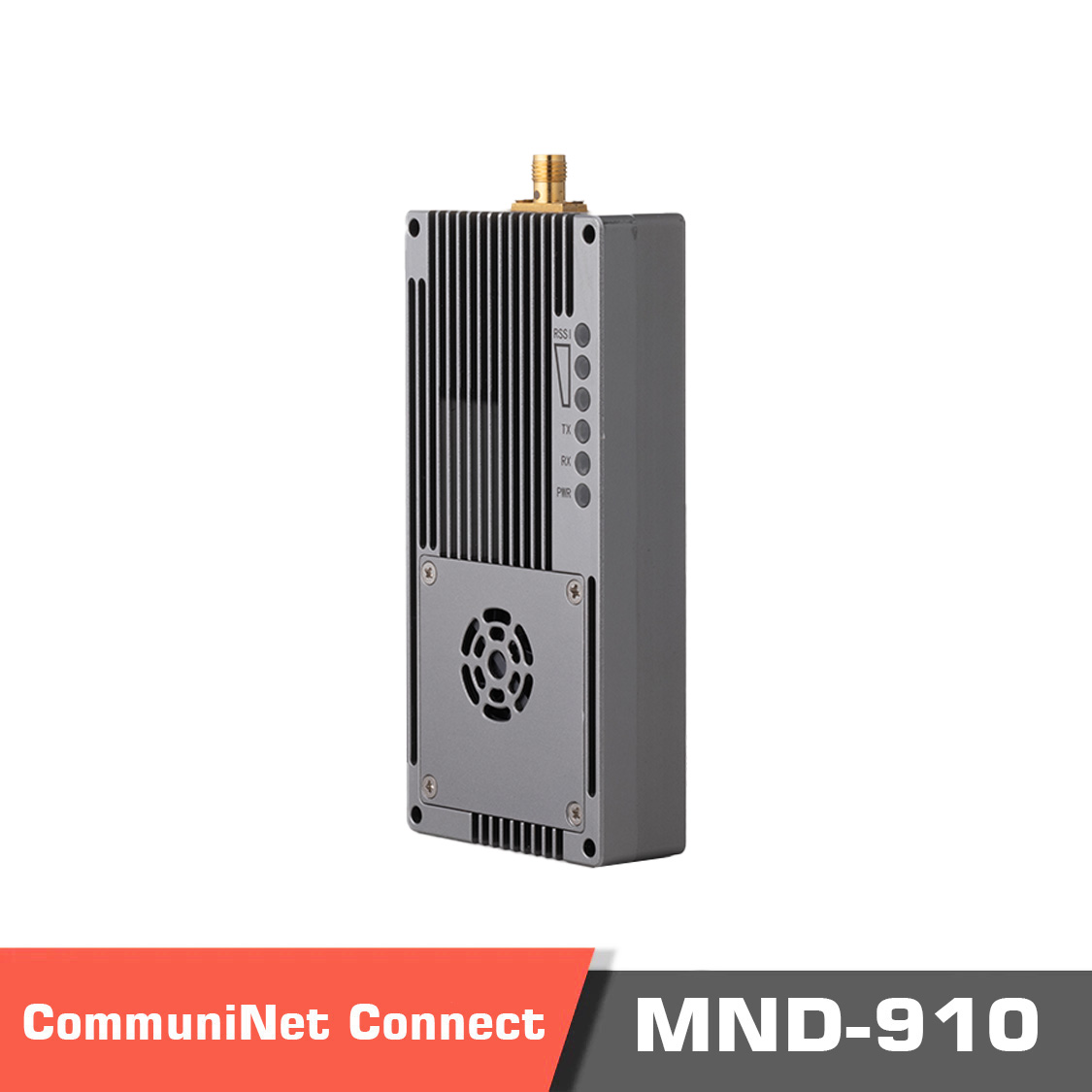

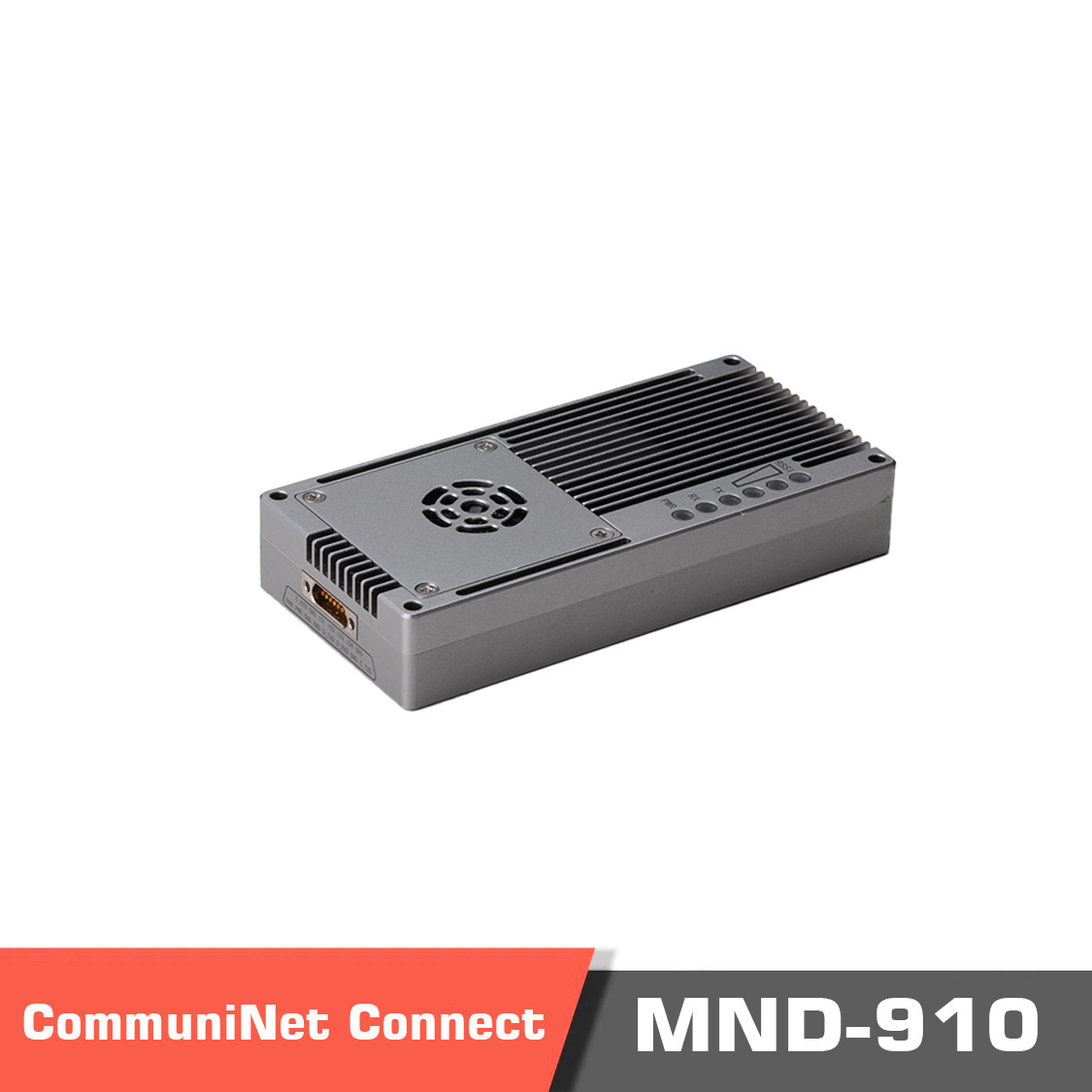

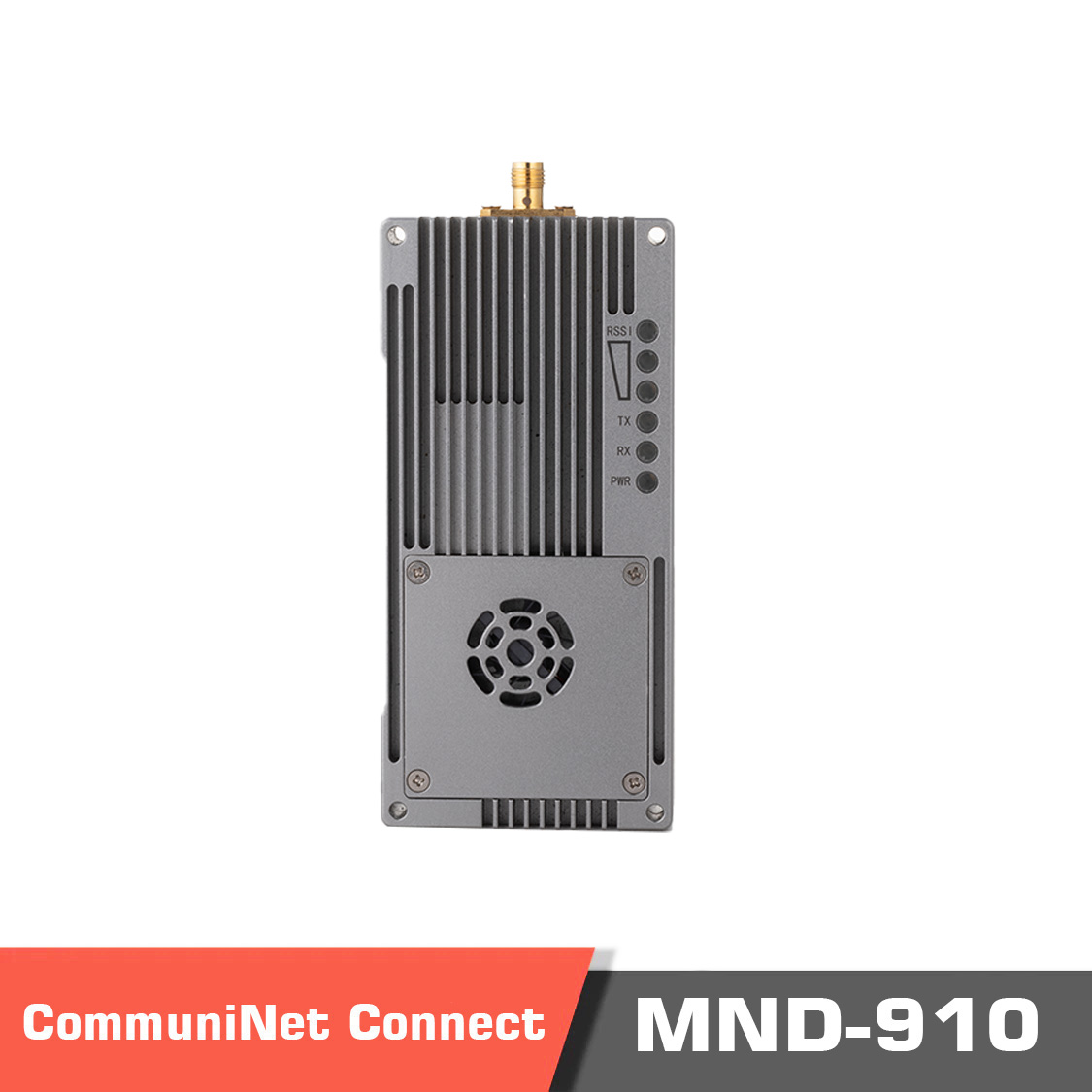

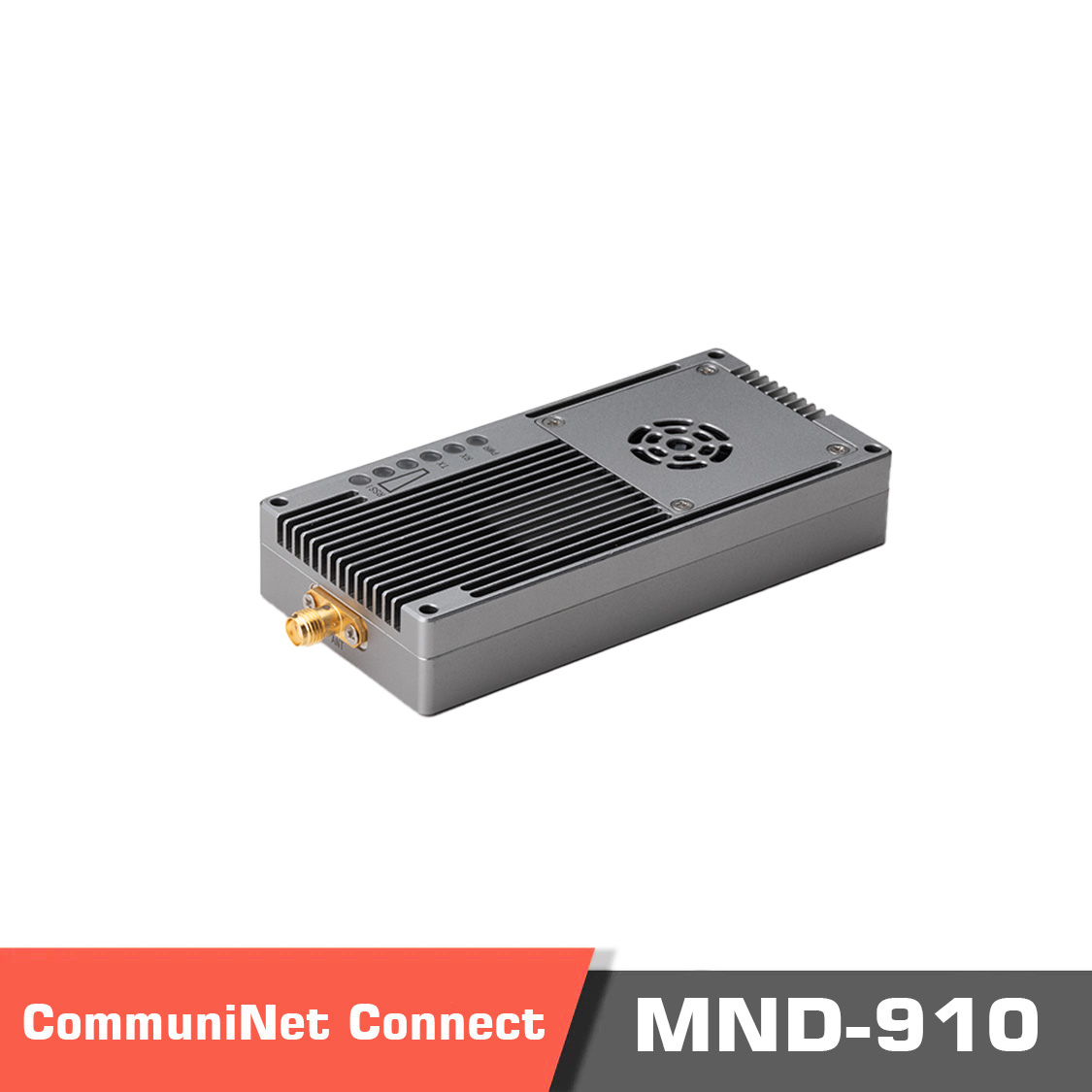

CommuniNet MND-910 long range 10W wireless transmission system

CommuniNet MND-910 (10W) is one of the digital radios in the CommuniNet series. It is mainly used for transmission of high-power long-distance industrial data. It has the advantages of small volume, high integration and high sensitivity. The CommuniNet MND-910 works in the 902~928MHz band. It has two models: the CommuniNet MND-910A and the CommuniNet MND-910B. The only difference between them is the transmission distance. In good environment the maximum transmission distance of the CommuniNet MND-910A is 100km, and that of the CommuniNet MND-910B is 200km. This product is suitable for UAV, inspection, monitoring and more.

PRODUCT FEATURES

  • Frequency range: 902-928MHz
  • Spread spectrum mode: FHSS
  • Data encryption: AES256

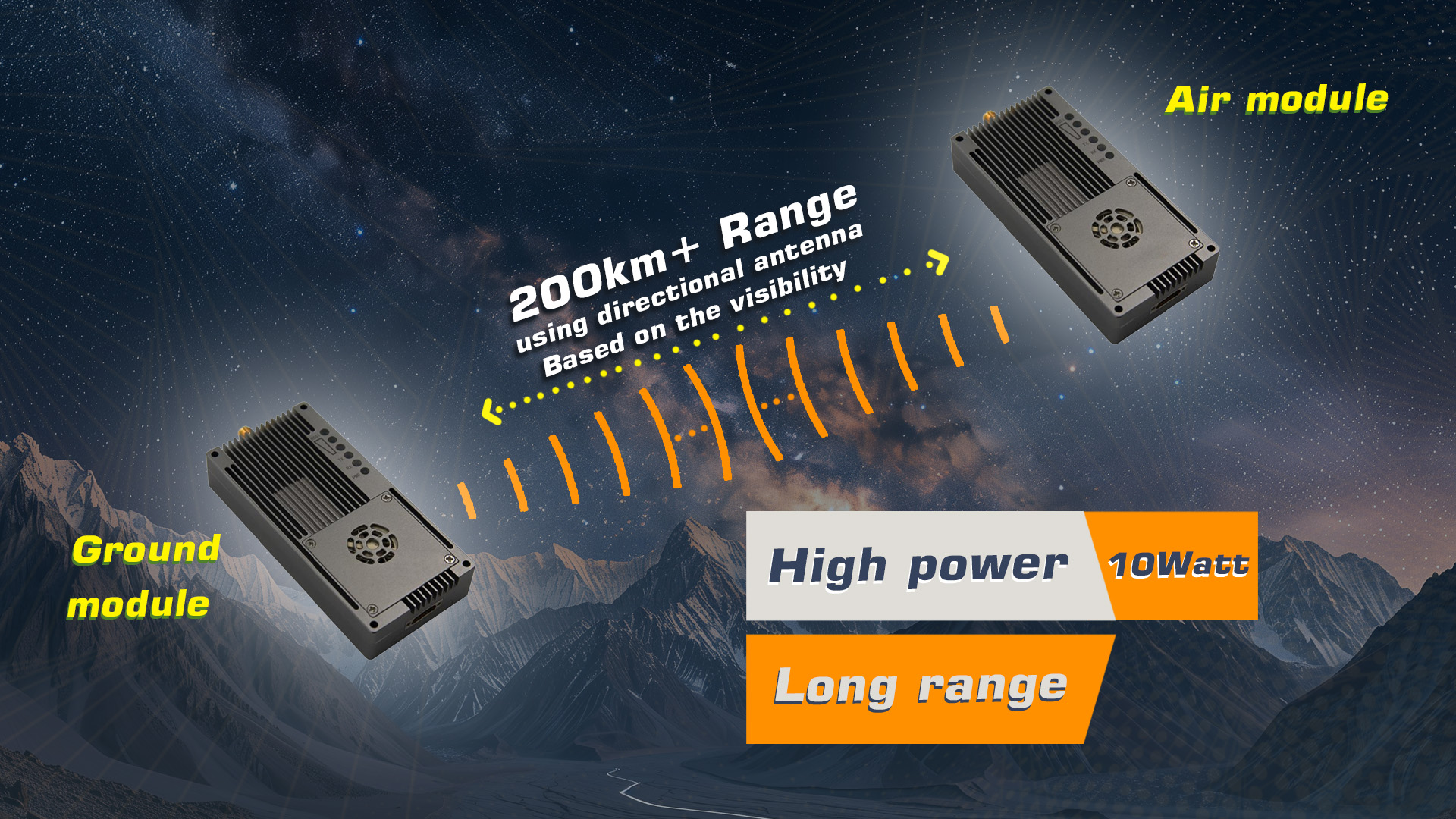

  • Range of communication: up to 100km/200km
  • Output power: 10W (40dBm๏ผ‰
  • Bitrate speed: up to 276.4kbps
  • Serial baud rate: up to 921.6kbps
  • Working temperature: -40ยฐC ~ +85ยฐC

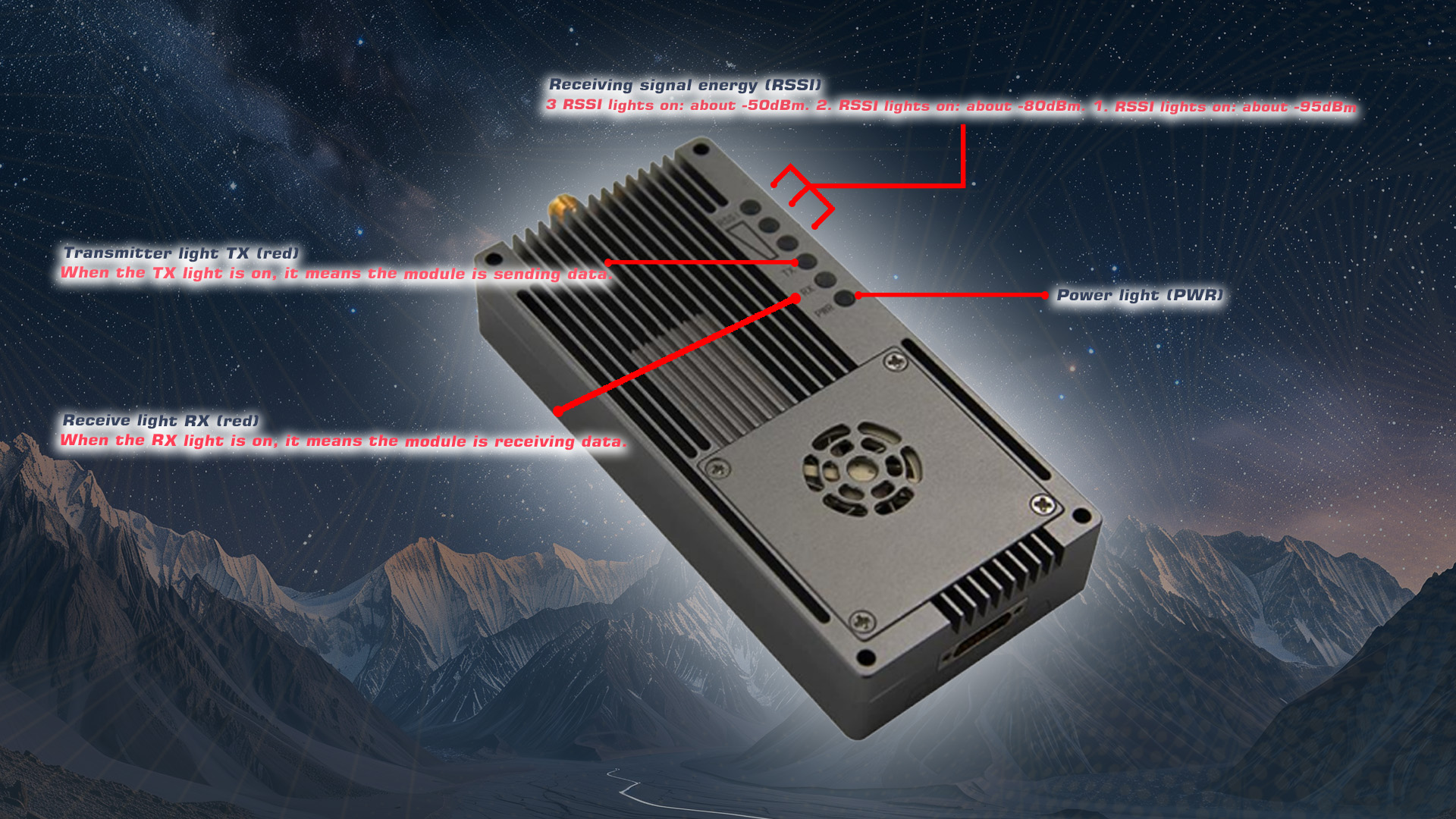

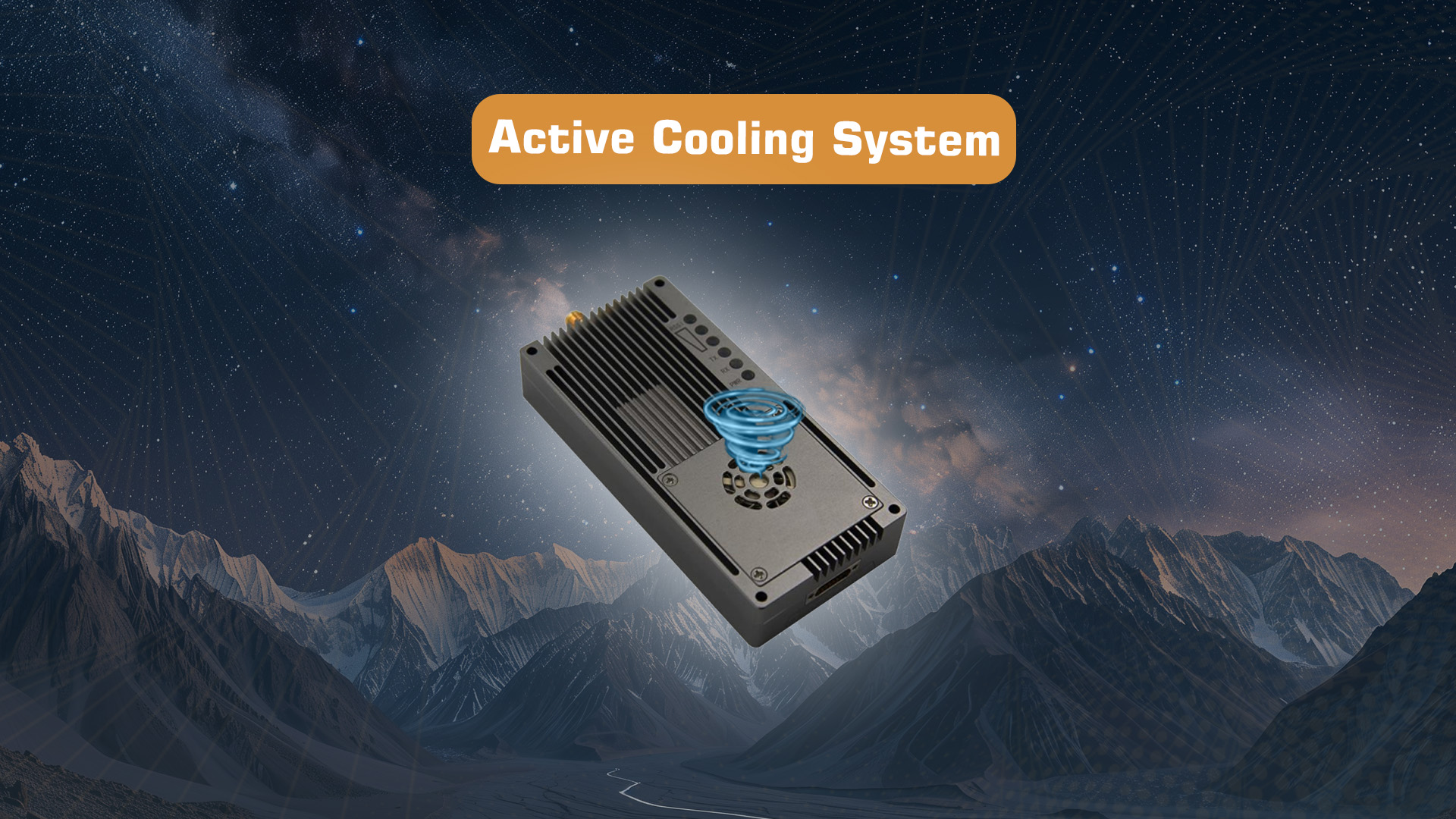

Communinet mnd-910 Communinet mnd-910 specification Communinet mnd-910 parts Communinet mnd-910 functionality Communinet mnd-910 interfaces Communinet mnd-910 acctive colling system Communinet mnd-910 package Communinet mnd-910 dimensions



If you have any questions regarding our products, use theย Motionew Contact usย page to consult our engineering team.



Specifications

Working frequency 902~928MHz
Modulation
2FSK
Spread spectrum
FHSS
TX power
34dBm~40dBm
Working mode
point-to-point,point-to-multipoint,with centra MESH
Data encryption
AES256
Receiving sensitivity [email protected] [email protected] [email protected] [email protected] [email protected]
Transmission rate 57.6kbps~276.4kbps
Error detection 16-bit CRC,ARQ,ReedSolomon
Serial port TTL/RS232

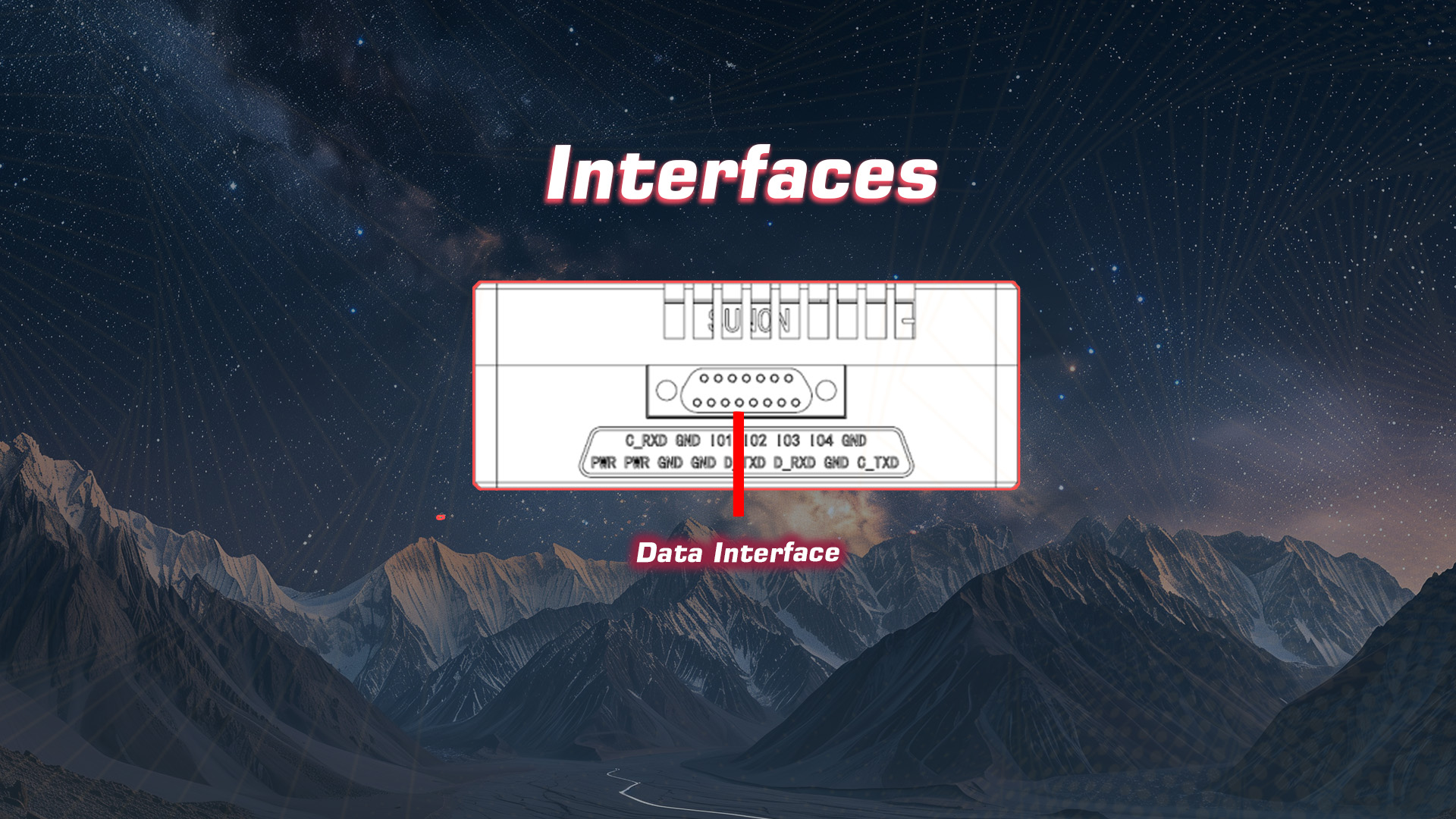

Data interface, Control interface, Power interface
J30J-15ZKW
Antenna interface SMA
Voltage range DC15~26V
System power consumption <35W

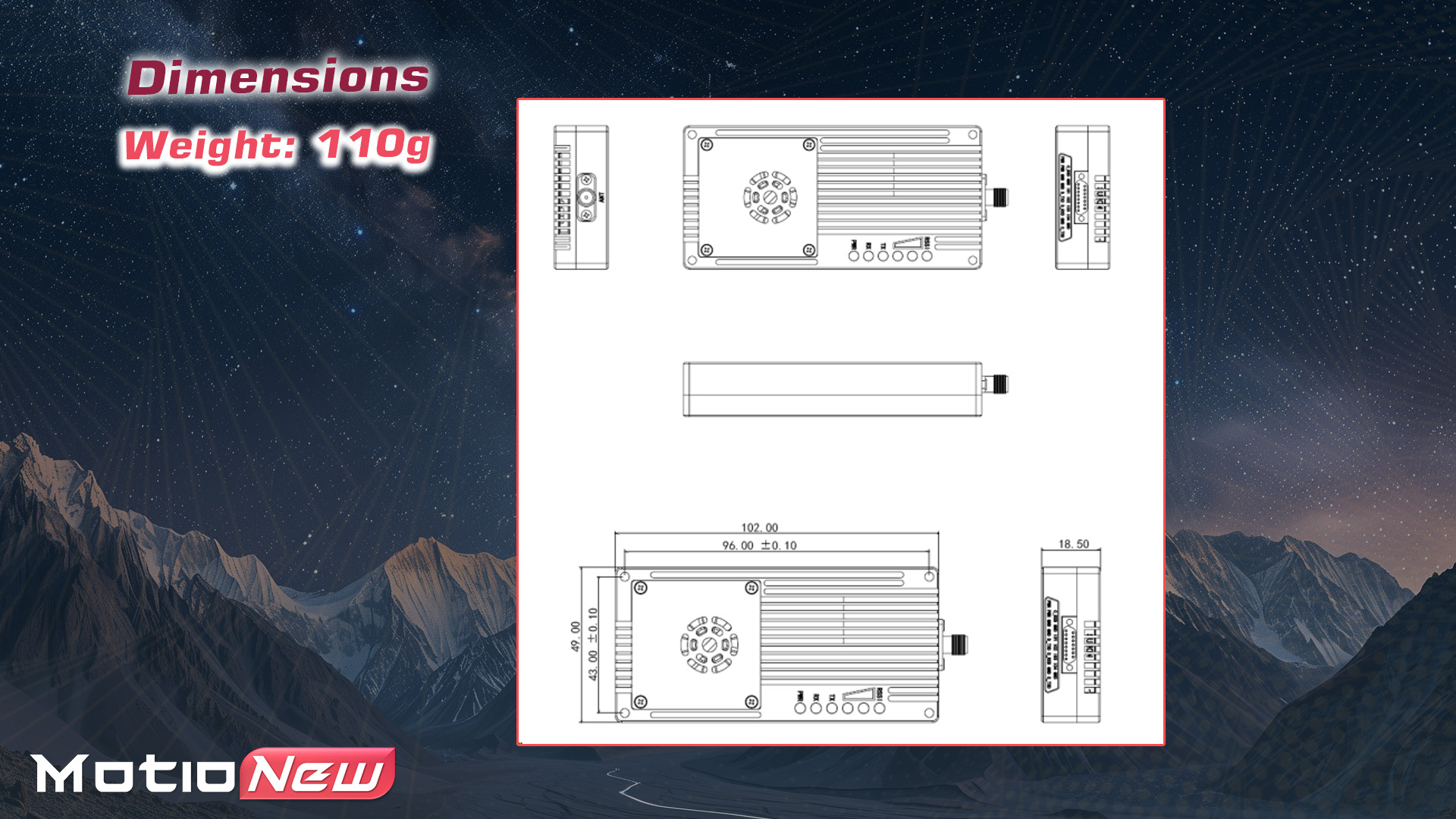

Dimensions(L*W*H) 102mm*49mm*18.5mm
Weight 110g
Working temperature -40โ„ƒ ~+85โ„ƒ

Documents

Please contact us for more information.

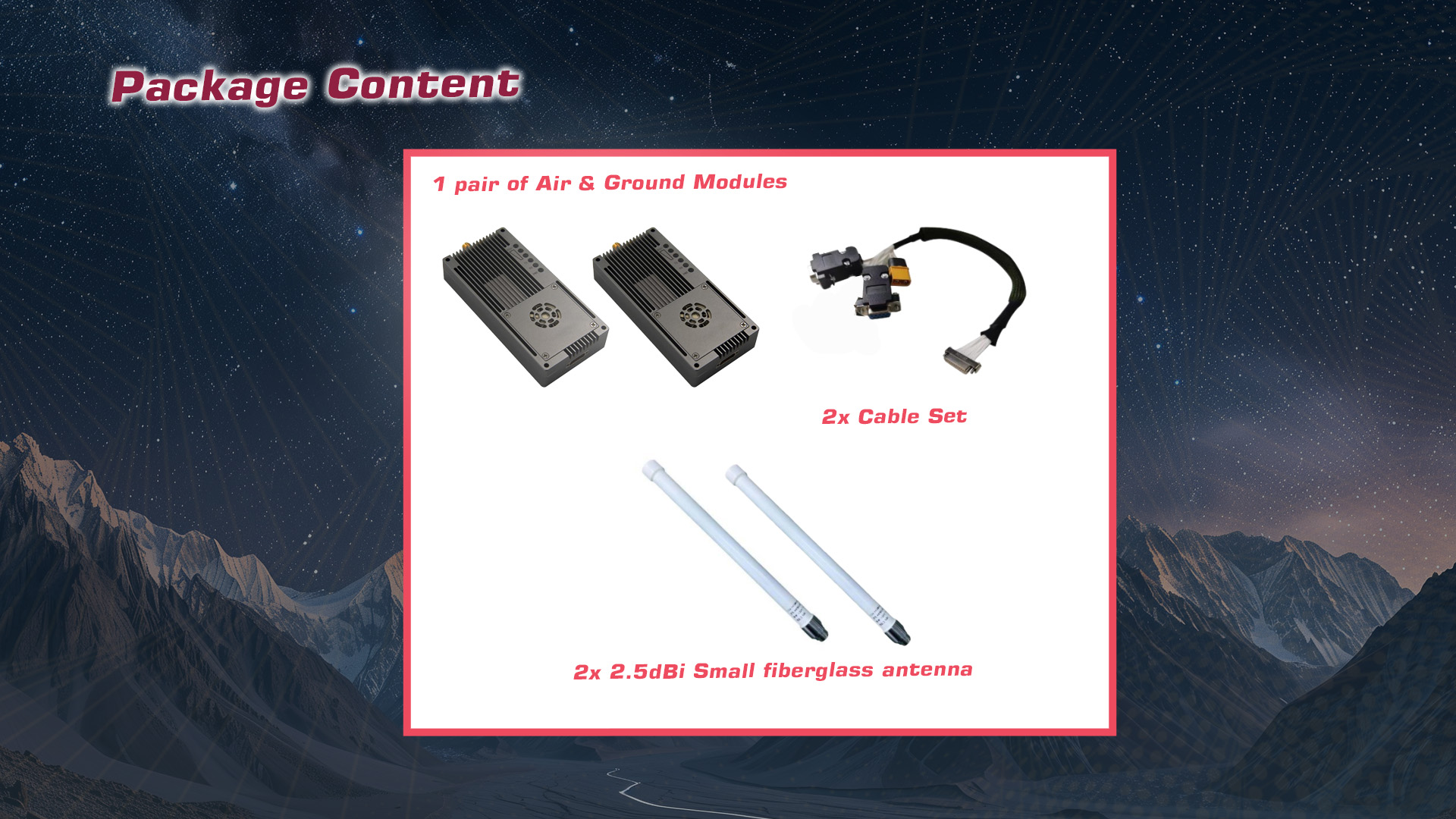

Product contents

1 pair of ground and air unit with antenna and cable sets.
