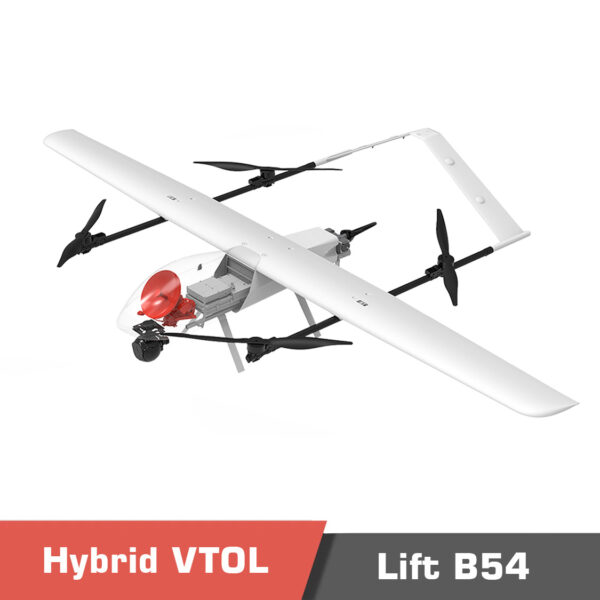

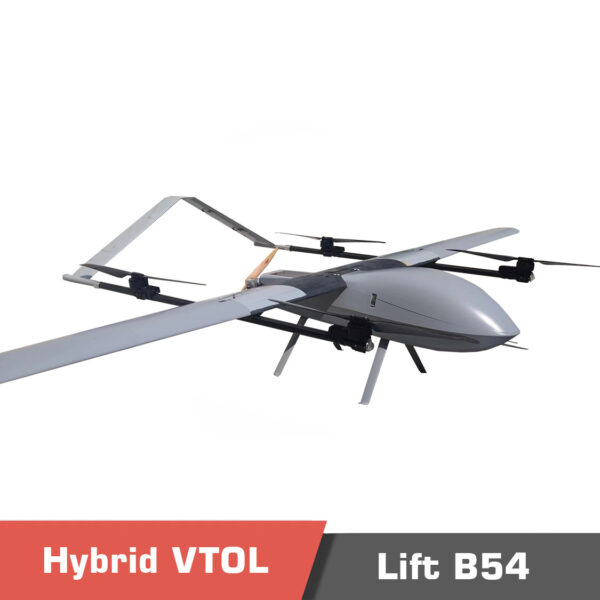

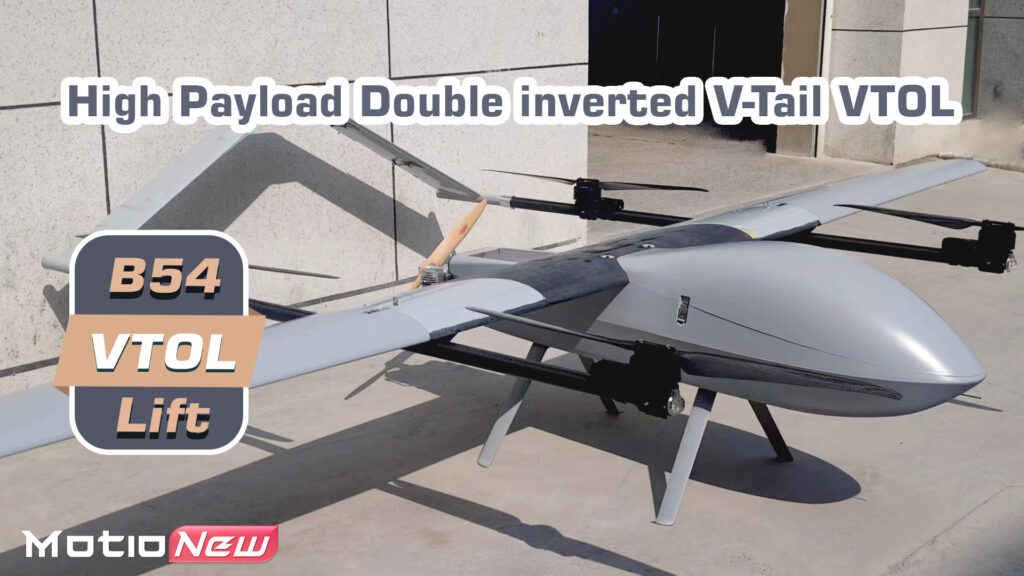

Lift VTOL B54, Heavy Payload double inverted V-tail VTOL

Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

Overview Table of the Lift VTOL B54 Specifications

Overview of Lift VTOL B54

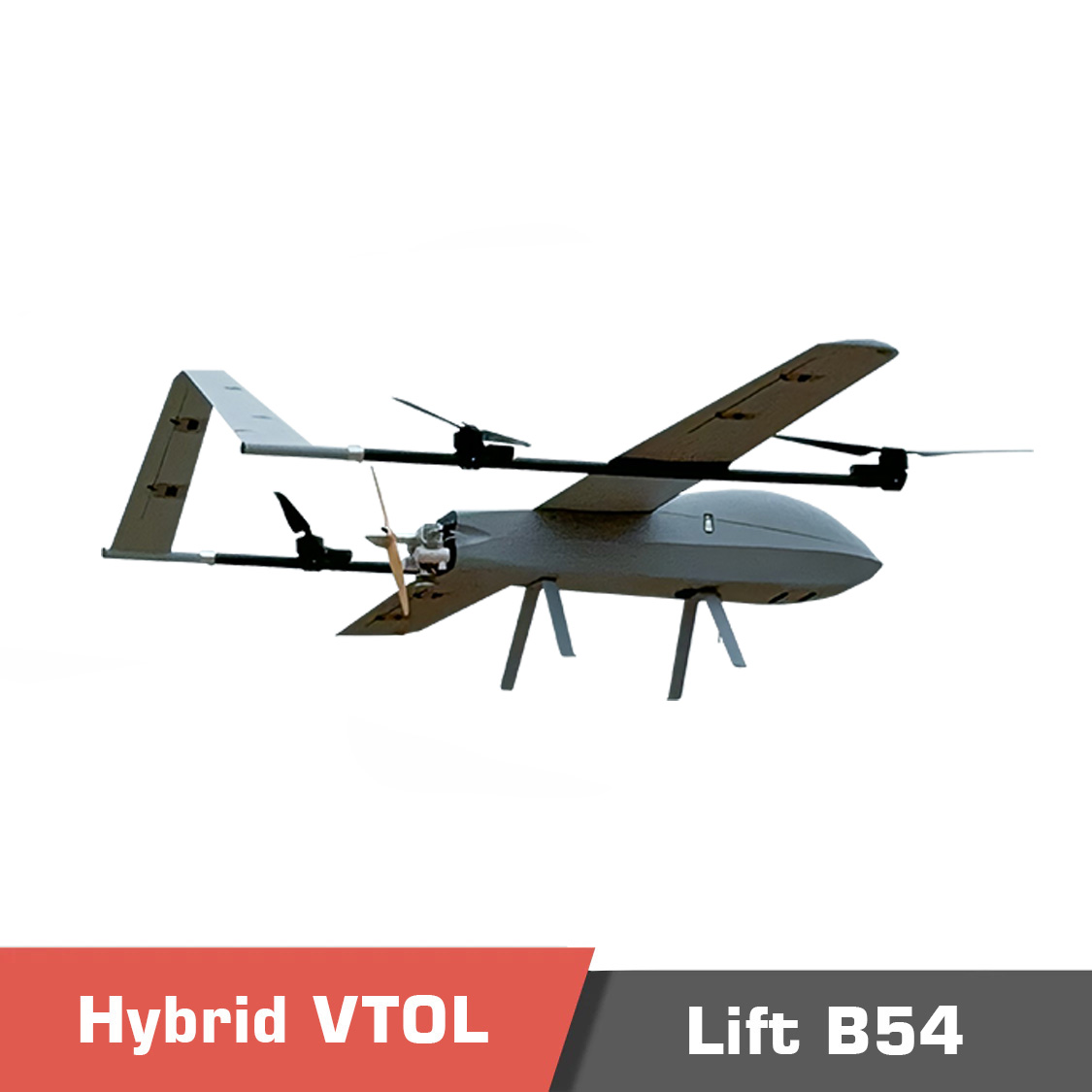

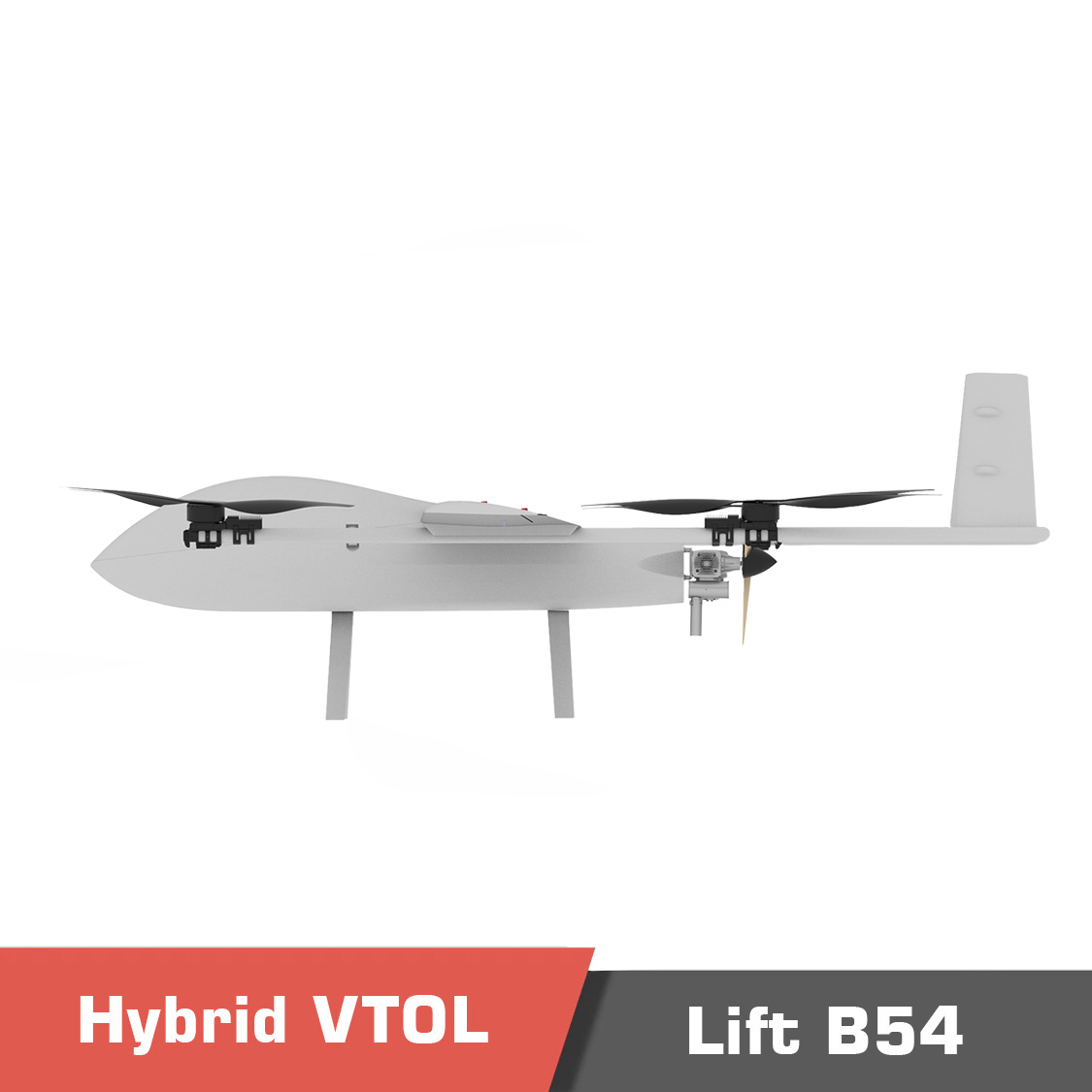

The Lift VTOL B54 is a state-of-the-art VTOL (Vertical Take-Off and Landing) drone with a double inverted V-Tail design, suitable for exceptional performance and versatility in various applications. This advanced drone combines the benefits of fixed-wing efficiency with the flexibility of vertical take-off and landing capabilities, making it an ideal solution for both commercial and industrial use.

Technical Specifications

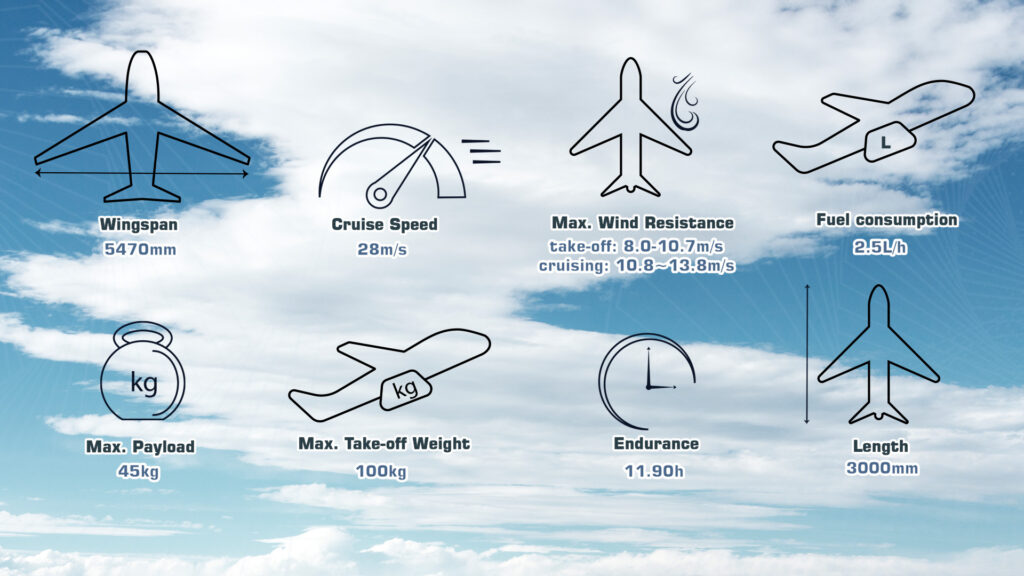

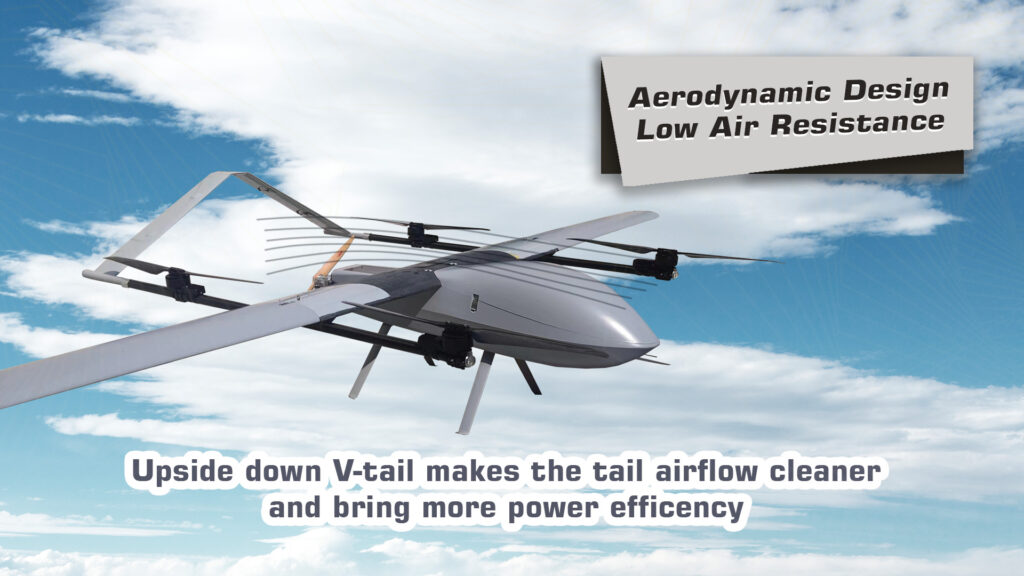

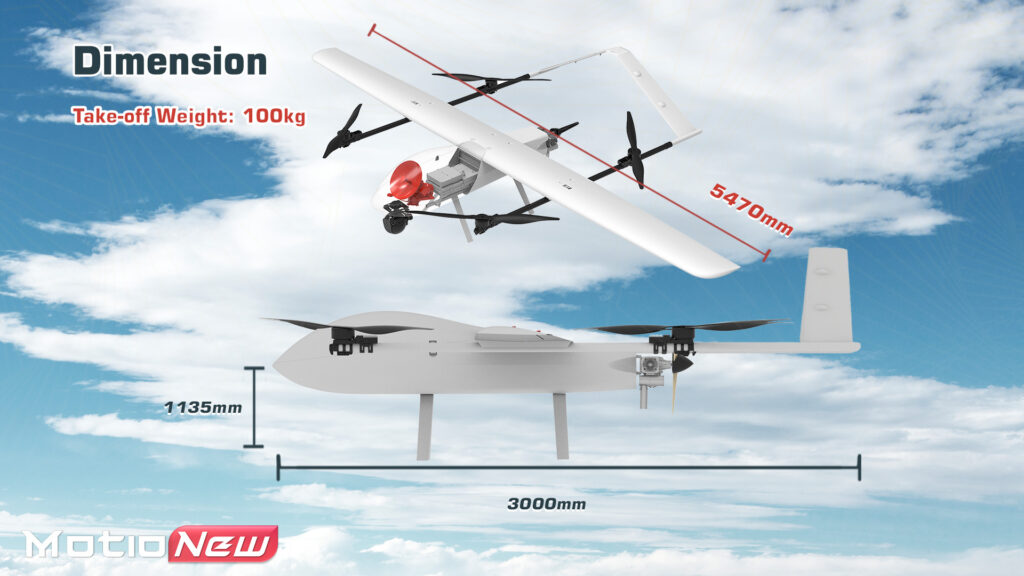

The Lift B54 boasts impressive technical specifications, starting with its substantial body length of 3000mm and body height of 1135mm. The drone features a single wingspan design, with the wingspan being 5470mm. Constructed from aviation-grade carbon fiber composites, the airframe ensures durability and lightweight performance, essential for demanding operational environments. The upside-down V-Tail (double inverted V-Tail) design makes the tail airflow cleaner and brings more power efficiency.

Powered by a reliable gasoline engine, the Lift B54 achieves level speeds ranging from 26 to 45 m/s, with a consistent cruising speed of 30 m/s. Its design enables it to withstand significant wind resistance, handling speeds of 8 to 10.7 m/s during take-off in VTOL mode, and 10.8 to 13.8 m/s during fixed-wing cruising. This robust wind resistance capability ensures stable and secure flights in various weather conditions.

Impressive function of Lift VTOL B54

The drone’s maximum range is an impressive 1200 kilometers, allowing for extended missions without the need for frequent refueling. The Lift B54 supports a maximum take-off weight of 100 kilograms and can carry a substantial payload of up to 45 kilograms, making it suitable for transporting heavy equipment, sensors, or other payloads. The operational ceiling is equally remarkable, with the drone capable of flying at altitudes up to 5000 meters.

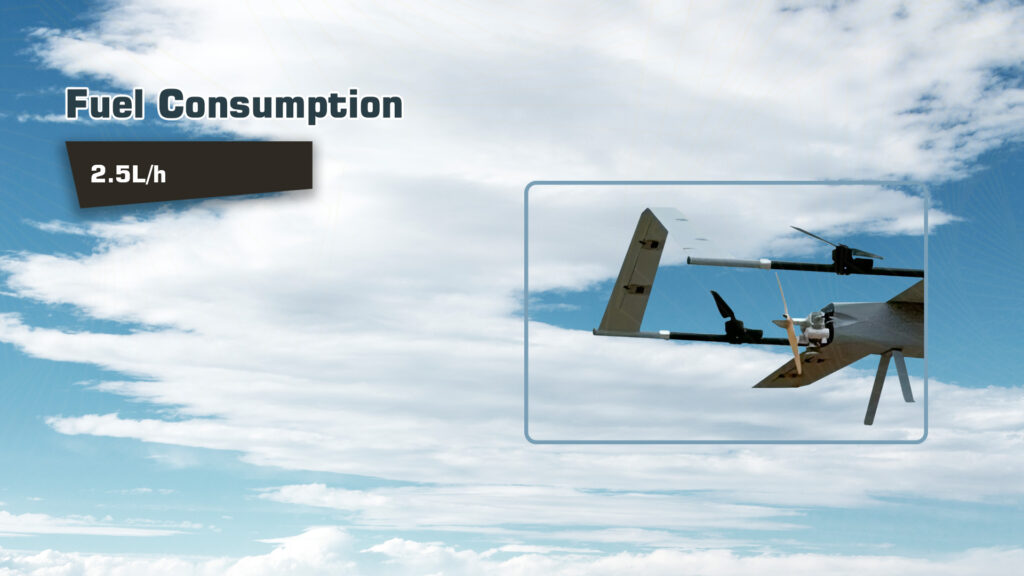

Designed to perform in diverse environments, the Lift B54 operates efficiently within a working temperature range of -20°C to 45°C. Its fuel consumption rate is economical at 2.5 liters per hour (2.5L/h), providing a balance of performance and cost-efficiency. The drone’s protection degree is rated at IPX4, ensuring resistance to water splashes and offering durability in various environmental conditions.

Applications of Heavy Payload double inverted V-tail VTOL

Whether for aerial surveying, mapping, monitoring, or delivery services, the Lift B54 VTOL drone delivers unmatched performance, reliability, and versatility, setting a new standard in the UAV industry. With its cutting-edge design and advanced technical specifications, the Lift B54 is your go-to solution for high-demand aerial operations.

For a comprehensive reading of related products, please visit the Motionew website.

Lift VTOL B54 – FAQ

1. What are the key technical specifications of the Lift VTOL B54?
The B54 has a 5.47 m wingspan, maximum takeoff weight of 100 kg, and supports a 45 kg payload (including fuel). It offers 4–5 hours of endurance with a cruising speed of 28 m/s and maximum speed of 45 m/s.

2. What propulsion and control systems does it use?

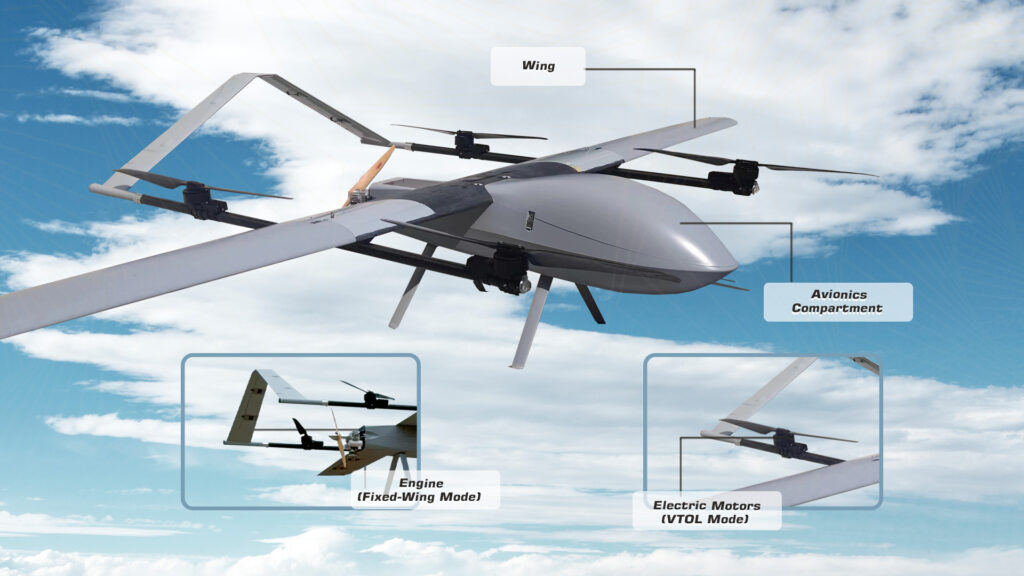

The B54 is powered by a C12H/DLE222 gasoline engine and supports advanced autopilot systems such as Pixhawk Cube and CUAV platforms. It integrates dual-redundant control and high-stability VTOL architecture.

3. What mission types and payloads can the B54 support?
It is designed for heavy-lift missions, industrial inspection, large-area mapping, and logistics delivery, compatible with various EO/IR, LiDAR, and multispectral payloads.

4. What are the available payment methods for purchasing the B54?
MotioNew accepts PayPal, international bank transfer, and major credit cards for both individual and enterprise transactions.

5. Does MotioNew provide OEM or customization services for the B54?
Yes, OEM customization is available for sensor integration, communication systems, fuel configuration, and corporate branding based on operational needs.

6. What documentation and certification are provided with the Lift B54?
Each unit includes technical manuals, safety documentation, and compliance certificates. Export and usage are fully compliant with Chinese UAV export regulations for civilian applications only.
