What are the main specifications and features of the SIYI VD32?

The VD32 is a 2.4 GHz dual-antenna FPV controller with integrated video transmission, supporting up to 5 km range. It provides 9 to 16 programmable control channels, real-time HD FPV streaming, and low-latency performance for UAV operation.

Which systems and flight controllers are compatible with the VD32?

The VD32 is compatible with open-source flight control systems such as PX4 and ArduPilot. It supports SBUS, PPM, and PWM outputs, making it suitable for both multirotors and fixed-wing UAVs.

What display and control features does the VD32 include?

The controller integrates a 5.5-inch high-brightness touchscreen for real-time video and telemetry display. It also includes dual precision gimbals, customizable switches, and support for gimbal or payload control.

Does MotioNew provide OEM or custom configuration options for the VD32?

Yes, MotioNew offers OEM and branding services for bulk orders, including logo customization, firmware adjustments, and packaging personalization.

What payment methods are accepted for purchasing the VD32?

MotioNew accepts PayPal, credit cards, and international bank transfers for both retail and enterprise clients.

Are manuals and firmware documents included with the VD32?

Yes, the VD32 comes with user manuals, setup guides, and firmware update documentation. Additional support materials are available upon request.

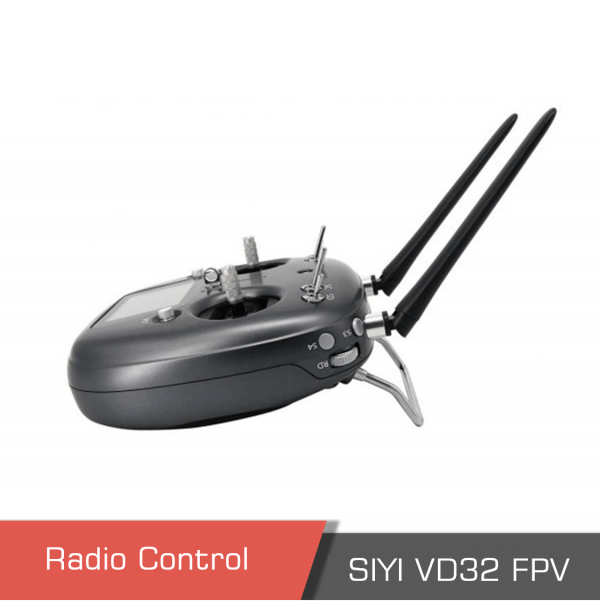

Siyi vd32 9-16 channel 5km fpv - image 2

Click to enlarge

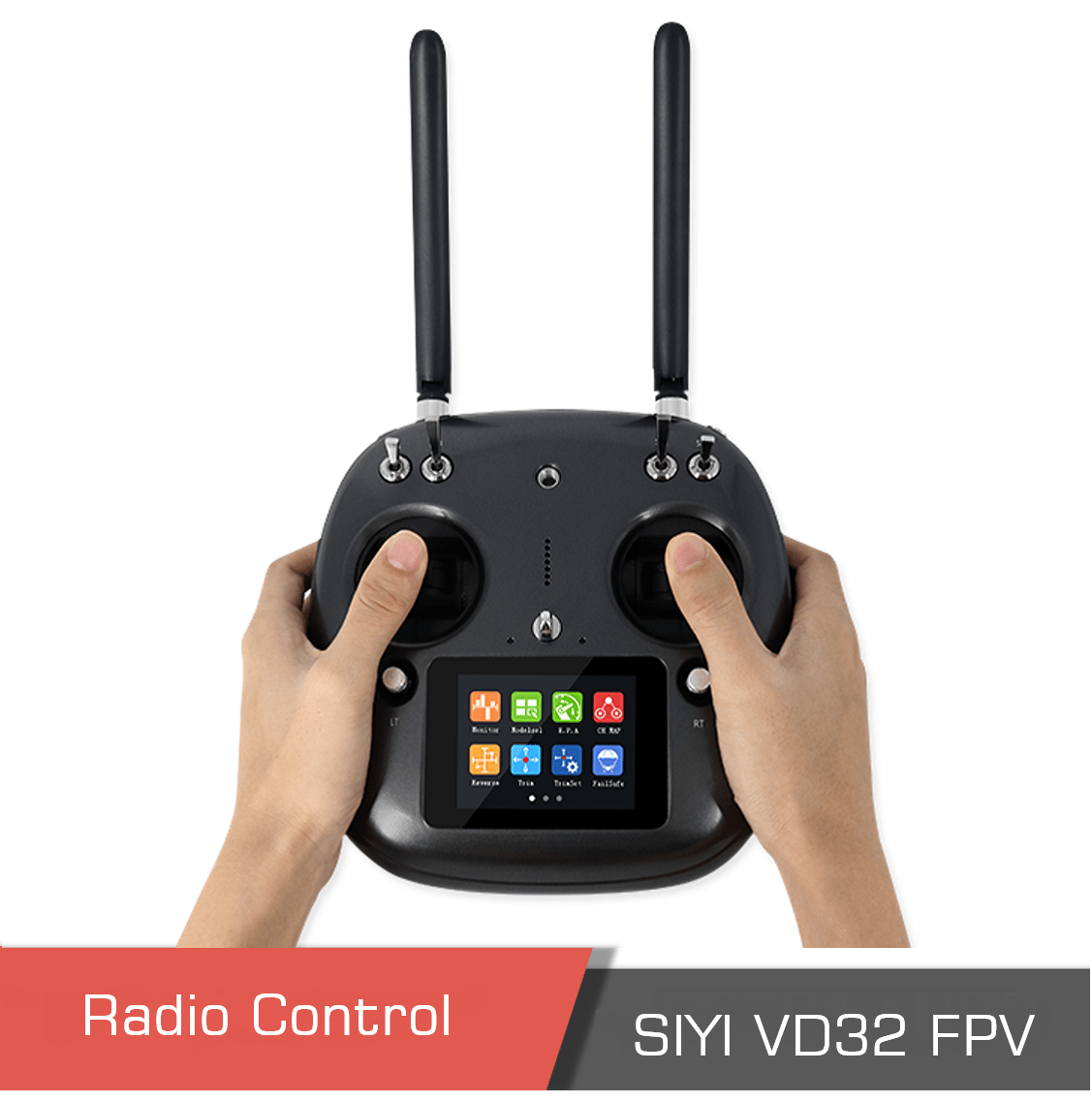

SIYI VD32 9-16 Channel 5km FPV - Image 3

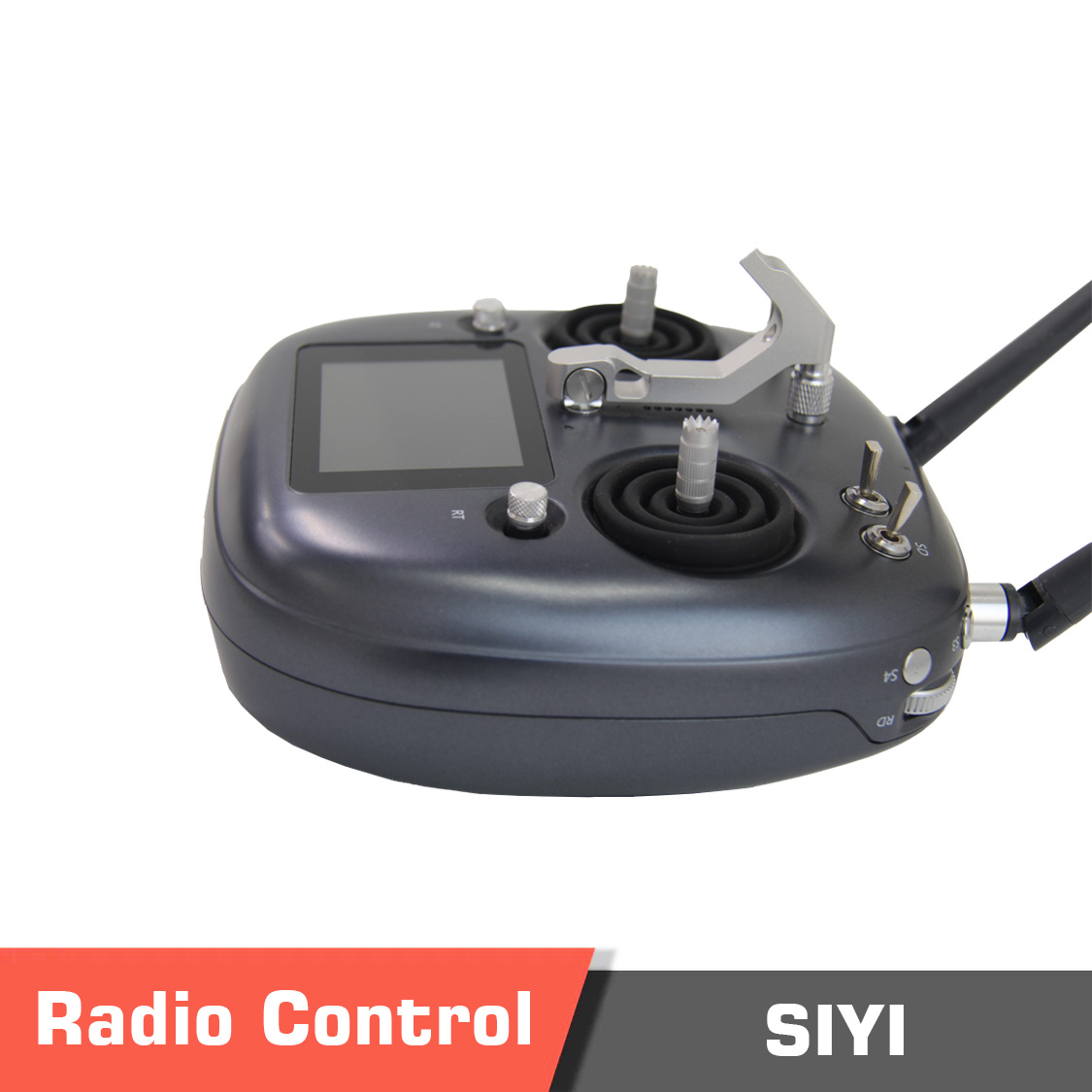

SIYI VD32 9-16 Channel 5km FPV - Image 4

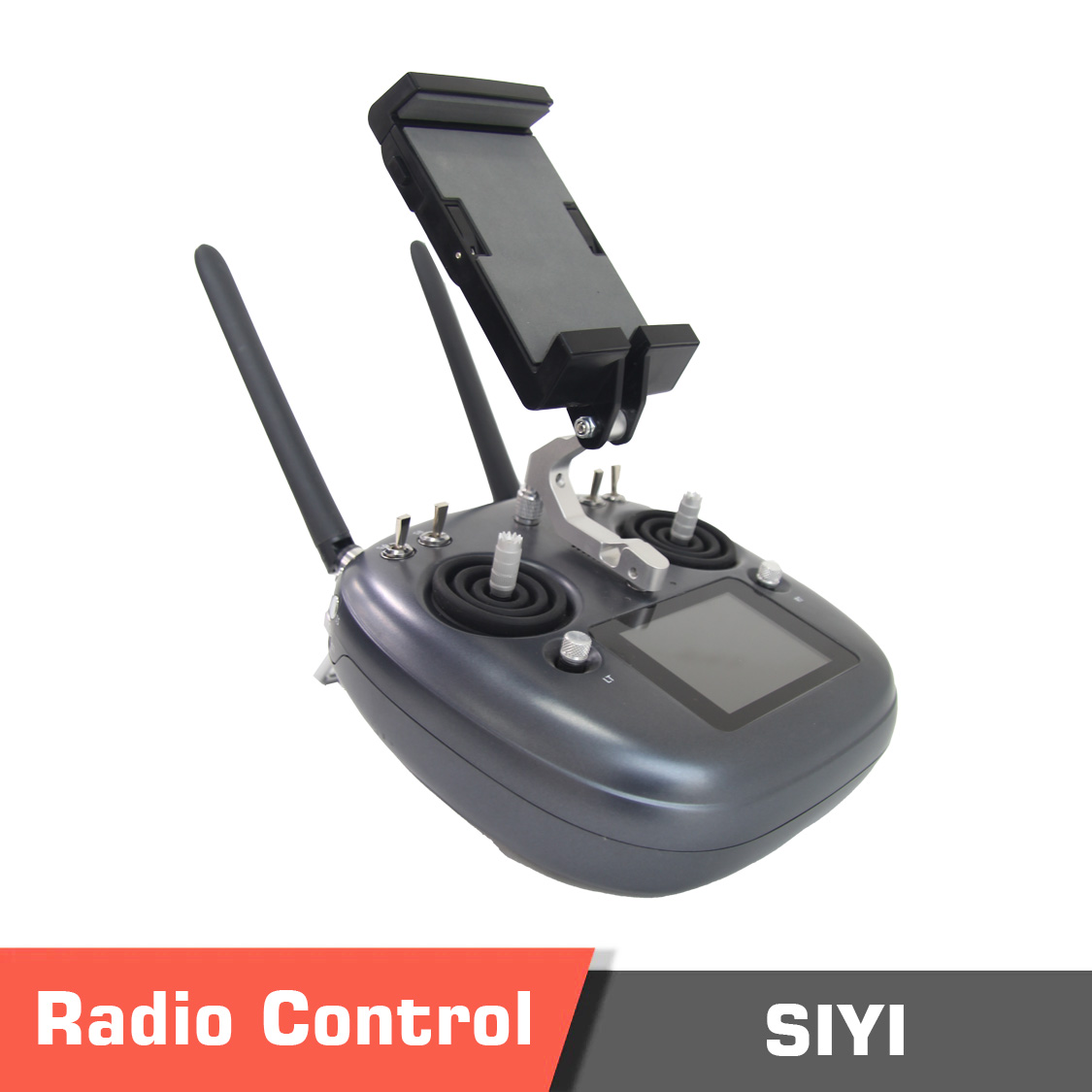

SIYI VD32 9-16 Channel 5km FPV - Image 5

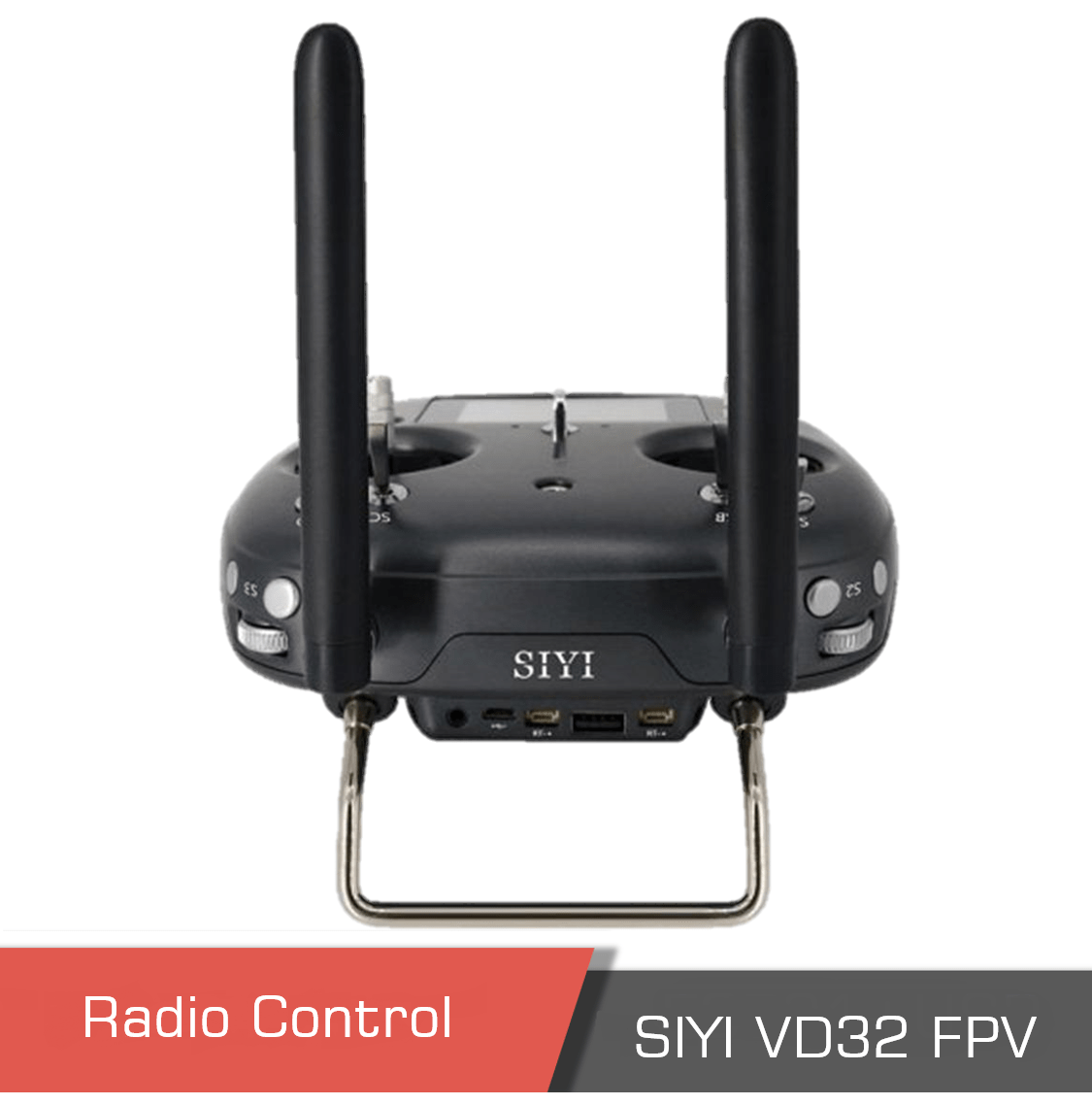

SIYI VD32 9-16 Channel 5km FPV - Image 6

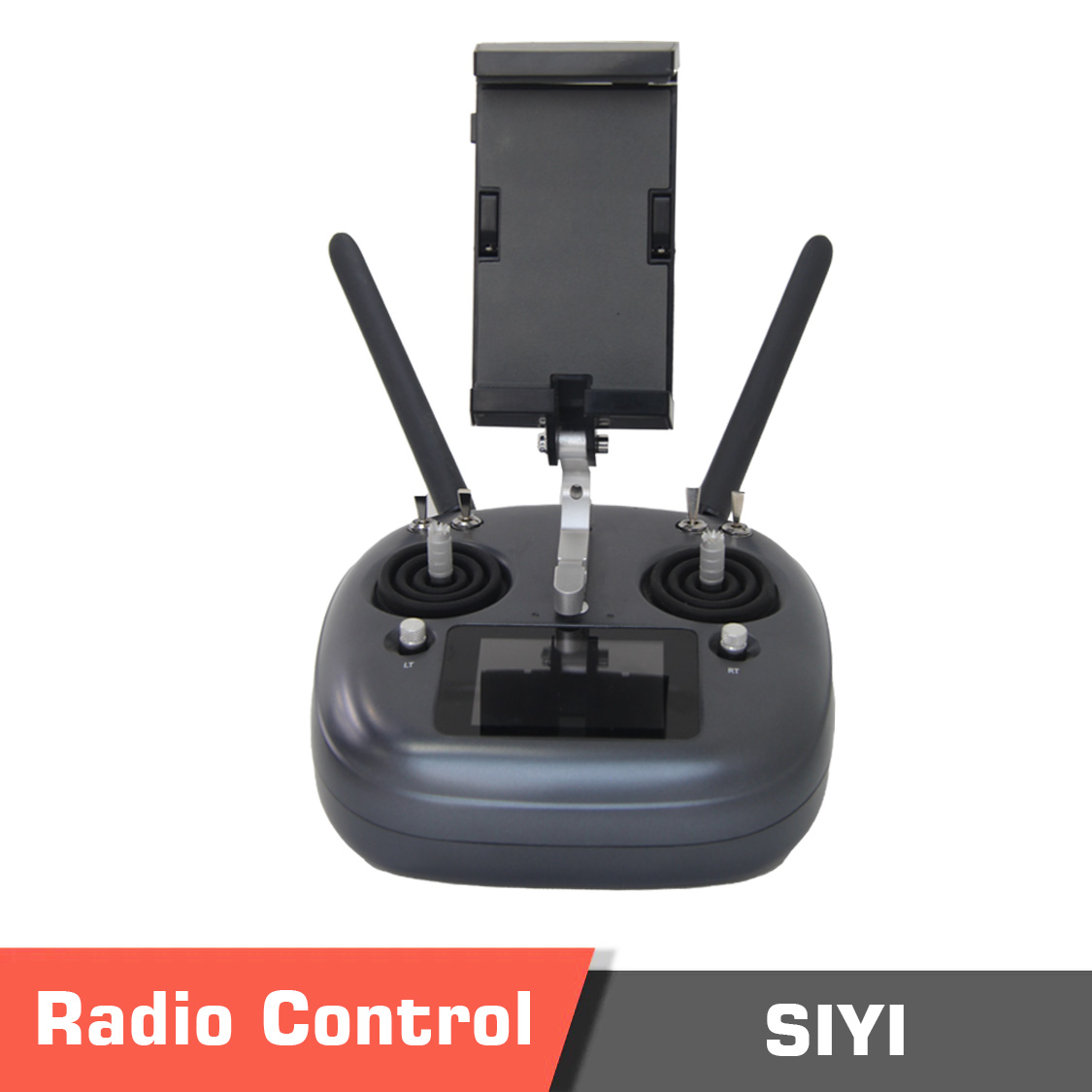

SIYI VD32 9-16 Channel 5km FPV - Image 7

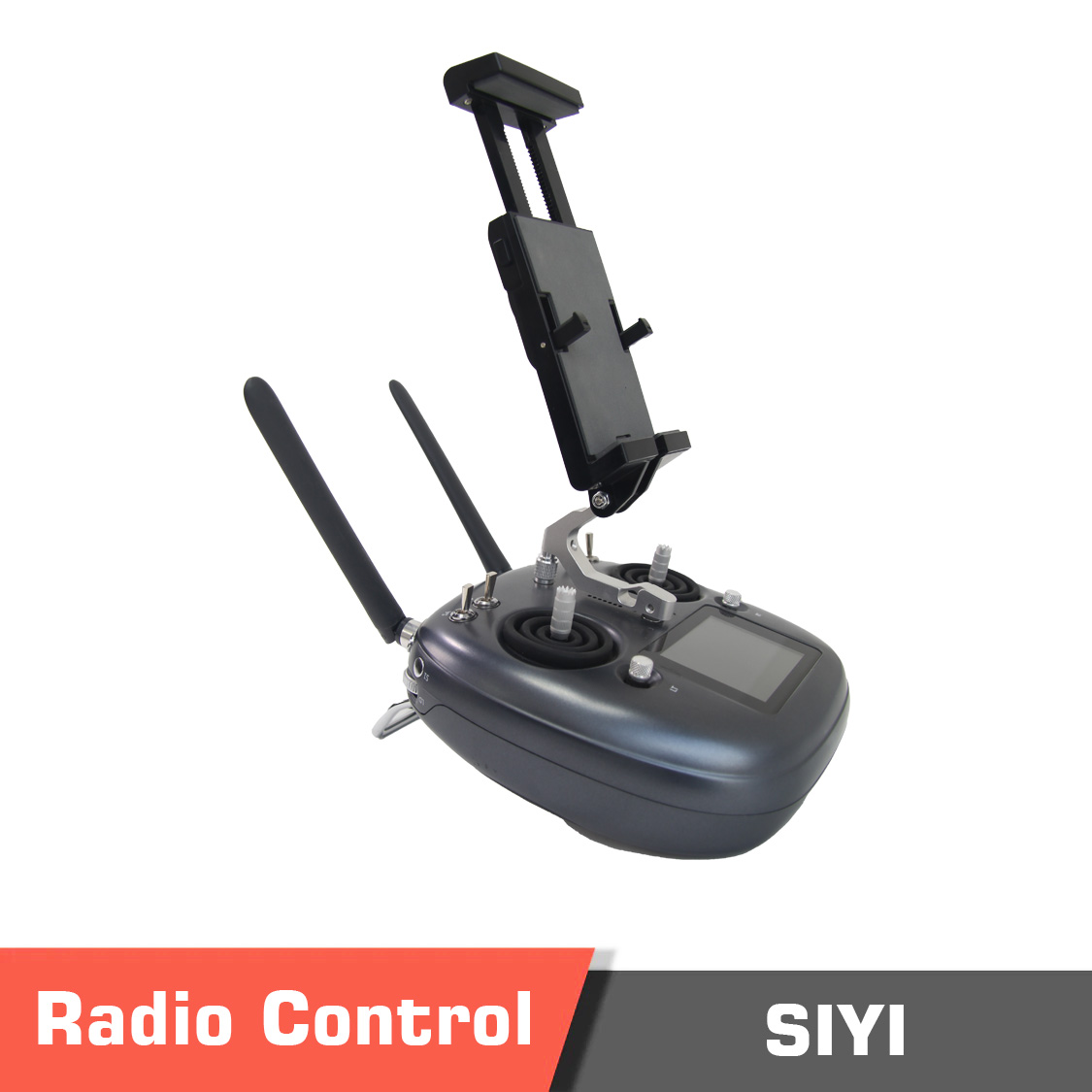

SIYI VD32 9-16 Channel 5km FPV - Image 8

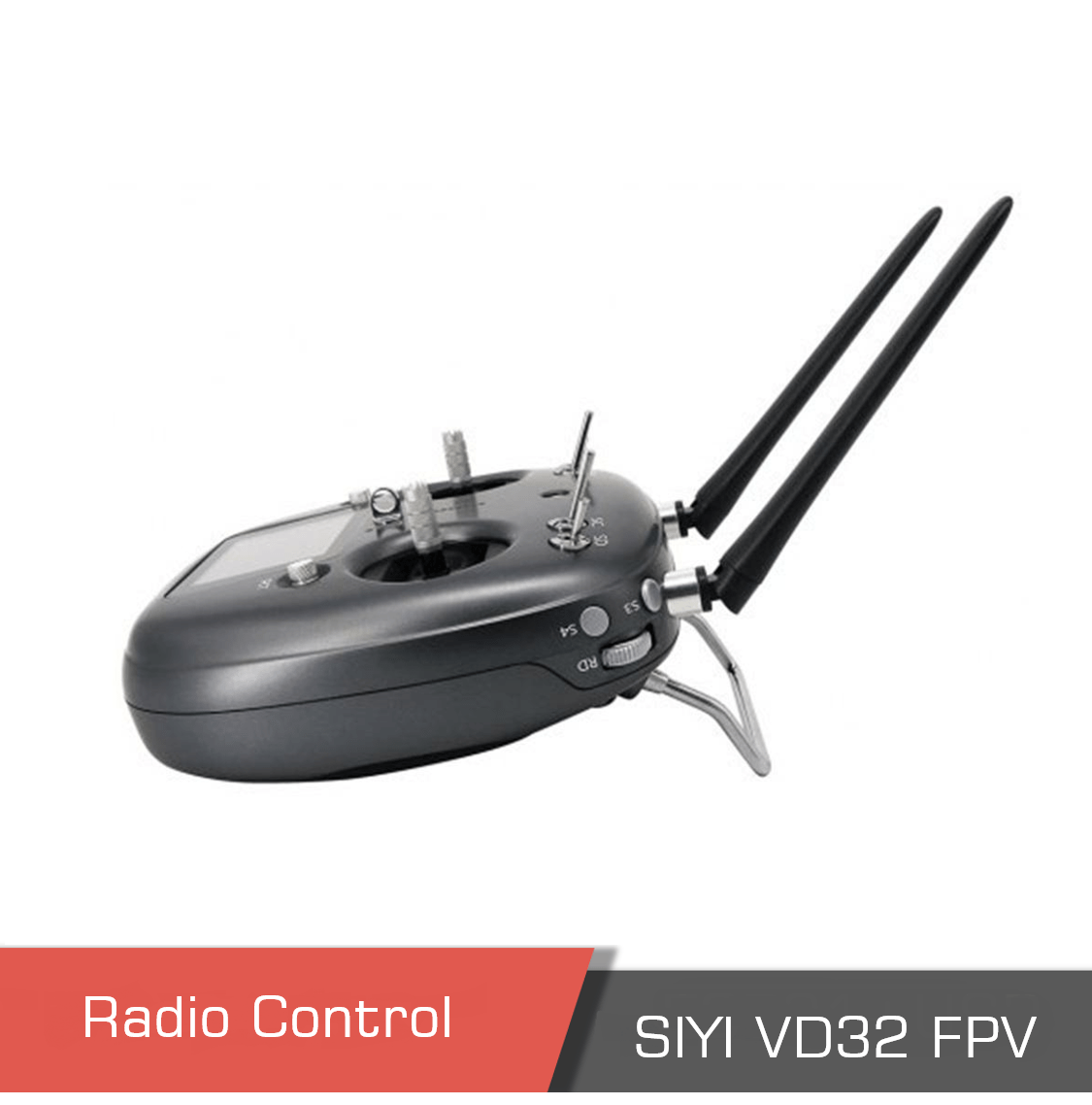

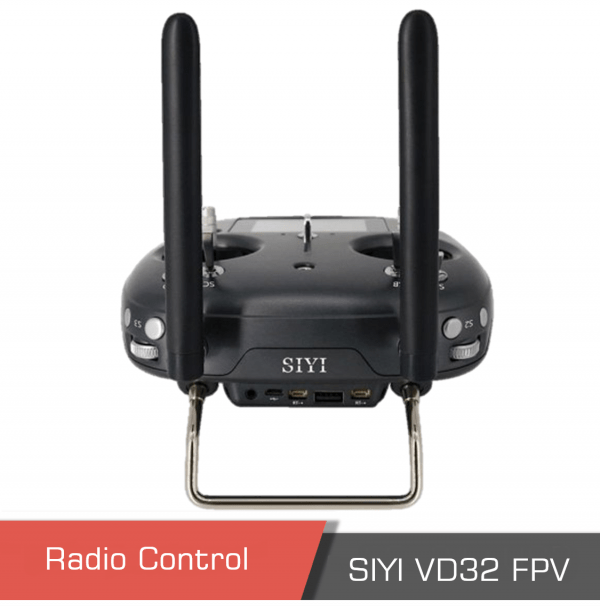

SIYI VD32 9-16 Channel 5km FPV

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Price range: 654.15 $ through 677.33 $

Color

Clear

Message on WhatsApp

Add to compare

Add to wishlist

Payment Methods:

Description

Overview of SIYI VD32

The SIYI VD32 2.4G radio is a 3-in-1 intelligent radio that can be used for many purposes. With a radio link and datalink transmission integrated with a digital video link module, VD32 is the most intelligent ground station for FPV drones and agriculture drones. The drones are capable of operating at a distance of 2 kilometers.
It is possible to monitor the real-time image that comes from your drone using the 120° FOV camera.

Video stream in 480p@24fps over a private Ethernet connection.
Transmission of data over a distance of 5km
It is possible to transmit video over a distance of 2 km
The working frequency of the data and video is 2.4GHz/5.8GHz
Multi-Functional 16 Channel Thermoelectric
A datalink, a radio link, and a video link can all be integrated with this product.
Touchscreen LCD with high brightness and color
The menu is available in both English and Chinese
On the PC, you can adjust the parameters
Charging via USB direct connection
The dual dial is self-centered
Flying Mode with Customized VTOL
The endurance time is 10 hours
A fixed-wing, helicopter or multirotor aircraft can be supported

For a comprehensive reading of related products, please visit the Motionew website.

SIYI VD32 9–16 Channel 5 km FPV Radio Controller – FAQ

What are the main specifications and features of the SIYI VD32?
The VD32 is a 2.4 GHz dual-antenna FPV controller with integrated video transmission, supporting up to 5 km range. It provides 9 to 16 programmable control channels, real-time HD FPV streaming, and low-latency performance for UAV operation.
Which systems and flight controllers are compatible with the VD32?
The VD32 is compatible with open-source flight control systems such as PX4 and ArduPilot. It supports SBUS, PPM, and PWM outputs, making it suitable for both multirotors and fixed-wing UAVs.
What display and control features does the VD32 include?
The controller integrates a 5.5-inch high-brightness touchscreen for real-time video and telemetry display. It also includes dual precision gimbals, customizable switches, and support for gimbal or payload control.
Does MotioNew provide OEM or custom configuration options for the VD32?
Yes, MotioNew offers OEM and branding services for bulk orders, including logo customization, firmware adjustments, and packaging personalization.
What payment methods are accepted for purchasing the VD32?
MotioNew accepts PayPal, credit cards, and international bank transfers for both retail and enterprise clients.
Are manuals and firmware documents included with the VD32?
Yes, the VD32 comes with user manuals, setup guides, and firmware update documentation. Additional support materials are available upon request.

Specifications

Remote Control
Size	194.5×172.5x114mm
Weight	942g
Battery	15000 mAh 1S Lipo
Charging	Micro USB 5V 2A Video Output Interface: USB

Receiver
Signal Output	16-channel S.Bus, 5-channel PWM
FC Connecting Port	UART
Size	61x60x21mm
Weight	82g
Antenna Gain	5dBi
Working Voltage	15V-50V
Working Temperature	-10℃-55℃

Camera with Searchlight
Video Resolution	Max. 480p@24fps
Camera angle	FOV 120°
Searchlight Power	8W
Size	106x25x41mm
Weight	108g
Luminous flux	1W/120-140lm
LED Searching Angle	120°

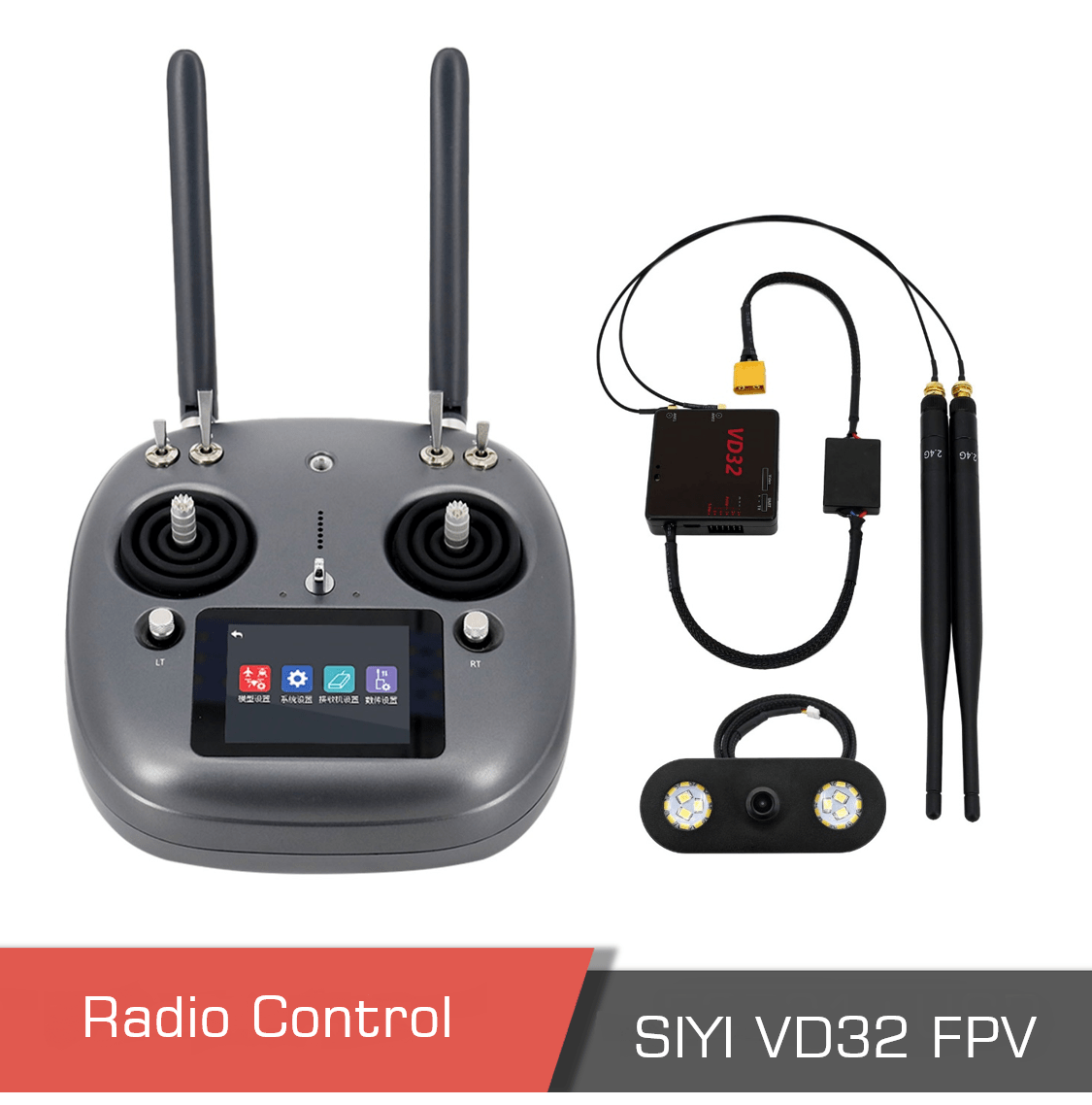

Product contents

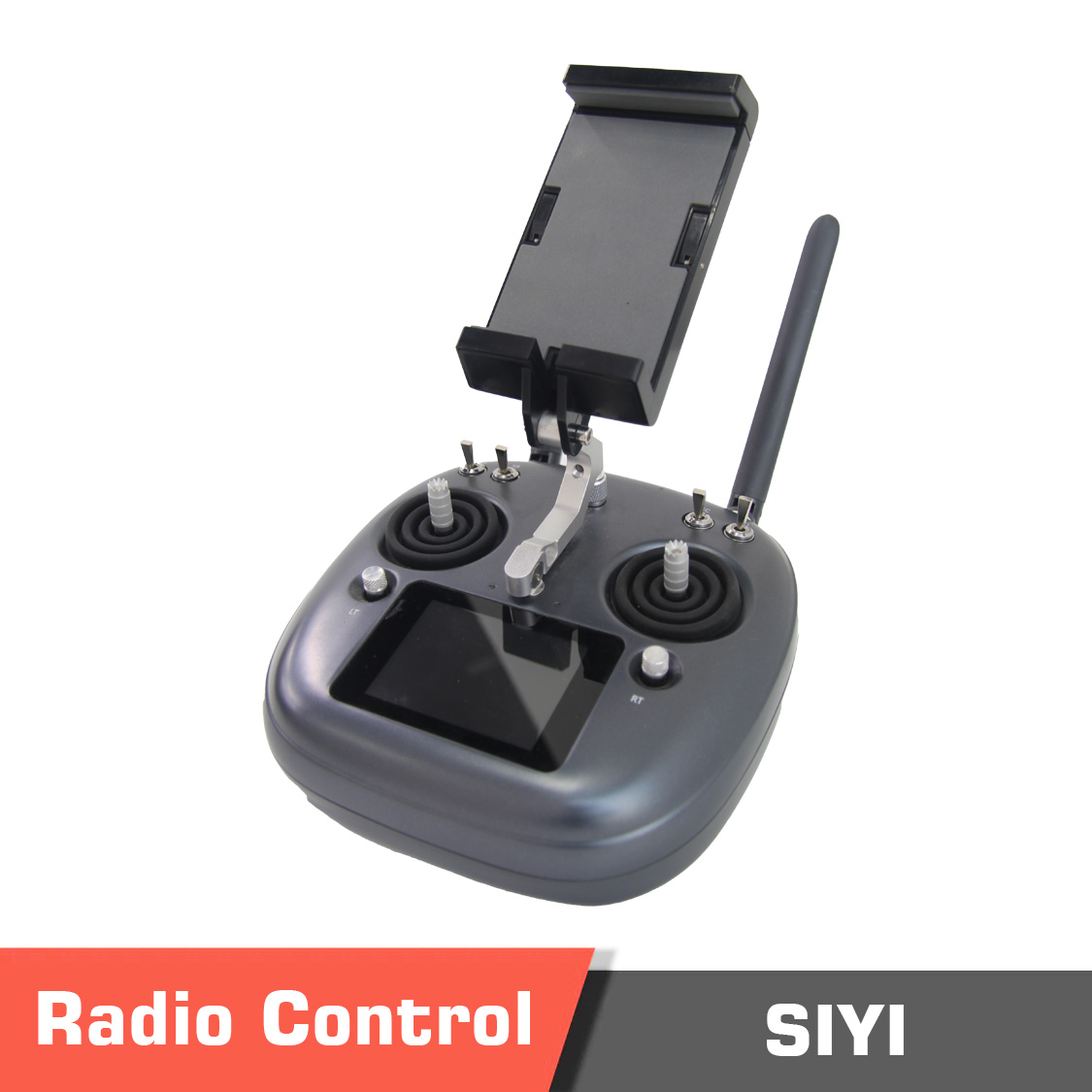

1 x Transmitter
1 x VD32 Sky Station
1 x FPV Camera & Dual Navigation Lights
1 x 4-pin Data Cable (or a flight controller cable)
1 x Micro-USB Cable
1 x OTG USB Male to Male Cable
1 x Strap Belt
1 x Carrying Case
