CUAV XBEE Radio Telemetry Module 28mile

239.99 $

Out of stock

Description

Overview

The CUAV XB Radio PRO wireless data communication module provides an unprecedented range of low-cost wireless data solutions for drones or IoT devices. It uses the DigiMesh network protocol, have intensive network operations and support for sleep routers, and can also use proprietary point-to-multipoint configurations. These modules support RF line-of-sight ranges up to 28 miles (with high gain antennas) and data rates up to 200 Kbps, making them ideal for extended-range applications that require increased data throughput. The CUAV XB Radio PRO does not require programming and can be easily configured using Digi’s free XCTU software or through a simplified set of AT commands. The built-in Digi XBee module has been pre-certified in multiple countries, further reducing development costs and shortening time to market. The CUAV XB Radio PRO module is easy to use, shares a common hardware serial port, and offers a variety of different protocols so that users can integrate with your drone or device with minimal development time and risk. CUAV XB Radio PRO has built-in TTL and USB ports, seamless switching between air and ground, and greater flexibility to reduce the cost of use. CUAV XB Radio PRO integrates the signal strength output and can be directly connected to the drone controller, allowing the user to obtain the current signal strength in real time to determine the risk of loss. Consult Motionew Online Shop to see the full range of our products.

Features

  • Ultra high receiving sensitivity: Highest -110dBm Receiver Sensitivity in Low Rate Mode
  • Long distance: The low-speed mode supports up to 14km.
  • High speed: Up to 200k air speed

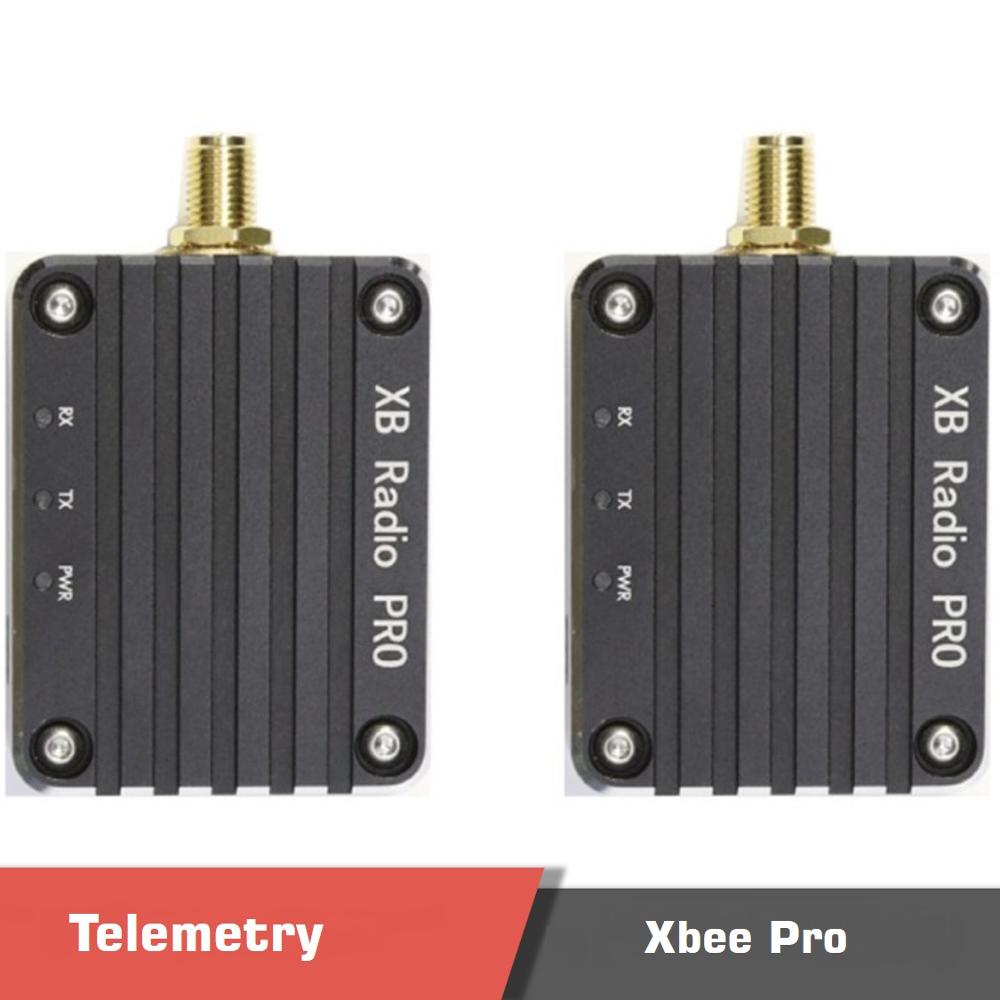

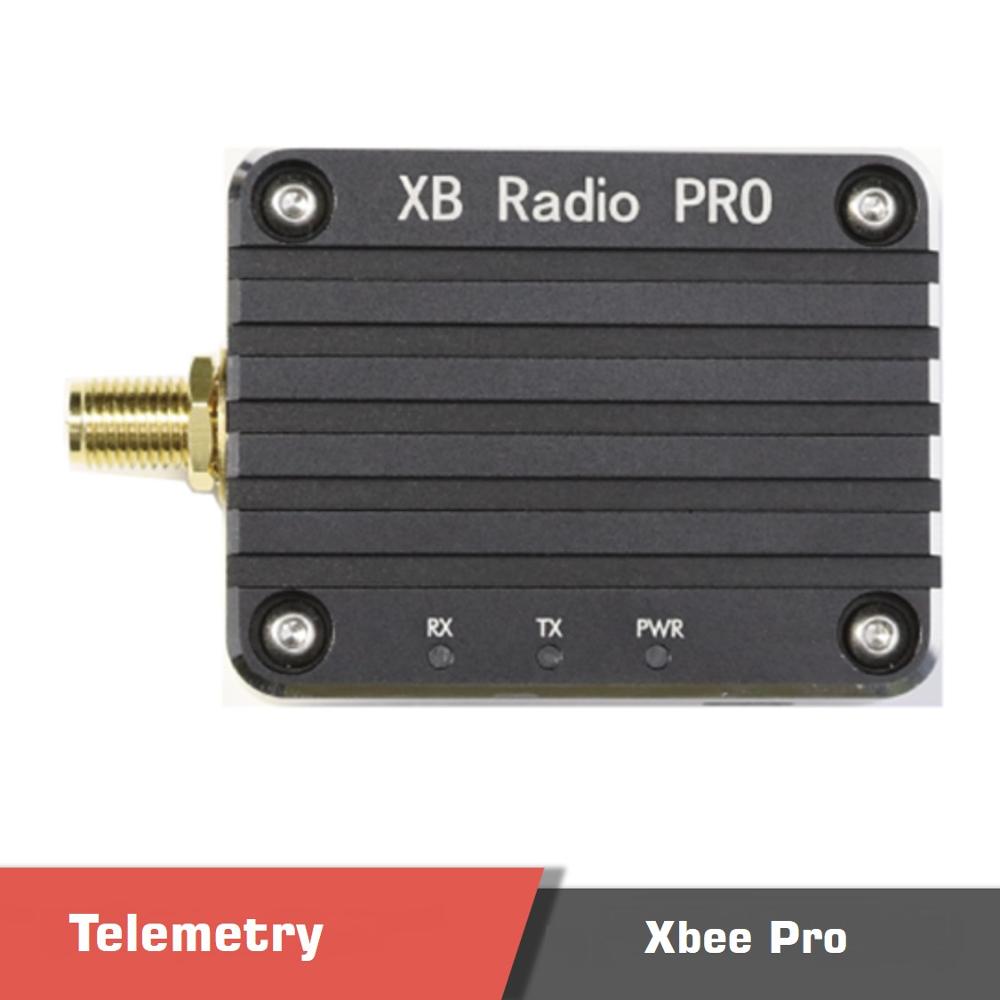

  • CNC integrated shell: Aerospace aluminum alloy one-piece CNC housing, lightweight, strong, beautiful and anti-jamming

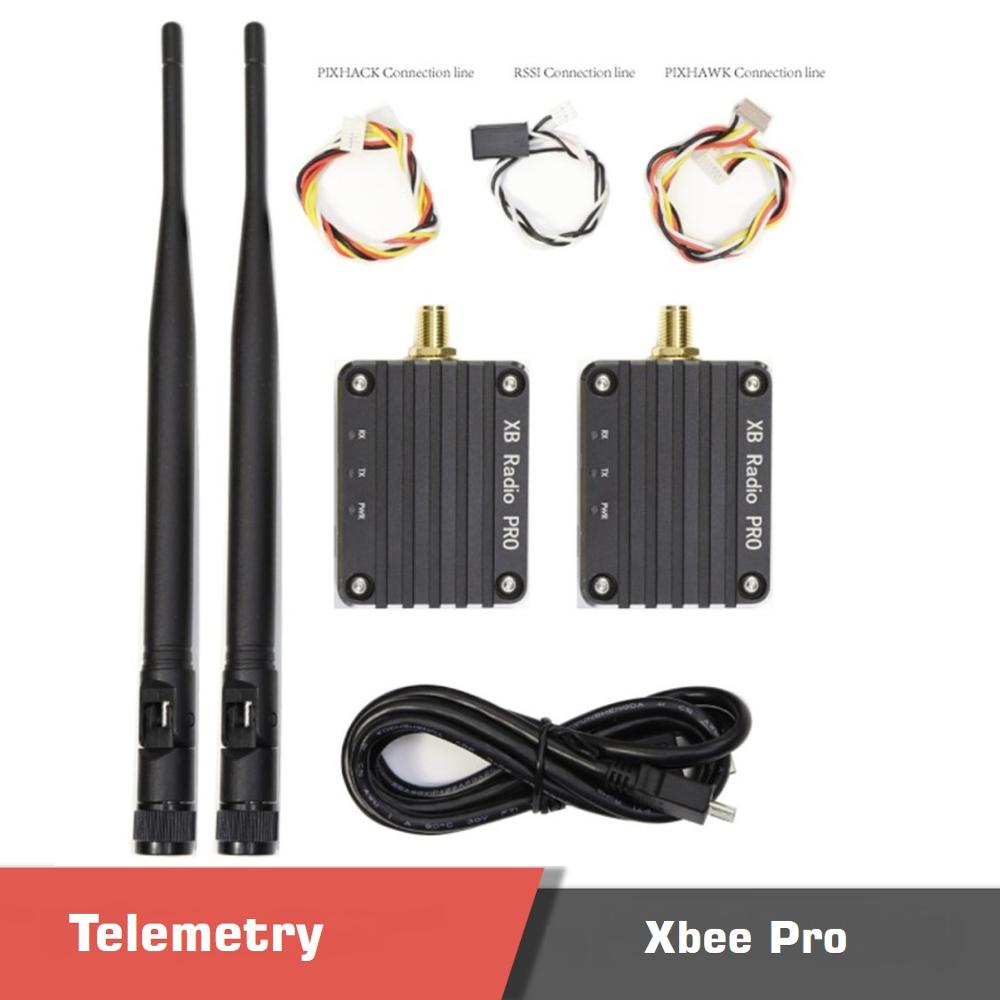

Package

  • 2 x Data Transmission Module with shell
  • 2x Antenna
  • 3 x Connection cable: : pixhack, pixhawk, RSSI
  • 1 x USB data cable

U0bc68ed3840b4d24a26abbe3c470d70cq - cuav xb, cuav xb radio telemetry, xb radio telemetry - motionew - 4Uce57cd0f06b54d2dbd3d07460112c252u - cuav xb, cuav xb radio telemetry, xb radio telemetry - motionew - 5U649cb6aab3e9406ca2312bd4a4198d8e5 - cuav xb, cuav xb radio telemetry, xb radio telemetry - motionew - 6Ub13779cee2f04249a4967c842517500bl - cuav xb, cuav xb radio telemetry, xb radio telemetry - motionew - 7

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 0.039 kg
Dimensions 3 × 5 × 10 cm

Specifications

hardware
frequency range 902 ~ 928 MHz
processor ADF7023 transceiver,Cortex-X3 EFM32G230@28Mhz
Programmers include:Freescale MC9s08QE32
Antenna selection wire.U.FlL and RPSMSA
function
data rate 10kbps/200Kbps(De acuerdo con diferentes tasas de firmware,,tacitly approve 200k)
Urban / indoor distance 10kbps: Up to 2000 feet (610 meters); 200kbps: Up to 1000 feet
Outdoor/Suburban Distance 10kbps: up to 15.5km 200kps: up to 6.5k meters
Maximum power 24dBM (250mw) software optional
Receiver sensitivity -101dBM@200Kpds ;-110dBm@10kbps
characteristic

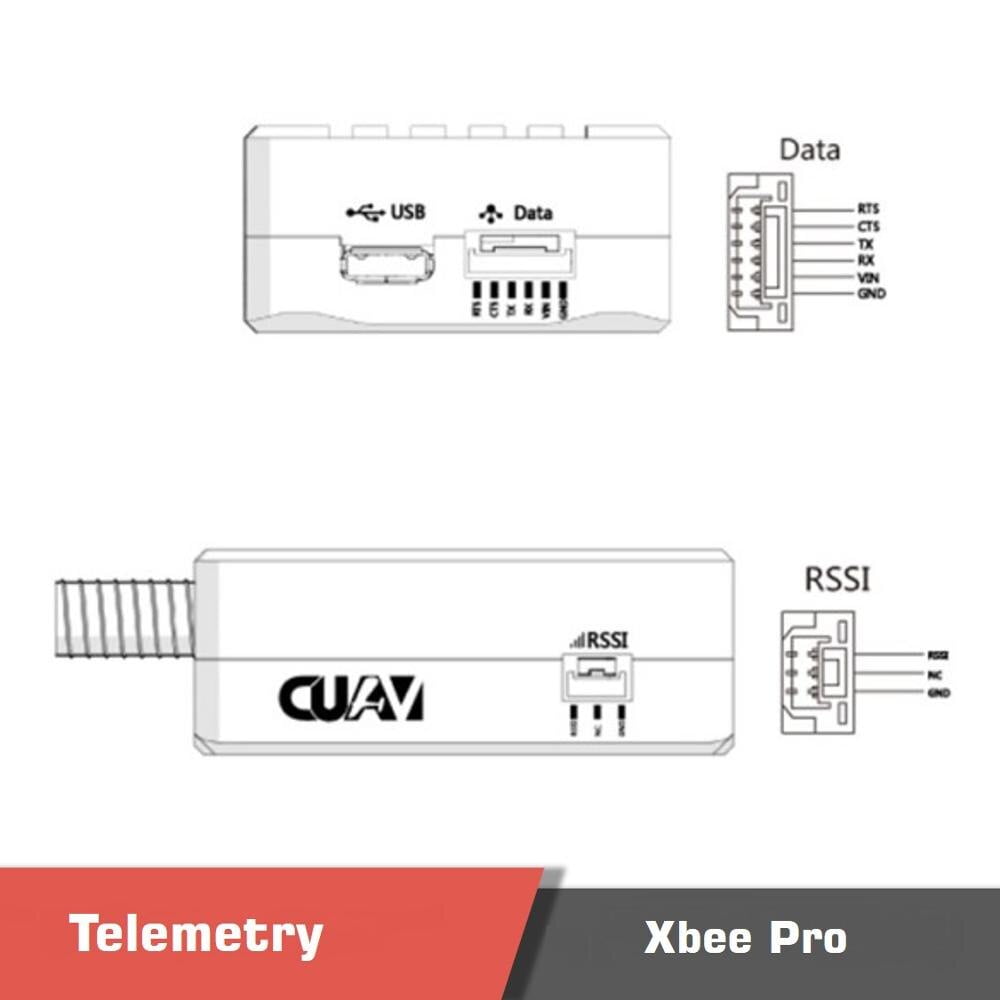

Data interface UART(3V).SPI
GPIO 15 digital iO, 4 10-bit ADC inputs, 2 PWM outputs
Network Topology DIgiMEsh, relay, point-to-point, point-to-multipoint, peer-to-peer network
Spread spectrumFHSS (software optional)
Programmability
internal storage 32kb FLASH/2kb RAM
CPU clockUp to 50MHZ
power
service voltage 4-7v
Emission current 229mA
Receive current 44ma
Sleep current 3uA
Management agency certification
FCC(America) MCQ-XB900HP
iC(Canada) 1846A—XB900HP
C-tick(Australia) yes
Anatel(Brazil) yes
IDA(Singapore) yes

Product contents

Product contents

Documents

Please contact us for more information.
