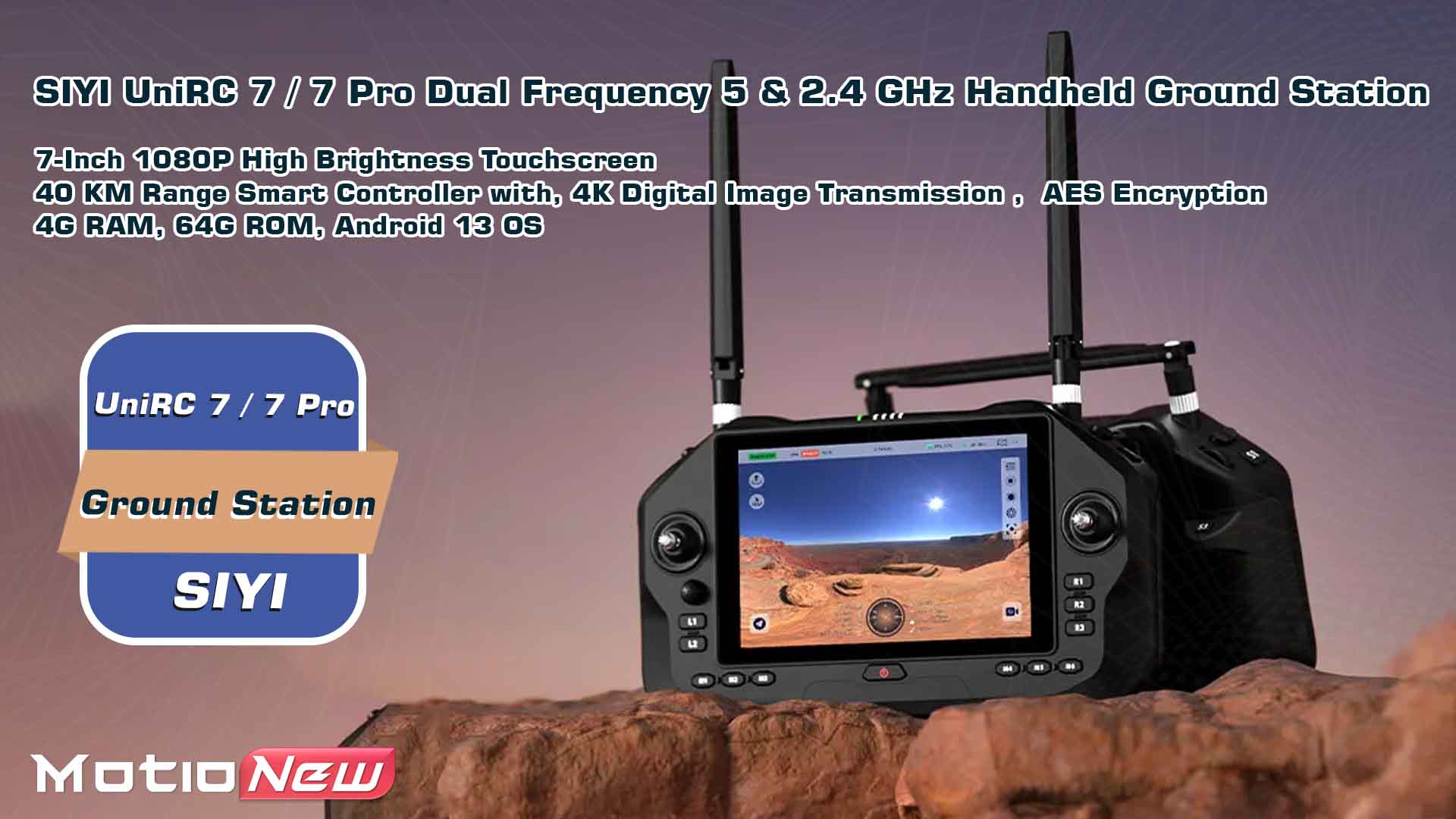

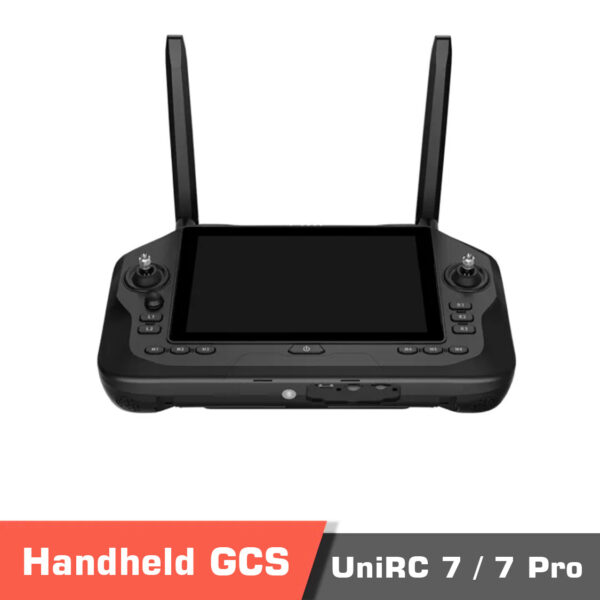

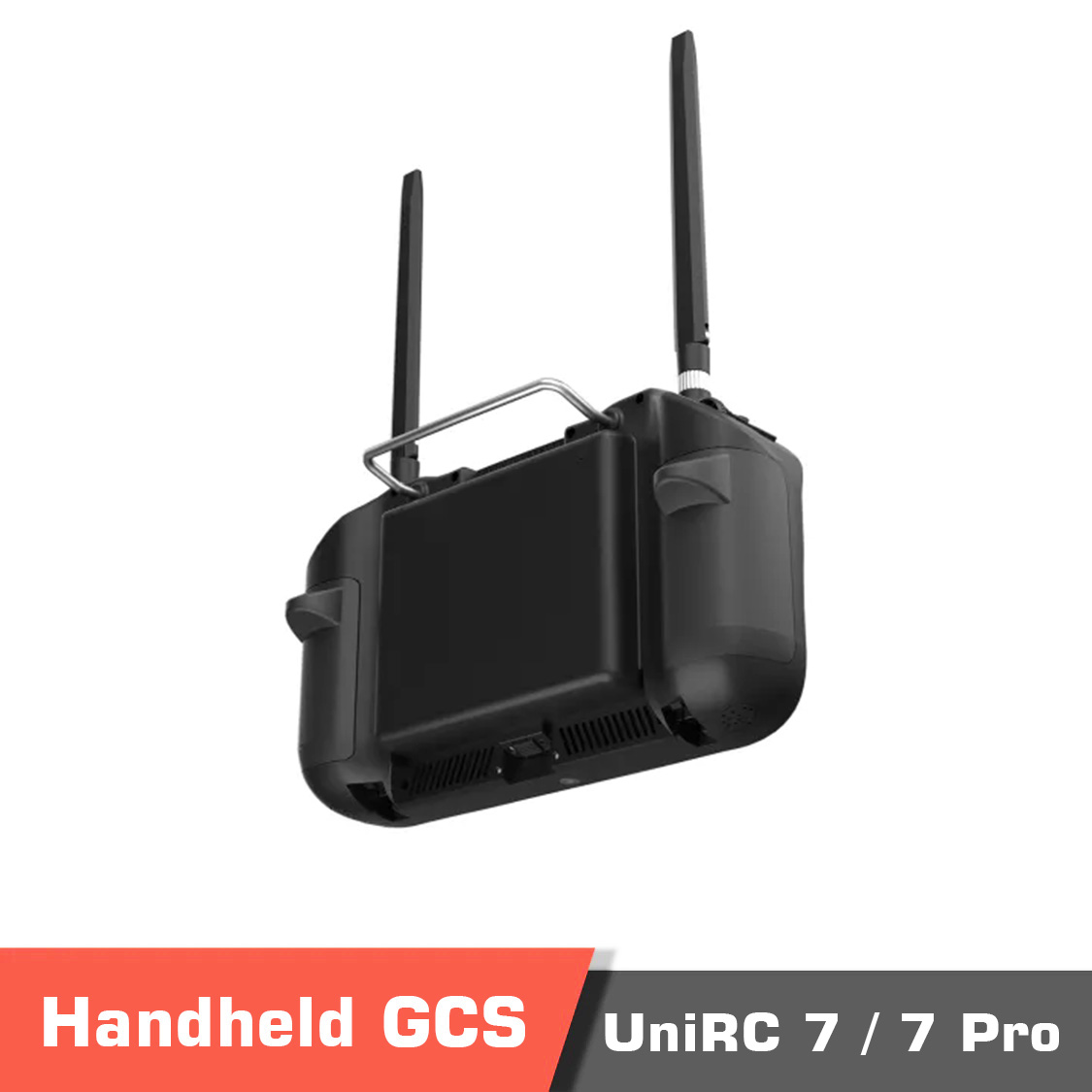

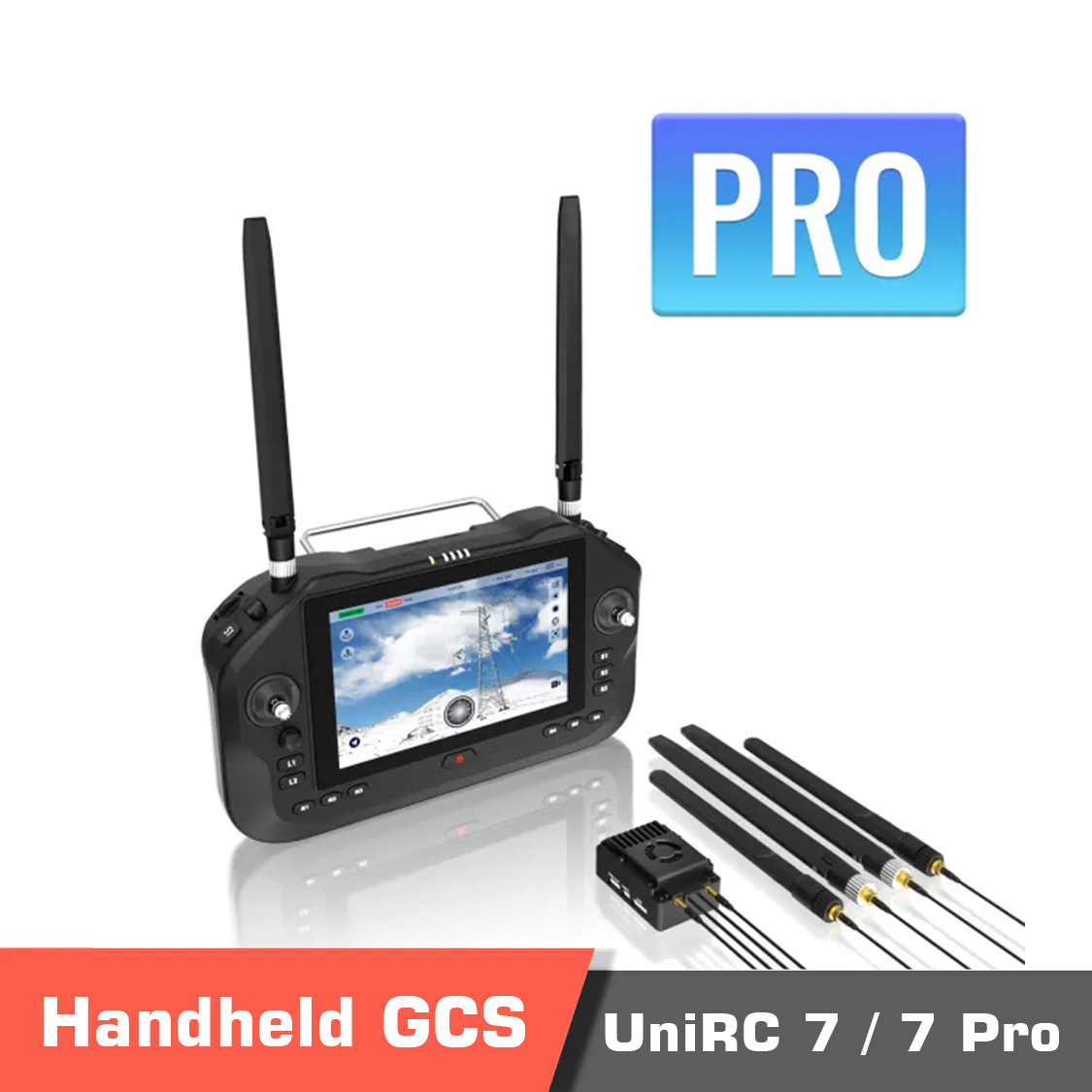

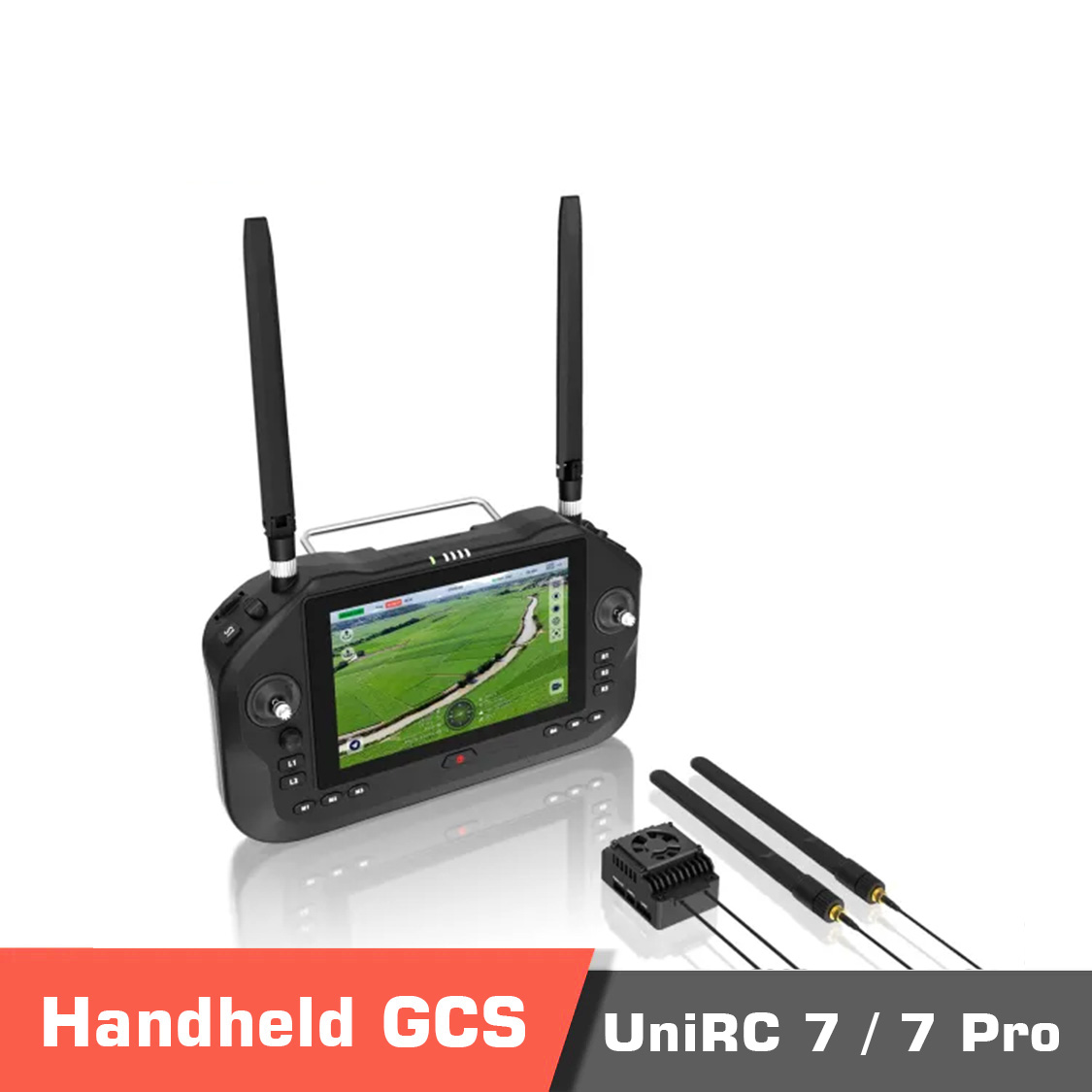

SIYI UniRC 7 / UniRC 7 Pro, Dual Frequency 2.4 & 5 GHz Handheld Ground Station
Description
SIYI UniRC 7 / UniRC 7 Pro, Dual Frequency 2.4 & 5 GHz Handheld Ground Station Overview

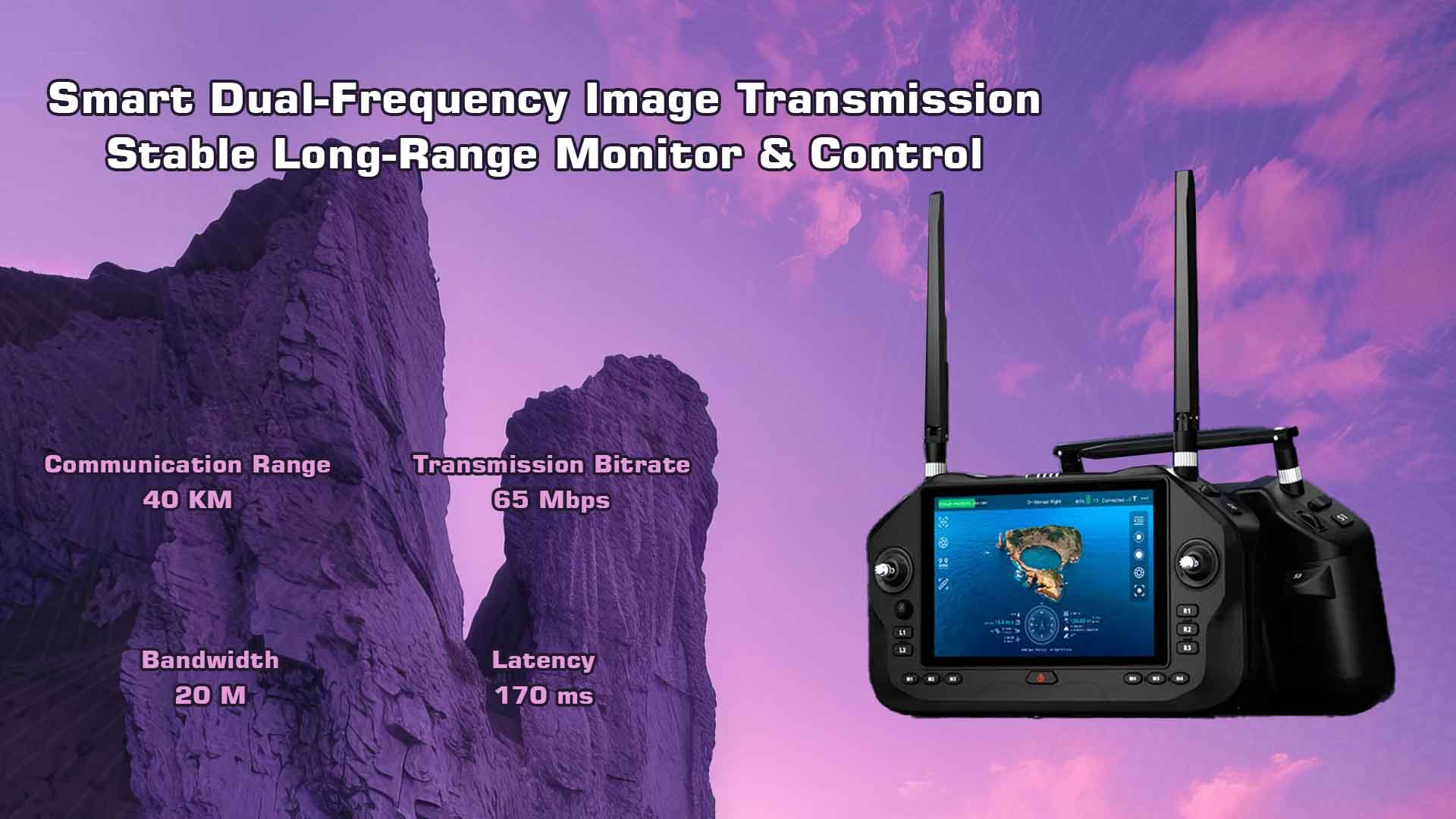

The SIYI UniRC 7 / UniRC 7 Pro integrates SIYI’s next-generation image transmission technology, offering a seamless and secure connection for UAV, UGV, and USV applications. This advanced system automatically selects the optimal channel based on environmental interference, providing a robust 40 KM transmission range with enhanced anti-interference capability.
It supports real-time image transmission in 4K@30fps for single streams or 1080p@60fps for dual streams, with a bitrate of up to 65 Mbps and latency as low as 170 ms. Equipped with AES encryption, it ensures data security at both ends. The controller features dual-frequency (2.4 GHz and 5 GHz) connectivity, a 7-inch 1080P high-brightness touchscreen, 4 GB RAM, 64 GB ROM, and runs on Android 13 OS, making it a cutting-edge smart controller for various robotic applications.

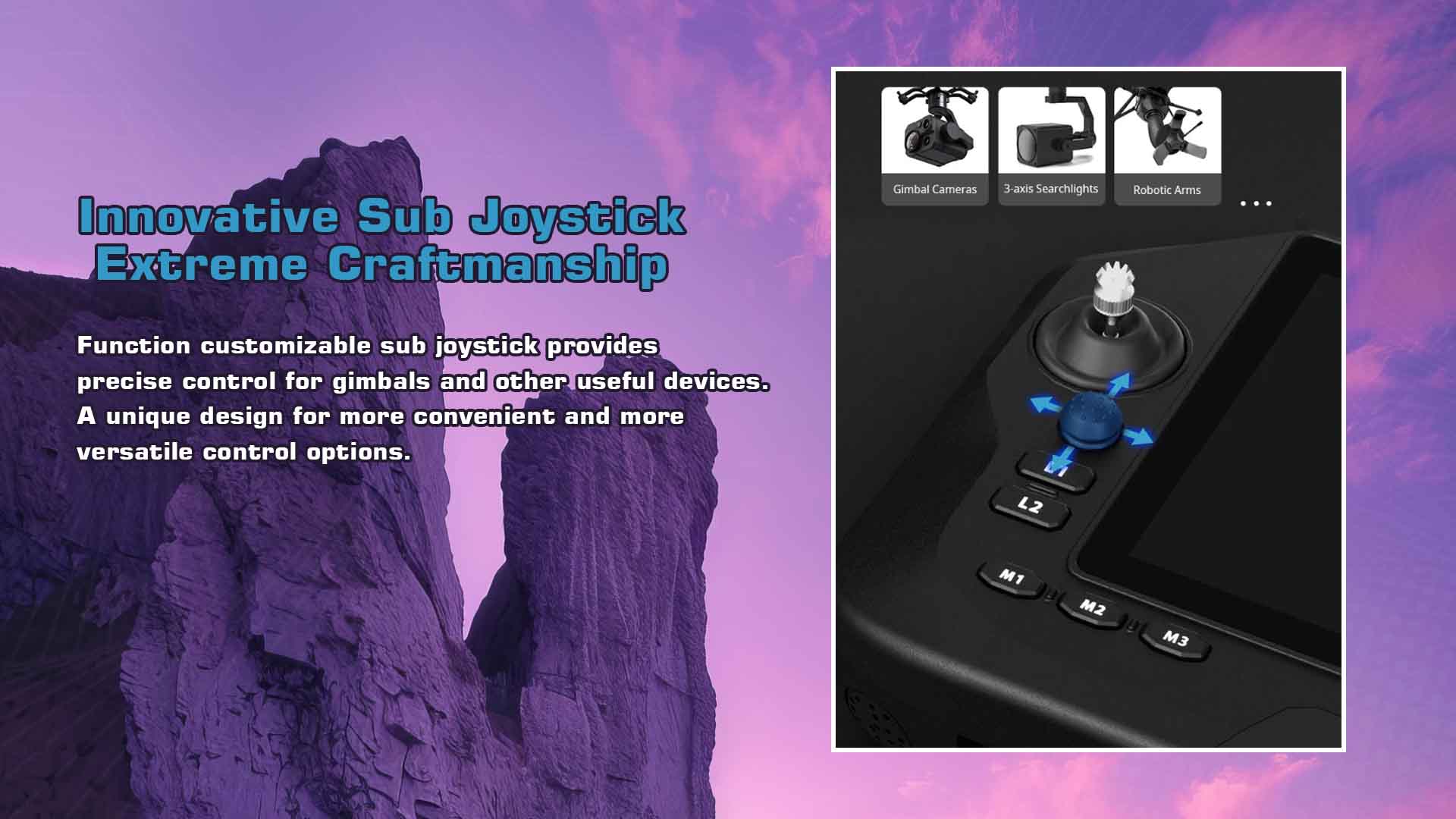

The SIYI UniRC 7 / 7 Pro: Innovative Sub Joystick with Extreme Craftsmanship
The SIYI UniRC 7 / UniRC 7 Pro introduces a groundbreaking function-customizable sub joystick, offering unparalleled precision for controlling gimbals and other essential devices. This innovative design delivers enhanced convenience and versatility, empowering operators with seamless control options tailored to their needs. Engineered with extreme craftsmanship, the sub joystick ensures smooth, intuitive operations, making it an indispensable feature for professional and high-stakes applications.

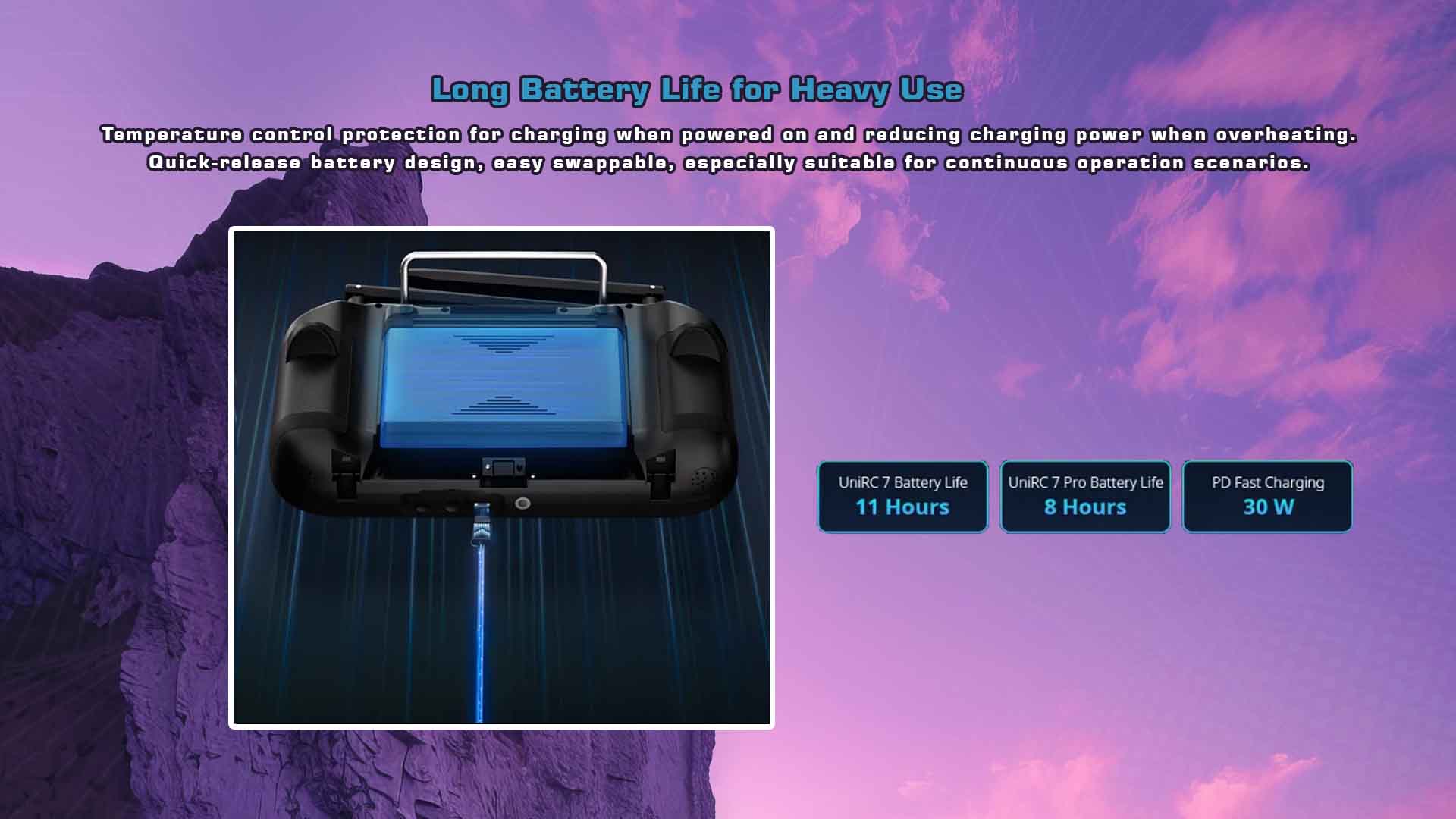

The SIYI UniRC 7 / 7 Pro: Long Battery Life for Heavy Use
The SIYI UniRC 7 / UniRC 7 Pro is designed for demanding operations, offering extended battery performance and advanced charging safety. With temperature control protection, it ensures safe charging while powered on and reduces charging power during overheating. The quick-release battery design allows for easy swaps, making it ideal for continuous operation scenarios. The UniRC 7 provides an impressive 11-hour battery life, while the UniRC 7 Pro offers 8 hours of usage. Additionally, 30W PD fast charging minimizes downtime, ensuring you stay operational.
Features of the SIYI UniRC 7 / 7 Pro

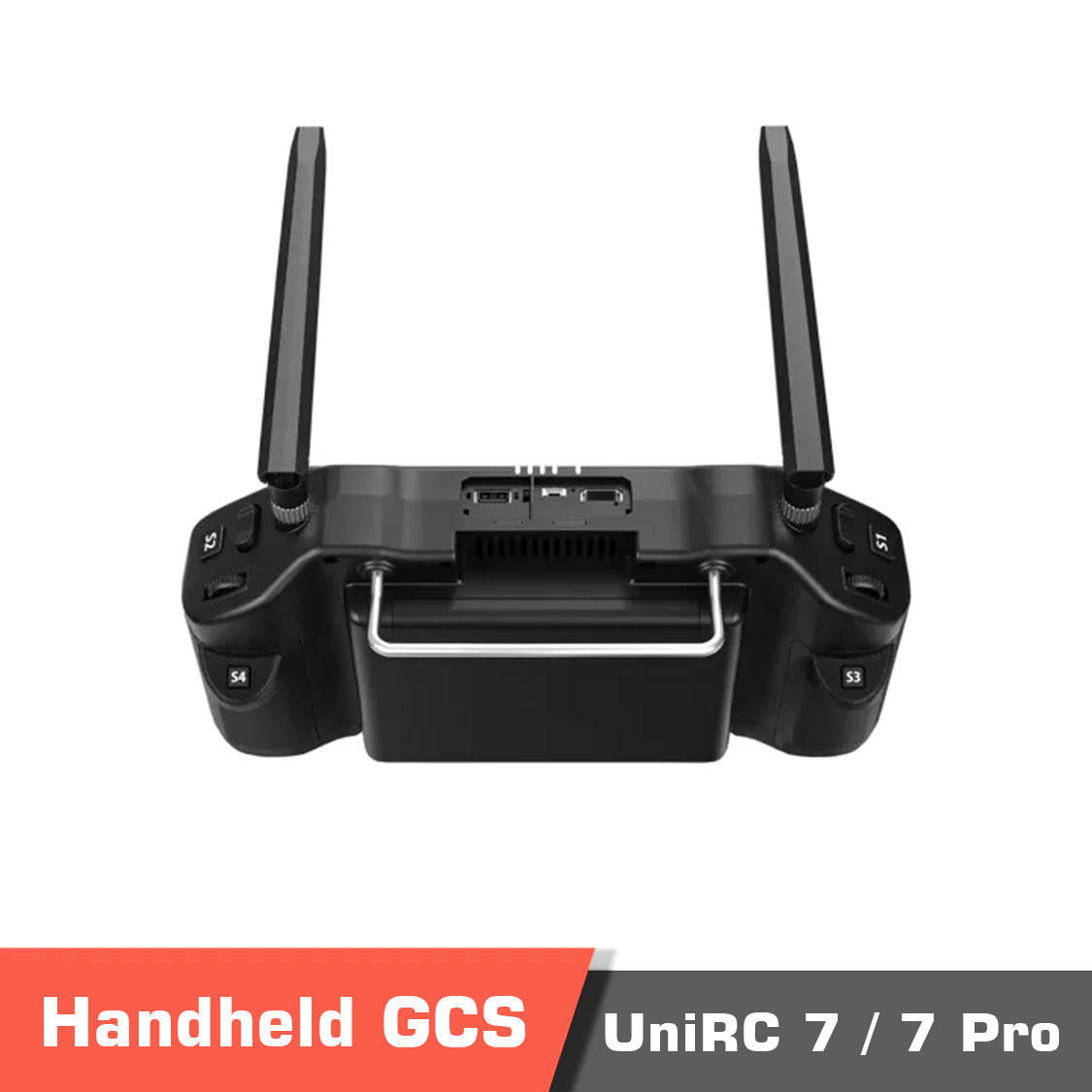

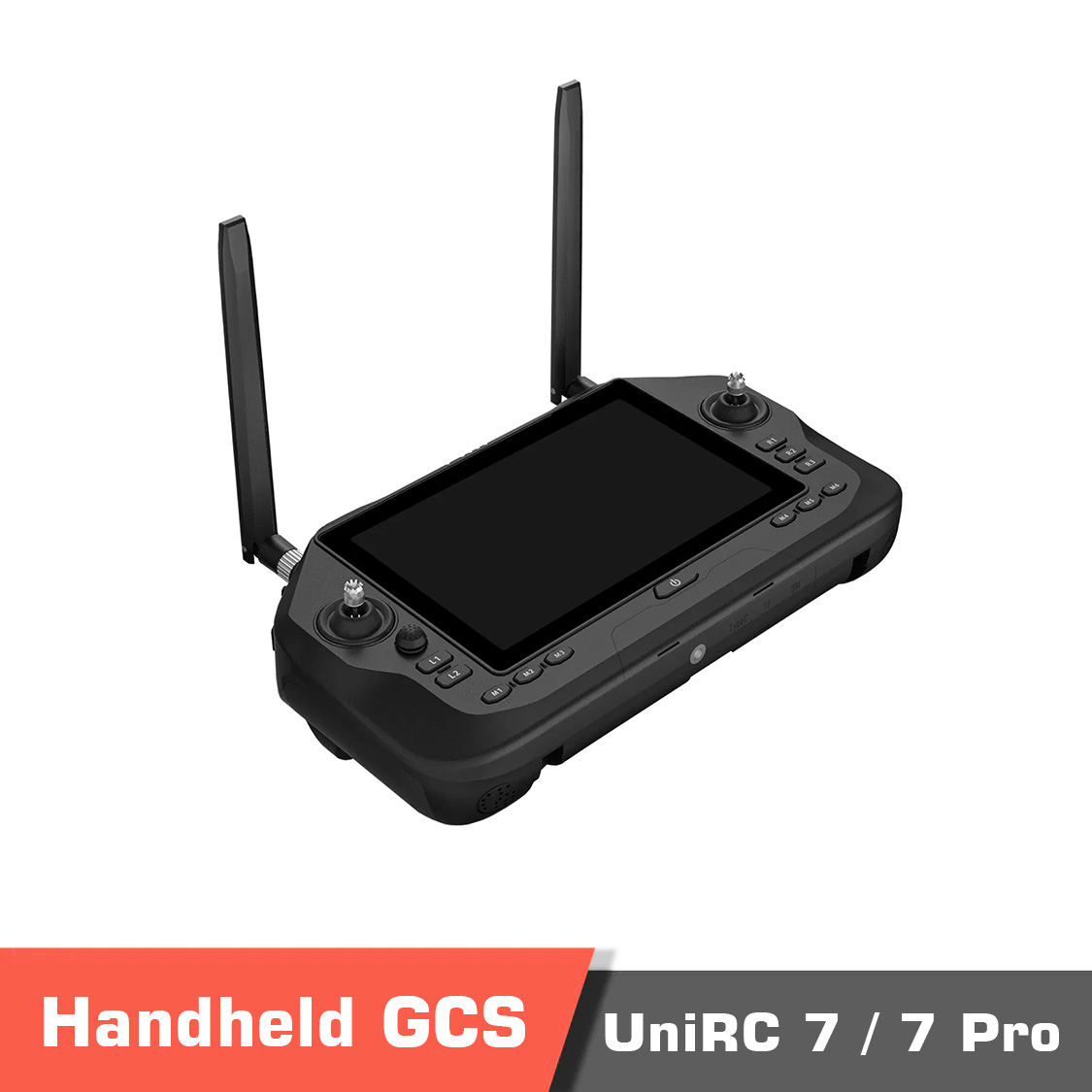

Ground Unit

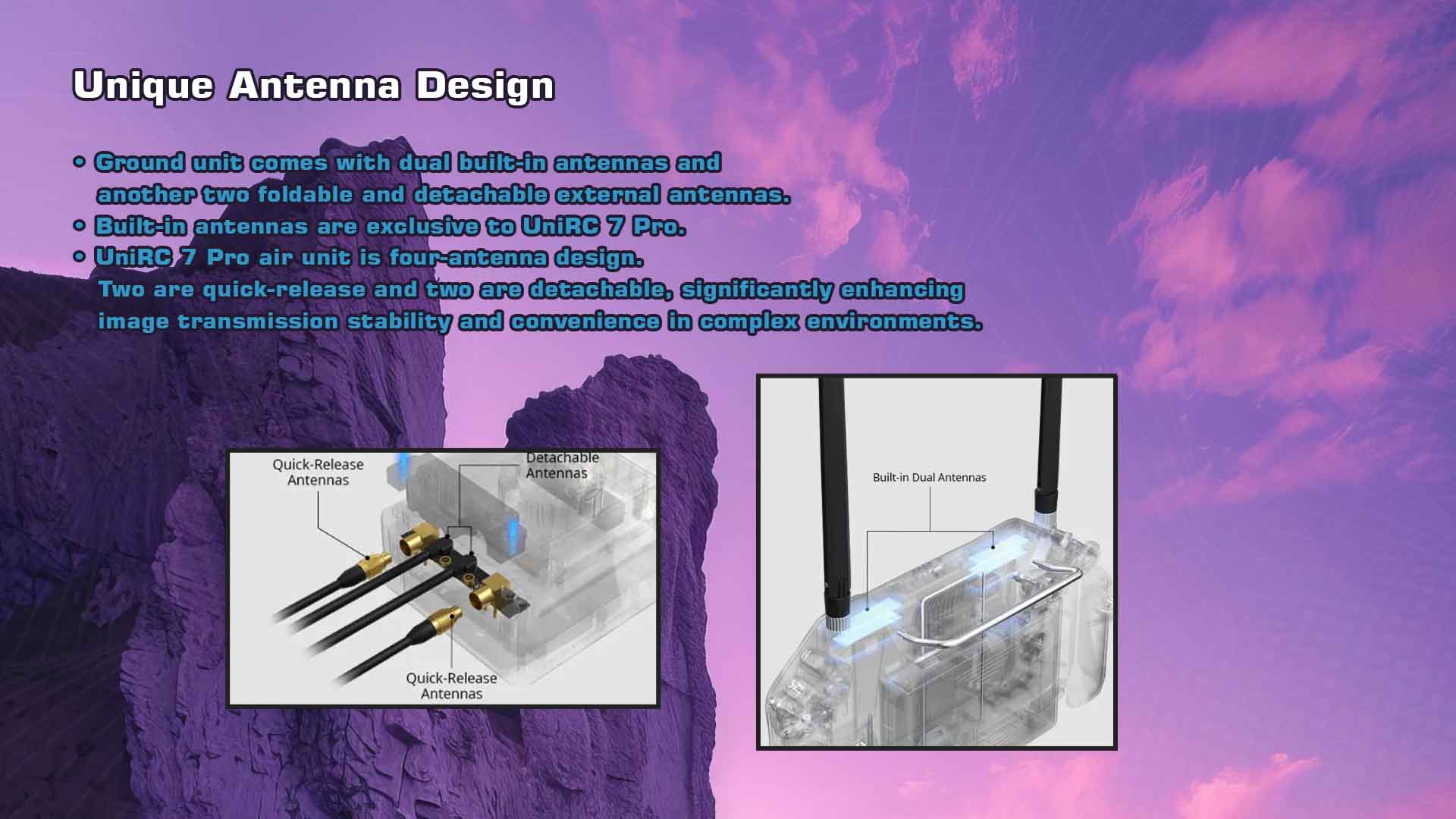

- Four-Antenna Design: Enhanced signal strength and stability.
- Dual Internal Antennas: Optimized for seamless connectivity.
- Unique Sub Joystick: Precision control for advanced operations.

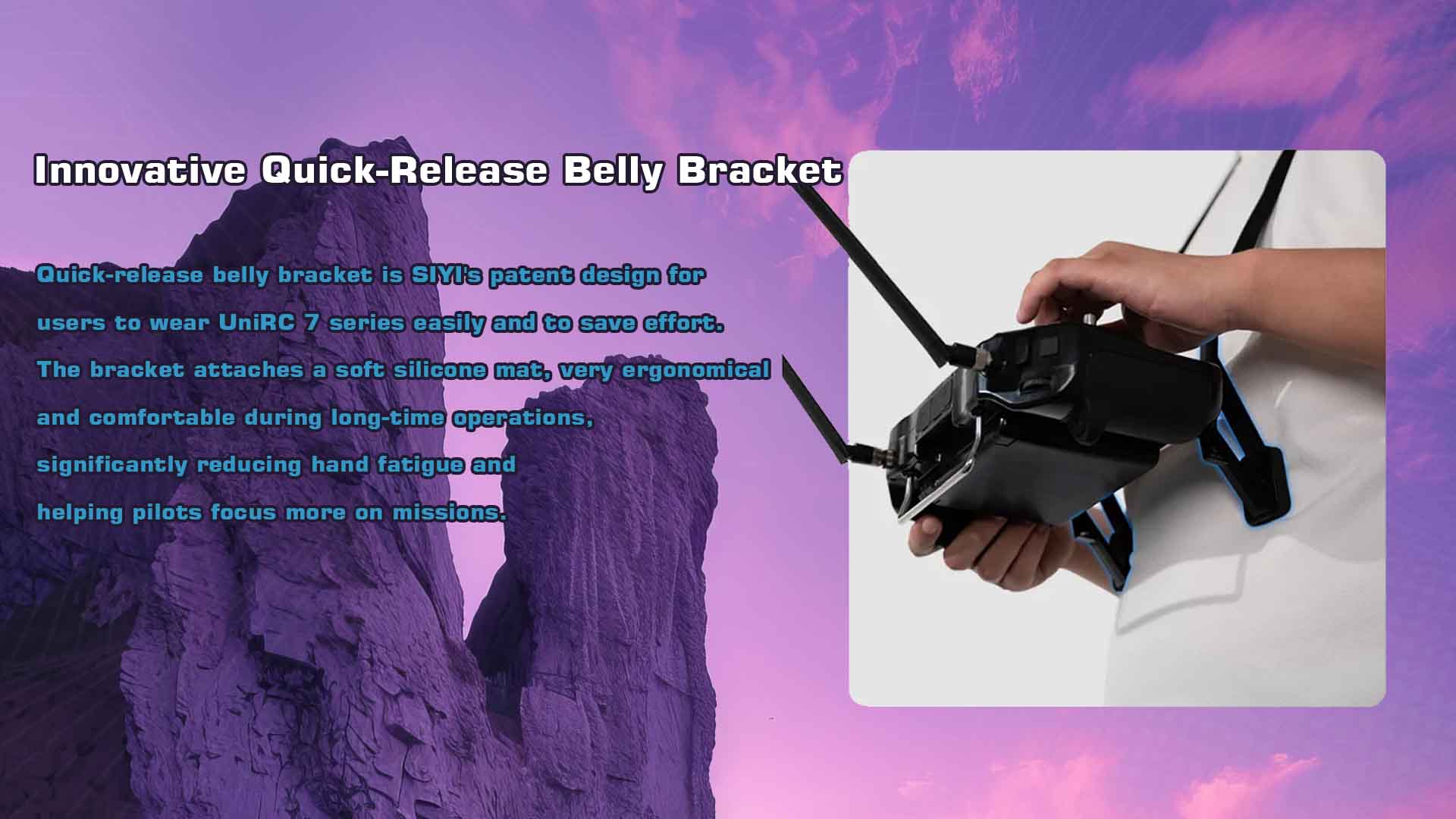

- Quick-Release Belly Bracket: Effortless setup and portability.
- Active Cooling: Maintains performance during extended use.

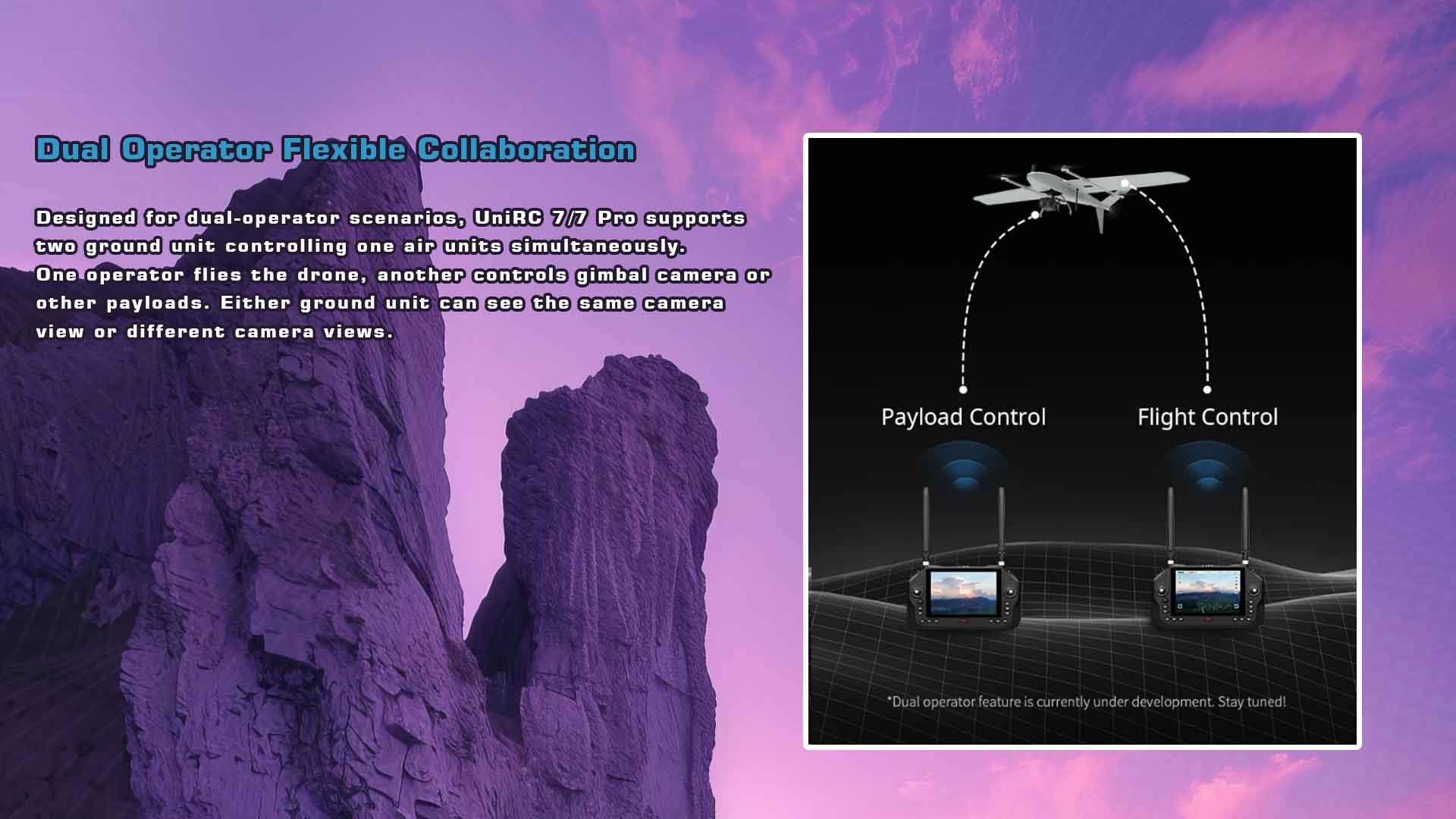

- Dual Operator Support: Enables separate control of payload and flight.
- Payload and Flight Control: Streamlined operations for complex missions.
- 30W PD Fast Charging: Ensures minimal downtime and rapid recharging.

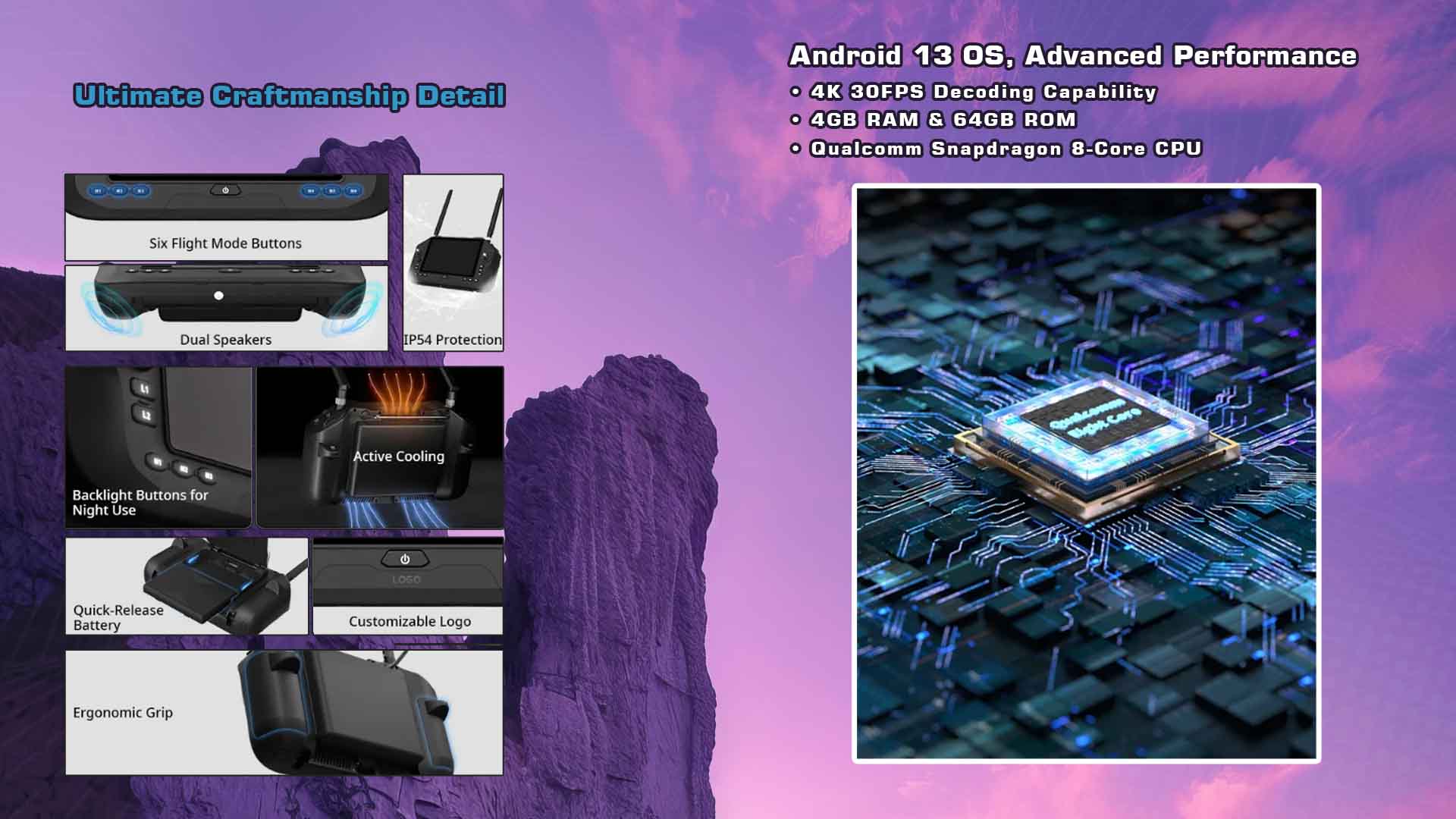

- Qualcomm 8-Core CPU: High-performance processing for demanding applications.
- 4GB RAM and 64GB ROM: Ample storage and smooth multitasking.
- Six Flight Mode Buttons: Simplifies flight mode selection for versatile applications.

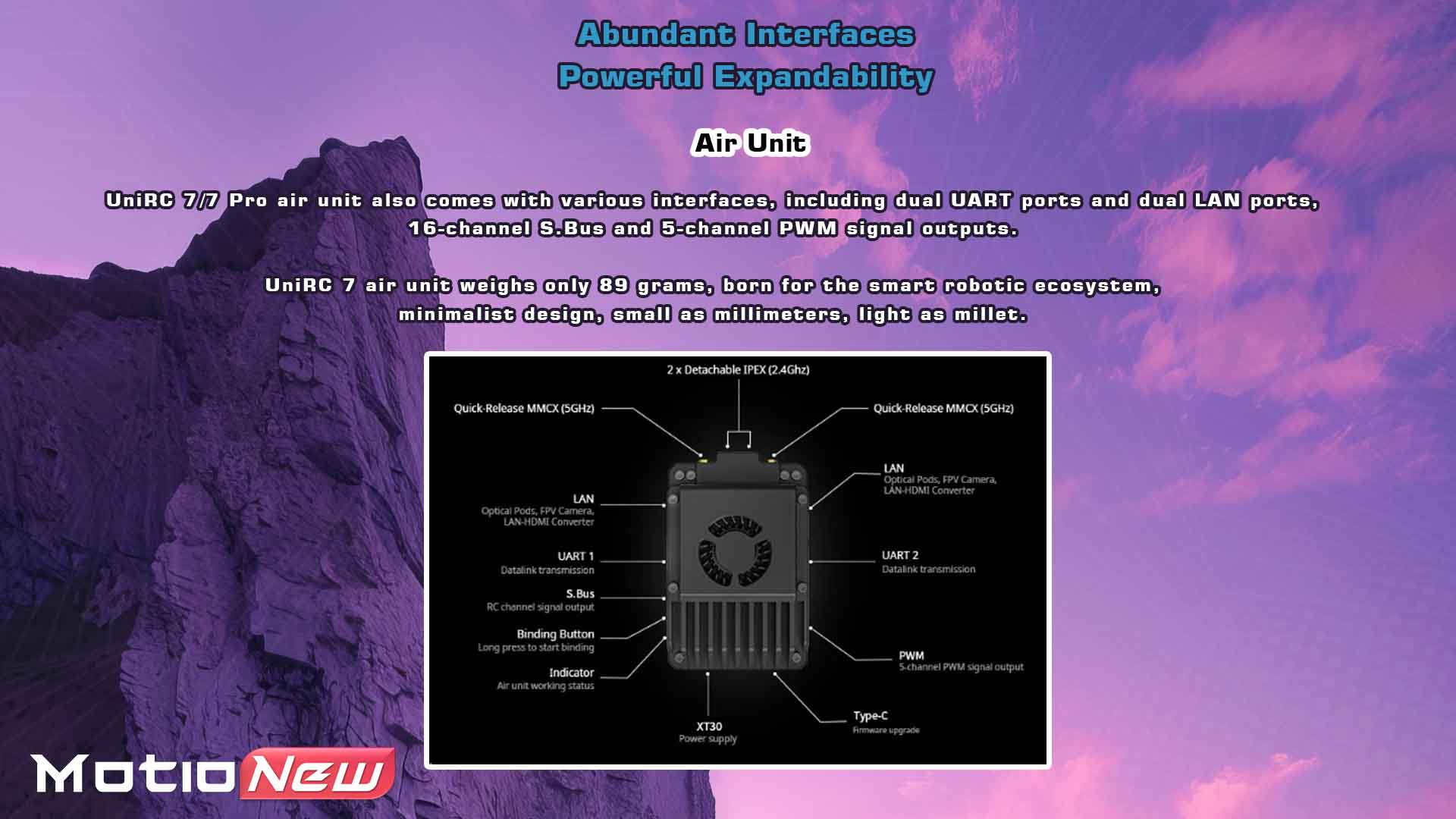

Air Unit
- Four-Antenna Design: Improved signal reception and reliability.
- Quick-Release, Detachable Components: Simplifies maintenance and transport.
- Quick-Release Battery: Enhances operational efficiency with rapid battery swaps.
For other drone Ground control station, we recommend you visit our Handheld GCS in MotioNew.
For a comprehensive reading of related products, please visit the Motionew website.
SIYI UniRC 7 / UniRC 7 Pro Handheld Ground Station – FAQ
-
What are the main technical features of the UniRC 7 and UniRC 7 Pro?
Both models are dual-frequency ground stations operating at 2.4 GHz and 5 GHz.
They feature integrated HD video transmission, long-range communication (up to 20 km line-of-sight), and 7-inch touch displays for FPV monitoring and flight control.
The Pro version includes an upgraded processing unit and improved RF performance. -
What systems and flight controllers are compatible with UniRC 7 / 7 Pro?
They support PX4, ArduPilot, DJI, and other MAVLink-based systems. The stations integrate seamlessly with SIYI video transmitters, gimbals, and telemetry modules. -
What interfaces and connectivity options are available?
Both models provide HDMI, USB, Ethernet, and serial ports. They also support Wi-Fi and Bluetooth for peripheral connections and firmware updates. -
Does MotioNew provide OEM or custom branding services for UniRC 7 / 7 Pro?
Yes, OEM and private-label customization are available for bulk or enterprise orders, including logo printing, software configuration, and package design. -
What payment methods can be used to purchase these ground stations?
MotioNew accepts PayPal, international credit cards, and wire transfers for both retail and wholesale clients. -
Are manuals and technical documents provided with the product?
Yes, the package includes user manuals, setup instructions, and configuration guides. Additional firmware resources and software documentation are available upon request.
Specifications
Specifications
| Overall | |
| Maximum Effective Signal Range | Agriculture Spraying Altitude (3 to 6 m):3 to 6 km |
| Rural Area Flight Altitude (120 m), Few Obstruction & Medium Interference:10 to 15 km | |
| Above Sea Flight Altitude (150 m), No Obstruction & Low Interference:30 to 40 km | |
| Working Frequency | UniRC 7 Pro: 2.400 GHz – 2.476 GHz 5.725 GHz – 5.829 GHz UniRC 7: 2.400 GHz – 2.476 GHz |
| Physical Channels | 10 x Custom Buttons |
| 6 x Flight Mode Buttons | |
| 2 x Main Joysticks | |
| 1 x Sub Joystick | |
| 2 x Dials | |
| 2 x 3-Stage Switches | |
| Ground Unit (Remote Controller) | |

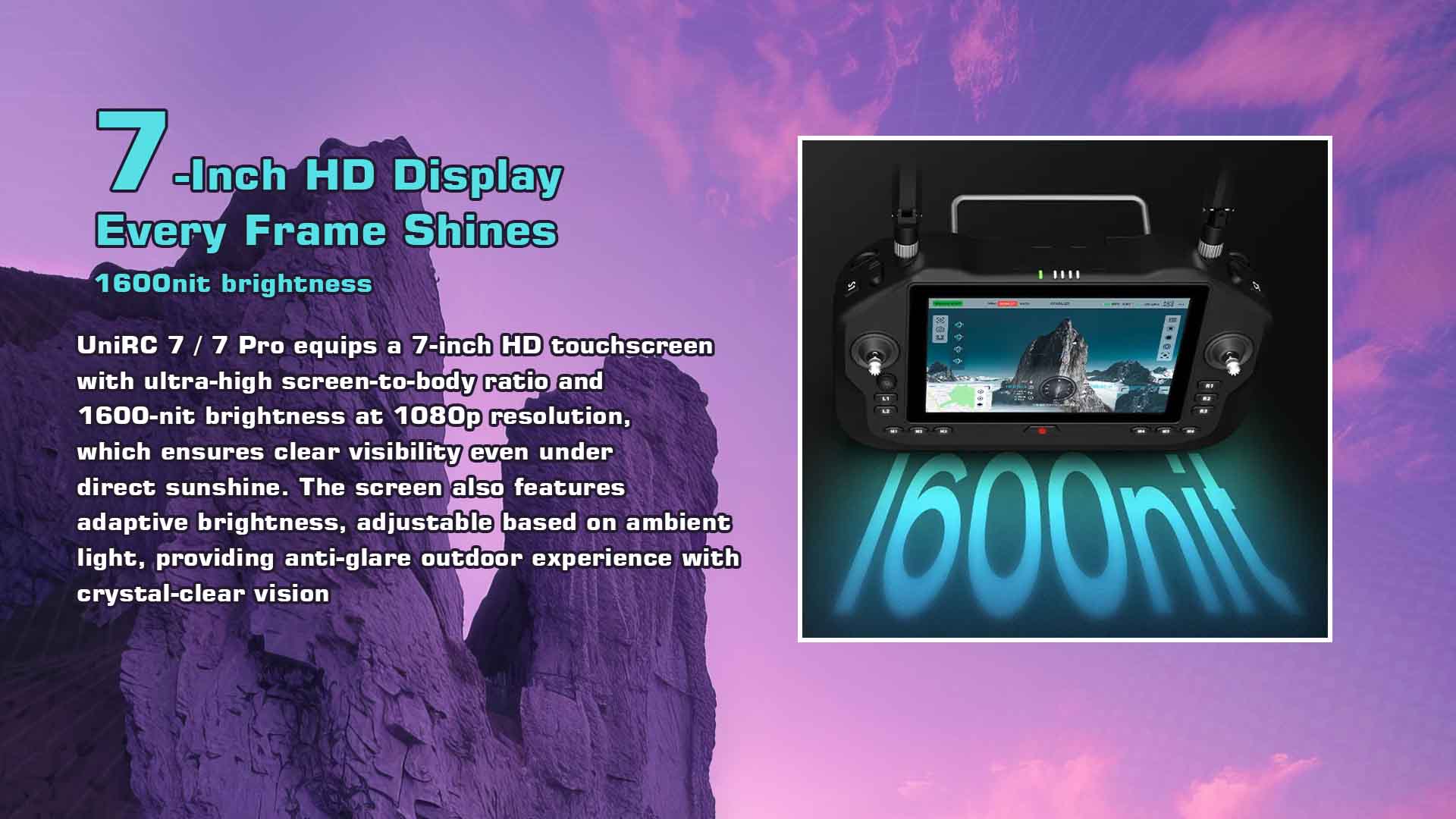

| Monitor | 7-inch 1080p 1600-nit High Definition and High Brightness LCD Touchscreen
UniRC 7 Pro: 1920×1200 UniRC 7: 1280×800 |
| Operating System | Android 13 |
| Android Hardware | 4GB RAM+ 64GB ROM |
| Wi-Fi | Wi-Fi 5 |
| Bluetooth | BT 5.0 |
| GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS |
| Battery Life | UniRC 7 Pro: Approx 8 hours |
| UniRC 7: Approx11 hours | |
| Battery Capacity | 13400mAh |
| Charging Protocol | PD 30W |
| Charging Time | Approx 4.5 hours |
| Datalink/SDK Port | UART/UDP, Bluetooth, Type-C |

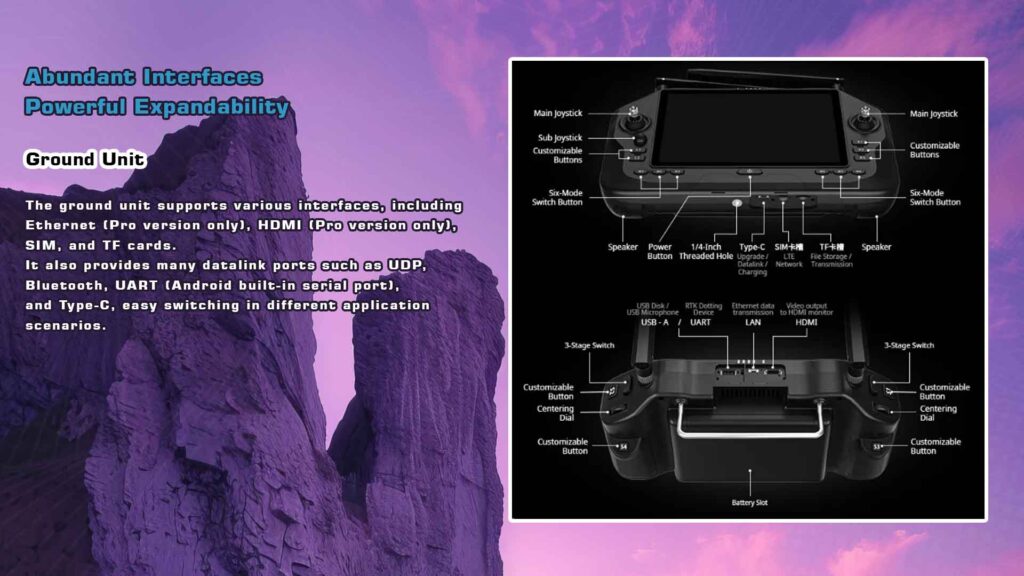

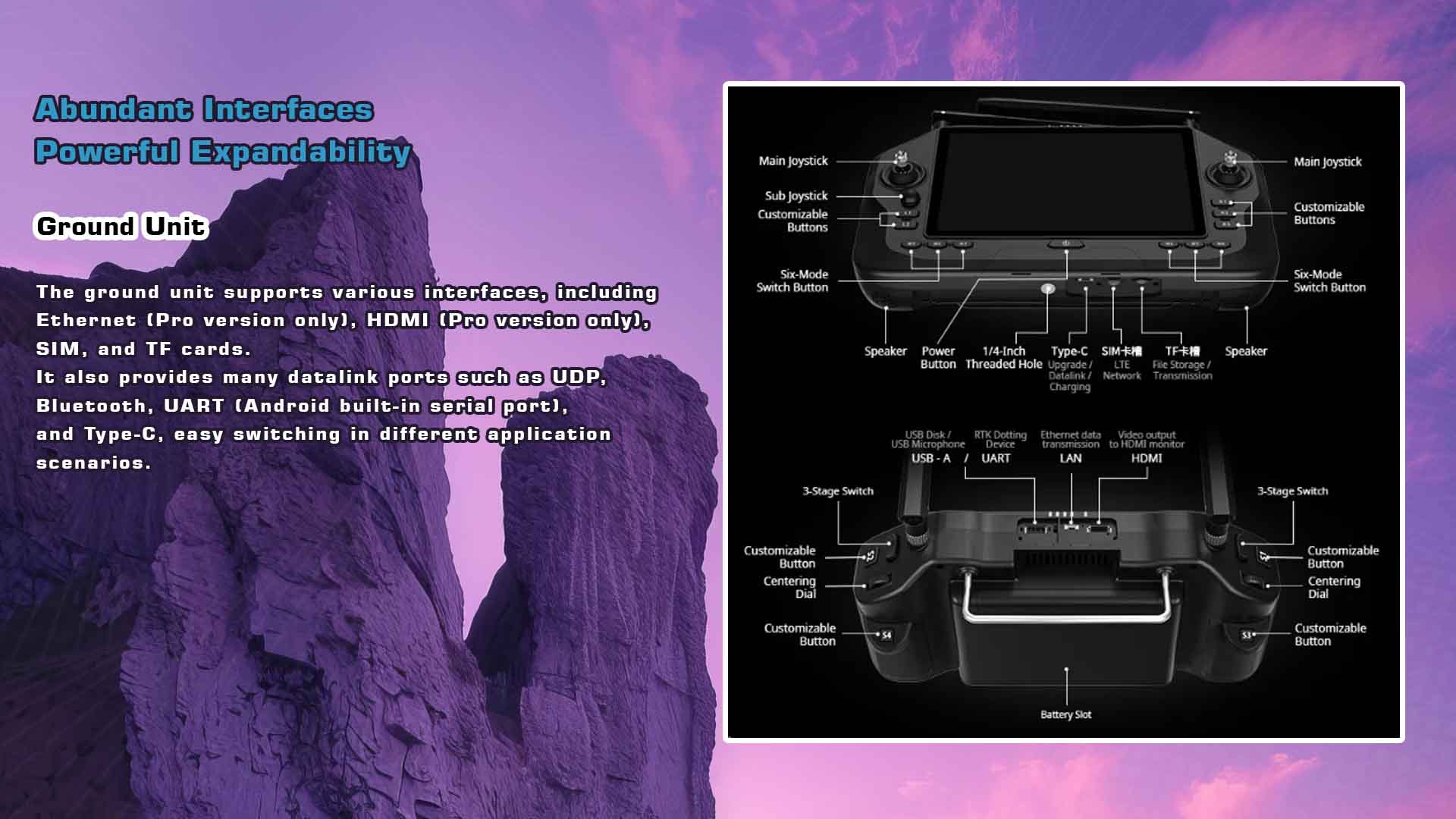

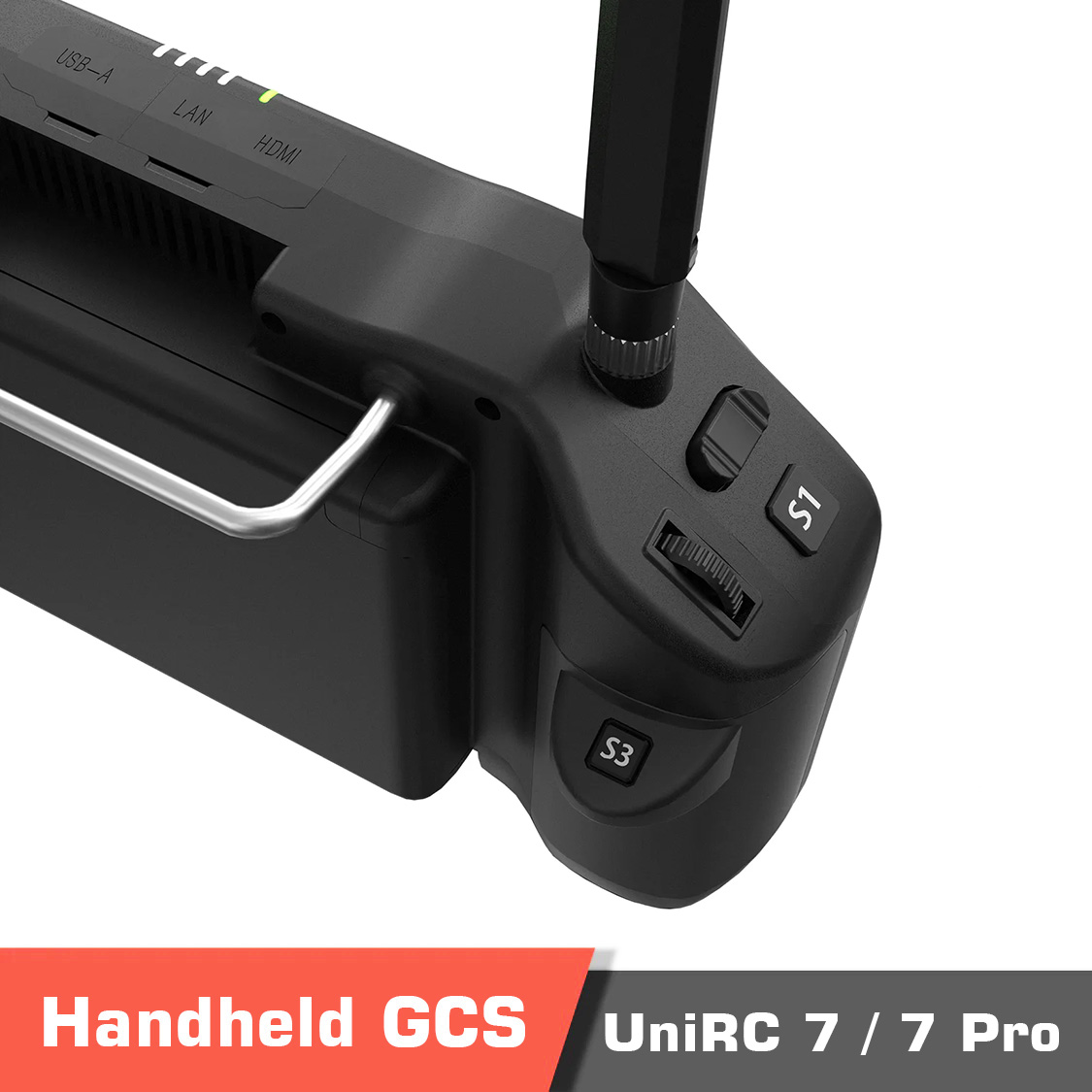

| Interface & Ports | UniRC 7 Pro: |
| External Device (Mouse, USB Disk, USB Microphone): USB-A | |
| Serial Port (for RTK Dotting Module): USB-A | |
| File Transfer: USB-A | |
| Video Output: Standard HDMI | |
| Network Communication: LAN (GH1.25 4-Pin) | |
| UniRC 7: | |
| Serial Port (for RTK Dotting Module): USB-A | |
| Charging: Type-C | |
| Firmware Upgrade: Type-C | |
| File Transfer: Type-C | |
| Mobile Network: SIM Card Slot | |
| External Storage: TF Card Slot / USB-A |
|
| Tripod Mount: 1/4-inch Standard Screw Hole | |
| Antennas | UniRC 7 Pro: 2 x Internal (5 GHz)+2 x External (2.4 GHz) |
| UniRC 7: 2 x External (2.4 GHz) |
|
| Protection Class | IP54 |
| Dimensions | L274 * W190 * H100 mm |
| Weight | UniRC 7 Pro: 1.46KG |
| UniRC 7: 1.44KG | |
| Air Unit | |
| RC Signal Output | 16-channel SBUS |
| 5-channel PWM | |
| Interface & Ports | RC Signal Output: S.Bus (GH1.25 2-Pin) |
| RC Signal Output: PWM 1 to 5 (GH1.25 6-Pin) | |
| Datalink: 2 x UART (GH1.25 3-Pin) | |
| Video & Data: 2 x LAN (GH1.25 8-Pin) | |
| Power Supply: XT30 | |
| Firmware Upgrade: Type-C | |
| Antennas | UniRC 7 Pro:
2 x Quick-Release MMCX (5 GHz) 2 x Detachable IPEX (2.4 GHz) |
| UniRC 7:2 x Detachable IPEX (2.4 GHz) | |
| Working Voltage |
7 to 76 V |
| Dimensions (Antenna excluded) |
UniRC 7 Pro: L63 * W40 * H27 mm |
| UniRC 7: L57 * W40 * H28 mm | |
| Weight (Antenna excluded) |
UniRC 7 Pro: 115g |
| UniRC 7: 90g | |
| Average Power Consumption |
UniRC 7 Pro: 8W |
| UniRC 7: 6W | |
Product contents
Product contents
Please contact us for more information.
Reviews
You must be logged in to post a review.
| Model |
UniRC 7 ,UniRC 7 Pro |
|---|---|
| GCS Battery |
13400mAh |
| GCS Interfaces |
Bluetooth ,HDMI ,LAN ,SBUS ,Sim ,UART ,USB ,WiFi |
| GCS Number of screens |
1 screen |
| GCS Operating System Software |
Android |
| GCS Protection Level |
IP54 |
| GCS RAM |
4GB ,64GB |
| GCS SBUS Output |
16 |
| GCS Screen Brightness |
1600nit |
| GCS Type |
Handheld |
