MG40 GCS, Handheld Ground Control Station

11999.00 $

Description

MG40 GCS, Handheld Ground Control Station

MG40 GCS is a case-type handheld ground control station with a dual high-quality and high brightness screen. Multiple configurable physical channels are available on the unit to control your drone. It weighs less than 6kg and can be carried easily.

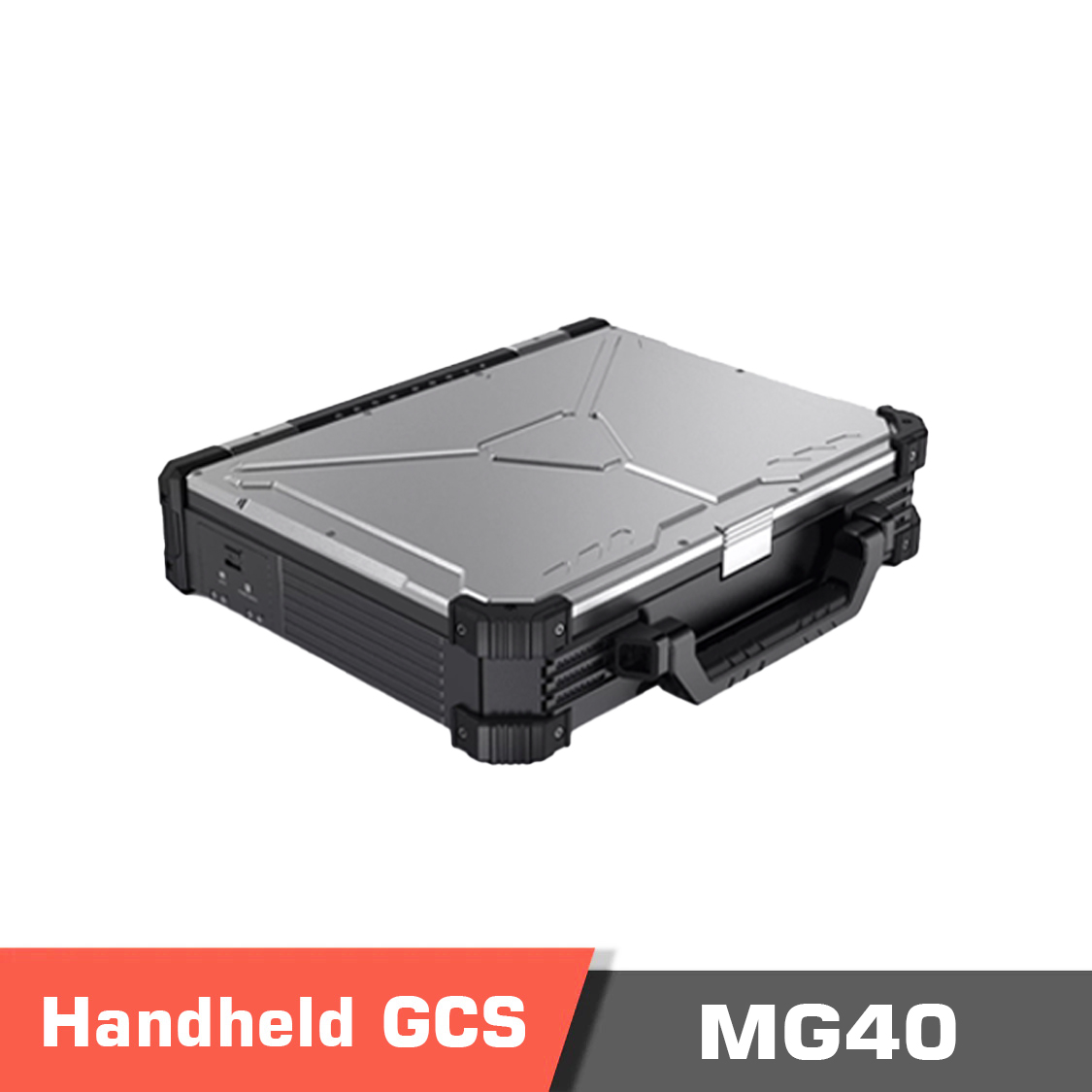

MG40 is an all-in-one GCS with a built-in communication link. However, other third-party datalinks in the market are also supported.  It is manufactured from aviation aluminum, has a rugged design, and is suitable for operation in harsh environments.

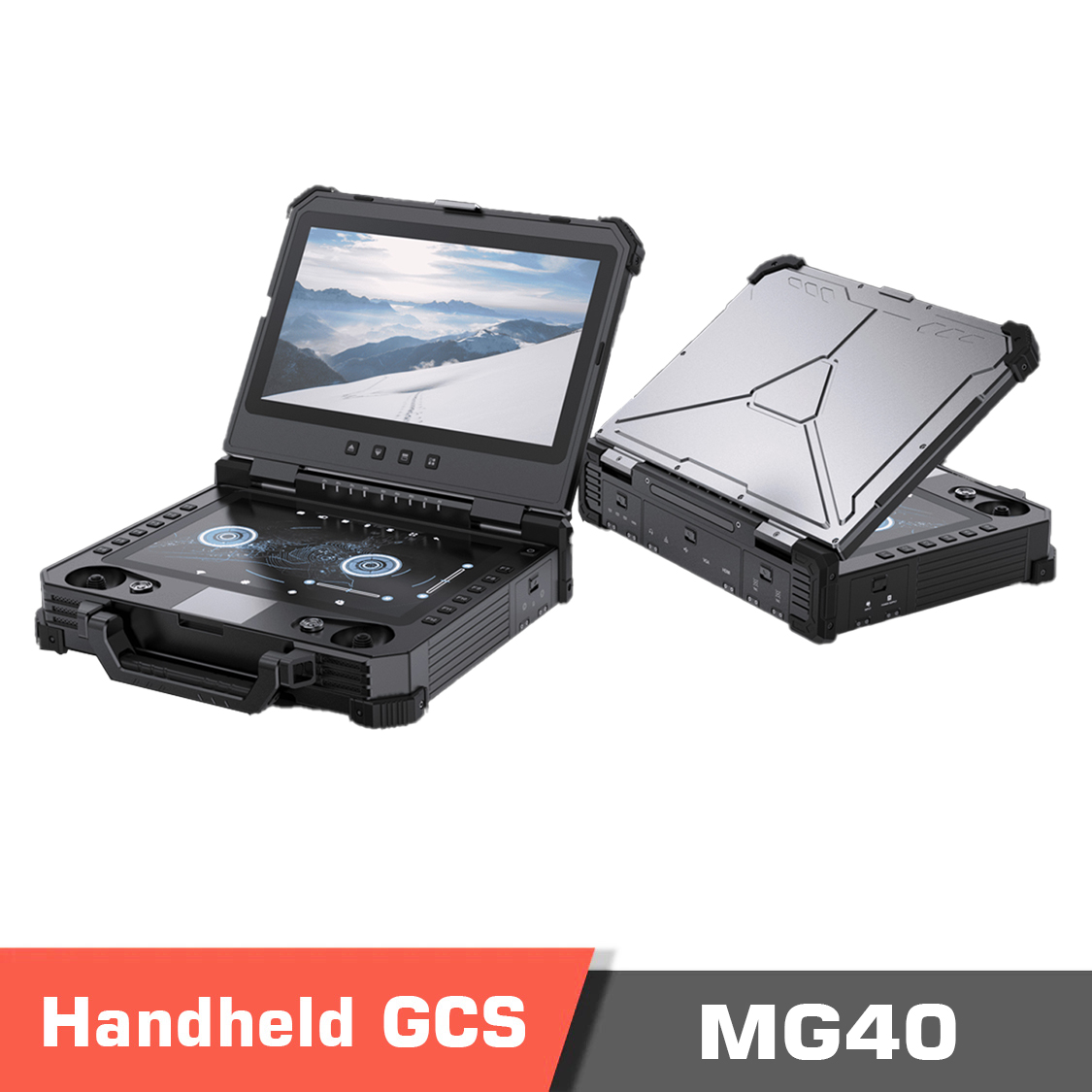

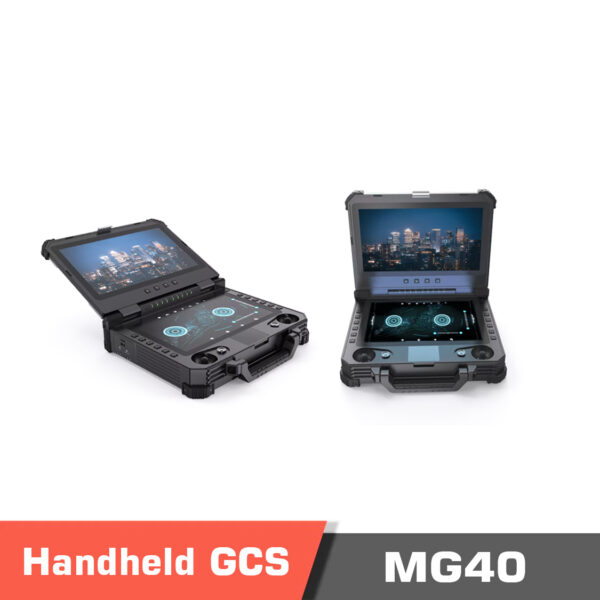

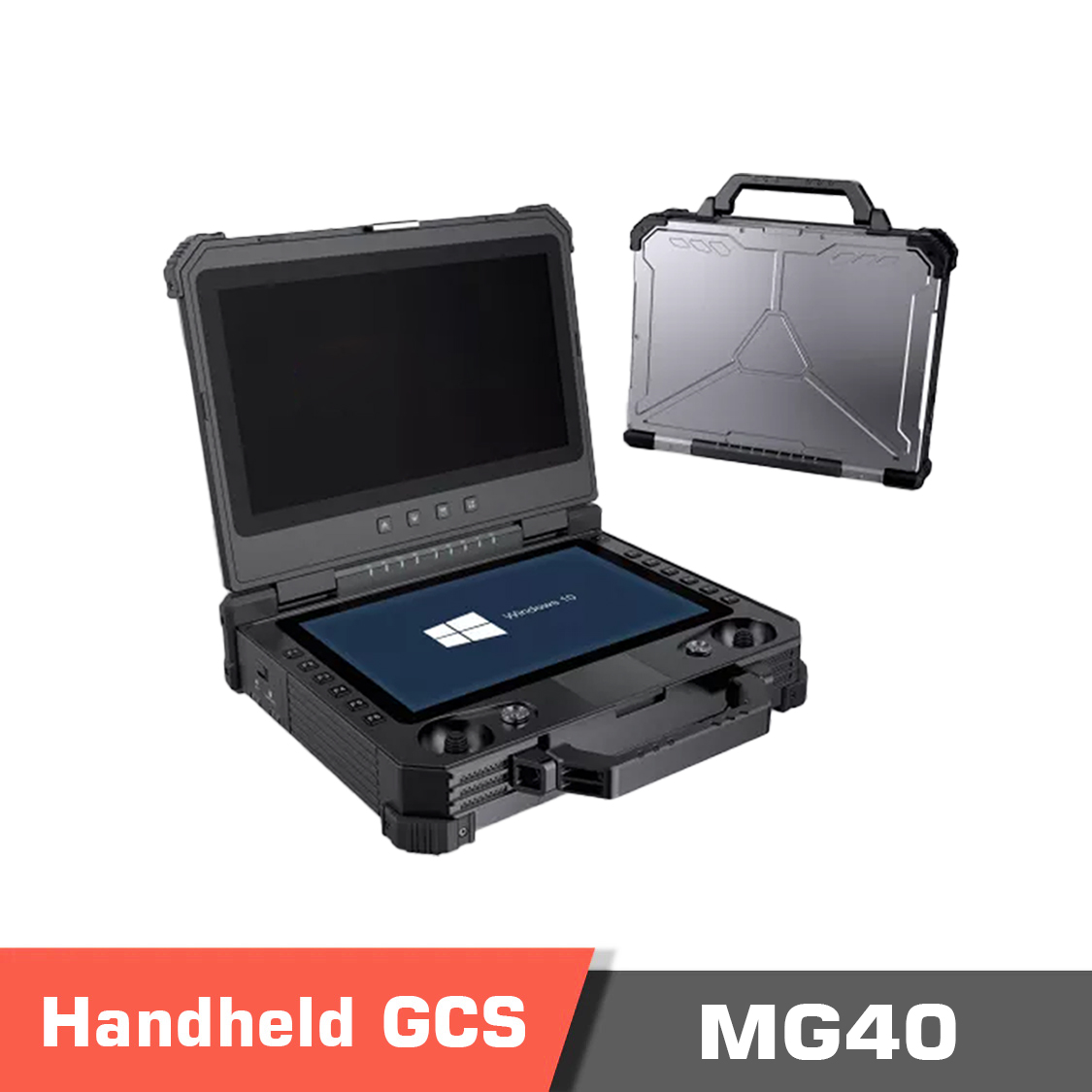

Double touchscreen with high resolutions and high brightness are installed in a foldable design that can be opened up to 180°. The upper screen is a 13.3″ screen with 1000nit brightness and 1920×1080 resolution. The lower screen is a 12.3″ screen with 1500nit brightness and 1280×800 resolution. There is no problem working with the system under direct sunlight.

MG40 comes with a built-in datalink system. Telemetry data, Radio control signal (RC signal), and video can be transmitted simultaneously from the ground station to the air unit. In a Lind of Sight setup, the communication range can be established up to 10km distance. Two SBUS ports are available on the air unit for radio control signals.

Multiple physical channels including two main joysticks, and 12 key buttons are available on the GCS. It is also possible to define combinational buttons to simulate other functions. With a 13.6Ah battery, the system can work up to 3 hours at full charge.



Mg40 gcs Mg40 gcs. 2 - mg40 gcs,handheld ground control station,ground control station,gcs,radio control,high brightness,high resolution,high brightness screen,1500nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,3 frequency modules,dual sbus,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 8 Handheld ground control station Mg40 gcs. 4 1 - mg40 gcs,handheld ground control station,ground control station,gcs,radio control,high brightness,high resolution,high brightness screen,1500nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,3 frequency modules,dual sbus,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 9 Mg40 gcs. 5 - mg40 gcs,handheld ground control station,ground control station,gcs,radio control,high brightness,high resolution,high brightness screen,1500nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,3 frequency modules,dual sbus,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 10 Mg40 gcs. 6 - mg40 gcs,handheld ground control station,ground control station,gcs,radio control,high brightness,high resolution,high brightness screen,1500nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,3 frequency modules,dual sbus,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 11 Mg40 gcs. 7 - mg40 gcs,handheld ground control station,ground control station,gcs,radio control,high brightness,high resolution,high brightness screen,1500nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,3 frequency modules,dual sbus,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 12 Mg40 gcs. 8 - mg40 gcs,handheld ground control station,ground control station,gcs,radio control,high brightness,high resolution,high brightness screen,1500nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,3 frequency modules,dual sbus,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 13

Additional information

Weight 7 kg
Dimensions 40 × 30 × 10 cm

Specifications

Dimension
Overall weight 5980g
Dimension 355mm(L)*282mm(W)*80mm(H)
Screen size
13.3inch 1920*1080 1000nit (top screen)
12.1inch 1280*800 1500nit (bottom screen)
Computer Peripherals
CPU Intel i7 8565U(standard)
Touch pad 10-finger capacitive touch screen
Operating system Windows10/Linux
RAM 8G(standard), 32G max
SSD storage 128GB SSD(standard), 1T max
Network WIFI/Bluetooth(standard) 4G(optional)

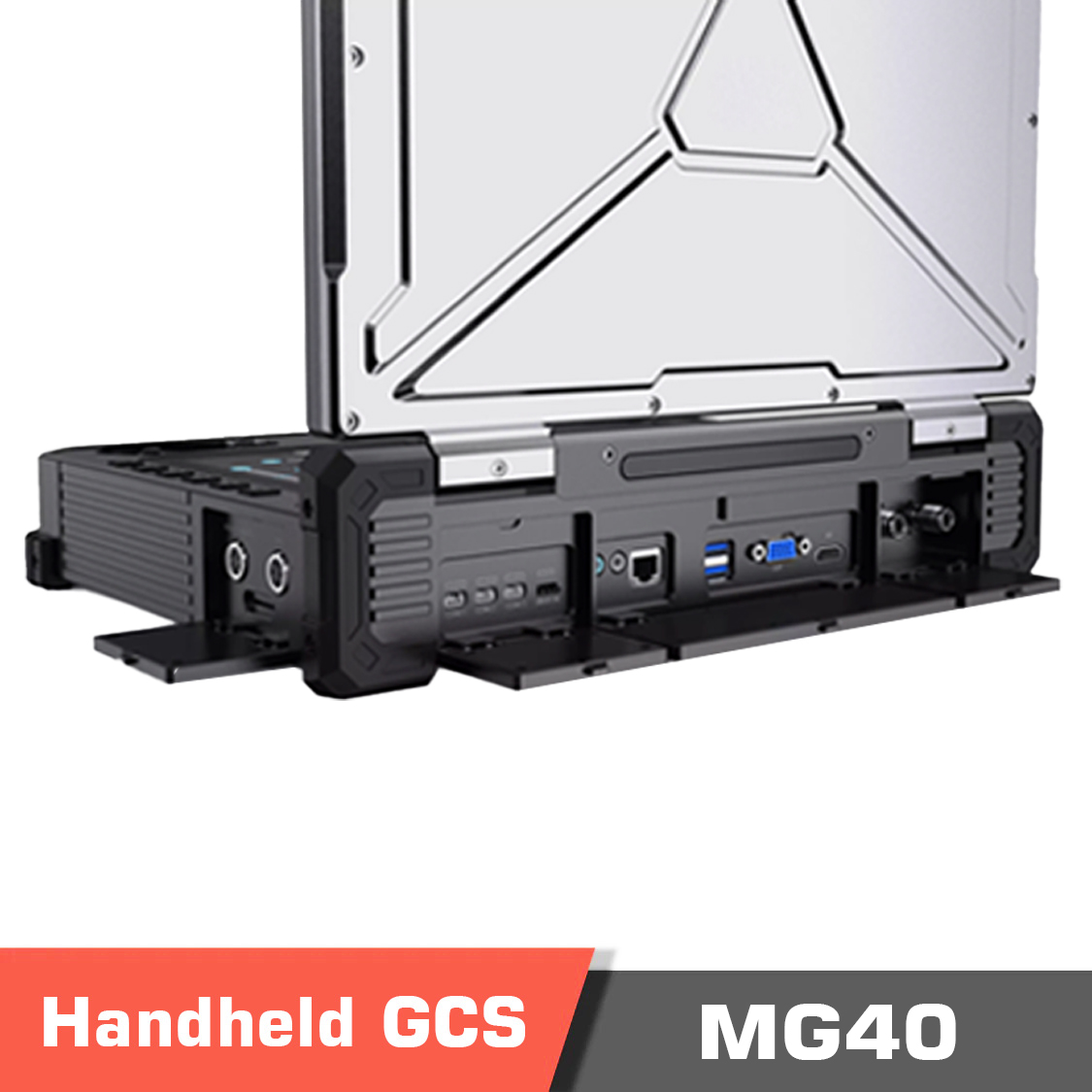

Interfaces RS232*4, USB3.0, LAN, HDMI in, VGA out, Hi-fi
Remote Control
Physical channel
Main joystick*2

(industrial joysticks with hall sensors)

Auxiliary rocker*4
Key buttons*12
Simulate keystrokes*7
Human interface USB HID
Remote control function Dual SBUS independent output, able to control the vehicle and the payload simultaneously
SBUS port SBUS IN*1; SBUS OUT*2
Remote control latency 40ms
Battery Peripherals
Battery capacity 16.8V/13600mAh

(external power source also supported)

Working time 3hs@full battery capacity
Charging port DC16.8v
Communication link
V21 10km grade video&telemetry&RC link
The 3rd party communication link Supported

Product contents

1 set of MG40 GCS

Documents

Please contact us for more information
