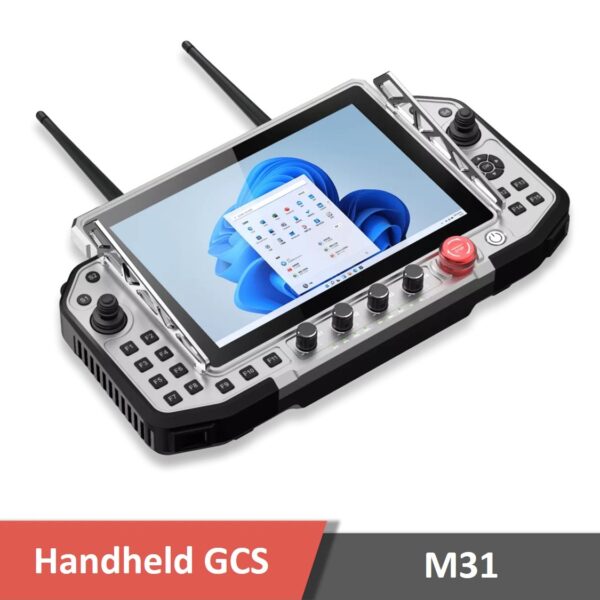

M31 Handheld Ground Control Station GCS
Description
Overview

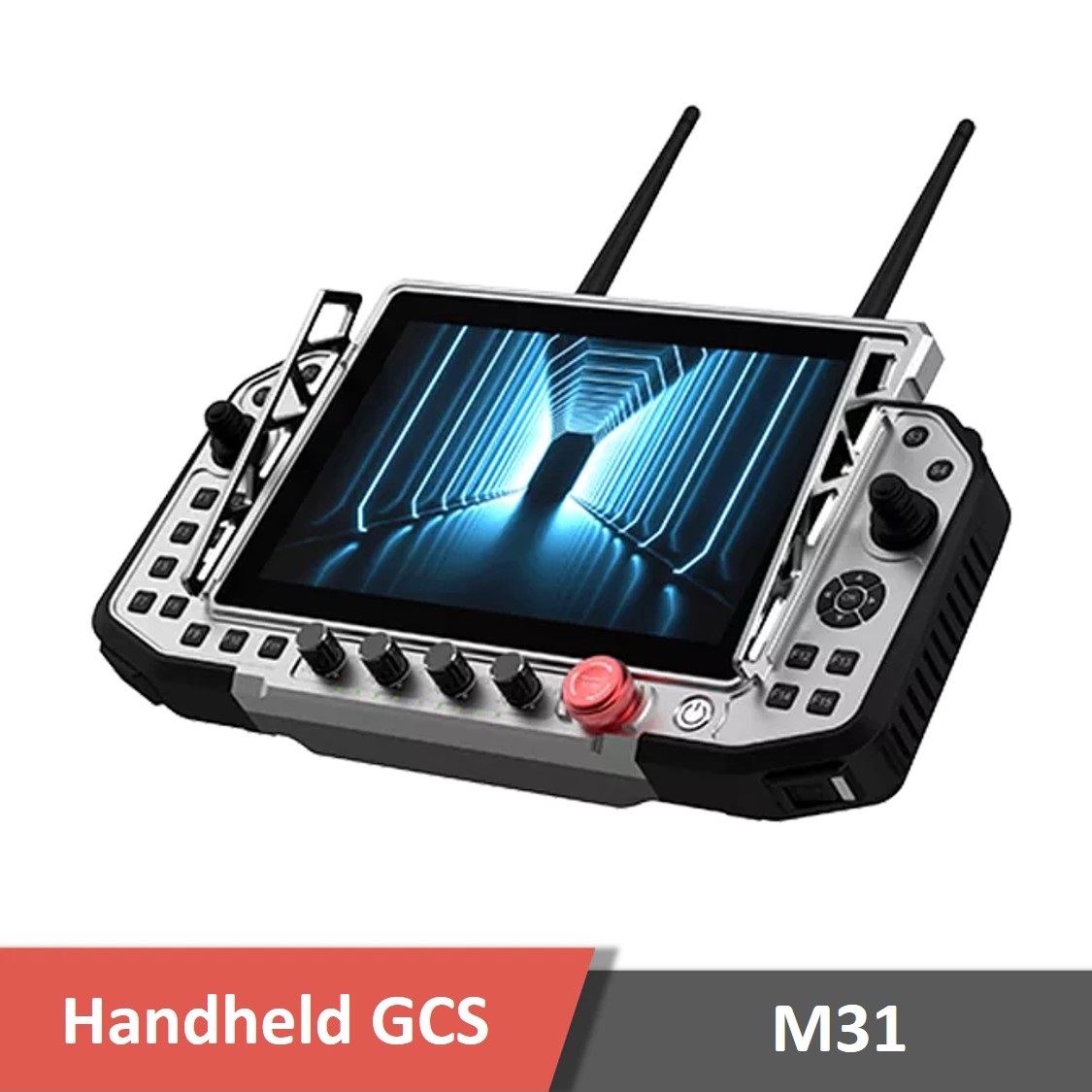

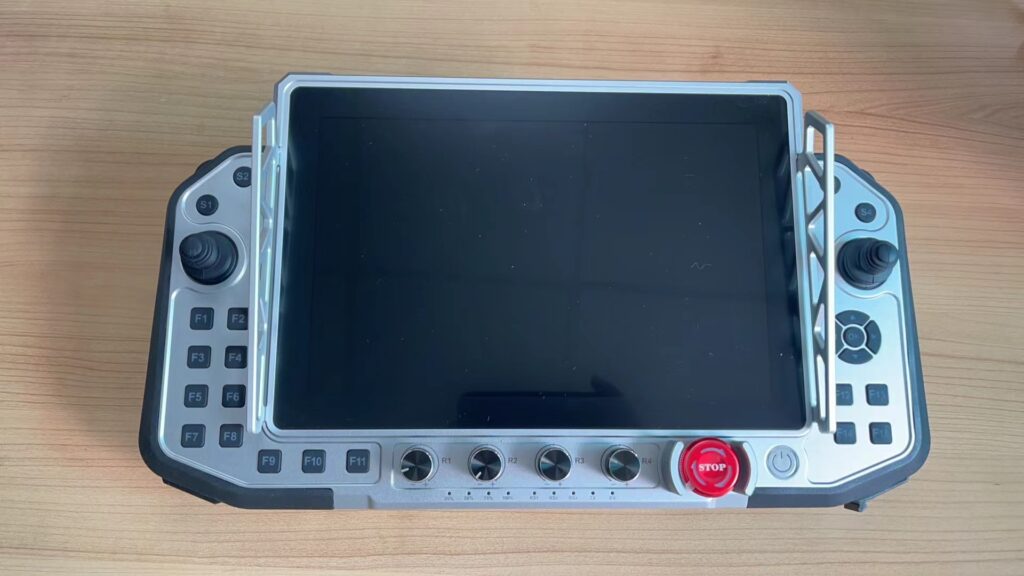

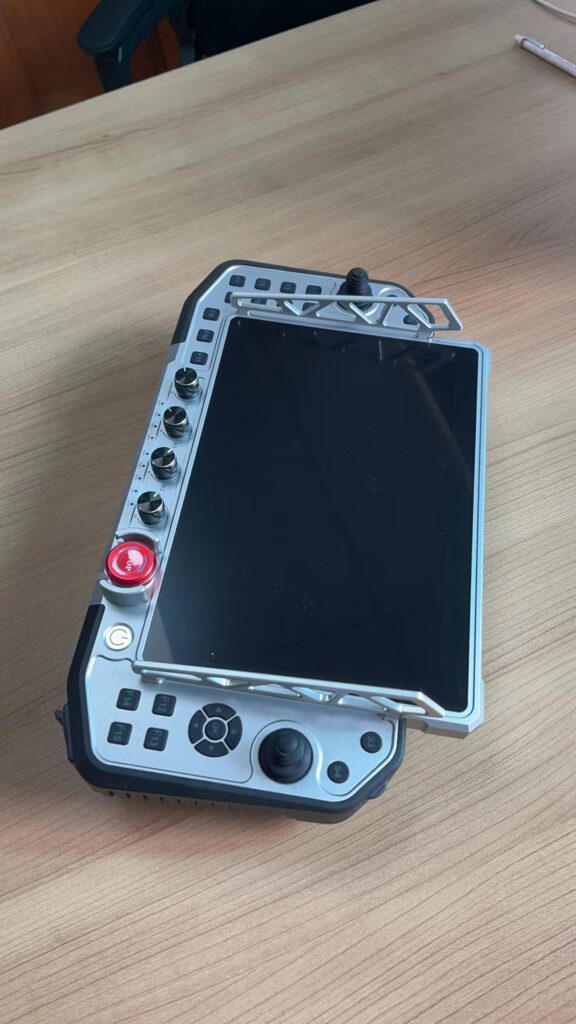

M31 HandHeld Ground Control System is a Portable GCS with a touchscreen and intelligent monitoring system suitable for security patrol drones, surveying and mapping drones, and rescue drones. A 10.1″ industrial screen with 800cd/m2 brightness and a 10-finger capacitive touchscreen make the M31 GCS operable in a wide temperature range.
As part of our professional-grade ground control stations rc offerings, the M31 is engineered for demanding field missions where reliability and versatility are critical.
M31Operating Systems
This GCS supports installing Windows or LINUX operating systems and most ground control station (GCS) software on the market, including MissionPlanner and QGroundControl, can be installed on it. M31 uses industrial and military-grade components inside to ensure the safety and stability of the connection with the aircraft, while it is easy to operate and carry.

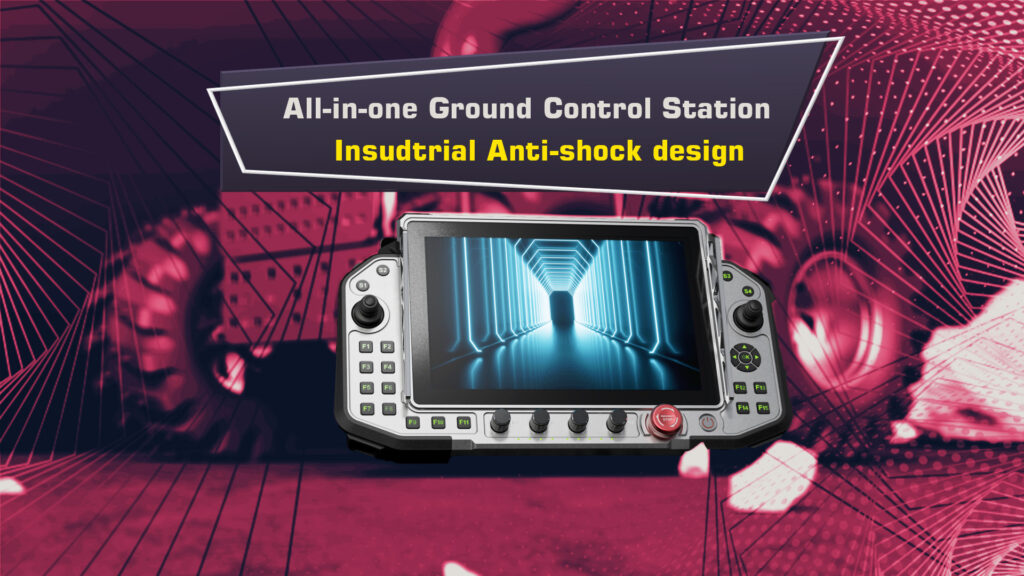

An All-in-One Remote Control with Multi-Band Connectivity and Full Customization

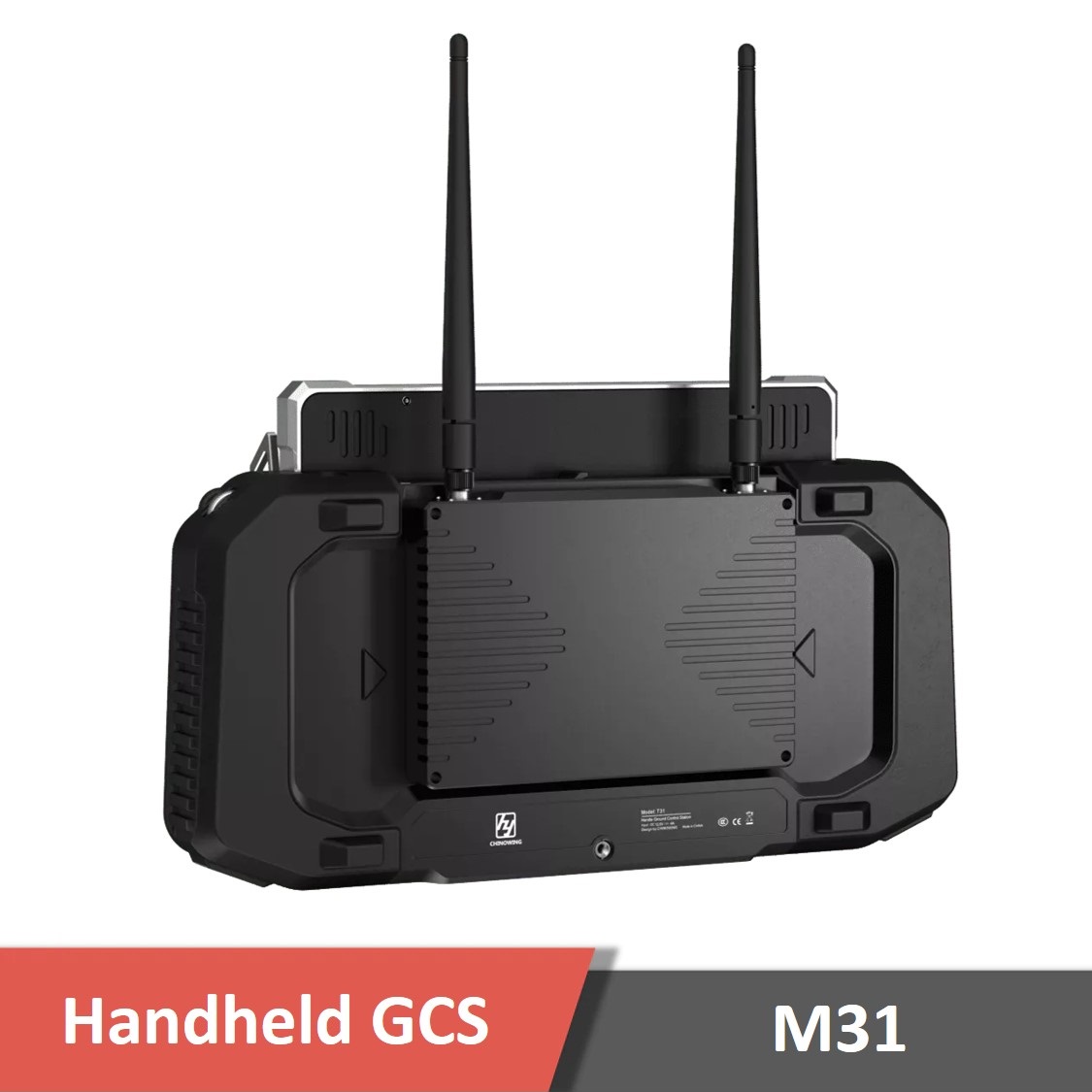

M31 GCS is an all-in-one remote control that integrates data, video, and RC links in one single entity. Three different frequencies are supported (800MHz, 1.4GHz, 2.4GHz) to ensure maximum bandwidth and reliability in different situations. With built-in software, users can redefine the function of each available physical button to their need to have multi-state control over each button, and add combination functions. Two sets of SBUS can be defined locally and transmitted to the air station. The GCS supports WiFi and Bluetooth, as well as a 4G network as an optional feature.
HDMI, USB3.0, and LAN ports are all installed on the body for communication with an external device.
Read more in our blog post, or contact us if you have any questions.
For a comprehensive reading of related products, please visit the Motionew website.
M31 Handheld Ground Control Station – FAQ
-
What are the main features and hardware specifications of the M31 GCS?
The M31 features a 10.1-inch industrial touchscreen with brightness options of approximately 800 or 1000 nits, supporting capacitive 10-finger touch.
It is powered by an Intel i5 processor, includes 8 GB RAM (upgradeable), and a 128 GB SSD (expandable up to 1 TB).
The unit weighs around 2.8 kg, has dimensions of 378 mm × 221 mm × 54 mm, and is rated IP53 for dust and splash resistance. -
Which operating systems and ground control software does the M31 support?
The M31 supports both Windows and Linux operating systems and is compatible with major GCS applications such as Mission Planner and QGroundControl. -

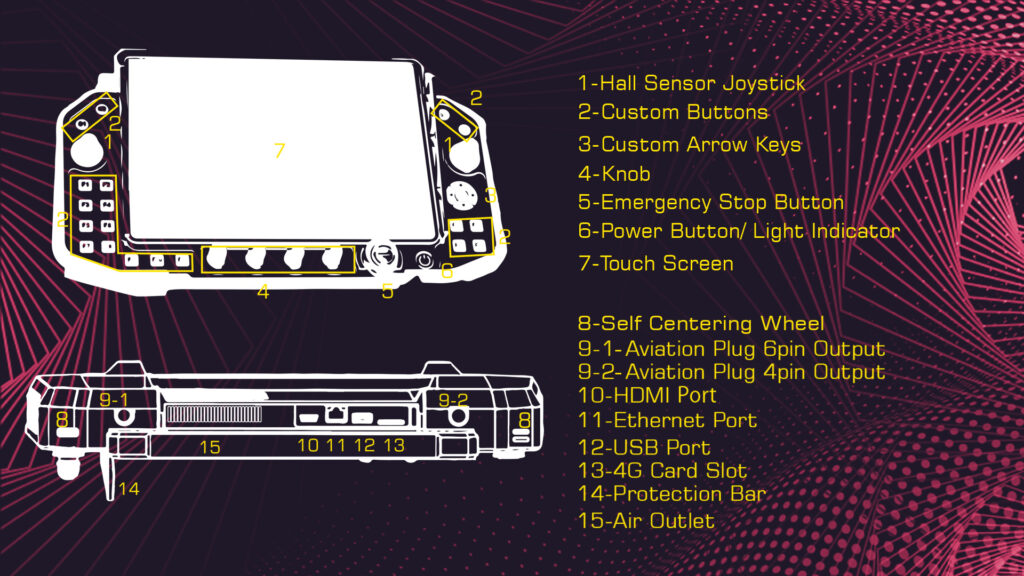

What connectivity, interfaces, and control options are available on the M31?
The system supports Wi-Fi, Bluetooth, and optional 4G communication.

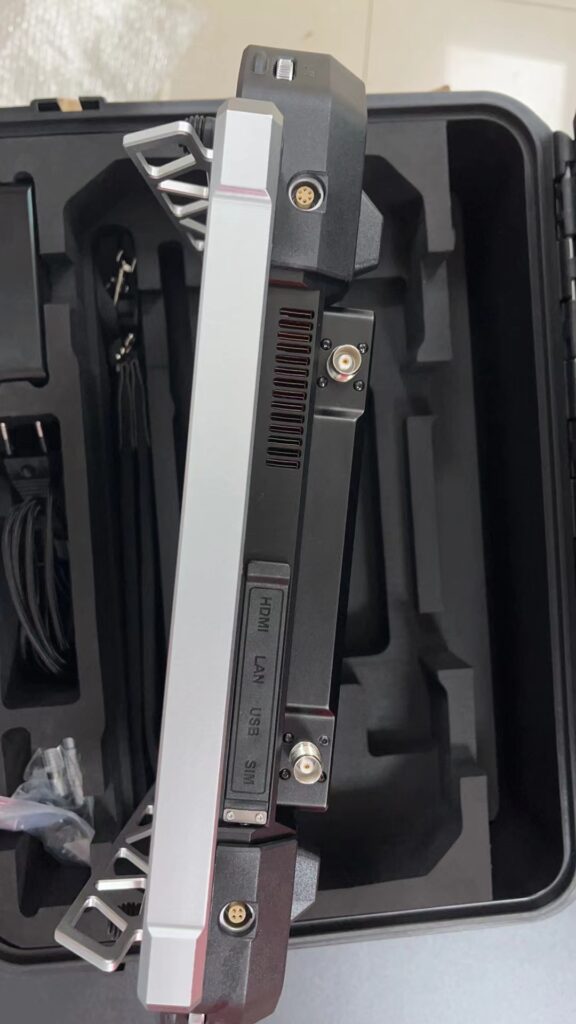

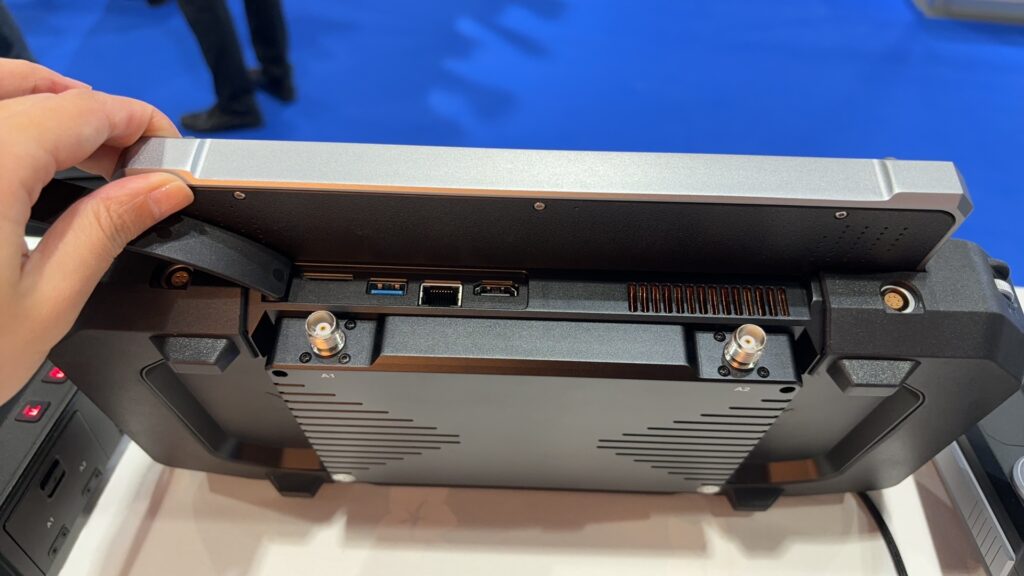

Available ports include HDMI, USB 3.0, LAN/Ethernet, and a SIM slot.

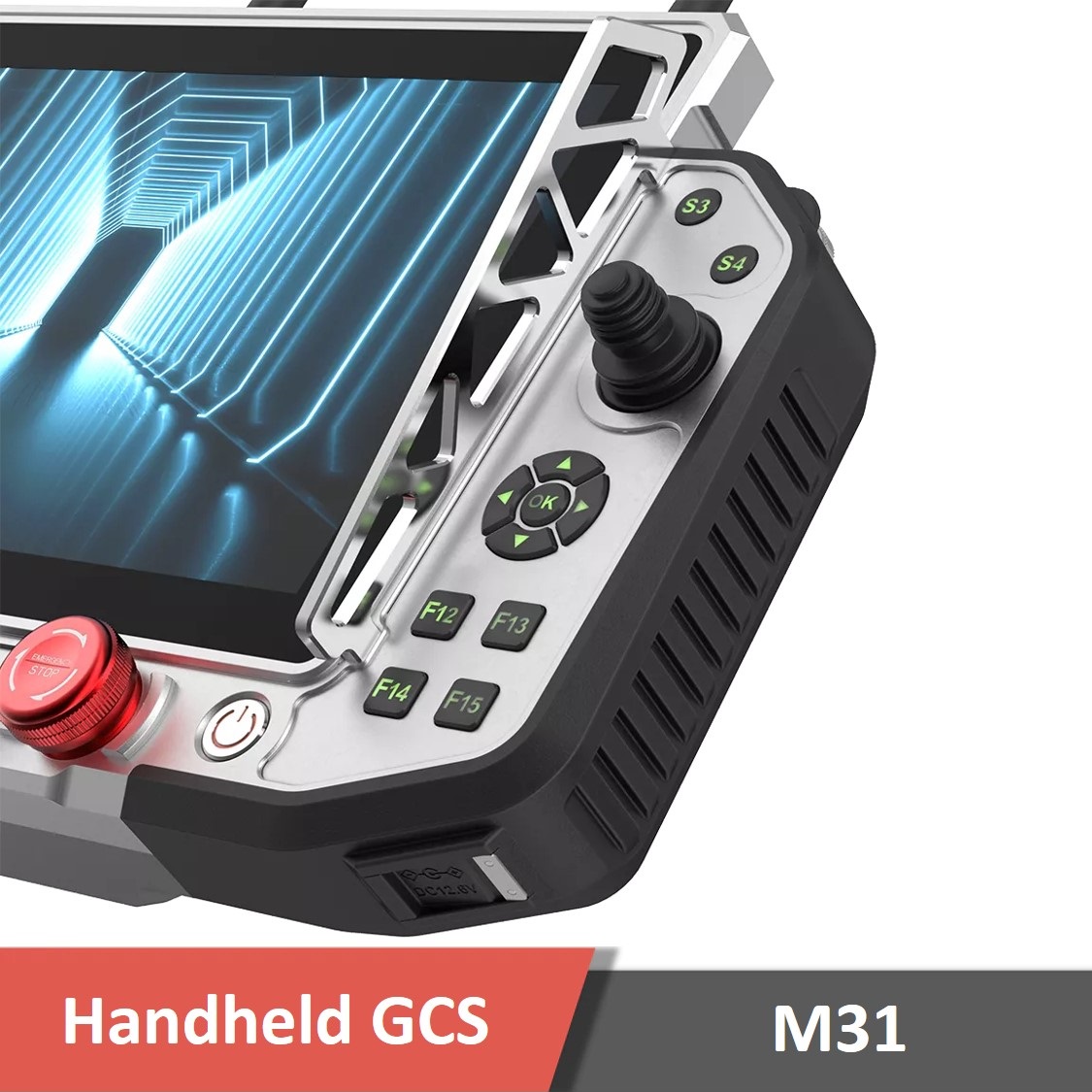

It features dual industrial-grade joysticks with hall sensors, multiple control knobs and buttons, and dual independent SBUS outputs for simultaneous aircraft and payload control, with a control latency of approximately 40 ms. -
Does MotioNew offer OEM customization or bulk order options for the M31 GCS?
Yes, MotioNew provides OEM customization including branding, firmware configuration, and system integration for enterprise and bulk orders. -
What payment methods are accepted for purchasing the M31 GCS?
MotioNew accepts major international payment methods such as credit cards, PayPal, and bank transfers. -
Are technical documents, manuals, and firmware support provided with the M31?
Yes, each M31 includes detailed documentation such as user manuals, wiring guides, and configuration instructions. Additional firmware and support materials are available upon request.
Specifications
Specifications
| Dimension | |
| Overall weight | 2800g |

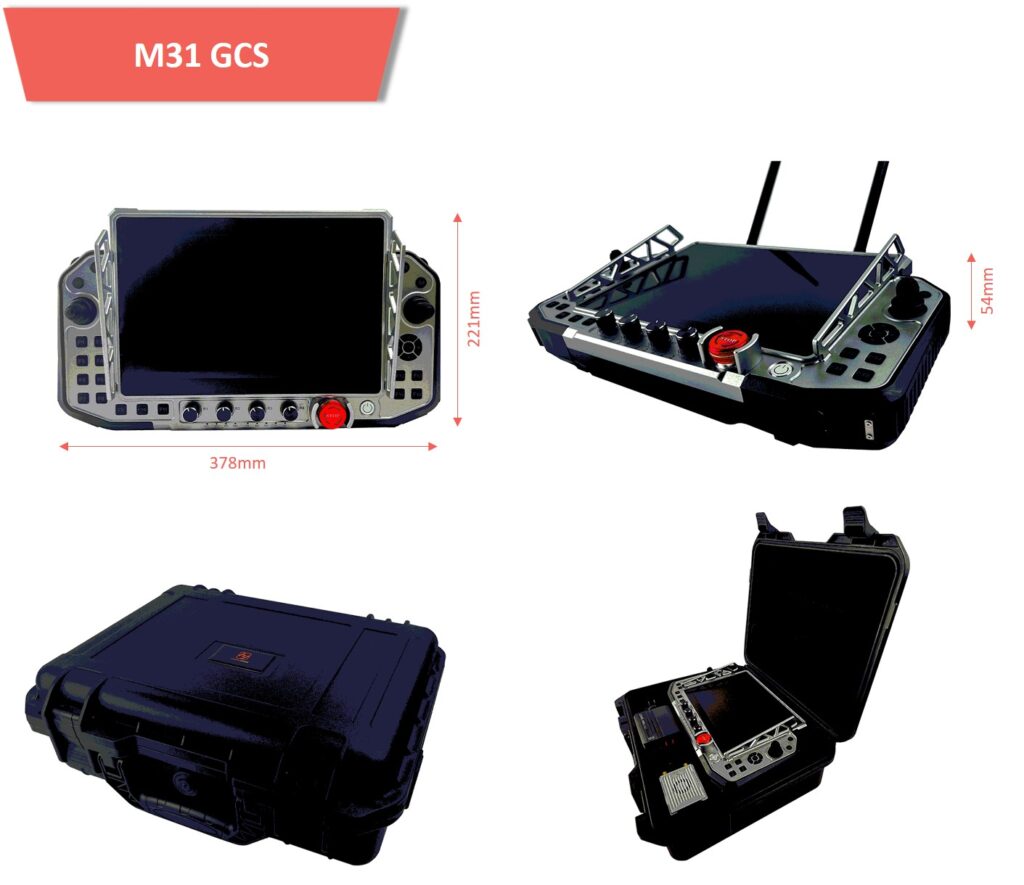

| Dimension | 378mm(L)*221mm(W)*54mm(H) |
| Screen size | 10.1inch industrial touchscreen |
| Display (options) | 800nit (1920×1200) |
| 1000nit (1280×800) | |
| Computer Peripherals | |
| CPU | Intel i5 6200U/ 2.3GHz |
| Touchpad | 10-finger capacitive touchscreen |
| Operating system | Windows10/Linux |
| RAM | 8GB DDR4L(standard), 32G max |
| SSD storage | 128GB(standard), 1T max |
| Network | WIFI/Bluetooth(standard) 4G(optional) |
| Interfaces | HDMI*1, USB3.0*1, 4G SIM*1, LAN*1 |
| Remote Control | |
| Physical channel | Main joysticks*2 (industrial joysticks with hall sensors) |
| Knob*4 | |
| Key button*25 | |
| Pull wheel*2 | |
| 1 stop button, 1 directional button, 7 simulate keystrokes | |
| Human interface | USB HID |
| Remote control function | Dual SBUS independent output, able to control the vehicle and the payload simultaneously |
| SBUS port | SBUS IN; SBUS OUT |
| Protection Level | IP53 |
| Remote control latency | 40ms |
| Battery Peripherals | |
| Battery capacity | 12.6V/10200mAh, external battery is also supported |
| Working time | 3.5h@full battery capacity |
| Charging port | Type-c 65W fast charge |
| Communication link | |
| V21 | 10km grade Video&telemetry&RC link |
| The 3rd party communication link | Supported |
Product contents
Product contents

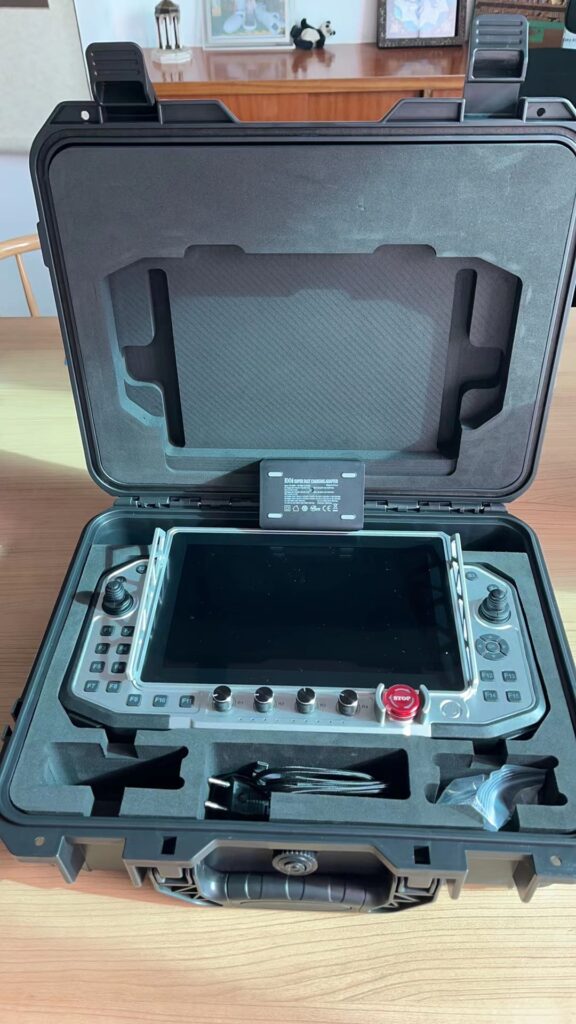

1x M31 GCS with the following configuration:
Core i5 CPU, 800nit 1920×1200 display, 8G RAM, 128GB SSD, without 4G modem, without communication link
Documents
Documents
Please contact us for more information
Reviews
1 review for M31 Handheld Ground Control Station GCS
Clear filtersYou must be logged in to post a review.
| GCS Battery |
10200mAh |
|---|---|
| GCS CPU |
i5 |
| GCS Interfaces |
Bluetooth ,Ethernet ,HDMI ,LAN ,SBUS ,Sim ,USB ,WiFi |
| GCS Number of screens |
1 screen |
| GCS Operating System Software |
Android ,Windows |
| GCS RAM |
8GB ,32GB |
| GCS SBUS Output |
2 |
| GCS Screen Size |
10.1" |
| GCS Type |
Handheld |
