What are the main features and technical specifications of the M20 GCS?

The M20 is a compact Android-based handheld Ground Control Station integrating remote control, data transmission, and monitoring functions. It offers 24 control channels with dual S-BUS outputs, each configurable with 8 analog channels, 4 three-position switches, and 10 buttons. The M20 operates across 800 MHz (806–826 MHz), 1.4 GHz (1427–1447 MHz), and 2.4 GHz (2400–2483.5 MHz) frequency bands, ensuring strong anti-interference performance.

What display and operating features are included?

The M20 includes a high-brightness touchscreen display for intuitive UAV and payload control. It supports real-time video monitoring and telemetry feedback through a responsive user interface.The M20 includes a high-brightness touchscreen display for intuitive UAV and payload control. It supports real-time video monitoring and telemetry feedback through a responsive user interface.

Which systems and UAV platforms are compatible with the M20?

The M20 is compatible with PX4, ArduPilot, and MAVLink-based UAV systems. It supports dual S-BUS communication, making it suitable for fixed-wing, VTOL, and multirotor aircraft.

Does MotioNew provide OEM or customization services for the M20?

Yes, OEM customization options such as branding, firmware configuration, and system integration are available for enterprise and bulk clients.

What payment methods are accepted for purchasing the M20 GCS?

MotioNew accepts international payments via credit cards, PayPal, and bank transfers.

Are manuals and technical documents included with the M20?

Yes, the product includes user manuals, configuration guides, and firmware documentation. Additional SDK and integration support are available upon request.

M20 gcs handheld ground control station - image 1

M20 gcs handheld ground control station - image 2

Click to enlarge

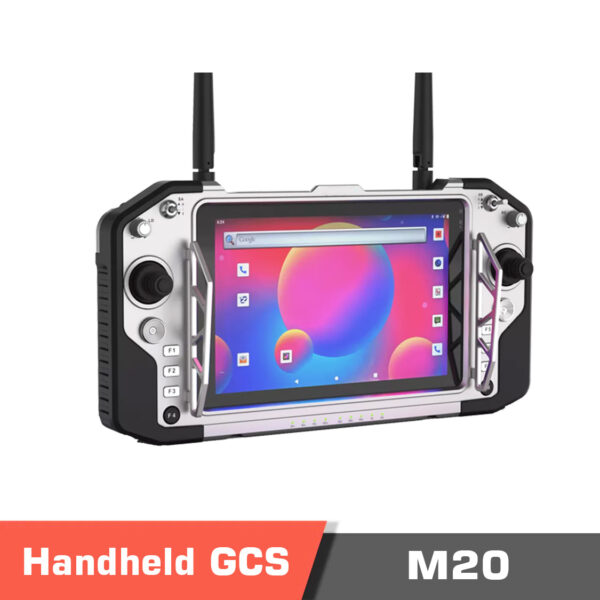

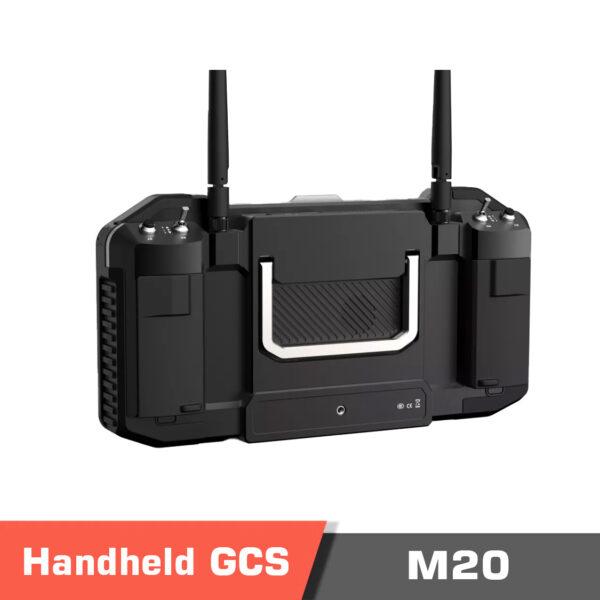

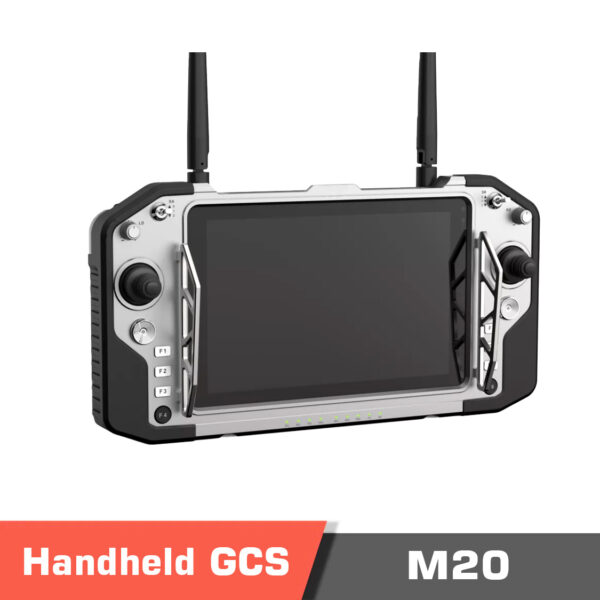

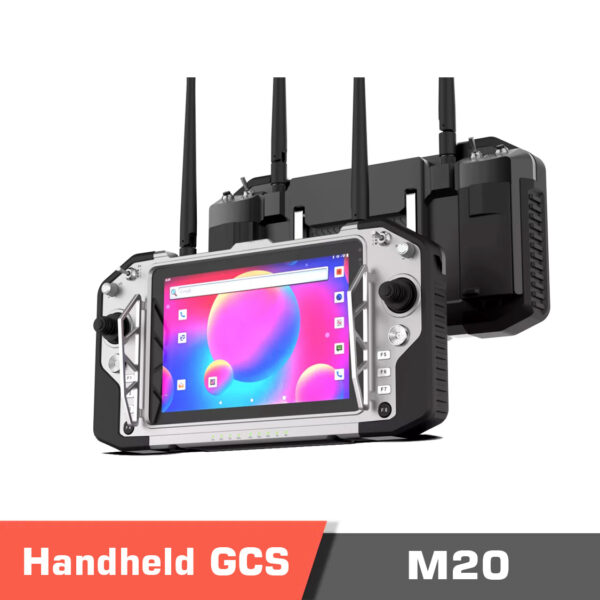

M20 GCS Handheld Ground Control Station

Name: M20 GCS Handheld Ground Control Station - MotioNew
SKU: 1005001742707081-1-1-2-2-1
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Price Inquiry

Add to compare

Add to wishlist

Payment Methods:

Description

M20 GCS Overview

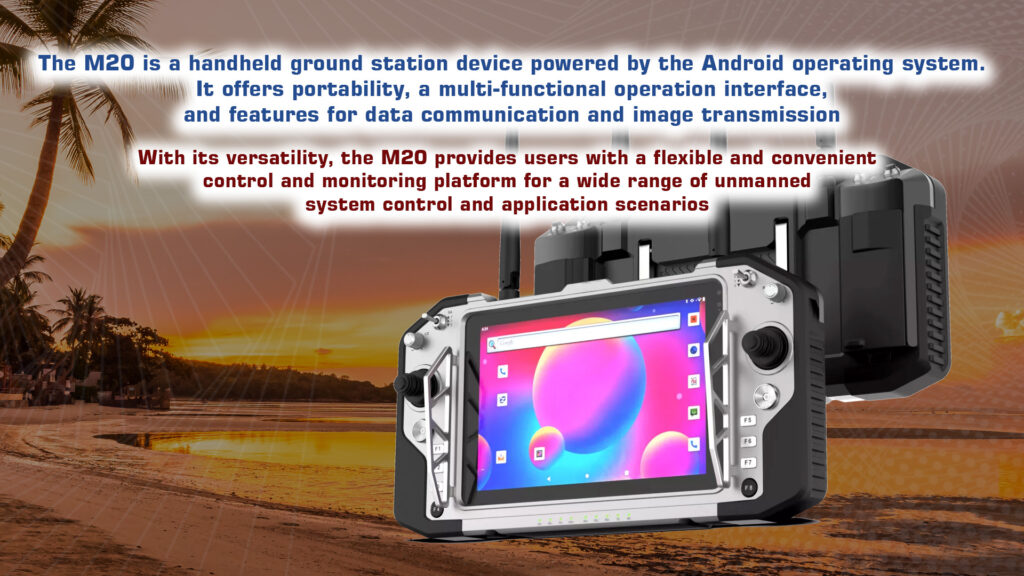

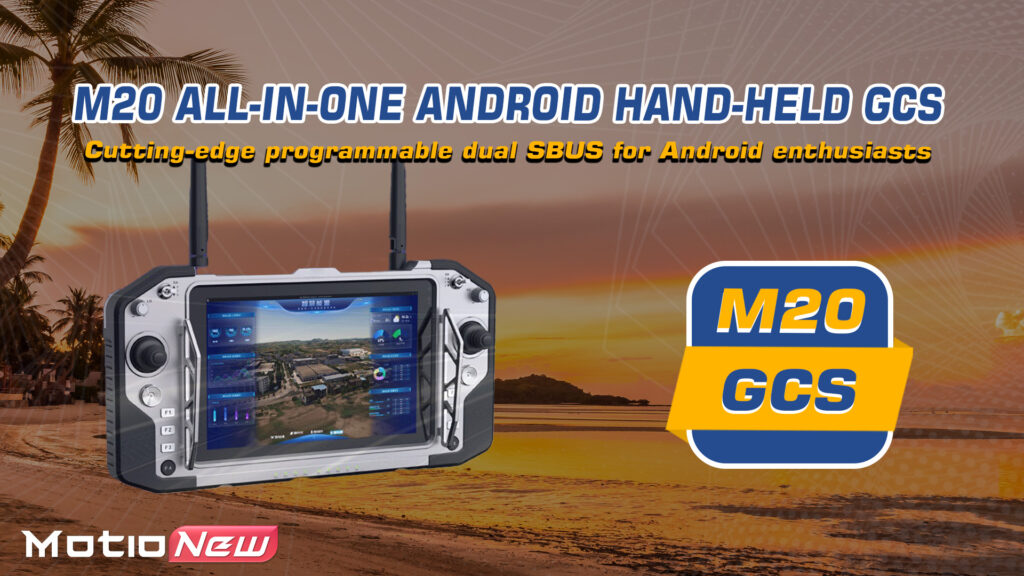

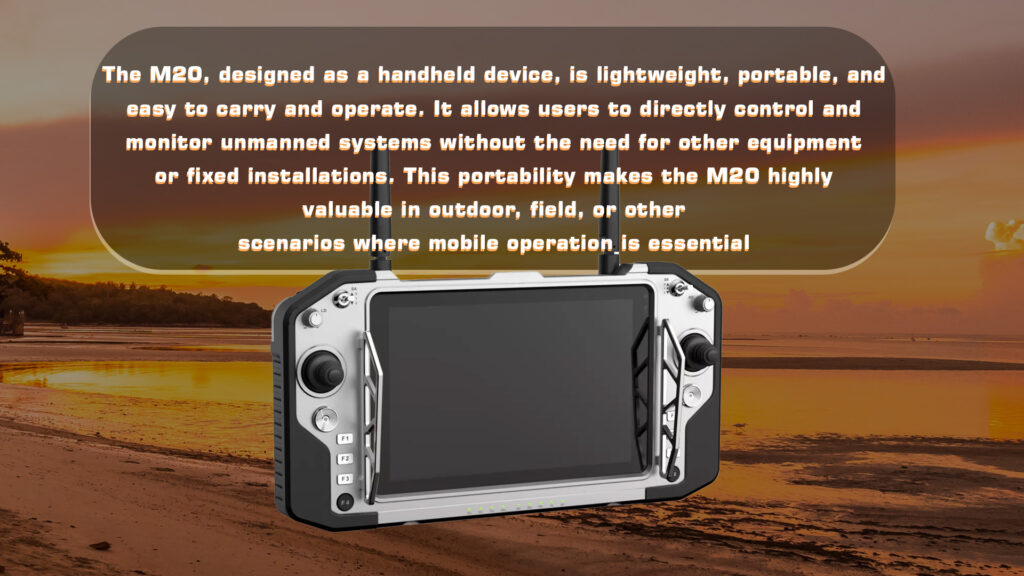

The M20 GCS is a handheld ground station device operating on the Android platform. It boasts handheld portability, a versatile user interface, data communication capabilities, and image transmission features. This device offers users a flexible and convenient control and monitoring platform, ideal for a wide range of unmanned system control and application scenarios.

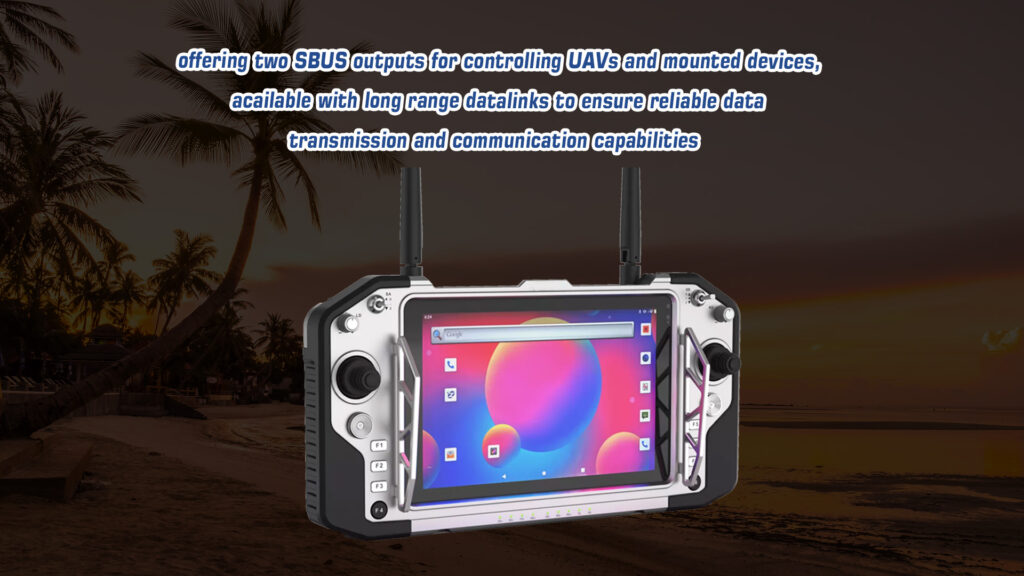

The M20 GCS Handheld Ground Control Station is an advanced individual handheld data transmission monitoring system that combines remote control, data transmission, and ground station functionalities. It features high integration, a compact design, user-friendly operation, multi-channel adjustability, and dual S-BUS outputs.

Technical Specifications of M20 GCS

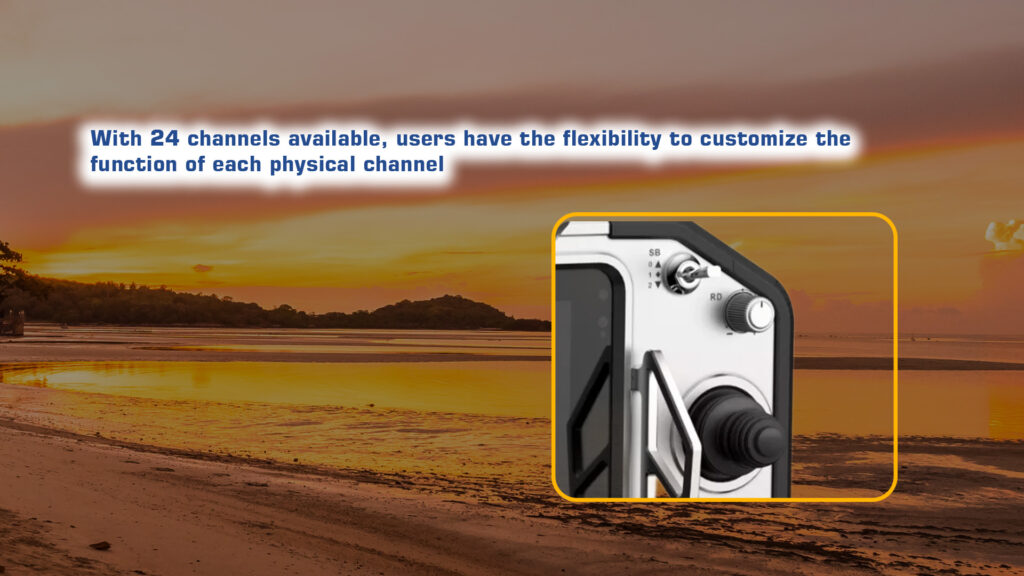

The M20 GCS offers 24 channels and an enhanced anti-interference digital transmission power supply. Each channel of the M20’s dual S-BUS can be configured with 8 analog channels, 4 three-position switches, and 10 buttons. Among these, 5 groups of combination keys can be configured, along with 2 groups of super combination keys that can be freely mapped.

Operating across 800MHz (806-826MHz), 1.4GHz (1427-1467MHz), and 2.4GHz (2401.5-2481.5MHz) frequencies, the M20 provides stable data transmission over a distance of up to 10 kilometers. It is widely used in industrial control and data transmission applications.

Durable, Lightweight, and Highly Customizable with Integrated Video, Telemetry, and RC Links

The M20 GCS boasts an aeronautical aluminum alloy shell, ensuring durability and lightweight handling. It integrates video, telemetry, and RC links into one cohesive system, providing seamless and efficient control and data transmission. The user-defined RC system allows for extensive customization to meet specific operational needs, offering flexibility and precision. Operating on the Android 11 OS, the M20 delivers a modern, intuitive interface and robust performance, enhancing the user experience and overall functionality of the ground control station.

Dual-Mode 5G Connectivity, Extensive Control Capabilities, and Ultra-Low Latency for Professional Use

The M20 GCS Handheld Ground Control Station is equipped with a dual-mode 5G outscore chip, ensuring fast and reliable connectivity. It features dual SBUS input and output, along with 24 physical channels, providing extensive control capabilities. With a control distance exceeding 10 kilometers and a work duration of 8 hours or more, it offers the autonomy needed for professional use.

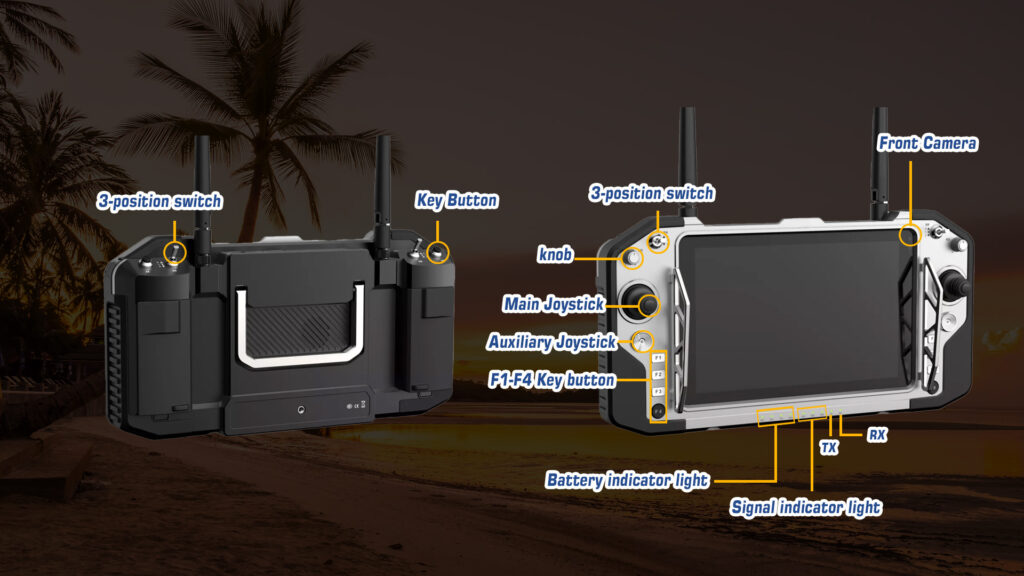

The device includes a 3-gear switch with user-defined attribution, a hall-effect joystick for high precision and stability, and 8 customizable key buttons. End-to-end ultra-low latency ensures prompt and accurate response times. Compared to conventional solutions, the M20’s built-in receiver enhances portability and streamlines setup, allowing for rapid deployment in various environments.

The perfect companion for your drone! with high security

M20 UAV handheld ground station is a safe and reliable device. At the same time, the device also has data encryption and secure transmission functions to protect your privacy and data security.

M20 GCS Efficient Control

M20 drone handheld ground station allows you to control and monitor your drone’s flight in real-time, giving you greater flexibility and precision during your flights. With this device, you can adjust the drone’s flight route, altitude, and speed as needed, ensuring accuracy and stability.

For a comprehensive reading of related products, please visit the Motionew website.

M20 Handheld Ground Control Station – FAQ

What are the main features and technical specifications of the M20 GCS?
The M20 is a compact Android-based handheld Ground Control Station integrating remote control, data transmission, and monitoring functions.
It offers 24 control channels with dual S-BUS outputs, each configurable with 8 analog channels, 4 three-position switches, and 10 buttons.
The M20 operates across 800 MHz (806–826 MHz), 1.4 GHz (1427–1447 MHz), and 2.4 GHz (2400–2483.5 MHz) frequency bands, ensuring strong anti-interference performance.
What display and operating features are included?
The M20 includes a high-brightness touchscreen display for intuitive UAV and payload control. It supports real-time video monitoring and telemetry feedback through a responsive user interface.
Which systems and UAV platforms are compatible with the M20?
The M20 is compatible with PX4, ArduPilot, and MAVLink-based UAV systems. It supports dual S-BUS communication, making it suitable for fixed-wing, VTOL, and multirotor aircraft.
Does MotioNew provide OEM or customization services for the M20?
Yes, OEM customization options such as branding, firmware configuration, and system integration are available for enterprise and bulk clients.
What payment methods are accepted for purchasing the M20 GCS?
MotioNew accepts international payments via credit cards, PayPal, and bank transfers.
Are manuals and technical documents included with the M20?
Yes, the product includes user manuals, configuration guides, and firmware documentation. Additional SDK and integration support are available upon request.

Specifications

M20 GCS Specifications

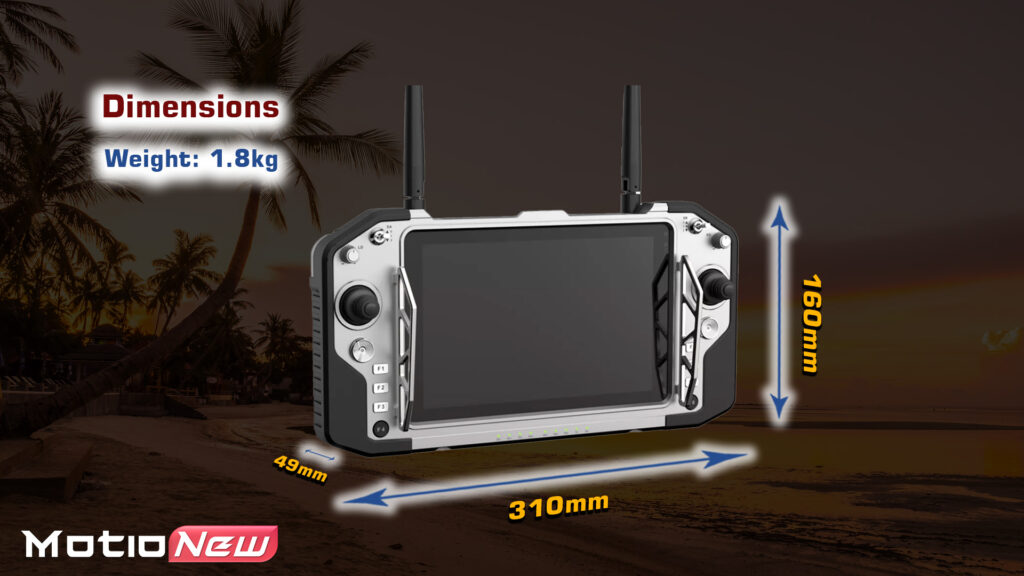

Dimension
Overall weight	1.8kg
Overall dimension	310mm160mm49mm
Display screen	8inch IPS display 16:10, 1920*1200, 650nits
Computer Peripherals
CPU	MTK(5G-C) 8 core
Touchpad	10-point capacitive touchscreen
Operating system	Android11 / Win11
RAM	4G(standard)
ROM	64G(standard)
Network	WIFI, Bluetooth, 4G/5G

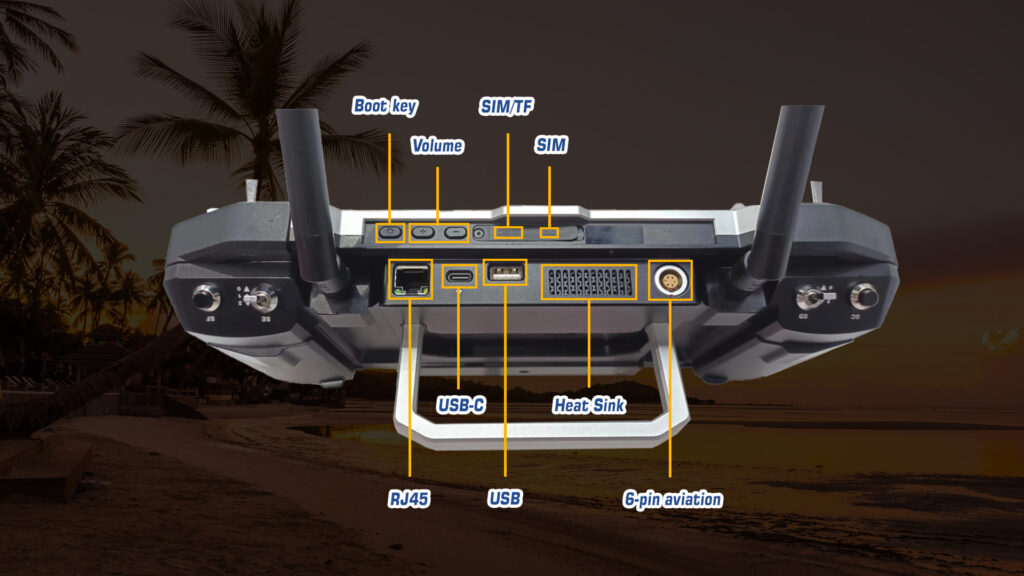

Interface	TF card socket
Remote Control
Physical channel	24
Remote control function	Dual SBUS independent output
SBUS port	SBUS OUT*2

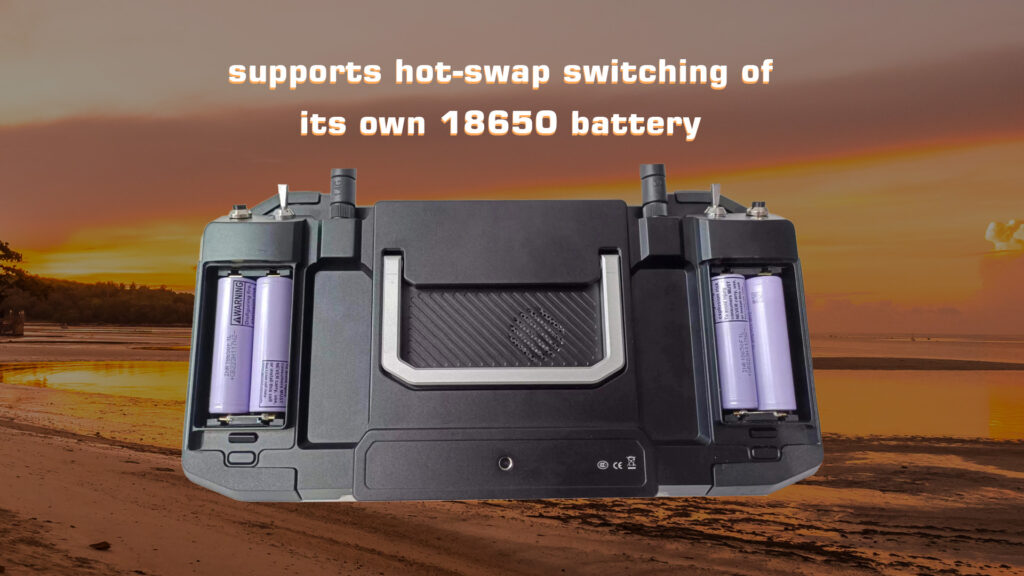

Battery Peripherals
Battery capacity	3.8V/7200mAh(tablet)
Battery capacity	8.4V/6700mAh(remote control)
Working time	7.5hs with the full battery capacity
Charging port	Type-C charging port, supporting fast charging, 65w max
Operating Temperature	-10℃-+50℃
IP rating	IP53

Product contents

Please contact us for more information

Documents

Please contact us for more information

Reviews

Rated 5 out of 5

1 review

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

1 review for M20 GCS Handheld Ground Control Station

Clear filters

Chen – September 11, 2024

Rated 5 out of 5
很棒的客户服务！

0

0

Add a review

You must be logged in to post a review.

Specification:

GCS Battery	7200mAh
GCS CPU	8 core
GCS Interfaces	SBUS , Sim , typeC , USB
GCS Number of screens	1 screen
GCS Operating System Software	Android
GCS Protection Level	IP53
GCS RAM	4GB
GCS SBUS Output	2
GCS Type	Handheld
