Description

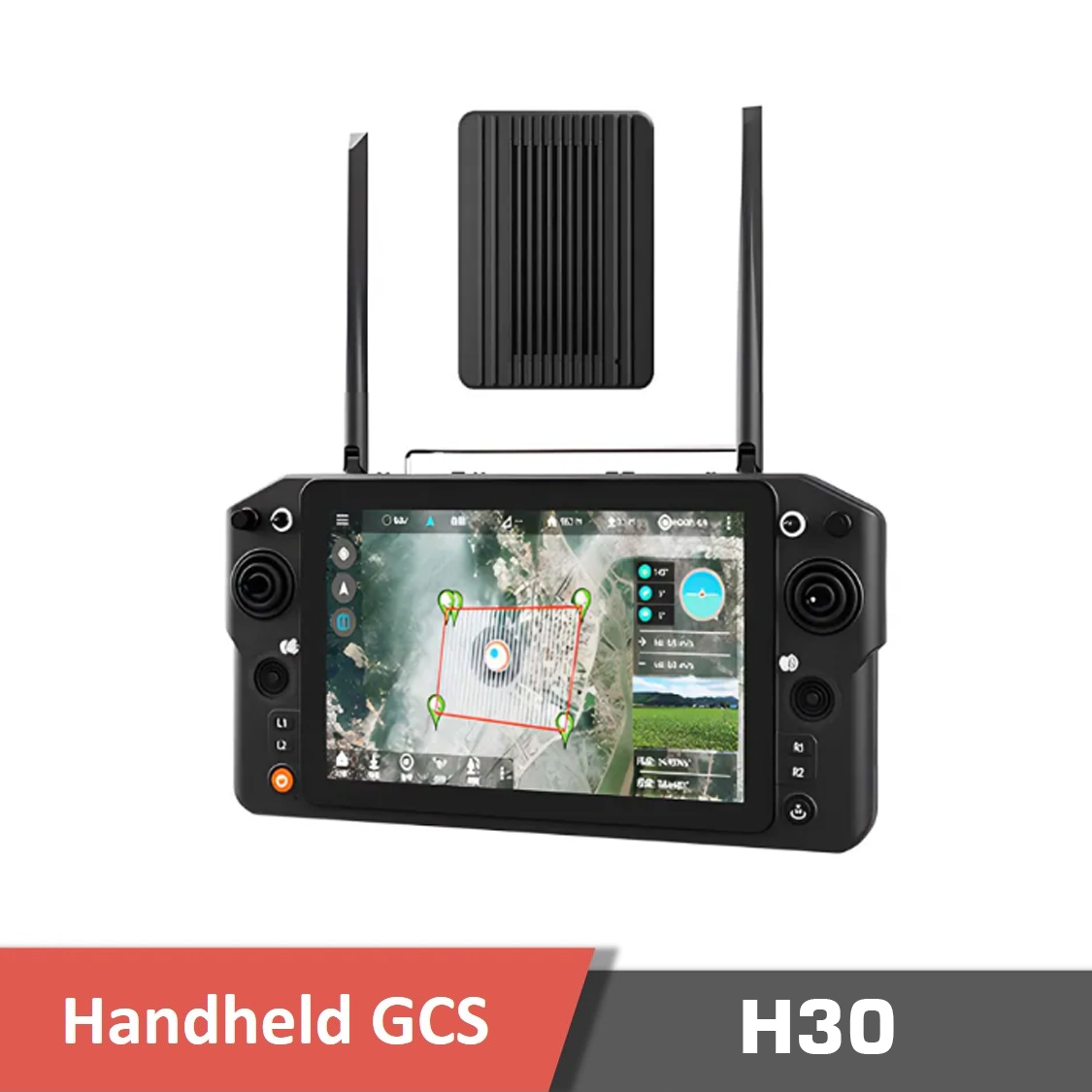

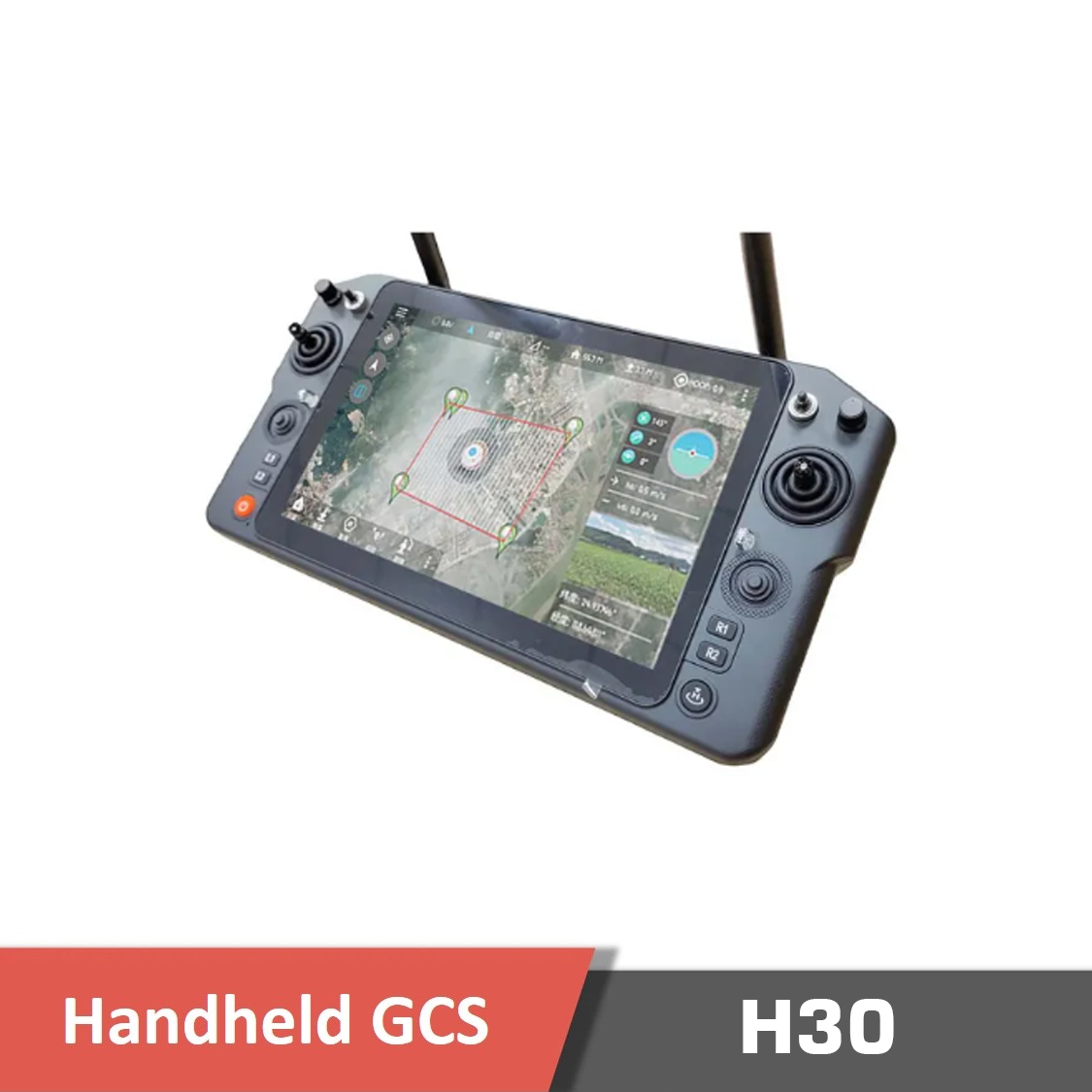

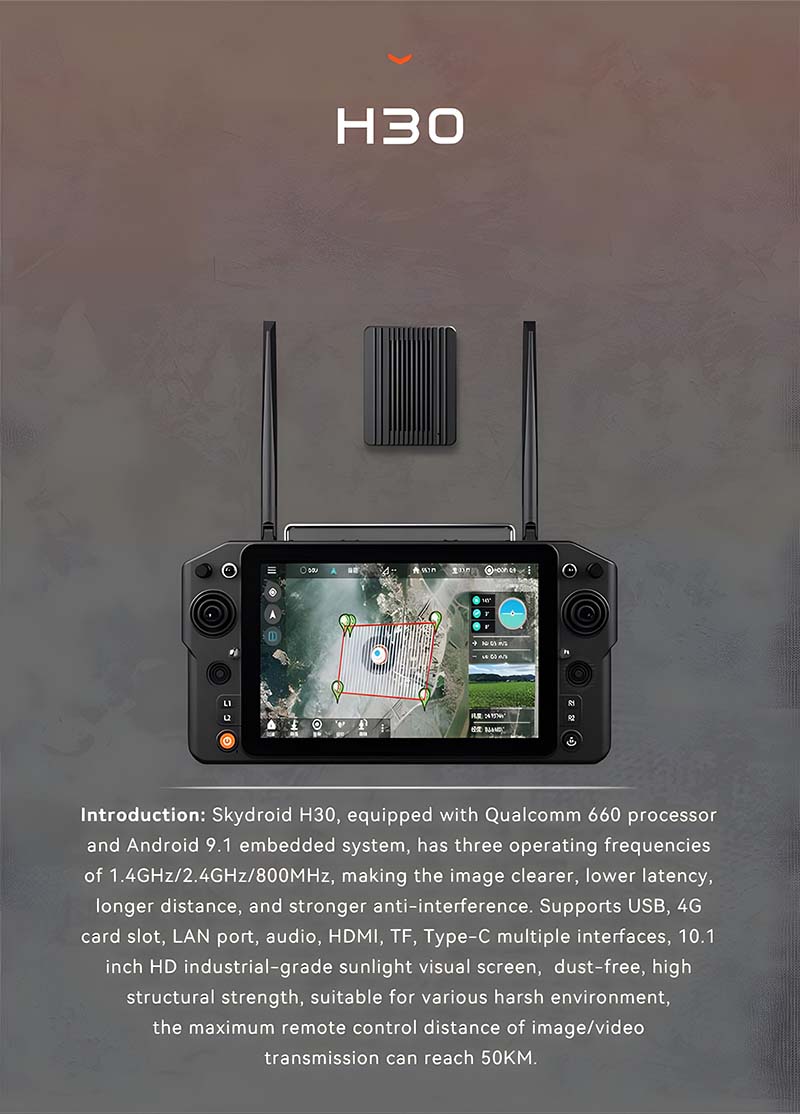

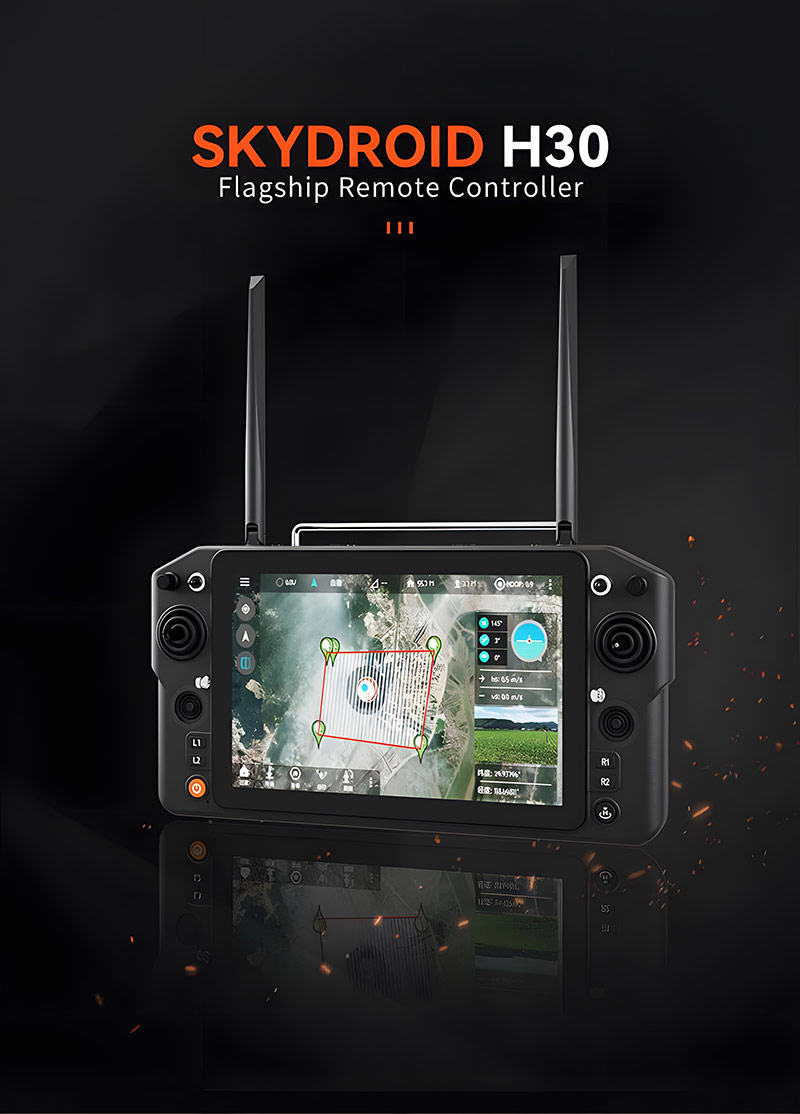

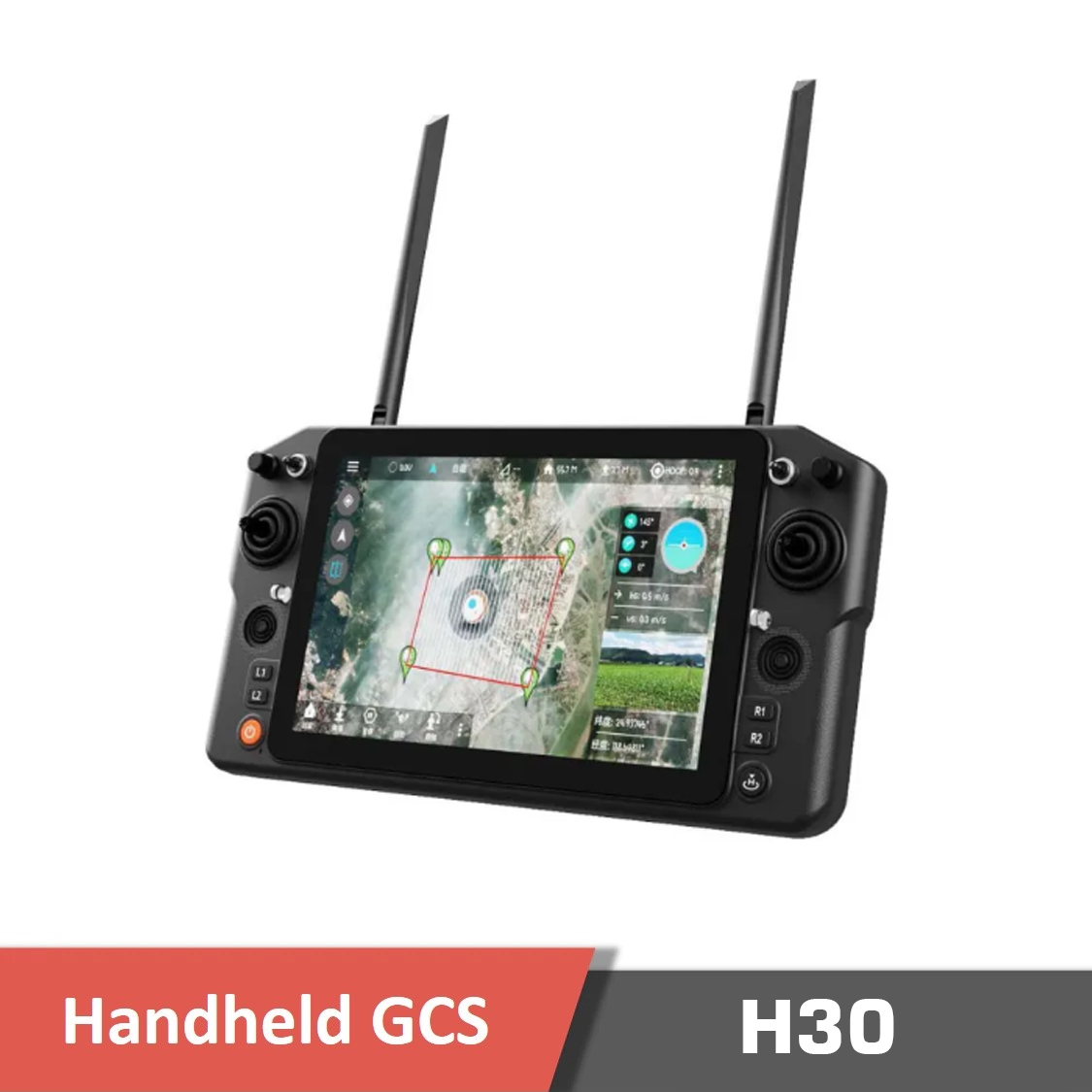

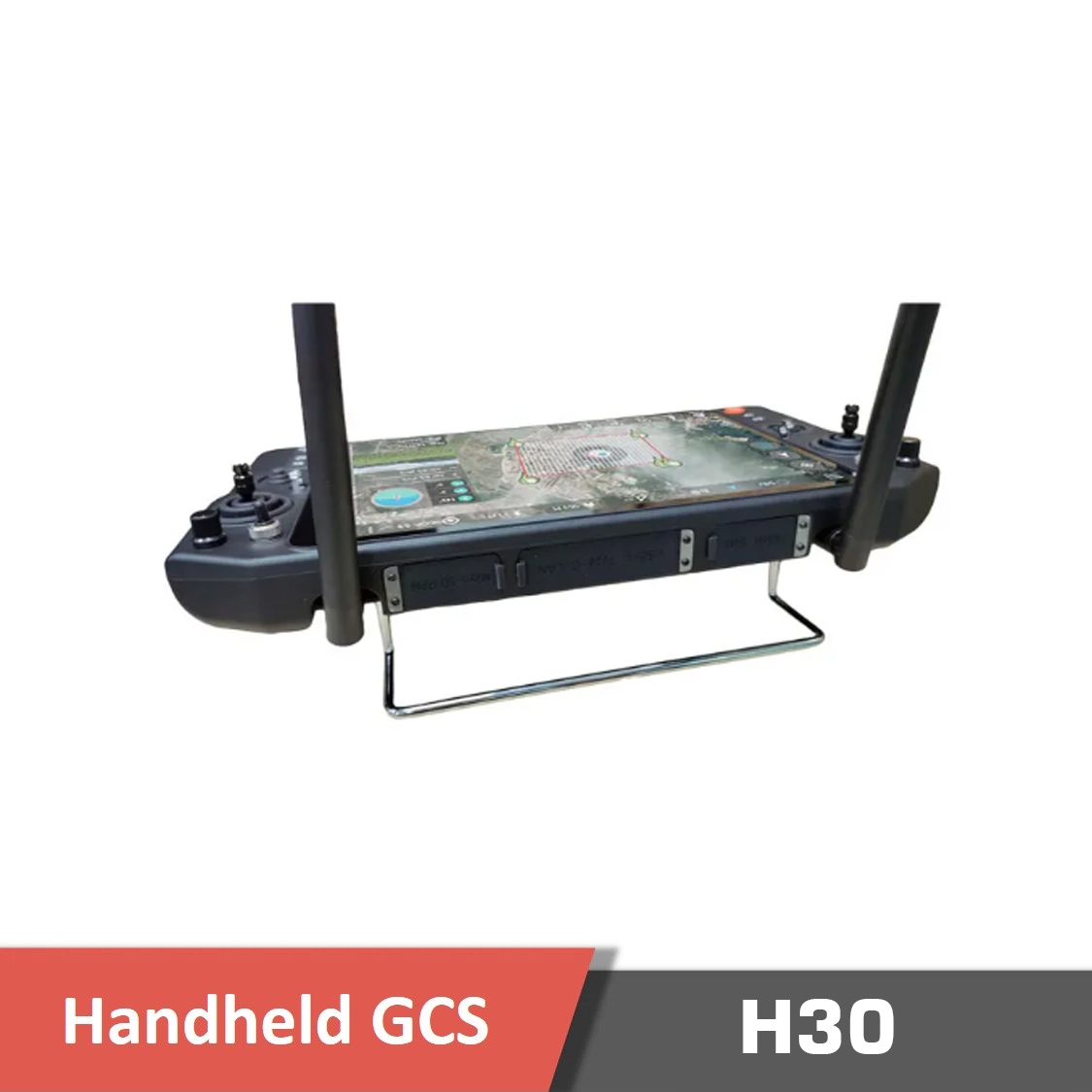

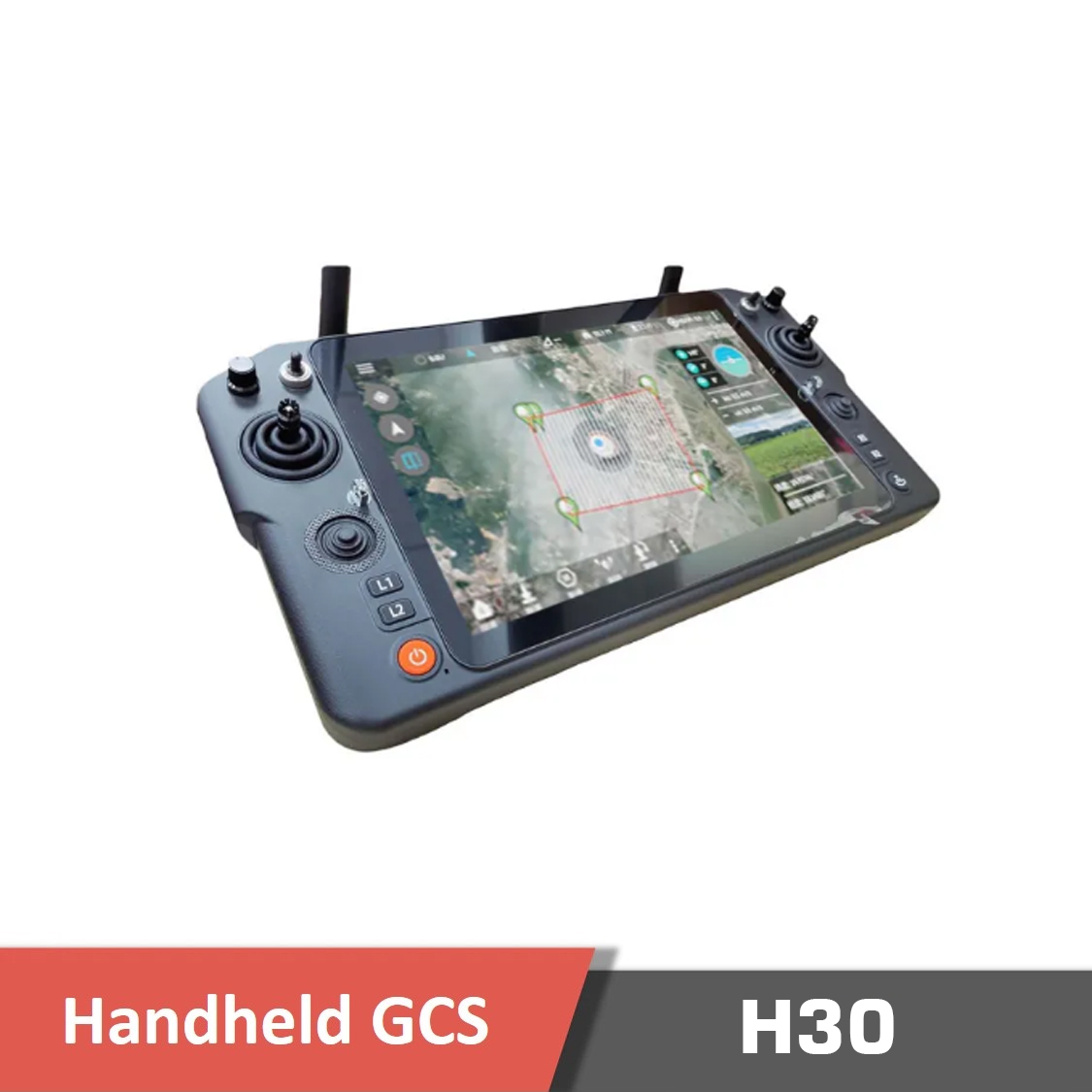

Skydroid H30 HD Video Transmission System for Drone
Specifications
Specifications
Skydroid H30 Remote Controller – Technical Specifications
Dimension
| Parameter | Specification |
|---|---|
| Overall weight | 2240 g |
| Dimension | 346 mm (L) × 196.5 mm (W) × 89.4 mm (H) |

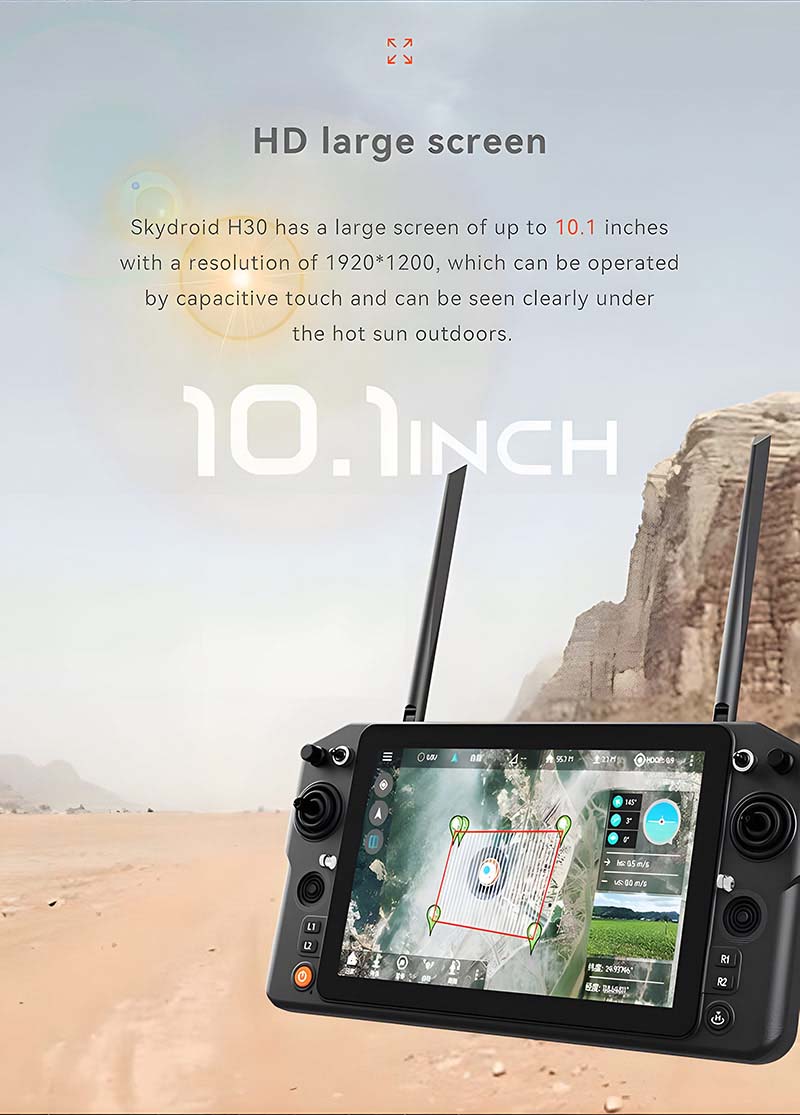

| Screen size | 10.1-inch industrial touchscreen |
| Display (options) | 800 nit (1280×800) / 1000 nit (1920×1200) sunlight-readable screen |
Computer Peripherals
| Parameter | Specification |
|---|---|
| CPU | Qualcomm Snapdragon 660 Octa-core |
| Operating system | Android 9 |
| RAM | 4 GB DDR4 (standard) |
| Storage | 64 GB internal storage / TF card supported |
| Network | Wi-Fi / Bluetooth (standard) / 4G (optional) / LAN (RJ45) |

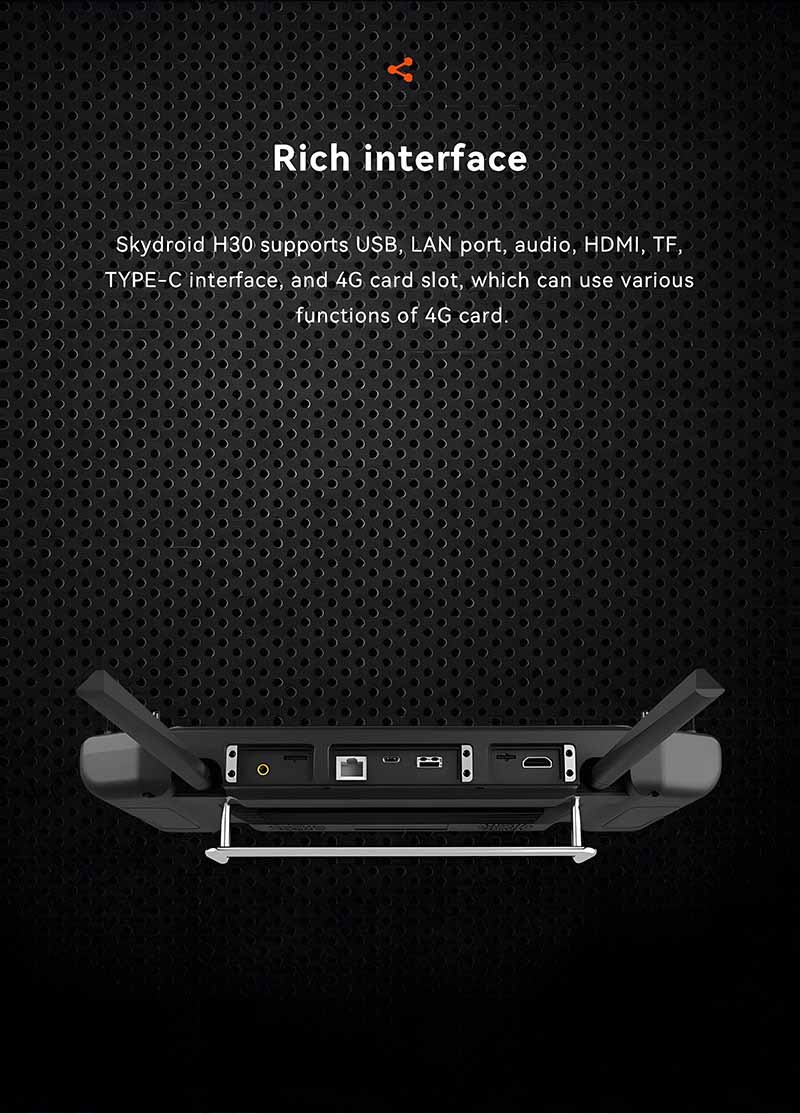

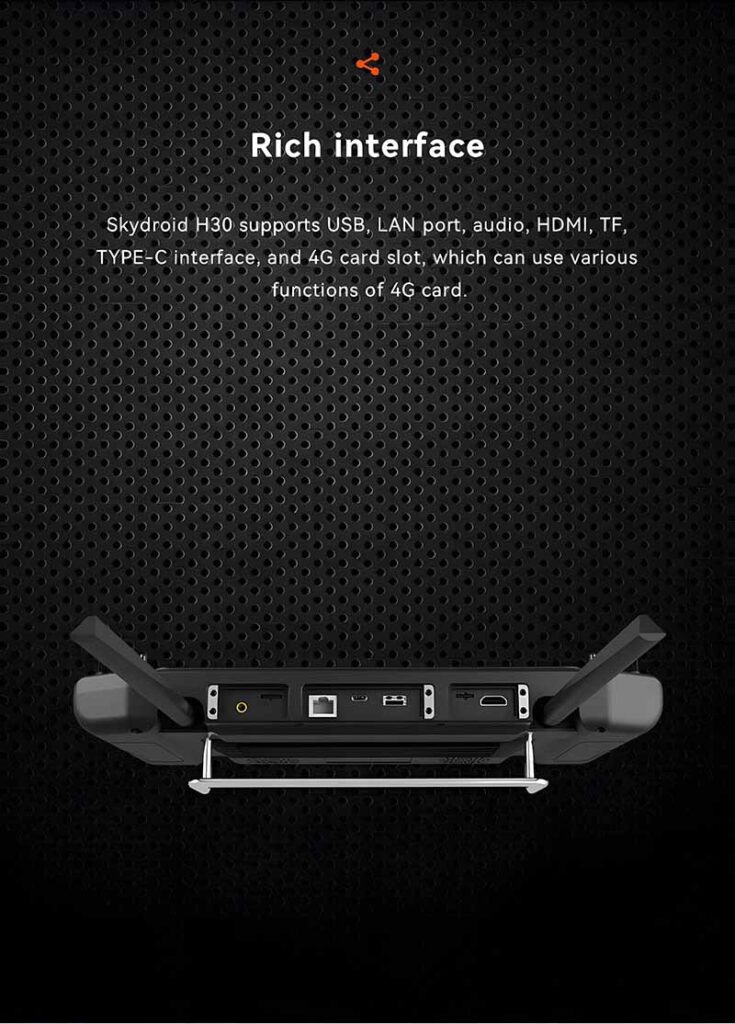

| Interfaces | HDMI × 1, USB Type-C × 1, SIM slot × 1, LAN × 1, Serial ports × 2 |
Remote Control
| Parameter | Specification |
|---|---|
| Physical channel | 2 industrial joysticks (hall sensors), 4 knobs, 25 buttons, 2 pull wheels |
| Human interface | USB HID |
| Control function | Dual independent SBUS outputs for vehicle and payload control |
| SBUS port | SBUS IN / SBUS OUT |
| Control channels | 16 channels |

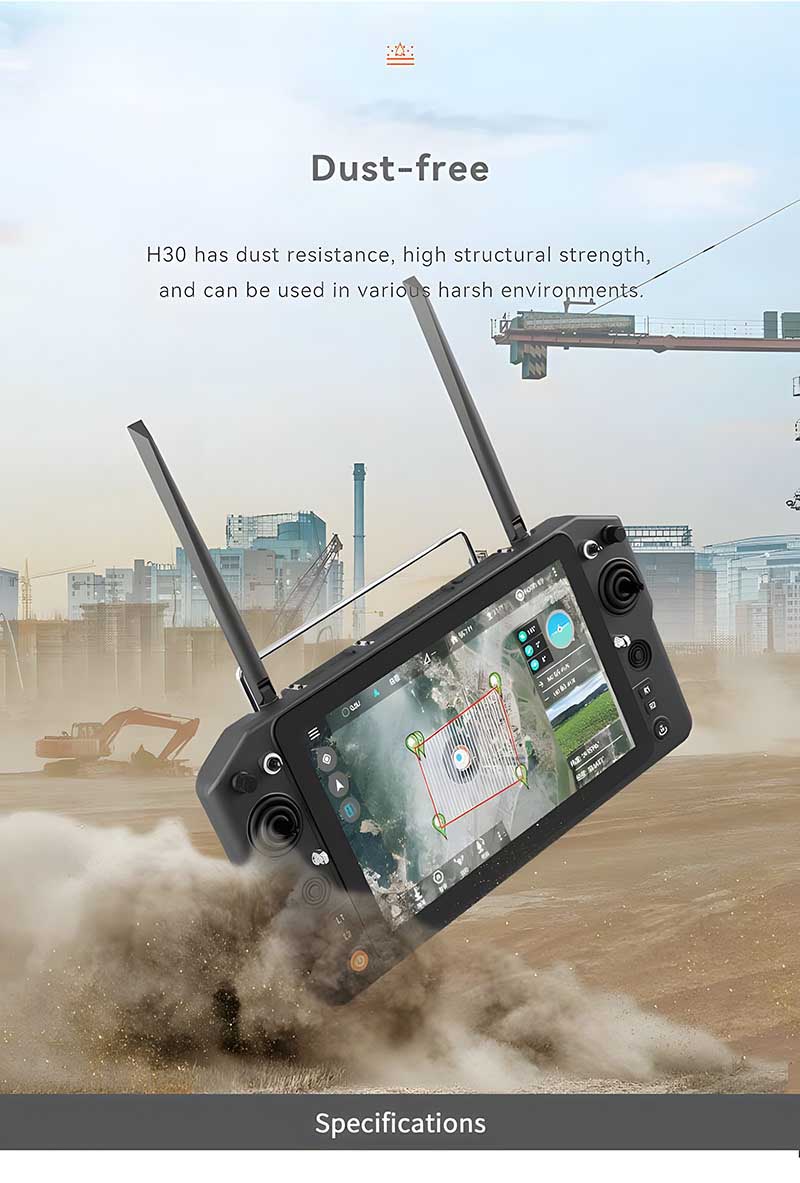

| Protection level | IP67 (sealed dust and water resistant) |
| Remote control latency | 40 ms |
Battery Peripherals
| Parameter | Specification |
|---|---|
| Battery capacity | Built-in Li-ion battery (approx. 5 hours operation per charge) |
| Charging port | Type-C 65 W fast charging supported |
Communication Link
| Parameter | Specification |
|---|---|
| Link type | Integrated video + telemetry + RC link |

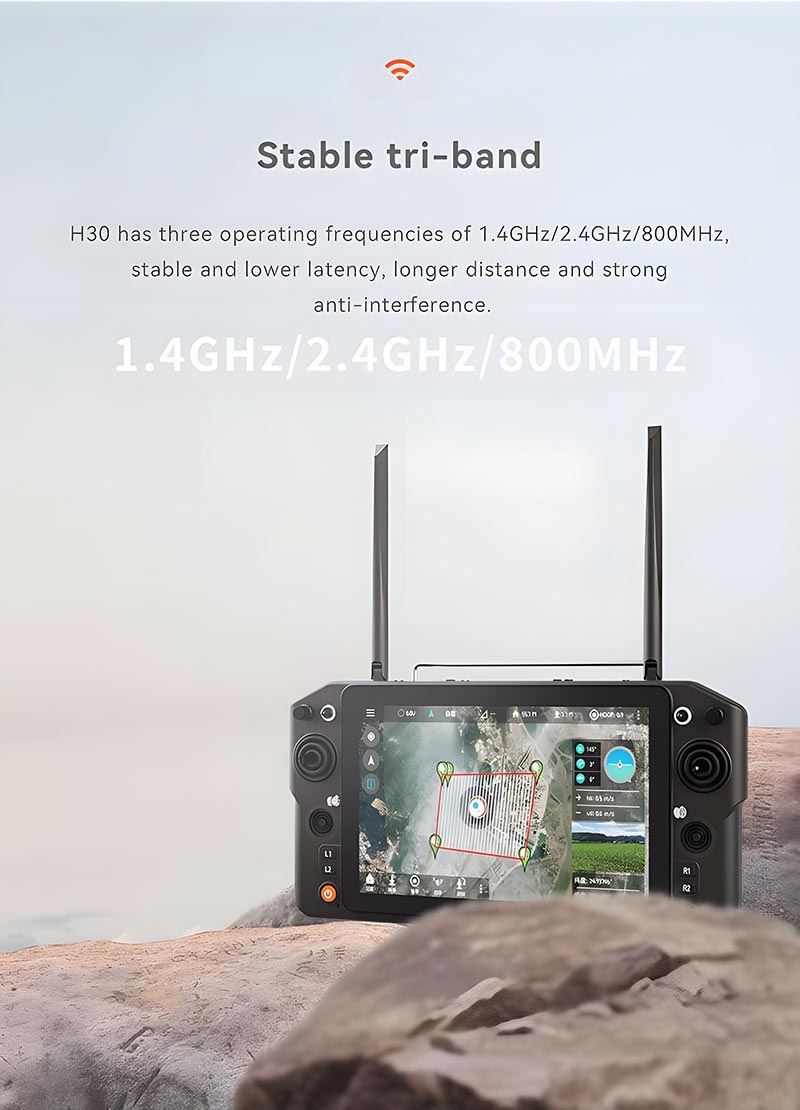

| Working frequencies | 800 MHz / 1.4 GHz / 2.4 GHz bands |
| Maximum transmission range | Up to 50 km (ideal conditions) |
| Third-party link | Supported |
Product contents
Product contents
Please contact us for more information
Documents
Documents
Please contact us for more information
