Q10T Gimbal Camera for Drone

2699.00 $3049.00 $

(1 customer review)
PayPal
Visa
Master

Description

Gimbal Camera AI object detection and Tracking Video

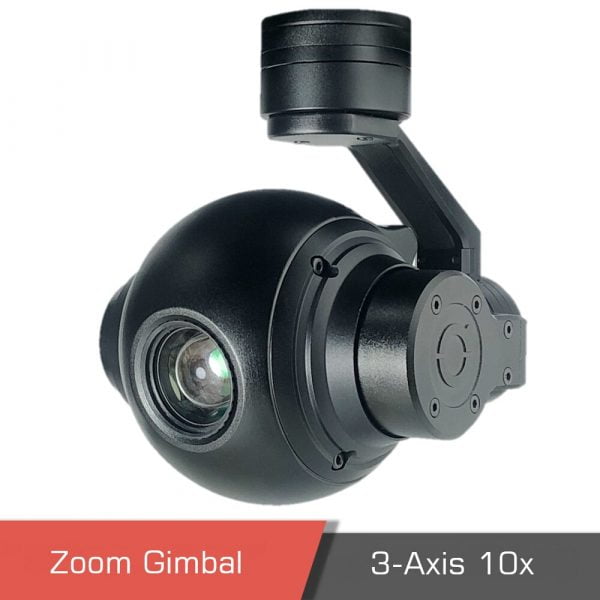

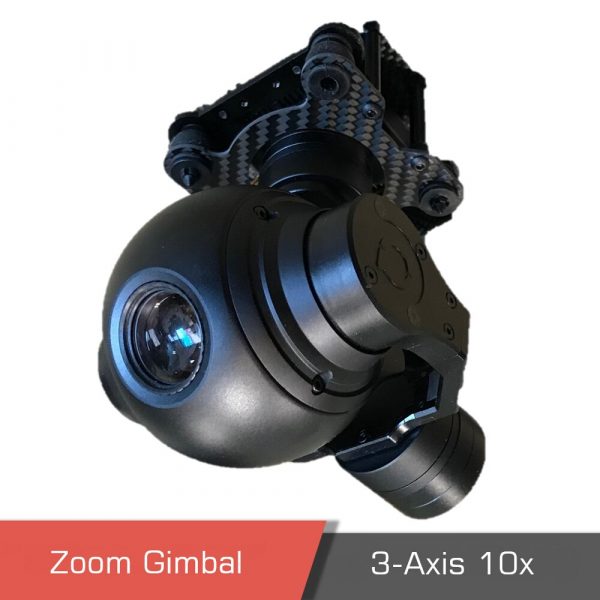

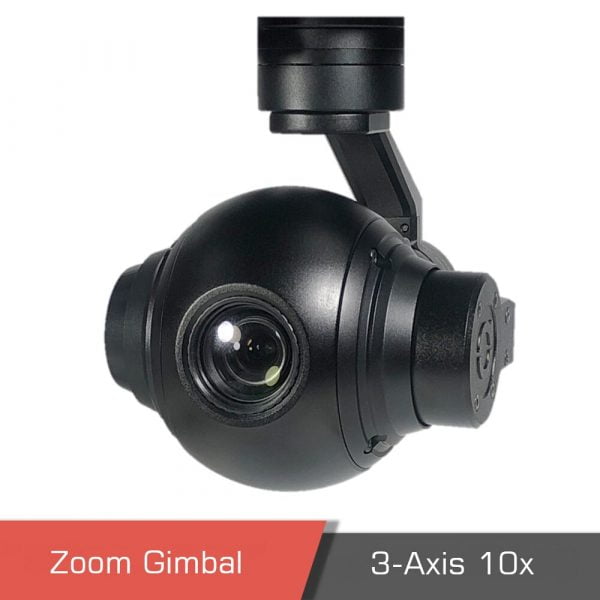

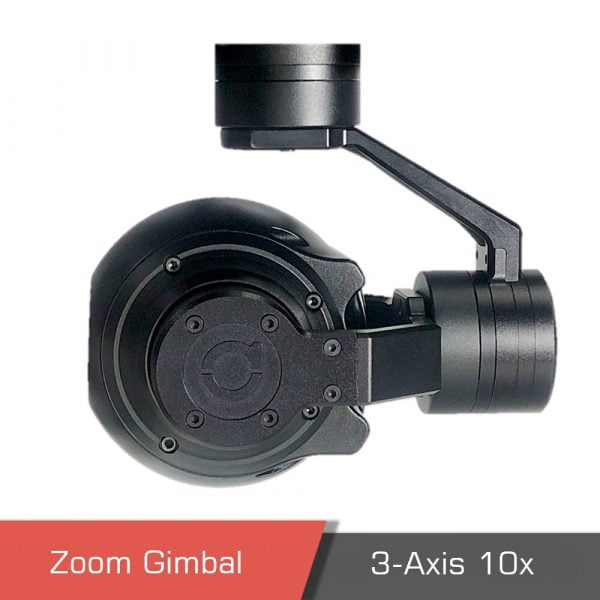

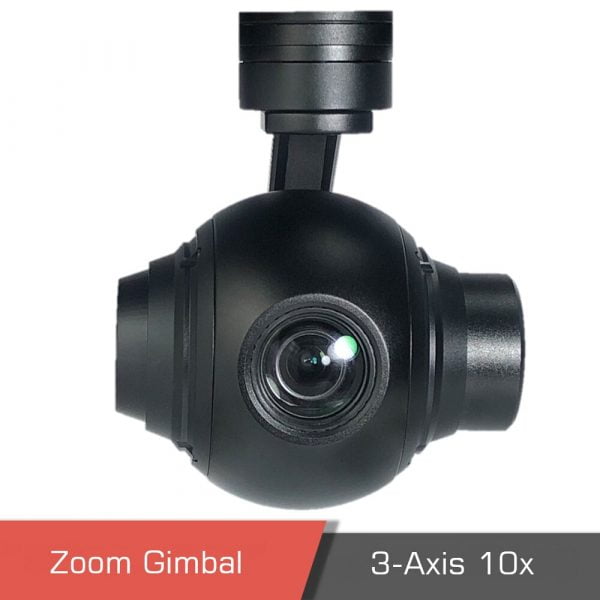

Q10T – Professional 3-axis High-precise Gimbal

The Q10T gimbal camera is designed with 3-axis stabilization capability and auto-tracking function. It carries a 10X zoom camera for drone aerial inspection, surveillance, and search and rescue missions. Its small size and light weight make it suitable for small drones with lightweight payloads. The aluminum structure helps keep the weight low while giving it a nice look and protection from magnetic interferences.

It has an HD 10X optical zoom camera and a 3-axis high stabilized gimbal for drone, which is able to capture FHD 1080p video and has an OSD. Connecting the gimbal to a GPS system, you can geo-tag your captured photos for easier post-processing to generate 3D maps. The captured data are recorded on an onboard TF card. Q10T gimbal camera is controlled by the drone pilot or a secondary individual allowing for an overhead view that can cover a large field of ground quickly and effectively. The 10x optical zoom function of the camera allows you to see every detail of interest in the scene while staying at a distance.



10x Optical Zoom Camera

This drone camera features a 10x optical zoom lens and can detect objects at a distance as far as 1km. It is powered by a 2.48MP 1/3″ Panasonic CMOS sensor module, provides great performance in poor light environments, and has a wide dynamic range. This feature is excellent for flying at sunset or sunrise. In the presence of backlight or strong light, the view of the over bright and over dark regions can still be captured at the same time. The camera stabilizer gimbal drone outputs Full HD 1080p (1920×1080) images, and has autofocus — uses a fast focus algorithm with focus time <1s.



Q10t 10x zoom e1661675814949 1024x634 1 - q10t gimbal camera - motionew - 14

Multi-Output Methods

The Q10T Gimbal Camera supports HDMI video output, Ethernet/IP video output, and SDI video output. IP output and SDI output versions support 360 degrees of continuous yaw rotation. HDMI and SDI video output resolution are set at 1080p, while by default Ethernet video output resolution is set at 720p, and recording resolution is set at 1080p.



Q10t gimbal camera multi-output methods





Built-in Auto-tracking Function of Q10T Gimbal Camera

Stable tracking of a target is possible thanks to the combination of different tracking and missing object recapture algorithms. Custom OSD characters can be defined to be shown on the real-time camera footage. The tracking speed is up to 32pixel/frame, the object size range is from 32×32 pixels to 128×128 pixels.





3-axis Small Size Gimbal Camera

Q10T gimbal camera is a professional 3-axis gimbal zoom camera with high stability, small size, lightweight, and low power consumption. Also known as brushless gimbals, it is suitable for VTOL Drones, helicopters, fixed-wing planes, multirotor aircraft, and other types of drones.

Q10t 3-axis small size gimbal camera

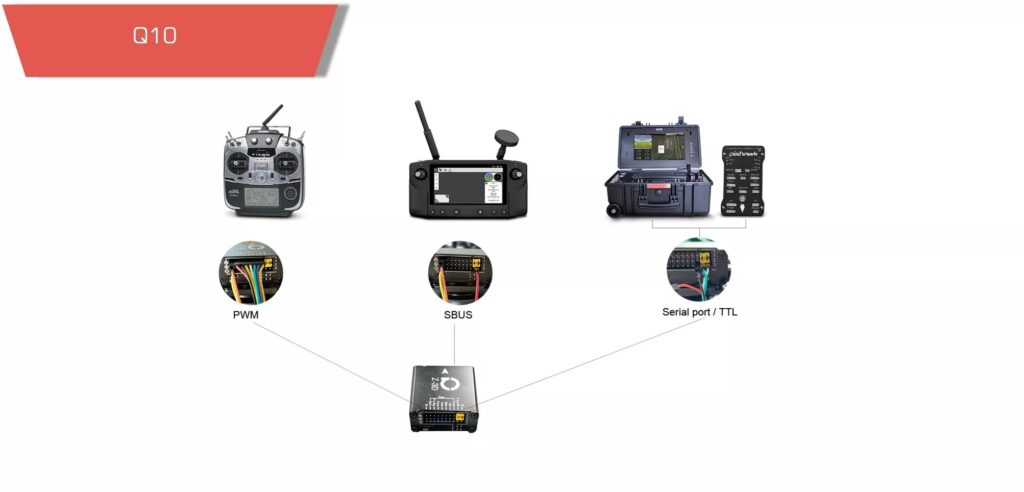

Multi Control Methods

The default control method is PWM and Serial port (TTL voltage level). However, you can optionally use SBUS to control the Q10T. IP output version also supports TCP control via ethernet cable. Using Viewpro software, Viewlink, you can do TTL control.

Q10t gimbal camera multi control methods



Q10t gimbal camera small size

Control box signal interfaces

Q10t gimbal camera control box

Q10T Applications

Q10T gimbal camera is designed to be used in various fields like public security, electric power lines inspection, control of fire hazards, aerial photography and cinematography, construction sites, and any other industry that can benefit from the usage of drones.

Q10t gimbal camera applications



Compatible with Viewport

Q10T gimbal camera is compatible with quick-release connectors. This gives you easy assembly, and plug and play capability. You can just install the quick-release connector on your drone, and use different types of drone cameras based on your mission requirements.

Q10t gimbal camera quick release compatible



Q10T Dimensions

Q10t gimbal camera dimensions

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 700~900mA @ 12V
Idle current 700mA @ 12V
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(1080P 60fps) / IP (720P/1080P 25fps/30fps)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS / TCP(IP output version)



Gimbal Specifications
Angle range of structure design Pitch/Tilt: -125°~125°,    Roll: ±70°,     Yaw/Pan: ±300° / ±360°*N (IP / SDI output version)
Angle range of software design Pitch/Tilt: -45°~90°,   Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center



Camera Specifications
Image Sensor  1/3″ Panasonic CMOS Sensor
Total pixel 2.48MP
Picture Quality Full HD 1080(1920*1080)
Optical Zoom 10x, F=5.1~51mm
Angle of View(D, H, V) D: 68° (Wide end) ~ 6.7° (Tele end)
H: 54° (Wide end) ~ 4.9° (Tele end)
V: 31° (Wide end) ~ 4.0° (Tele end)
Sync system Progressive scanning
Sync. System Internal Internal
Internal more than 50dB
Min illumination Color : 0.5 lux , BW : 0.1lux

Color DSS : 0.125 lux , BW DSS : 0.025 lux

Gain Control Off/On
White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30(25) ~ 1/30,000 sec
Focus Auto / One Push / Manual
Iris 0~20 steps
Exposure Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog Yes
OSD Yes



Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 ~ ±192 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel



Packing Information
Net Weight 550g
Product Dimensions 126.1×91.2×157.8mm / 126.1×91.2×164.5mm (quick release version)
Gross Weight 1934g
Package Dimensions 300x250x200mm

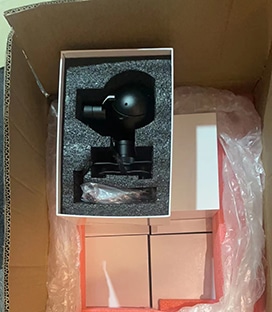

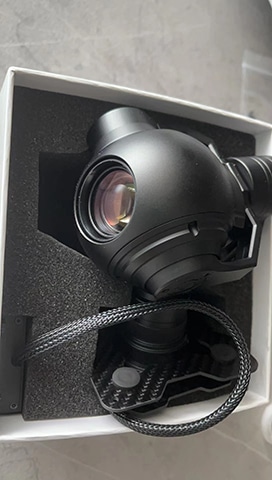

Product contents

1x gimbal camera Q10T, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion

Documents

User manual
