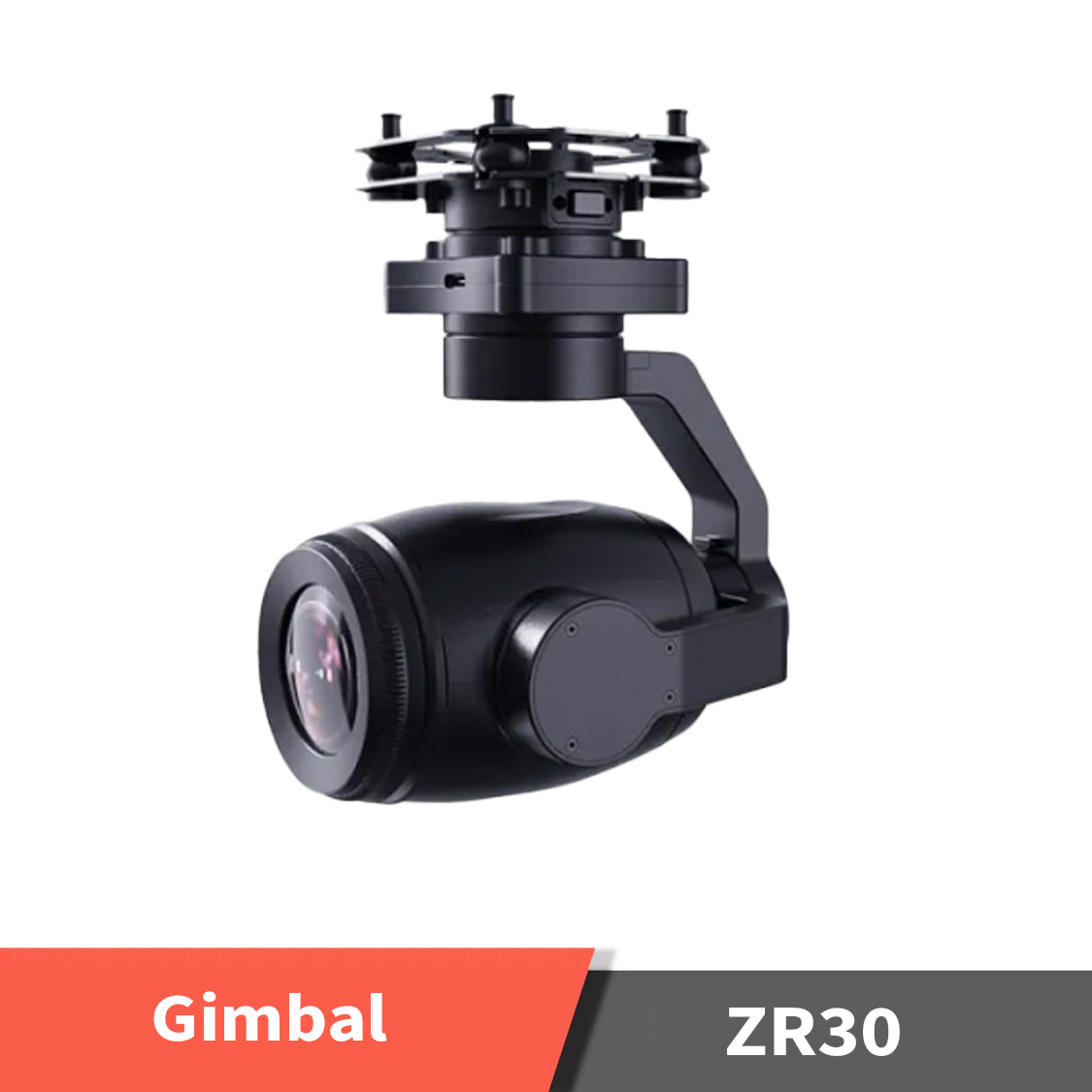

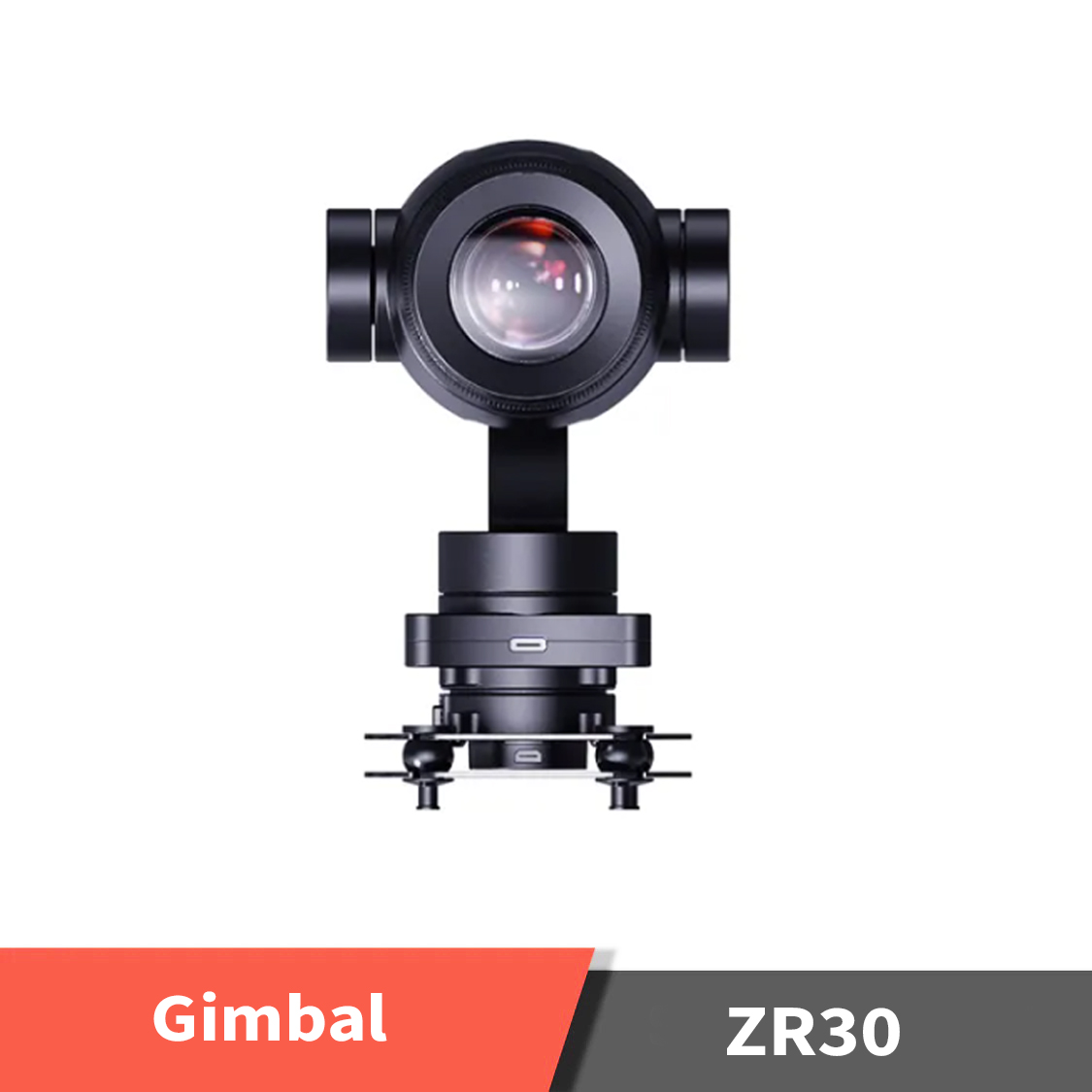

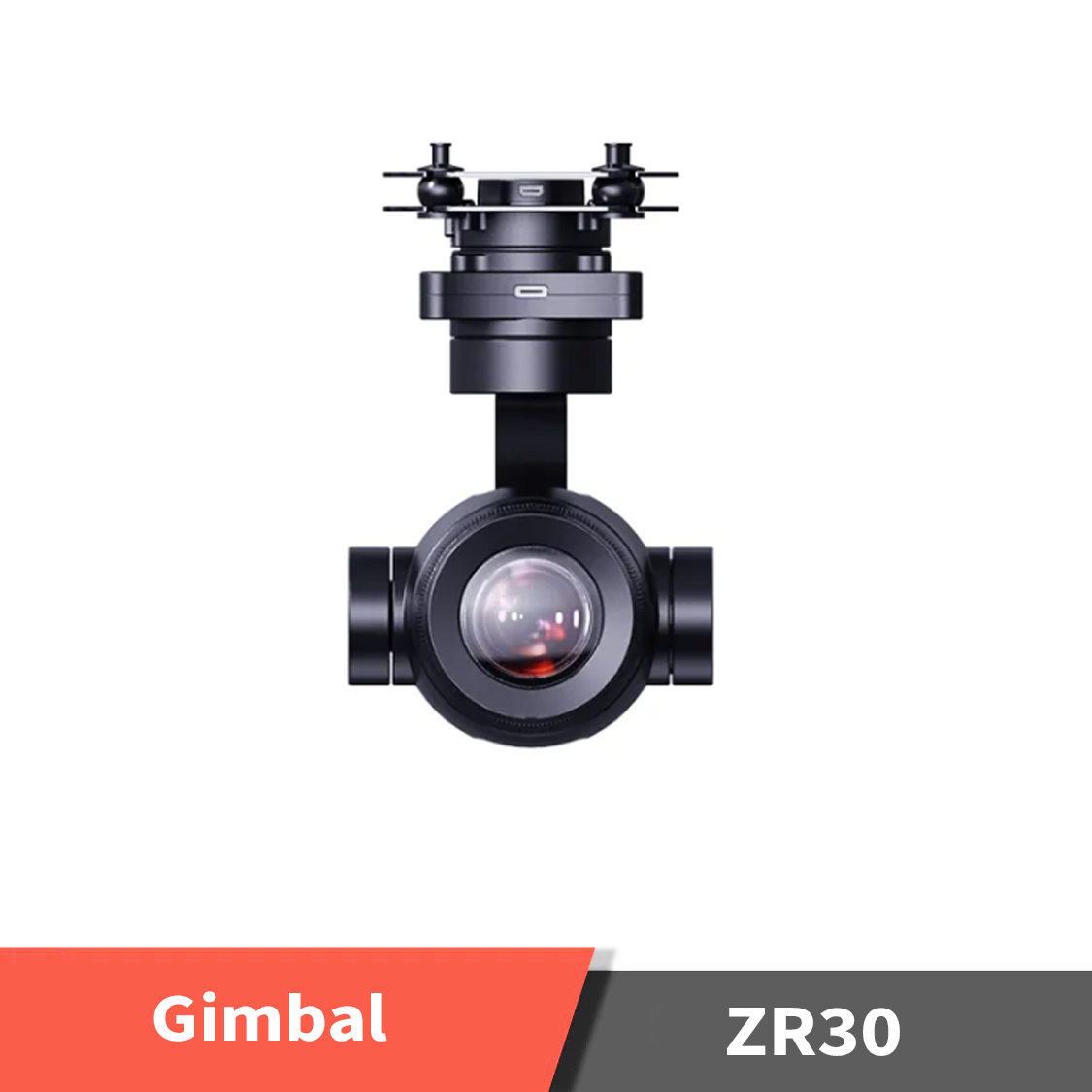

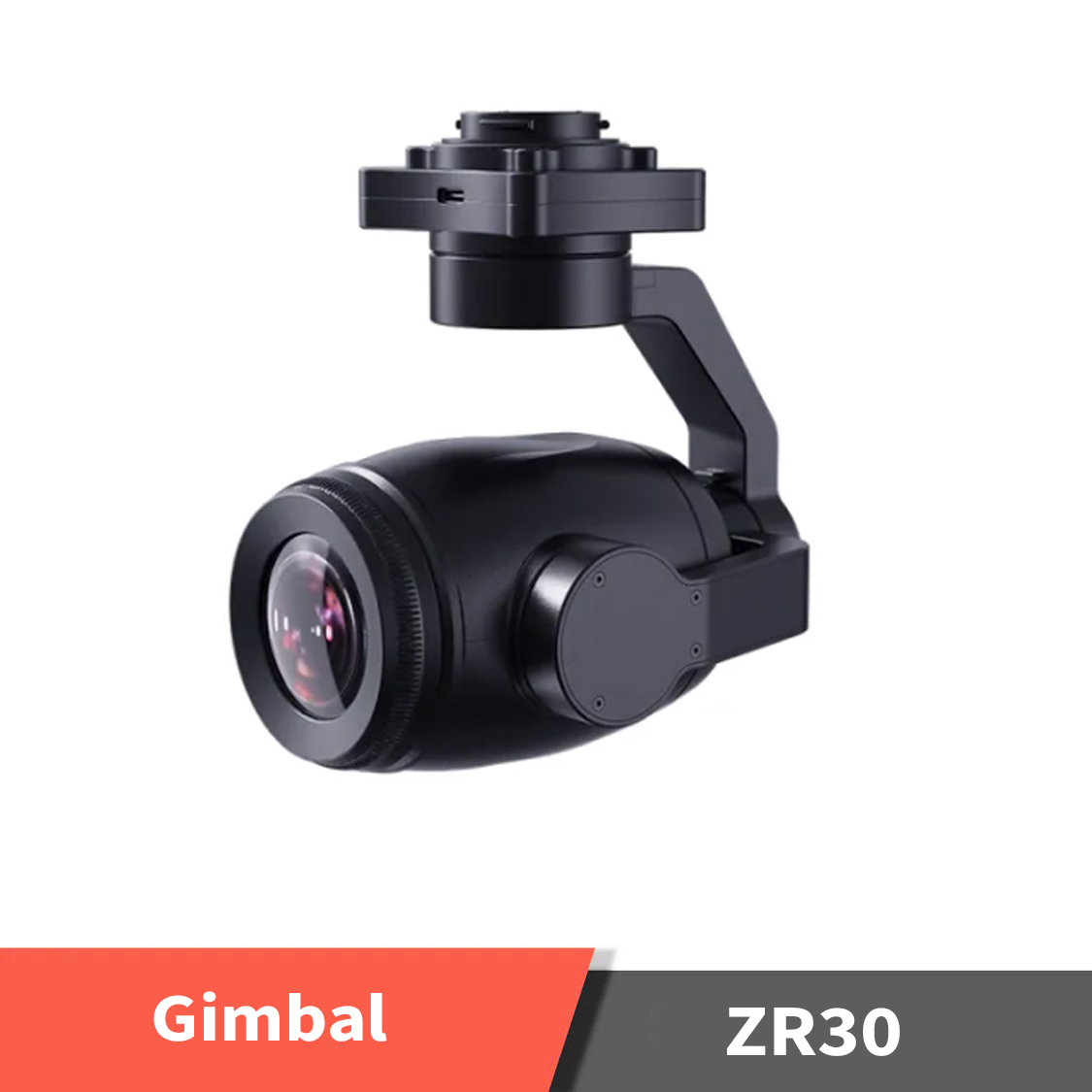

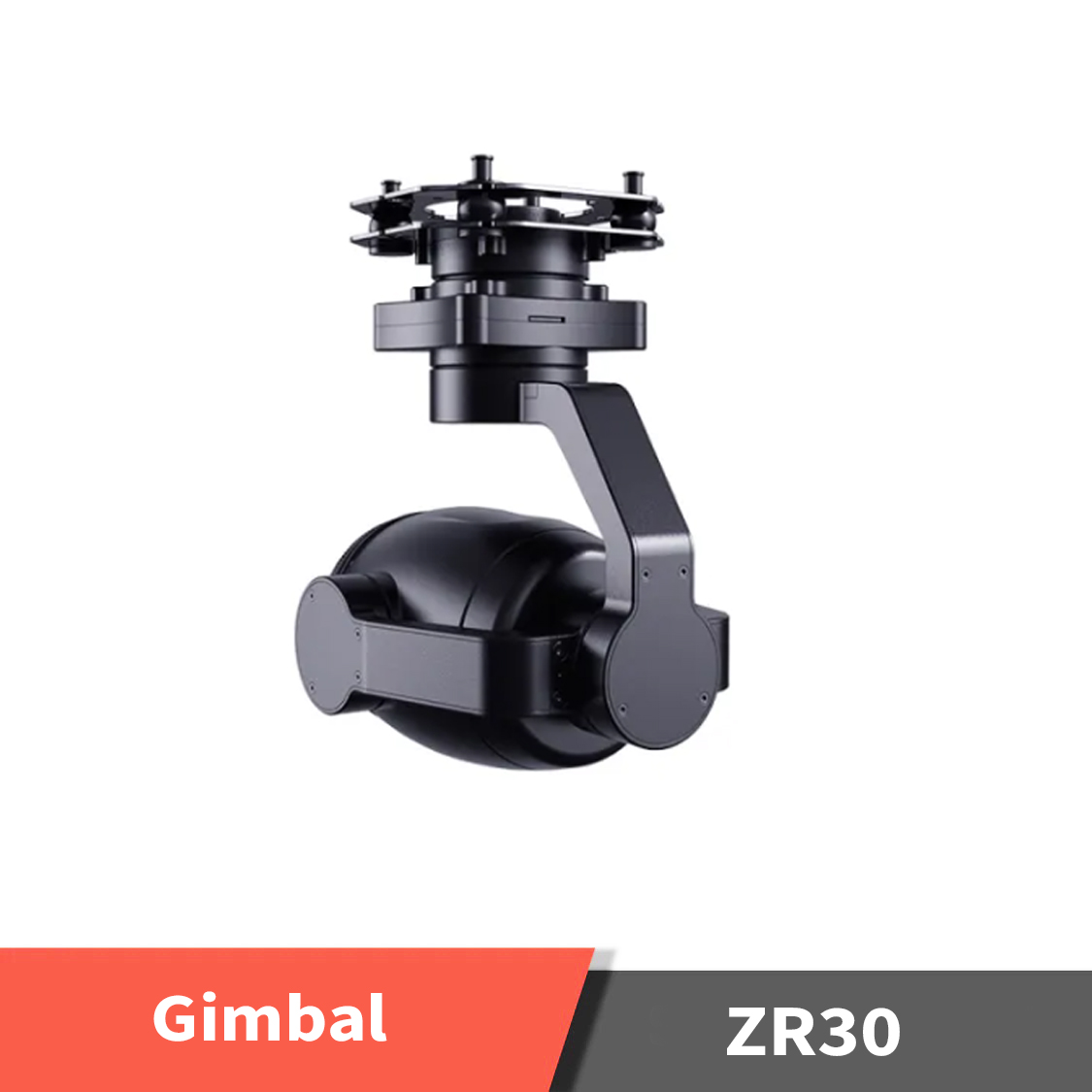

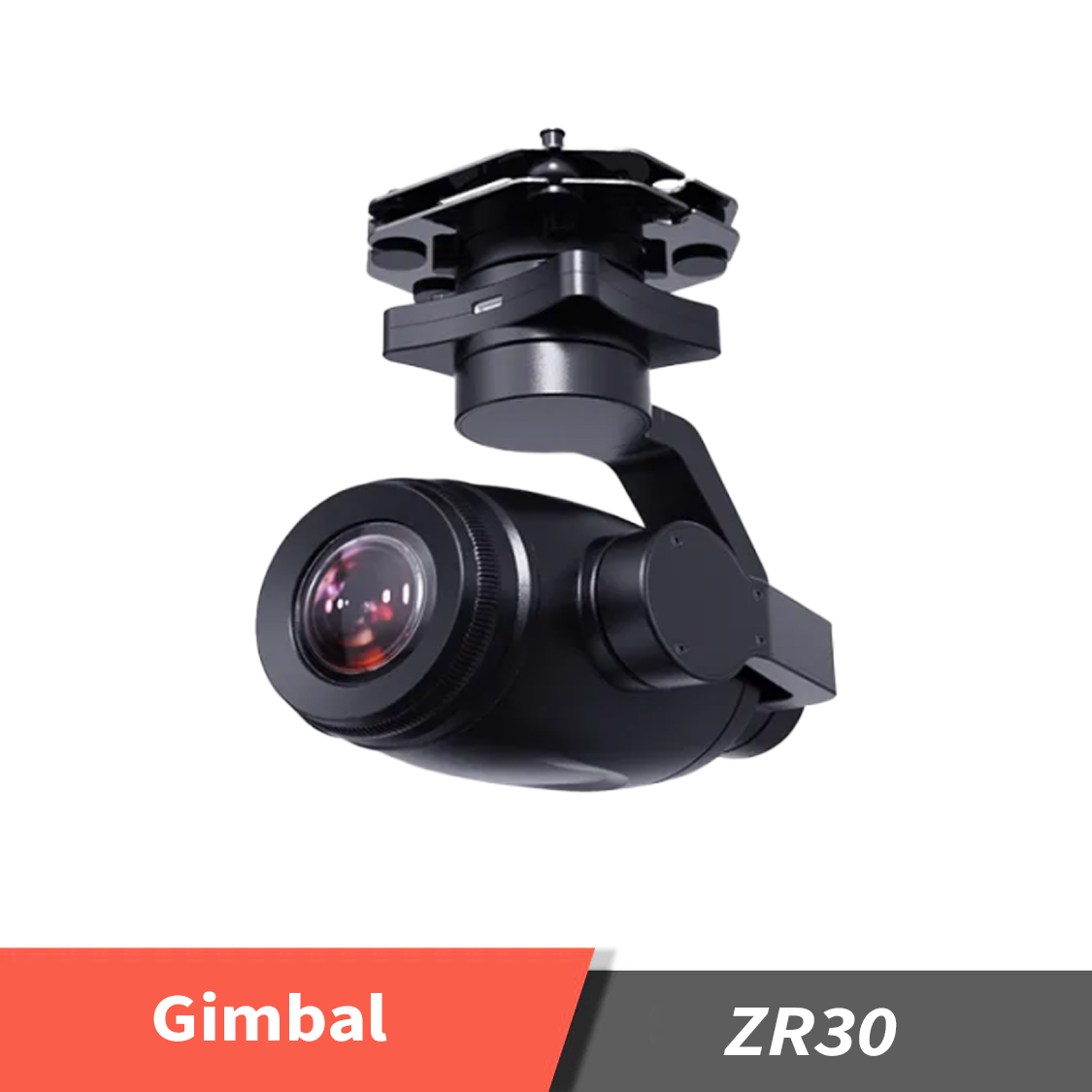

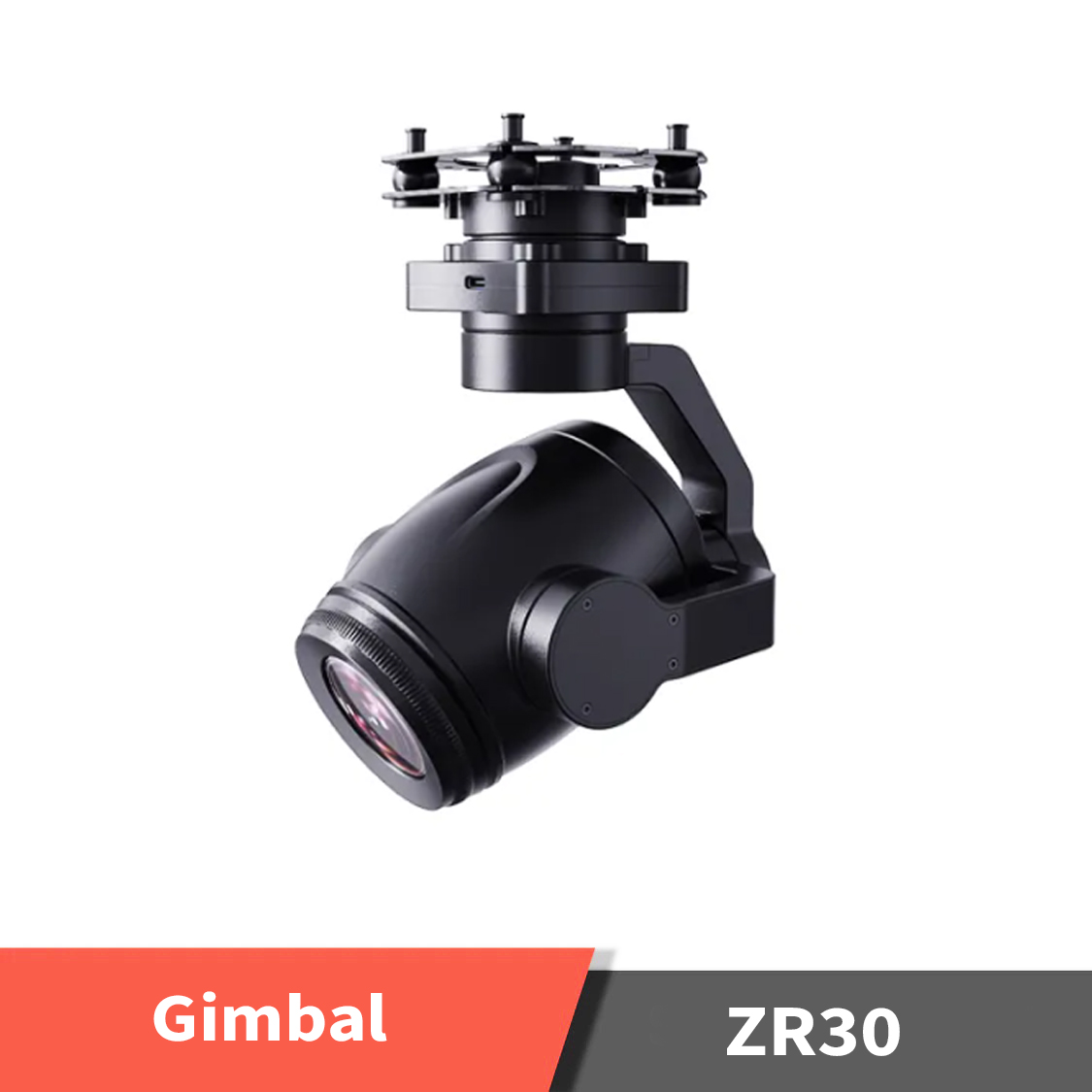

SIYI ZR30 4K 8MP Ultra HD 30X Optical Gimbal Camera HDR Starlight Night Vision 3-Axis Stabilizer UAV UGV USV Pod Payload for Drone Surveillance Inspection

The SIYI ZR30 is a professional 3-axis stabilized gimbal camera designed for UAV applications that demand high precision, crystal-clear imaging, and reliable operation in diverse environments. With its 30x optical zoom (180x hybrid zoom), 4K video recording, and advanced stabilization system, the ZR30 stands out as an essential payload for industrial drones, security operations, and aerial surveying tasks.

High-Accuracy 3-Axis Stabilization

Equipped with advanced stabilization across yaw, pitch, and roll, the SIYI ZR30 delivers smooth and vibration-free footage even during high-speed maneuvers or windy conditions. The angular vibration range is reduced to ±0.01°, ensuring stable, sharp video output that meets the needs of professional inspection and surveillance operations.

Professional Camera Performance

The ZR30 integrates a 1/2.7-inch Sony CMOS sensor with an 8 MP effective resolution, capable of capturing both 4K video at 25 fps and high-definition still photos at 3840 × 2160 resolution. With an aperture range of F1.3 to F2.8, the camera adapts to varying lighting conditions for clear imaging day or night. Users can choose from multiple video resolutions including 2K, 1080p, and 720p to suit bandwidth or storage requirements.

Long-Range Zoom Capability

The 30x optical zoom lens (4.5 mm to 148.4 mm focal length) allows pilots to capture fine details from a safe distance, while the 180x hybrid zoom enhances situational awareness during search-and-rescue or inspection missions. The wide 65.4° field of view without zoom makes it ideal for monitoring large areas, while the narrow 2.1° field of view at full zoom delivers pinpoint accuracy.

Rugged and Lightweight Design

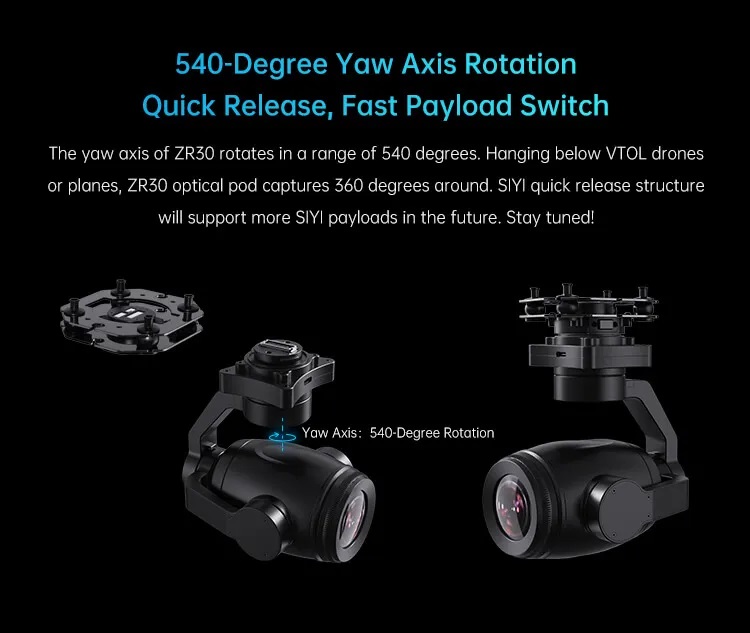

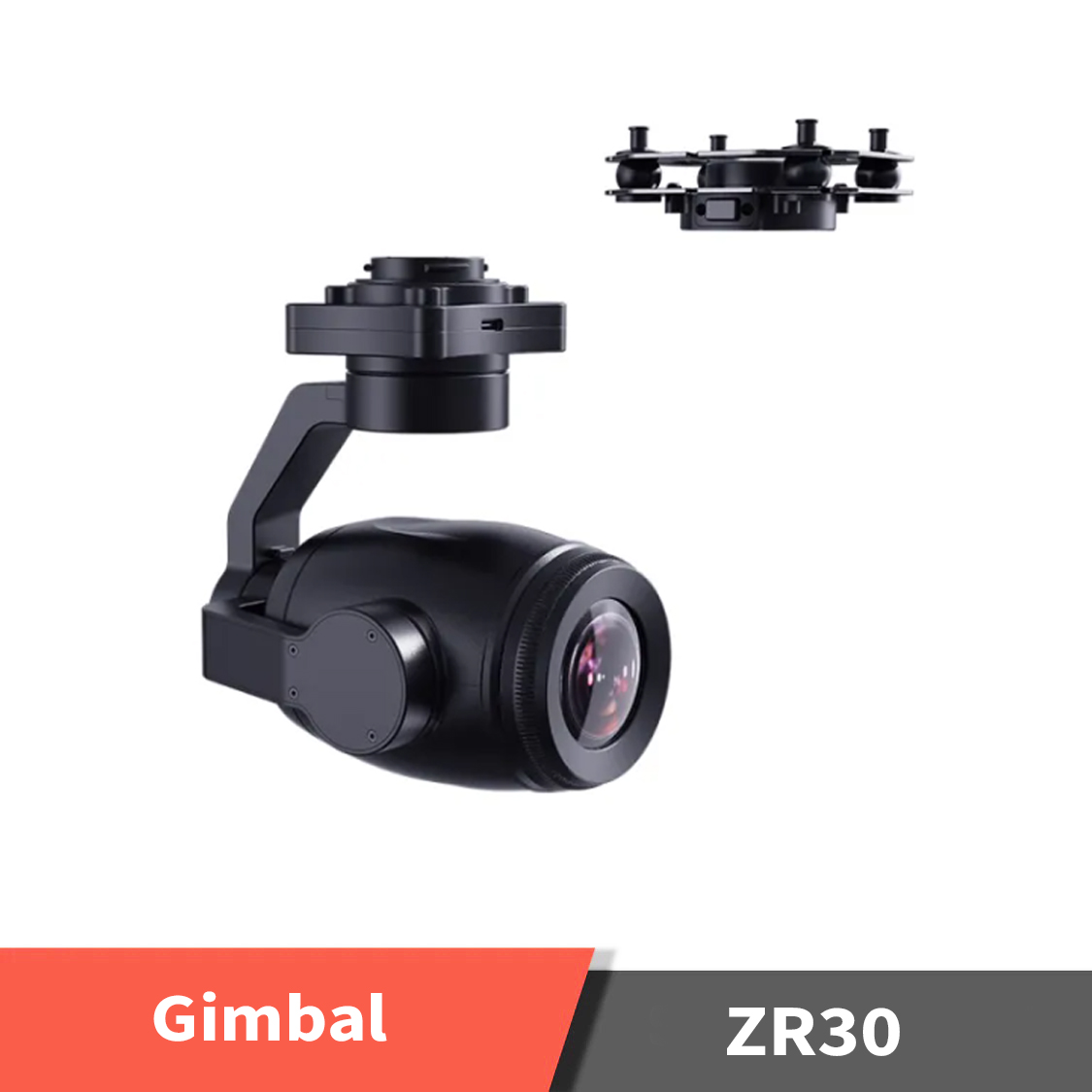

Built for demanding UAV operations, the SIYI ZR30 has a compact dimension of 132 × 100 × 180 mm and weighs only 668 g with the quick release board. Its IP4X waterproof level provides protection against dust and light rain, while the operating temperature range of -10°C to 50°C ensures reliable performance in both cold and hot environments.

Easy Integration with UAV Systems

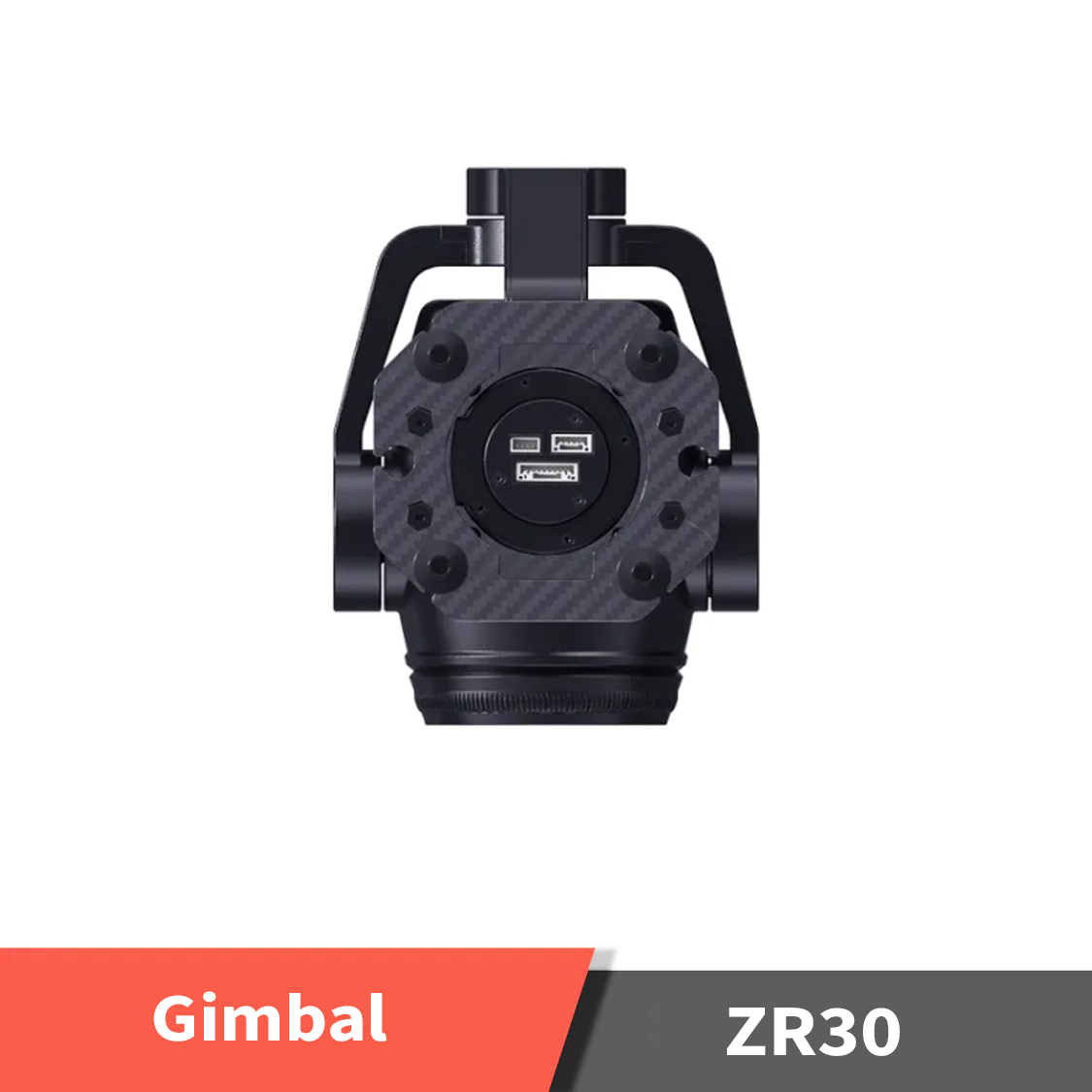

The ZR30 supports multiple video output options including Ethernet and Micro-HDMI, and offers versatile control interfaces such as S.Bus, UART, and Ethernet UDP/TCP. This wide compatibility makes it suitable for integration with most flight controllers and ground control stations.

Storage and Recording Options

The camera supports MicroSD cards up to 128 GB (Class 10), with file formats including MP4 for video and JPG for images. It uses H.265 codec at 12 Mbps, delivering high-quality video while keeping file sizes manageable. Automatic white balance and evaluative metering mode ensure accurate color reproduction across various conditions.

Ideal Applications

• Industrial inspection – power lines, towers, pipelines

• Public safety and security – border patrol, crowd monitoring

• Search and rescue – locating missing persons in challenging environments

• Mapping and surveying – high-resolution imaging for GIS applications

Why Choose the SIYI ZR30?

With its powerful zoom capability, superior stabilization, and rugged lightweight design, the SIYI ZR30 is a perfect solution for drone operators who need reliable, professional imaging. Whether you’re conducting detailed infrastructure inspections, supporting law enforcement, or managing aerial surveillance missions, the ZR30 delivers unmatched clarity and performance.

For a comprehensive reading of related products, please visit the Motionew website.

Simple FAQ (SIYI ZR30 – Engineers & B2B Buyers)

1. What is the SIYI ZR30 Gimbal Camera used for?

The ZR30 is a high-performance EO gimbal camera designed for UAV, UGV, and USV platforms, making it suitable for aerial and ground surveillance, infrastructure inspection, law enforcement, and night vision monitoring.

2. What are the technical highlights of the ZR30?

It features an 8MP 4K ultra HD camera with 30x optical zoom, HDR image processing, and Starlight night vision. The gimbal offers 3-axis stabilization, IP and HDMI output, object tracking, and real-time video transmission over long range.

3. What types of platforms can the ZR30 be mounted on?

The ZR30 is compatible with UAVs (drones), UGVs (ground robots), and USVs (surface vessels). It supports PWM, S.BUS, serial, and Ethernet/IP control, allowing easy integration into both aerial and ground systems.

Business & Operational FAQs

4. Is the SIYI ZR30 available for OEM or bulk purchasing?

Yes. Motionew offers OEM supply and volume pricing for drone/robotics manufacturers, security agencies, and system integrators.

5. What kind of documentation and support are included?

Each unit includes a user manual, wiring guide, and remote technical support from Motionew’s integration team for quick setup and deployment.

6. What are the available payment and invoicing terms for business clients?

Motionew supports international wire transfers, provides official B2B invoices, and offers flexible payment terms for enterprise customers.
