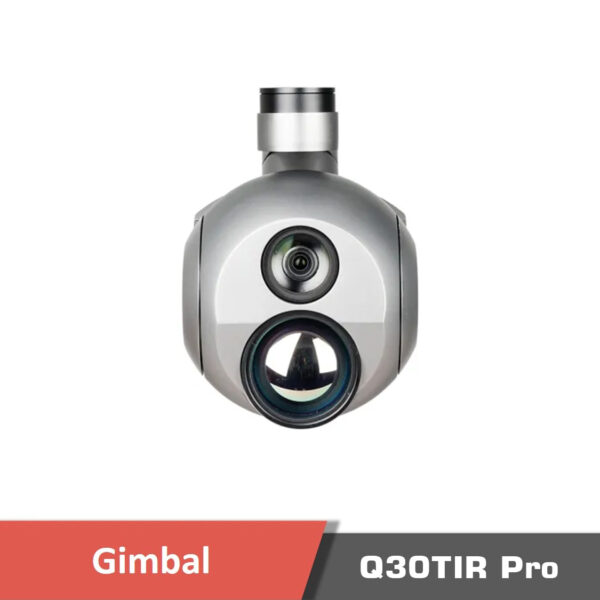

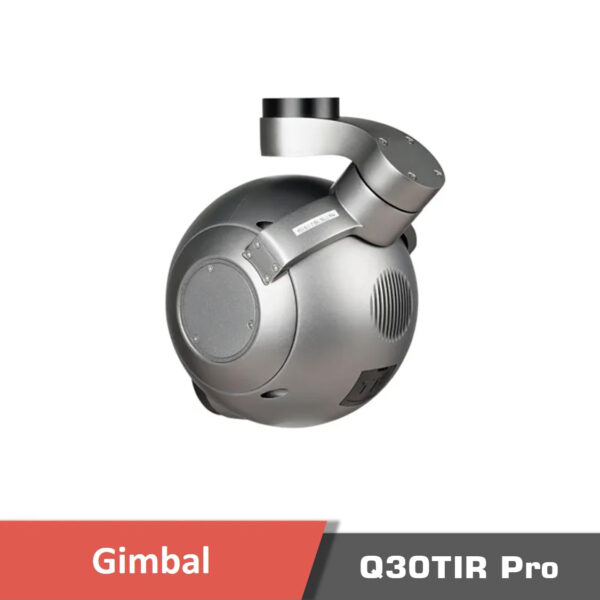

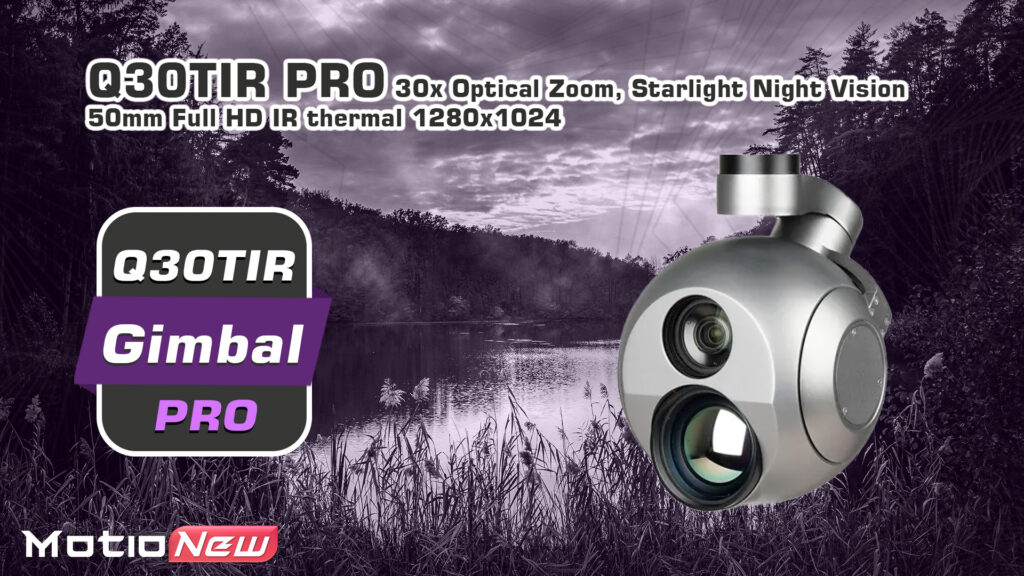

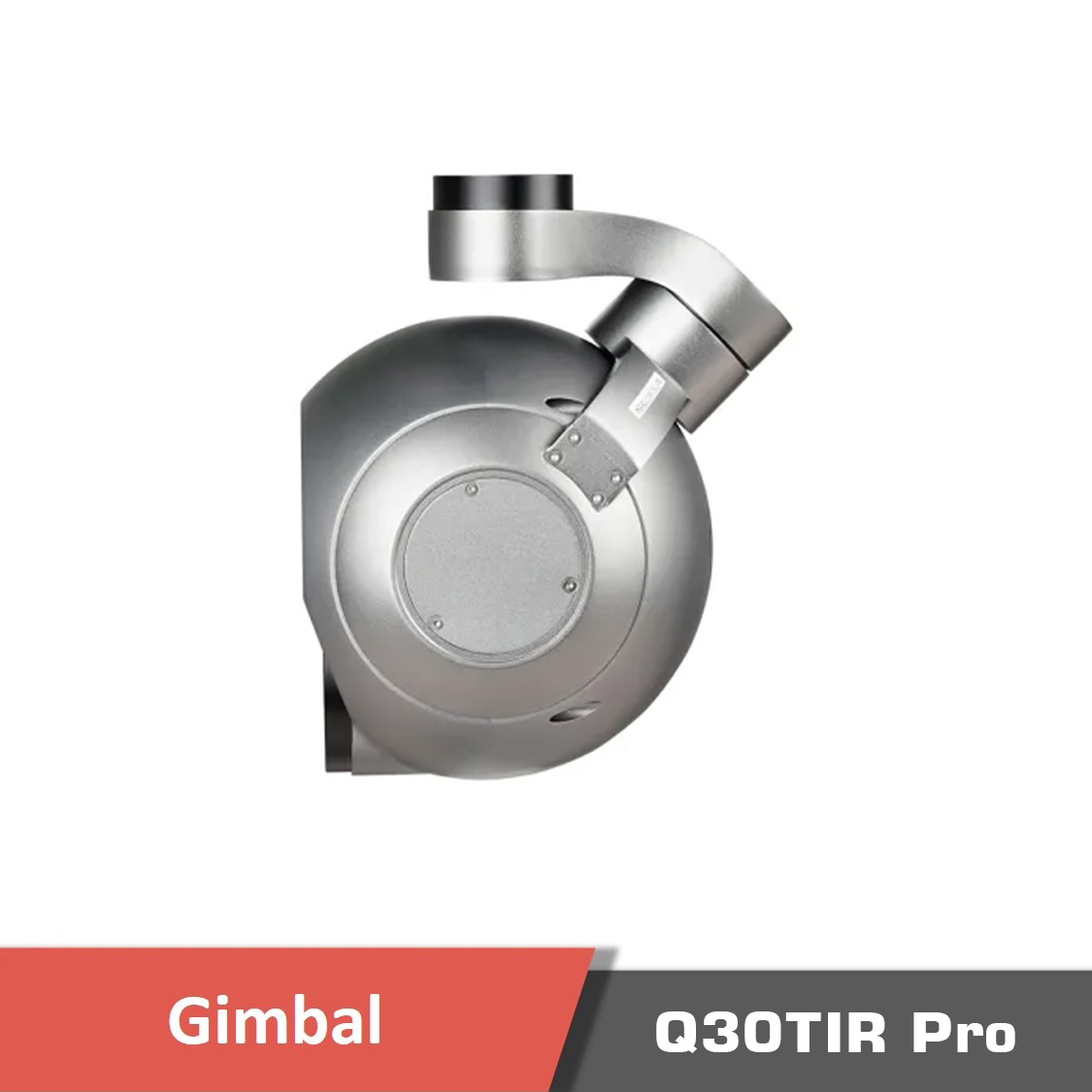

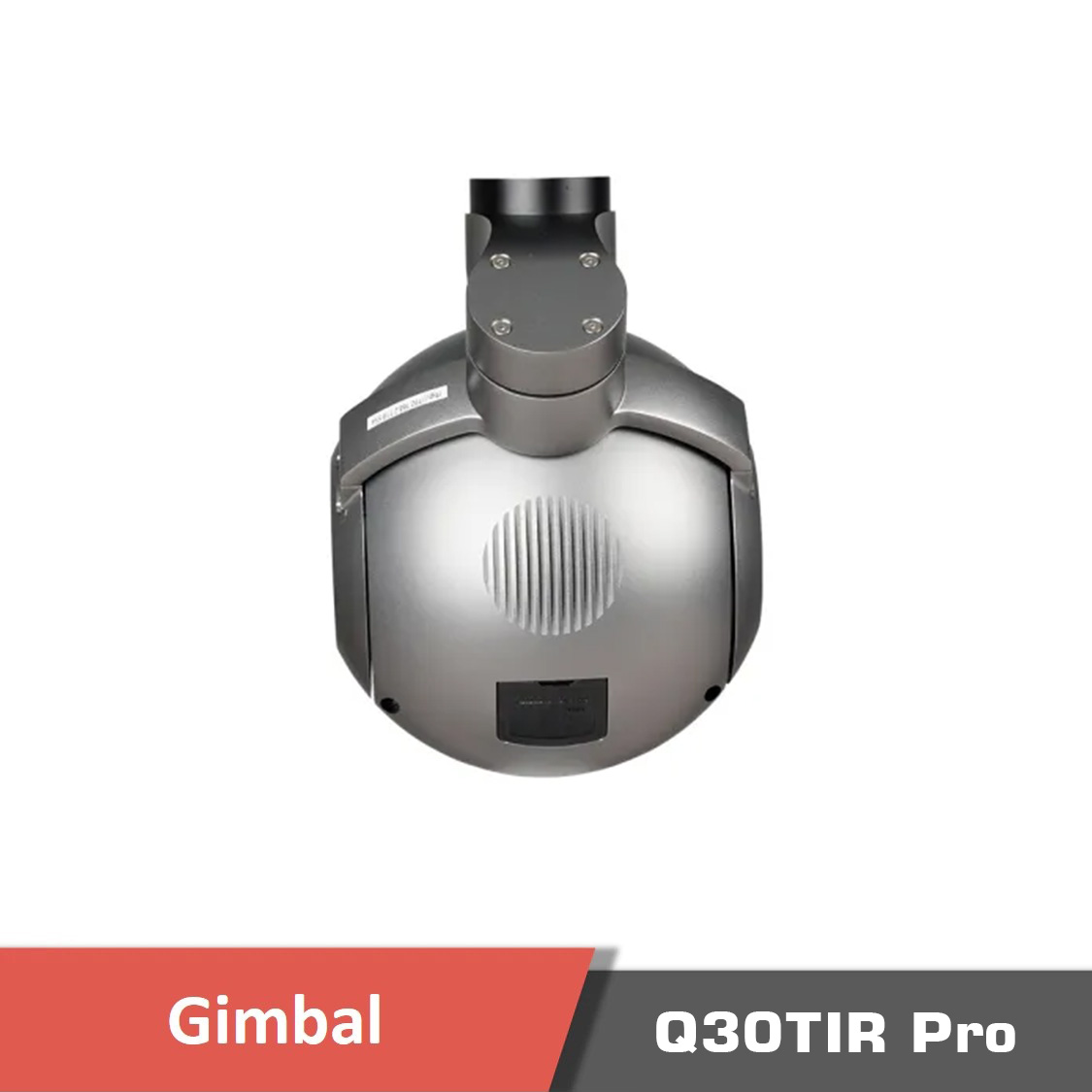

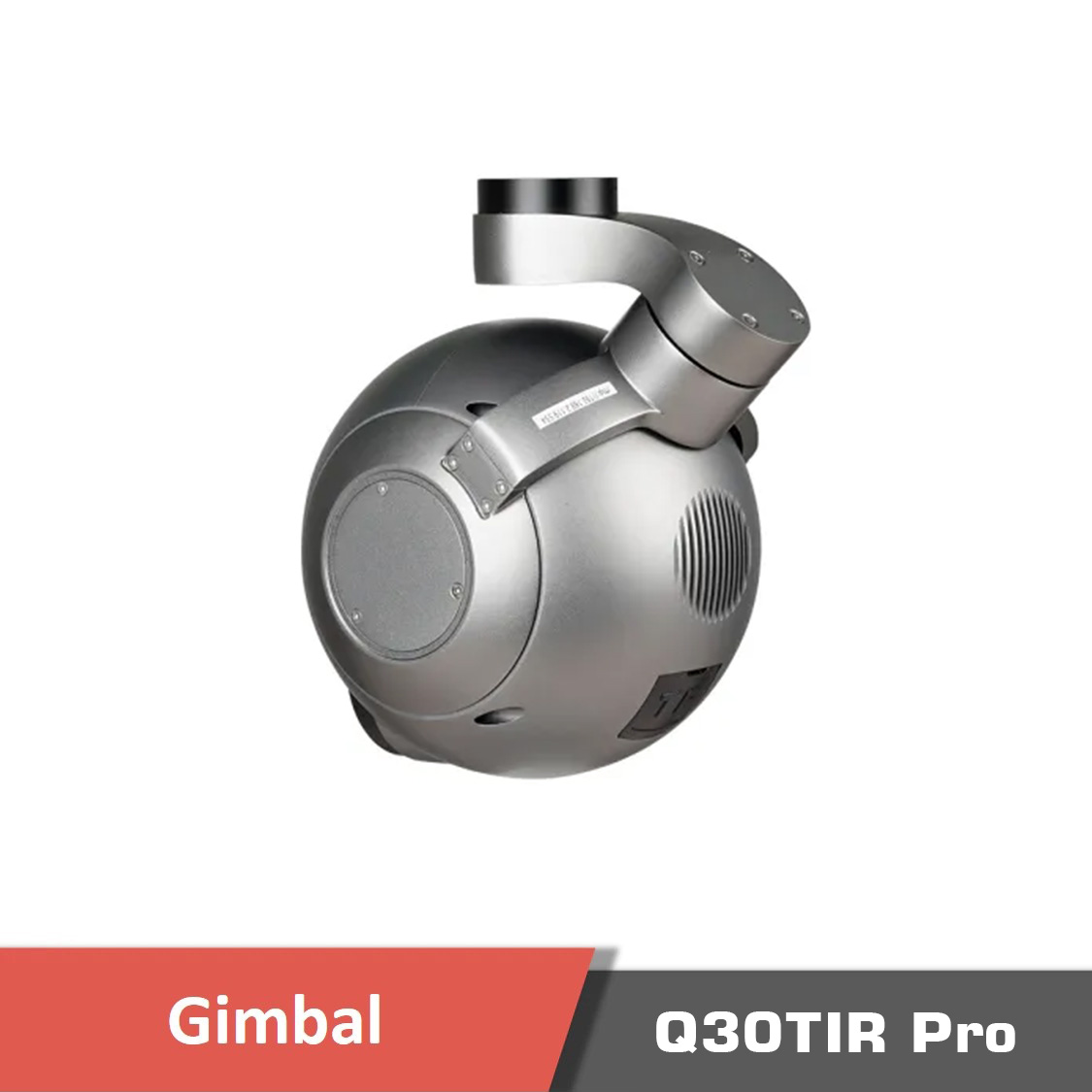

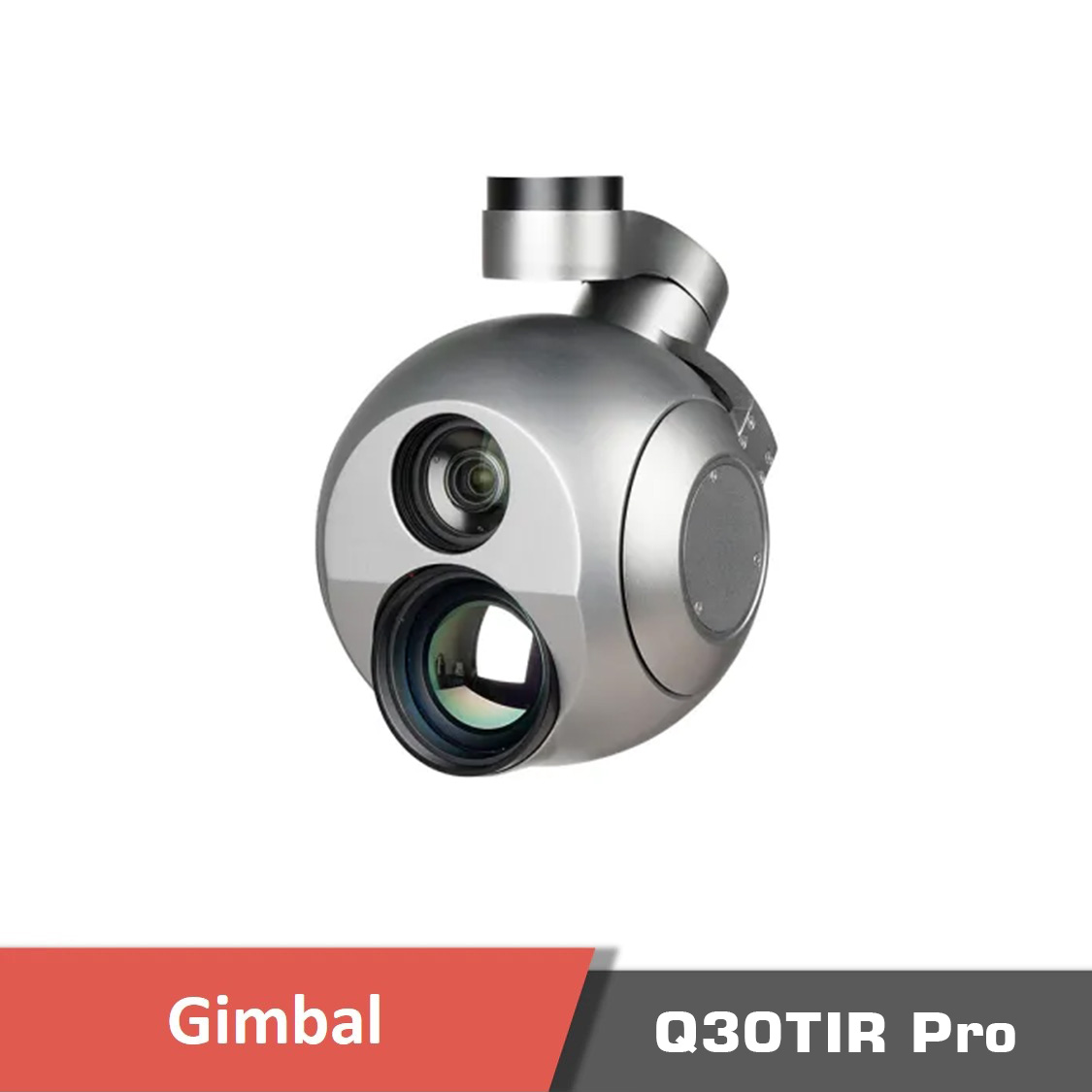

Q30TIR Pro gimbal camera, Starlight Full HD Night Vision

17549.00 $

(1 customer review)
PayPal
Visa
Master

Description

Introductionsย

The Q30TIR Pro Gimbal Drone is a multi sensor gimbal camera with 30x optical zoom and 2.13MP sensor. It features a Starlight night vision thermal IR sensor, with 50mm lens and Full HD 1920×1080ย  thermal sensor resolution. The gimbal operates with a working voltage of 16V and supports input voltages from 4S to 6S. It provides an output voltage of 5V for PWM connections and has a dynamic current range of 820 to 2500mA at 16V. The drone is designed to function within a temperature range of -20ยฐC to +60ยฐC.

The Q30TIR Pro Gimbal supports both IP output (RTSP/UDP) at 720p or 1080p resolution with frame rates of 25fps or 30fps, and SDI output at 1080P and 30fps. For local storage, it accommodates TF cards up to 512GB, class 10, and FAT32 format.

Photos are stored in JPG format (1920×1080), while videos are saved in MP4 format at 1080p and 30fps. The device supports card reading via SMB or HTTP. Control methods include PWM, TTL, S.BUS, TCP/IP, and UDP (for IP output versions), and it features geotagging capabilities to display time and GPS coordinates in picture EXIF data.

Gimbal Camera AI object detection and Trackingย  Video



IR Thermal Imager Specifications

The Q30TIR Pro Gimbal Drone features a high-performance Full HD IR thermal imager with a 50mm focus length, providing a horizontal field of view (FOV) of 17.5ยฐ and a vertical FOV of 14.0ยฐ. The thermal imager is capable of detecting a person (1.8×0.5m) from up to 2083 meters away, recognizing them at 521 meters, and verifying at 260 meters. For vehicles (4.2×1.8m), it offers detection up to 6389 meters, recognition at 1597 meters, and verification at 799 meters.

The imager operates in the long wave (8ฮผm~14ฮผm) spectrum with a detector resolution of 1280×1024 pixels and a pixel pitch of 12ฮผm. It uses an athermal prime lens for focusing and features a NETD of โ‰ค40mK and an MRTD of โ‰ค400mK at 25โ„ƒ, F #1.0. The camera includes a bistable shutter and offers color palettes in white, black, and pseudo colors. Digital zoom capabilities range from 1x to 4x, though thermometry functions are not supported.

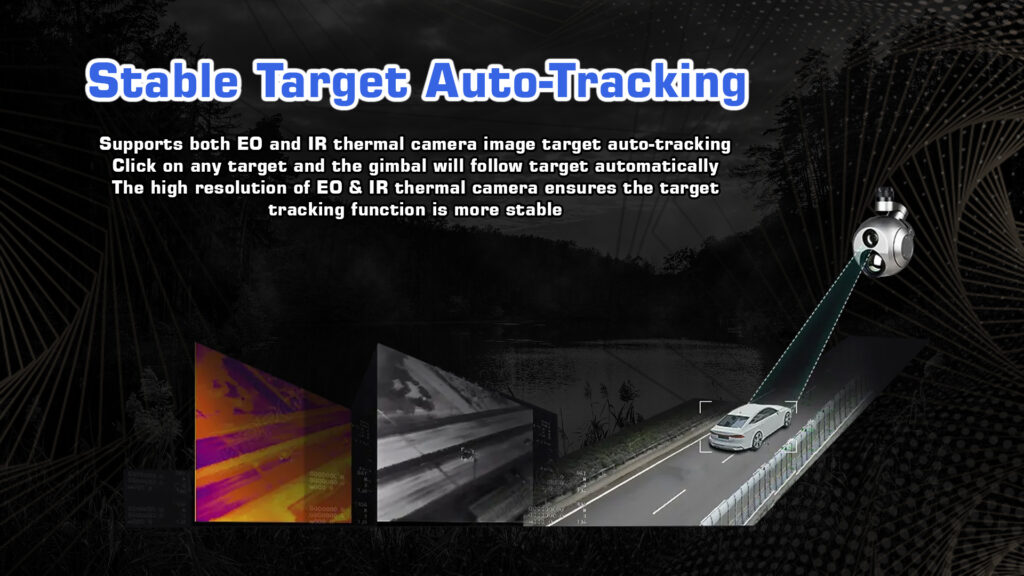

EO/IR Camera Object Tracking

The Q30TIR Pro Gimbal Drone is equipped with sophisticated EO/IR camera object tracking capabilities. It features an update rate of deviation pixel at 50Hz, with a minimal output delay of just 5 milliseconds. The system can track objects with a minimum contrast of 5% and offers a signal-to-noise ratio (SNR) of 4.

It supports object sizes ranging from a minimum of 32×32 pixels to a maximum of 128×128 pixels, with a tracking speed of ยฑ48 pixels per frame. The drone retains object memory for up to 100 frames, or approximately 4 seconds. Additionally, the mean square root values of pulse noise in the object position are kept below 0.5 pixel, ensuring precise and reliable tracking performance.

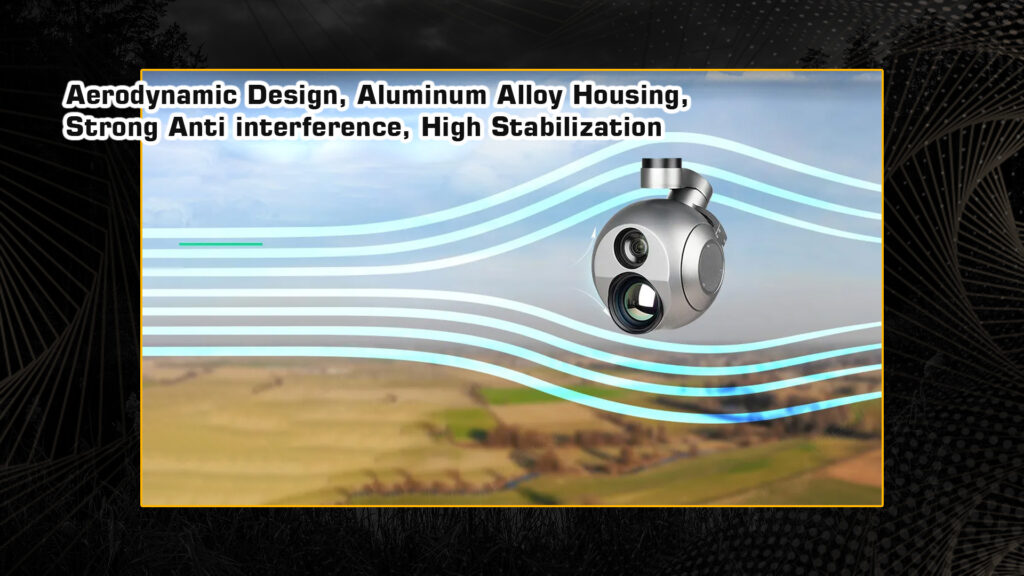

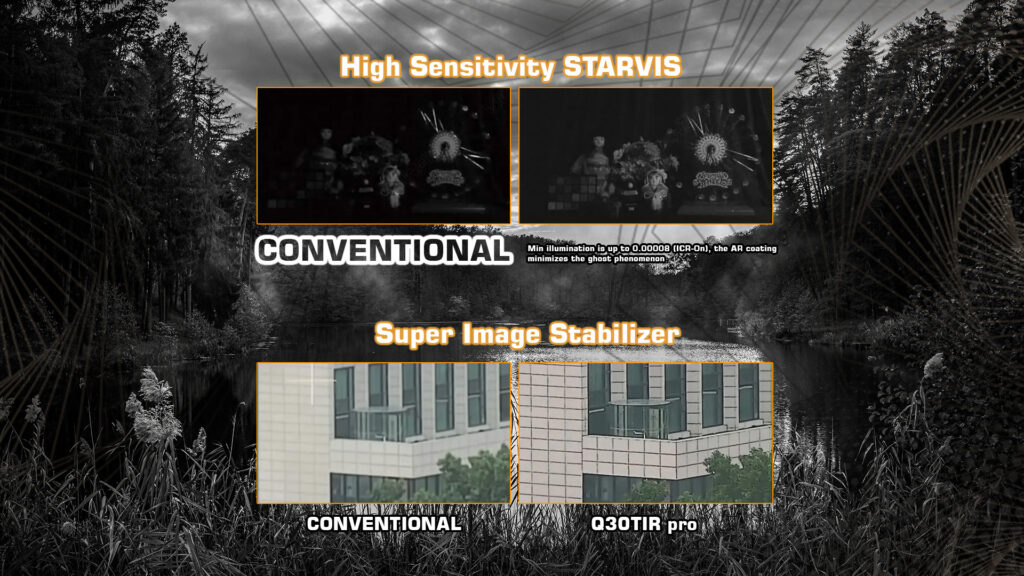

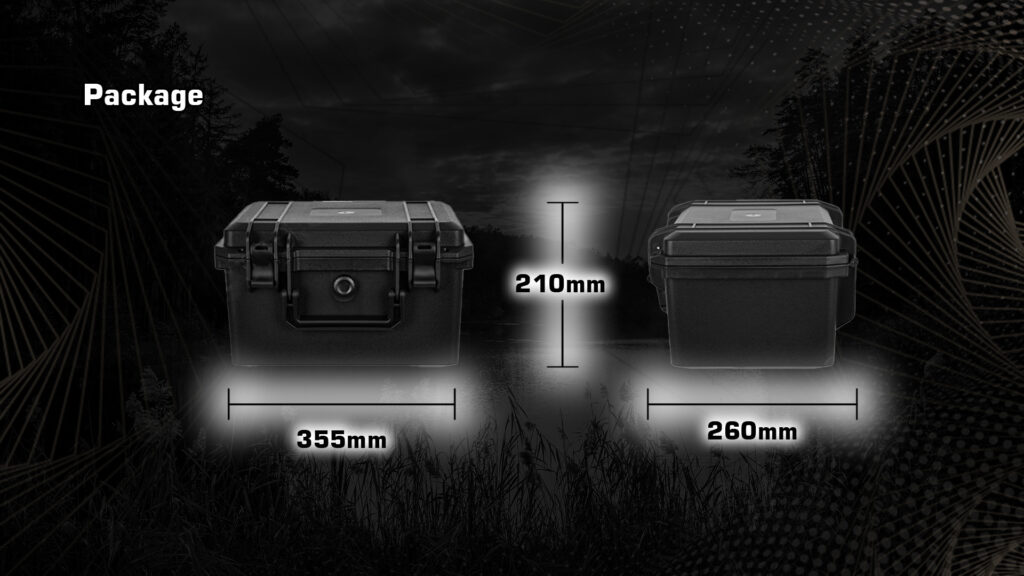

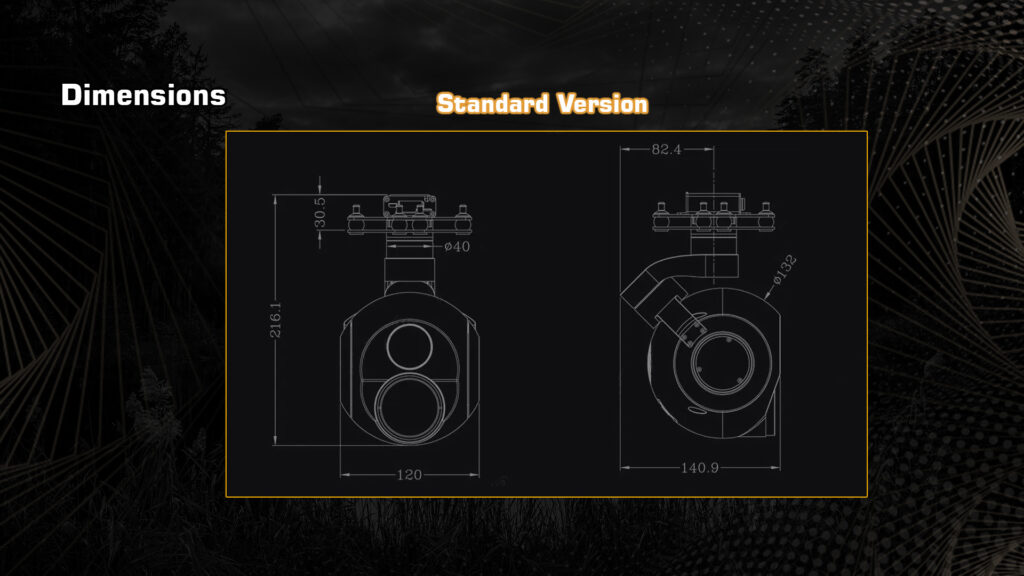

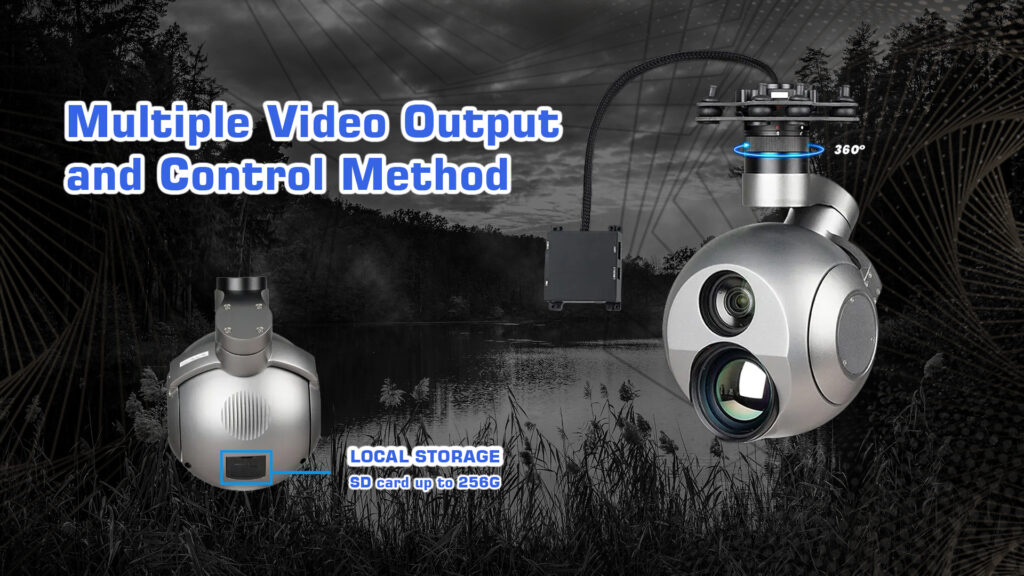

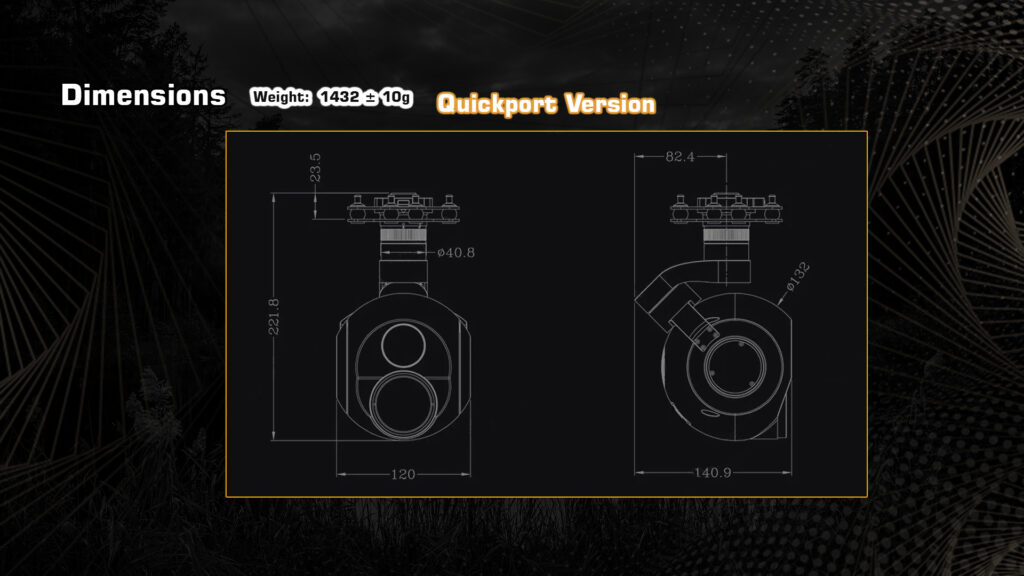

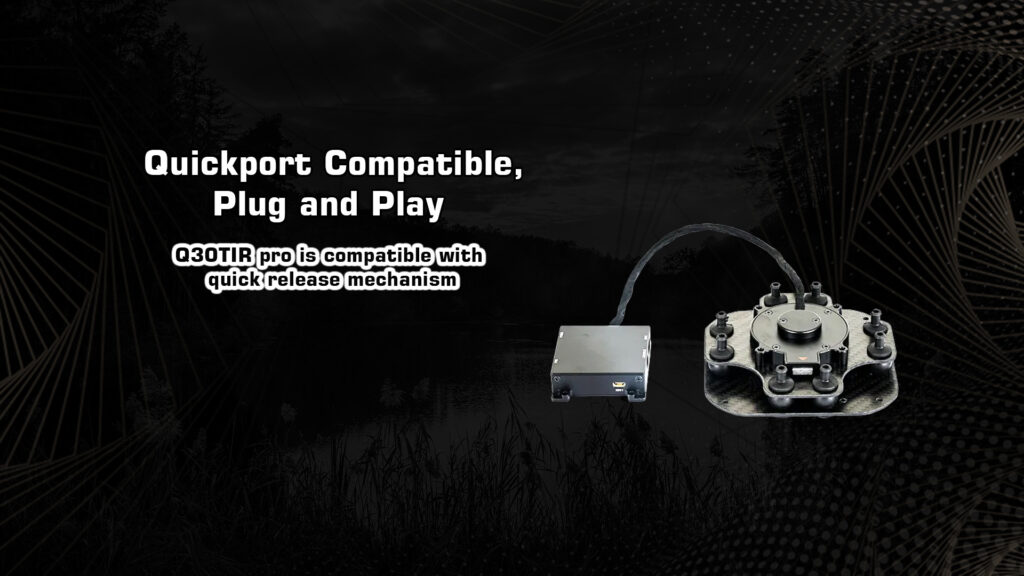

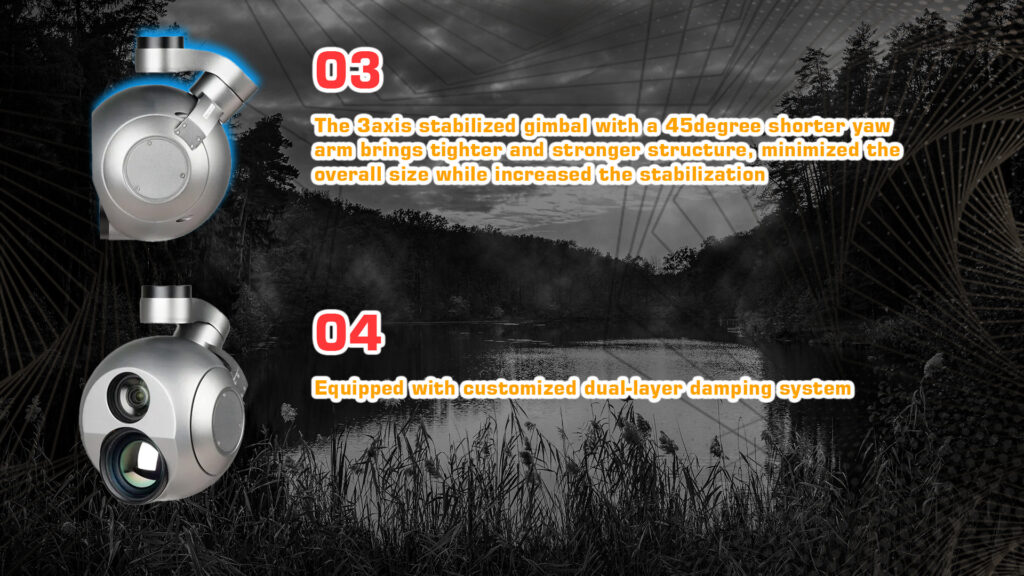

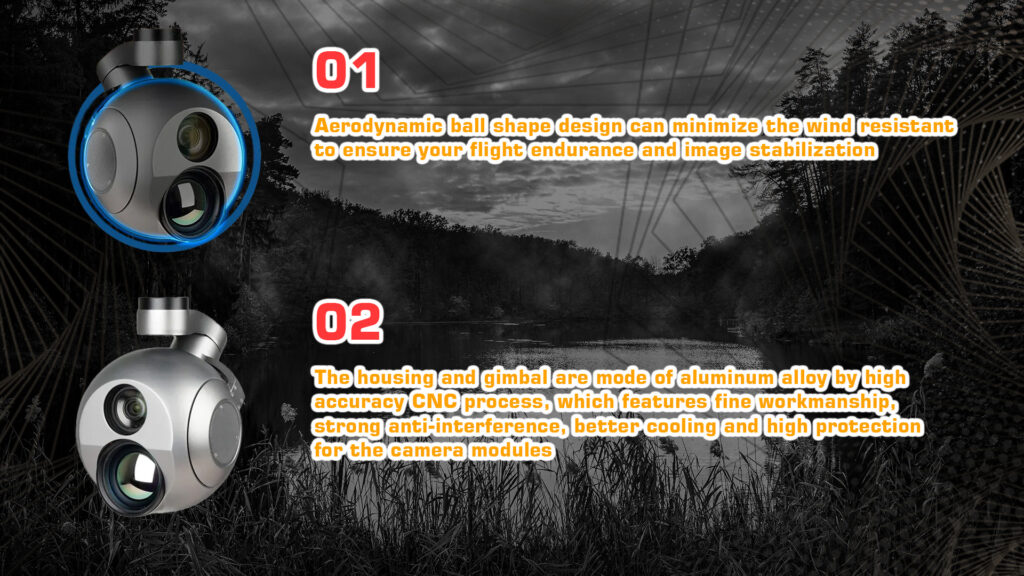

Q30tir pro 30x starlight night vision 1280 ir thermal camera Q30tir pro gimbal camera specifications Eo camera spec of q30tir pro Q30tir pro high sensitivity starvis and super image stabilizer Q30tir pro 1280x1024 hd ir thermal image closer and clearer Stable target auto-tracking of q30tir pro Q30tir pro aerodynamic design, aluminum alloy housing, strong anti interface, high stabilization Q30tir pro aerodynamic ball shape design Q30tir pro 3axis stabilized gimbal Q30tir pro quickport compatible, plug and play Multiple video output and control method of q30tir pro Communication interfaces of q30tir pro More functions of q30tir pro Q30tir pro http Q30tir pro applications Dimensions of quickport version of q30tir pro Dimensions of standard version of q30tir pro Q30tir pro package

For a comprehensive reading of related products, please visit theย Motionewย website.



Specifications

Specification

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 820~2500mA @ 16V
Working environment tempย  -20โ„ƒย ~ +60โ„ƒ
Outputย  IP (RTSP/UDP 720p/1080pย  25fps/30fps) / SDI (1080P 30fps)
Local-storage TF card (Up to 512G, class 10, FAT32 format)
Photo storage format JPG(1920*1080)ย
Video storage format MP4(1080P 30fps)

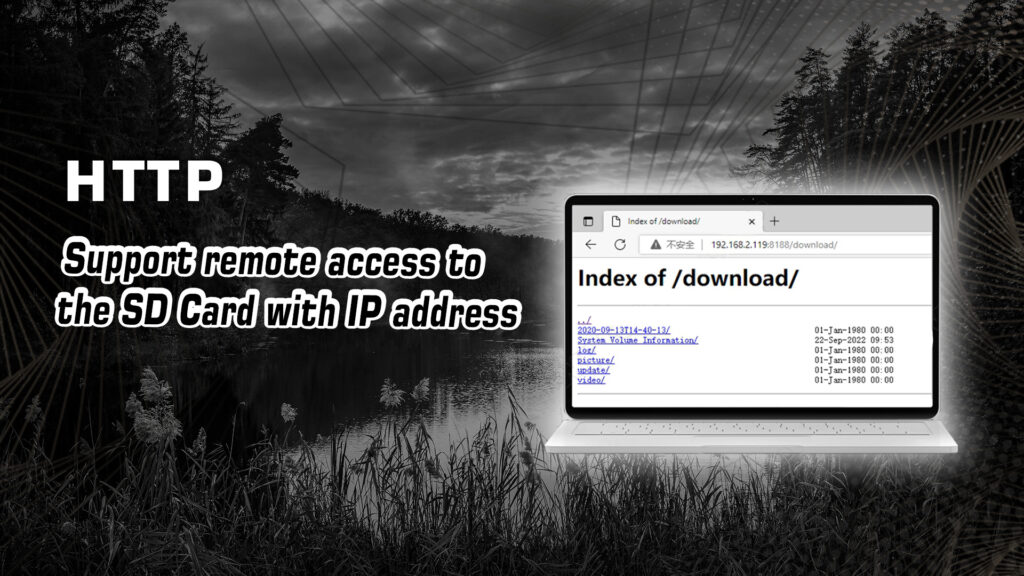

Card reading online SMB read / HTTP read
Control method PWMย  / TTL / S.BUS / TCP(IP output version)/UDP(IP output version)
Geotagging Support, display time and GPS coordinate in picture exif



Gimbal Specification
Angle range of structure design Pitch/Tilt:-110ยฐ๏ฝž130ยฐ,ย ย  Roll: ยฑ40ยฐ,ย ย ย  Yaw/Pan: ยฑ360ยฐ*Nย
Angle range of software design Pitch/Tilt: -45ยฐ๏ฝž125ยฐ,ย ย  Yaw/Pan: ยฑ360ยฐ*Nย
Vibration angle Pitch/Roll: ยฑ0.02ยฐ, Yaw๏ผšยฑ0.02ยฐ
One-key to center โˆš



EO Camera specification
Imager Sensor 1/2.8 Type STARVIS2 CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end)
Horizontal viewing angle 64.0ยฐ(wide end) ~ 2.4ยฐ(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On)
Color 0.09 luxย ย  (1/30 sec, 50%, High Sensitivity mode Off )
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority),ย  EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Defog Yes
OSD Yes



IR Thermal Imager Specification
Focus Length 50mm
Horizontal FOV 17.5ยฐ
Vertical FOV 14.0ยฐ
Detective Distance (Man: 1.8×0.5m) 2083 meters
Recognize Distance (Man: 1.8×0.5m) 521 meters
Verified Distance (Man: 1.8×0.5m) 260 meters
Detective Distance (Car: 4.2×1.8m) 6389 meters
Recognize Distance (Car: 4.2×1.8m) 1597 meters
Verified Distance (Car: 4.2×1.8m) 799 meters
Working mode Uncooled long wave (8ฮผm~14ฮผm) thermal imager
Detector pixel 1280×1024
Pixel pitch 12ฮผm
Focusing method Athermal prime lens
NETD โ‰ค40mK@25โ„ƒ,F #1.0
MRTD โ‰ค400mK@25โ„ƒ,F #1.0
Shutter Bistable Shutter
Color palette White, black, pseudo color
Digital zoom 1x ~ 4x
Thermometry type Not supported



EO/IR Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ยฑ48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel



Packing Information
Net Weight 1432 ยฑ 10g(Viewport version with Viewport)
Product meas. 140.9x120x216.1mm / 140.9x120x221.8mm(Viewport version with Viewport)
Accessories 1pc gimbal camera device, screws,ย  copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
Gross Weight 3564g
Package meas. 350x300x250mm

Product contents

Please contact us for more information.

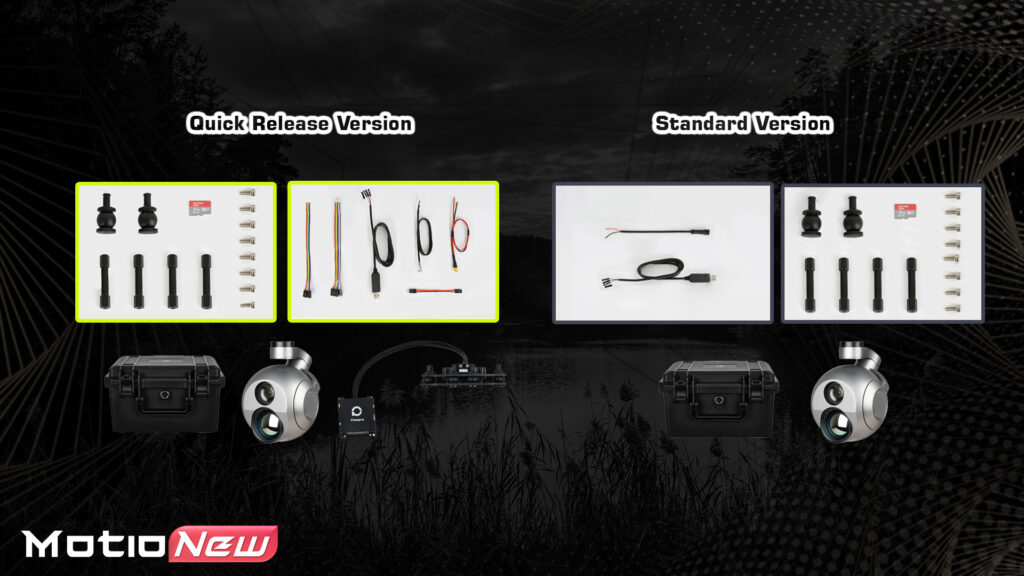

Quickport and standard version of q30tir pro

Documents

Please contact us for more information.
