Description

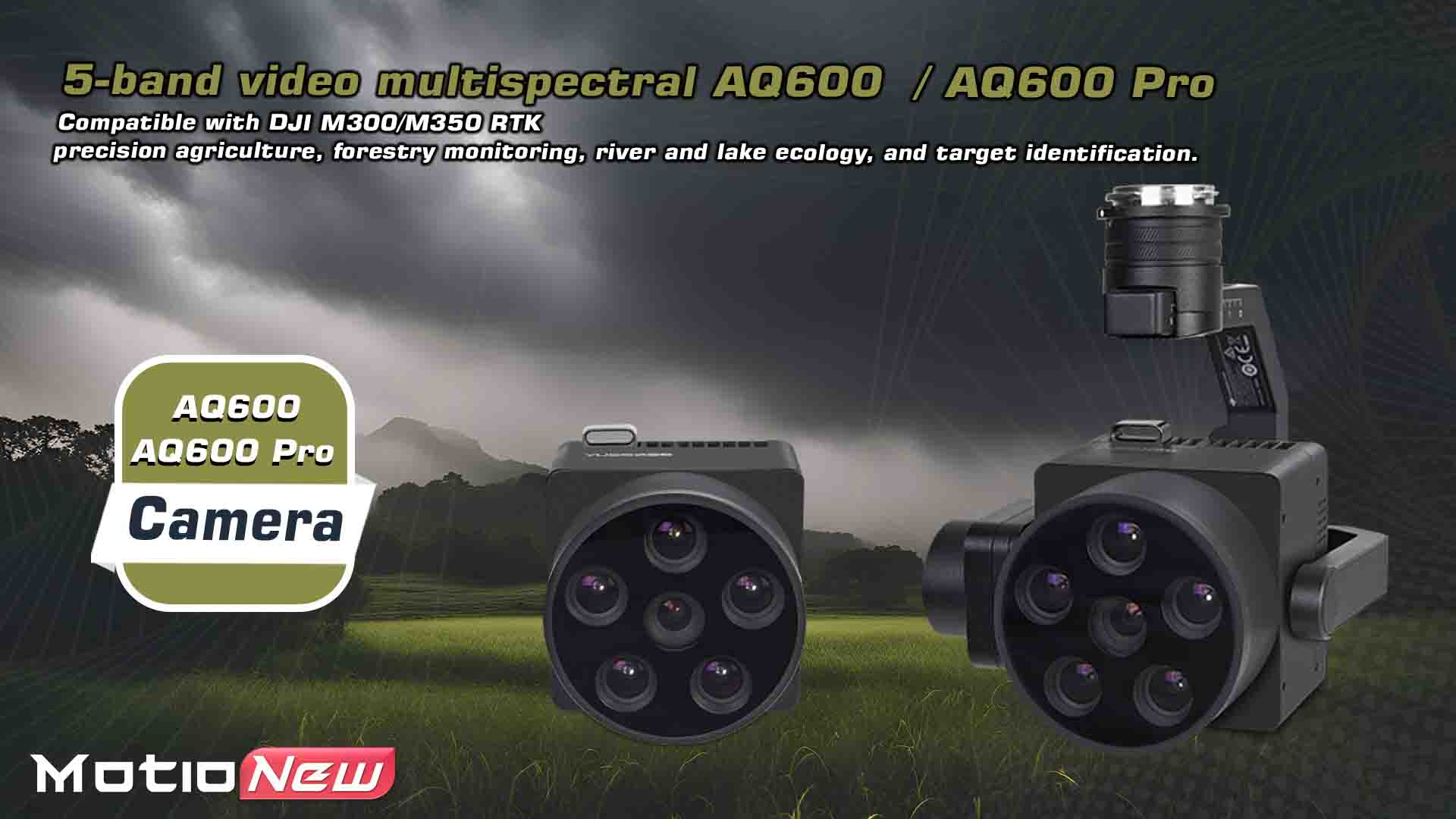

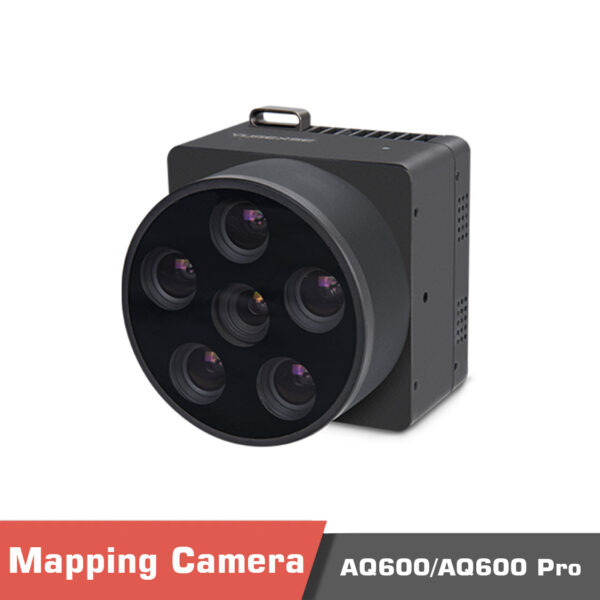

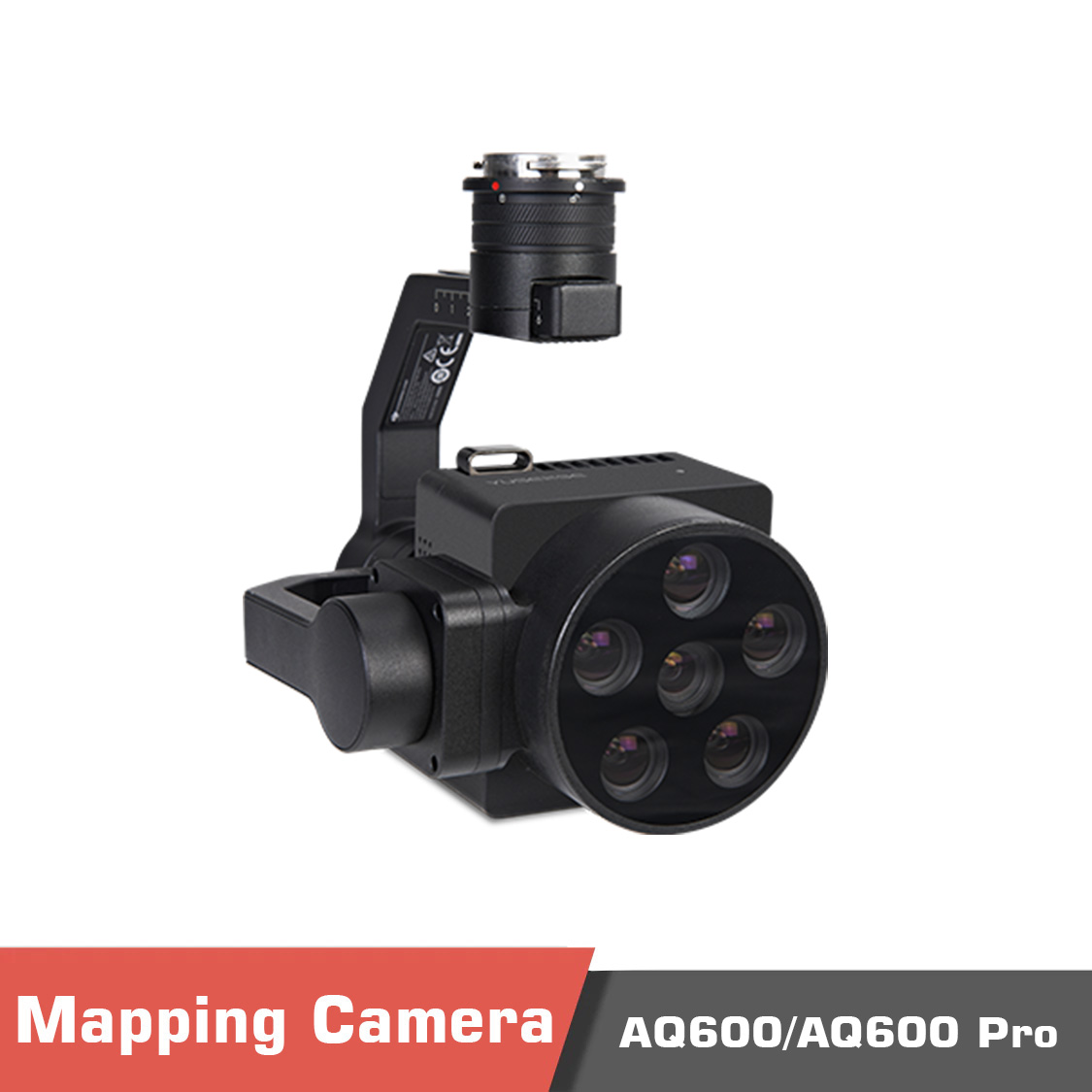

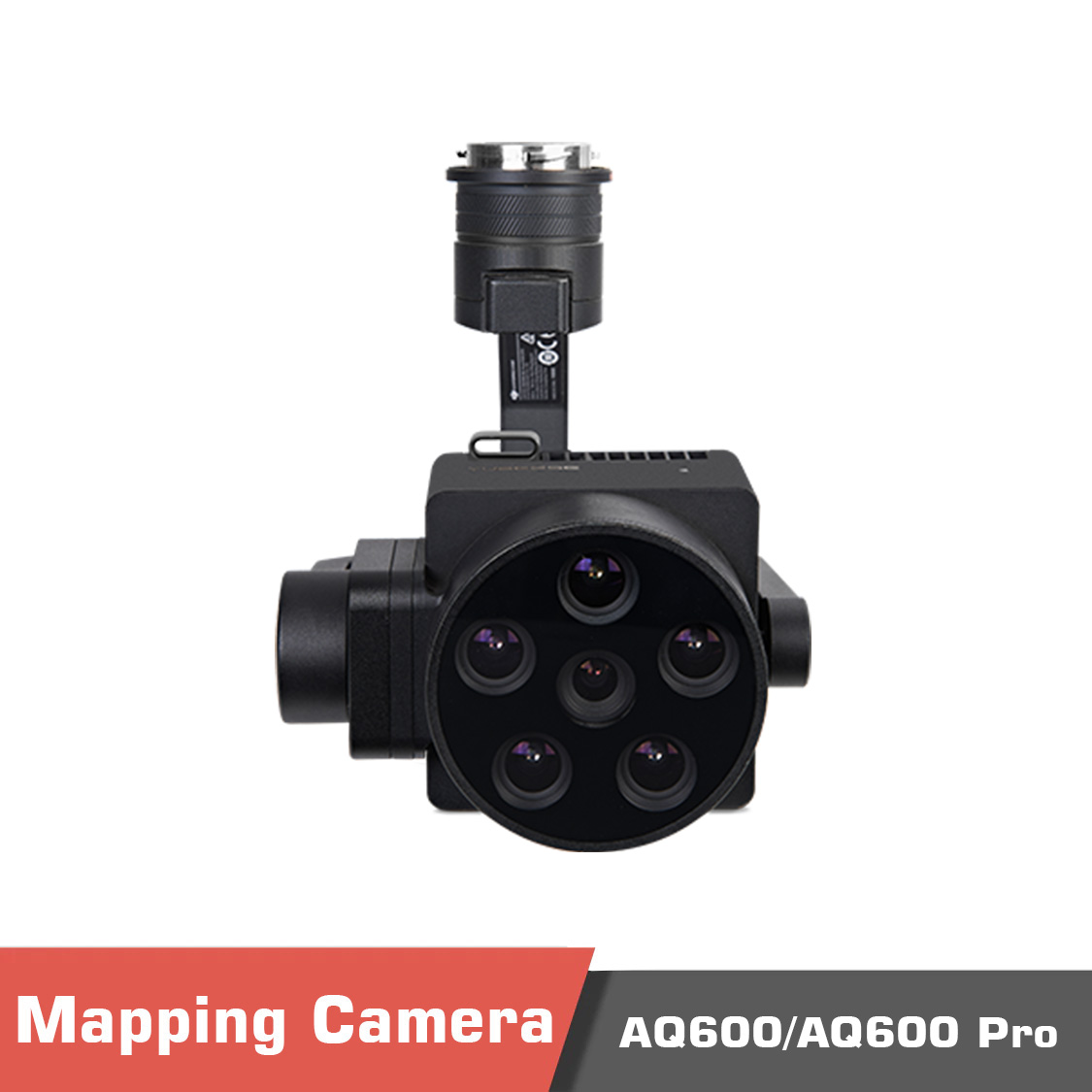

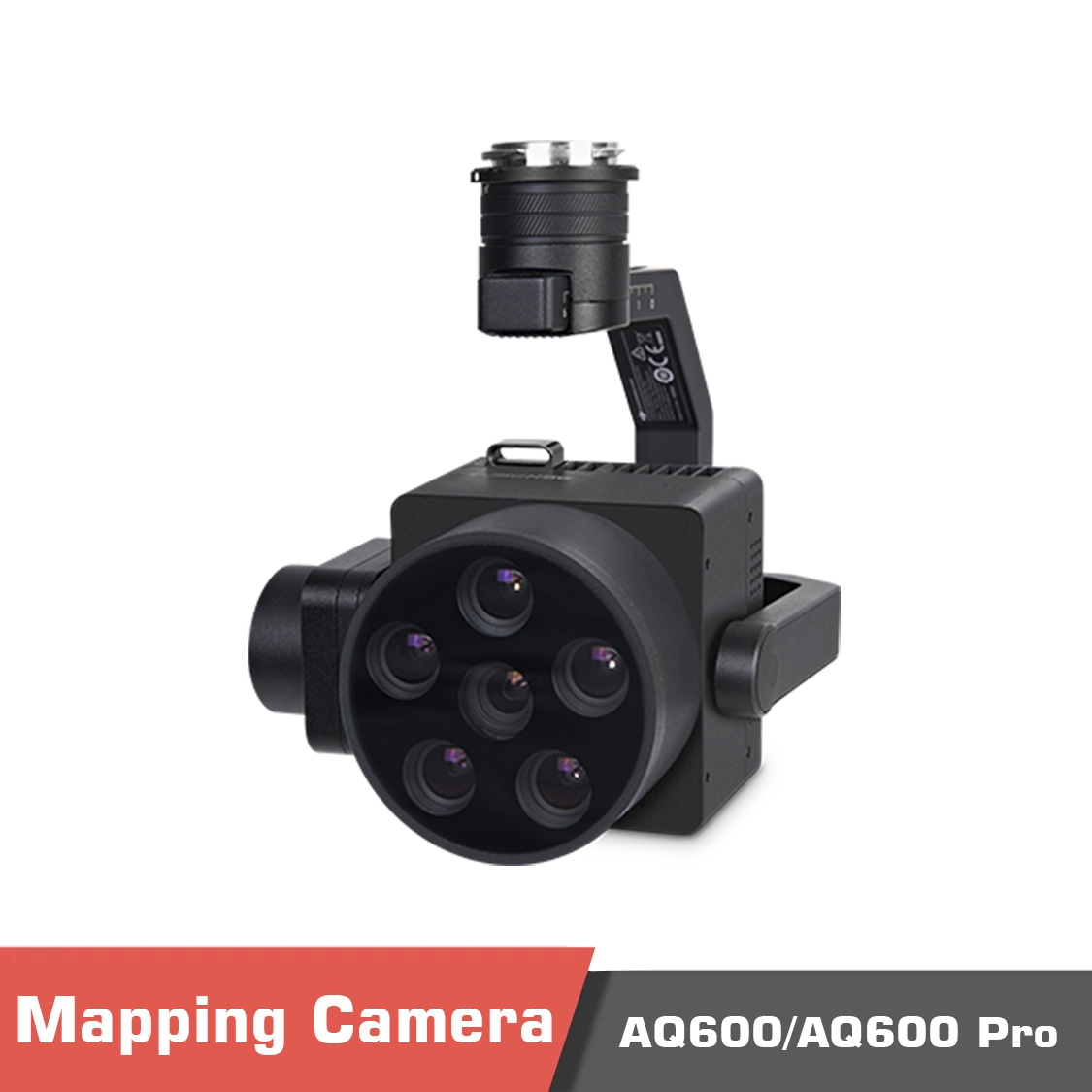

AQ600 / AQ600 Pro multispectral camera Overview

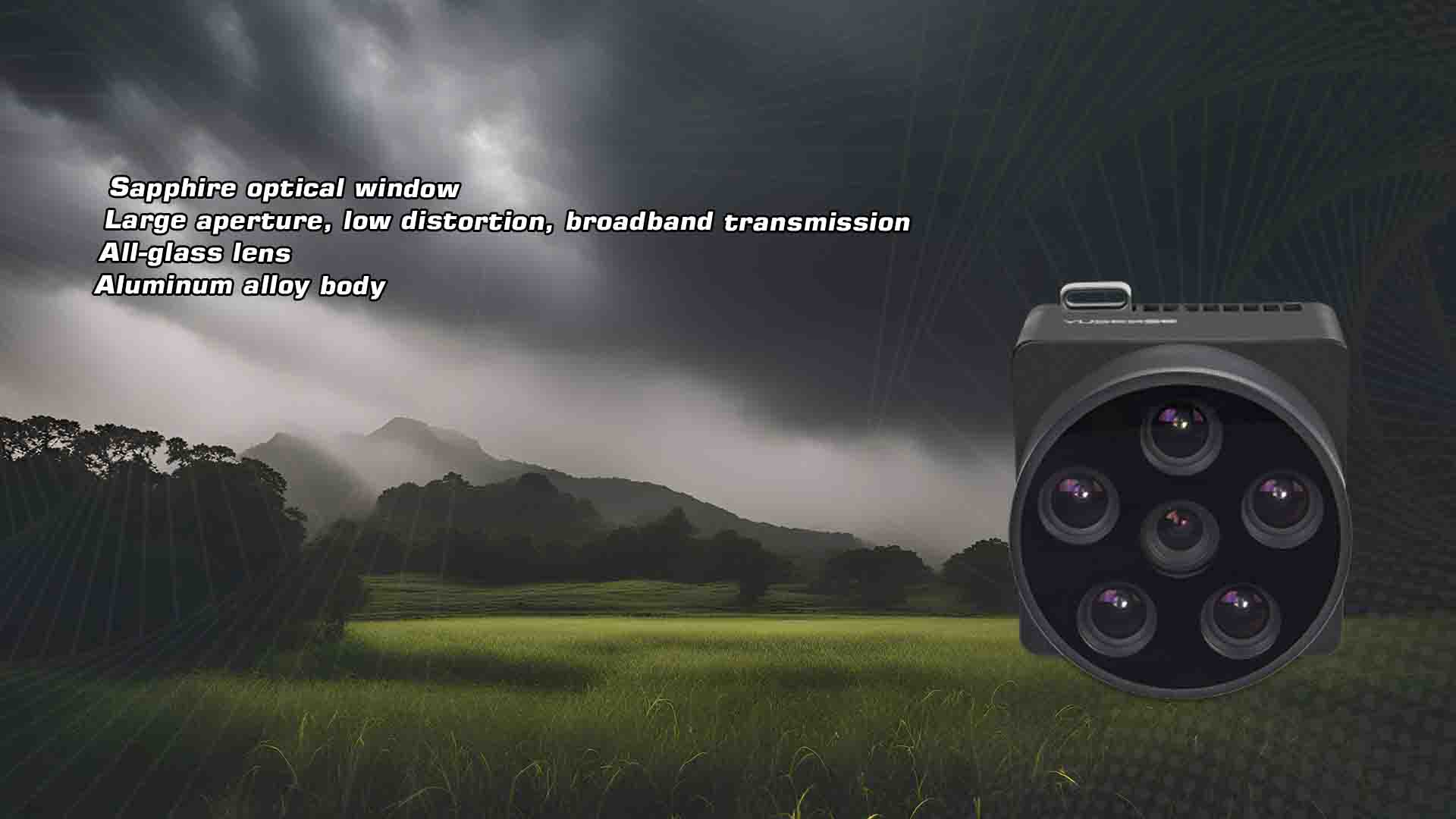

AQ600 / AQ600 Pro multispectral camera has 5 channels of 3.2M pixel multispectral sensors, with an additional 12.3M pixel RGB sensor. Equipped with sapphire optical window, large aperture, low distortion, broadband transmission, all-glass lens, and aluminum alloy body. Featuring video-level detection and result output, it meets the application needs of various industries such as precision agriculture, forestry monitoring, river and lake ecology, and target identification.
Features of AQ600 / AQ600 Pro multispectral camera

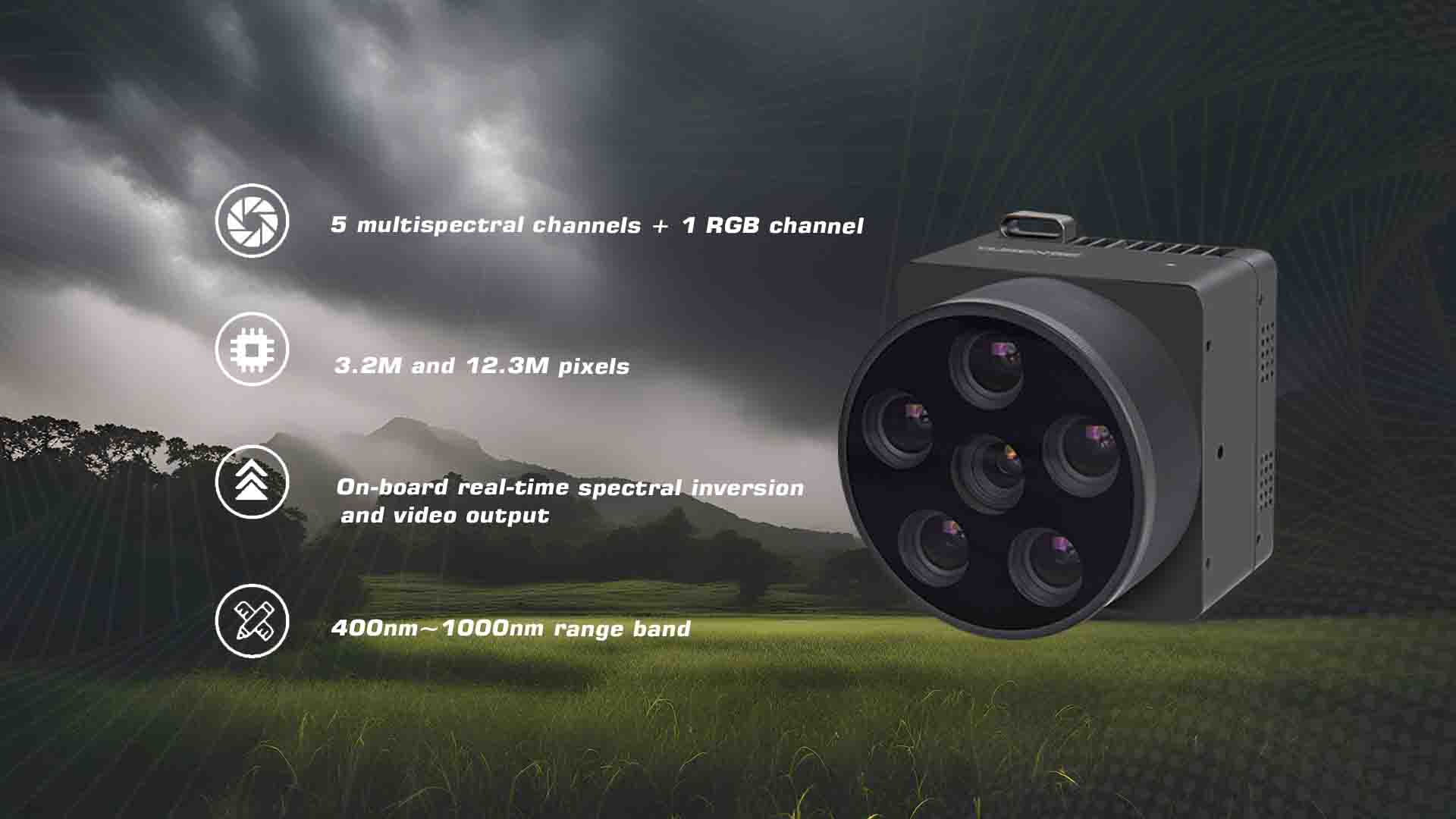

- 5 multispectral & 1 RGB
- 3.2 million & 12.3 million pixels
- 12-bit global & 8-bit rolling shutter
- DJI X-Port Control
- All channels synchronized imaging within 1 second

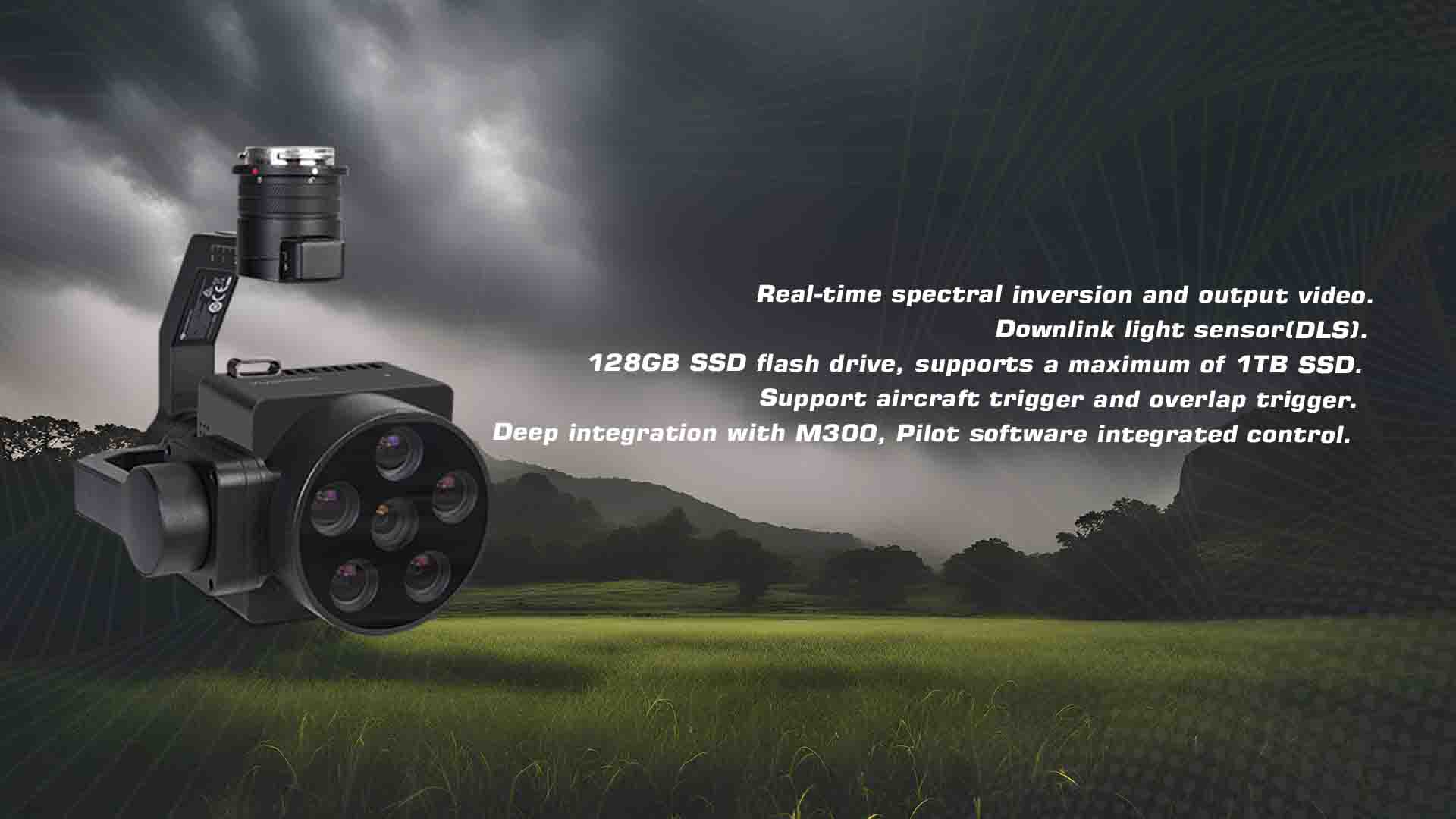

- On-board real-time spectral inversion and video output
- Standard Downlink Light Sensor (DLS)
- DJI X-Port power supply, 128G solid state USB flash drive
- Timing, overlap rate and multiple trigger modes
- DJI M300/M350 RTK UAV customization, plug and play
AQ600 / AQ600 Pro multispectral camera Overview
| Specifications |
AQ600 | AQ600 Pro |
| Combination method | 5 multispectral channels + 1 RGB channel | |
| Target size | Multispectral: 1/1.8”; RGB: 1/2.3” | |
| Effective pixels | Multispectral: 3.2Mpx; RGB: 12.3Mpx | |
| Shutter type | Multispectral: Global; RGB: Rolling | |
| Field of view | Multispectral: 48.8°×37.5°; RGB: 47.4°×36.4° | |
| Ground resolution | Multispectral: 5.28cm@h120m; RGB: 2.60cm@h120m | |
| Coverage Width | Multispectral: 109m×82m@h120m; RGB: 106m×79m@h120m | |
| Spectral channel [1] | 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm,840nm@30nm, RGB | |
| Shooting frequency | Photo mode: 1Hz (related to the actual read and write speed of the storage medium); Video mode: 20Hz | |

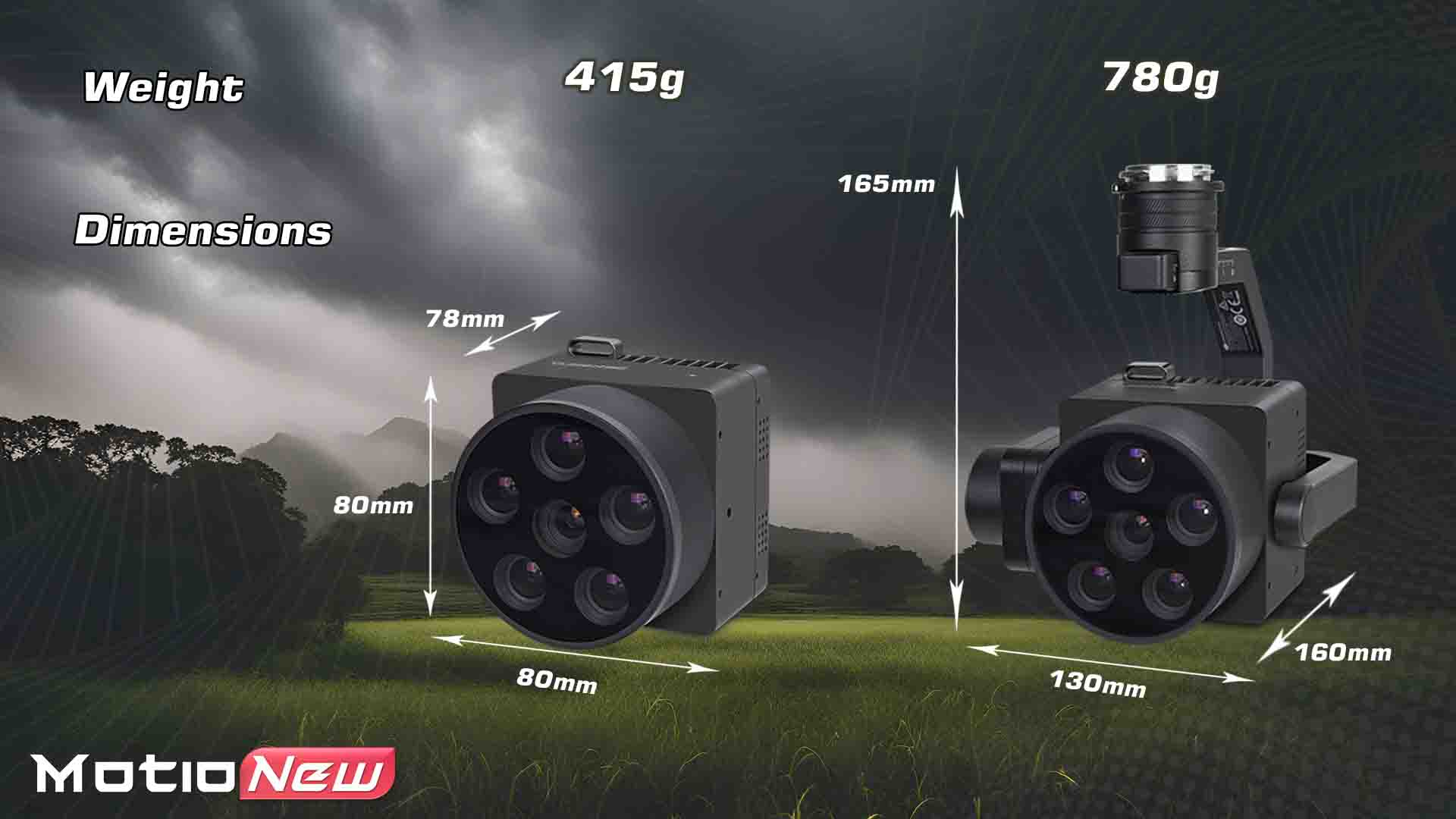

| Host size | ≤80mm×80mm×78mm | ≤130mm×160mm×165mm (optical axis vertical to the ground) |
| Host weight | ≤415g | ≤780g |
| Mounting interface | 8×M3 | X-Port |
| Parameter settings | WIFI (WEB interface access)/Ethernet/UART | DJI Pilot |
| Shooting trigger | External trigger, timing trigger, overlap rate trigger | Overlap rate trigger, timing trigger |
For a comprehensive reading of Gimbal camera, please visit the Motionew website.
FAQ – AQ600 / AQ600 Pro Multispectral Camera
1. What spectral bands does the AQ600 / AQ600 Pro capture?
The system includes 5 multispectral channels with 3.2 MP resolution each, along with an additional 12.3 MP RGB sensor for true-color imaging.
2. How fast is the image capture and synchronization process?
All channels can capture synchronized images within 1 second, ensuring precise data collection for mapping and monitoring missions.
3. What integration options are available with drone platforms?
The camera supports DJI X-Port control and power supply, features onboard real-time spectral inversion, and provides video output for direct monitoring.
4. What payment options are supported for purchasing this camera?
Purchases can be made using major credit cards, PayPal, and bank transfers.
5. Is OEM customization available for large projects?
Yes. OEM services are available for enterprise clients needing tailored multispectral imaging solutions.
6. Are technical documents and software tools provided with the camera?
Yes. Customers have access to datasheets, installation manuals, and spectral processing documentation to support integration and field use.
Specifications
Specifications

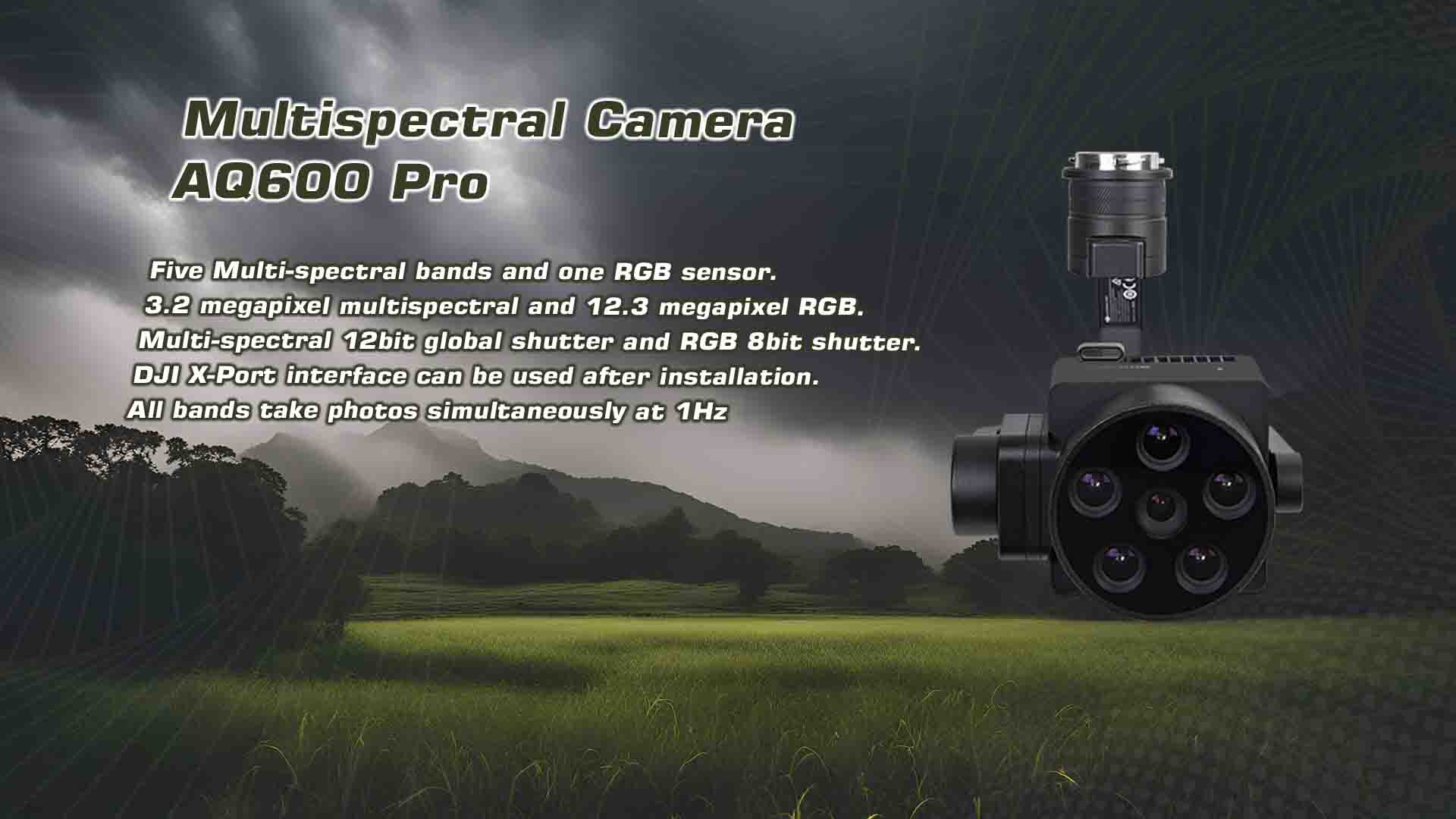

| AQ600 Pro Specifications | |
| Combination method | 5 multispectral channels + 1 RGB channel |
| Target size | Multispectral: 1/1.8”; RGB: 1/2.3” |
| Effective pixels | Multispectral: 3.2Mpx; RGB: 12.3Mpx |
| Shutter type | Multispectral: Global; RGB: Rolling |
| Quantization bit number | Multispectral: 12bit; RGB: 8bit |
| Field of view | Multispectral: 48.8°×37.5°; RGB: 47.4°×36.4° |
| Ground resolution | Multispectral: 5.28cm@h120m; RGB: 2.60cm@h120m |
| Coverage Width | Multispectral: 109m×82m@h120m; RGB: 106m×79m@h120m |
| Spectral channel [1] | 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm,840nm@30nm, RGB |
| Optical Window | Sapphire optical glass window |
| Host size | ≤130mm×160mm×165mm (optical axis vertical to the ground) |
| Host weight | ≤780g |
| Mounting interface | X-Port |
| powered by | X-Port |
| Power consumption | ≤35W |
| Image Format | Multispectral: 16-bit raw TIFF & 8-bit reflectance JPEG RGB: 8-bit JPEG (including GPS, ambient light information) |
| Video Format | MP4 |
| Storage Media | Standard 128G, maximum support 2T USB3.1 storage device |
| Processing software | Yusense Map/Yusense Map Plus |
| Parameter settings | DJI Pilot |
| Shooting trigger | Overlap rate trigger, timing trigger |
| Shooting frequency | Photo mode: 1Hz (related to the actual read and write speed of the storage medium); Video mode: 20Hz |
| Operating temperature | -10℃~+50℃(Relative wind speed≥1m/s) |
| Storage environment temperature | -30℃~+70℃ |
| Ambient humidity | RH(%)≤85%(non-condensing) |
| Product Certification | CE, FCC, RoHS |

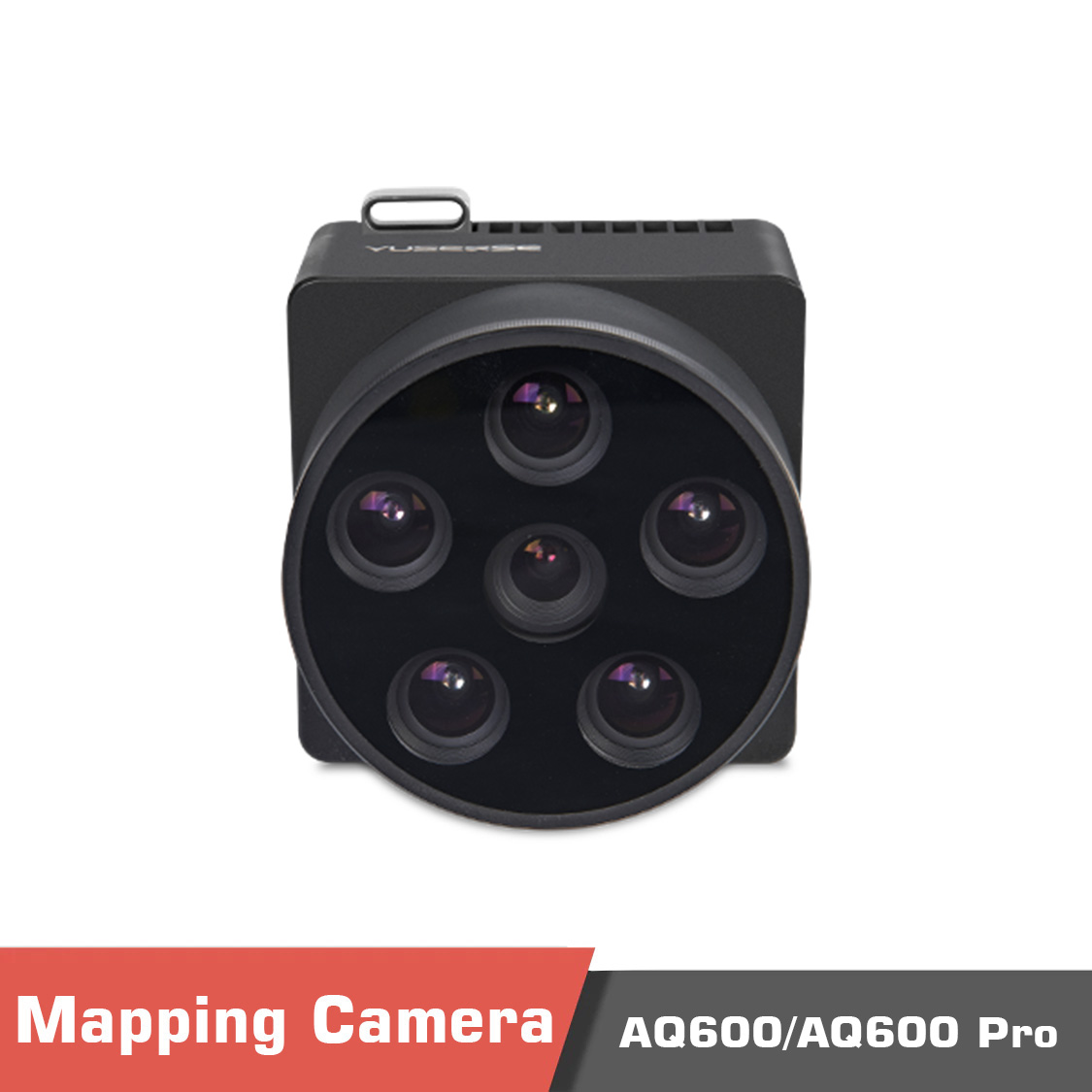

| AQ600 Specifications | |
| Combination method | 5 multispectral channels + 1 RGB channel |
| Target size | Multispectral: 1/1.8”; RGB: 1/2.3” |
| Effective pixels | Multispectral: 3.2Mpx; RGB: 12.3Mpx |
| Shutter type | Multispectral: Global; RGB: Rolling |
| Quantization bit number | Multispectral: 12bit; RGB: 8bit |
| Field of view | Multispectral: 48.8°×37.5°; RGB: 47.4°×36.4° |
| Ground resolution | Multispectral: 5.28cm@h120m; RGB: 2.60cm@h120m |
| Coverage Width | Multispectral: 109m×82m@h120m; RGB: 106m×79m@h120m |
| Spectral channel [1] | 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm,840nm@30nm, RGB |
| Optical Window | Sapphire optical glass window |
| Host size | ≤80mm×80mm×78mm |
| Host weight | ≤415g |
| Mounting interface | 8×M3 |
| powered by | 12V (Please consult Yuchen marketing staff for other voltages) |
| Power consumption | ≤16W@12V |
| Image Format | Multispectral: 16-bit raw TIFF & 8-bit reflectance JPEG; RGB: 8-bit JPEG (including GPS, ambient light information) |
| Video Format | MP4 |
| Storage Media | Standard 128G, maximum support 2T USB3.1 storage device |
| Processing software | Yusense Map/Yusense Map Plus |
| Parameter settings | WIFI (WEB interface access)/Ethernet/UART |
| Shooting trigger | External trigger, timing trigger, overlap rate trigger |
| Shooting frequency | Photo mode: 1Hz (related to the actual read and write speed of the storage medium); Video mode: 20Hz |
| Operating temperature | -10℃~+50℃(Relative wind speed≥1m/s) |
| Storage environment temperature | -30℃~+70℃ |
| Ambient humidity | RH(%)≤85%(non-condensing) |
| Product Certification | CE, FCC, RoHS |
