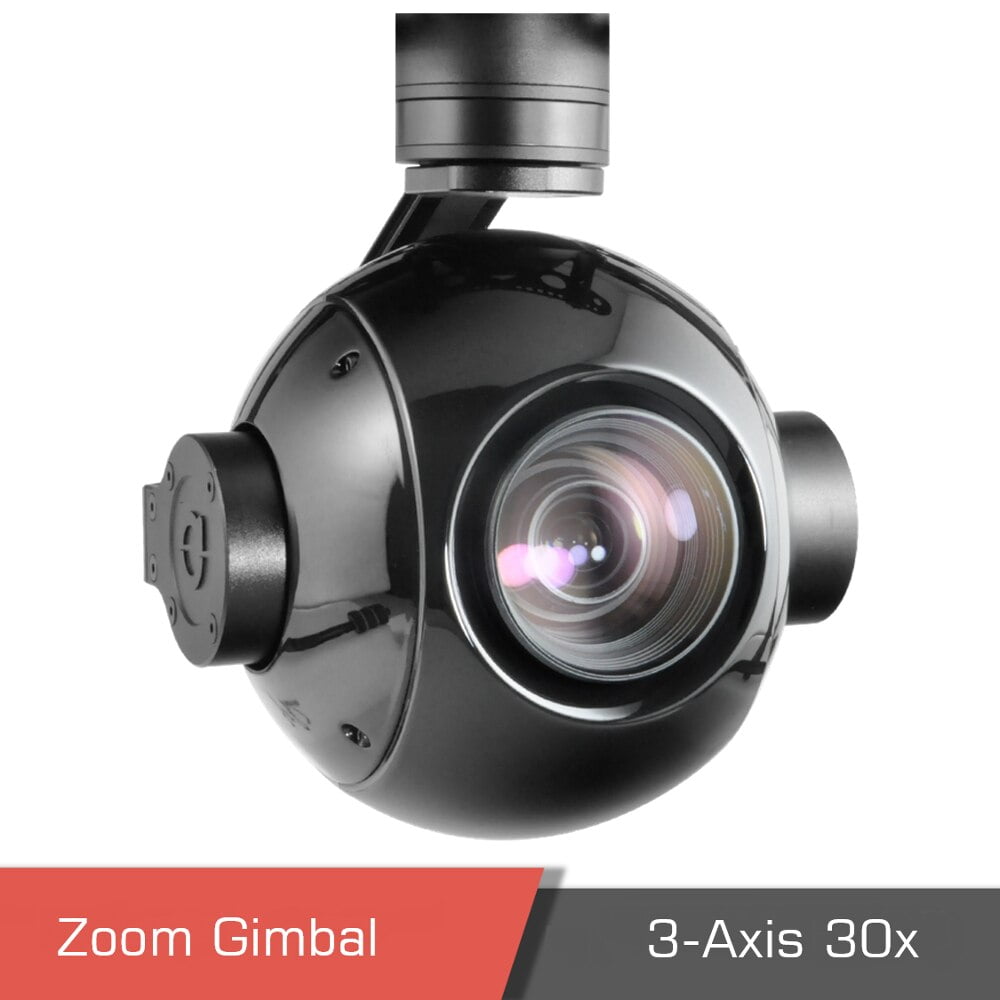

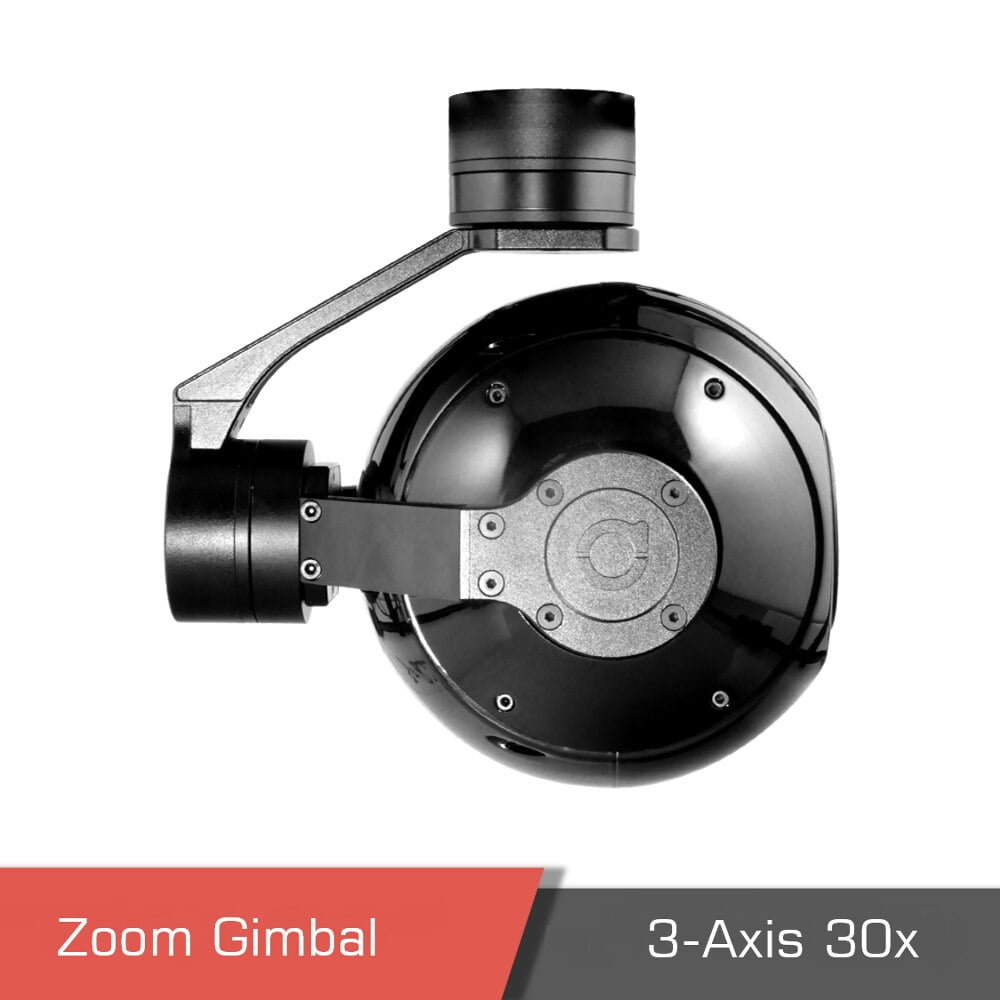

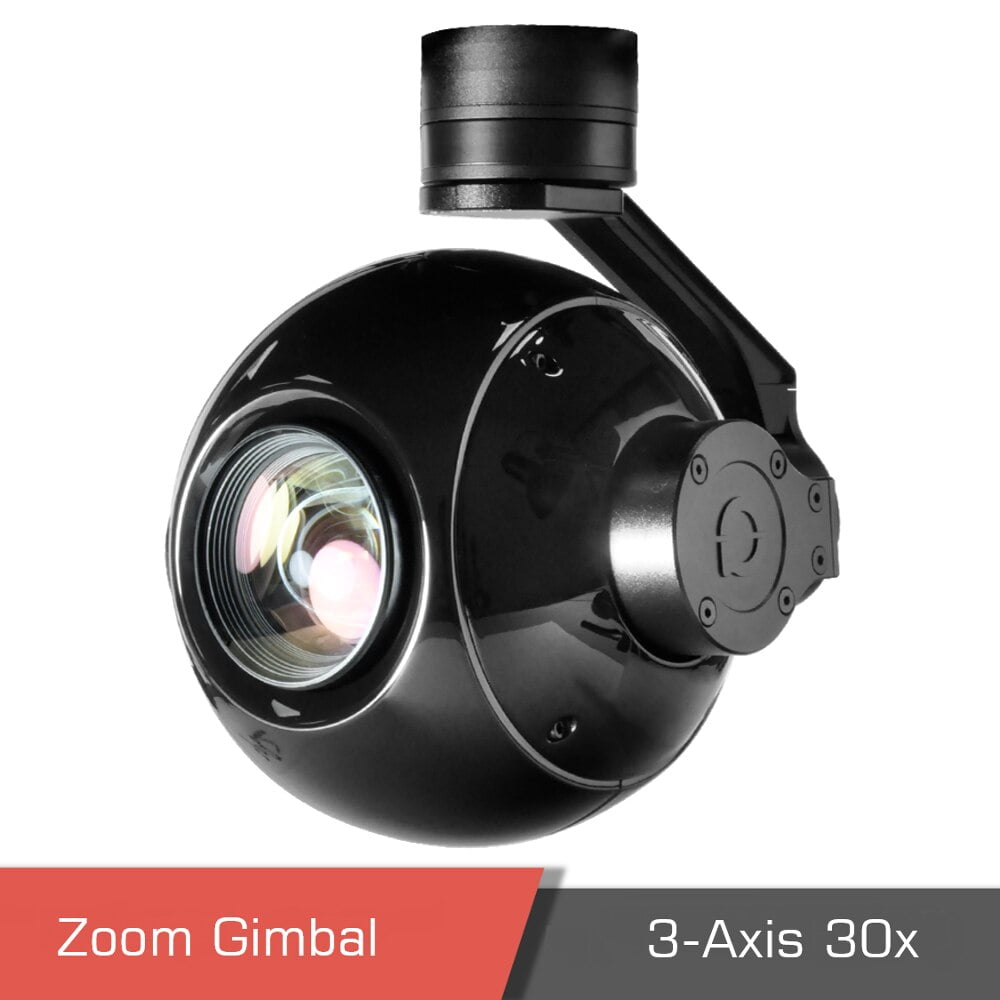

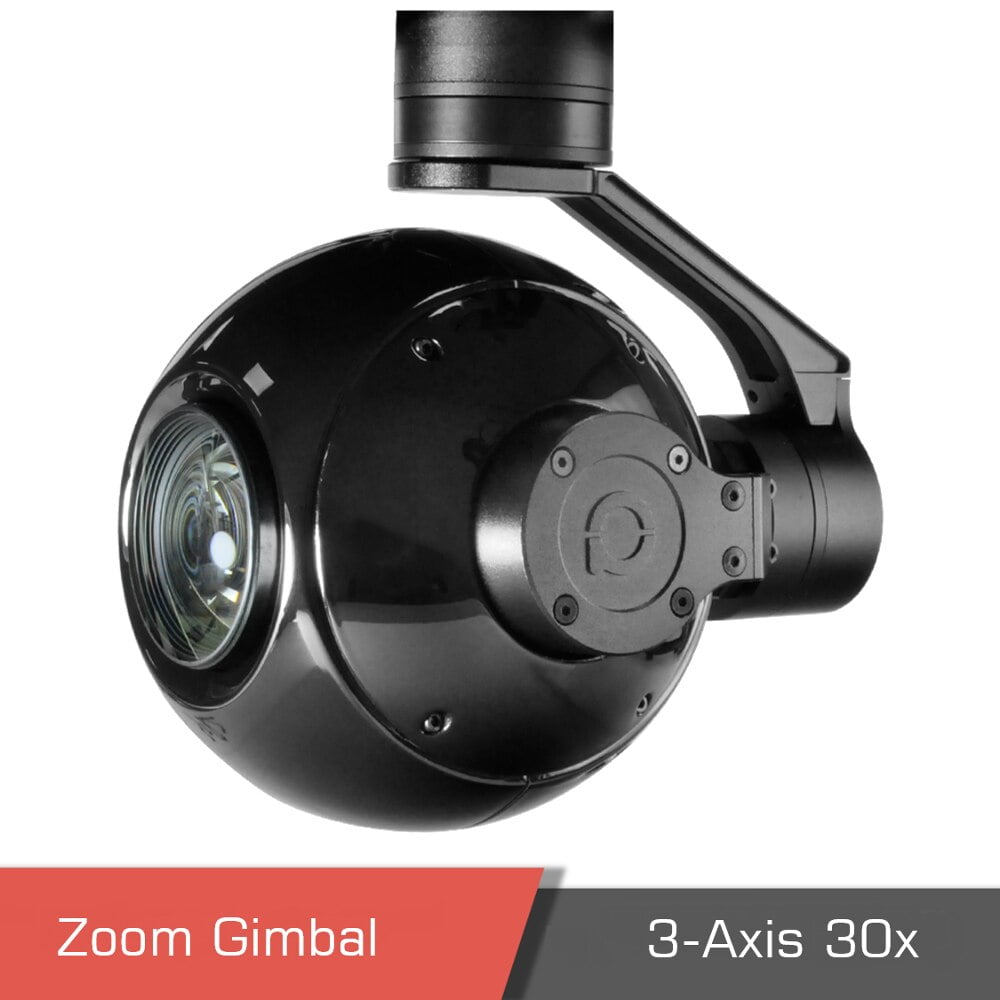

Drone 30x Zoom Gimbal Q30F

3306.60 $

Out of stock

Description

Professional 3-axis High-precise FOC Program in Gimbal Q30F

There is no doubt that the Gimbal Q30F is a highly optimized 3-axis camera gimbal with the pinpoint accuracy of motor rotation, a control accuracy of *0.02°, and a dedicated processor. In order to ensure a more stable data transmission and greater durability, the Q30F features a unique mechanically limited design and hidden wires. By using four damping balls and a lightweight damping board, vibrations can be eliminated from the video, creating a smooth, seamless video. Despite the fact that gimbal rotation continues to be possible, 300° rotation is still possible.

30x Optical Zoom Camera

Even at high speeds, it is possible to capture stable, smooth footage images. It is designed for UAV aerial photography and has 4 Mega effective pixels, a 30x optical autofocus setting, HD 1080p video, a fast autofocus speed, as well as a small size.



Q30f - gimbal q30f,payload q30f,30x zoom gimbal,gimbal camera,30x zoom,payload camera - motionew - 4

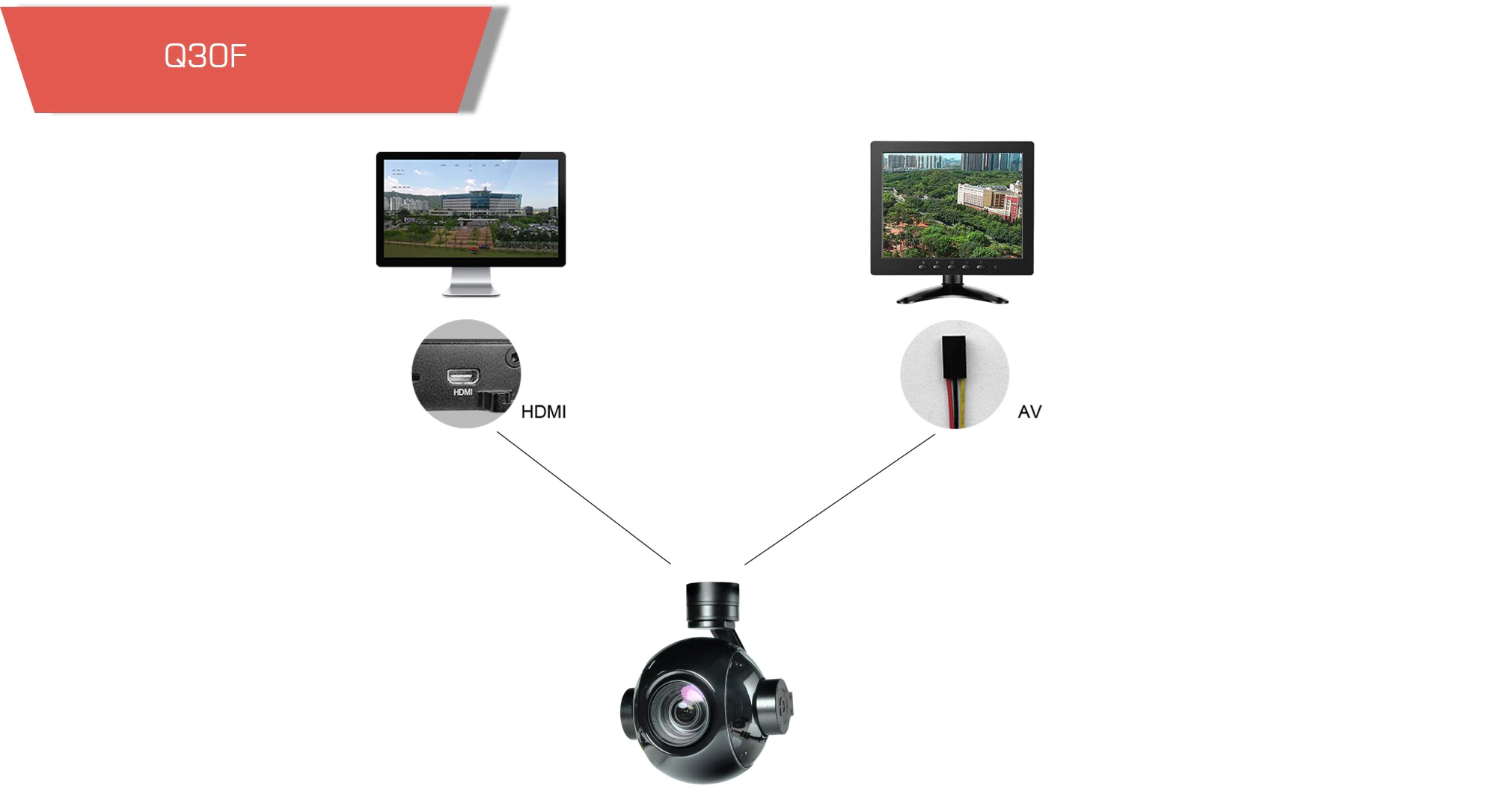

Multi Output Methods Optional in Gimbal Q30F

The Q30F support HDMI and AV output. HDMI is 1080P and AV output is 720p.

Q30f2 - gimbal q30f,payload q30f,30x zoom gimbal,gimbal camera,30x zoom,payload camera - motionew - 5

Multi Control Methods of Gimbal Q30F

Default PWM and Serial port TTL control. SBUS is optional. With Viewpro software Viewlink you can fulfill TTL control.

Q30f3 - gimbal q30f,payload q30f,30x zoom gimbal,gimbal camera,30x zoom,payload camera - motionew - 6

Control box signal interfaces:

Q30f4 - gimbal q30f,payload q30f,30x zoom gimbal,gimbal camera,30x zoom,payload camera - motionew - 7

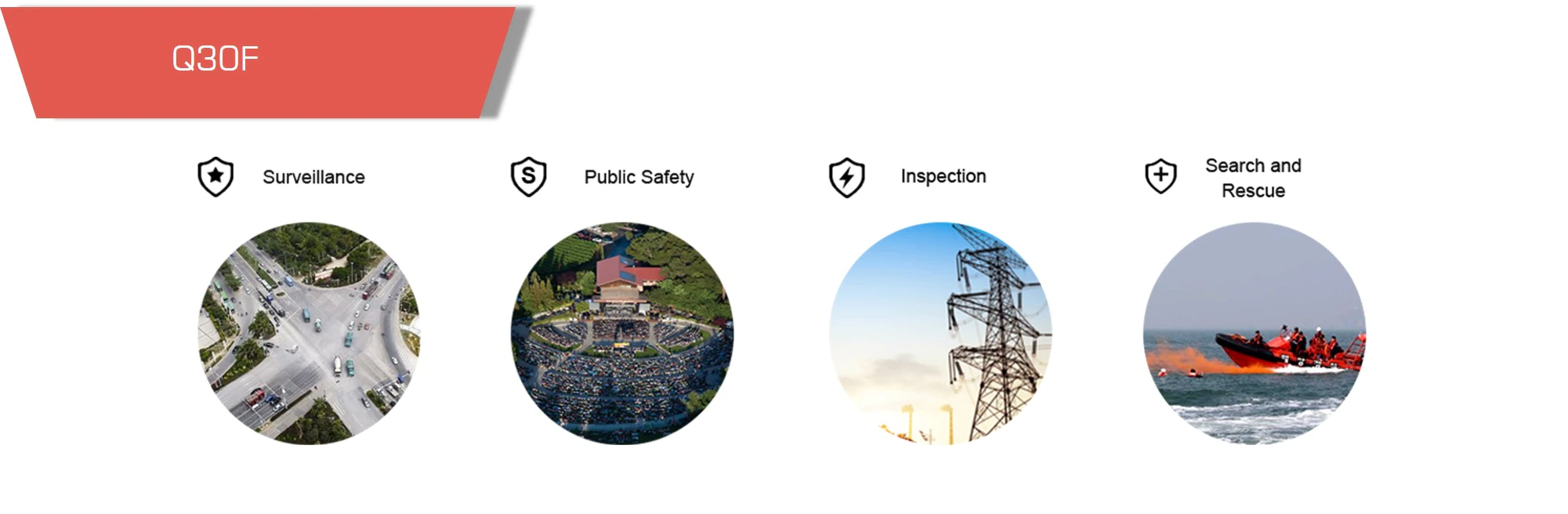

Applications

This 30x zoom gimbal Q30F has been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.

Q30f5 - gimbal q30f,payload q30f,30x zoom gimbal,gimbal camera,30x zoom,payload camera - motionew - 8

Compatible with Viewport

This payload camera Q30F is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Q30f5i - gimbal q30f,payload q30f,30x zoom gimbal,gimbal camera,30x zoom,payload camera - motionew - 9

Additional information

Weight 0.670 kg
Dimensions 13 × 15 × 16 cm

Specifications

Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 450mA @ 12V
Idle current 330mA @ 12V
Power consumption ≤5.4W
Working environment temp. -20℃ ~ +60℃
Output micro HDMI (HD output 1080P 60fps) / Analog
Local-storage SD card (Up to 32G, class 10, FAT32 or ex FAT format)
Control method PWM /S.bus/TTL



Gimbal Spec
Angle range of structure design Pitch/Tilt: -50°~110°, Roll: ±70°, Yaw/Pan: ±300°
Angle range of software design Pitch/Tilt: -40°~90°, Yaw/Pan: ±290°
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center



Camera spec
Imager Sensor 1/3inch CMOS
Total pixel 4MP
Effective pixel 2688*1520
Dynamic range 65dB
Lens 5MP
Optical zoom 30x, F=4.5~135mm
Min object distance 1.5M
Viewing angle Horizontal: 59.8°(Wide end) ~ 2.77°(Tele end)
Vertical: 40.5°(wide end) ~ 1.48°(tele end)
Focus: 66.6°(wide end) ~ 7.2°(tele end)
Sync system Progressive scanning
Local video 1080P 30fps local TF card
HD output 1080P/720/480P 60fps HDMI1.4
AV output Standard CVBS 1Vp-p
S/N ratio 38dB
Min illumination Color [email protected]
Backlight compensation Backlight compensation/strong light inhibition
Gain Auto
White balance Auto/Manual
Shutter speed Auto
Control system UART/IR/PWM
Communication protocol PELCO-D, Hitachi protocol or VISCA
Focus Auto/Manual/One-time automatic focus
Focus speed 2s
Lens initialization Built-in
User presetting bit 20 sets
Image rotation 180°, Horizontal/Vertical mirror image
OSD Not support
photo format JPEG
Video format MP4



Packing Information
N.W. 670g
Product meas. 121*147*154.8mm

Product contents

Product contents

Documents

Datasheet
