Drone Winch with 30m Rope and Hook for Delivery Pick up
2,800.00 $ – 3,150.00 $
Payment Methods:
Description
Industrial quality of Drone Winch
Choose the industry’s highest strength dinima rope, high strength and toughness, configure the reciprocator for uniform winding and unwinding, attach a gravity hook to the mechanical design, not easily decoupled, and make certain that the rope is collected and released safely.
Convenient power supply mode with Drone Winch Integration
As soon as the end of the power supply line is connected to the 24v interface on the delivery rope and the parallel head of the XT30 on the other end, dock the XT30 head with the X30 master head under the aircraft and the power supply link is complete.
M600 winch quick demolition and hanger design
This high precision universal design can be used on the same platform as the other modules of the company’s general hand screw and the fixed buckle design, allowing for easy installation without the need for tools. Aviation aluminum is utilized to manufacture the hanger through CNC processing and sand blasting anode polarization treatment, providing high precision, corrosion resistance, and wear resistance. The design of the card slot and spring lock button allows for a fast load, the installation of the card slot and spring lock button only requires a gentle push of the spring lock to complete the rope lock, ensuring a double layer of safety and reliability. Remove just press the spring latch and gently push the drop rope to remove the drop rope, convenient and fast.
Drone Winch with Hook and Pick Up Functionality Applications
Your drone winch can be combined with other industry tool modules, such as electric inspection, manipulator, water intake modules, etc. different combinations for drone winch can apply to: public security, fire fighting, power rack and power inspection, material back and forth transportation, disaster relief and rescue supplies in isolated areas.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
| Winch Specification | |
| Size | 200x105x145mm |
| Outer packing box | 305x269x195mm |
| Weight | 1.05KG |
| Installation mode | Quick Disassembly |
| Working voltage | 12V or 24V (depends on the version) |
| Motor type | Brush DC motor |
| Motor power | 22W |
| Motor revolution | 6000 rpm |
| Output revolution | 120 rpm |
| Reduction ratio | 1:50 |
| Speed | 10m / minutes |
| Length of Rope | 30M |
| Control mode | independent remote control |
| Signal mode | PWM signal |
| Control distance | 800m (without blocking) |
| Max. payload | 5kg / 10kg |
| Remote Control Specification | |
| Size | 180x82x161mm |
| Weight | 392g |
| Input power | 1.5AAx4 |
| Data output | PS2 interface PPM |
| Frequency range | 2.4055-2.475GHZ |
| Band width | 500KHZ |
| Transmitter power | ≤20dBm |
| Low voltage alarm | <4.2V |
| Antenna length | 26mmx2 (dual antenna) |
| Display mode | STN transflective positive, 128×64 dot matrix VA73x39mm LED white backlight |

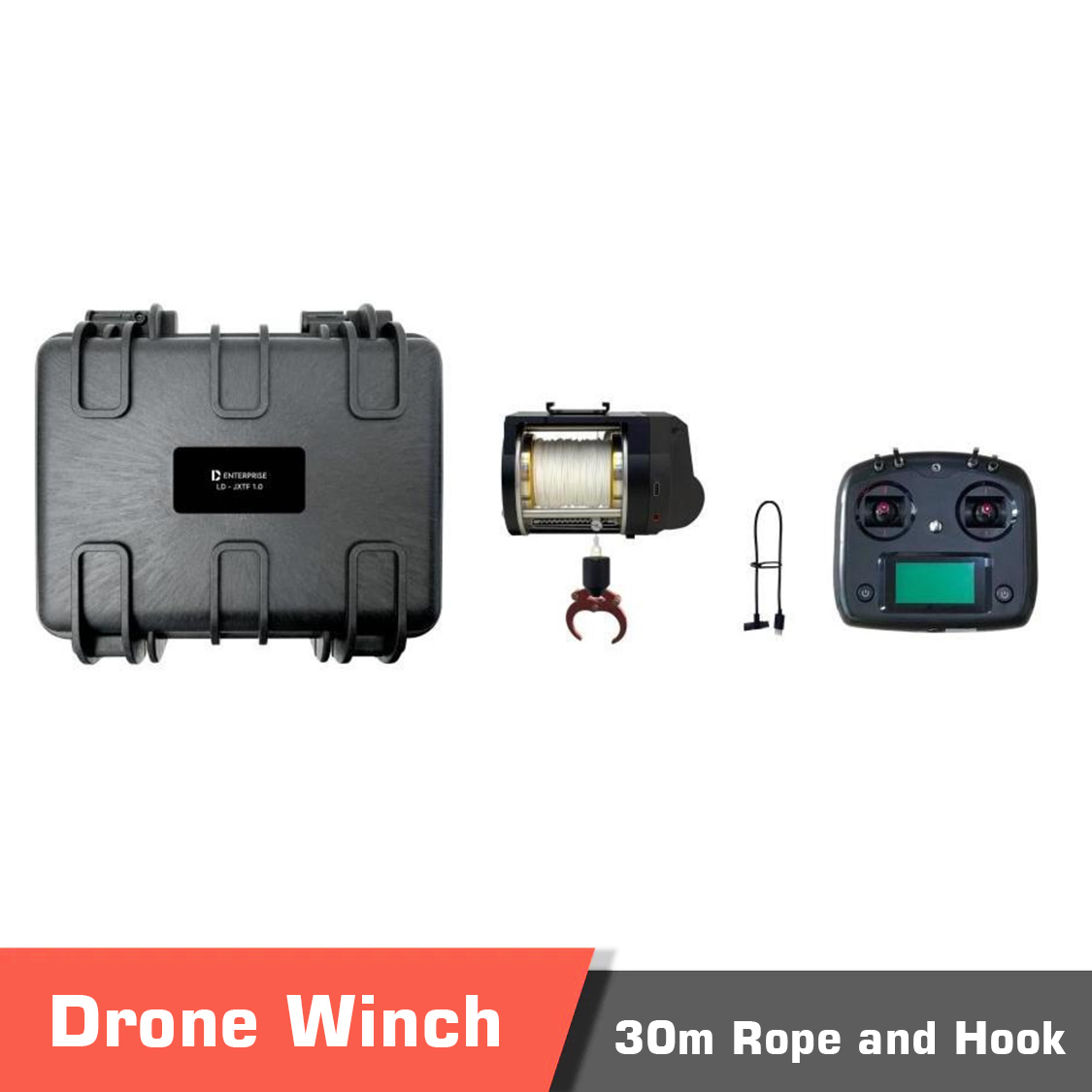

Product contents
Product contents
1x Drone Winch (5kg or 10kg)
1x RC controller
1x USB cable
1x Carry case
Documents
Reviews
7 reviews for Drone Winch with 30m Rope and Hook for Delivery Pick up
Clear filters| Max. Payload Capacity |
5kg drone winch ,10kg drone winch |
|---|
Related Products
Q30TIRM Pro 3-axis Gimbal Camera
In stock
25,195.00 $ – 25,450.00 $
Select options
This product has multiple variants. The options may be chosen on the product page
XD-10 10kg payload winch
In stock
2,900.00 $ – 3,200.00 $
Select options
This product has multiple variants. The options may be chosen on the product page
ZYE Power Ultra HV battery 6s 32000mAh-Semi Solid-State Battery
In stock
Original price was: 405.00 $.360.00 $Current price is: 360.00 $.
Liam Turner –
Il prodotto ha superato le mie aspettative.
Emma Johnson –
Is the winch compatible with DJI M600 series drones? We’re considering it for our fleet and want to ensure seamless integration.
Store manager Jack Lou –
yes, it can support the M600 channel expansion function (if you need this function, please contact MotioNew sales team first)
Liam Smith –
Easy installation. The quick disassembly design made it simple to attach to our drones. The build quality is top-notch.
Olivia Brown –
“Smooth operation. The reciprocator ensures the rope winds evenly, preventing tangles. The gravity hook is secure and hasn’t failed us yet.
Noah Williams –
Can the winch be controlled via PWM signals from our flight controller, or is it strictly manual remote control?
Store manager Jack Lou –
By default, it comes with an RC controller and a receiver connected to the winch with PWM signals. You can disconnect the RC receiver, and connect the output PWM channels from your flight controller. Make sure to configure the channels on your flight controller.
Elijah Davis –
What’s the maximum payload capacity? We have varying delivery weights and need to know the limits.
Store manager Jack Lou –
It has both 5kg and 10kg max. payload options. If you need more payload capacity, you can check this product: https://www.motionew.com/shop/gimbal-and-payload/delivery-lighting/eayload-winch-drone-transport-system/ which has max 50kg payload.
Isabella –
Is there an option for a longer rope, say 50 meters, for higher altitude deliveries?
