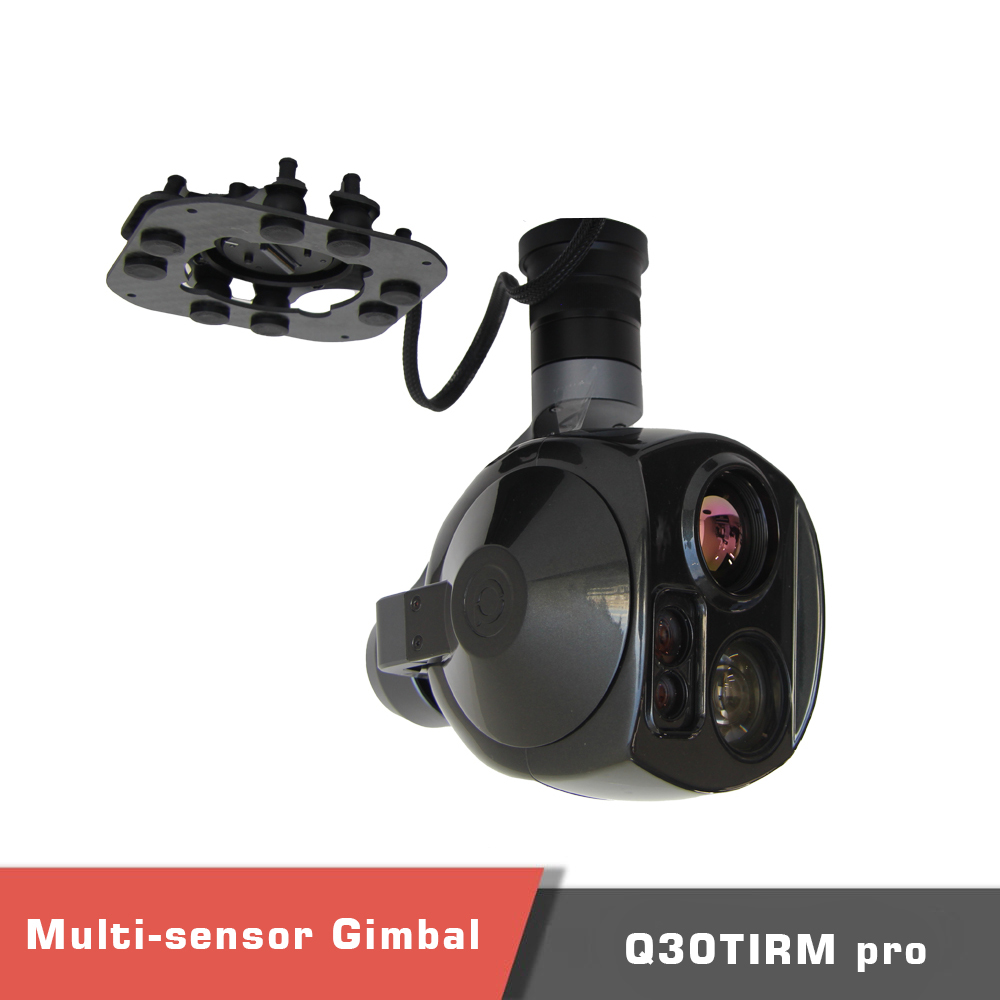

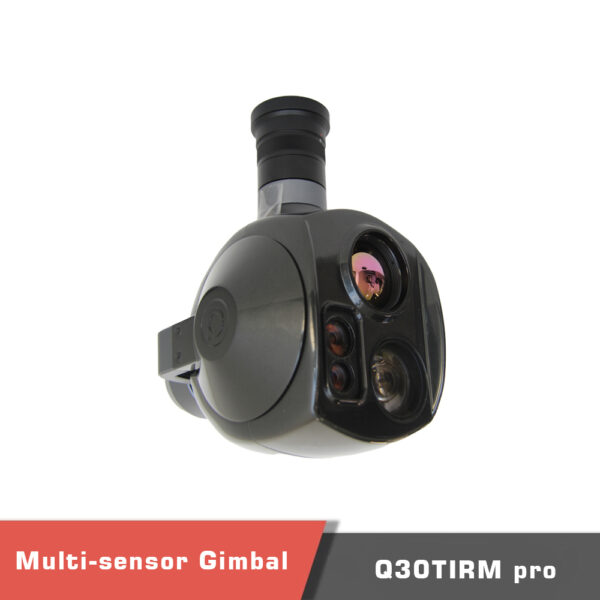

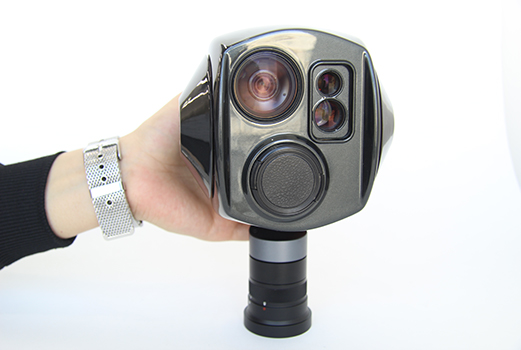

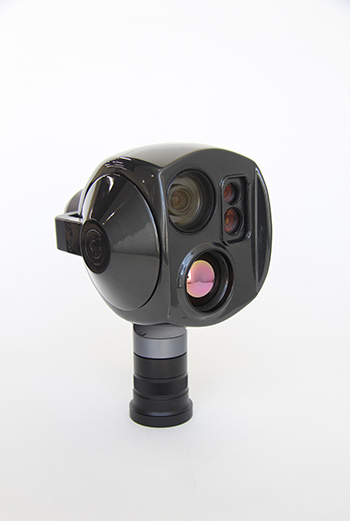

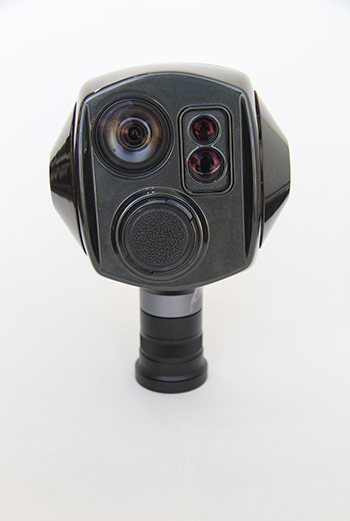

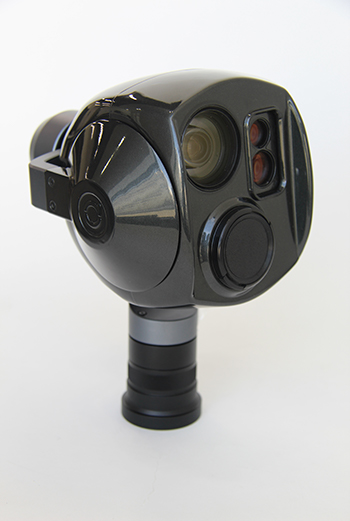

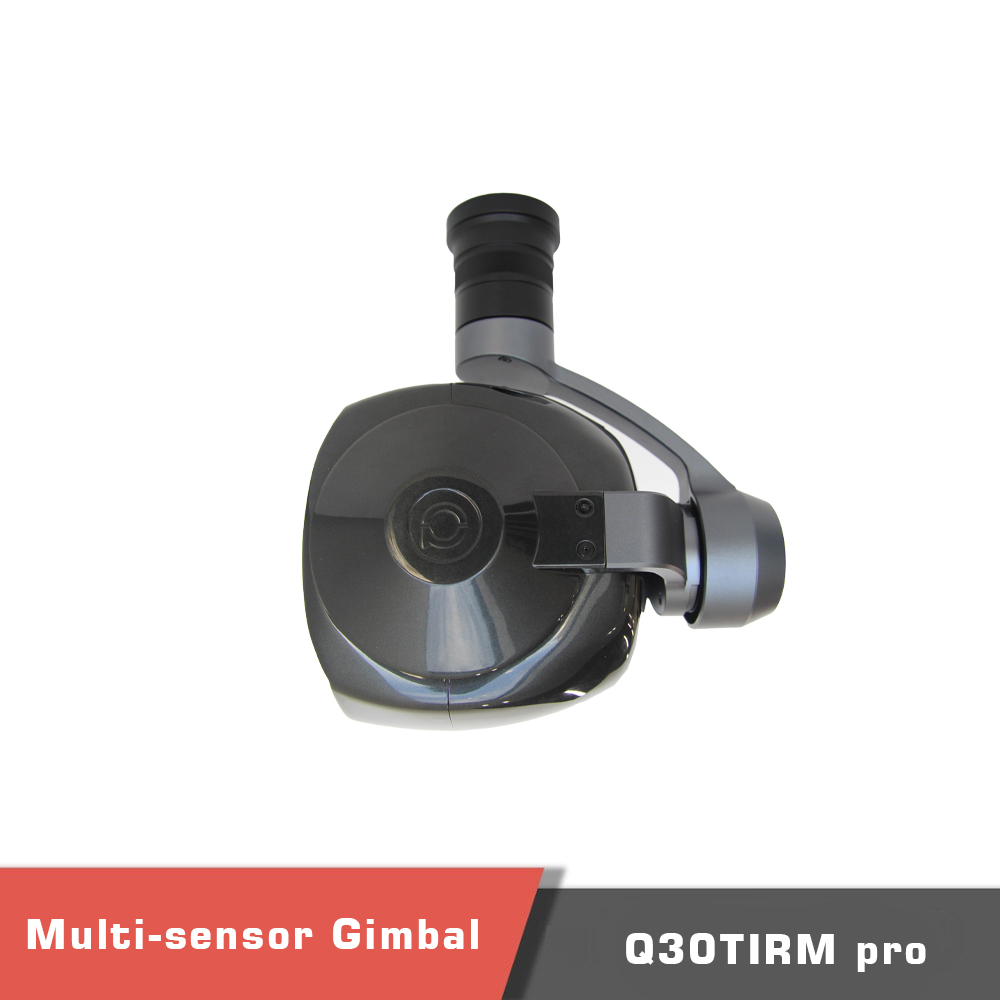

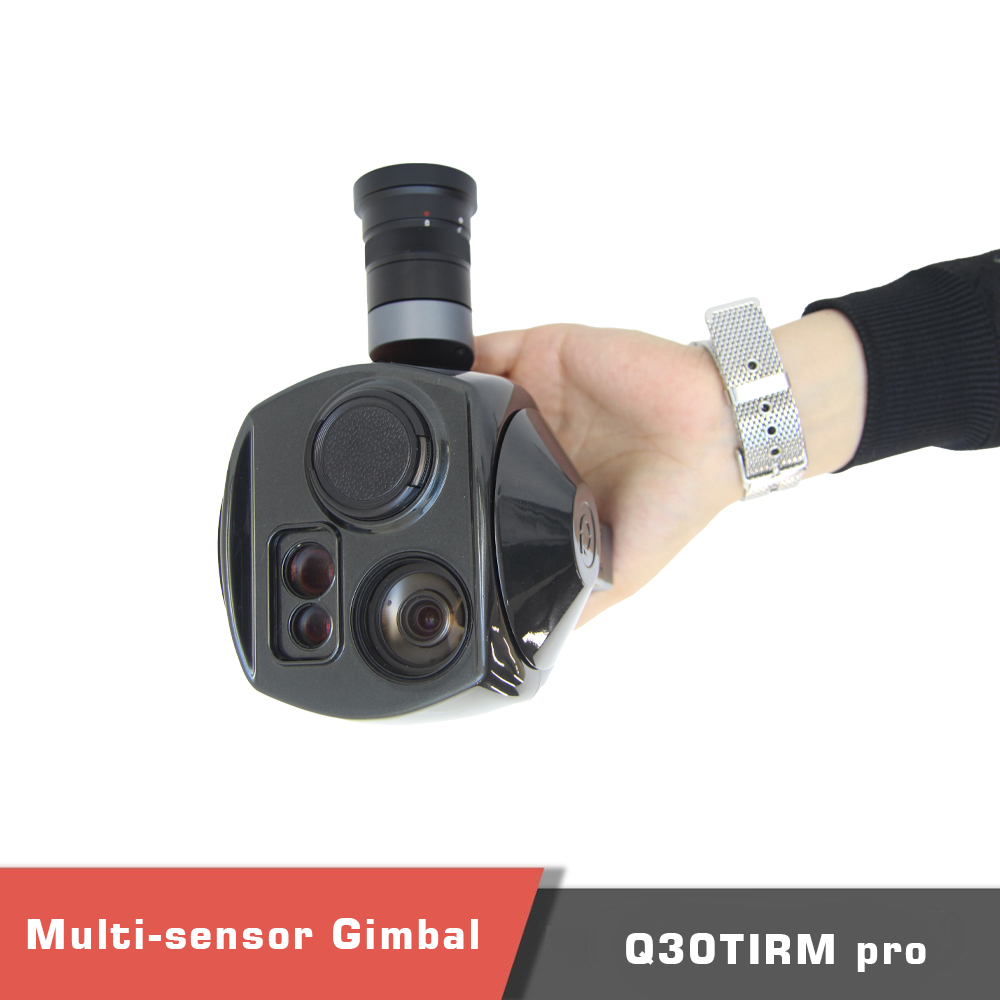

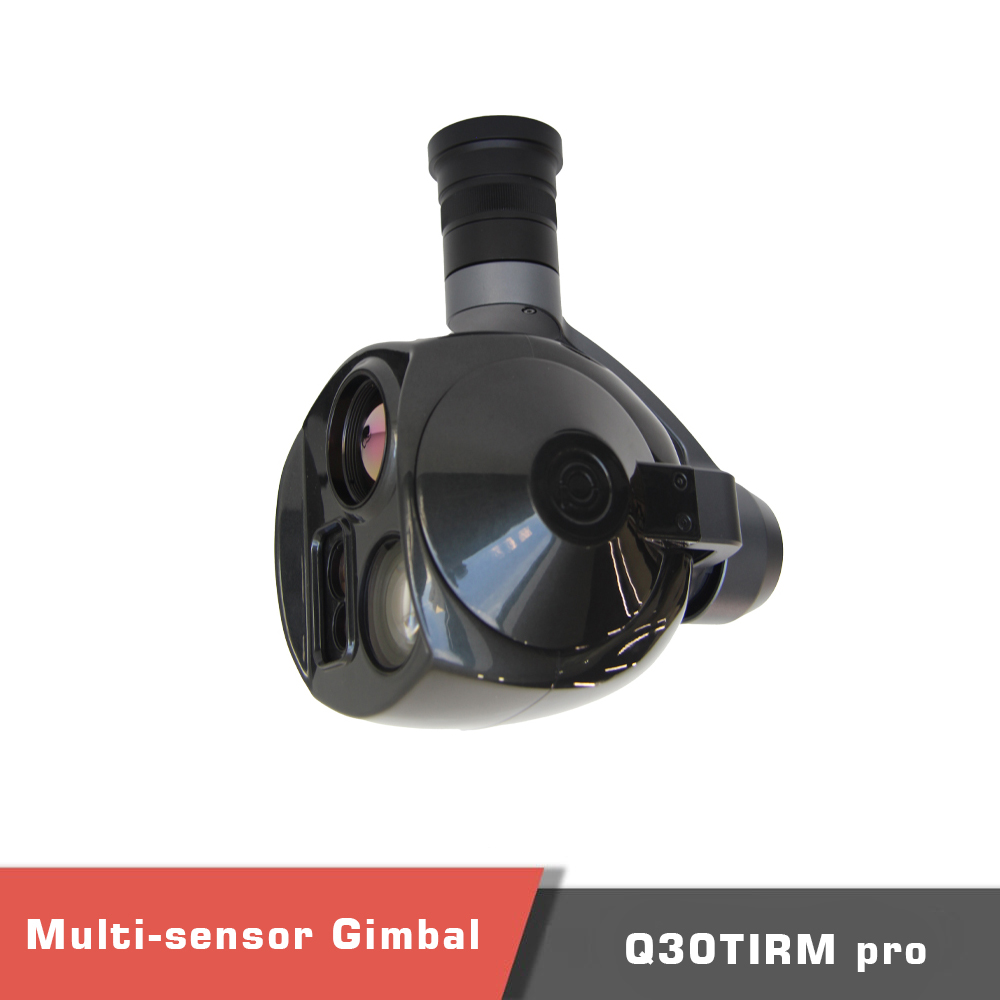

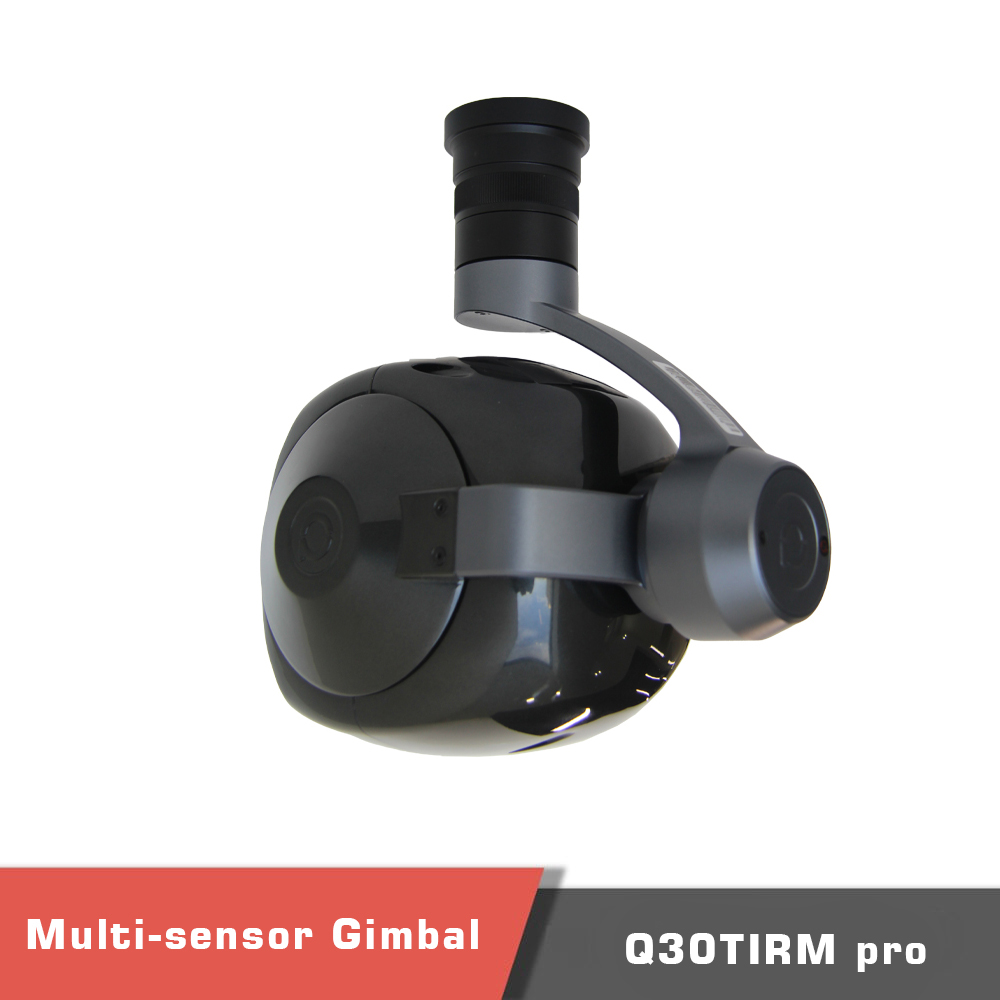

Q30TIRM Pro 3-axis Gimbal Camera

25195.00 $25450.00 $

PayPal
Visa
Master

Description

Overview of Q30TIRM Pro 3-axis Gimbal Camera

Elevate your aerial imaging capabilities with the Q30TIRM Pro 3-Axis Gimbal Camera. Designed for professional applications, this powerhouse combines a 30x optical zoom SONY camera, a 640×480 thermal camera, and a laser rangefinder, all integrated into a robust 3-axis gimbal. With its advanced features and cutting-edge technology, it sets a new standard for stability, accuracy, and sensitivity in aerial photography.

Featuring a High-Precise FOC

Featuring a high-precise FOC (Field Oriented Control) program, the Q30TIRM Pro delivers exceptional stability even at 30 times optical zoom. The FOC-based 3-axis gimbal ensures smooth and steady footage, allowing you to capture crystal-clear images with unparalleled precision. Whether you’re capturing landscapes, wildlife, or critical surveillance footage, the Q30TIRM Pro guarantees exceptional image stability.

25mm Thermal Camera

Equipped with a 25mm thermal camera, the Q30TIRM Pro detects heat sources with incredible accuracy. This enables you to identify building damages, detect forest fires, track the movement of individuals or animals, and much more. With the thermal camera’s impressive capabilities, you can gather crucial information in various scenarios, enhancing your situational awareness and decision-making.

Observation Range to 500 Meters

The Q30TIRM Pro is powered by a SONY 1/2.8″ Exmor R CMOS module, delivering exceptional image quality even in low-light environments. With a minimum illumination of [email protected], this starlight camera ensures clear image features in the darkest conditions. Boasting 2.13 megapixels and 1080p HD resolution, combined with 30x advanced optical zoom, the Q30TIRM Pro provides an impressive observation range of up to 500 meters, meeting the demands of diverse applications.

IR+EO Dual Sensors

Experience enhanced object tracking with the IR+EO dual sensors. The Q30TIRM Pro incorporates advanced algorithms such as normalization, cross-correlation, and tracking to achieve stable target tracking. Customizable on-screen display (OSD) features, adaptive gates, cross cursors, and trace information provide valuable insights during monitoring operations. With a tracking speed of up to 192 pixels per frame and a wide range of object sizes from 32×32 pixels to 128×128 pixels, the Q30TIRM Pro delivers exceptional accuracy and tracking performance.

Laser Rangefinder and GPS Location Resolving

The Q30TIRM Pro also features a high-precision laser rangefinder and GPS location resolving capabilities. With an advanced location calculating algorithm, this gimbal camera accurately calculates the distance to objects within 3000 meters and analyzes their longitude and latitude. The information is then seamlessly displayed on the screen, providing valuable auxiliary support in critical operations.

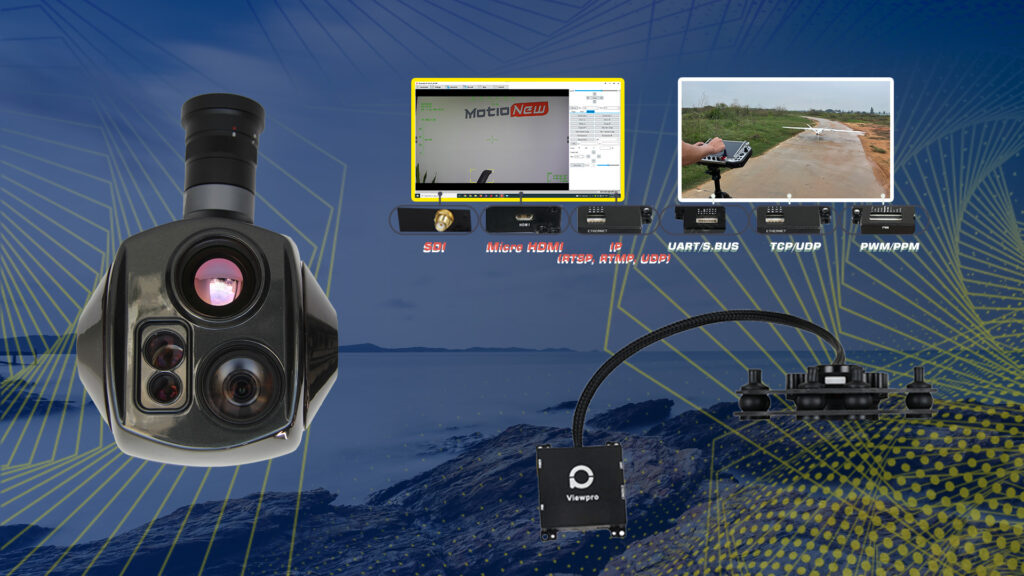

Flexible Output Options

Enjoy flexible output options with the Q30TIRM Pro. It supports HDMI, Ethernet/IP, and SDI output methods. HDMI and Ethernet outputs are capable of 1080p resolution, while the default Ethernet output is set to 720p with recording capabilities at 1080p. Additionally, the IP output and SDI output versions offer a 360-degree endless pan feature, expanding your creative possibilities.

Multiple Control Methods

Experience seamless control with multiple control methods. The Q30TIRM Pro supports PWM and Serial port TTL control by default, with the option for SBUS control. The IP output version also provides TCP control via an Ethernet cable, ensuring convenient and efficient operation.

Applications

The applications for the Q30TIRM Pro are vast and diverse. Q30TIRM pro is suitable for applications where you need a drone with camera and gimbal. From law enforcement and fire-fighting to power tower and pipeline inspections, search and rescue missions, and more, this gimbal camera is designed to excel in critical operations. It enables wide-ranging monitoring and searching capabilities, ensuring swift information transfer, improved response efficiency, and reduced casualties during emergencies.

Elevate your aerial imaging capabilities with the Q30TIRM Pro 3-Axis Gimbal Camera. With its precision, versatility, and cutting-edge technology, this powerful tool empowers professionals to capture exceptional imagery and make informed decisions in critical situations. Unlock your potential and take your aerial photography to new heights with the Q30TIRM Pro. Order yours today and revolutionize your aerial imaging capabilities.

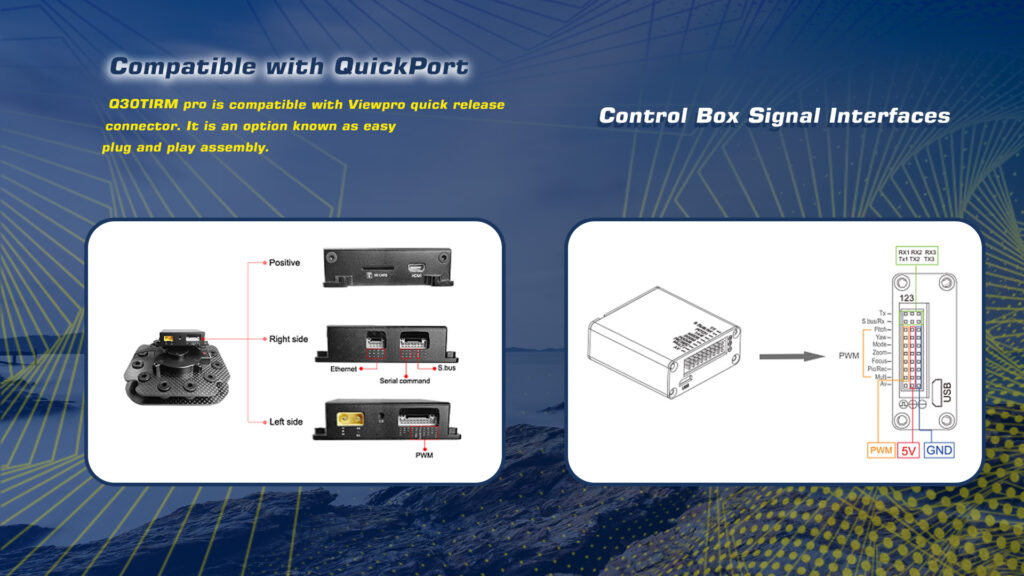

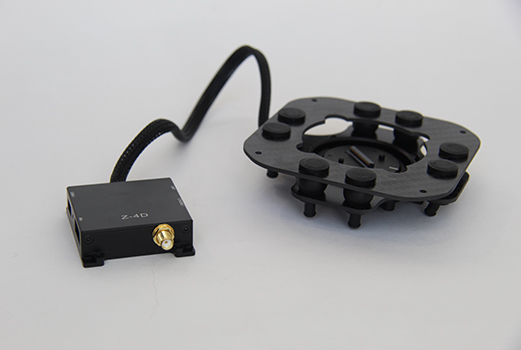

Q30tirm pro 3-axis gimbal camera Q30tirm pro 30x zoom Q30tirm pro dual sensor Q30tirm pro gps Q30tirm. 5 1 - q30tirm pro - motionew - 10 Q30tirm pro control box Q30tirm pro applications Q30tirm pro dimensions Q30tirm pro versions

For a comprehensive reading of related products, please visit the Motionew website.

Additional information

Weight 1 kg
Dimensions 20 × 16 × 15 cm
version

Standard, Quick release

Specifications

Hardware Parameter
Working voltage 14V ~ 16V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 750mA @ 12V
Idle current 650mA @ 12V
Working environment temp. -20℃ ~ +60℃
Output  micro HDMI(HD output 1080P 60fps) / IP (720P) / SDI (1080P 30fps)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS / TCP (IP output)
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -100°~120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle ±170° / ±360°*N (IP/SDI output)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
Camera Spec
Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Thermal sensor spec
Lens 35mm
Horizontal FOV 17.7°
Vertical FOV 13.3°
Diagonal FOV 22°
Detective Distance (Man: 1.8×0.5m) 1029 meters
Recognize Distance (Man: 1.8×0.5m) 257 meters
Verified Distance (Man: 1.8×0.5m) 129 meters
Detective Distance (Car: 4.2×1.8m) 3157 meters
Recognize Distance (Car: 4.2×1.8m) 789 meters
Verified Distance (Car: 4.2×1.8m) 395 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤650mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~120℃ (For thermometry version only)
Thermal Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
Laser Rangefinder
Laser Wavelengths 1550nm
Optical aperture Transmit 13mm / Receive17 mm
Resolution 0.75m
Measure ability 3000m  (Typical value 1:
· Object size: the target surface is larger than the laser spot area
· Reflectivity: 60%
· Accuracy rate: 90%
· Visibility: 10 km
· Environment temperature: 20℃
· Atmospheric pressure: 1013 mbar)
Vehicle target measuring 2300m (Typical value 2:
· Object size: 2.3*2.3 m
· Emissivity: 30%
· Others same as Typcial value 1)
Eye-safe Class 1【Standard IEC 60825-1, Second Edition (2007-03)】
Laser beam angle (Typical value) 1.0 mrad
Accuracy (Typical value) ± 0.75m
Accuracy (In harsh condition) ± 2m
Measurement frequency 2Hz
Multi-target measuring Max.3 targets distance values returning
Object resolution (Typical value) 30m
Packing Information
N.W. 1003g (Viewport version)

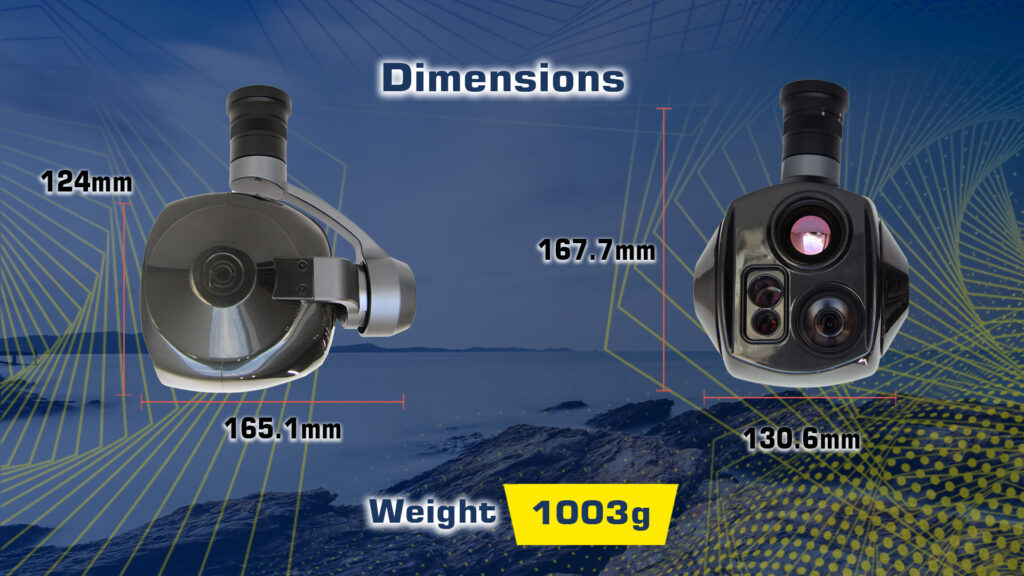

Product meas. 203*131*165mm / 209*131*165mm (Viewport version)

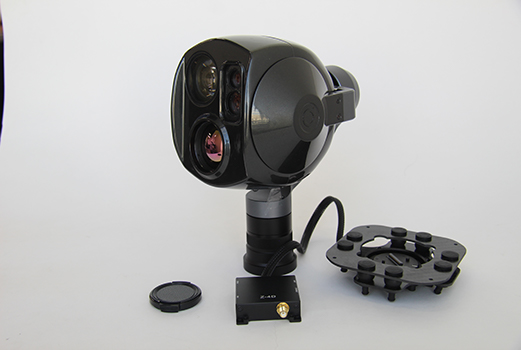

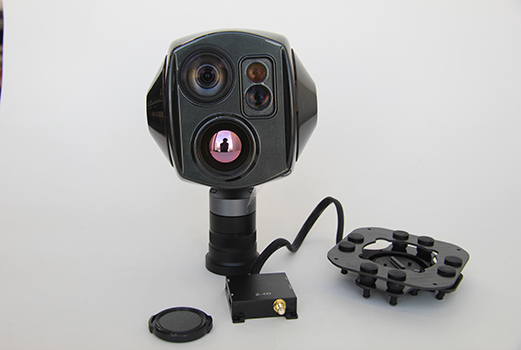

Product contents

Q30tirm. 9 1 - q30tirm pro - motionew - 11
