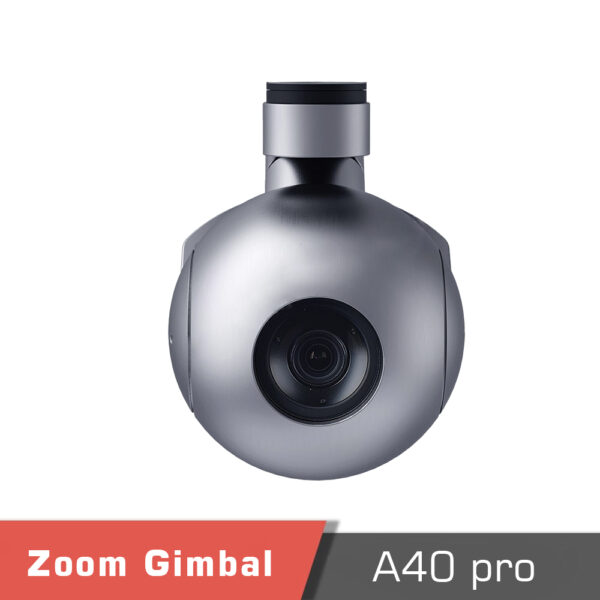

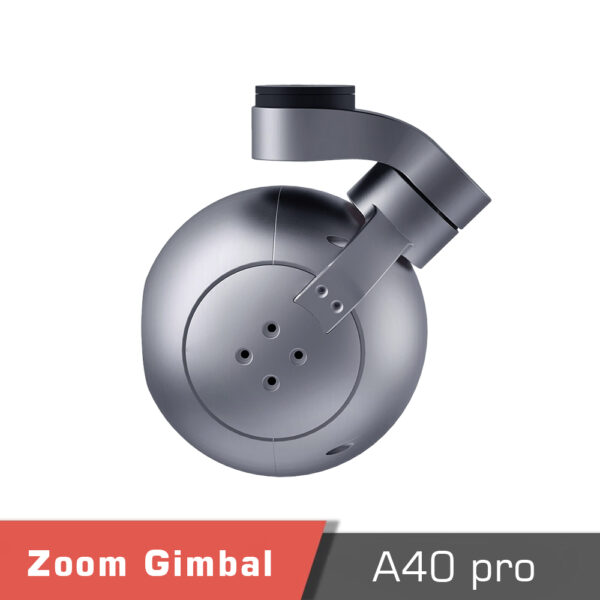

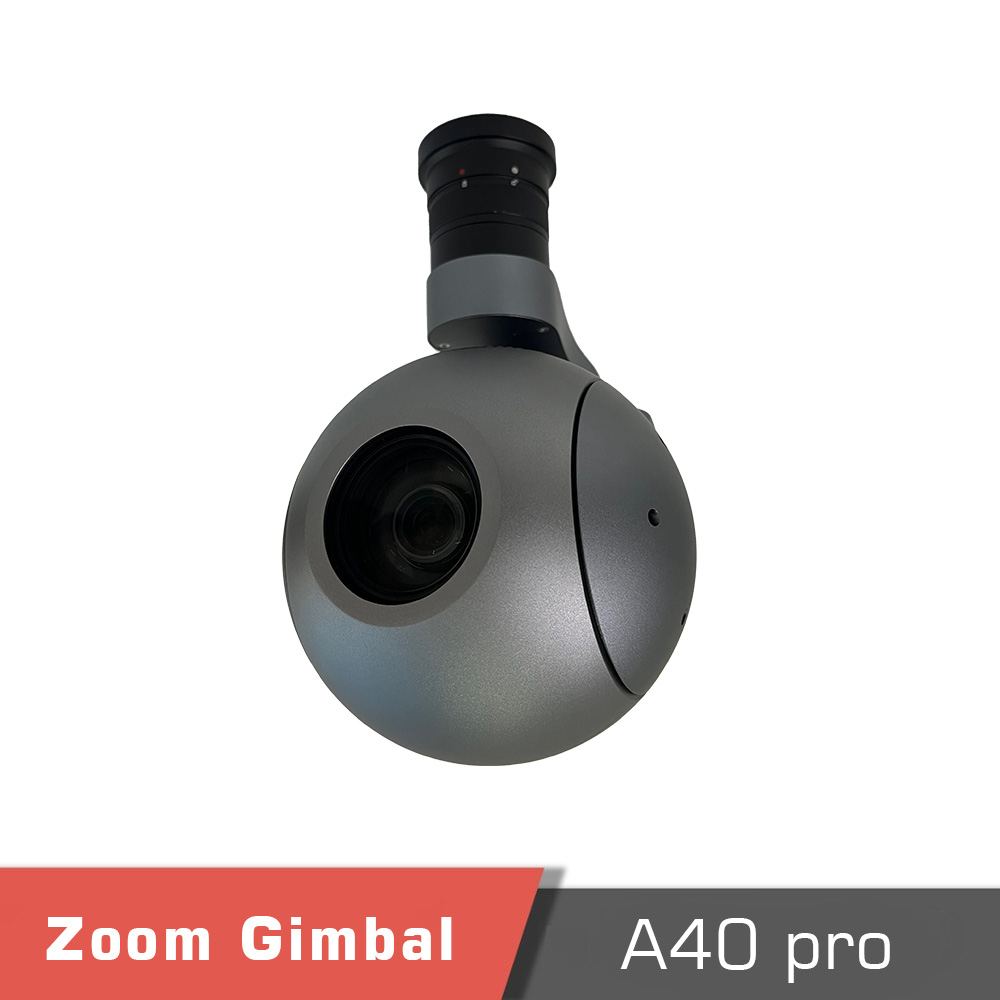

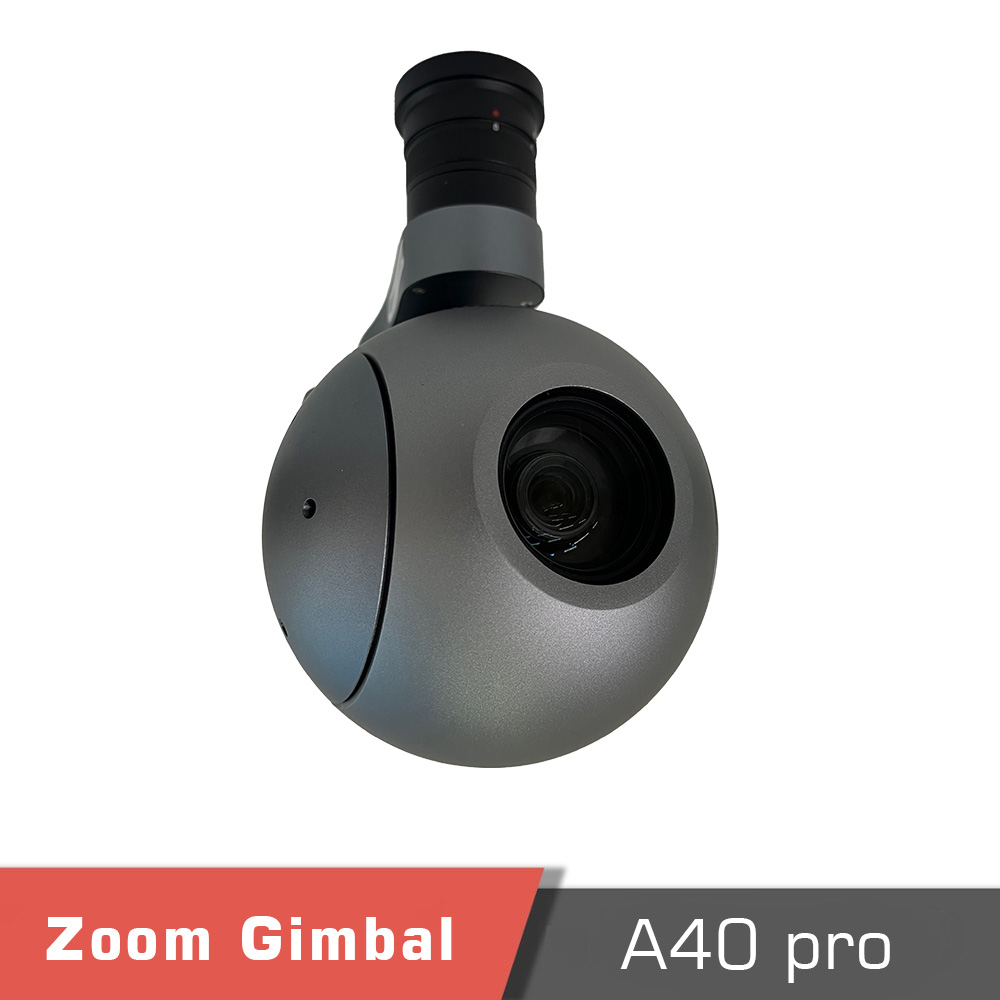

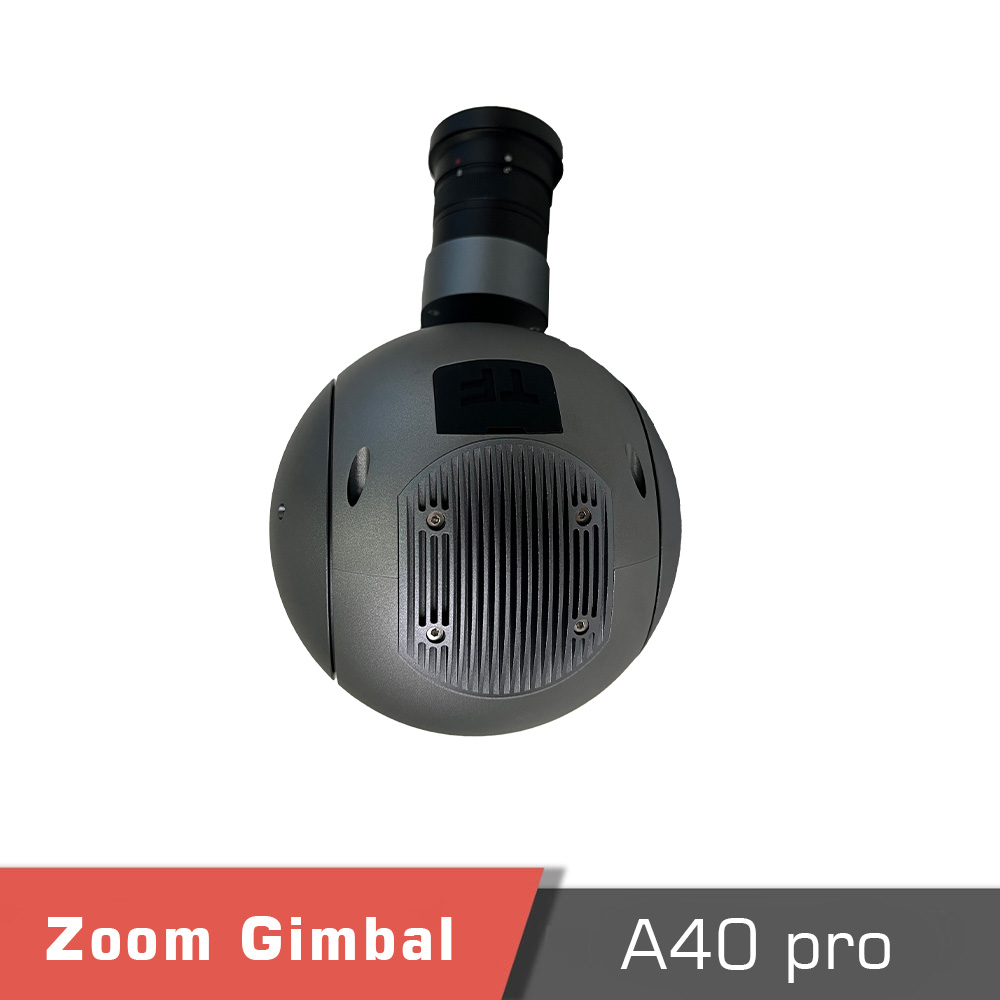

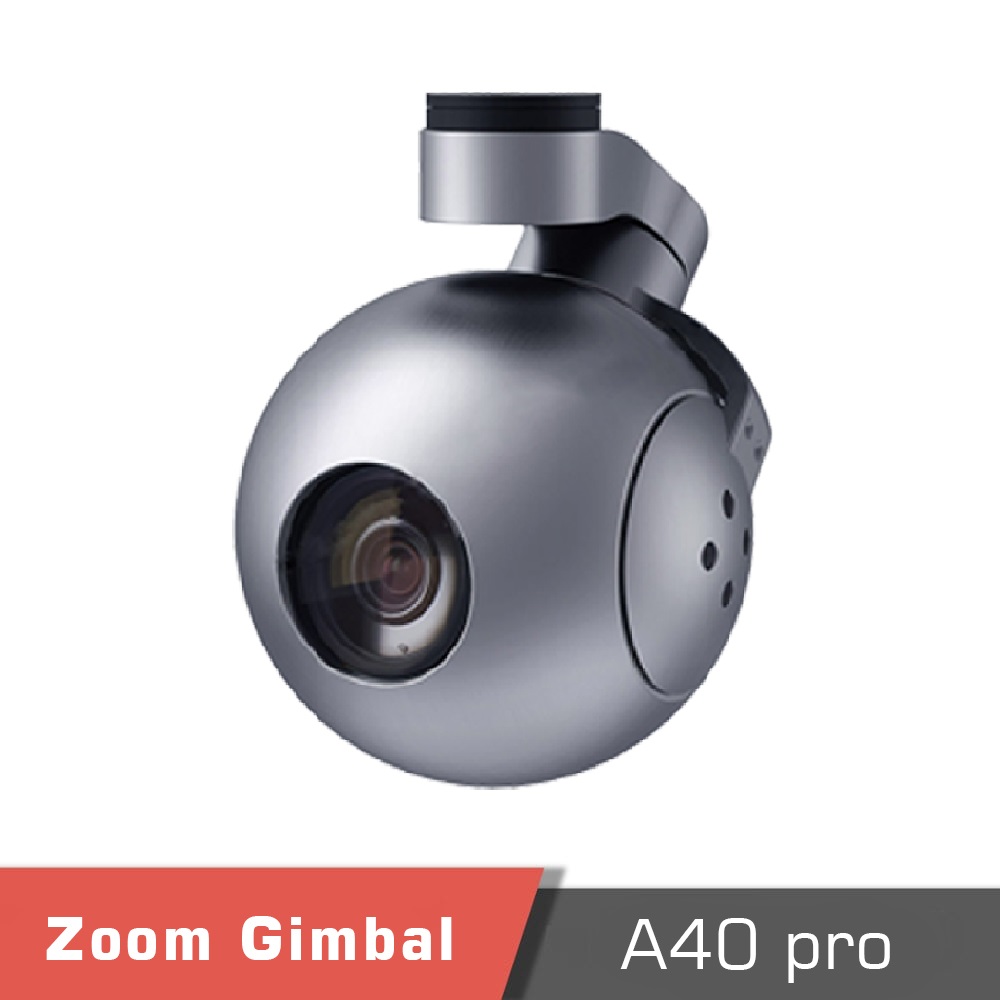

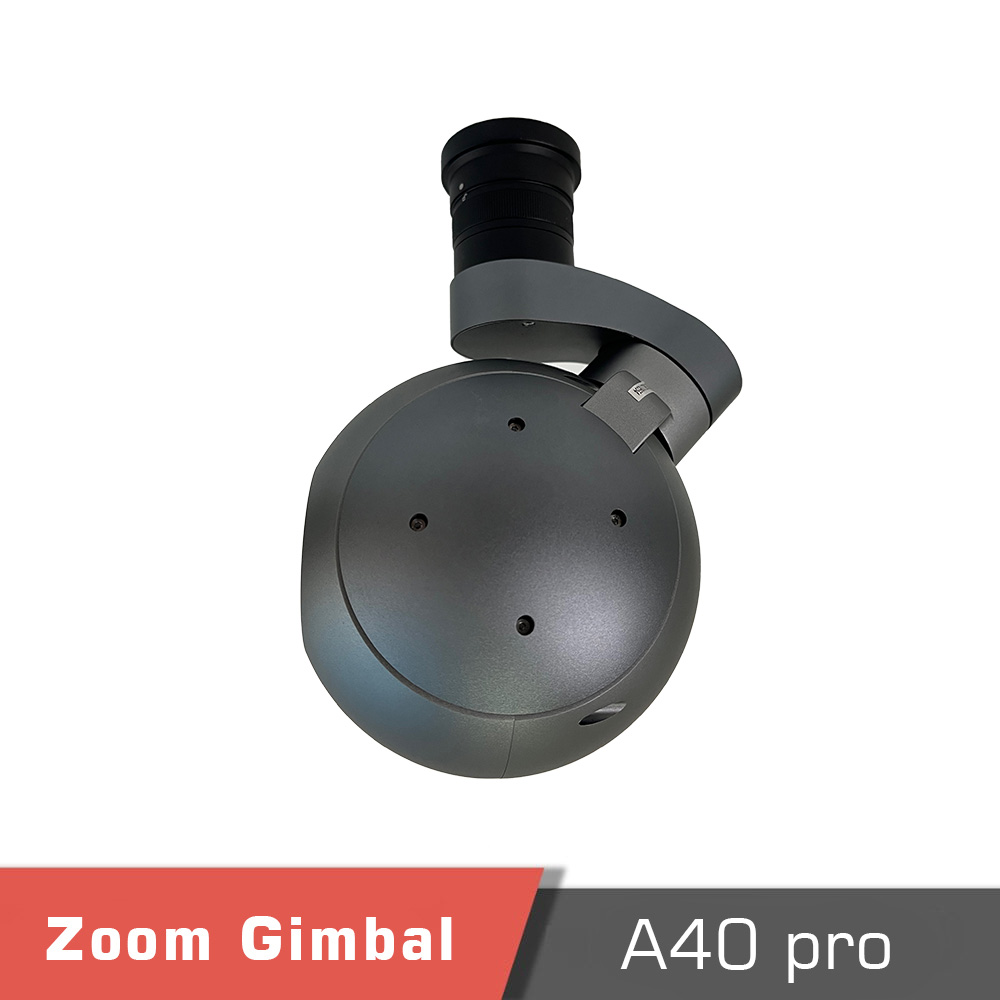

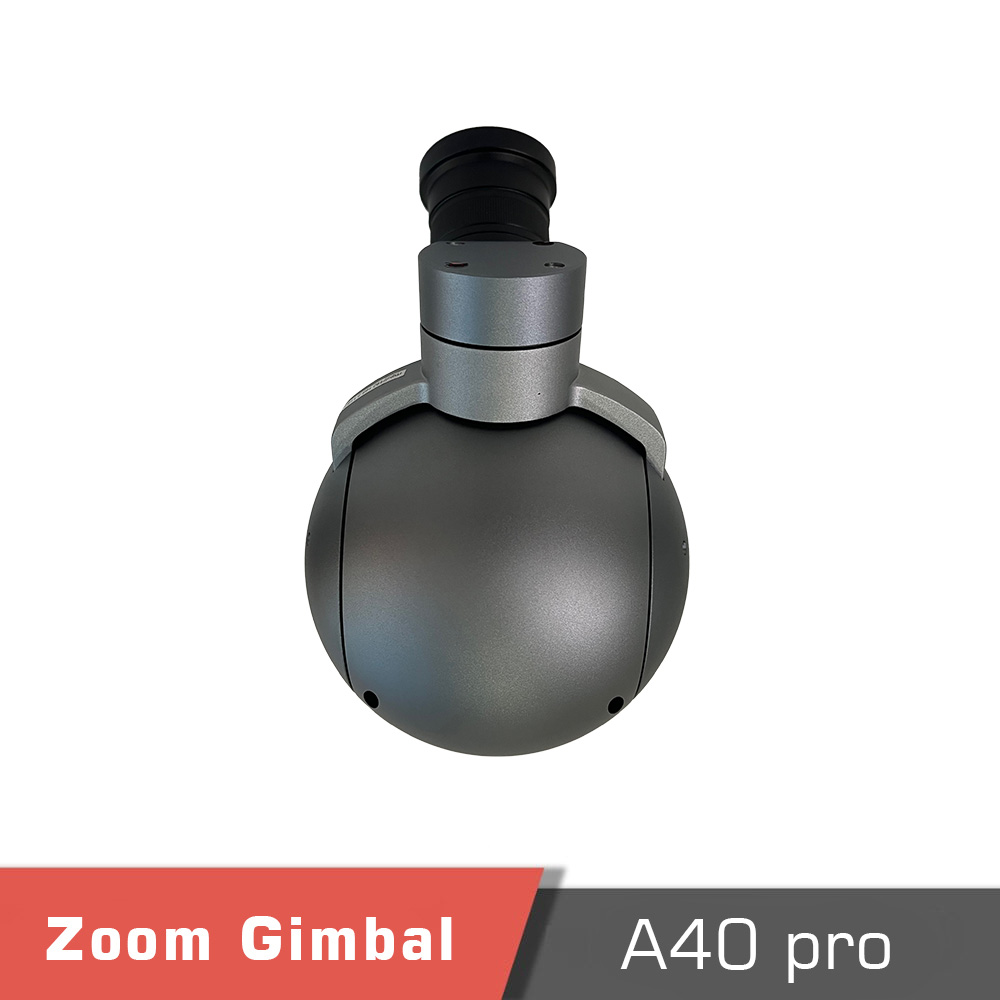

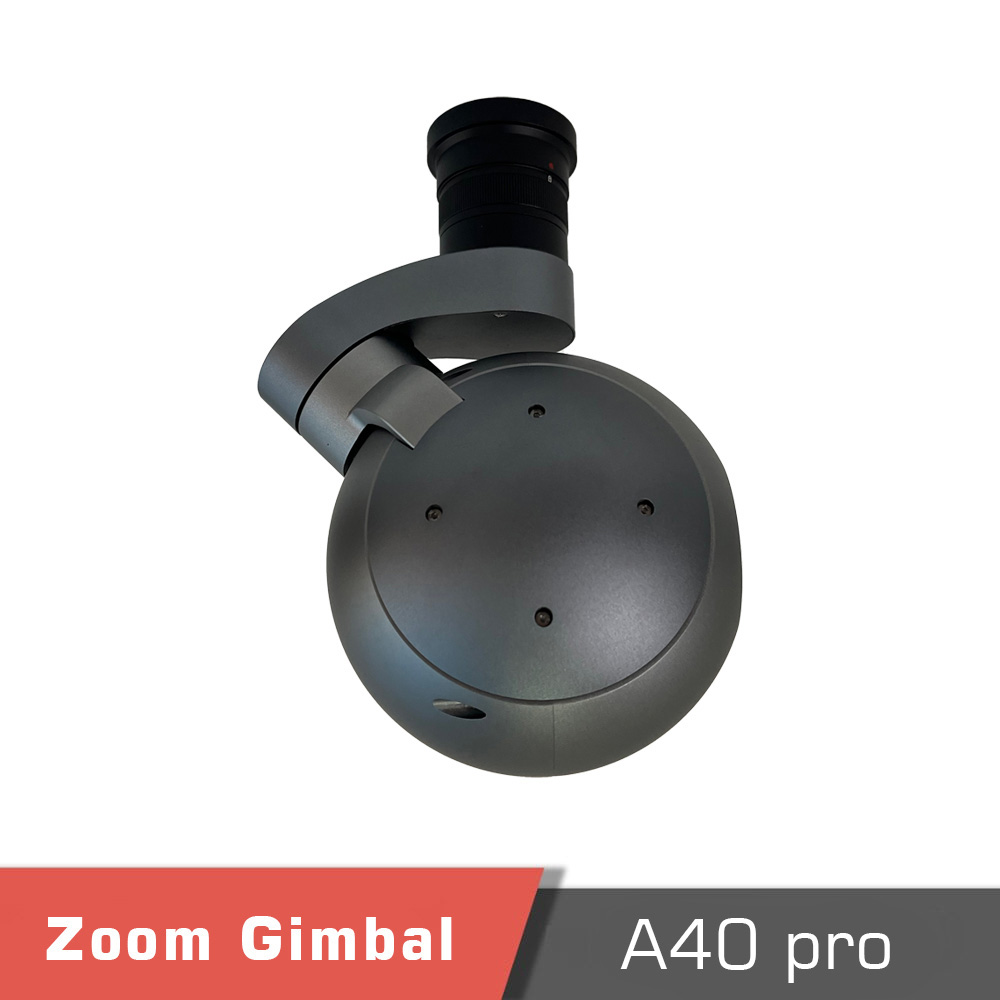

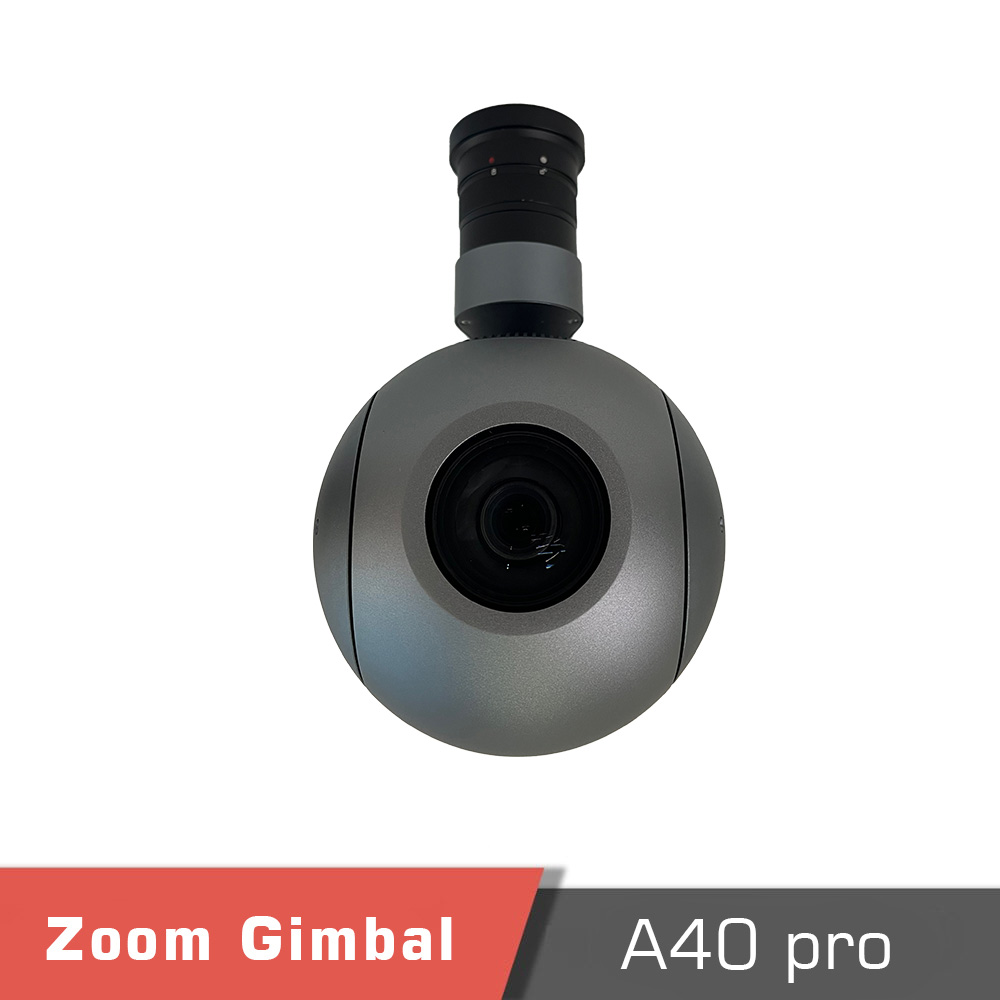

A40 Pro Gimbal Camera, 40x zoom, 3-axis Gimbal Camera

2220.00 $2549.00 $

PayPal
Visa
Master

Description

A40 Pro Gimbal Camera Overview

Elevate your aerial imaging capabilities with the A40 Pro 3-Axis Gimbal for Drone Camera. Designed for professional applications, this powerhouse has a 40x optical zoom SONY camera, integrated into a robust 3-axis gimbal. With its advanced features and cutting-edge technology, the A40 Pro gimbal camera sets a new standard for stability, accuracy, and sensitivity in aerial photography.

The FOC-based 3-axis gimbal

Featuring a high-precise FOC (Field Oriented Control) program, the A40 Pro delivers exceptional stability even at 40 times optical zoom. The FOC-based 3-axis gimbal ensures smooth and steady footage, allowing you to capture crystal-clear images. Whether you’re capturing landscapes, wildlife, or critical surveillance footage, the A40 Pro gimbal camera guarantees exceptional image stability.

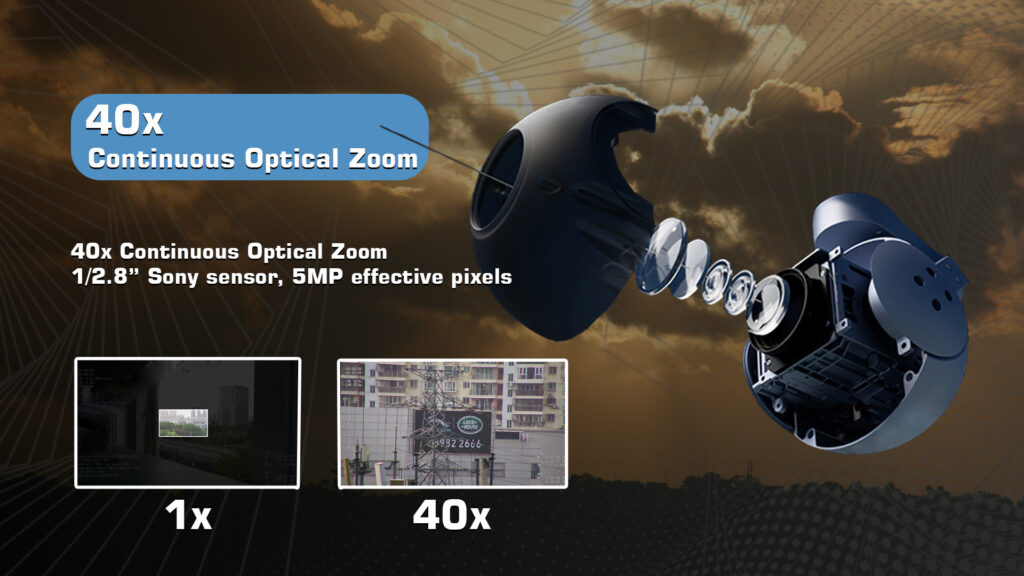

A40 pro Gimbal Camera 40x Optical Zoom

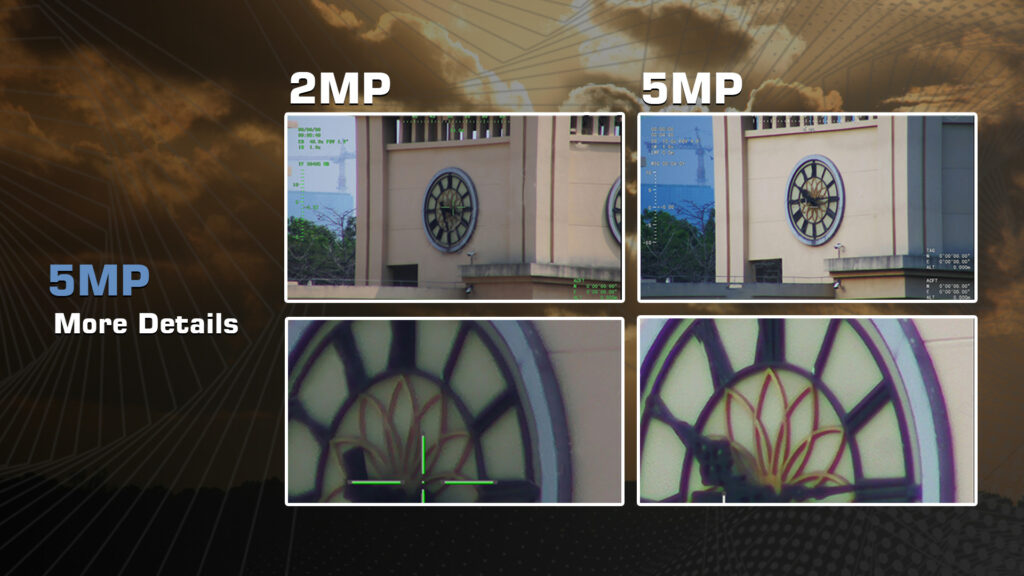

The A40 Pro is powered by a SONY 1/2.8″ CMOS sensor, delivering exceptional image quality even in low-light environments. With a minimum illumination of [email protected], this camera ensures clear image features in the darkest conditions. Boasting 5.13 megapixels and 1080 Full HD resolution, combined with 40x advanced optical zoom, the A40 Pro provides an impressive observation range, meeting the demands of diverse applications.

A40 Pro Camera Object Tracking

The A40 Pro incorporates advanced algorithms such as normalization, cross-correlation, and tracking to achieve stable target tracking. Customizable on-screen display (OSD) features, adaptive gates, cross cursors, and trace information provide valuable insights during monitoring operations. With a tracking speed of up to 48 pixels per frame and a wide range of object sizes from 16×16 pixels to 256×256 pixels, the A40 Pro delivers exceptional accuracy and tracking performance.

Communication interfaces of A40 Pro

Enjoy flexible output options with the A40 Pro Gimbal Camera. It supports HDMI, and Ethernet/IP output methods. HDMI and Ethernet outputs are capable of 1080p resolution, while the default Ethernet output is set to 720p with recording capabilities at 1080p. Additionally, the IP output version offers a 360-degree endless pan feature, expanding your creative possibilities.

multiple control methods

Experience seamless control with multiple control methods. The A40 Pro supports PWM and Serial port TTL control by default, with the option for SBUS control. The IP output version also provides TCP control via an Ethernet cable, ensuring convenient and efficient operation.

applications for the A40 Pro

The applications for the A40 Pro Gimbal Camera are vast and diverse. This gimbal camera is designed to excel in critical operations, from law enforcement and fire-fighting to power tower and pipeline inspections, search and rescue missions, and more. It enables wide-ranging monitoring and searching capabilities, ensuring swift information transfer, improved response efficiency, and reduced casualties during emergencies.

amazing aerial imaging capabilities

Elevate your aerial imaging capabilities with the A40 Pro 3-Axis Gimbal Camera. With its precision, versatility, and cutting-edge technology, this powerful tool empowers professionals to capture exceptional imagery and make informed decisions in critical situations. Unlock your potential and take your aerial photography to new heights with the A40 Pro

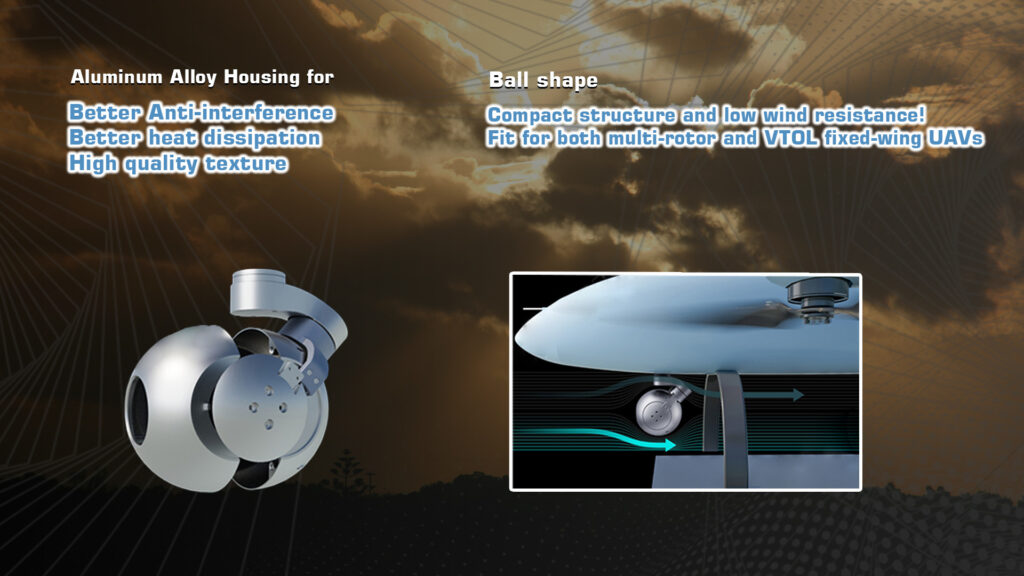

A40 pro gimbal camera 40x optical zoom Specifications of a40 pro gimbal camera A40 pro gimbal camera 40x continuous optical zoom More details of a40 pro gimbal camera A40 pro gimbal camera ai function A40 pro gimbal camera adopts high-precision aluminum alloy A40 pro 3-axis foc gimbal A40 pro gimbal camera plug and play Local-storage a40 pro gimbal camera Applications of a40 pro gimbal cameraA40 pro gimbal camera dimensions A40 pro gimbal camera package

For a comprehensive reading of related products, please visit the Motionew website.

Additional information

Weight 1 kg
Dimensions 20 × 16 × 15 cm
version

Standard, Quick release

Specifications

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 600~1100mA @ 16V
Idle current 600mA @ 16V
Working environment temp. -20℃ ~ +60℃
Output micro HDMI (1080P 30fps/60fps) / IP (720p/1080p  30fps)
Local-storage TF card (Up to 128G, class 10, FAT32, or ex-FAT format)
Photo storage format JPG (1920×1080)
Video storage format MP4 (1080P 30fps)
Control method PWM  / TTL / S.BUS / TCP (IP output) / UDP (IP output)
Gimbal Spec
Angle range of structure design Pitch/Tilt:-45°~100°,   Roll: ±40°,    Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle range of software design Pitch/Tilt: -40°~90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center



EO Camera spec
Imager Sensor SONY 1/2.8″ CMOS
Picture quality Full HD 1080 (1920×1080)
Effective pixel 5.13MP
Photo storage format JPG (1920×1080)
Video storage format MP4 (1080P/720P 25fps/30fps)
Lens optical zoom 40x, f=4.25 (wide end) ~ 170mm (tele end), F1.6~F4.95
Digital zoom 32x
Min object distance 0.1 / 1.5 / 3.0 / 5.0 / 10.0m
Horizontal viewing angle 66.35° (wide end) ~ 1.9° (tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode (shutter priority & iris priority)
Focusing system Auto (Sensitivity: Normal, low), one push auto focus, Manual, interval auto focus, zoom trigger auto focus, focus compensation when ICR mode is on
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/30,000s
Auto ICR Yes
Image stabilization Yes
Progressive scan mode Yes
Backlight compensation Yes
Defog Yes
OSD Yes



Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16×16 pixel
Maximum object size 256×256 pixel
Tracking speed <48 pixel/frame
Object memory time 100 frames
EO Camera AI Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%



Packing Information
N.W. 855g(Viewport Version)

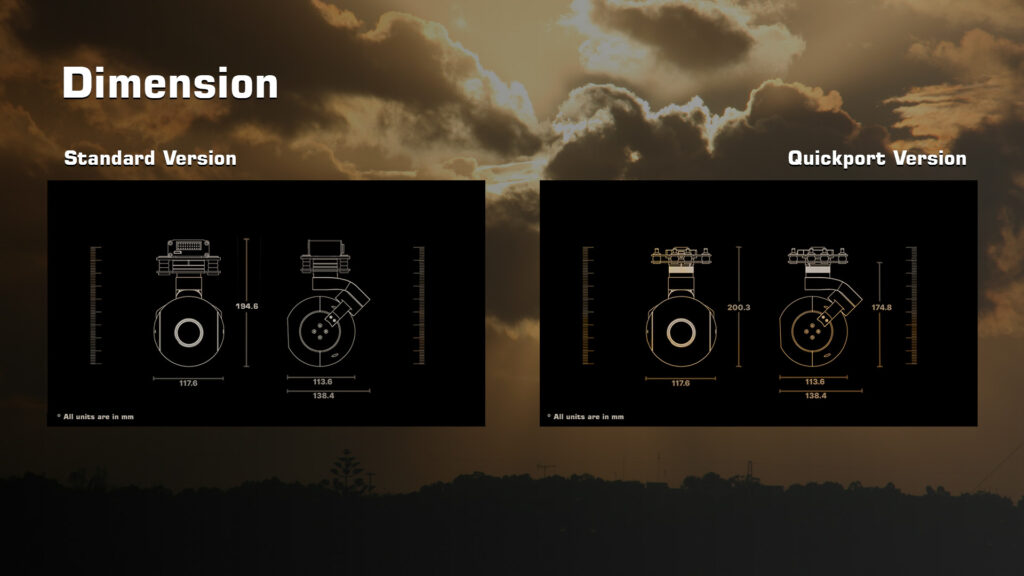

Product dimensions 117.6×138.4×194.6mm / 117.6×138.4×200.3mmmm (Viewport Version)

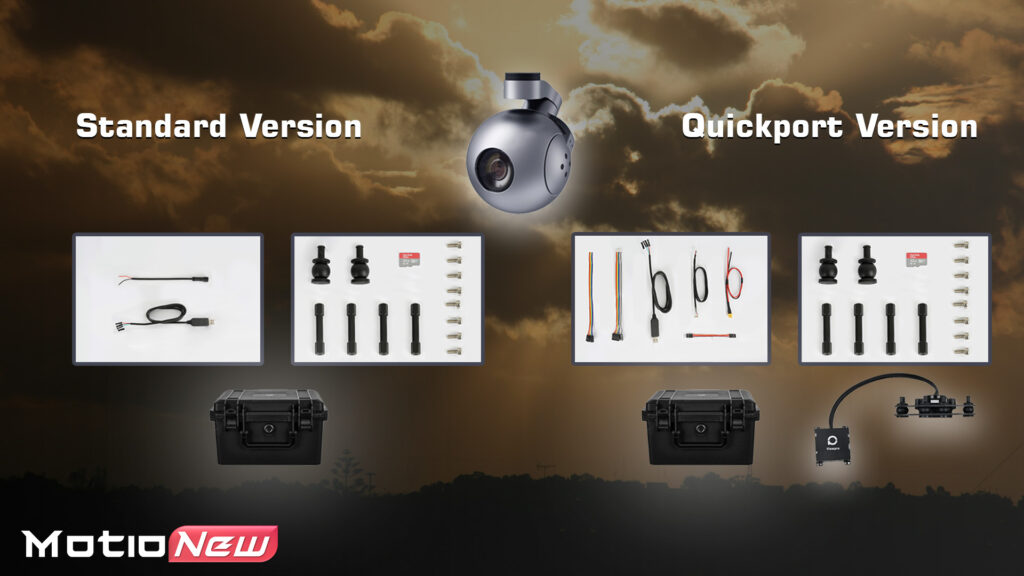

Accessories 1pc gimbal camera device, screws,  copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion

Product contents

A40 gimbal pro. 13 - a40 pro gimbal camera - motionew - 13
