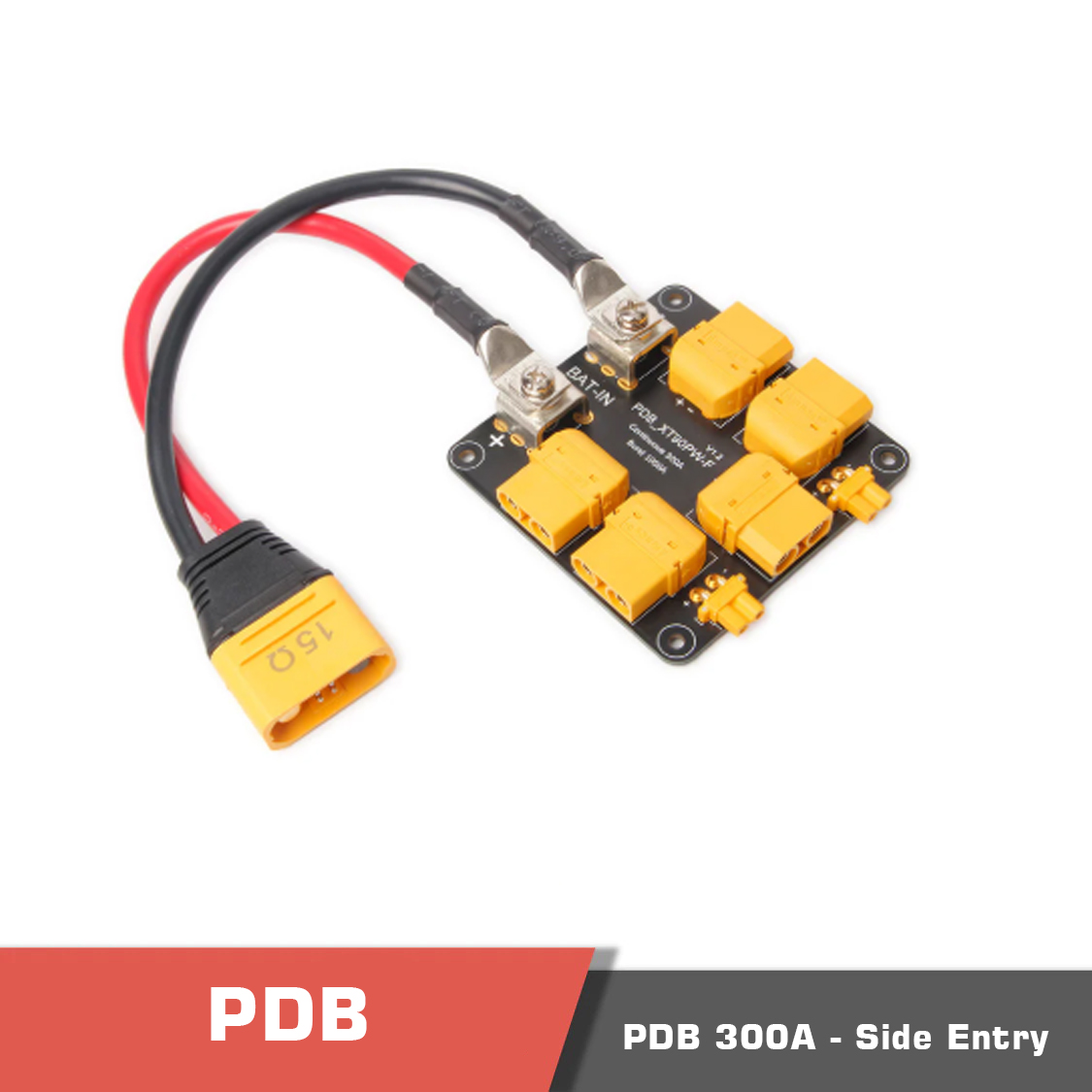

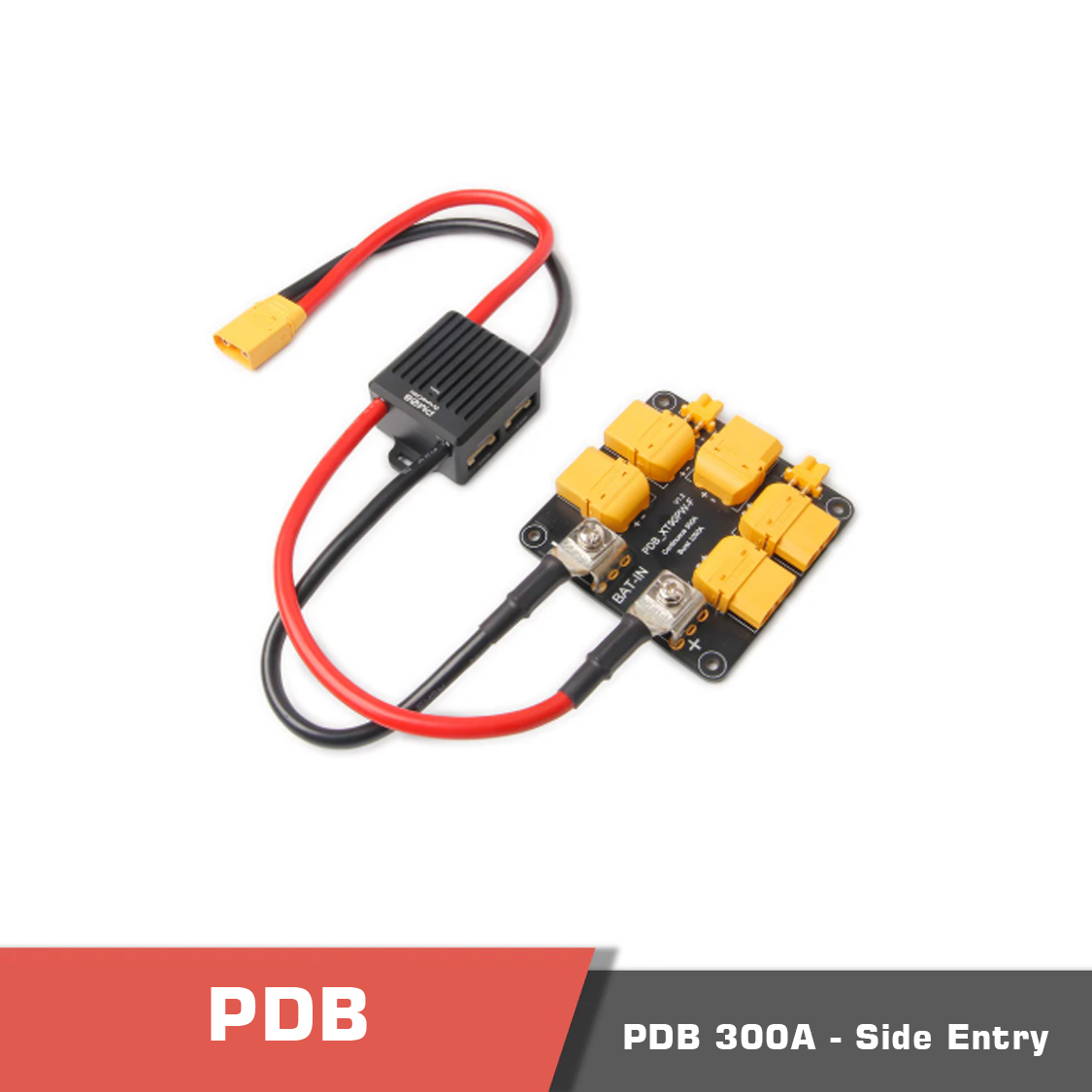

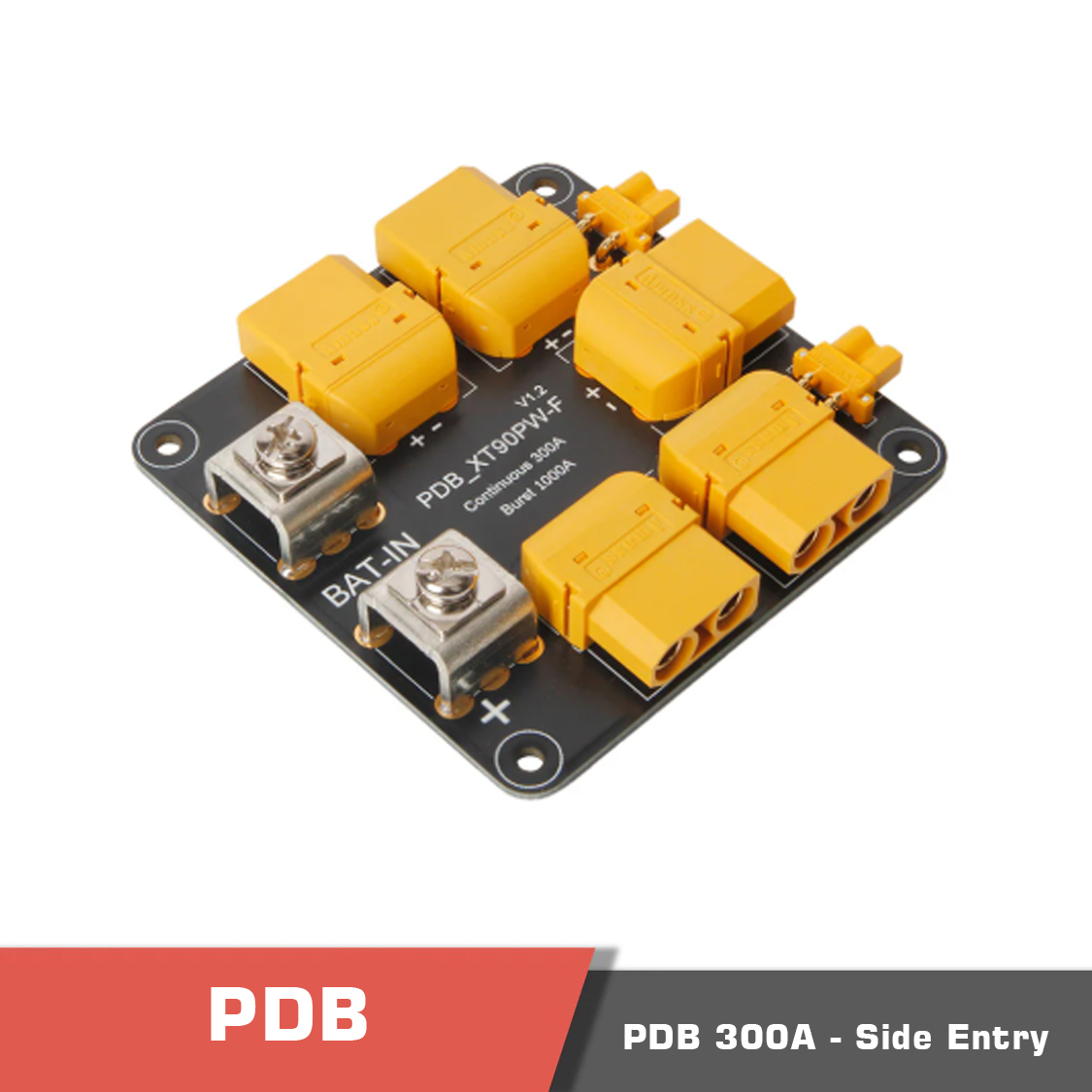

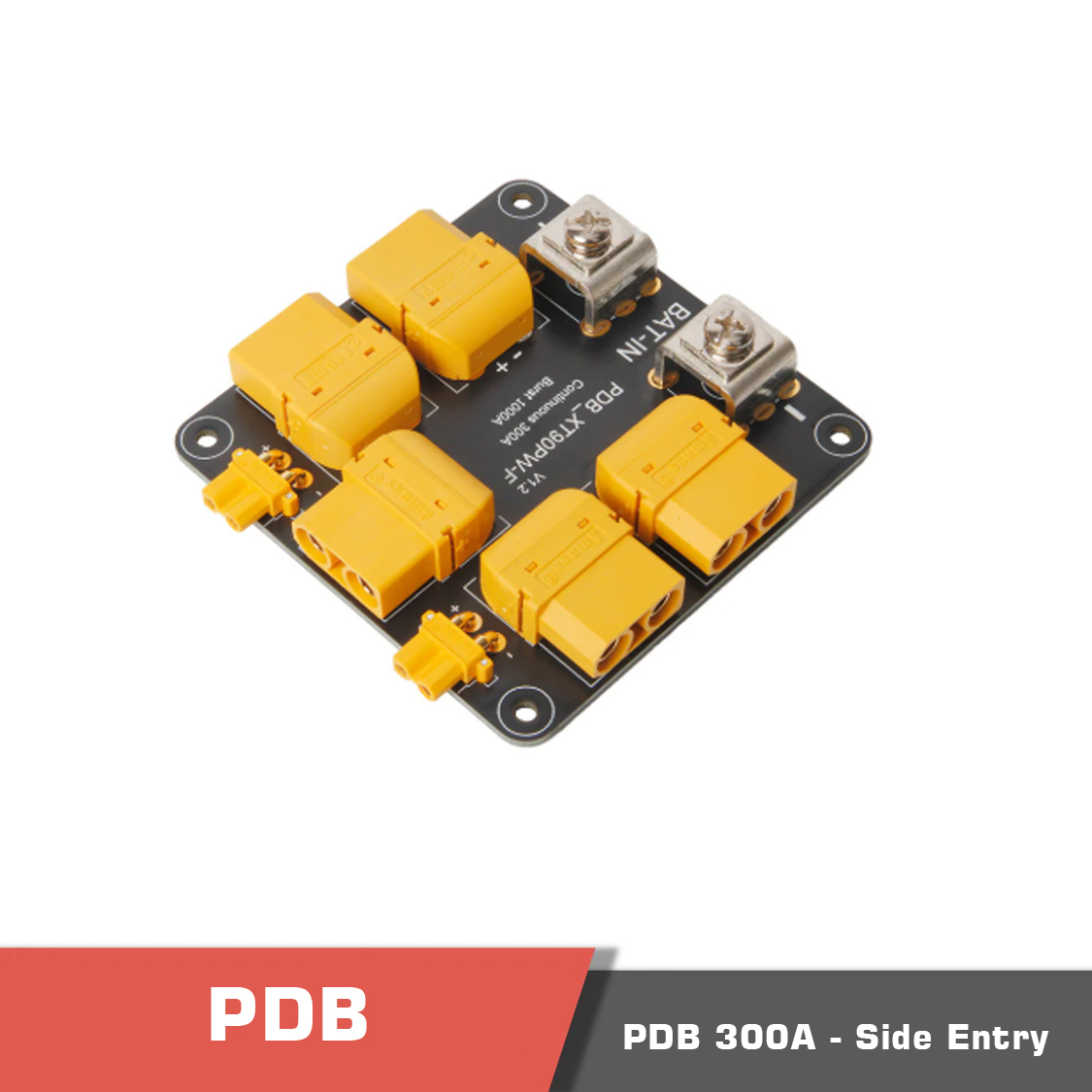

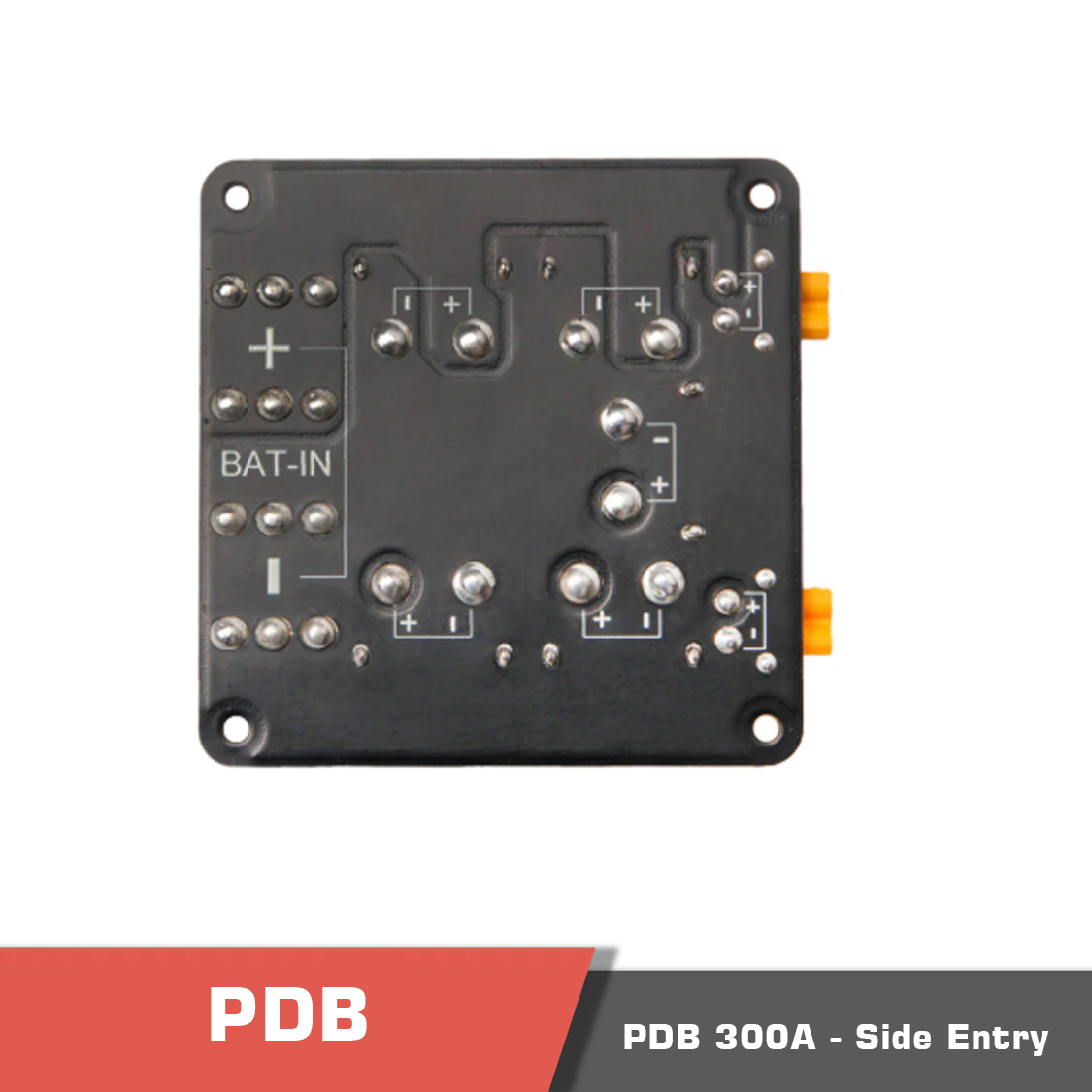

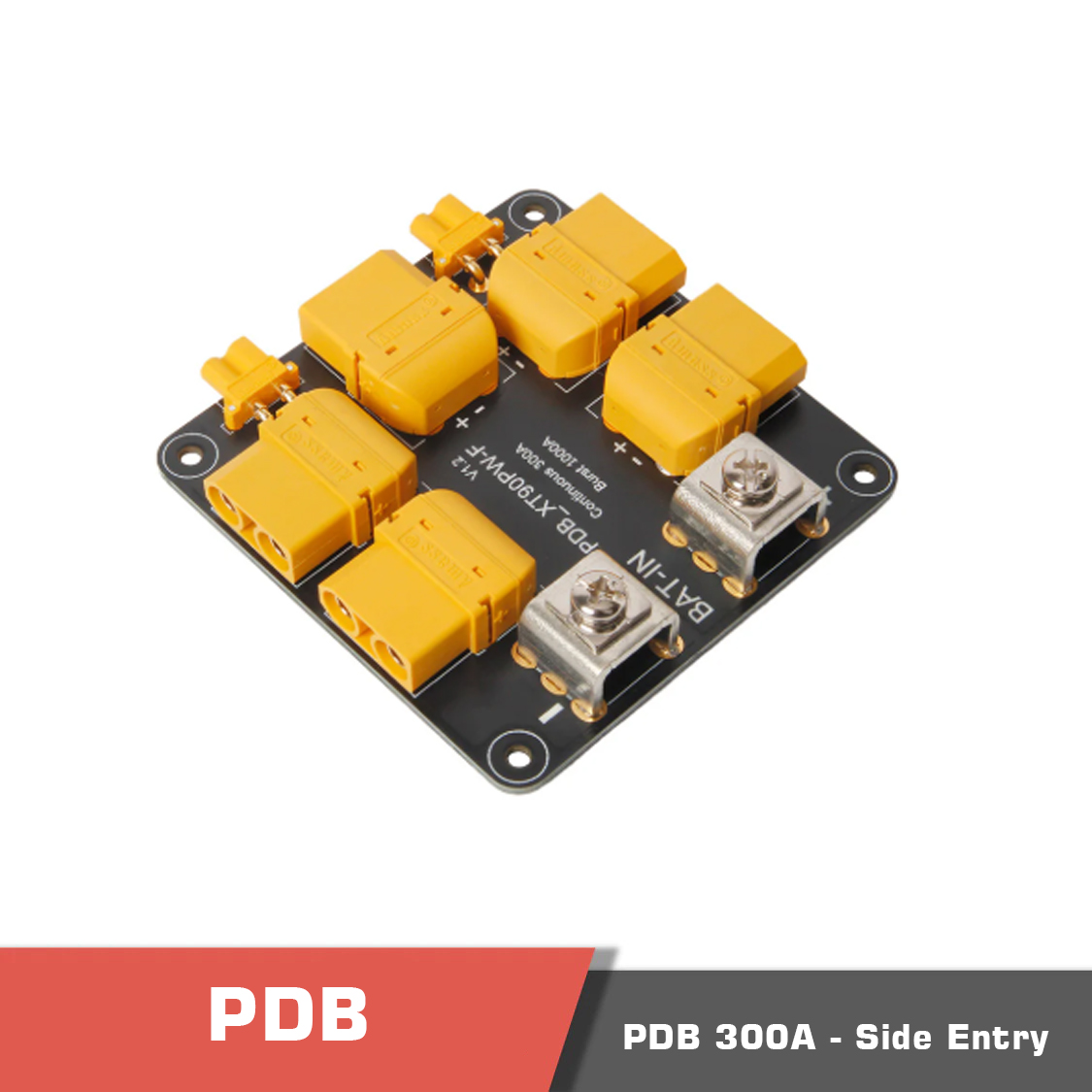

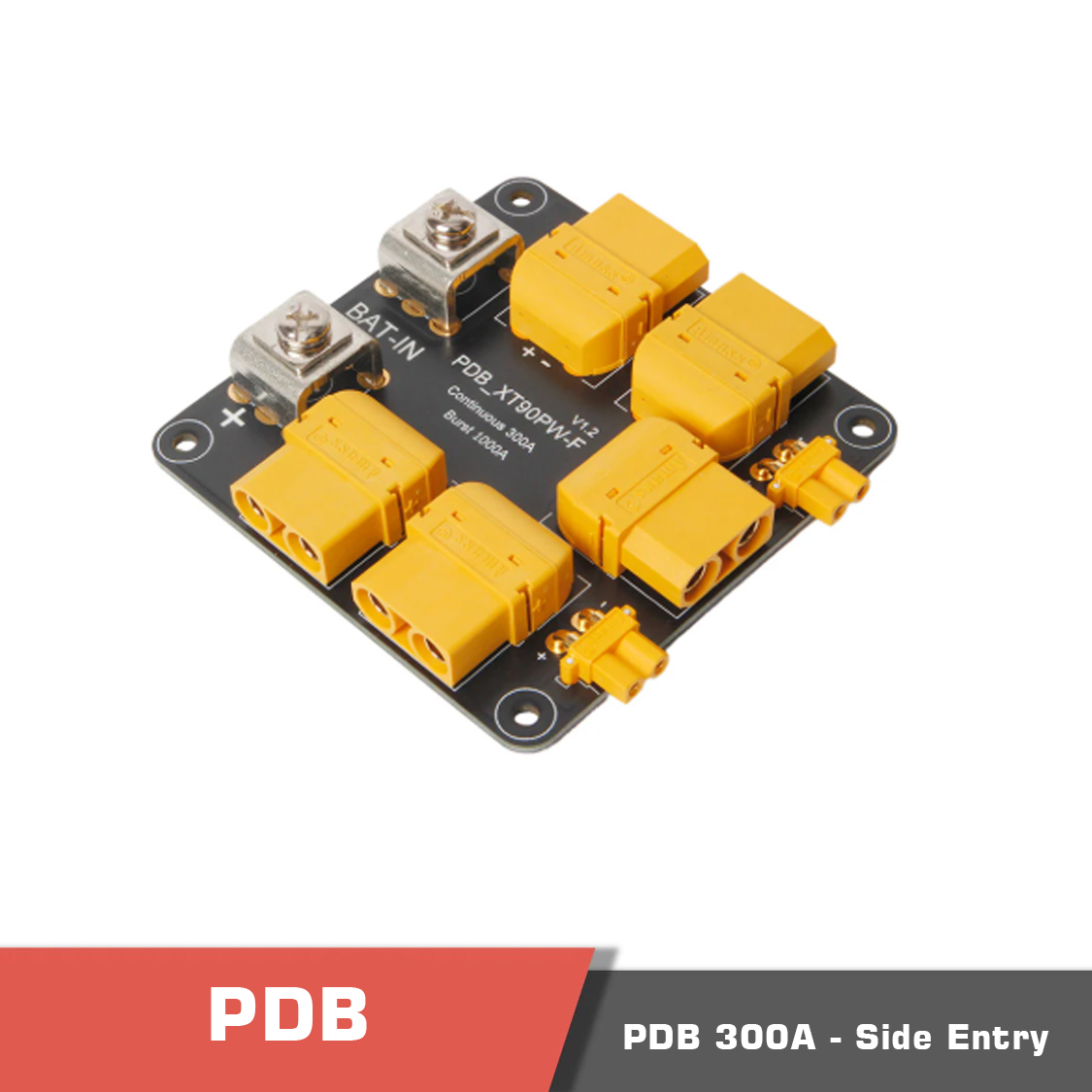

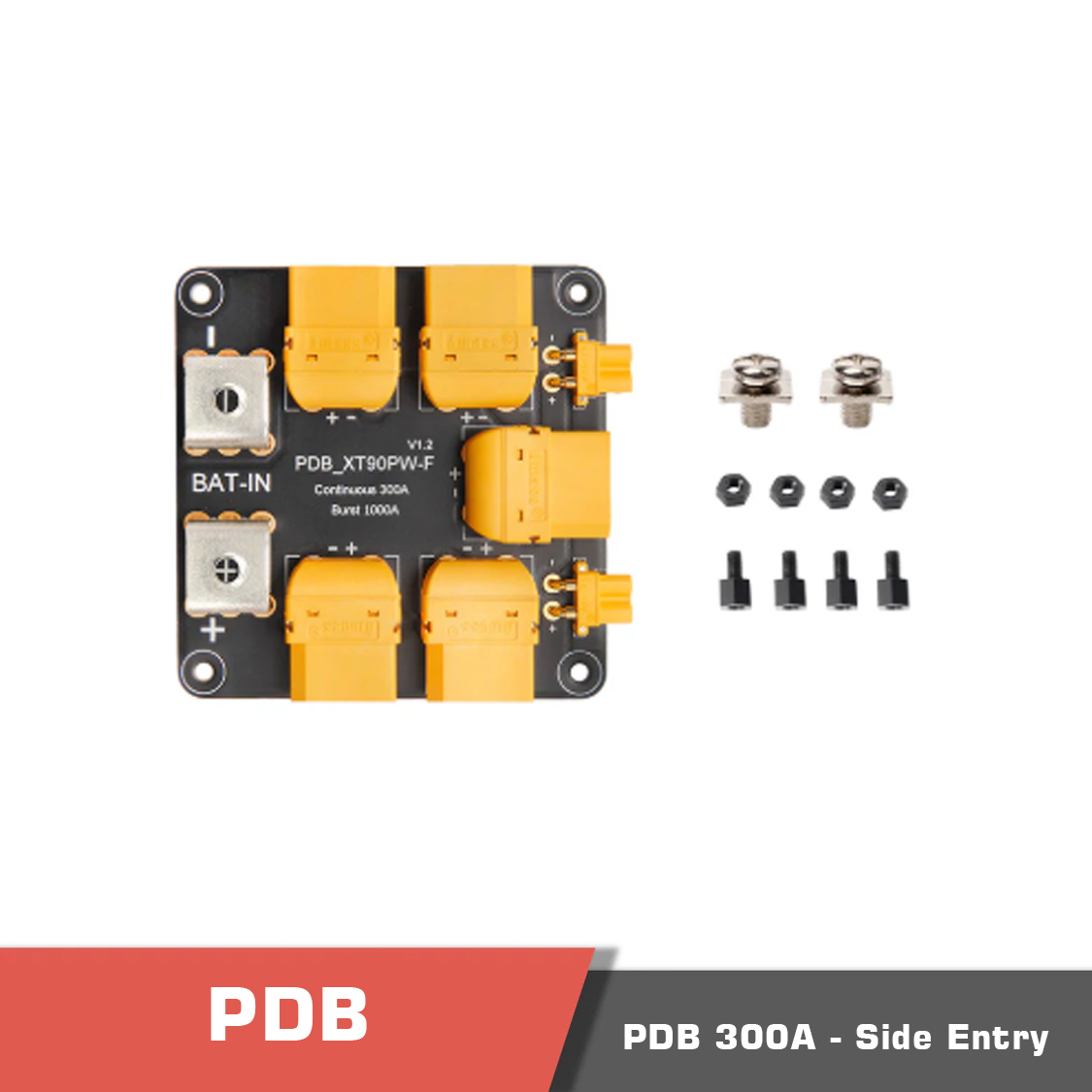

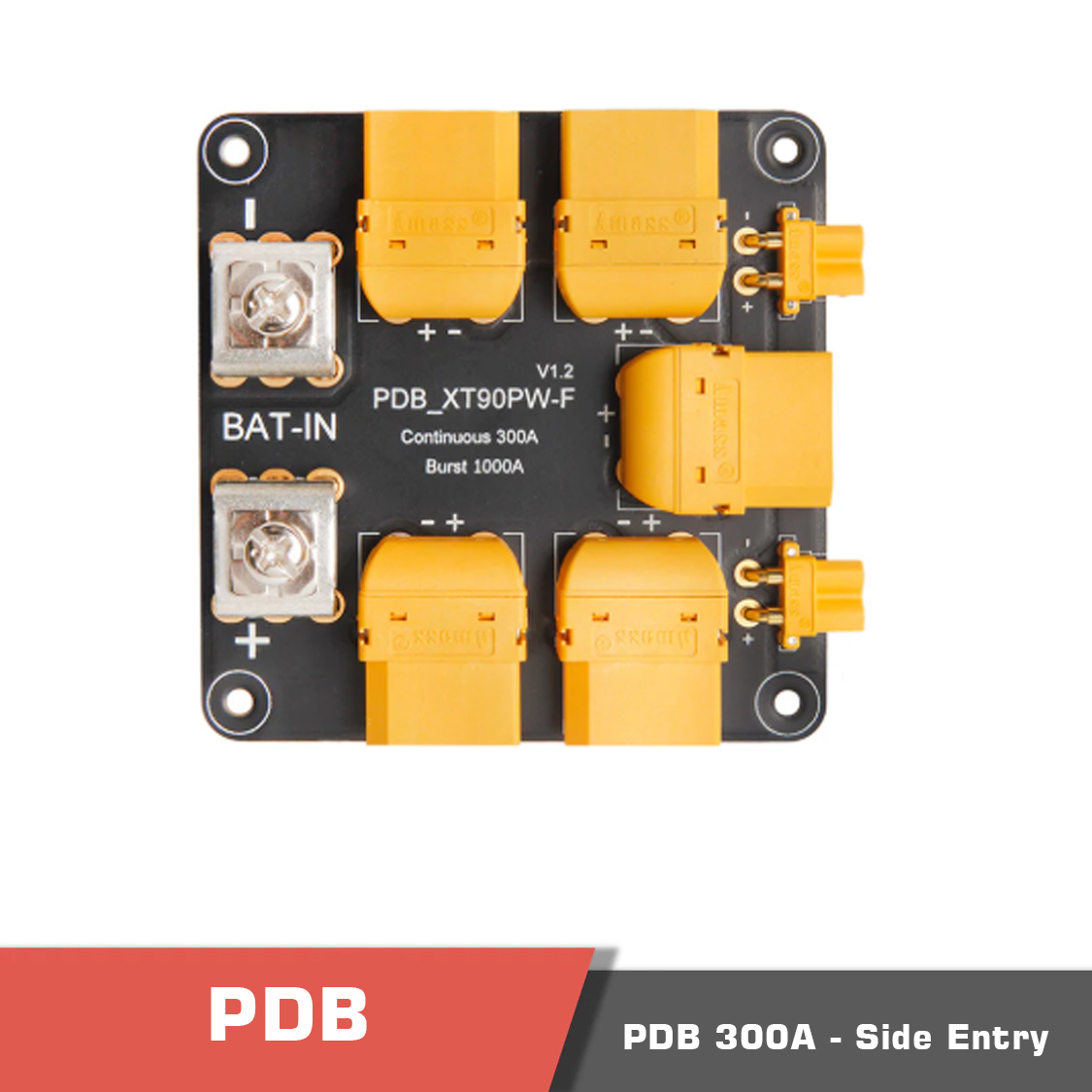

Holybro Power Distribution Board (PDB) 300A – Side Entry, for High-Current Applications

The Holybro 300A Power Distribution Board (PDB) is engineered for high-performance UAVs and industrial drones that require robust, stable, and efficient power management. Designed to handle demanding electrical loads, it efficiently distributes power from the main battery to multiple electronic speed controllers (ESCs), flight controllers, and onboard systems. Its 300A continuous current capacity ensures exceptional stability for large aerial platforms, particularly VTOL and multirotor drone configurations that draw high amperage under full load.

Reliable Power Distribution for Heavy-Duty UAVs

At the heart of every large UAV lies a dependable power distribution board, which serves as the backbone for electrical integrity and flight reliability. The Holybro 300A PDB is specifically built for high-current applications, making it ideal for UAV systems operating in industrial inspection, mapping, logistics, or agricultural missions.

Unlike conventional PDBs that may struggle with power surges, this board features heavy copper traces and reinforced solder pads to manage large current spikes efficiently. Its side-entry connectors simplify wiring in compact airframes while improving cooling and accessibility. This meticulous design reflects Holybro’s dedication to quality and performance.

Advanced Integration with Modern Flight Systems

The Holybro 300A PDB integrates seamlessly with a wide range of flight controllers and power solutions available at MotioNew. When paired with advanced components such as a flight controller or a semi solid state battery, the system achieves superior power stability and operational endurance. The board’s compatibility extends to various high-capacity ESCs and power modules, allowing UAV engineers to customize setups without electrical mismatches.

As part of the broader power solution ecosystem, this Holybro board provides a foundation for safe and scalable energy management. Whether powering propulsion systems, sensors, or onboard payloads, it maintains voltage consistency even under fluctuating load conditions. The board’s robust performance minimizes electromagnetic interference (EMI), ensuring smooth communication between avionics and peripheral modules.

Key Features and Benefits

• 300A continuous current rating: Enables safe operation for heavy UAV builds.
• Side-entry power connectors: Simplify cable routing and reduce space constraints.
• Thick copper layers: Enhance electrical conductivity and thermal dissipation.
• Wide compatibility: Supports multiple battery voltages and ESC interfaces.
• Efficient power balancing: Distributes current evenly to prevent overload.

These attributes make the Holybro 300A PDB an essential choice for UAV integrators seeking dependable performance without adding unnecessary weight.

Engineering Insight from MotioNew

MotioNew engineers emphasize the importance of clean power architecture in UAV design. A high-current board like this mitigates risks of voltage sag, which can otherwise lead to ESC desynchronization or sensor malfunctions. When integrated with complementary systems, such as a multirotor drone powertrain or a VTOL drone propulsion module, the Holybro 300A PDB ensures optimal current delivery across all active circuits.

The product’s side-entry layout is particularly advantageous for UAVs where vertical space is limited, providing an efficient alternative to traditional top-mount connectors. This feature improves cooling airflow and simplifies maintenance during field operations.

Applications

The Holybro 300A Power Distribution Board is ideally suited for:

• Heavy-lift multirotor and VTOL drones.
• Long-endurance UAVs requiring stable power regulation.
• Research platforms testing high-load electrical systems.
• Industrial drones with multi-sensor payloads.

Its reliability in demanding environments makes it a preferred choice for UAV integrators working on mission-critical applications.

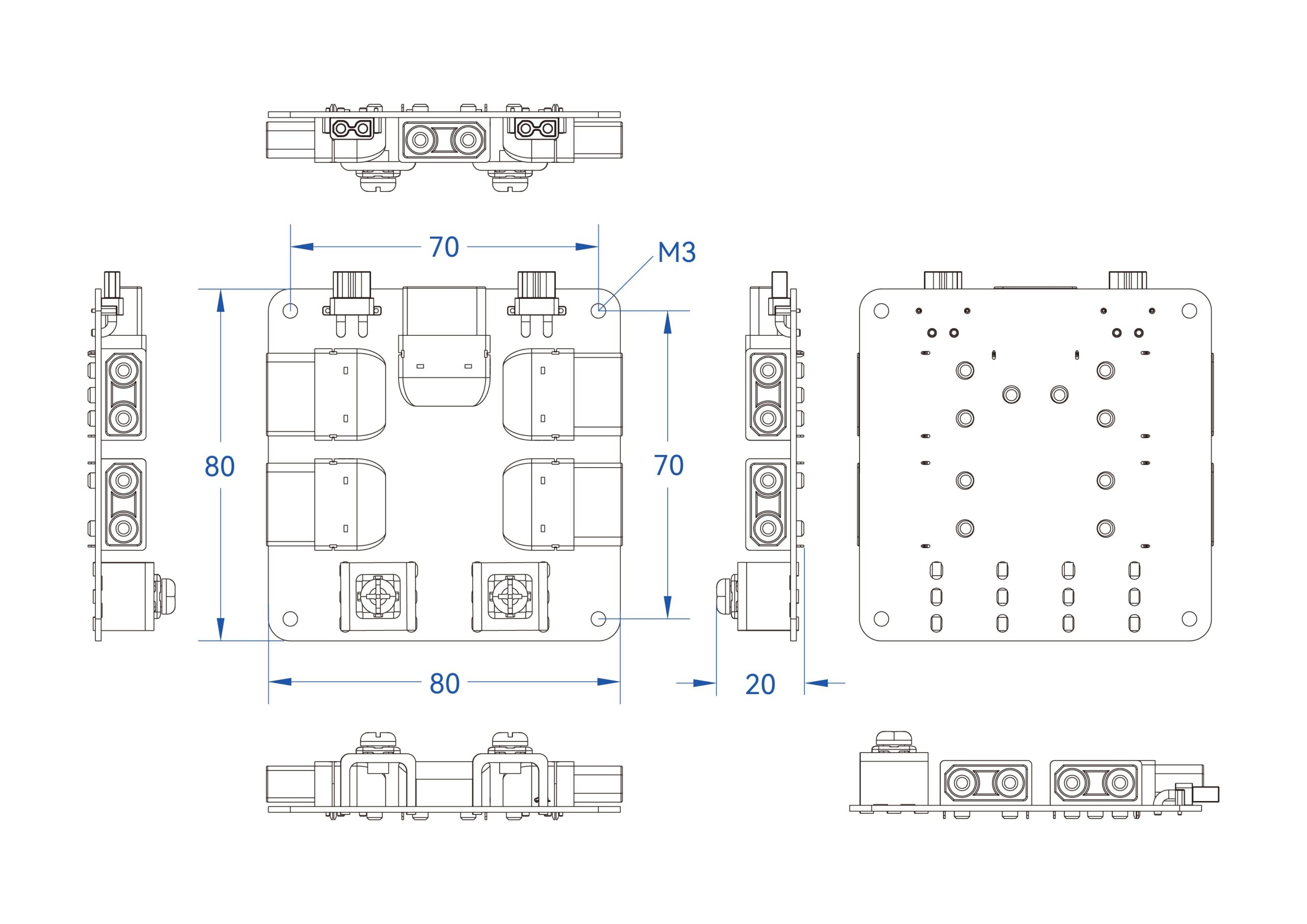

Technical Specifications

• Continuous Current: 300A, High current screw terminals
• Connector Type: Side-entry terminals
• PCB Material: High-grade with thick copper traces
• Dimensions: Compact and lightweight form factor
• Mounting: Standard hole pattern M3 for UAV frames

FAQs

1. Is the Holybro 300A PDB compatible with other power modules and flight controllers?
Yes, the board supports a wide range of modules, including most flight controllers available through MotioNew’s catalog. Its design follows common UAV industry standards for plug-and-play integration.

2. Can this PDB be used in high-voltage systems or hybrid UAV powertrains?
Absolutely. The board handles high voltages, making it suitable for hybrid setups and long-endurance drones requiring consistent current regulation.

3. Does MotioNew offer technical support for custom power integration?
Yes. MotioNew’s technical team assists engineers in optimizing electrical setups for performance and safety, from wiring schematics to current load balancing.

4. Are bulk or wholesale options available for the Holybro 300A Power Distribution Board?
MotioNew provides competitive price, bulk, and wholesale options for OEMs and UAV manufacturers, ensuring timely delivery and technical documentation support.

5. How does this PDB compare with lower-rated boards in the same category?
While smaller boards suffice for hobby-grade drones, the Holybro 300A PDB is engineered for professional UAVs where efficiency, current stability, and structural reliability are paramount.
