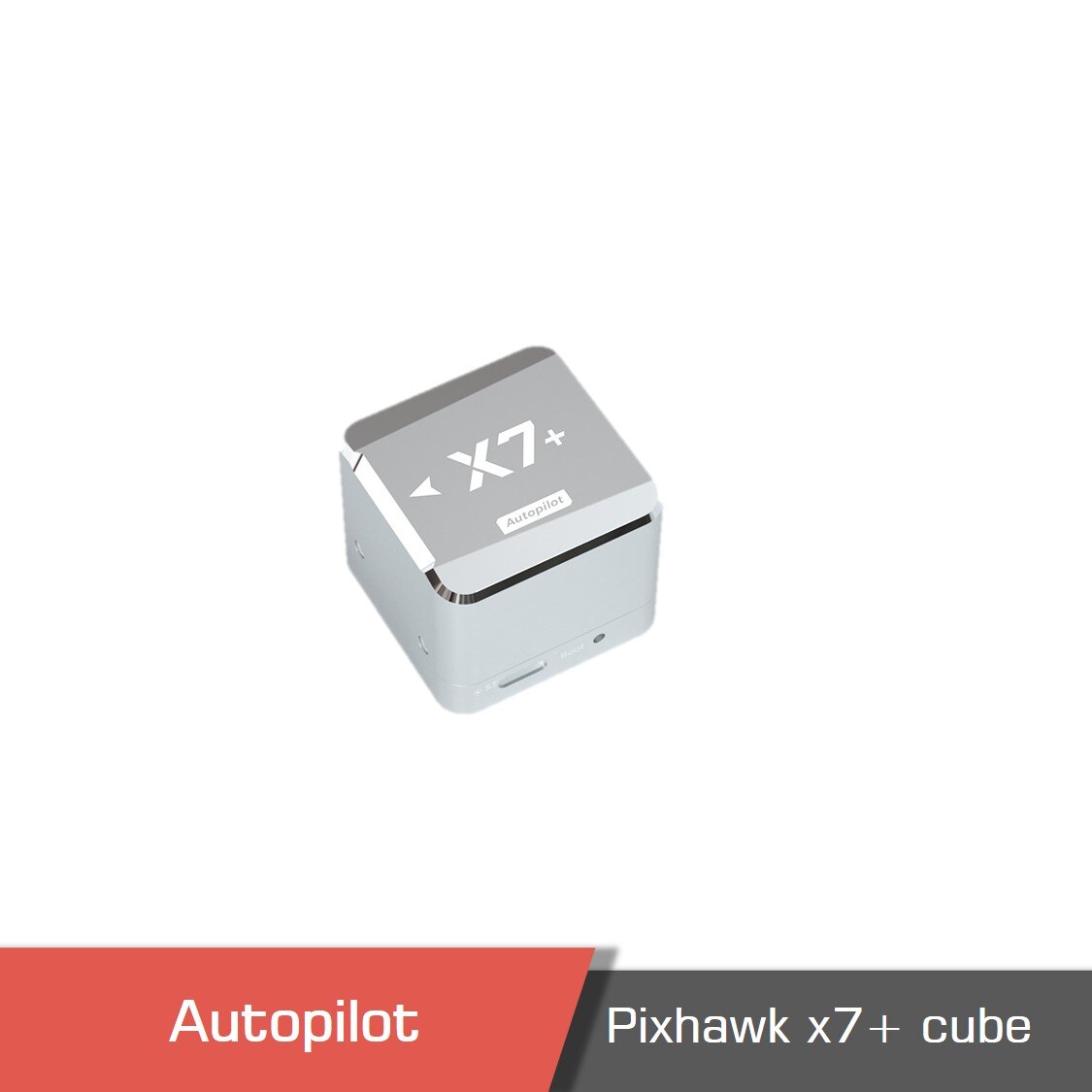

CUAV X7 plus Cube Pixhawk Flight Controller

370.00 $

Out of stock

Description

CUAV X7 plus Autopilot Overview

As an advanced autopilot developed independently by CUAV®, the CUAV X7 Plus is the best choice for your drone. Besides using an STM32H7 processor with higher performance, it also integrates industrial-grade sensors and ultra-low temperature drift sensors. There is a significant improvement in performance and reliability in comparison to the previous flight controller. It is very easy to run ArduPilot firmware on this board. An industrial drone will benefit greatly from the X7 Plus.

Uabcc4259759040629f1cf99039fd02b22 - cuav x7 plus, flight controller - motionew - 4
Sensor Redundancy Design Built-in three sets of accelerometers and gyroscopes, the flight controller monitors the data of multiple sensors in real time, and executes redundant switching immediately in case of failure to improve flight safety and stability.U4f9b017efdaa457095b150d1156fd41dk - cuav x7 plus, flight controller - motionew - 5
Optional RTK to Realize Centimeter-Level Positioning
CUAV’S C-RTK series products can be purchased to achieve centimeter-level positioning, which can be used in scenes that require high-precision positioning, Such as plant, Agriculture, surveying and mapping, etc.U94af9a7b2ae14364bb9edc9729696d8cm - cuav x7 plus, flight controller - motionew - 6U33877d5e2db34300a92d3f09983ab3f0n - cuav x7 plus, flight controller - motionew - 7U2b7647be3c8a43e68fb98609259bc2cbr - cuav x7 plus, flight controller - motionew - 8Ucd989b4cc4a64f1fbb793e6d54ca602fz - cuav x7 plus, flight controller - motionew - 9Uf9ab094203e94f208ad10af5c7b1e6cen - cuav x7 plus, flight controller - motionew - 10
Support LTE Link Series 4G Telemetry Support LTE Link series 4G telemetry.so that your flight video and data can be transmitted without distance limitation, and support video sharing.Ue01b4cfa4b1d4be19d2550f46abbc544l - cuav x7 plus, flight controller - motionew - 11U1e4e3eddabc14276a54052550ec8d0b72 - cuav x7 plus, flight controller - motionew - 12Uaae41e4a9dd54e0cb9b10b0330495981e - cuav x7 plus, flight controller - motionew - 13
Temperature Compensation System The built-in high-precision sensor temperature compensation system makes the sensor work at a constant temperature, ensuring that the sensor can operate stably with high precision and sensitivity in high and lowUb1d1d25340f44ff0941354acf008a90cj - cuav x7 plus, flight controller - motionew - 14
Better CUAV Patented Shock Absorption System After dozens of iterations, hundreds of shock-absorbing materials have been tested and verified, computer model analysis and thousands of flight tests, so improve the shock absorption to a further levelU935bb21071354e40a4d5c8db33357024t - cuav x7 plus, flight controller - motionew - 15U557cb8375b1c4e64a2f1cf69b5d83fe9v - cuav x7 plus, flight controller - motionew - 16
CORE Separate Design The X7 + flight controller integrates the main MCU and IMU into the CORE module and can be sold separately。 Users can design the baseboard according to the UAV structure to meet the individual needs of users,or purchase our CAN PDB baseboard for use。 The X7 + CORE interface is compatible with X7 X7 Pro,and V5 + flight controller CORE。
U60c07ef595234f1fa34aee8a9219dd64y - cuav x7 plus, flight controller - motionew - 17
H7 Processor Powerful Performance X7 + autopilot uses STM32H743 series processors CPU. Cortex-M7 core (with double precision Floating-Point Unit). It makes operating frequency increase to 480Mhz,2MB Flash IMB RAM Meet the higher computing needs of flight controllers Compared with the STM32F7 product line, the dynamic power consumption efficiency is doubled.



Specifications



Weight 106g
Dimension 77×45.5x39mm (including cube)
Operating temperature -20 ~ 80°C
Main FMU Processor STM32H743
On-board sensors Accelerometer/Gyroscope: ICM-20649-Accelerometer/Gyroscope: ADIS16470-Accelerometer/Gyroscope: BMI088
Magnetometer RM3100
Barometer: MS5611*2
14 PWM outputs (12 supports Dshot)
Support multiple RC inputs (SBUs / PPM / DSM)
Analogue / PWM RSSI input
2 GPS ports(GPS and UART4 ports)
4 i2c buses(Two i2c dedicated ports)
2 CAN bus ports
2 Power ports(Power A is common adc interface, Power C is uavcan battery interface)
2 ADC intput
1 USB ports
Power 4.3~5.4V
USB Input 4.75~5.25V
Servo Rail Input 0~36V

Ub52cd271c8ca4c14b6931968fc2af7c2g - cuav x7 plus, flight controller - motionew - 18

Ua64764ba35ce43648f1a2e5ce9188febc - cuav x7 plus, flight controller - motionew - 19

U9d1f74f3d10b4c188db898446d1d98b21 - cuav x7 plus, flight controller - motionew - 20

Product contents

Product contents

Documents

User manual
