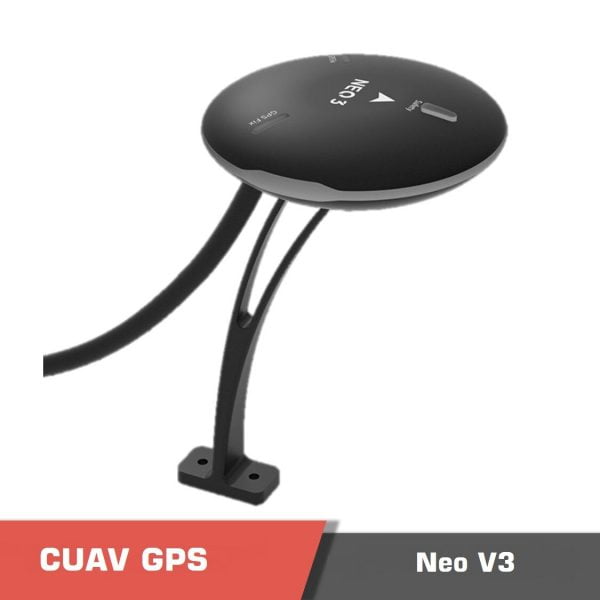

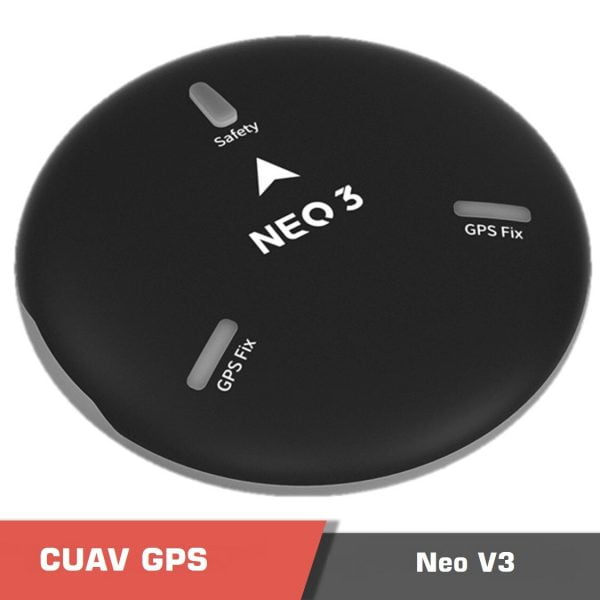

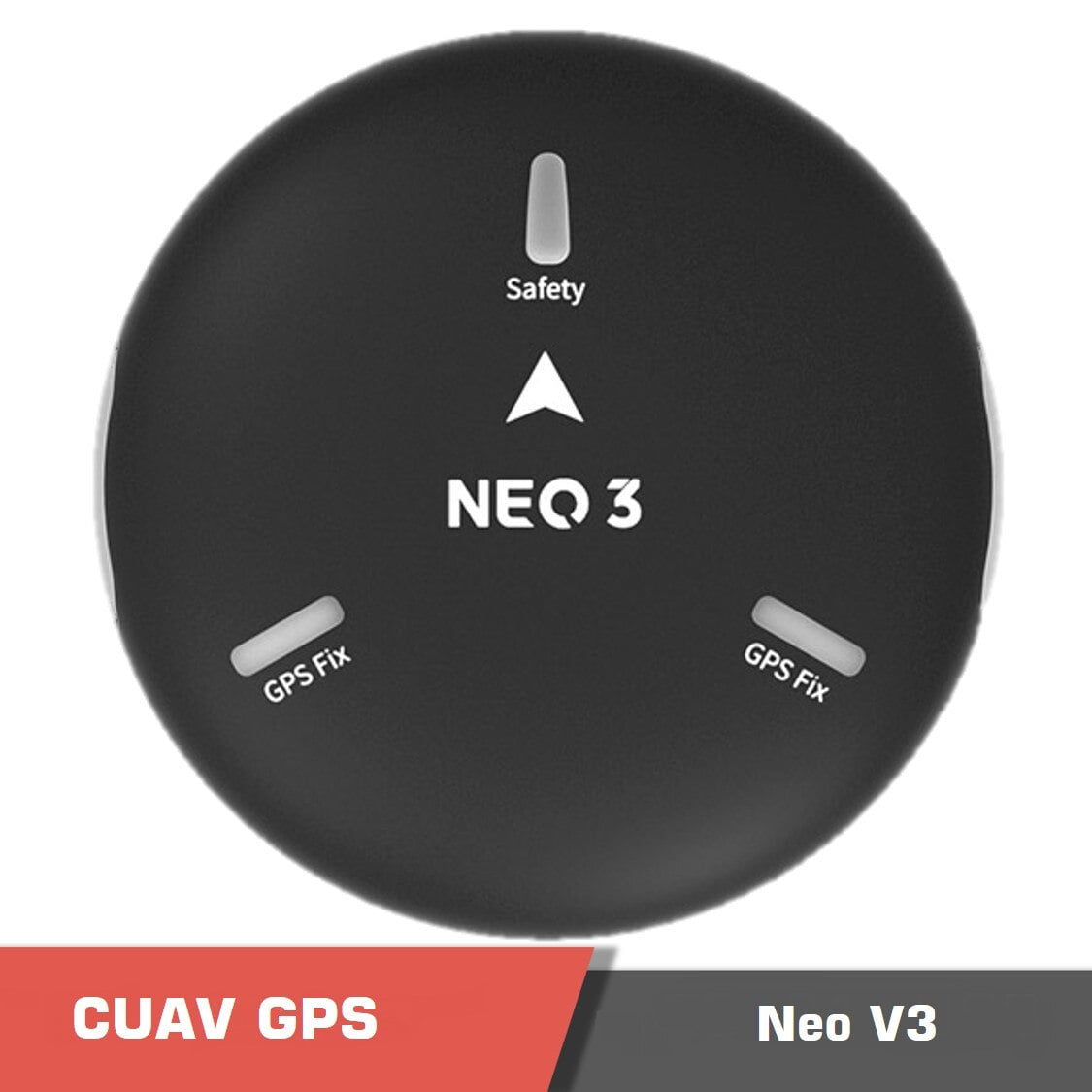

CUAV NEO 3 GPS High Precision GPS Sensor Overview
CUAV NEO 3 GPS, High Precision GPS unit combines a compass, barometer, flight controller status light, buzzer, and safety switch. As a result of its high level of safety and strong interference resistance, it is highly recommended. The module integrates the Ublox m9n module, which is capable of receiving signals from GPS, Galileo, GLONASS, and Beidou all at once.
In addition to the Ublox NEO M9N GPS Module with Shell Stand Holder, the CUAV NEW GPS Compass Module is suitable for Pixhawk V5+ plus RC Parts PX4 flight controllers. It is a GPS sensor that uses GNSS for positioning purposes.
It is a new generation satellite receiver that supports an accuracy of 0.7 degrees and supports simultaneous satellite signals to be received from four satellite systems using the NEO 3 GNSS satellite navigation module generation Ublox M9.
The features of this CUAV Neo 3 GPS
It is a high precision GNSS sensor that offers high accuracy
3D compass with high precision and precision for industrial applications
Using a barometer
An integrated buzzer is included in this device
An integrated safety switch is provided
This product uses RGB LEDs.
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.CUAV NEO 3 GPS – FAQ
1. What is the main function and architecture of the CUAV NEO 3 GPS?
The CUAV NEO 3 is a high-precision GNSS module that integrates GPS, compass, barometer, buzzer, RGB indicator, and safety switch in one compact design, providing reliable positioning and safety control for UAVs.
2. Which satellite systems and technologies does the NEO 3 support?
It uses the u-blox M9N GNSS chipset, capable of simultaneously receiving signals from GPS, Galileo, GLONASS, and BeiDou constellations, achieving high positioning accuracy and strong anti-interference performance.
3. What flight controllers are compatible with the CUAV NEO 3 GPS?
The module is compatible with CUAV and Pixhawk flight controllers, including V5+, V6X, and similar PX4-based systems, supporting both ArduPilot and PX4 firmware platforms.
4. What are the purchasing and delivery options for the CUAV NEO 3 GPS?
It is sold as a standalone unit including the GPS module, shell stand, and cable set. Motionew offers international shipping with tracking and estimated delivery times provided during checkout.
5. Does Motionew support OEM or bulk purchases for the NEO 3 GPS?
Yes. OEM and wholesale purchase options are available for drone manufacturers and integrators. Buyers can request custom cable configurations, mounting solutions, and bulk pricing through Motionew’s sales department.
6. What documentation and support resources are provided?
User manuals, wiring diagrams, and configuration guides are included in the product documentation section. Firmware updates and technical assistance are provided through CUAV and Motionew’s engineering support teams.
Specifications
Specifications

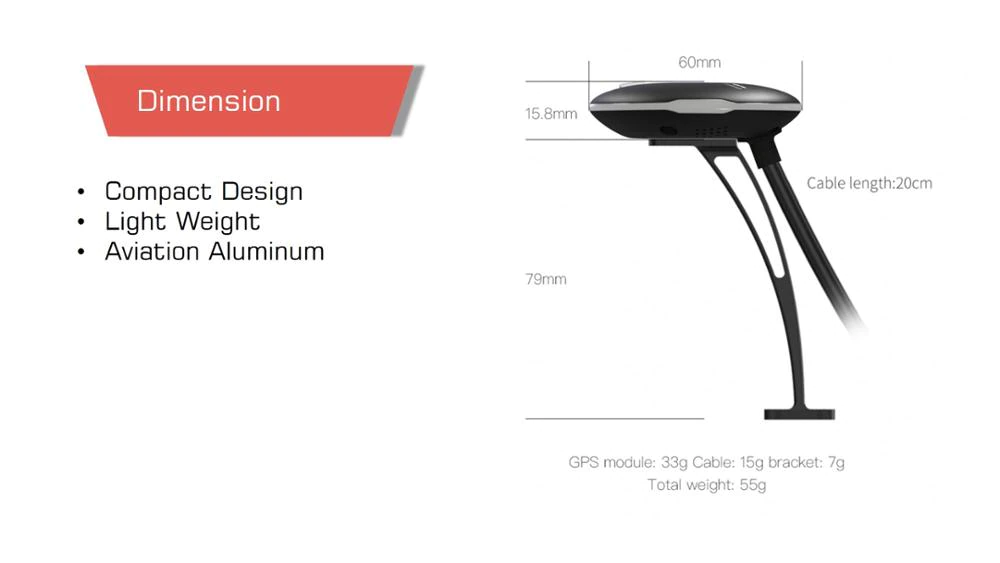

Compatible Brand Pixhawk Weight 33g Dimension 60*15.8mm Operating temperature -20 ~ 85°C Input voltage 5V Receiver type 72 Channels GPS Chip UBLOX M9N RGB status light NCP5623C Compass IST8310 Buzzer Passive buzzer Safety switch Physical buttons Accuracy 3D positioning Nav. Update rate 25Hz (Max) Acquisition Cold Start 24S | Hot Start 1.5S | Aided Start 2S | Reacquisition 1S Receiver type 72 Channels Sensitivity Tracking & Navigation -167dBm Cold Start -148dBm Hot Start -156dBm Reacquisition -160dBm Functional Advanced jamming Input voltage 5V Temperature -10-70 ° C
Product contents
Product contents
1xNEO GPS V2 Module
1XNEO GPS V2 Stand
Documents
Documents
Please contact us for more information.
