Description

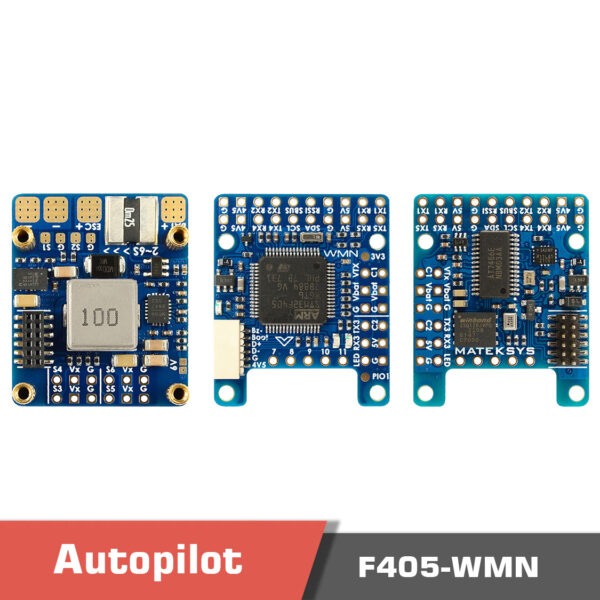

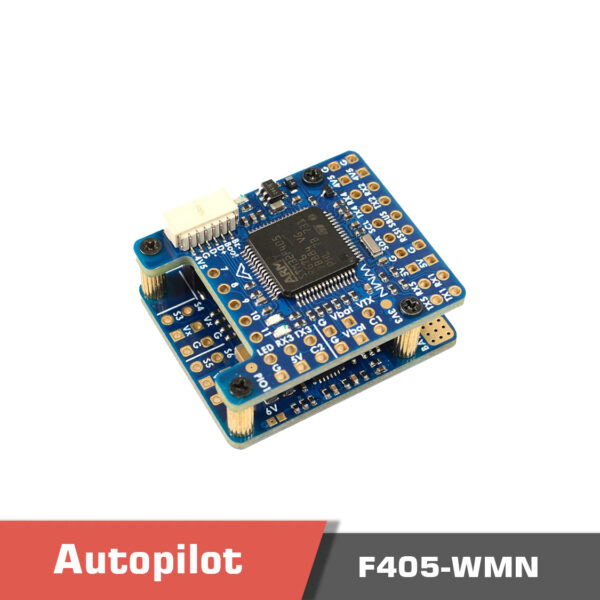

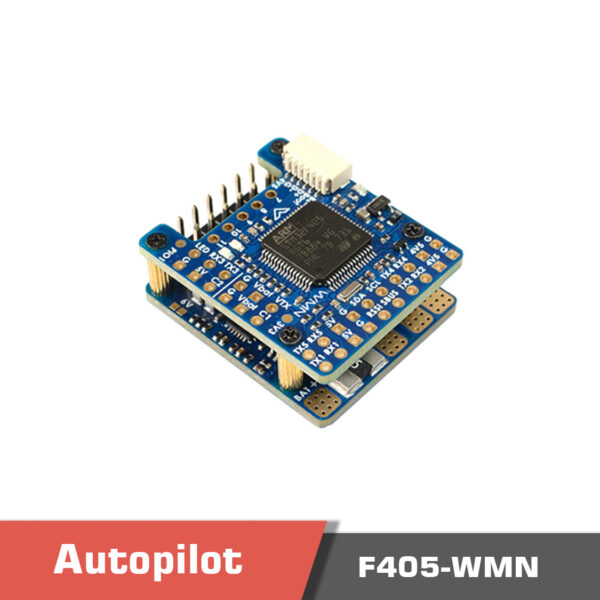

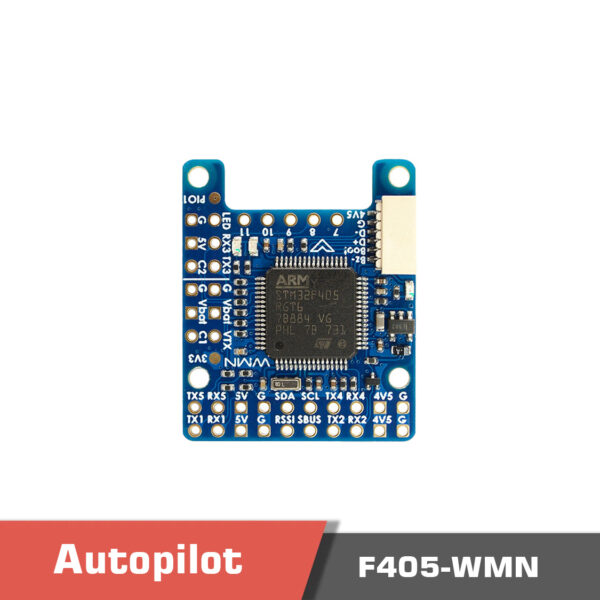

Matek F405-WMN Flight Controller
The Matek F405-WMN flight controller is a lightweight drone autopilot flight controller that is designed for use in different kinds of aircraft. Its small size and lightness make it ideal for airframe builds that are space-constrained. It is a powerful and versatile drone flight controller that offers a good balance of features and performance.
The F405-WMN features a 168MHz STM32F405RGT6 processor, an ICM42688-P IMU, a SPL06-001 baro, and an AT7456E OSD. It also has 5 UARTs, 12 PWM outputs, 1 I2C, and 3 ADCs.
The F405-WMN is compatible with a variety of flight control software, including ArduPilot, INAV, and Betaflight. It also supports a variety of features, such as DShot, OSD, and blackbox logging.
Here are some of the key features of the Matek F405-WMN:
- 168MHz STM32F405RGT6 processor
- ICM42688-P IMU
- SPL06-001 barometer
- AT7456E OSD
- 5 UARTs
- 12 PWM outputs
- 1 I2C
- 3 ADCs
- Compatible with ArduPilot, INAV, and Betaflight
- Supports DShot, OSD, and blackbox logging
- Smaller and lighter than the Matek F405
- Designed for wing aircraft
Overall, the Matek F405-WMN is a high-quality flight controller that is a good choice for a variety of wing aircraft. It is powerful, accurate, and versatile.
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
FAQ – Matek F405-WMN Flight Controller (Lightweight UAV Controller)
1. What are the main technical specifications of the Matek F405-WMN?
The controller features a 168MHz STM32F405RGT6 processor, an ICM42688-P IMU, a SPL06-001 barometer, and an AT7456E OSD. It includes 5 UARTs, 12 PWM outputs, 1 I²C port, and 3 ADC inputs.
2. What firmware and protocols are supported?
The F405-WMN supports ArduPilot, INAV, and Betaflight. It also provides compatibility with DShot, OSD, and blackbox logging, ensuring flexibility for different UAV platforms.
3. What UAV applications is it best suited for?
This model is optimized for fixed-wing and VTOL UAVs, especially where space and weight are limited, offering high performance in compact airframes.
4. How can customers order and make payments?
Available through MotioNew’s online store for $58.90 USD. Payment options include PayPal, major credit cards, and bank transfers. Global shipping is supported.
5. Does MotioNew provide OEM or customization support?
Yes. OEM services include firmware customization, hardware integration, and connector configuration for UAV manufacturers and system integrators.
6. What documentation and after-sales support are provided?

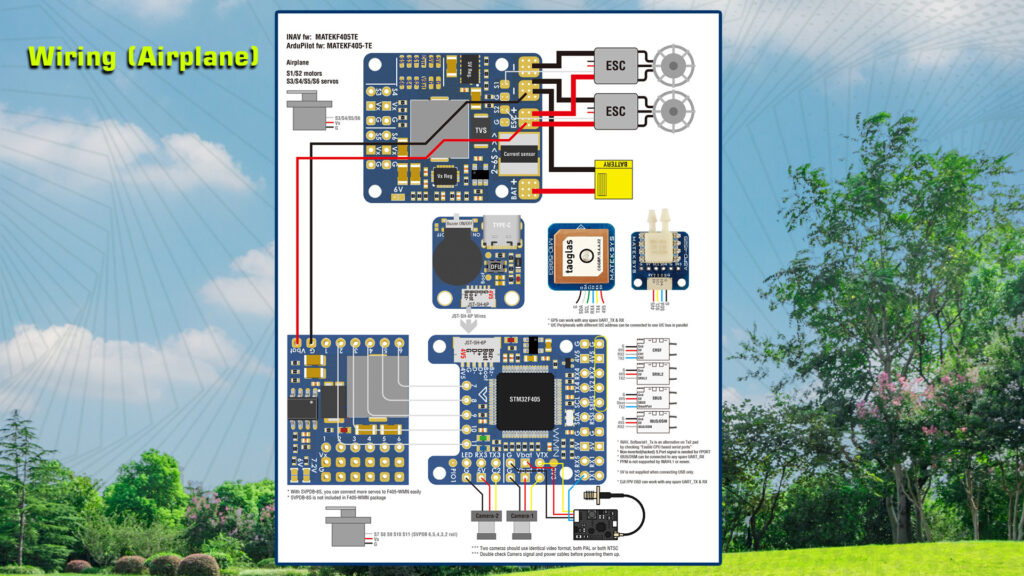

Each unit includes wiring diagrams, setup manuals, and firmware guidance. MotioNew offers warranty coverage, firmware support, and technical assistance for configuration and integration.

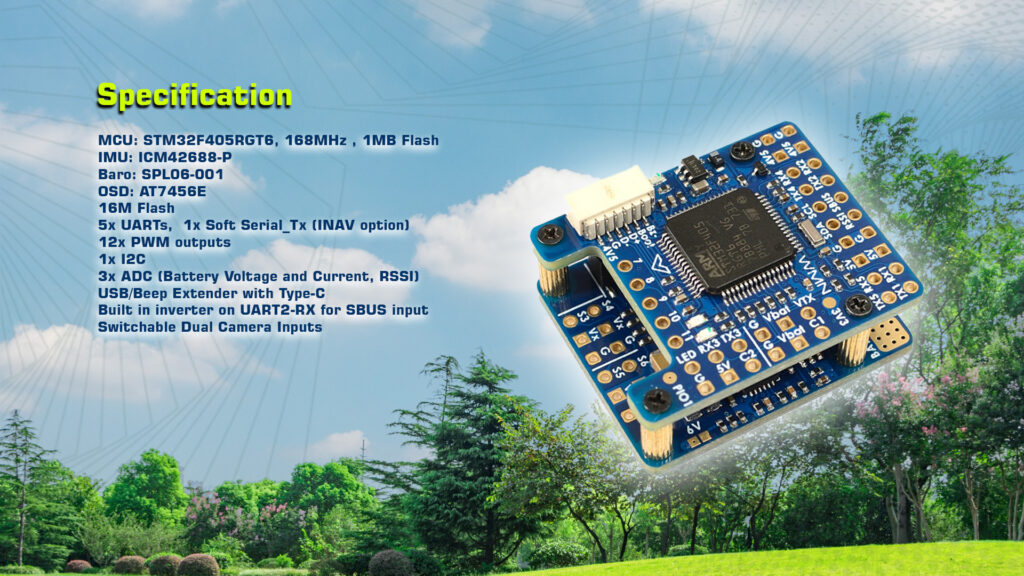

Specifications
Specifications
FC Specifications

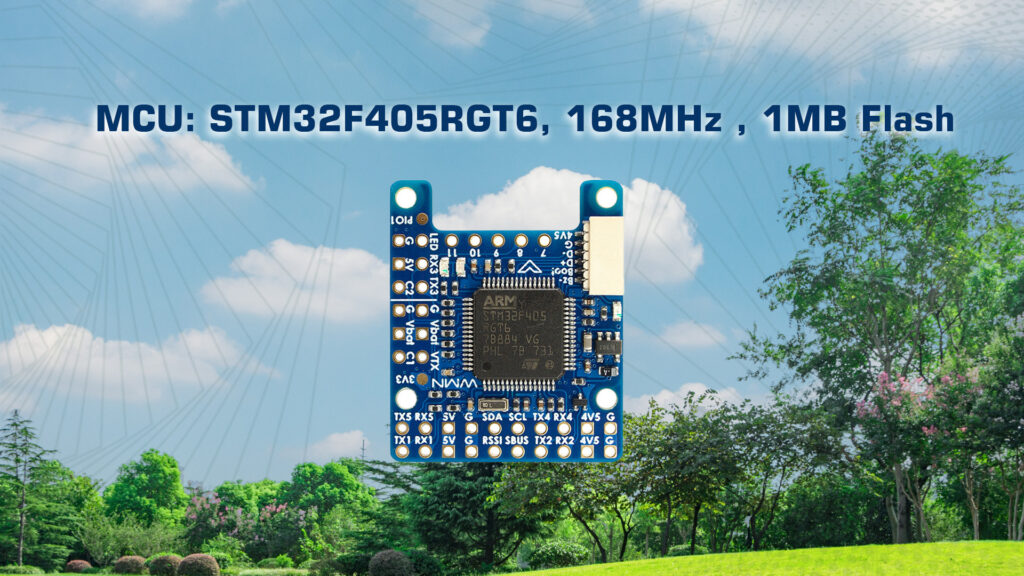

| MCU | STM32F405RGT6, 168MHz , 1MB Flash |
| IMU | ICM42688-P |
| Baro | SPL06-001 |
| OSD | AT7456E |
| Blackbox | 16M Flash |
FC Firmware
| ArduPilot | MatekF405-TE |
| INAV | MATEKF405TE (INAV 5.0 or newer) |

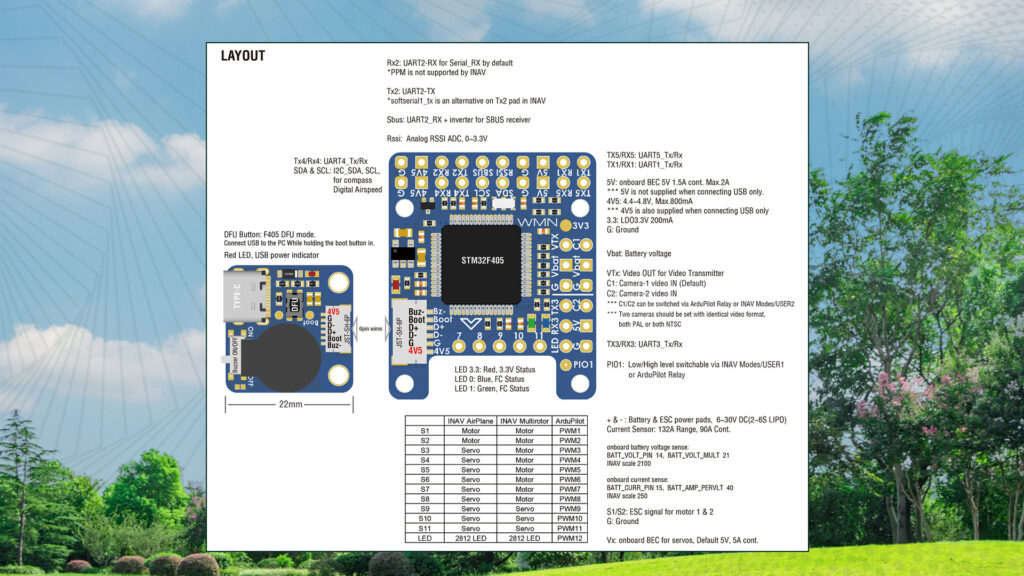

| peripherals | 5x UARTs, 1x Softserial_Tx option(INAV)
12x PWM outputs 1x I2C 3x ADC (VBAT, Current, RSSI) 1x spare PINIO |
| other options | USB/Beep Extender with Type-C(USB2.0)
Built in inverter on UART2-RX for SBUS input Switchable Dual Camera Inputs |
Power
|
||||||||||||||
| Vbat for VTX and camera |

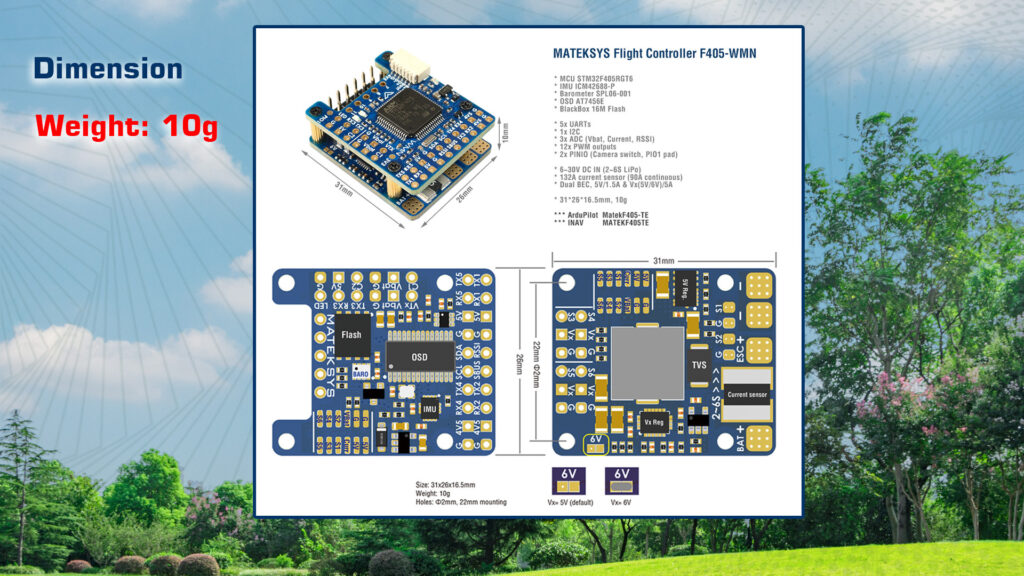

Physical
| Dimensions | 31 x 26 x 16.5 mm |
| Mounting | 22 x 22mm, Φ2mm |
| Weight | 10g |

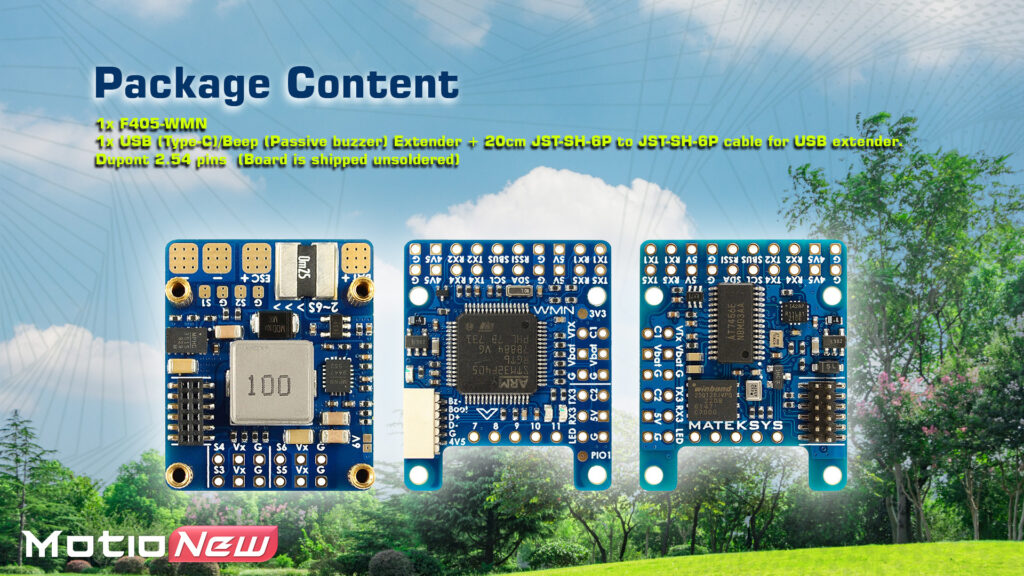

Product contents
Product contents
Documents
Documents
Check the full manual here.
