Description

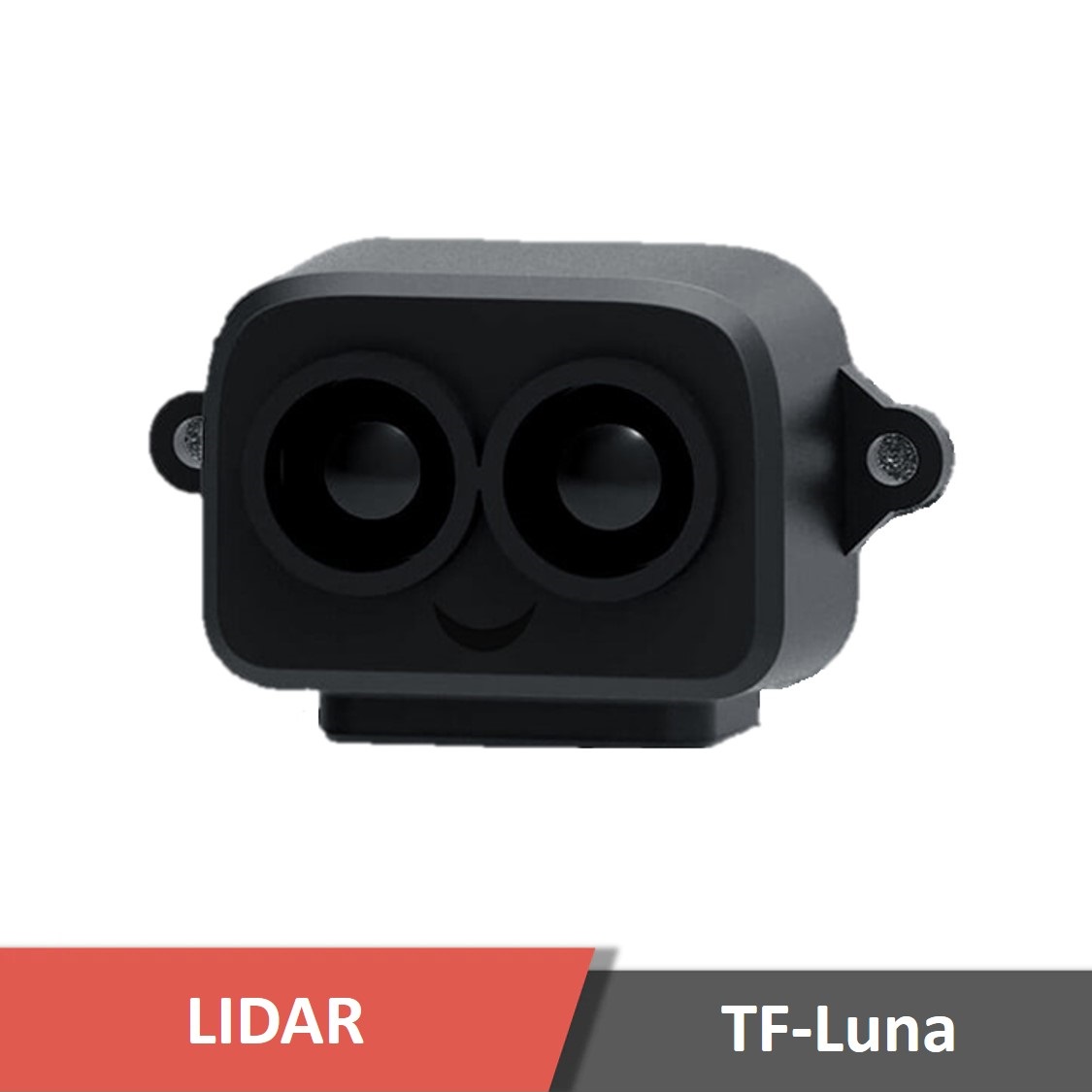

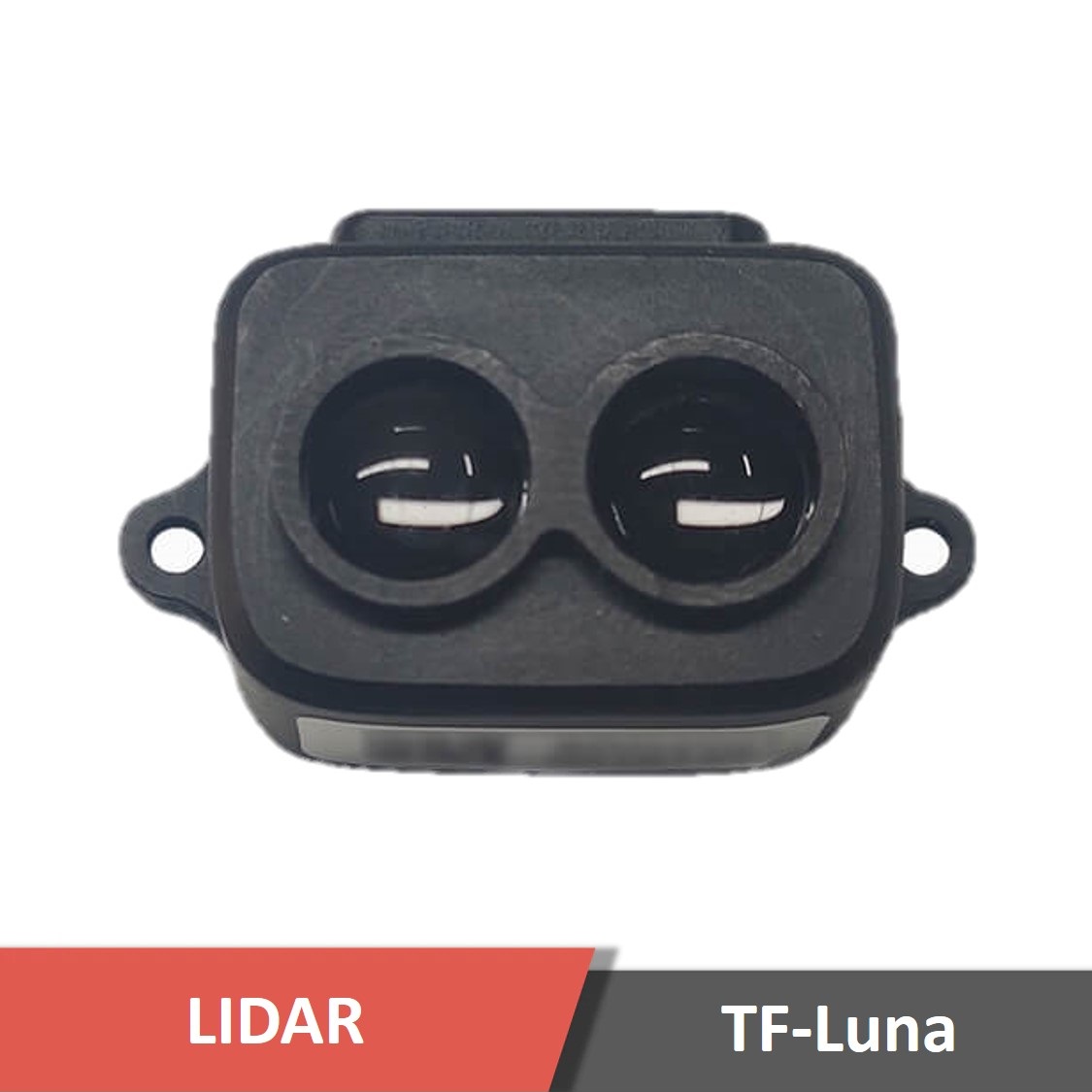

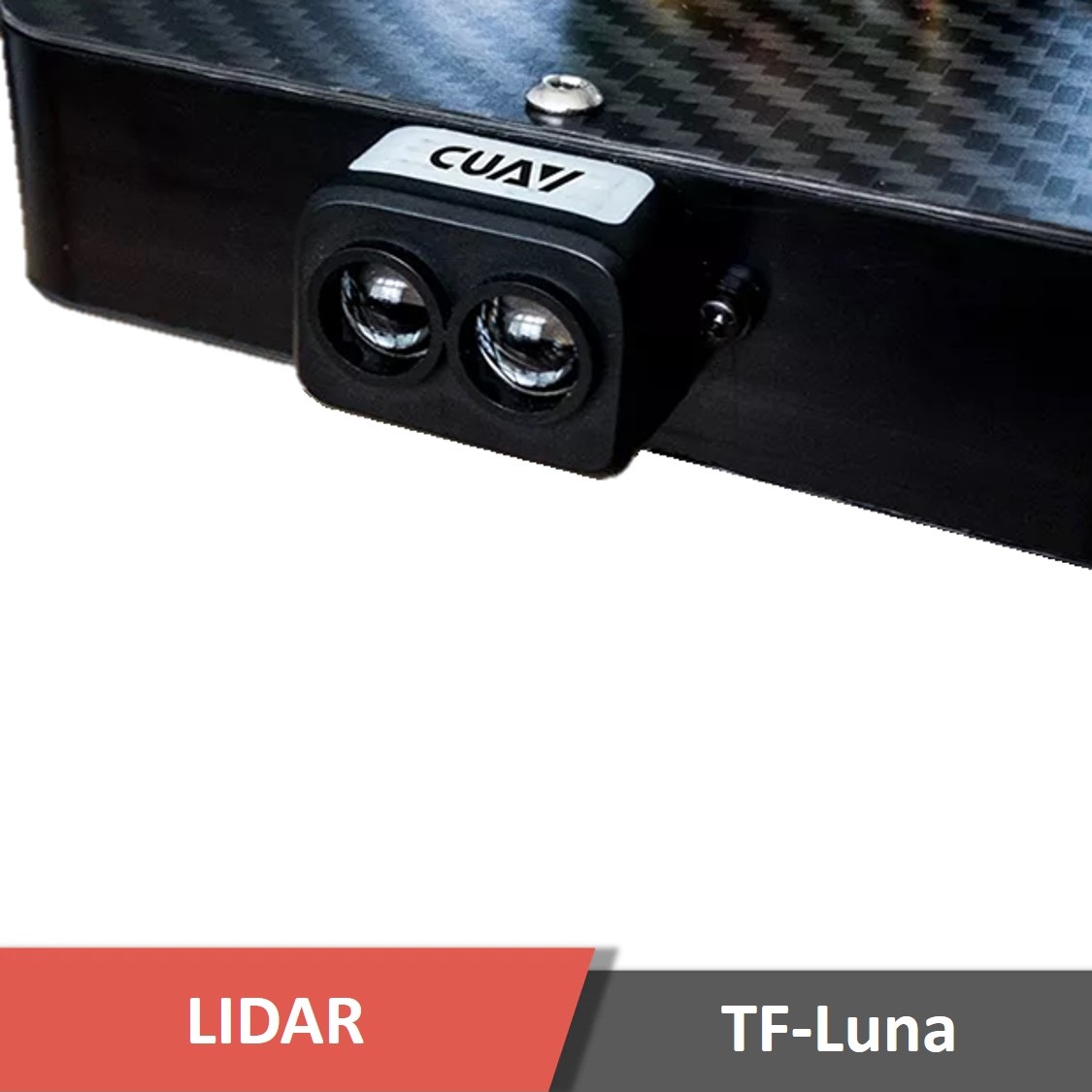

TF-Luna LIDAR Sensor

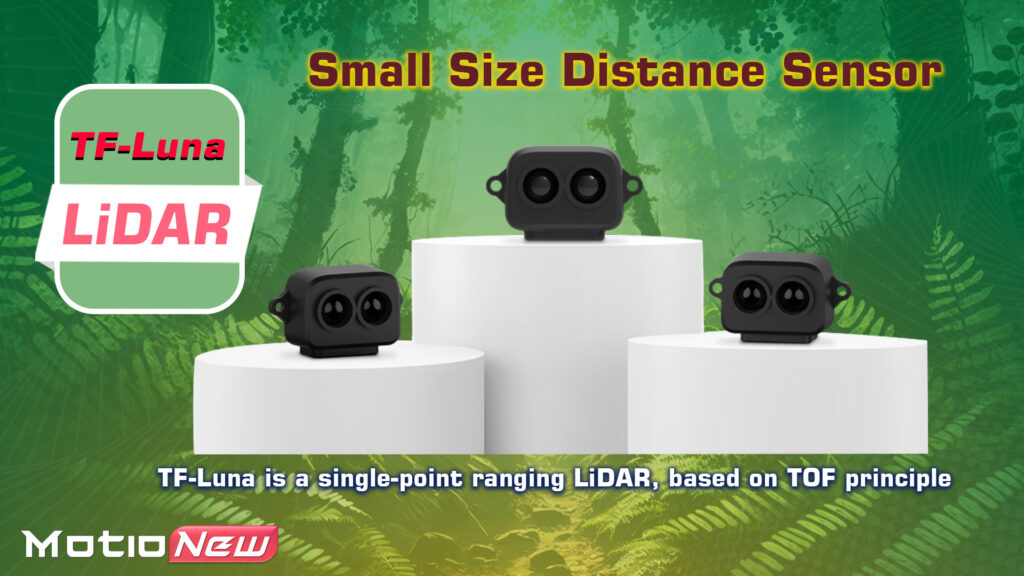

TF-Luna LIDAR Sensor is a low-cost short-range distance sensor. The sensor is small in size and lightweight and can detect up to 8 meters range while resisting ambient lights of up to 70Klux. This module uses the time-of-flight principle to measure the distance. TF-Luna can be used in applications that need stable, accurate, and high frame-rate range detection.
High Frame Rate, Low Power, and Precision for Intelligent Systems and UAVs
High frame rates of up to 250Hz combined with a low power consumption of less than 0.35W make this module appropriate for many applications, including but not limited to: Intelligent traffic monitoring, Intelligent Parking lot systems to show the open lots, and being installed on UAVs and drones as an obstacle avoidance sensor. The distance resolution is 1cm, and accuracy equals 6cm under 3 meters. The minimum required distance from the sensor for objects is 20cm.
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
Benewake TF-Luna LiDAR Sensor – FAQ
1. What is the main function and design of the TF-Luna LiDAR sensor?
The TF-Luna is a compact, single-point LiDAR sensor designed for distance measurement and obstacle detection. It delivers high-precision, short-range measurements ideal for UAVs, robotics, and automation systems.
2. What are the measurement range and accuracy specifications?
It offers a detection range of up to 8 meters with centimeter-level accuracy and a measurement frequency of up to 250 Hz, providing stable performance even in variable lighting conditions.
3. What communication interfaces and compatibility options are supported?
The sensor supports UART and I2C interfaces, making it fully compatible with Pixhawk, CUAV, and other open-source flight controllers running PX4 or ArduPilot firmware.
4. What are the purchasing and delivery options for the TF-Luna LiDAR?
It is available as a standalone module with connection cables included. Motionew offers international shipping with order tracking and estimated delivery times displayed during checkout.
5. Does Motionew offer OEM and bulk purchasing for this model?
Yes. OEM and bulk purchase programs are available for UAV manufacturers and robotics developers. Buyers can request custom wiring, mounting accessories, and quantity-based discounts through Motionew’s sales department.
6. What documentation and support resources are provided?
Detailed wiring diagrams, communication protocol documents, and configuration guides are available in the product documentation section. Firmware updates and technical support are provided through Benewake and Motionew’s engineering support teams.
Specifications
Specifications
| Product Parameters | |

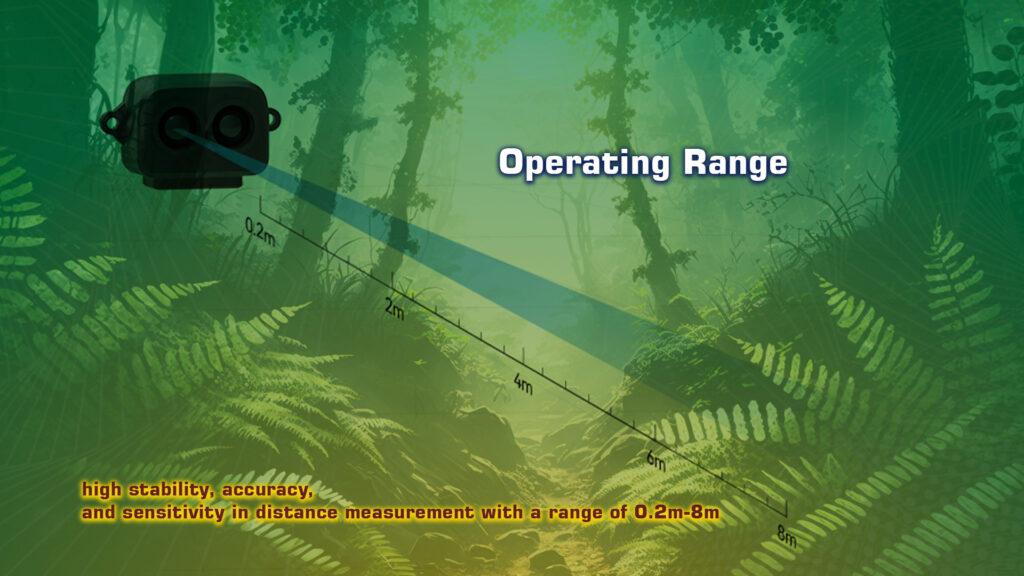

| Operating Range | 0.2~8m (90% Reflectivity) |
| 0.2~2.5m (10% Reflectivity) | |
| Distance Resolution | 1cm |
| frame rate | 1-250Hz |
| Ambient Light Resistance | 70Klux |
| Operation Temperature | -10~60°C |
| Optical Parameters | |
| Light Source | VCSEL |
| Central wavelength | 850nm |
| FOV | 2° |
| Photobiological Safe | Class 1 (IEC60825) |
| Electrical Parameters | |
| Supply Voltage | DC 3.7~5.2V |
| Average Current | ≤70mA |
| Power Consumption | ≤0.35W |
| Peak Current | 150mA |
| Communication Level | LVTTL (3.3v) |

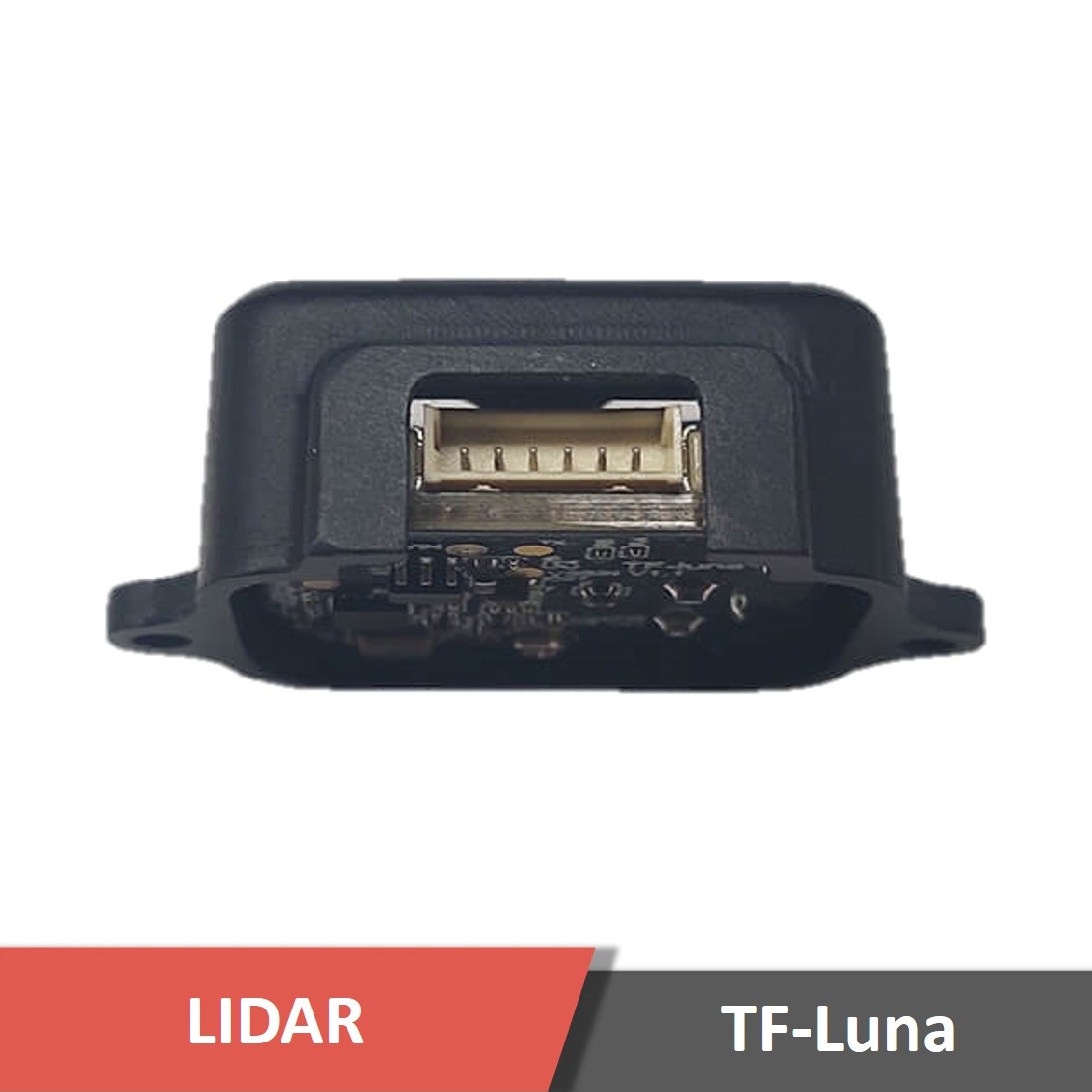

| Communication Interface | UART/I2C |
| Other Parameters | |

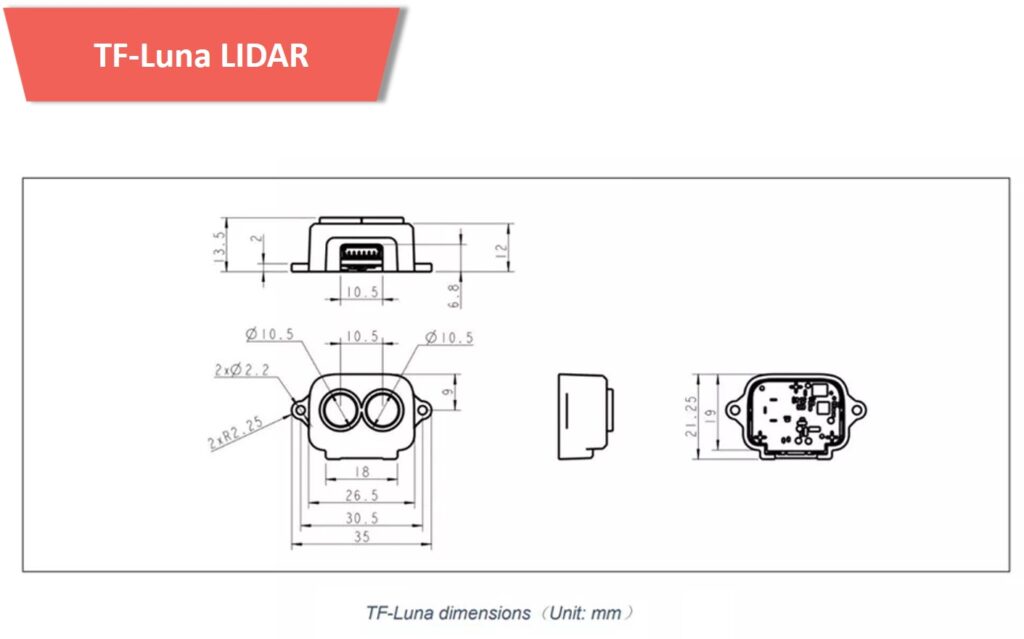

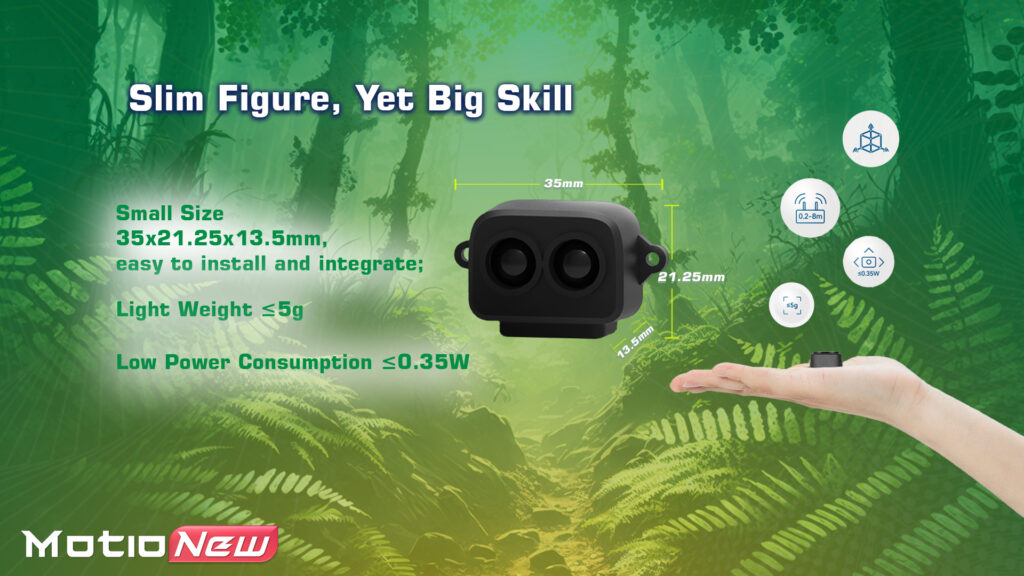

| Dimensions | 35×21.25×12.5mm (LxWxH) |
| Weight | <5g |
| Enclosure Material | PC/ABS |
| Storage Temperature | -20~75°C |
Documents
Documents
click to download TF-Luna LIDAR Sensor Manual
Product contents
Product contents
1x TF-Luna LIDAR Sensor
