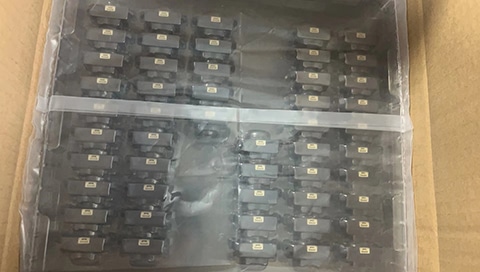

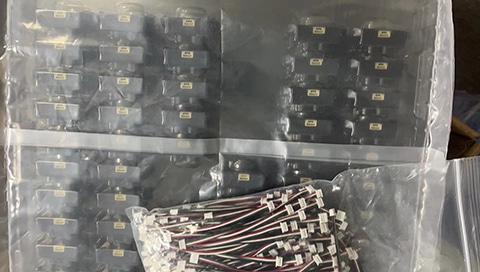

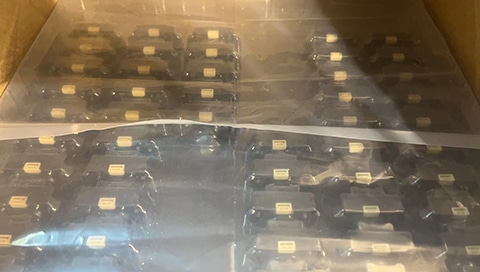

Customer Product Gallery
Description

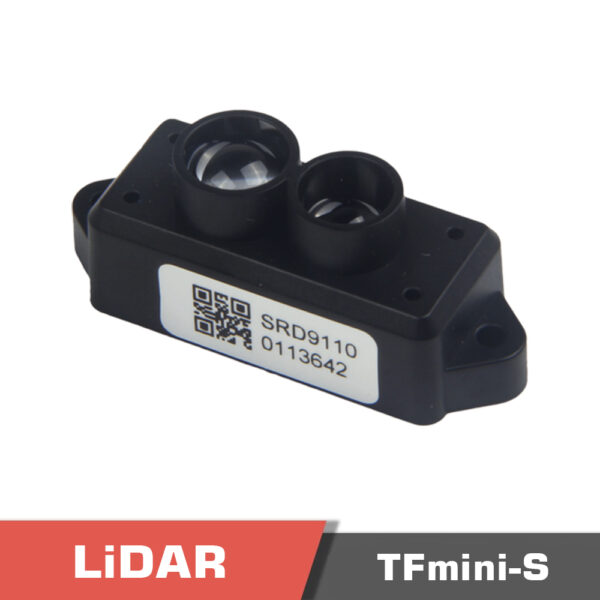

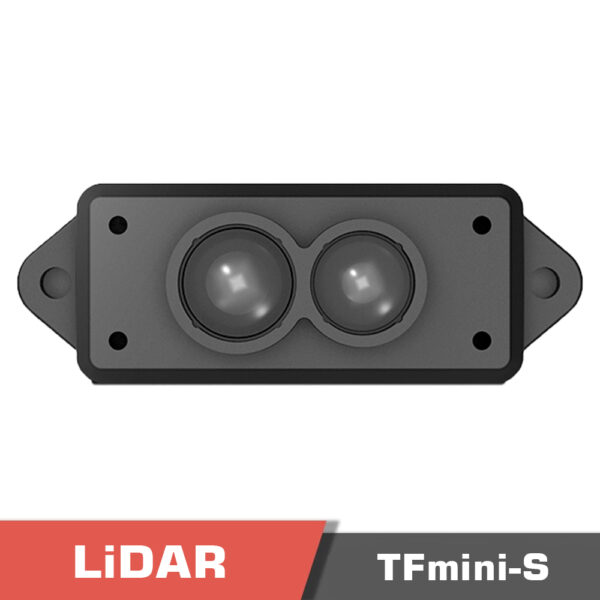

Benewake TFMini-S LiDAR Sensor
Benewake TFMini-S LIDAR Sensor is a low-cost short-range distance sensor. The sensor is small in size and lightweight and can detect up to 12 meters range while resisting ambient lights. This module uses the time-of-flight (ToF) principle to measure the distance. TFMini-S can be used in applications that need stable, accurate, and high frame-rate range detection.

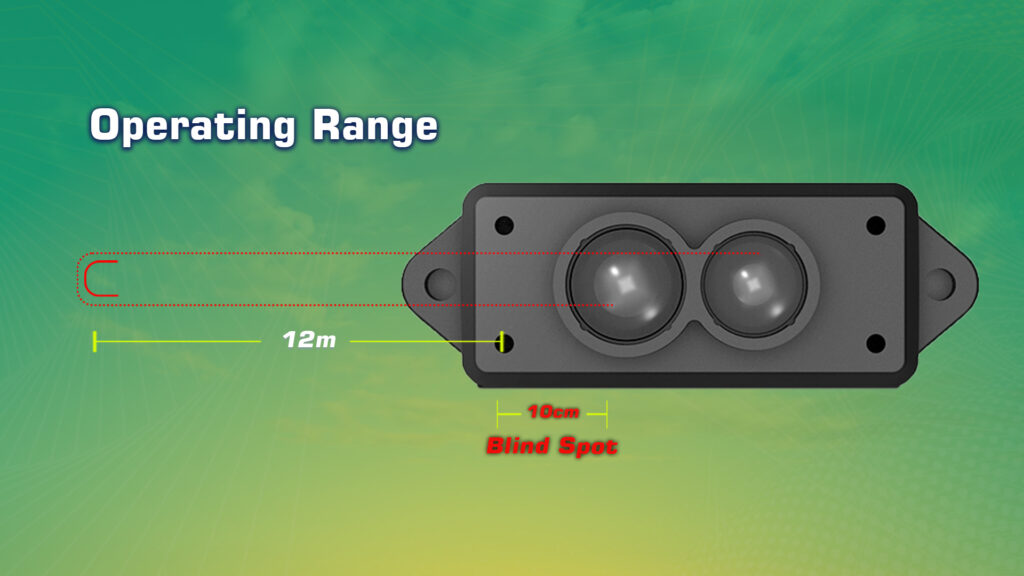

High frame rates of up to 1000Hz combined with an average low power consumption of 700mW, make this module appropriate for many applications, including but not limited to Intelligent traffic monitoring, Intelligent Parking lot systems to show the open lots, and being installed on UAVs and drones as an obstacle avoidance sensor. The range resolution is 1cm, and accuracy equals 6cm under 6 meters (±1% from 6m~12m). The minimum required distance from the sensor for objects is 10cm (Blind Spot).
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
Benewake TFmini-S LiDAR – FAQ
1. What is the main function and design of the Benewake TFmini-S LiDAR?
The TFmini-S is a compact single-point LiDAR sensor designed for distance measurement and obstacle detection. It provides stable and precise ranging performance for UAVs, robotics, and industrial applications.
2. What are the measurement range and accuracy specifications?
It offers a detection range of up to 12 meters with an accuracy of ±5 cm and a refresh rate of up to 1000 Hz, making it suitable for real-time altitude and proximity sensing.
3. What communication interfaces and compatibility options are available?
The TFmini-S supports both UART and I2C communication interfaces and is fully compatible with Pixhawk, CUAV, and other flight controllers running PX4 or ArduPilot firmware.
4. What are the available purchasing and delivery options for the TFmini-S LiDAR?
The sensor is available as a standalone module with connection cables included. Motionew offers worldwide shipping with order tracking and estimated delivery times shown during checkout.
5. Does Motionew support OEM and bulk purchasing for the TFmini-S LiDAR?
Yes. OEM and bulk purchasing options are available for UAV manufacturers and robotics developers. Buyers can request custom wiring, mounting accessories, and volume-based discounts through Motionew’s sales department.
6. What documentation and support resources are provided?
Comprehensive user manuals, interface guides, and configuration tools are available in the product documentation section. Firmware updates and technical support are provided through Benewake and Motionew’s engineering support teams.
Specifications
Specifications
| Product Parameters | |
| Operating Range | 0.1~12m (90% Reflectivity) |
| Distance Resolution | 1cm |
| frame rate | 1-1000Hz |
| Operation Temperature | 0~60°C |
| FOV | 2° |
| Electrical Parameters | |
| Supply Voltage | 5V±0.1V |
| Average Current | ≤140mA |
| Average Power | 700mW |
| Peak Current | 200mA |
| Communication Level | LVTTL (3.3v) |

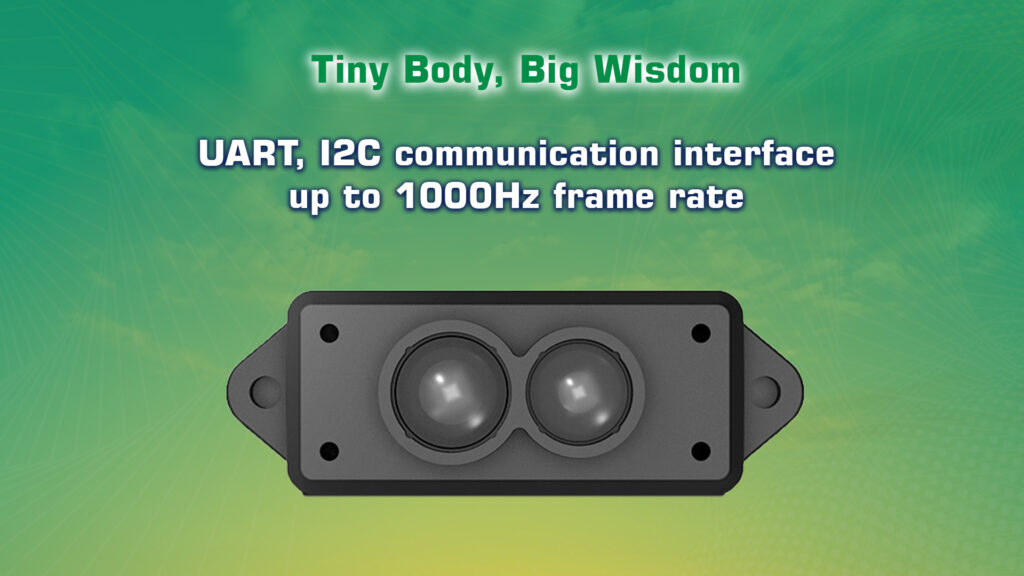

| Communication Interface | UART/I2C |
| Other Parameters | |

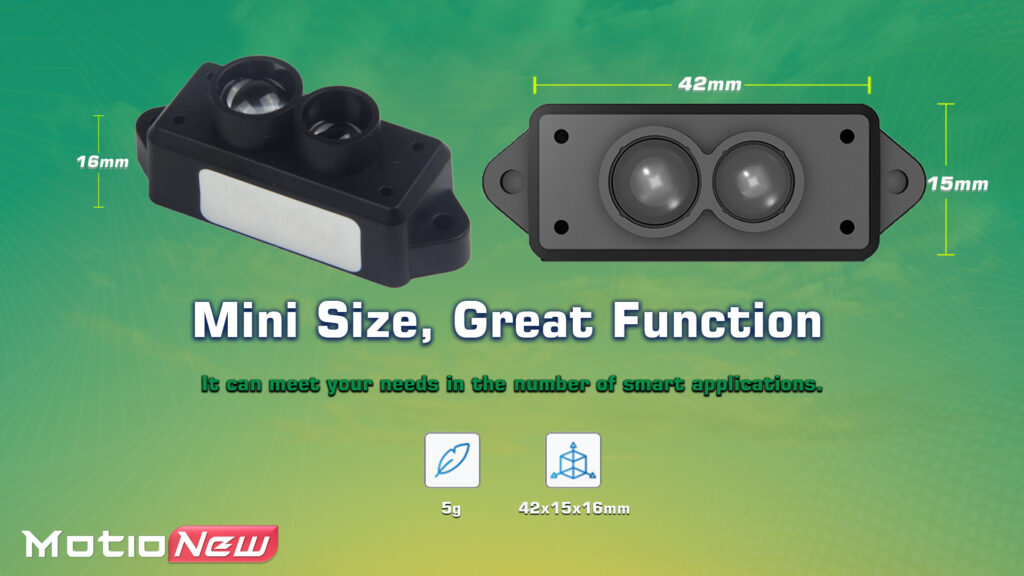

| Dimensions | 42X15x16mm (LxWxH) |
| Weight | <5g |
Documents
Documents
Please contact us for more information.
Product contents
Product contents
1x TFMini-S LIDAR Sensor
