Eagle Eye MS-1A industrial multi-sensor gimbal

9500.00 $

PayPal
Visa
Master

Description

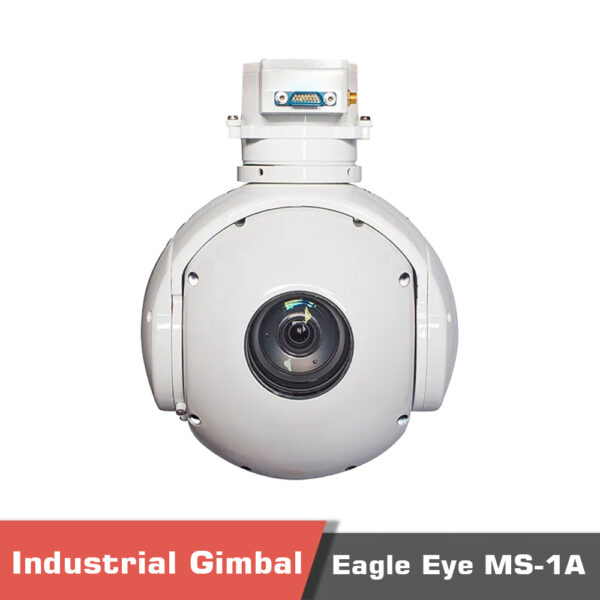

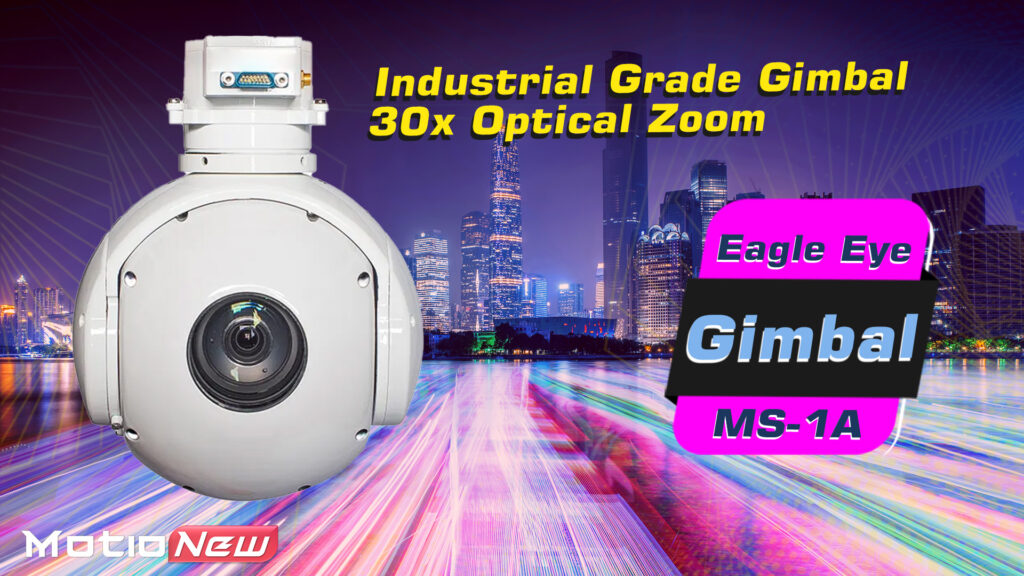

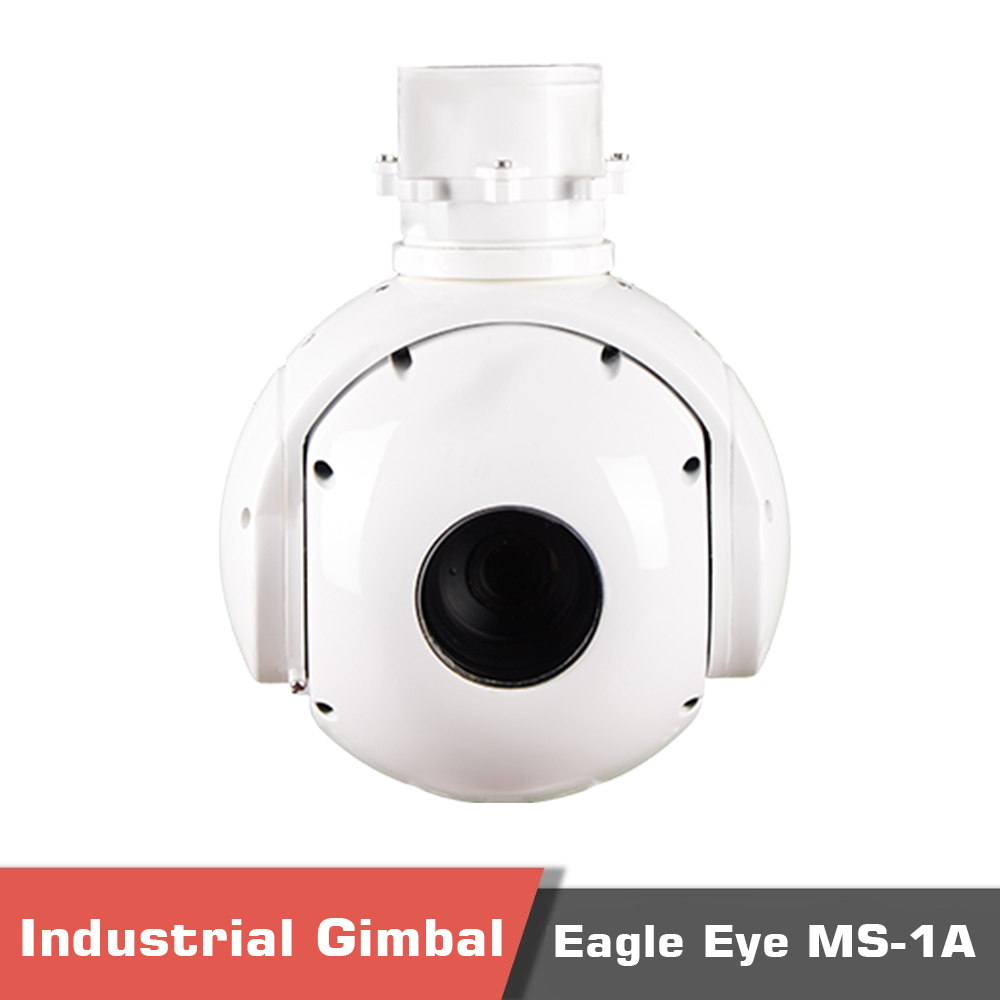

Eagle Eye MS-1A  Gimbal Camera Overview

Eagle Eye MS-1A industrial gimbal camera adopts a two-axis gyro stabilized platform, has the ability to rotate 360 continuously on yaw, and has a built-in 30x high-definition daylight camera. It is mainly used for airborne ground imaging detection, identification, tracking, etc., and meets the needs of aerial mapping, monitoring, and investigation.

The product is compact in structure, light in weight, mature and reliable, and can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

Efficient Object Detection and Tracking of Eagle Eye MS-1A

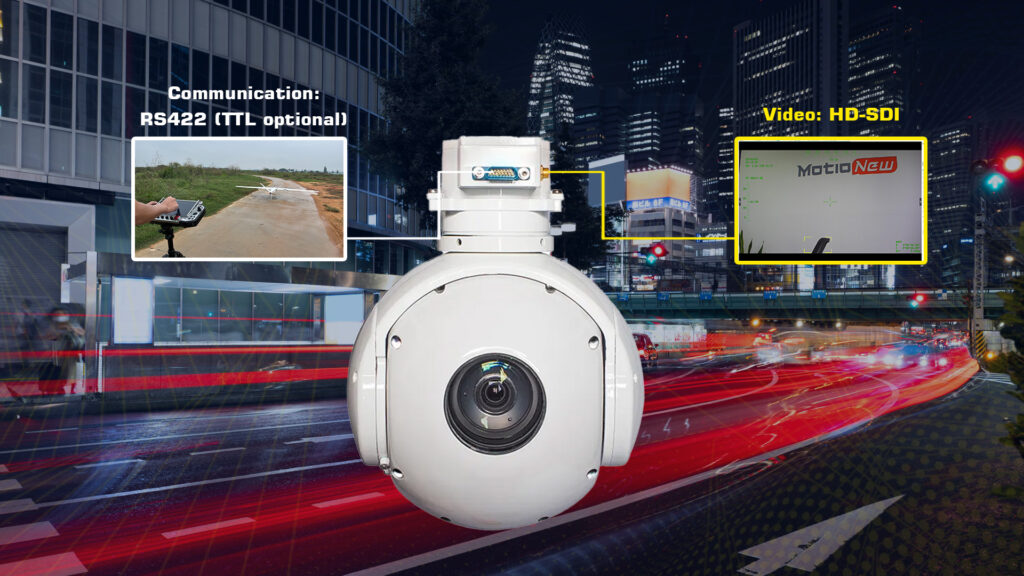

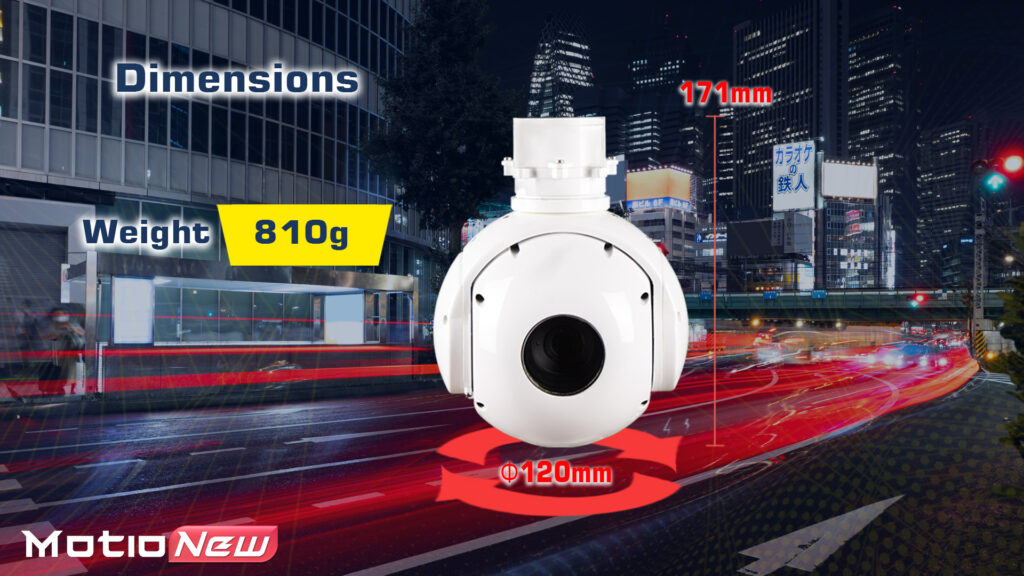

The gimbal can be controlled using RS-422 protocol, while the TTL option is available upon customer request. This model is a pretty small one with only 810g weight and a size of 120mm (Diameter) x 171mm. The operating temperature range of -20°C~60°C makes it operable in almost any environment.

Eagle eye ms-1a industrial grade gimbal 30x optical zoom Specifications of eagle eye ms-1a Eagle eye ms-1a motion detection and tracking Communication interfaces of eagle eye ms-1a Applications of eagle eye ms-1a Eagle eye ms-1a dimensions and weight

For a comprehensive reading of related products, please visit the Motionew website.



Additional information

Weight 1.2 kg
Dimensions 14 × 14 × 19 cm
version

Standard, Quick release

Specifications

Visible light zoom camera
Working band
0.4μm~0.9μm
Number of detector pixels
1920×1080
focal distance
4.3 mm ~ 129 mm, optical 30 times continuous zoom
Continuous zoom horizontal field of view
63.7º~2.3º
video output
HD-SDI, 1080P 30Hz
Physical and electrical performance parameters
measure
≤Φ120mm×171mm
weight
≤800g±1.5%
Working temperature
-20℃~60℃
communication interface
1-way RS422
Video interface
1 channel HD-SDI

Product contents

1x Eagle Eye MS-1A gimbal set with box



Documents

Please contact us for more information.
