Advanced Digital AirSpeed Sensor for UAV Precision | Model Matek ASPD-AUAV

Available AirSpeed Sensor

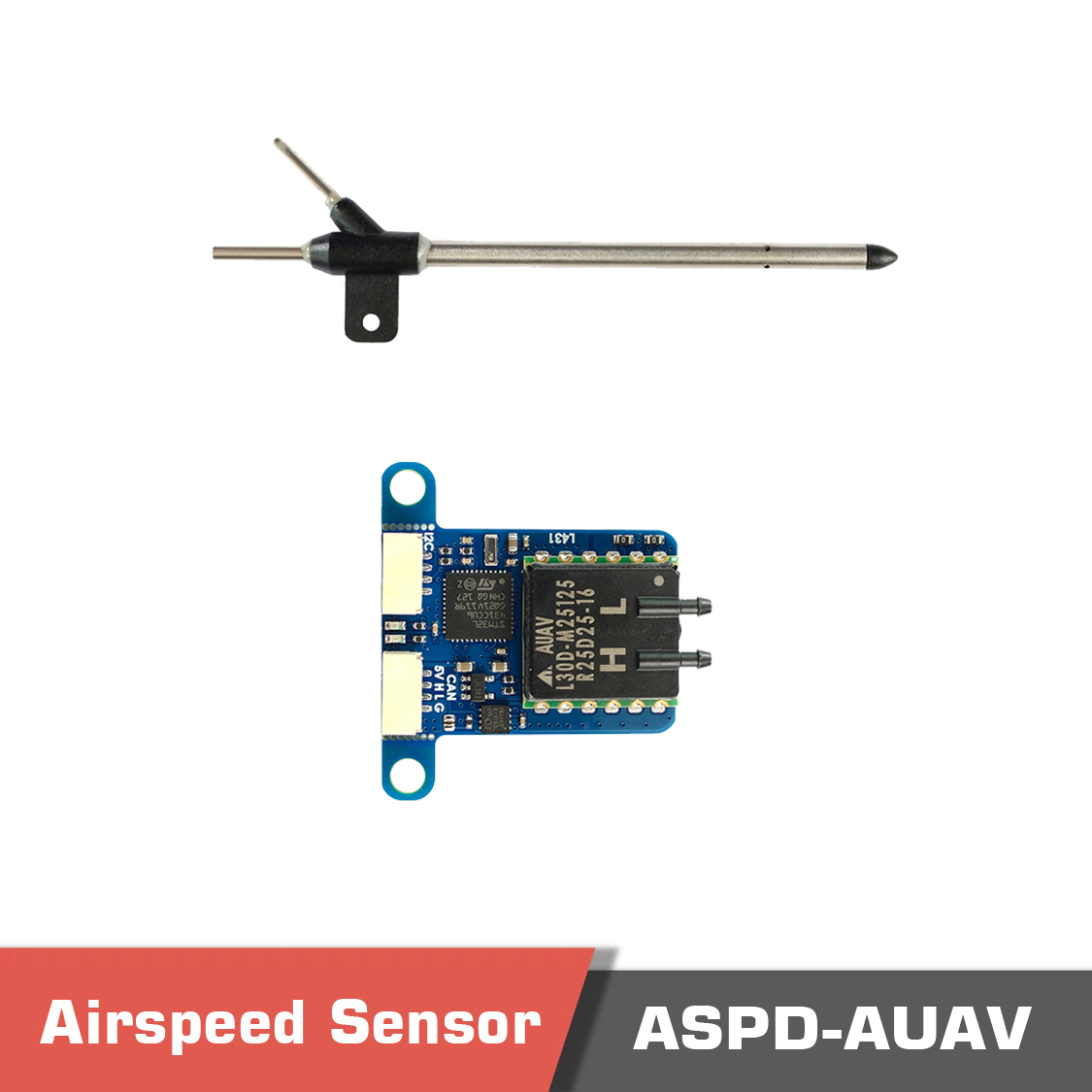

Matek ASPD-AUAV AirSpeed Sensor, Speed Range 400 km/h (111 m/s)

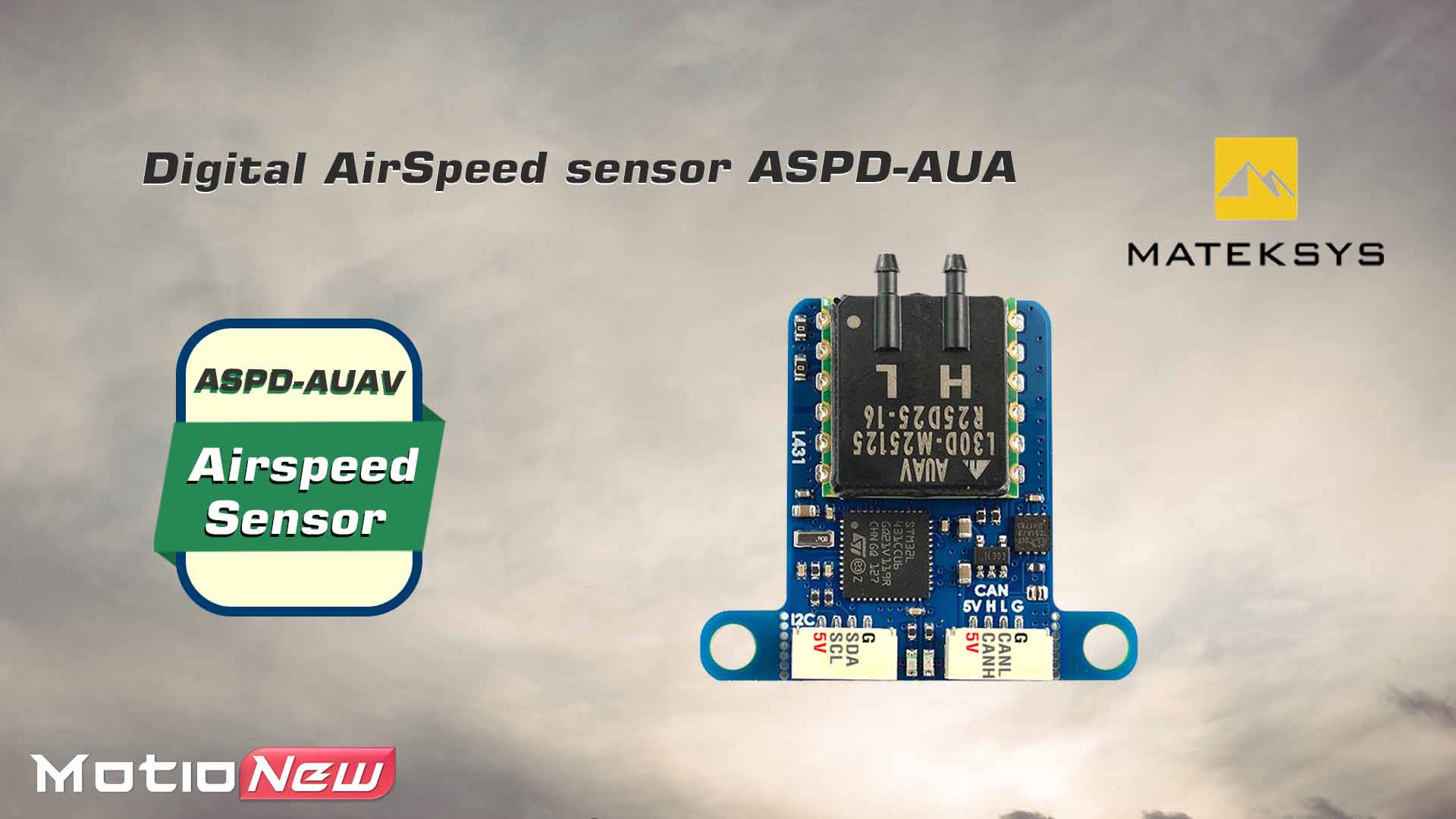

The Digital AirSpeed sensor ASPD-AUAV is an advanced differential pressure-based airspeed sensing solution designed for fixed-wing and Multirotor Drone applications. With a speed range reaching up to 400 km/h (111 m/s), it ensures accurate and stable readings even under dynamic flight conditions. Developed by Matek, this sensor provides unmatched reliability for professional UAV platforms that require high-performance flight control feedback.

Key Features of Digital AirSpeed Sensor ASPD-AUAV

• Wide Measurement Range: Capable of detecting speeds from 0 to 400 km/h (111 m/s) with excellent resolution and low noise.

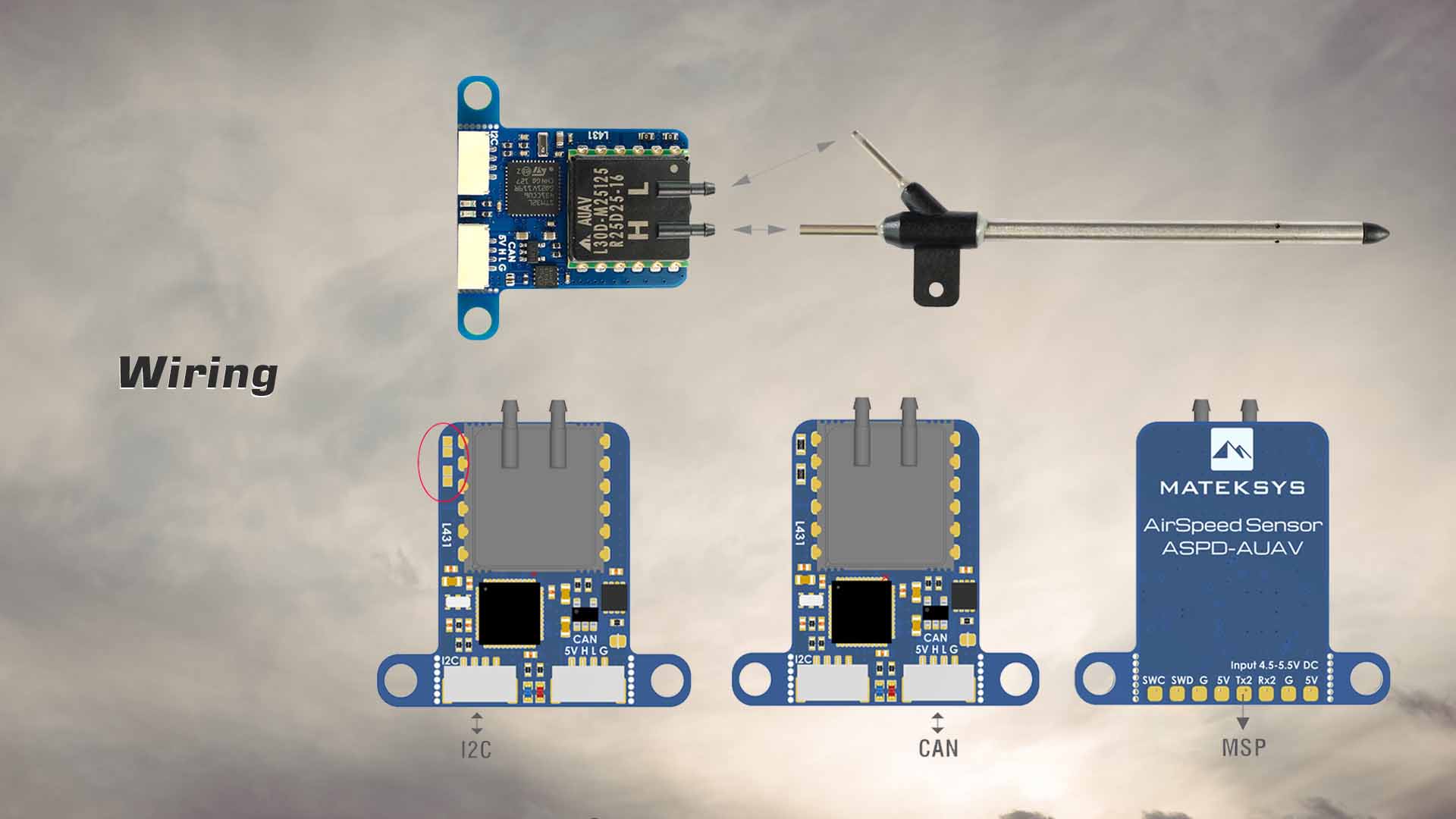

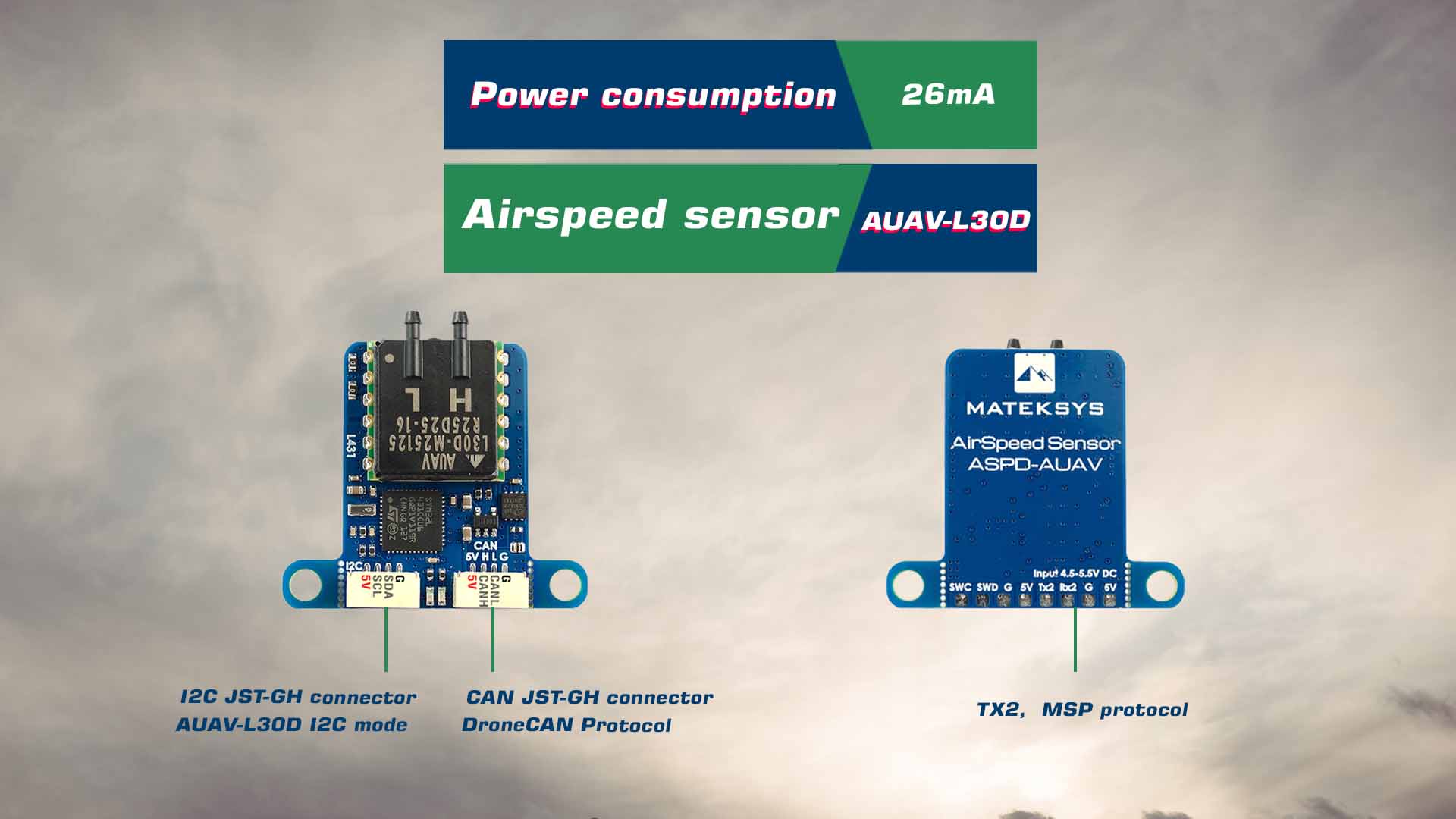

• Digital Output: Features DroneCAN Protocol, MSP protocol, and I2C digital communication for direct connection to modern Flight controller systems like Pixhawk, Cube, and Ardupilot-based hardware.
• High Accuracy: Designed with precision differential pressure transducers for accurate airspeed readings even in turbulent airflow.
• Low Power Consumption: Optimized for UAV operations with minimal current draw, preserving onboard power for longer missions.

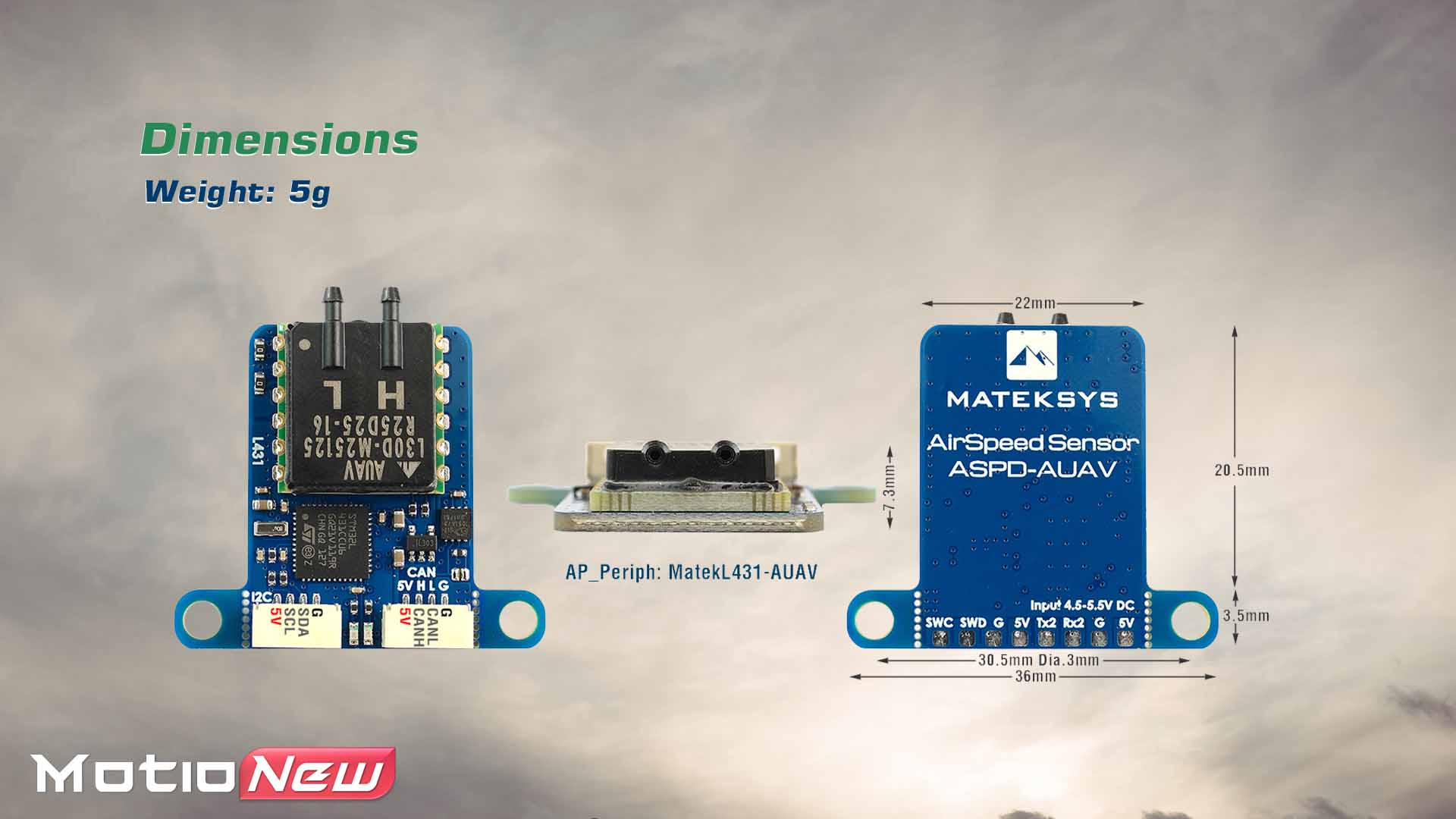

• Compact and Lightweight: Ideal for both small UAVs and larger professional platforms requiring aerodynamic efficiency.

Reliable Integration with UAV Flight Systems

The ASPD-AUAV Digital AirSpeed Sensor is fully compatible with major autopilot platforms. Whether you are integrating it into a fixed-wing aircraft, VTOL, or long range VTOL drone, its I2C digital interface simplifies installation and reduces the need for analog-to-digital conversion hardware.

MotioNew’s engineering team supports direct integration with flight stacks such as ArduPilot and PX4.

Build Quality and Durability

This OEM Digital AirSpeed Sensor ASPD-AUAV maintains long-term stability under varying environmental conditions. The sensor tube assembly is designed for precision air intake and optimized flow characteristics, reducing turbulence-induced reading errors.

Applications Across UAV Platforms

This sensor is engineered for versatility, supporting a range of professional UAV applications, including:

• Aerial Mapping and Surveying: Accurate airspeed readings ensure flight path consistency for mapping-camera payloads.
• Research and Development: Suitable for aerodynamic testing and experimental UAV builds requiring reliable air data.
• Commercial Delivery Drones: Ensures efficient cruise speed management and power optimization.

Technical Specifications

Why Choose MotioNew for UAV Integration

MotioNew provides not only sales of UAV components but also end-to-end integration support. Their engineers assist in sensor calibration, firmware setup, and configuration tuning to ensure optimal performance. Whether you need assistance integrating this airspeed sensor into a custom fixed-wing build or large-scale VTOL drone fleet, MotioNew’s technical experts can deliver tailored solutions.

Additionally, MotioNew supports bulk and wholesale orders, offering special pricing for UAV manufacturers, research institutes, and commercial operators.

FAQ

1: Can the Digital AirSpeed sensor ASPD-AUAV be used with all flight controllers?
Yes. It supports most flight controllers that feature DroneCAN Protocol, MSP protocol, and I2C interface, including popular platforms like Pixhawk and Cube. MotioNew engineers can provide configuration support to ensure full compatibility.

2: How is this airspeed sensor different from analog versions?
Unlike analog sensors, the ASPD-AUAV offers digital output with higher precision, faster data transmission, and less signal interference, leading to more accurate flight control feedback.

3: Does MotioNew offer bulk or wholesale pricing for OEM sensors?
Absolutely. MotioNew provides competitive price, bulk, and wholesale options for B2B customers, with full pre-sale and after-sale technical support.

4: Can MotioNew help integrate this sensor into custom UAV builds?
Yes. MotioNew’s team provides professional integration and calibration services to ensure your airspeed sensor works flawlessly with your drone’s avionics system.

Buy From MotioNew, and Leave The Technical Worries Behind
