DLE 60 EFI Engine with Starter | Self-priming fuel pump | Real-time engine running data

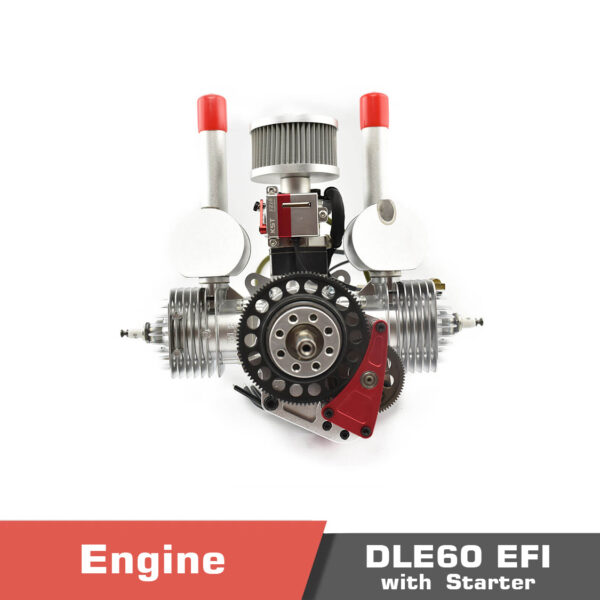

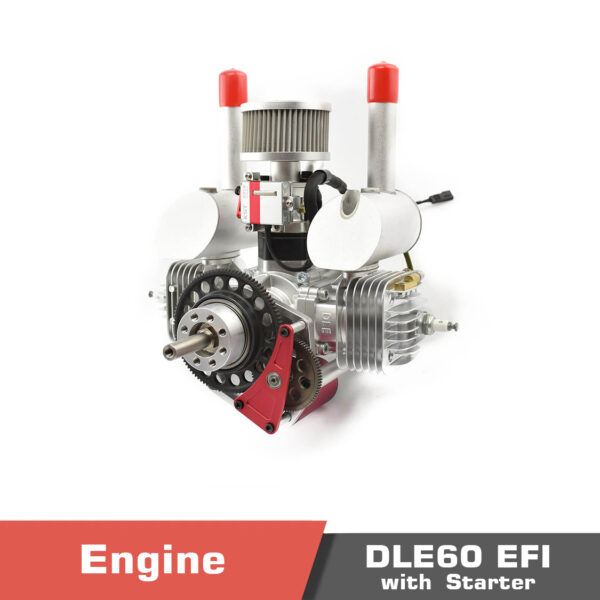

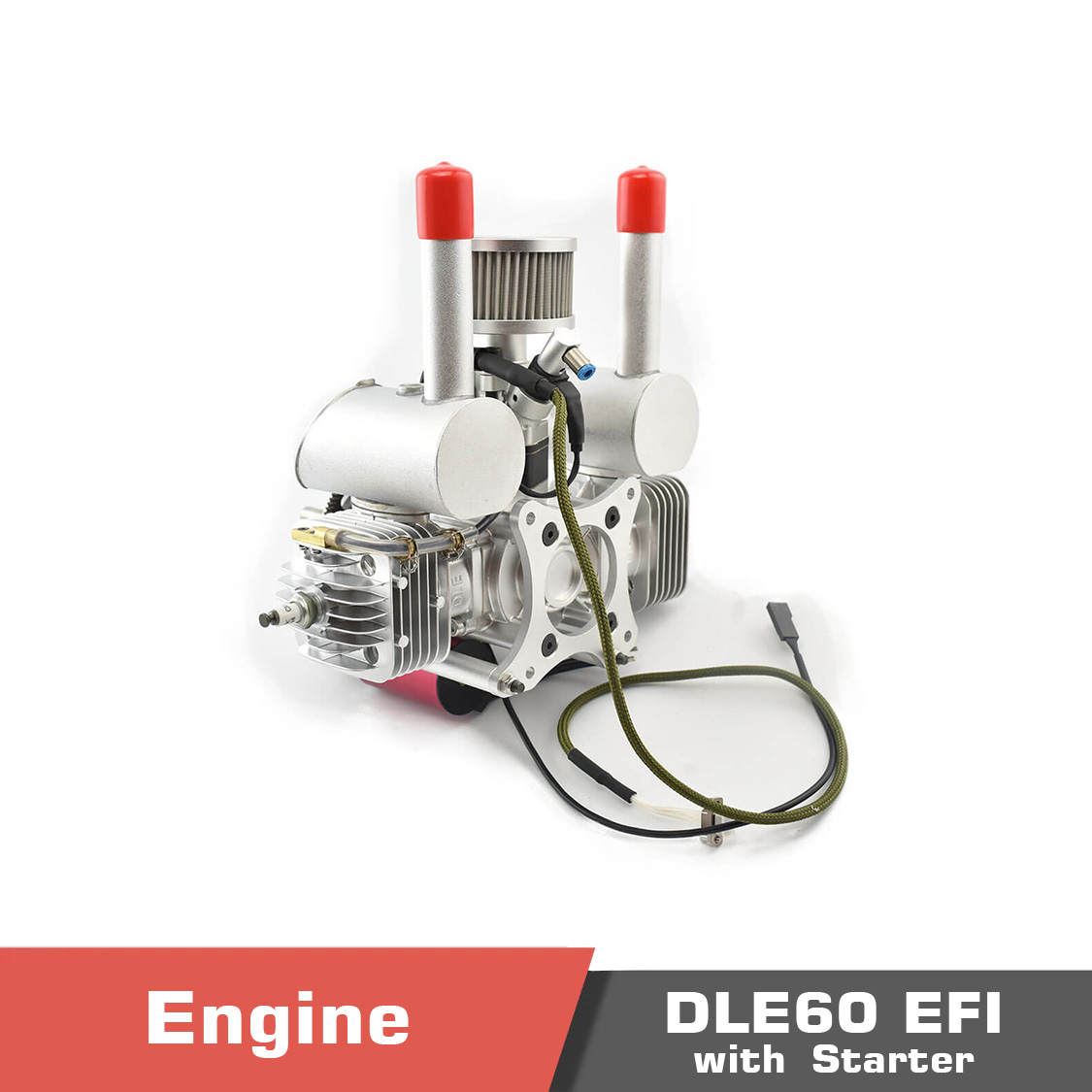

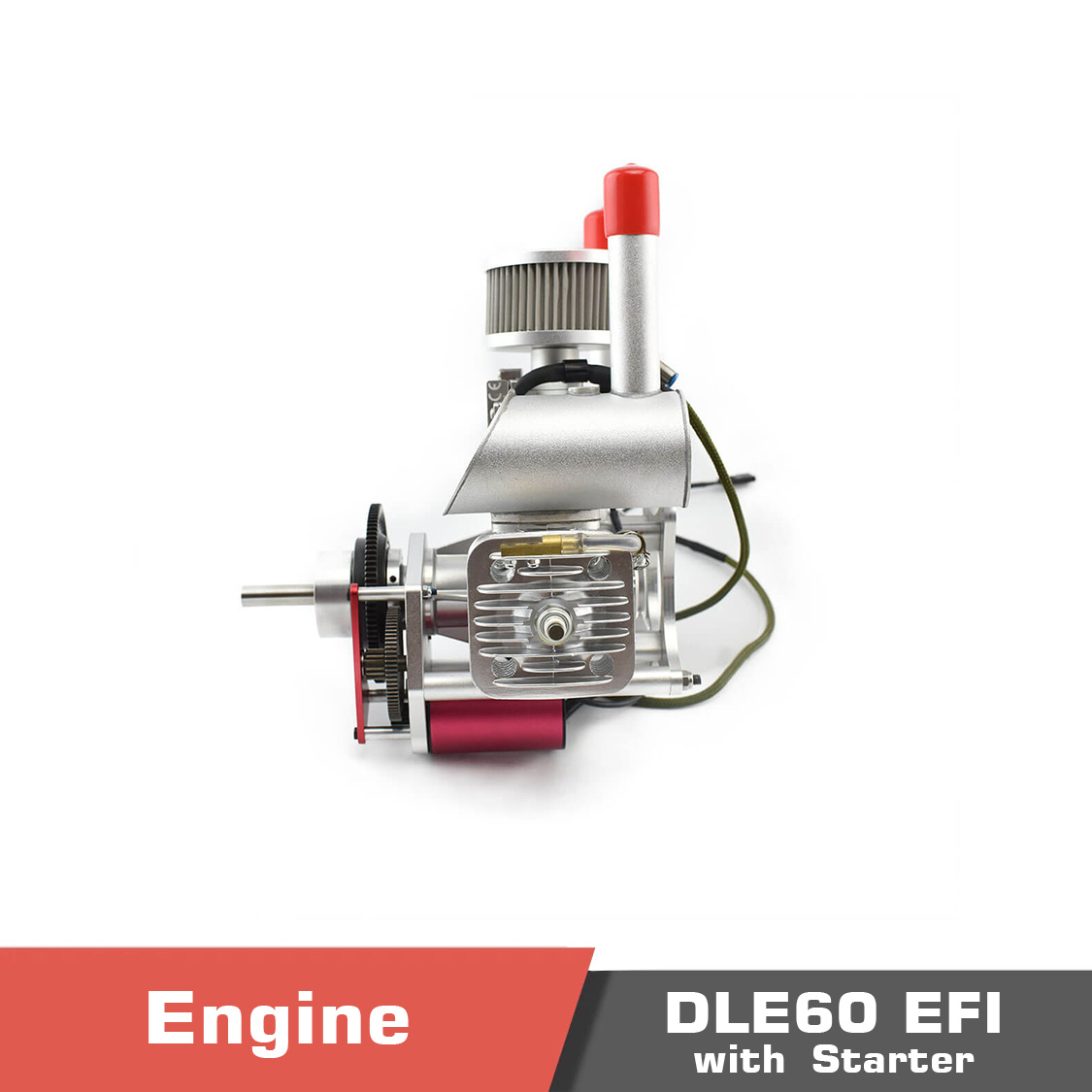

Overview of DLE 60 EFI Engine with Starter

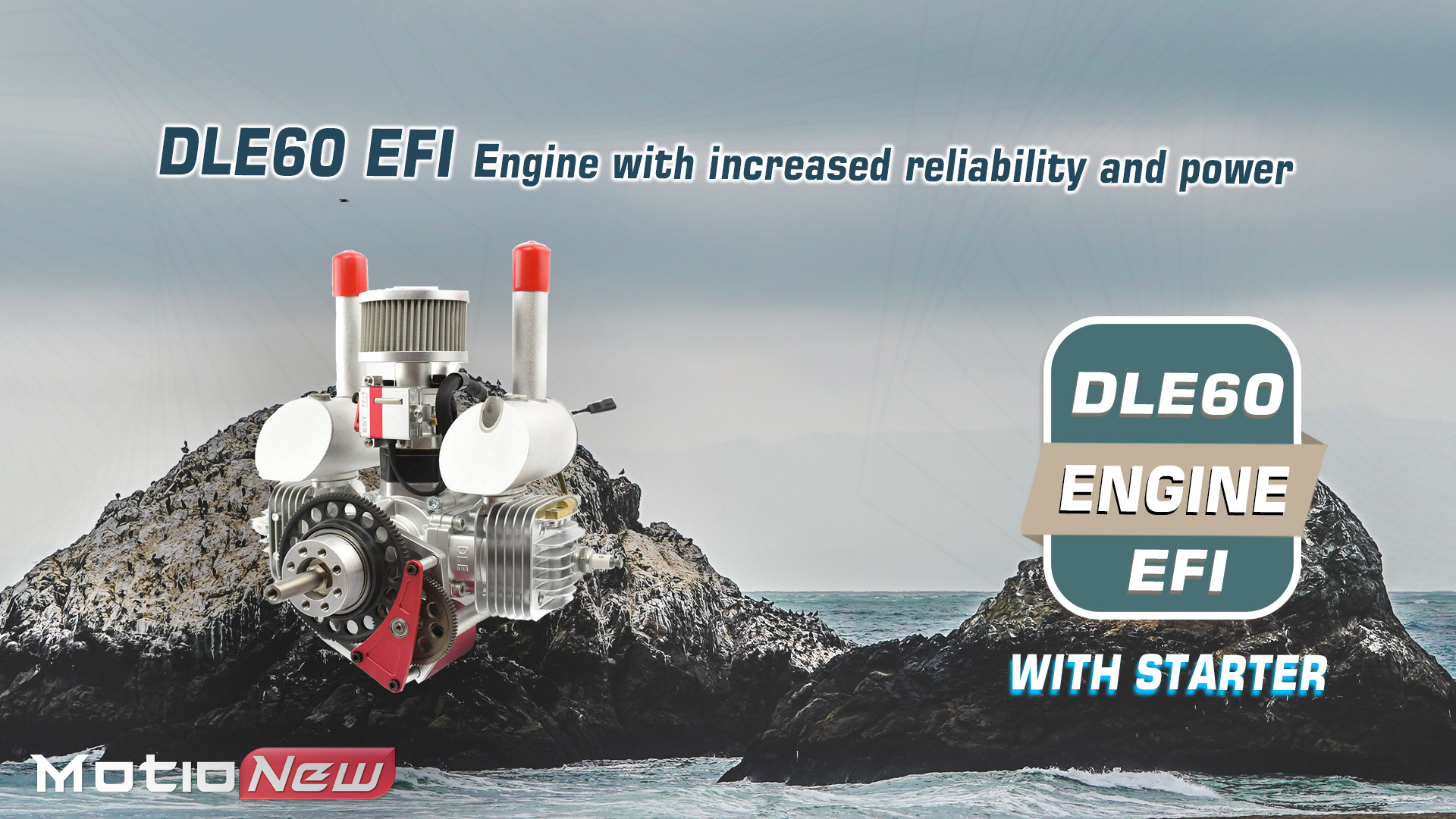

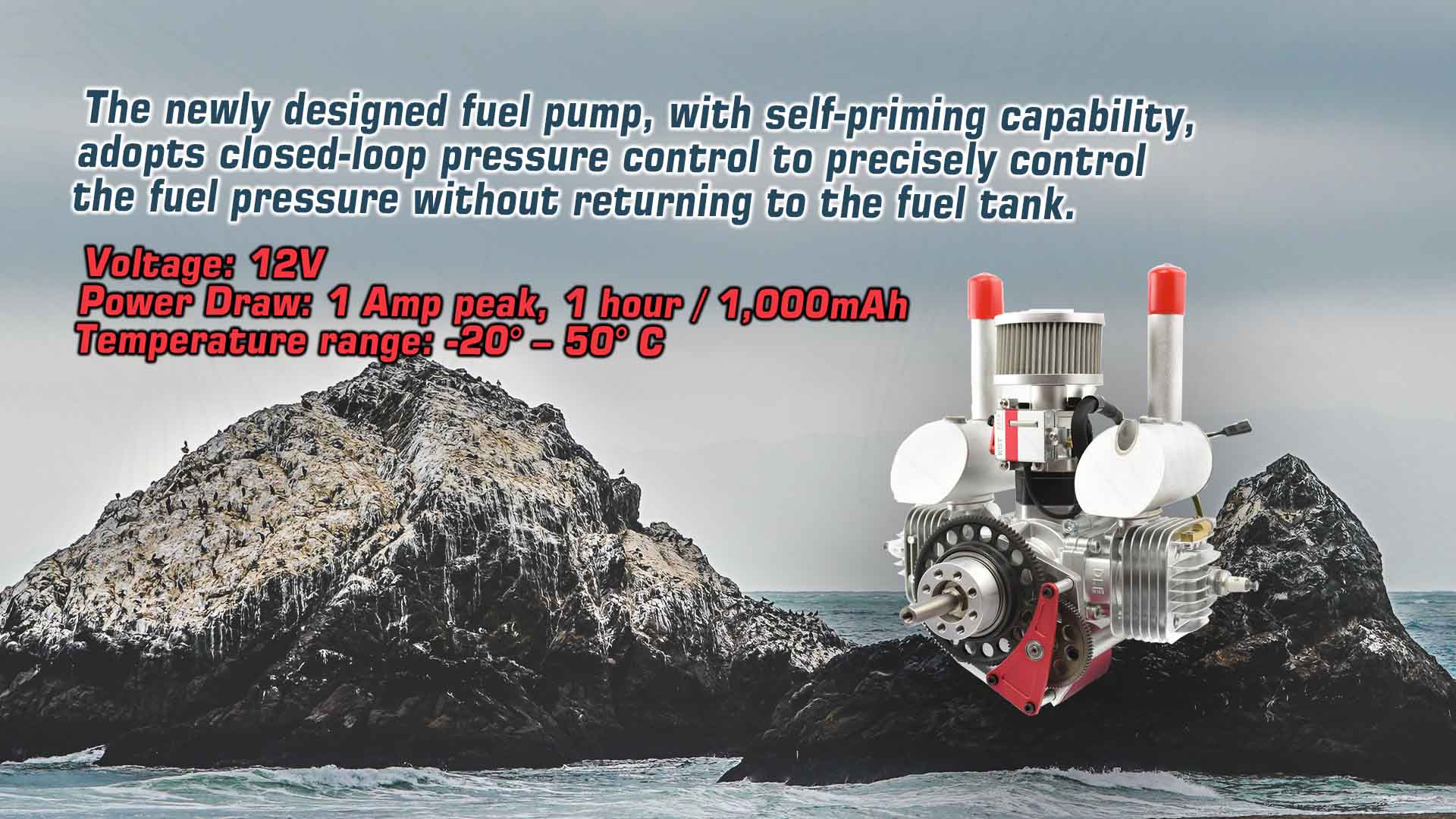

Introducing the DLE 60 EFI engine with Starter, a powerhouse designed for high-performance applications. With an impressive performance output of 7 horsepower at 8500 rpm, this engine delivers exceptional power and reliability for a variety of demanding tasks. The DLE 60 EFI Engine enhances drone performance by delivering superior reliability and power, effectively overcoming the typical issues seen in two-stroke engines. Featuring an innovative fuel pump with self-priming capability, it utilizes closed-loop pressure control to accurately manage fuel pressure without the need for a return line to the fuel tank. The DLE 60 EFI Engine supports RS232 communication protocol, enabling real-time access to engine running data.

Performance Capabilities

The DLE60 EFI UAV Engine is a robust and powerful component designed for drone applications. It offers a static thrust of 15.2kg at an altitude of 100 meters and 13.5kg at an altitude of 1800 meters, ensuring strong performance across various elevations. The engine, including the air intake, weighs 1.85kg, while the ECU (Electronic Control Unit) and fuel pump weigh 110g and 170g, respectively. With a displacement of 61cm³, the DLE 60 EFI Engine combines power and efficiency, making it an excellent choice for high-performance drones.

Propellers for the DLE 60 EFI Engine

Recommended propellers for the DLE 60 EFI Engine include sizes 22×8; 22×10; 23×8 and 23×10 giving users flexibility in optimizing performance based on specific needs.

The Engine Operation

Performance and Reliability

In summary, the DLE 60 EFI Engine is a robust and efficient solution for high-performance needs, offering impressive power output, reliable operation at various altitudes, and compatibility with multiple propeller sizes. Whether for aviation, industrial, or other demanding applications, the DLE 60 EFI is engineered to deliver exceptional performance and reliability.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – DLE 60 EFI

1. What is the rated power and performance of the DLE 60 EFI engine?

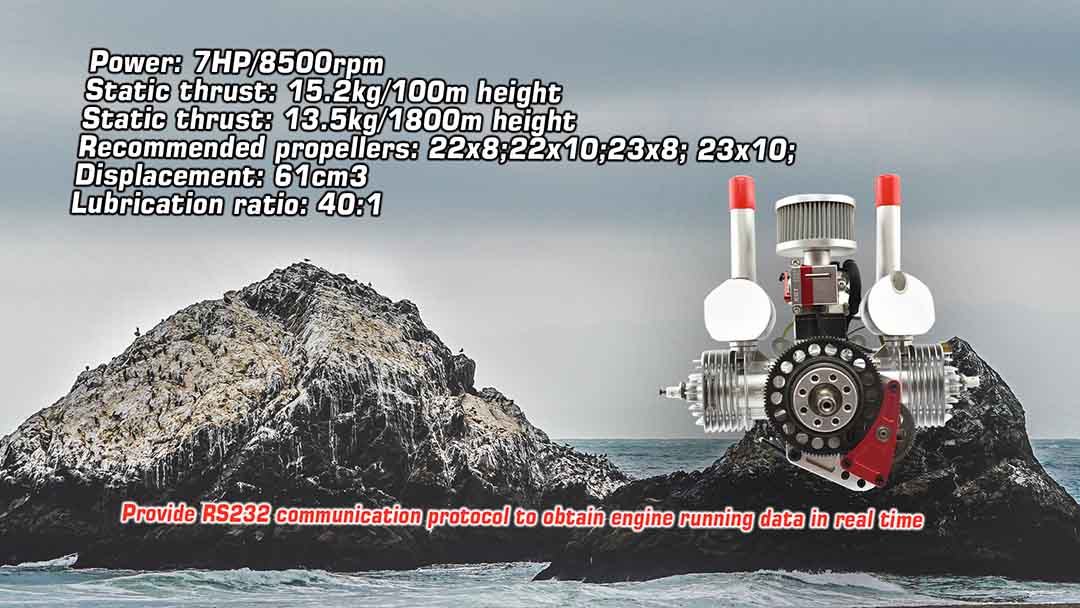

The DLE 60 EFI engine delivers 7 HP at 8500 RPM. It provides approximately 15.2 kg of static thrust at 100 m altitude and 13.5 kg at 1800 m altitude, ensuring stable operation for medium UAV platforms.

2. What are the displacement, weight, and operating specifications?
The engine has a 61 cc displacement, with a total weight of 1.85 kg (including air intake). The ECU weighs 110 g, and the fuel pump weighs 170 g. Recommended fuel-to-oil ratio is 40:1, and it operates within a temperature range of –20°C to 50°C.

3. What type of fuel injection and communication system does it include?

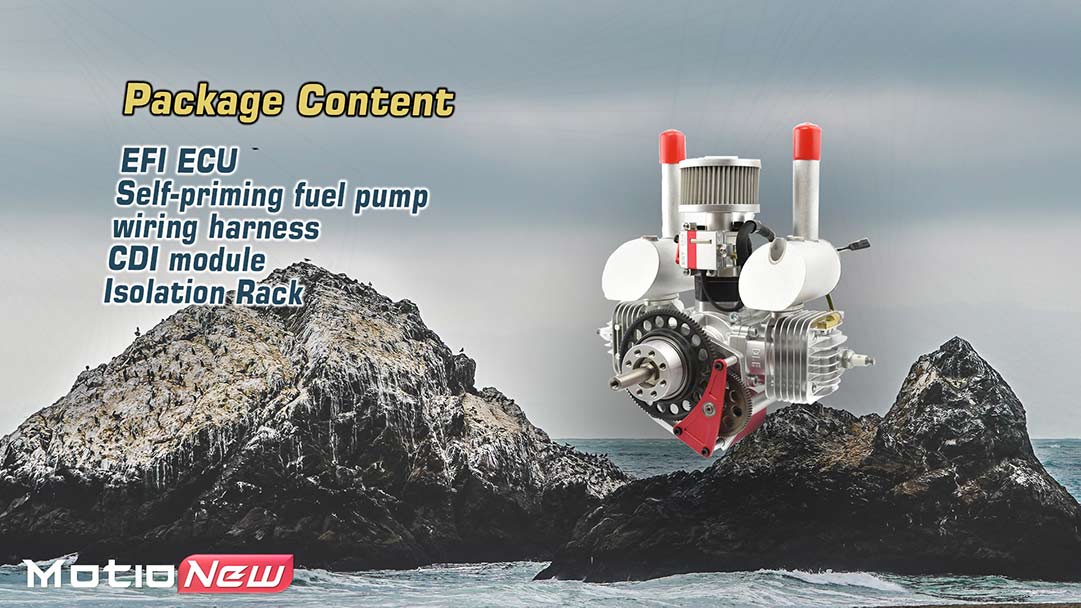

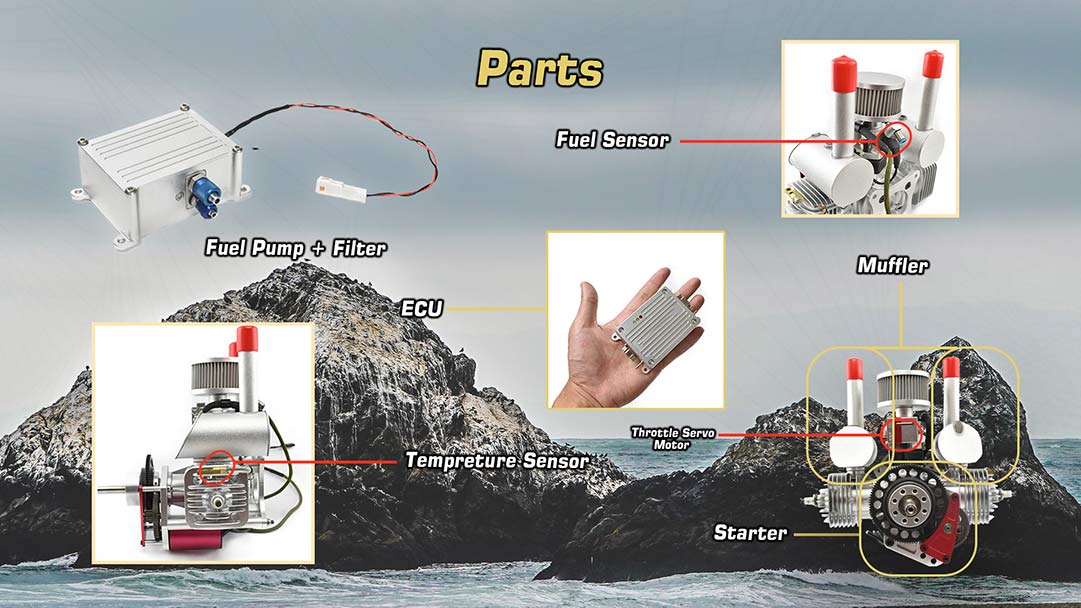

This model uses an Electronic Fuel Injection (EFI) system with closed-loop pressure control, eliminating the need for a return line. It supports RS232 communication, allowing real-time monitoring of engine parameters. A self-priming fuel pump and electric starter are included for easy operation.

4. What payment options are available for purchasing the DLE 60 EFI engine?
MotioNew accepts PayPal, major credit/debit cards, and international wire transfers, ensuring secure and flexible global transactions.

5. Does MotioNew support OEM and bulk orders for this product?
Yes, OEM customization and bulk order options are available for enterprise buyers, UAV manufacturers, and research institutions upon request.

6. Are technical documents and manuals provided with the engine?
Yes, technical specifications, installation manuals, and wiring guides are available upon request. Detailed documentation can also be found in the Documents section of the product page or by contacting MotioNew’s support team.
