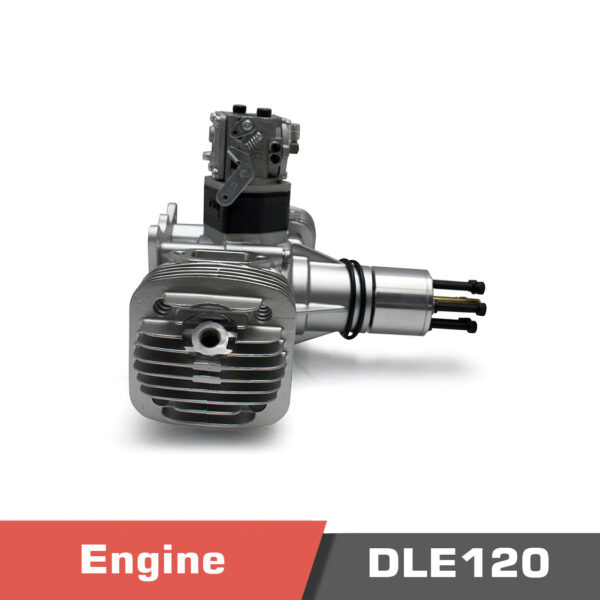

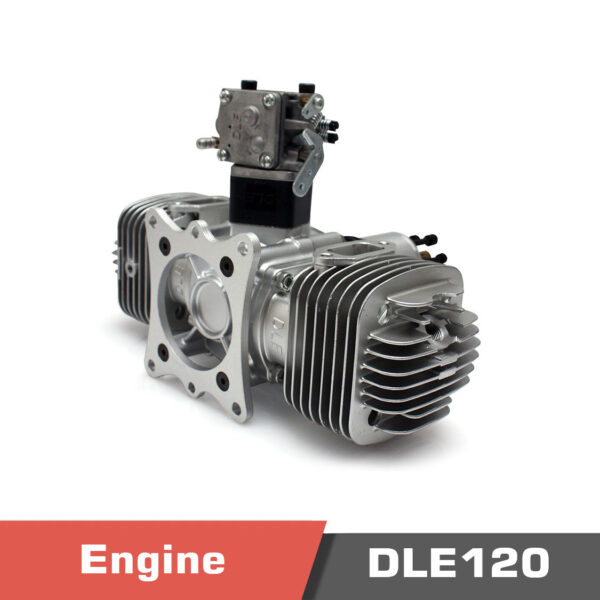

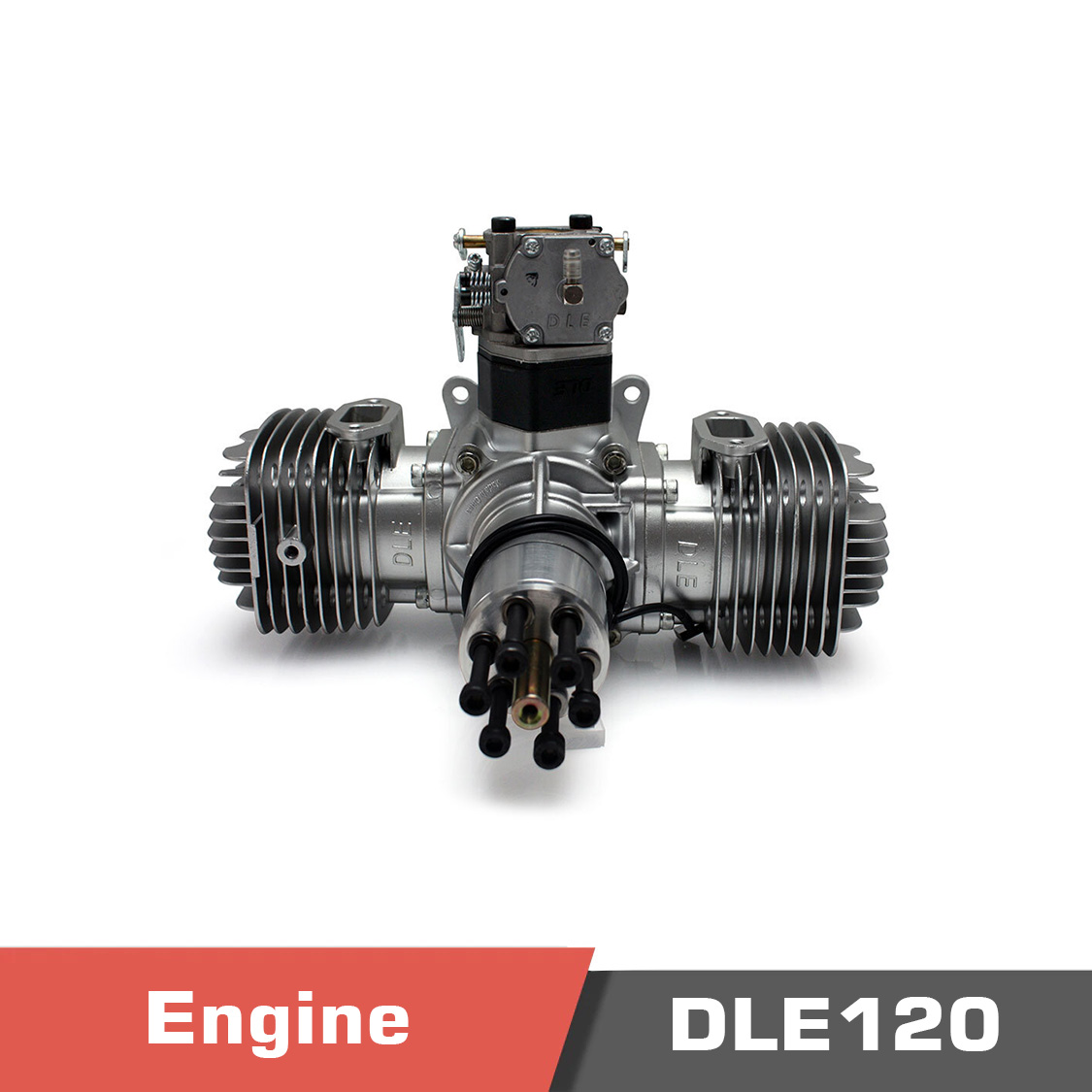

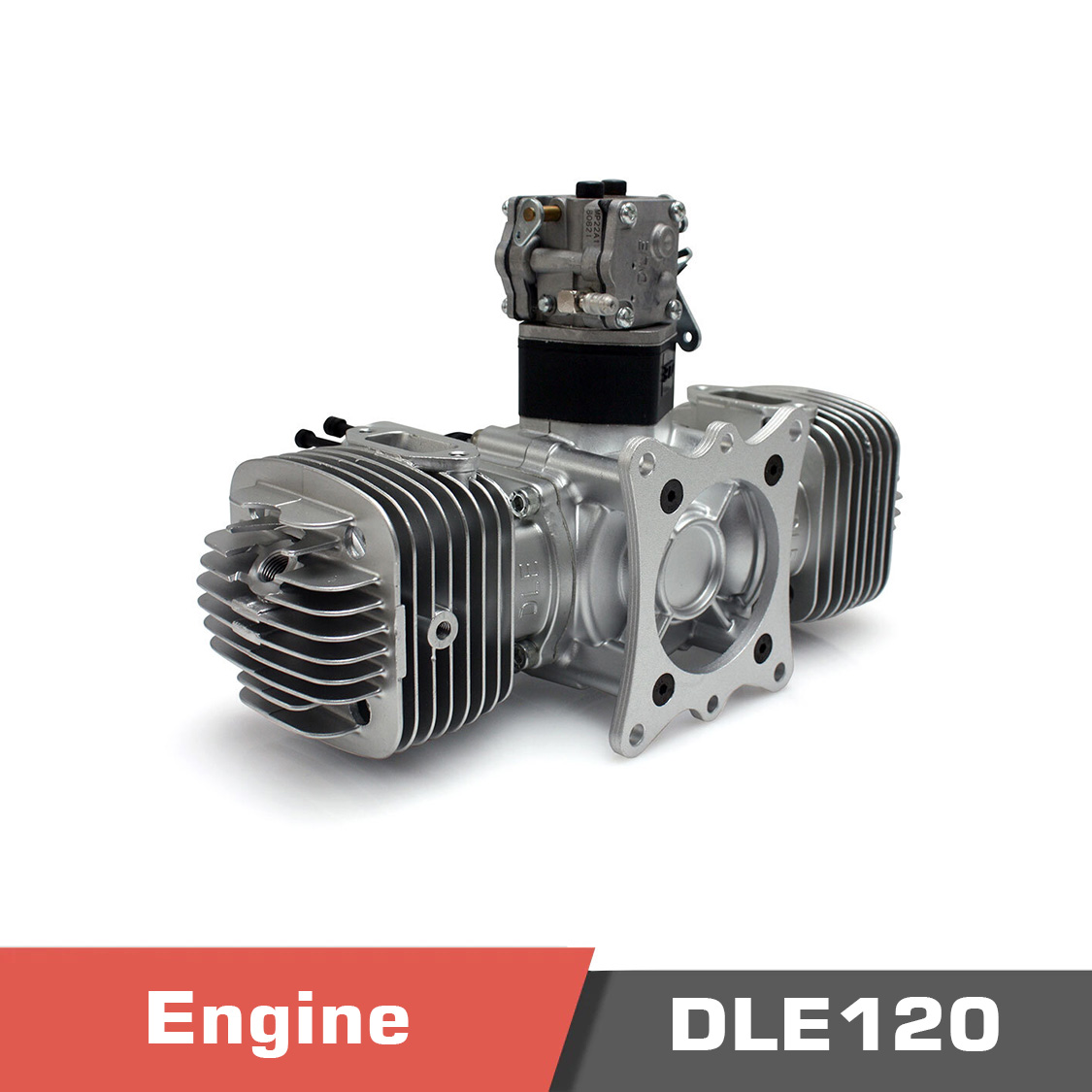

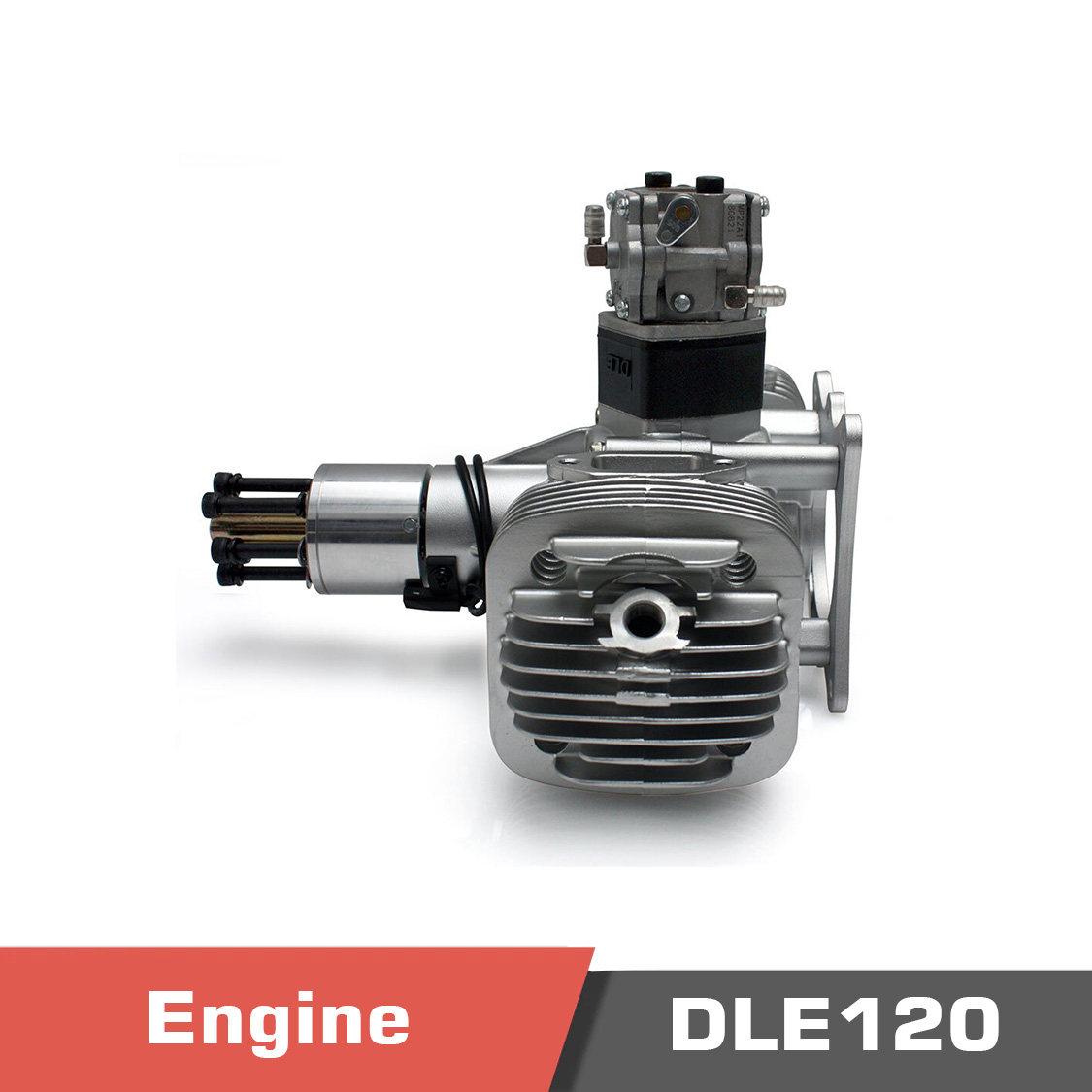

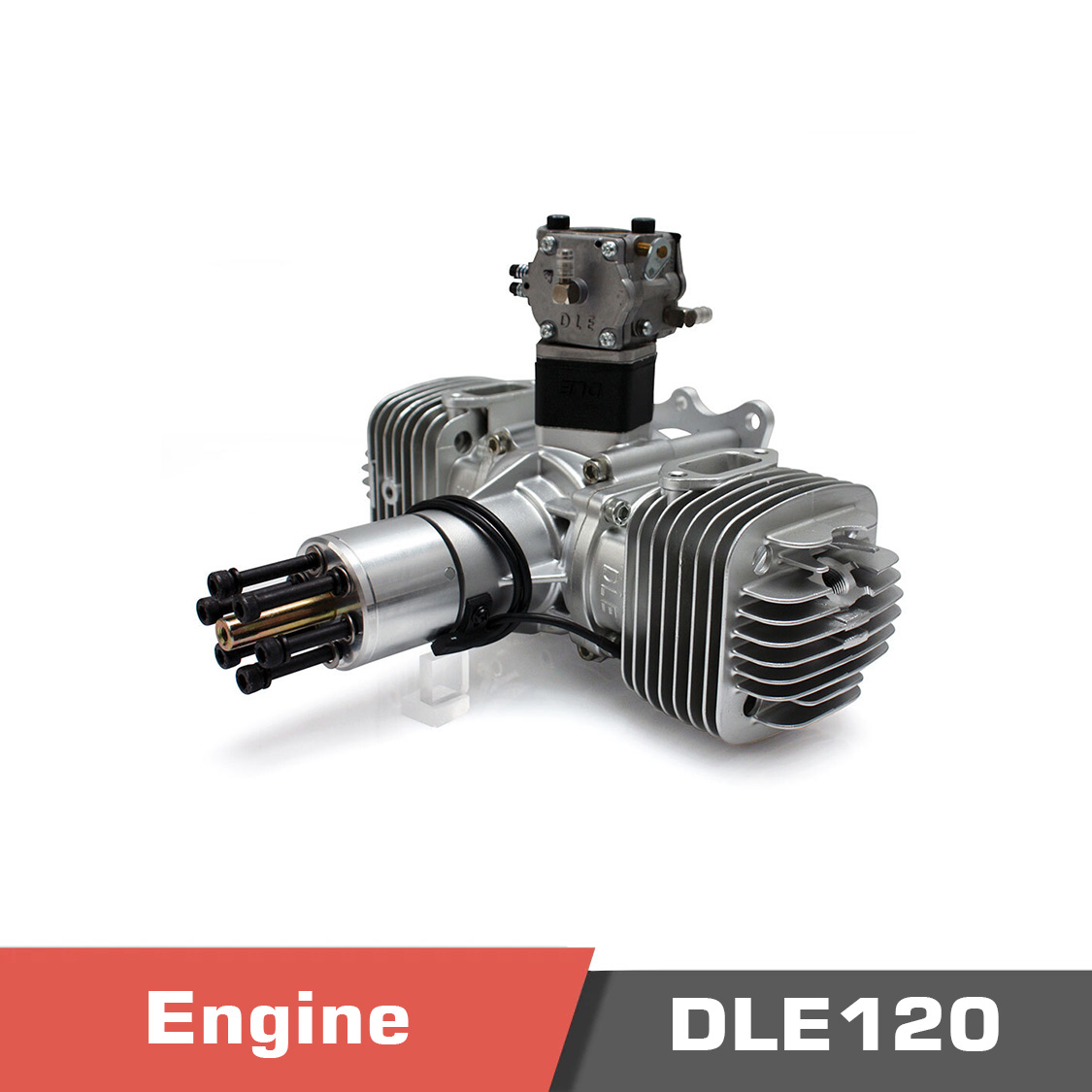

DLE 120 Engine

DLE 120 Engine Overview

Introducing the DLE 120 engine, a powerhouse designed for high-performance applications. With an impressive performance output of 12 horsepower at 7500 rpm, this engine delivers exceptional power and reliability for a variety of demanding tasks.

Performance Capabilities

The DLE 120 Engine features an idle speed of 1100 rpm, ensuring smooth and stable operation at lower speeds. Its static thrust capabilities are notable, providing 26.5 kg at 100 meters altitude and 23.5 kg at 1800 meters altitude. This makes it an excellent choice for high-altitude performance.

Propellers for the DLE 120

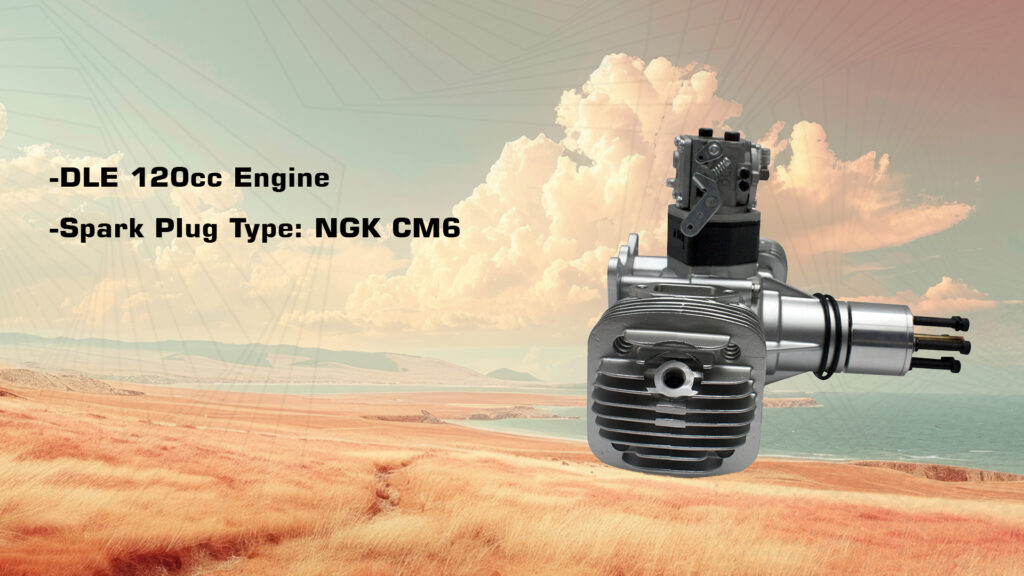

Recommended propellers for the DLE 120 Engine include sizes 26×10, 26×12, 27 x10 and 28×10, giving users flexibility in optimizing performance based on specific needs. The UAV Engine utilizes the NGK CM6 spark plug, renowned for its reliability and efficiency.

The Engine Operation

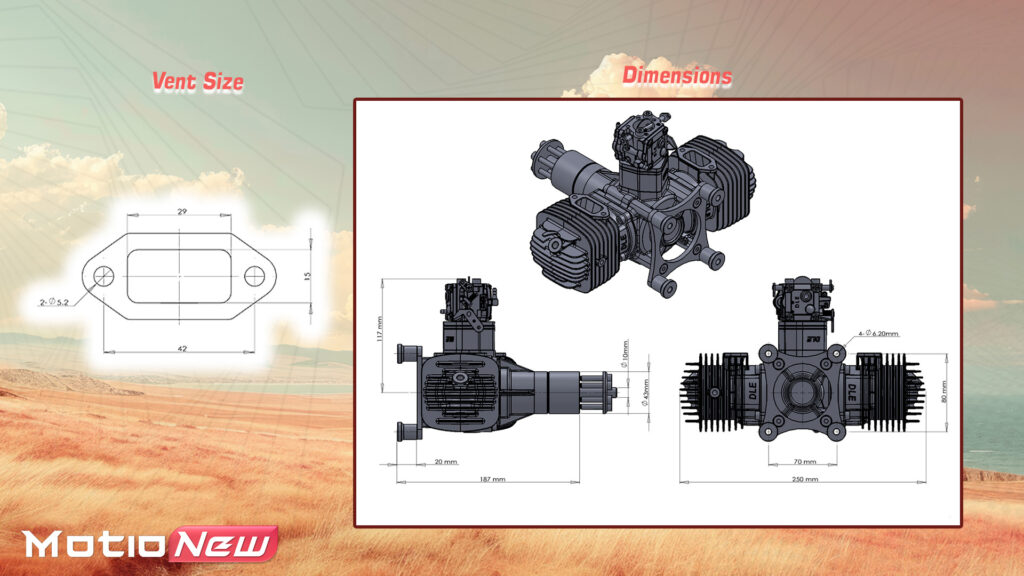

With a displacement of 120 cm³ and dimensions of 47mm diameter by 35mm stroke, the DLE 120 Engine achieves a compression ratio of 10.5:1. The engine operates with a lubrication ratio of 30:1, ensuring optimal performance and longevity.

Weight of DLE 120 Engine

Weighing in at 2400 grams for the main engine, 300 grams for the exhaust, and 190 grams for the ignition system, the DLE 120 is designed to be both powerful and lightweight. The ignition system operates on a voltage range of 4.8V to 8.4V, providing versatile and reliable power options.

Performance and Reliability

In summary, the DLE 120 engine is a robust and efficient solution for high-performance needs, offering impressive power output, reliable operation at various altitudes, and compatibility with multiple propeller sizes. Whether for aviation, industrial, or other demanding applications, the DLE 120 is engineered to deliver exceptional performance and reliability.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – DLE 120 Engine

1. What is the power and thrust output of the DLE 120 engine?
The DLE 120 engine delivers 12 HP at 7500 RPM, generating 26.5 kg of static thrust at 100 m altitude and 23.5 kg at 1800 m altitude, making it suitable for high-performance UAV and fixed-wing platforms.

2. What are the idle speed, displacement, and fuel specifications?
It features an idle speed of 1100 RPM and operates on gasoline mixed with 2T synthetic oil at a 30:1–40:1 ratio for optimal lubrication and combustion efficiency.

3. What propellers and ignition components are recommended?
Compatible propeller sizes include 26×10, 26×12, 27×10, and 28×10. The engine uses a reliable NGK CM6 spark plug for stable ignition performance.

4. What payment methods are available for purchasing the DLE 120 engine?
MotioNew accepts PayPal, major credit/debit cards, and international wire transfers for secure global transactions.

5. Does MotioNew provide OEM and bulk purchasing options?
Yes, MotioNew offers OEM customization and bulk order options for UAV manufacturers and enterprise clients requiring tailored propulsion systems.

6. Are technical documents and installation manuals included?
Yes, installation guides, technical specifications, and operation manuals are available in the Documents section of the product page or upon request from MotioNew’s support team.
