(Customizable) Datalink box and Tripod with Automatic Antenna Tracker v2

Please contact us if you need to customize the datalink box based on your needs. The size of the compartment can be modified to fit your datalink, and the ports are customizable too.

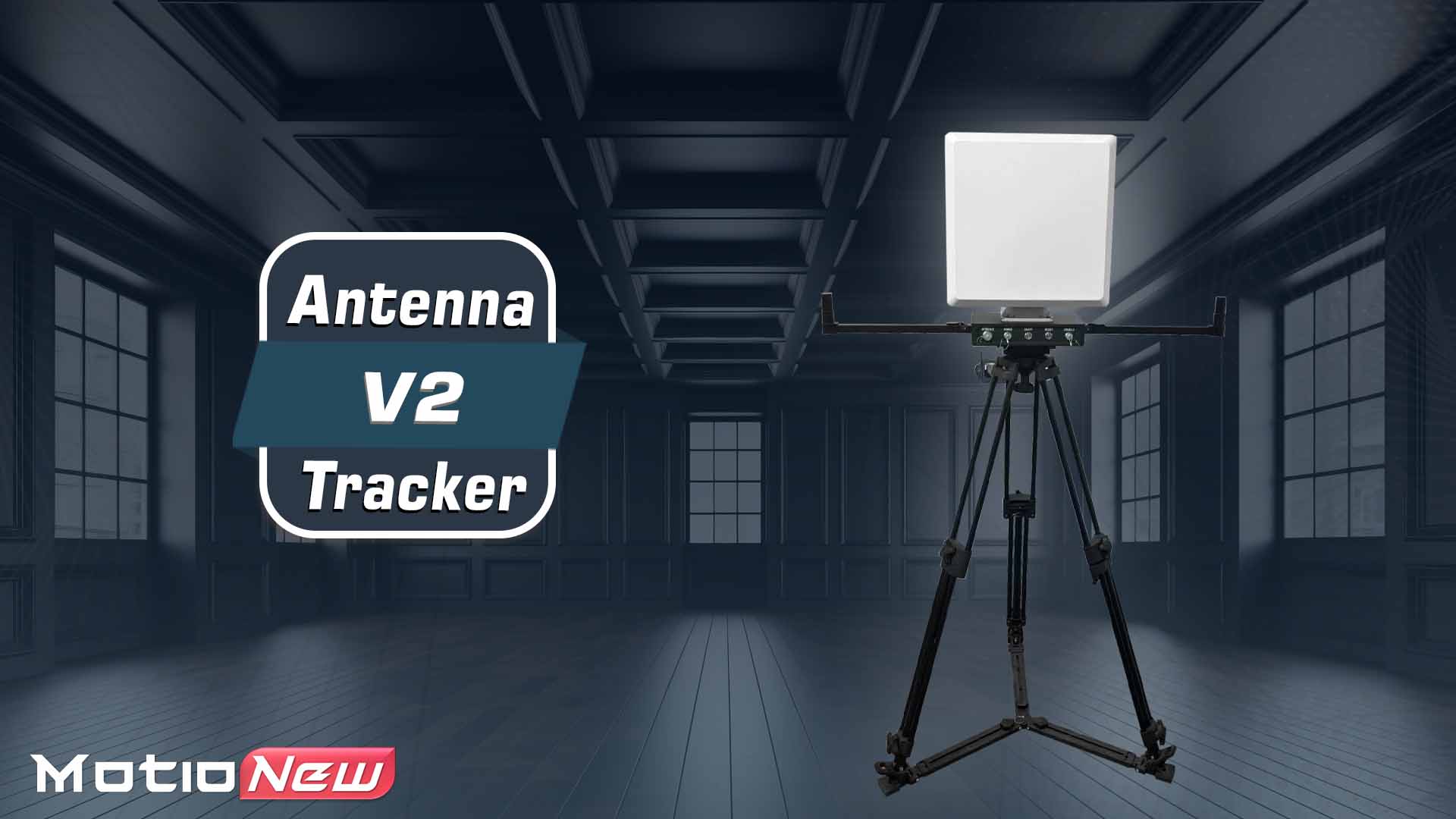

Overview of Automatic Antenna Tracker v2 with datalink box and tripod

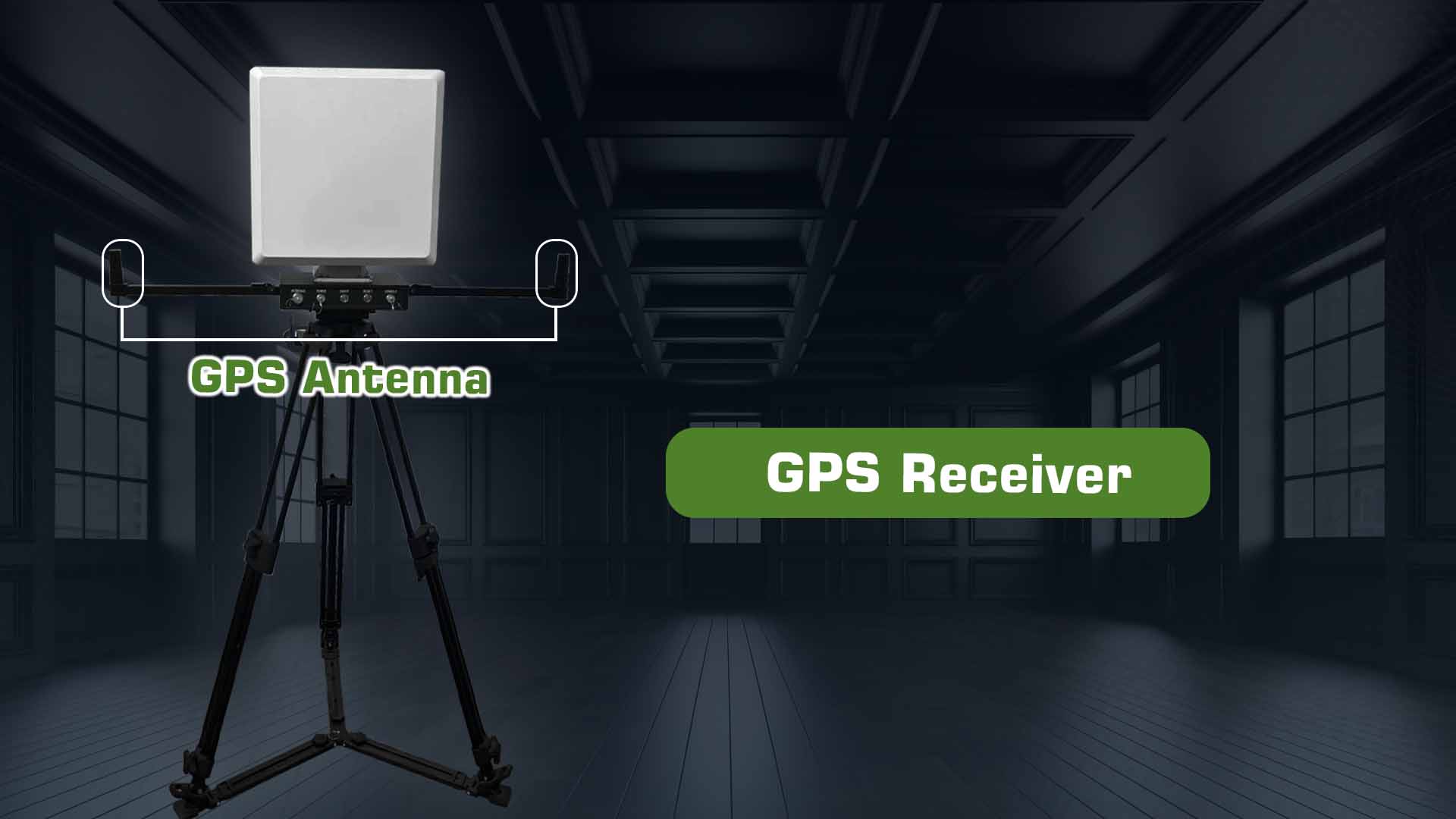

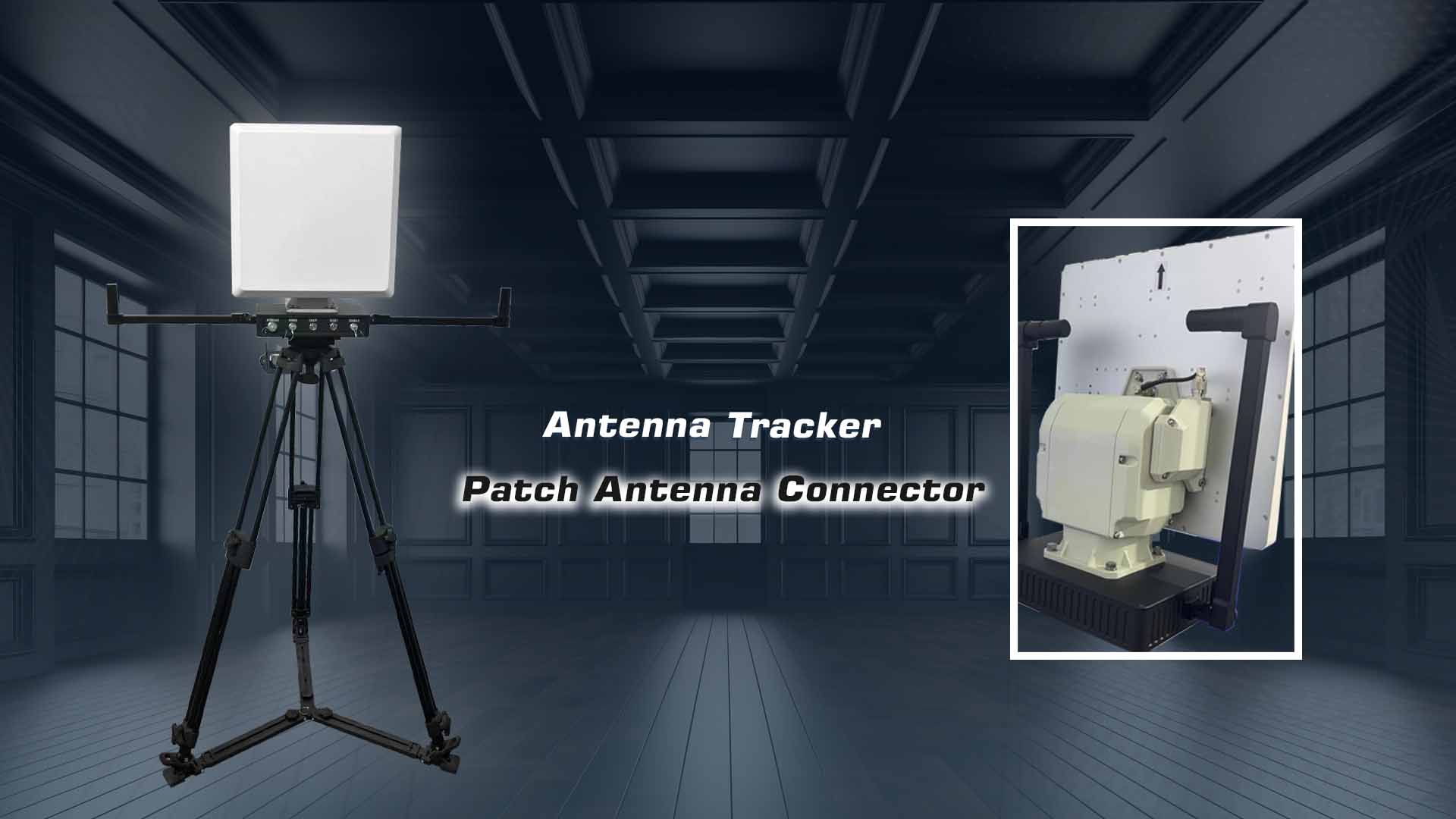

The Datalink box and Tripod with Antenna Tracker Tracker v2 is a precision-engineered solution for maintaining seamless UAV communication. It is the best choice for use with video link and wireless data link drone systems in order to boost their communication distance. Designed for durability and performance, it ensures reliable operation in demanding environments with advanced tracking accuracy and robust construction. The system is equipped with a 16dBi patch antenna. It is compatible with MavLink and NMEA-0183 protocols, which makes it easy to integrate it with open source autopilot systems that are designed on Pixhawk and use PX4 or Ardupilot firmware. An embedded GNSS/GPS receiver makes it possible to have the ground control station position.

Performance Highlights:

• Yaw Stability Accuracy: ±0.1°
• Pitch Stability Accuracy: ±0.1°

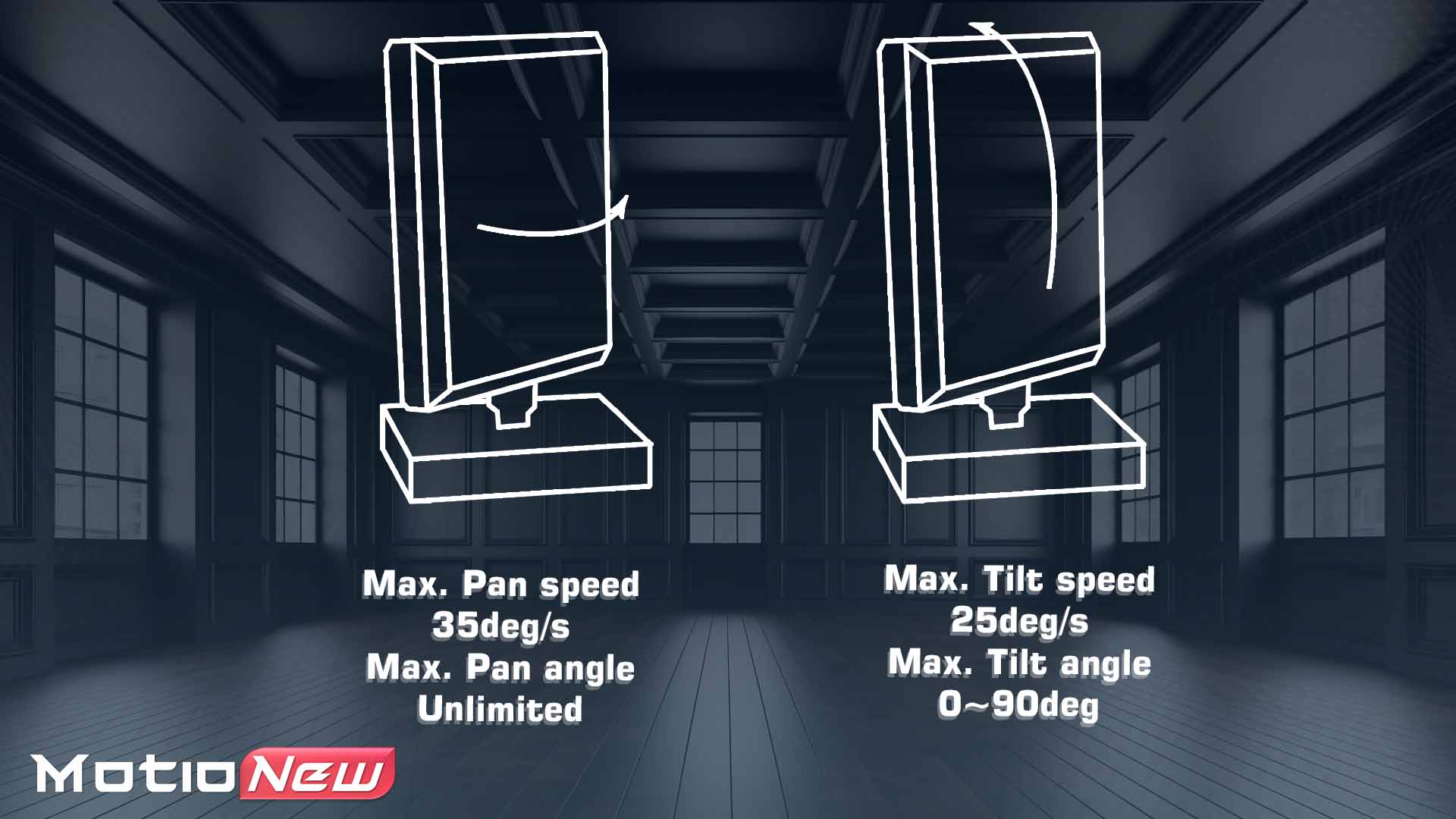

• Yaw Rotation Range: Unlimited/450°
• Pitch Rotation Range: 0° to 90°
• Maximum Horizontal Turning Rate: 35°/s
• Maximum Vertical Turning Rate: 25°/s

Build Specifications:

• Weight: 2.8 kg
• Maximum Torque: 300 N·cm
• Operational Voltage: DC 24V
• Average Power Consumption: 15W
• Working Temperature: -25°C to 55°C
• Ingress Protection Rating: IP66
• Working Humidity: 20% to 70%

Connectivity and Protocol Support:

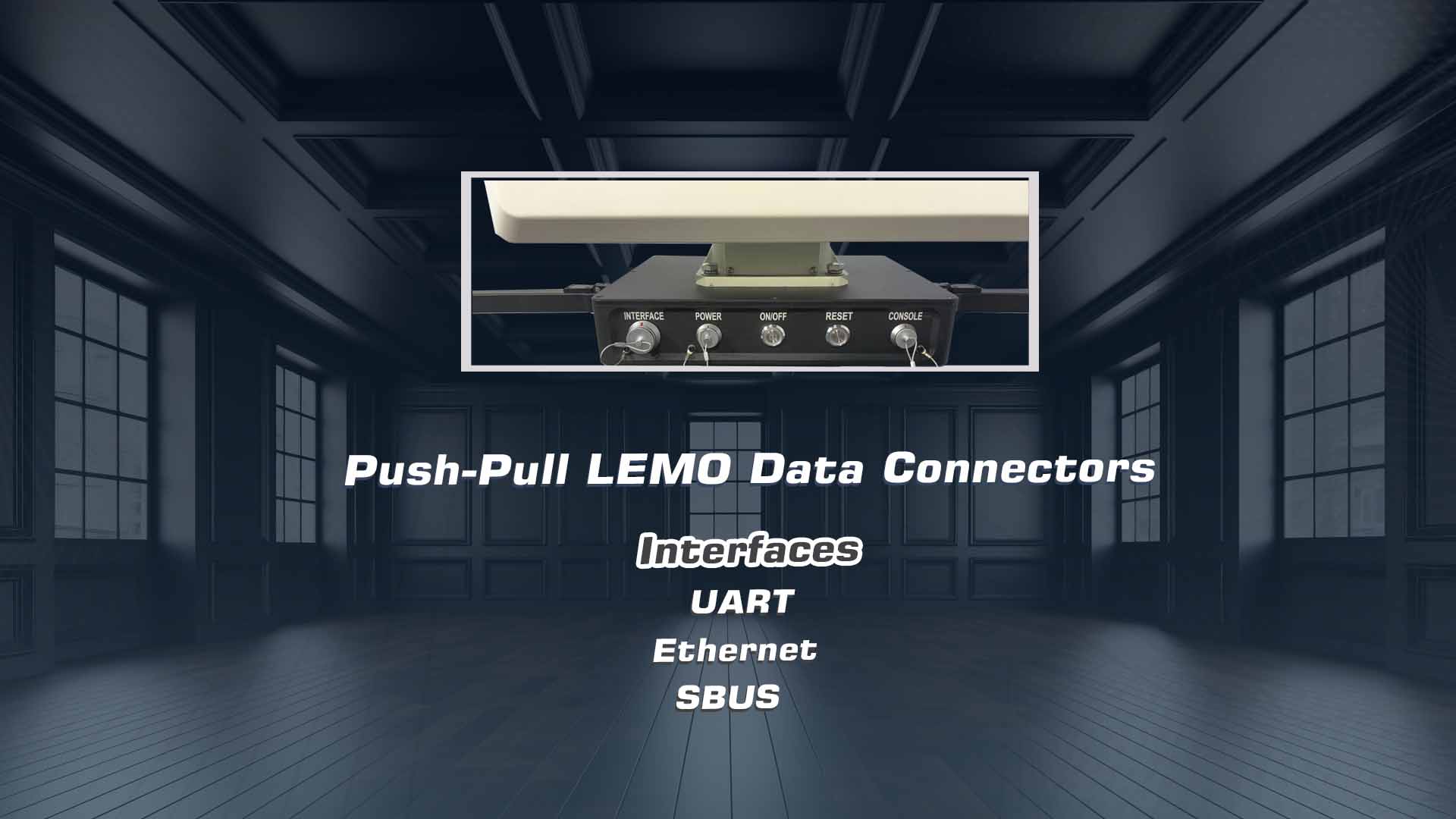

• Interface: RS232, SBUS, Ethernet (Customizable)
• Supported Protocols: MavLink, NMEA-0183

The V2 tracker integrates high-precision motion control and environmental resilience, making it ideal for UAV missions requiring stable communication links and reliable performance.

Overview table of the automatic antenna tracker v2 features

Consult MotioNew Online Shop to see the full range of our products. Moreover, if you are interested in long-range wireless video to integrate with this antenna tracker, you can visit the video and data link page.

Automatic Antenna Tracker v2 Features (with datalink box and tripod)

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

FAQ – Datalink Box and Tripod with Automatic Antenna Tracker v2

1. What are the main specifications of the Automatic Antenna Tracker v2?
The v2 system is an upgraded version featuring enhanced servo motors, reinforced tripod stability, and a modular datalink box. It supports MavLink, NMEA-0183, and other telemetry standards, offering precise ±0.3° angular tracking accuracy and smooth rotation for real-time UAV communication.

2. What range and data link performance does the v2 version provide?
When paired with compatible radio modules, the system supports long-range telemetry and HD video transmission up to 20 km (depending on frequency and terrain). The automatic tracker continuously aligns with UAV position via GPS and telemetry input, maintaining consistent signal quality.

3. What improvements differentiate the v2 from the v1 version?
Compared to v1, the v2 model features:

• Higher torque tracking motors for improved stability in windy conditions.

• Extended range capability due to optimized antenna design.

• Faster calibration and self-alignment features.

• Modular datalink box for easier maintenance and configuration.

4. What payment methods are available for purchasing the Datalink Box and Tracker v2?
Motionew accepts credit/debit cards, PayPal, and wire transfers. For corporate or OEM clients, proforma invoices can be arranged for secure bank payments.

5. Is OEM customization available for this product?
Yes. Motionew provides OEM customization for frequency tuning, connector types, branding, and datalink integration. Custom mechanical designs or enclosures are also available upon request. Contact the sales team for MOQ and delivery timelines.

6. Are datasheets and technical documents available?
Yes. Motionew supplies complete datasheets, assembly instructions, calibration guides, and integration manuals for the tracker and datalink box. Technical support is available for UAV communication setup, firmware configuration, and system troubleshooting.
