(Customizable) Datalink box and Tripod with Automatic Antenna Tracker v1

Please contact us if you need to customize the datalink box based on your needs. The size of the compartment can be modified to fit your datalink, and the ports are customizable too.

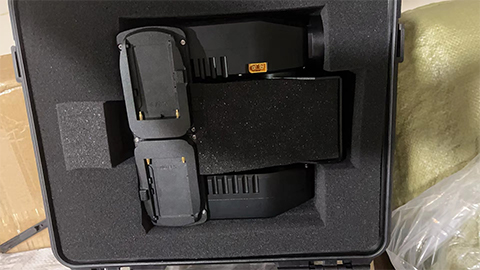

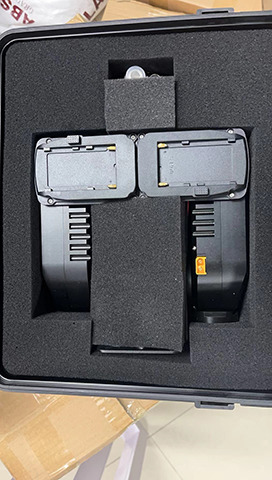

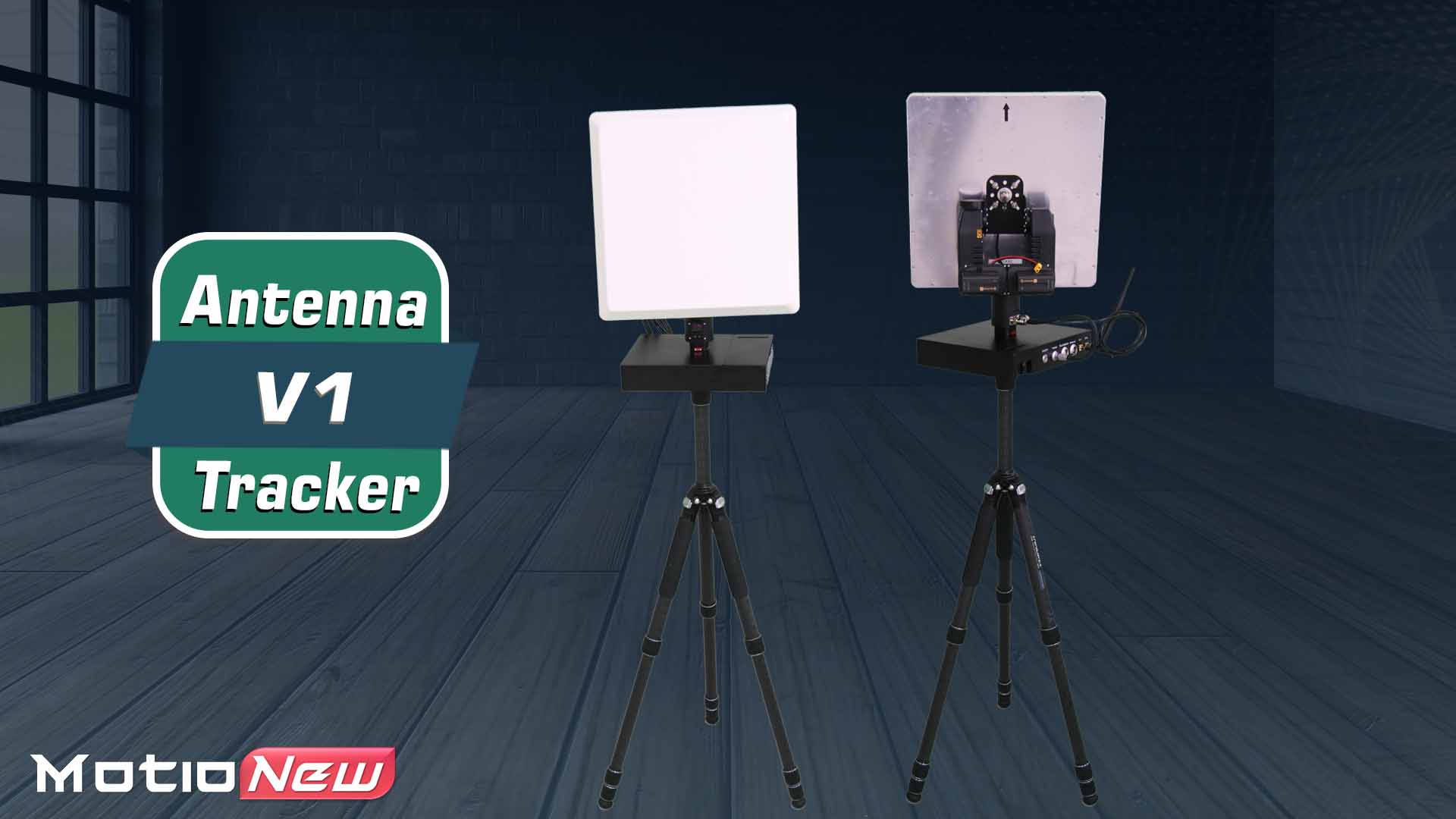

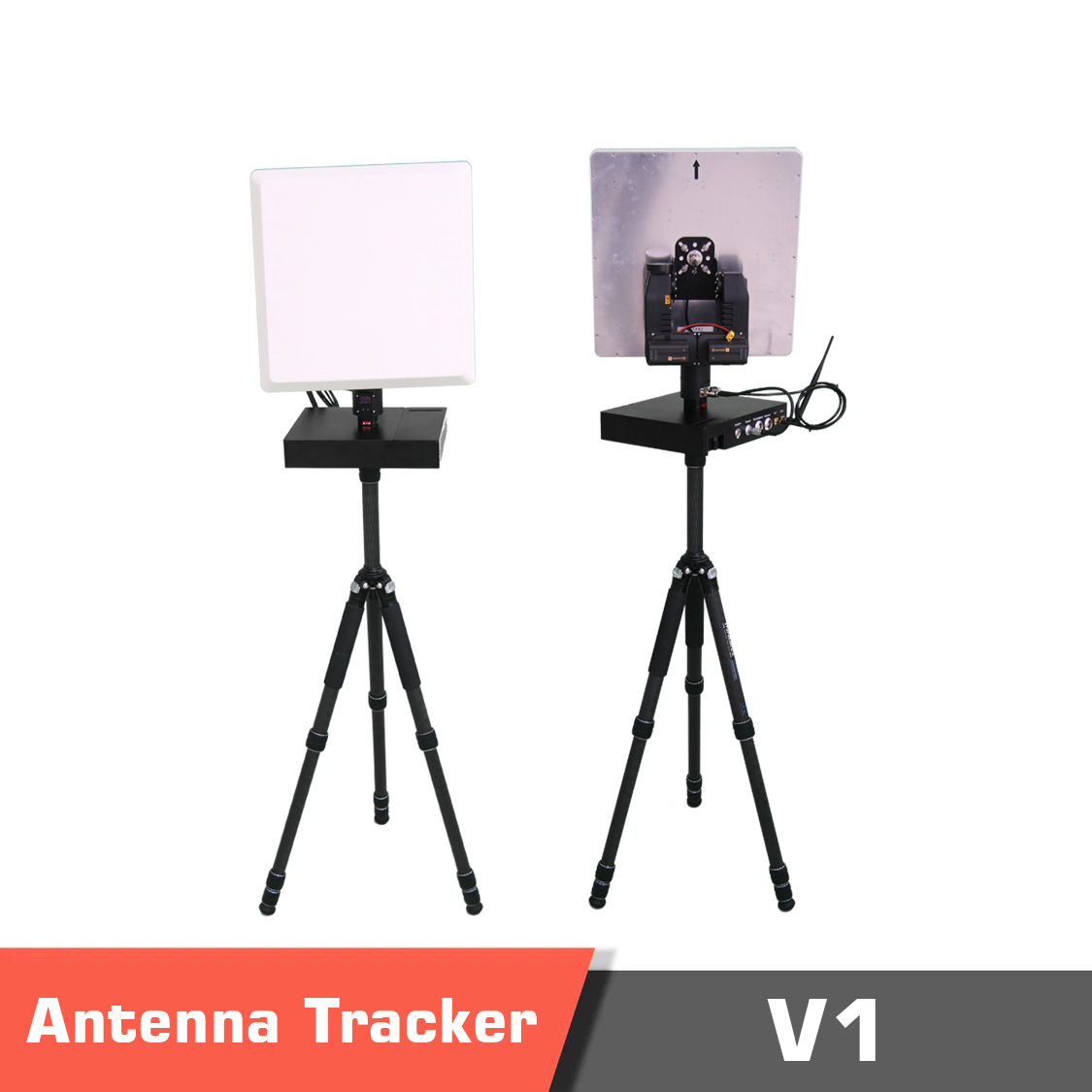

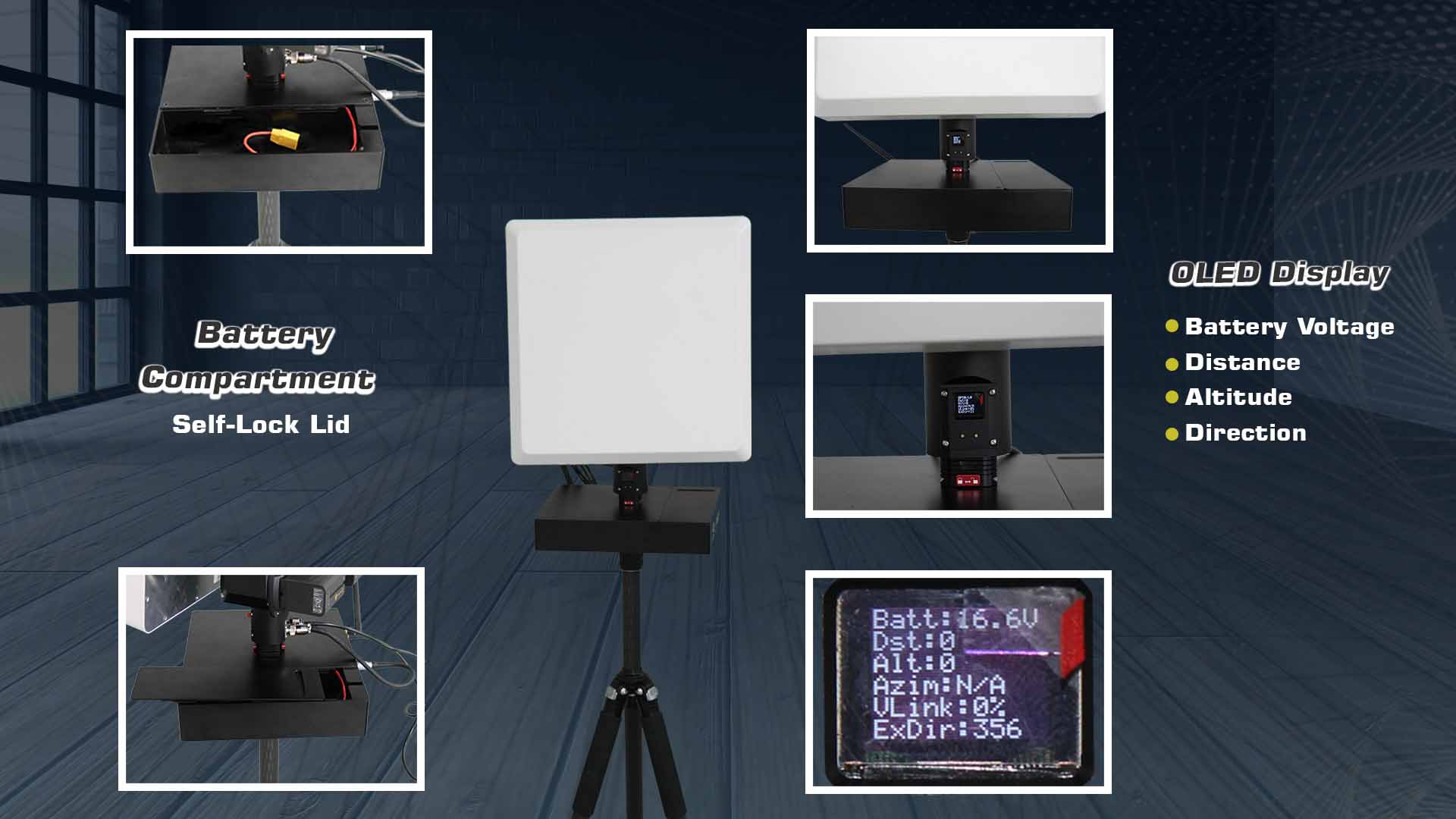

Overview of Automatic Antenna Tracker v1 with datalink box and tripod

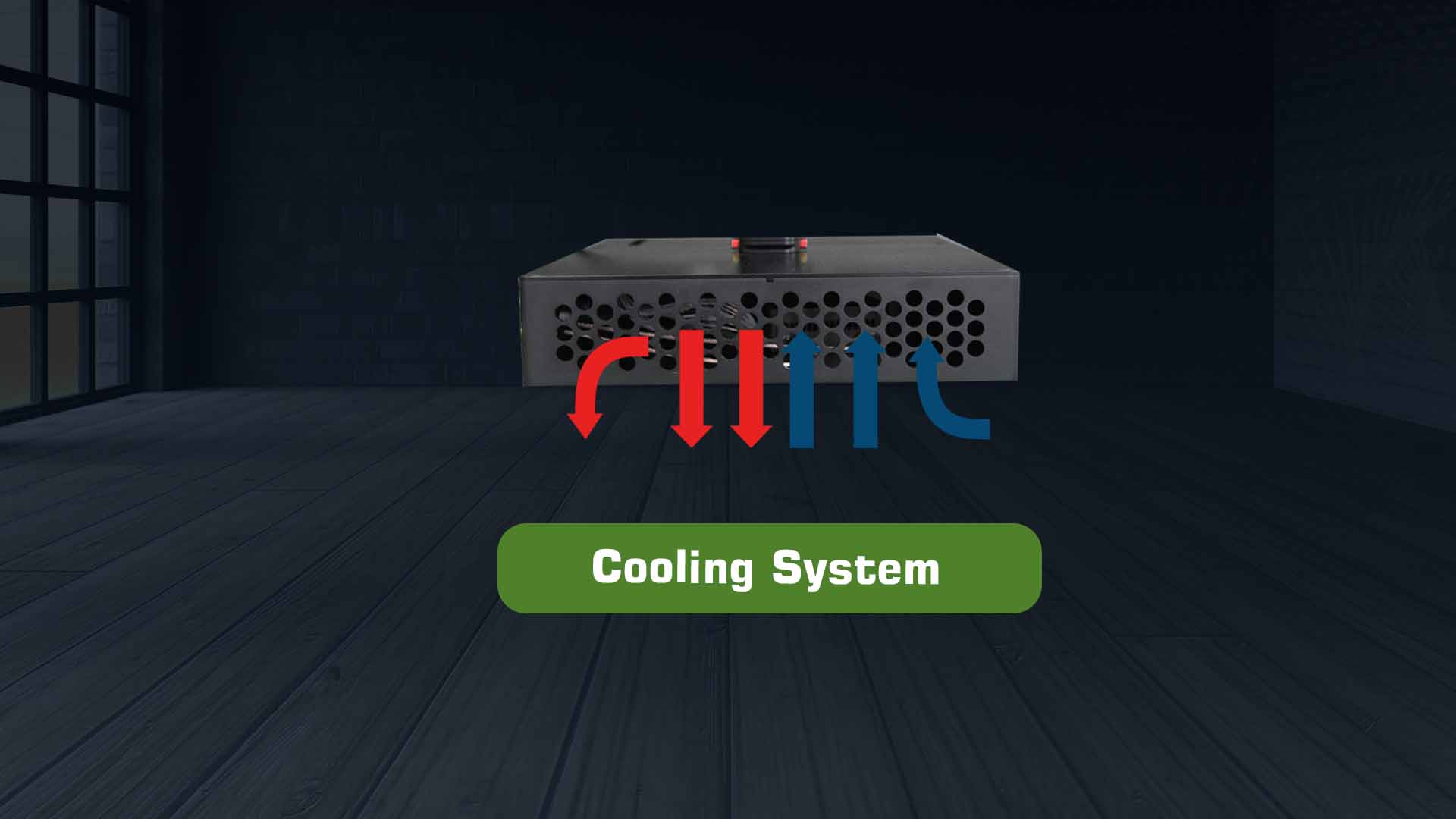

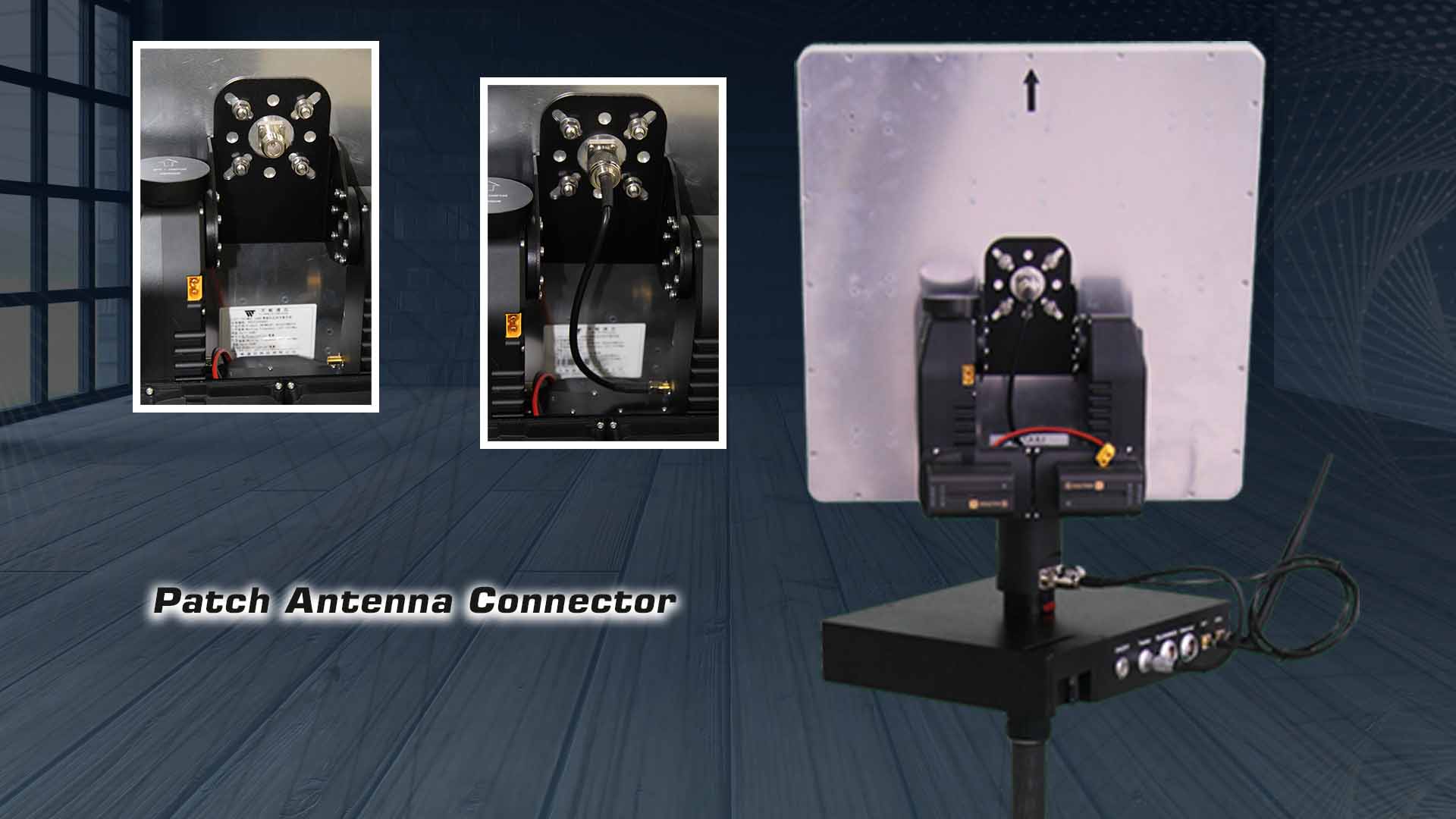

The Datalink box and Tripod with Automatic Antenna Tracker v1 is a high-performance tracking system designed to ensure precise and reliable communication for UAV operations. It is the best choice for use with video link and wireless data link drone systems in order to boost their communication distance. Featuring robust build quality and advanced features, it excels in both stability and flexibility under diverse operating conditions. The system is equipped with a 16dBi patch antenna. It is compatible with MavLink and NMEA-0183 protocols, which makes it easy to integrate it with open source autopilot systems that are designed on Pixhawk and use PX4 or Ardupilot firmware.

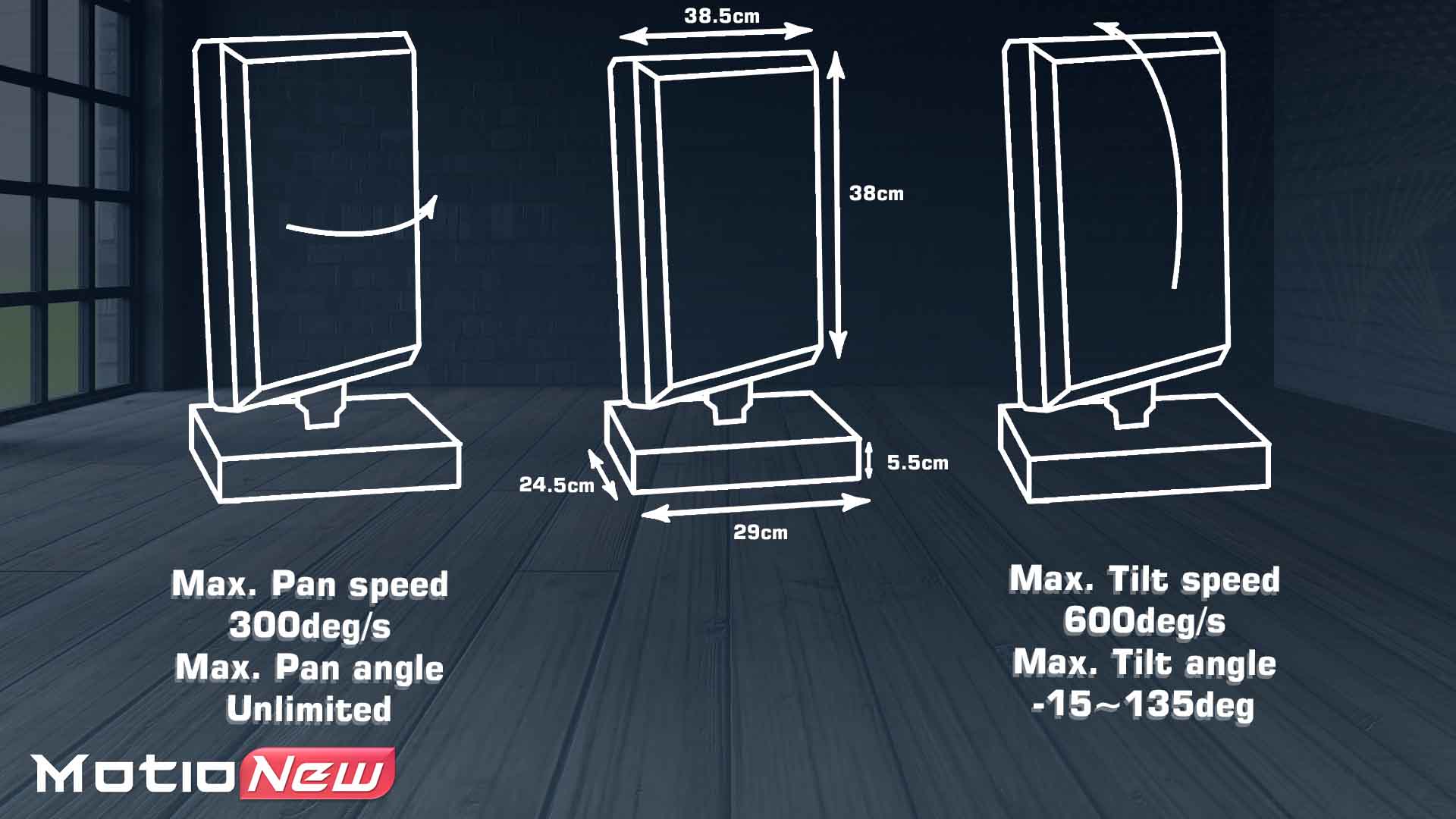

Key Performance Metrics:

• Yaw Stability Accuracy: Less than 0.5°
• Pitch Stability Accuracy: Less than 0.1°
• Yaw Rotation Range: Unlimited/450°
• Pitch Rotation Range: -15° to 135°
• Maximum Horizontal Turning Rate: 300°/s
• Maximum Vertical Turning Rate: 60°/s

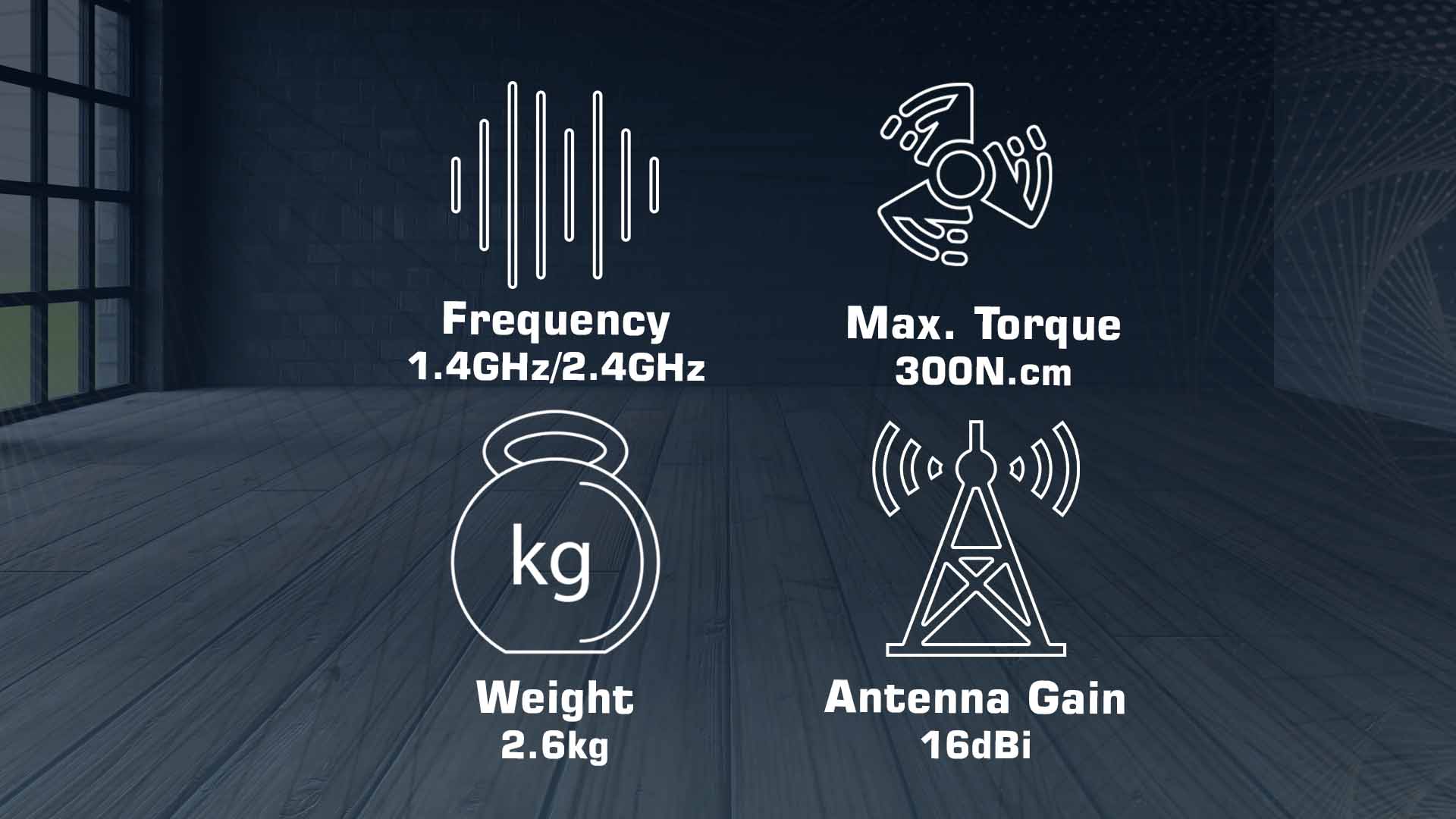

Physical Attributes:

• Weight: 2.6 kg
• Maximum Torque: 300 N·cm
• Ingress Protection: IP65, offering dust-tight and splash-proof durability

Electrical Specifications:

• Operational Voltage: DC 12V ~ 15V
• Average Power Consumption: 15W

Environmental Tolerance:

• Working Temperature Range: -20°C to 60°C
• Working Humidity: 20% to 70%

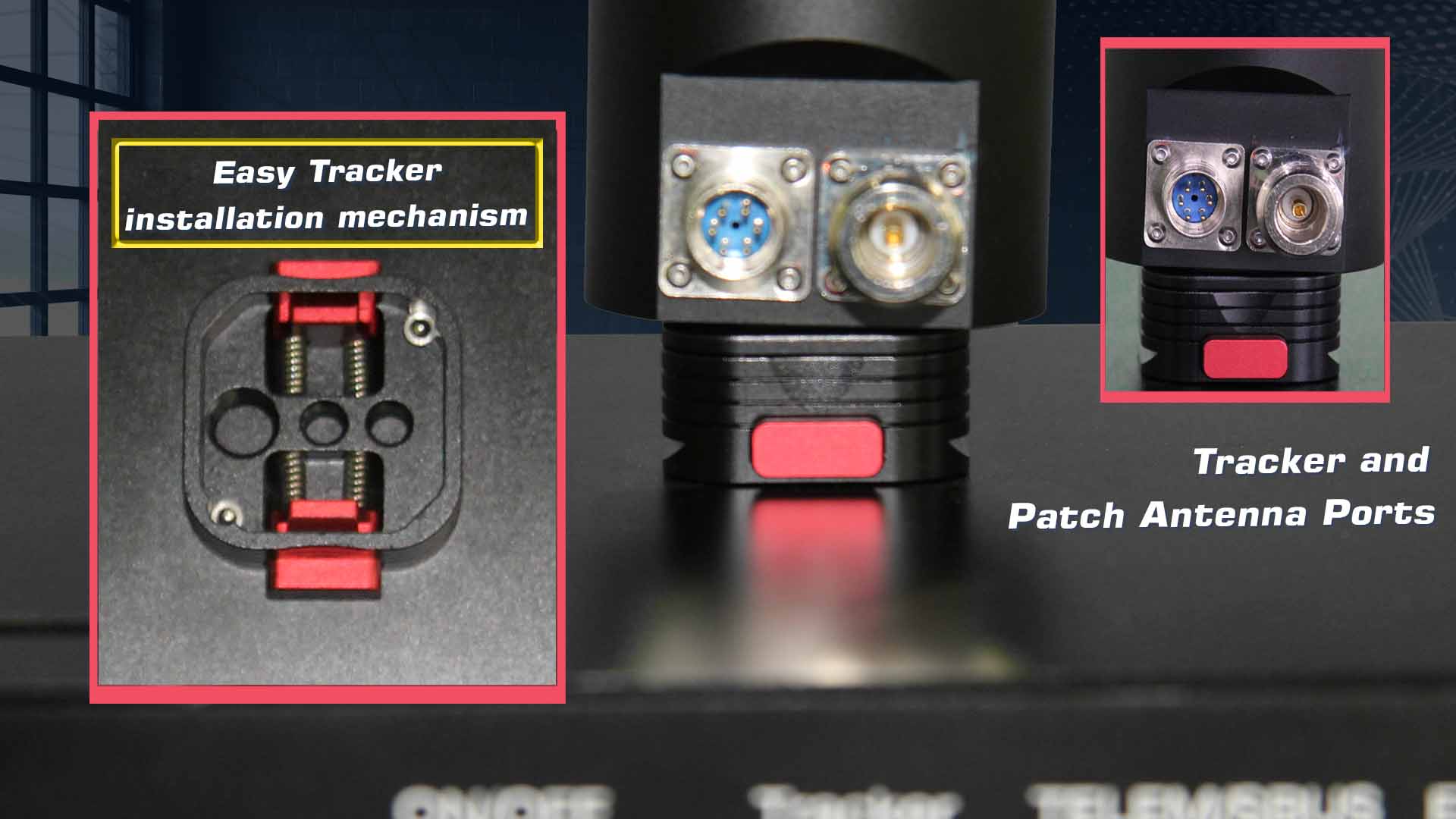

Interface and Communication:

• Interfaces:
  • TTL Serial
  • SBUS

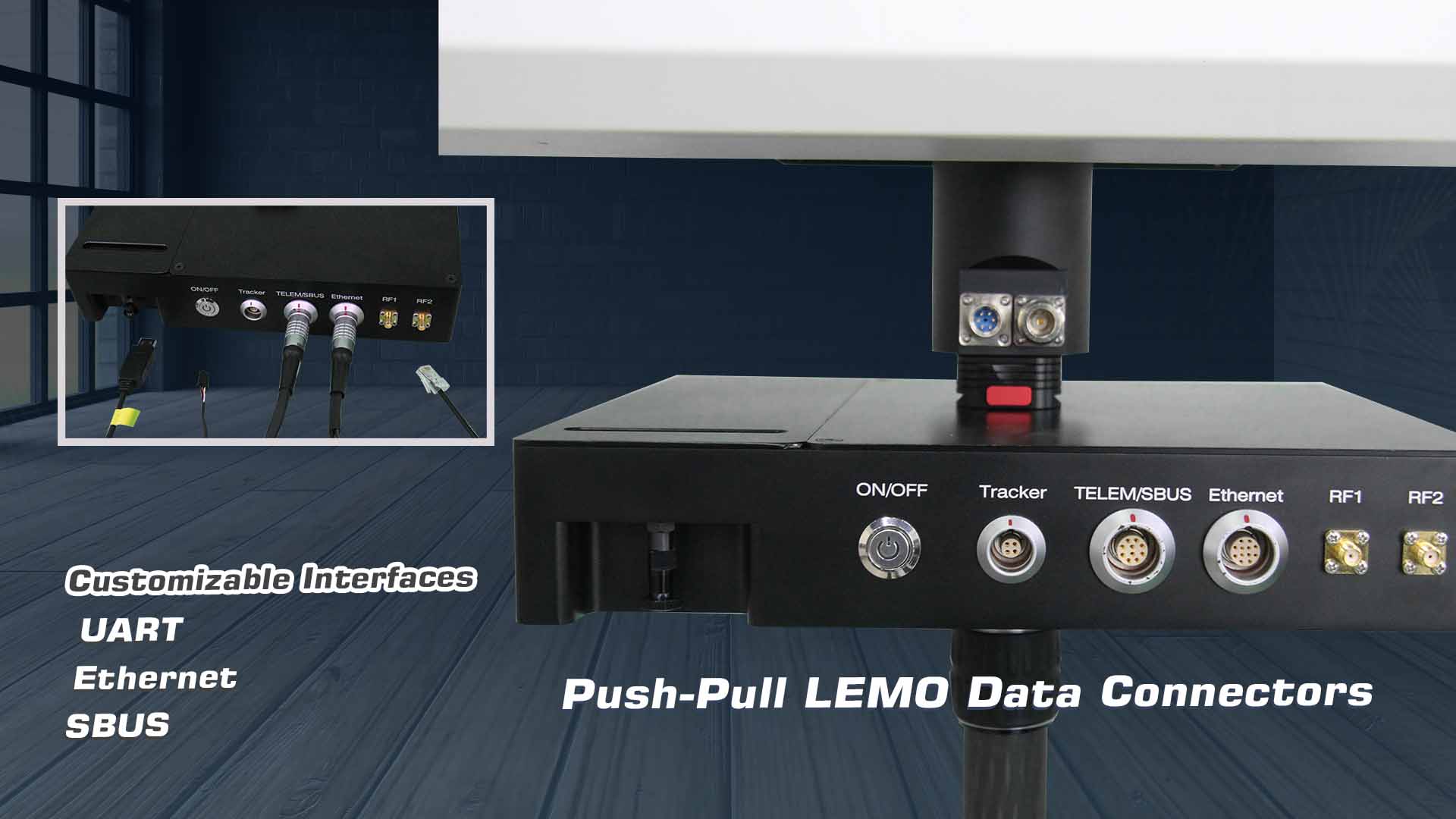

  • Ethernet (customizable)
• Supported Protocols:
  • MavLink
  • NMEA-0183

Overview table of the automatic antenna tracker v1 features

The Automatic Antenna Tracker V1 provides accurate tracking with minimal power consumption, making it an ideal solution for UAV systems requiring reliable and efficient communication in challenging environments.

Consult MotioNew Online Shop to see the full range of our products. Moreover, if you are interested in long-range wireless video to integrate with this antenna tracker, you can visit the video and data link page.

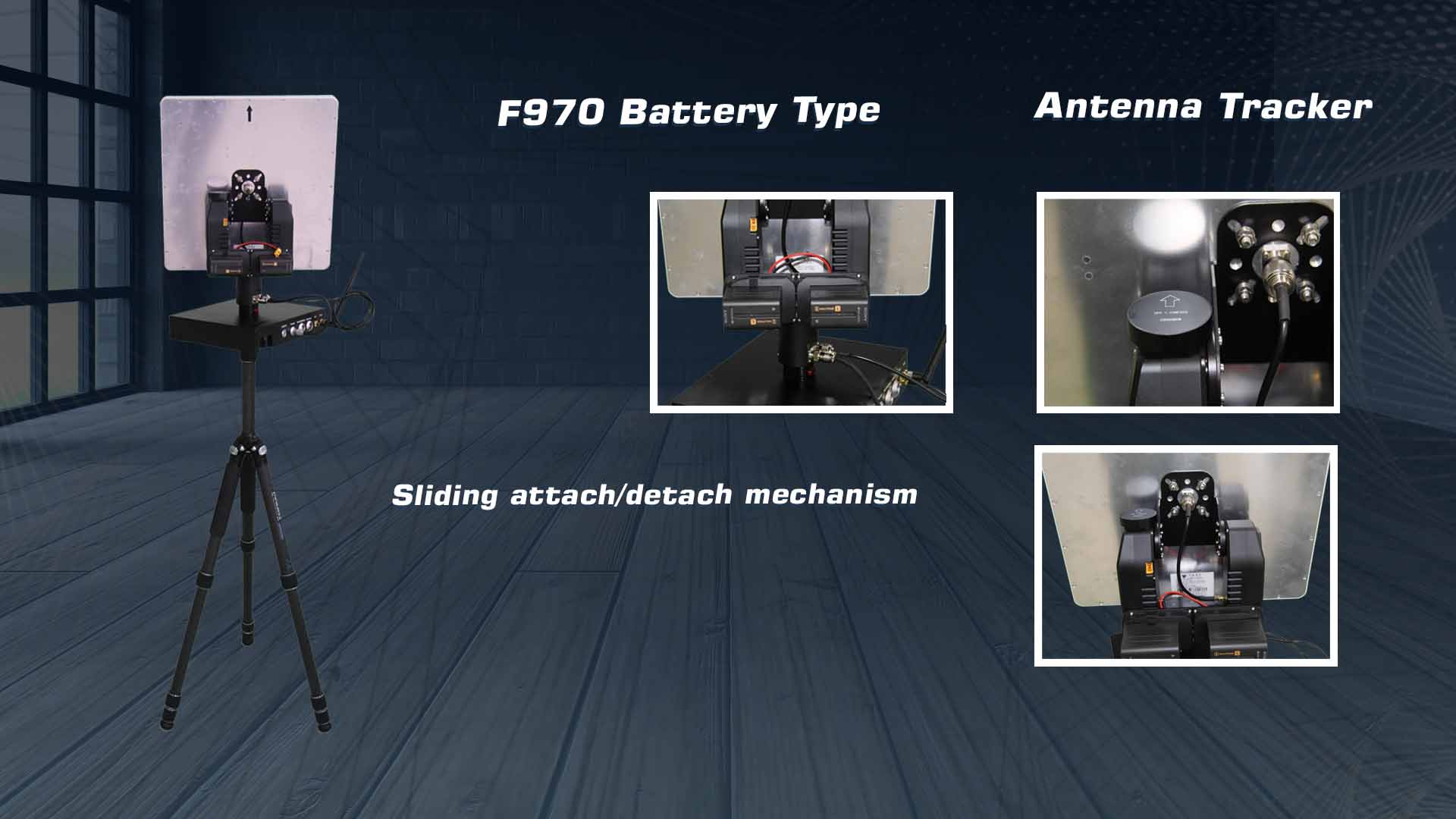

Automatic Antenna Tracker v1 Features (with datalink box and tripod)

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

FAQ – Datalink Box and Tripod with Automatic Antenna Tracker v1

1. What are the main specifications of the Automatic Antenna Tracker v1?
The v1 tracker features a 16dBi patch antenna integrated into a rugged datalink box mounted on a tripod base. It supports MavLink and NMEA-0183 protocols for precise positioning and telemetry tracking, maintaining stable long-range communication for UAV systems.

2. What is the communication range and tracking accuracy?
Depending on configuration and environment, the system provides reliable telemetry and video transmission up to 10–15 km. The automatic antenna tracker offers high angular precision (±0.5°) for real-time alignment between the ground station and the UAV.

3. Can the datalink box be customized?
Yes. The datalink compartment, port arrangement, and connector interfaces can be customized to match specific radio modules, transmitters, or network architectures. Motionew supports structural modifications to fit various payloads and data systems.

4. What payment methods are available for purchasing this system?
Motionew accepts credit/debit cards, PayPal, and wire transfers. For corporate or OEM orders, proforma invoices can be arranged for direct bank payments.

5. Is OEM customization available for the Datalink Box and Antenna Tracker v1?
Yes. OEM services include frequency tuning, port labeling, branding, and integrated communication hardware installation. Contact Motionew’s sales team for MOQ, lead time, and customization details.

6. Are datasheets and technical manuals available?
Yes. Motionew provides datasheets, mechanical drawings, and setup instructions for antenna calibration, power wiring, and communication setup. Engineering support is also available for UAV communication system integration.
