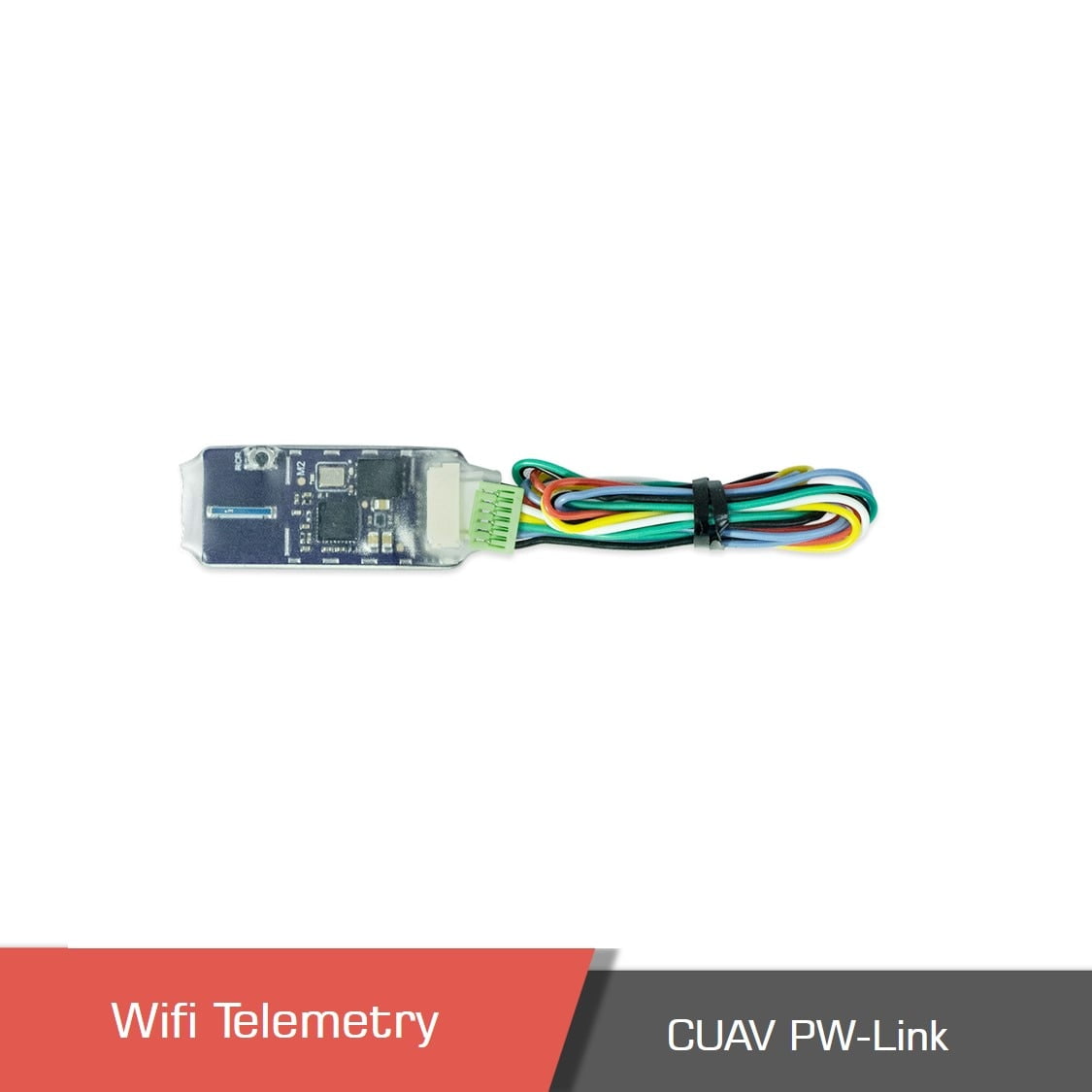

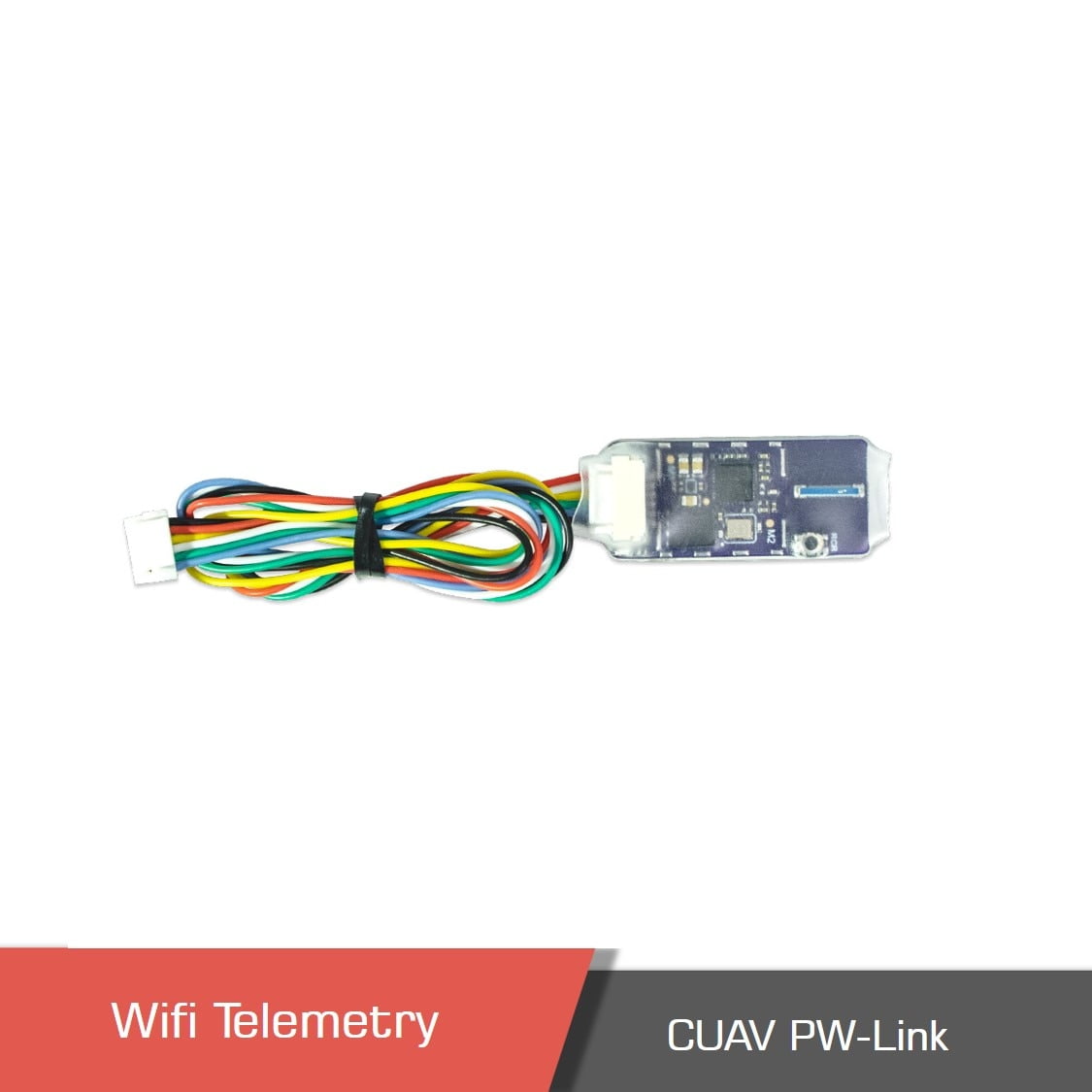

Telemetry CUAV WiFi PW-Link

Name: Telemetry CUAV WiFi PW-Link
SKU: 1005003402521898
Price: 29.99 USD
Availability: OutOfStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

29.99 $

Out of stock

Message on WhatsApp

Add to compare

Add to wishlist

Payment Methods:

Description

Overview of CUAV Wifi

PW-Link data telemetry is a 2.4GHz wireless datalink drone transmission module with a transmission distance of about 200 meters. Using a computer ground station mission planner to conduct long-term connection tests, the average stability of the data transmission signal is maintained above 90%. Due to its features of small volume, long transmission distance, stable data, and convenient connection, it is very suitable for using various calibration and adjustment parameters in a short distance, as well as the data transmission and reception mode of small unmanned aerial vehicles in short distances. Consult Motionew Online Shop to see the full range of our products.

Features of PW-Link

ESP8266 high-performance network communication processor
simple and fast UDP broadcast communication made with low overhead;
mobile phones, computers, and other devices can wirelessly connect to unmanned aerial vehicles through Wi-Fi modules;
it is applied to various ground station software that supports UDO communication;
PW-LINK can connect to flight control for parameter tuning and setting only through WIFI of a computer or mobile phone
you can set the wifi name and password through the CUAV ground station Hflight.
compatible with computer ground stations: mission planner, QGroundControl
Mobile ground control station: tower, CUAV Hflight, and QGC (official CUAV site APP:http://fw.cuav.net/apk/Hflight.apk)

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

FAQ – CUAV PW-Link WiFi Telemetry Module

1. What interface and protocol does the PW-Link use?
The PW-Link connects to flight controllers such as Pixhawk through a UART serial interface using the MAVLink protocol. It supports both telemetry transmission and configuration over WiFi for quick setup with ground control software.

2. What frequency and range does it operate on?
It operates on the 2.4 GHz WiFi band, providing a stable connection range of up to 400–500 meters in open environments. The actual range depends on antenna type, power settings, and interference conditions.

3. What are the main specifications and applications?
The module supports 5 V DC input and features low latency, real-time bidirectional communication. It is ideal for short- to mid-range UAV, UGV, and robotic systems where lightweight and quick setup are essential.

4. How is it shipped and what are delivery times?
Motionew ships worldwide via DHL, FedEx, and UPS. Orders are typically processed within 1–2 business days, with delivery taking between 5–10 business days depending on the destination.

5. Is OEM or bulk customization available?
Yes. Bulk orders can be customized for branding, firmware pre-configuration, or integration with specific flight controllers. OEM options are available for enterprise or research applications.

6. What documentation and payment options are offered?
Each module includes a datasheet, wiring guide, and configuration manual. CE and RoHS certificates are available upon request. Accepted payment methods include PayPal, bank transfer (T/T), and major credit cards such as Visa and MasterCard.

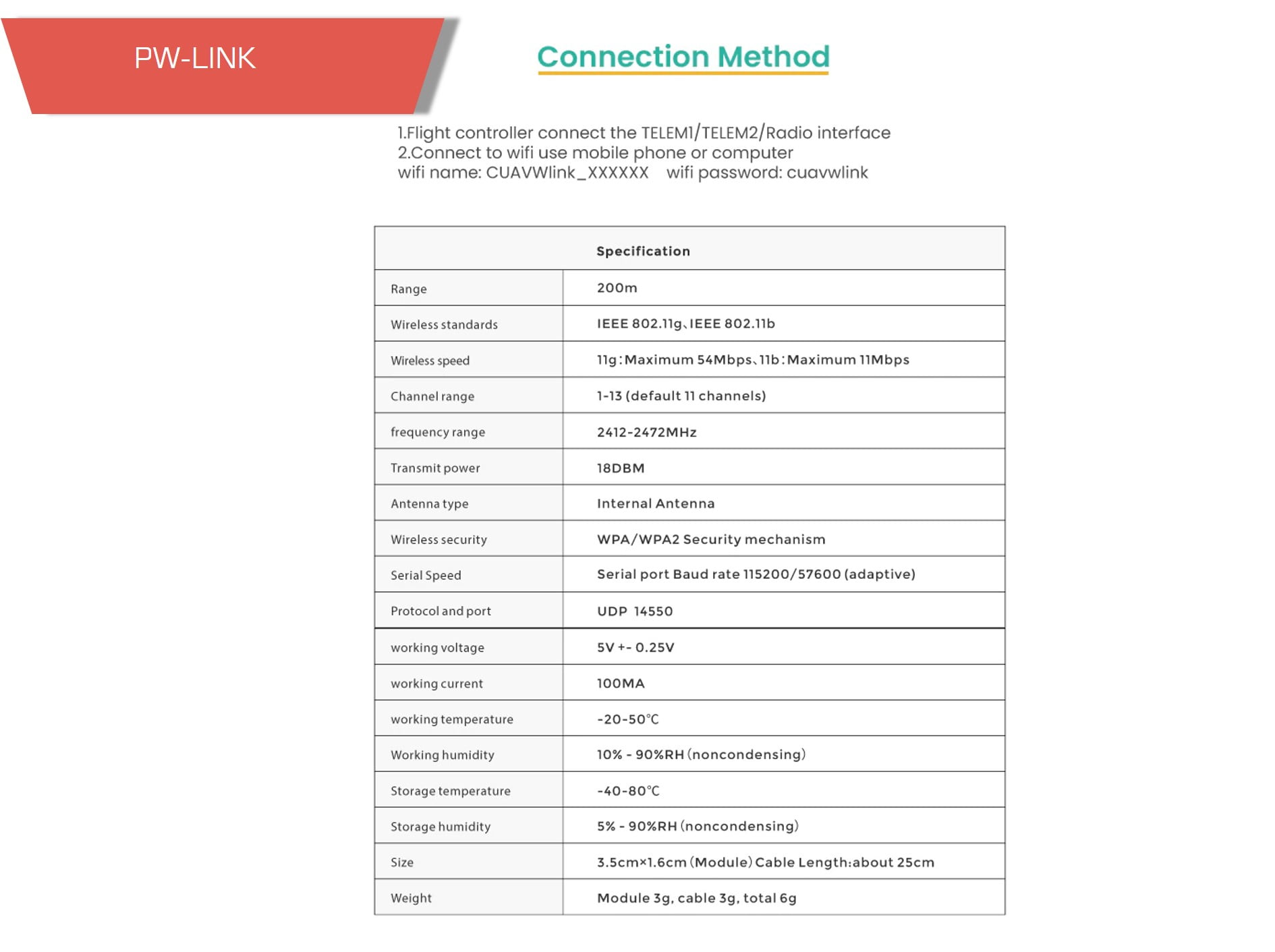

Specifications

Range	200m
Wireless standards	IEEE 802.11g,IEEE 802.11b
Wireless speed	11g:maximum 54Mbps, 11b:maximum 11Mbps
Channel range	1-13(default 11 channels)
Frequency range	2412-2472Mhz
Transmit power	18DBM
Antenna type	Internal antenna
Wireless security	WPA/WPA2 security mechanissm
Protocol and port	UDP 14550
Working voltage	5v+-0.25v
Working current	100MA
Working temperature	-20-50 c
Working humidity	10%-90&RH (noncondensing)
Storage temperature	-40-80 c
Storage humidity	5%-90%RH(noncondensing)
size	3.5cm*1.6cm(module)cable length: about 25cm
weight	Module:3g.cable:3g.totaal :6g
