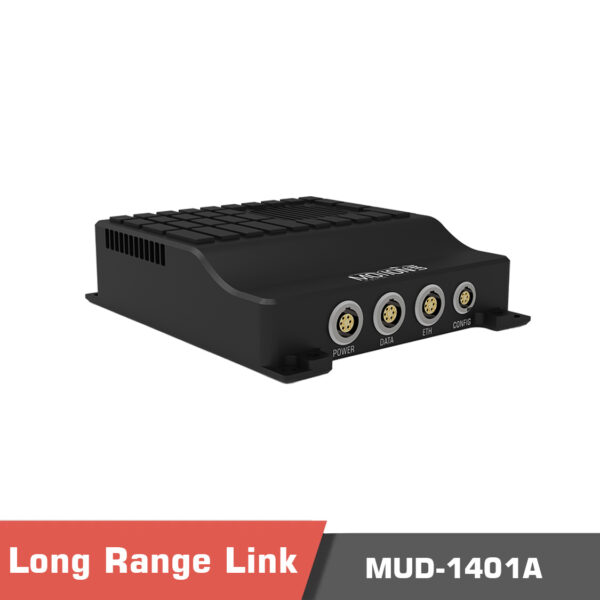

MotionUAV MUD-1401A, 1.4GHz/2.4GHz Long Range Digital Link

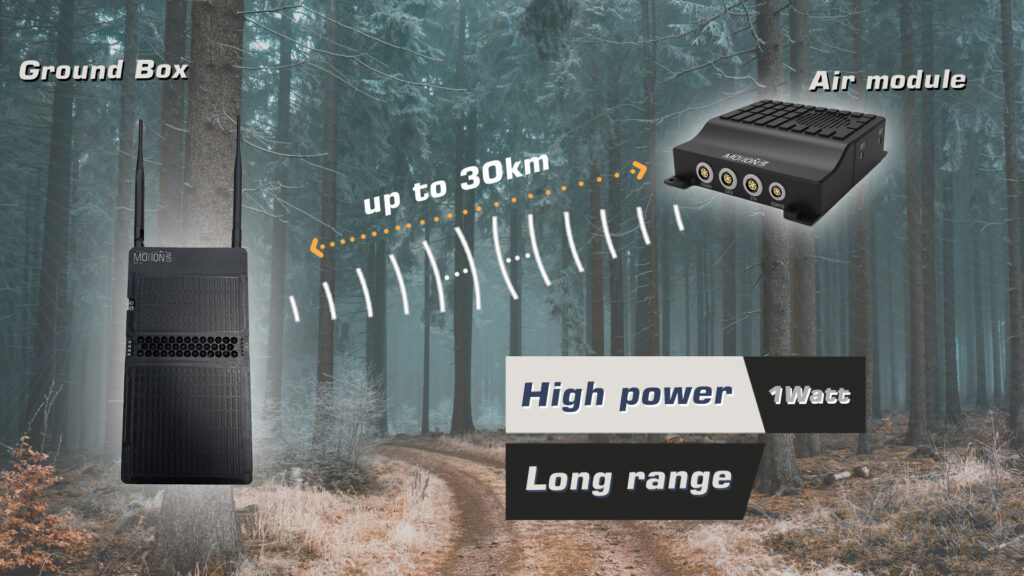

MotionUAV MUD-1401A is an HD data and video transmission system, with an Analog Device transceiver model AD936x integrated inside to offer long-range communication distances of up to 30km with no interference. It is the best choice for live video and wireless data link drone streaming with a downlink throughput of 2.3Mbps~15.3Mbps (10MHz bandwidth) and an uplink throughput of 115200bps (2.5MHz bandwidth).

Fully compatible with the available open-source Ground Control Station Software, you can use QGroundControl and MissionPlanner to capture all video and telemetry data from the air unit through the USB port (Ethernet Port). You can extend the range of your radio controller by connecting the SBUS or PPM output. Even though its latency depends on your input video device, the system adds less than 200ms, which is among the best. It is fully compatible with MotionUAV MUG-101C and MUD-1401.

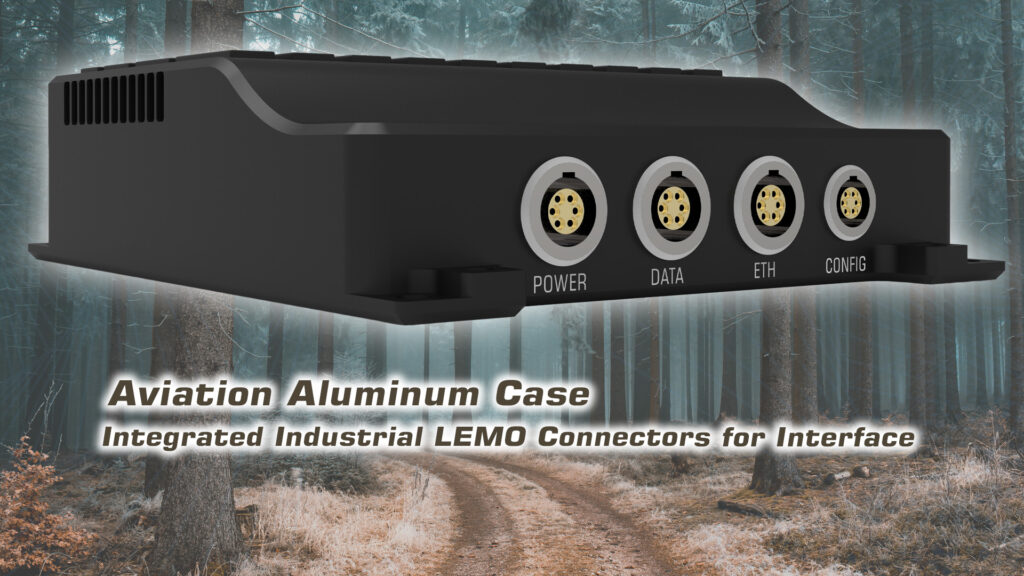

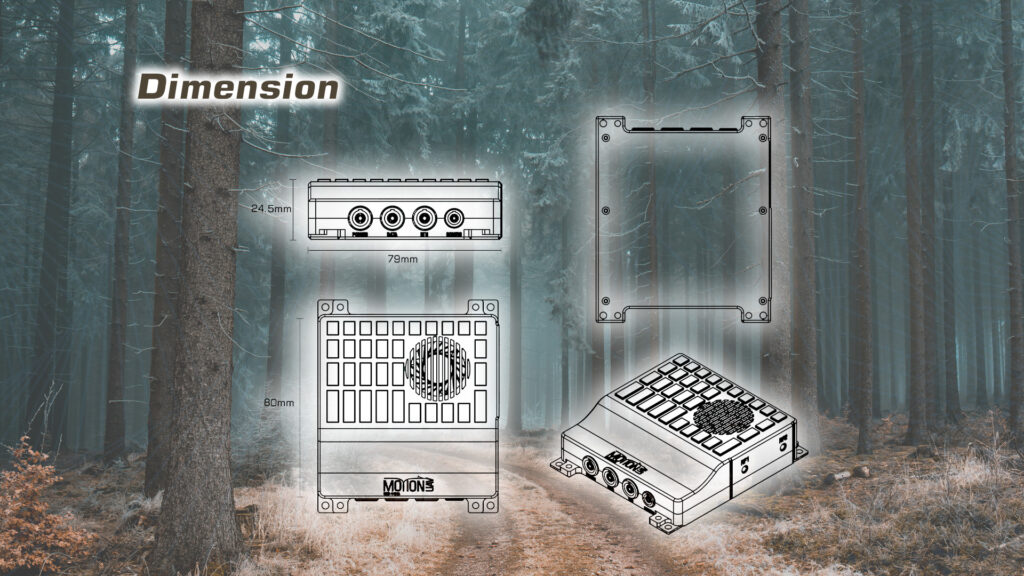

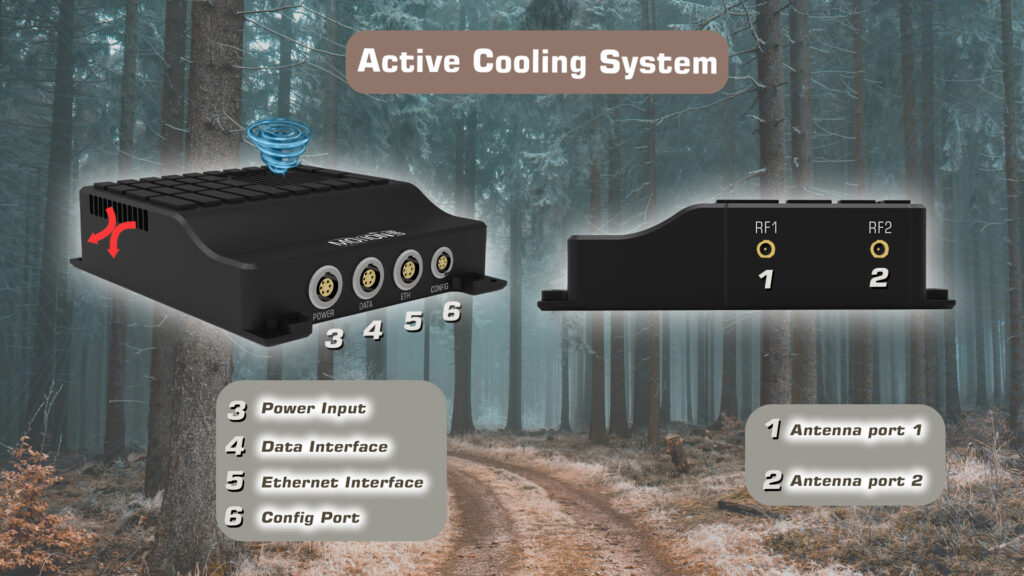

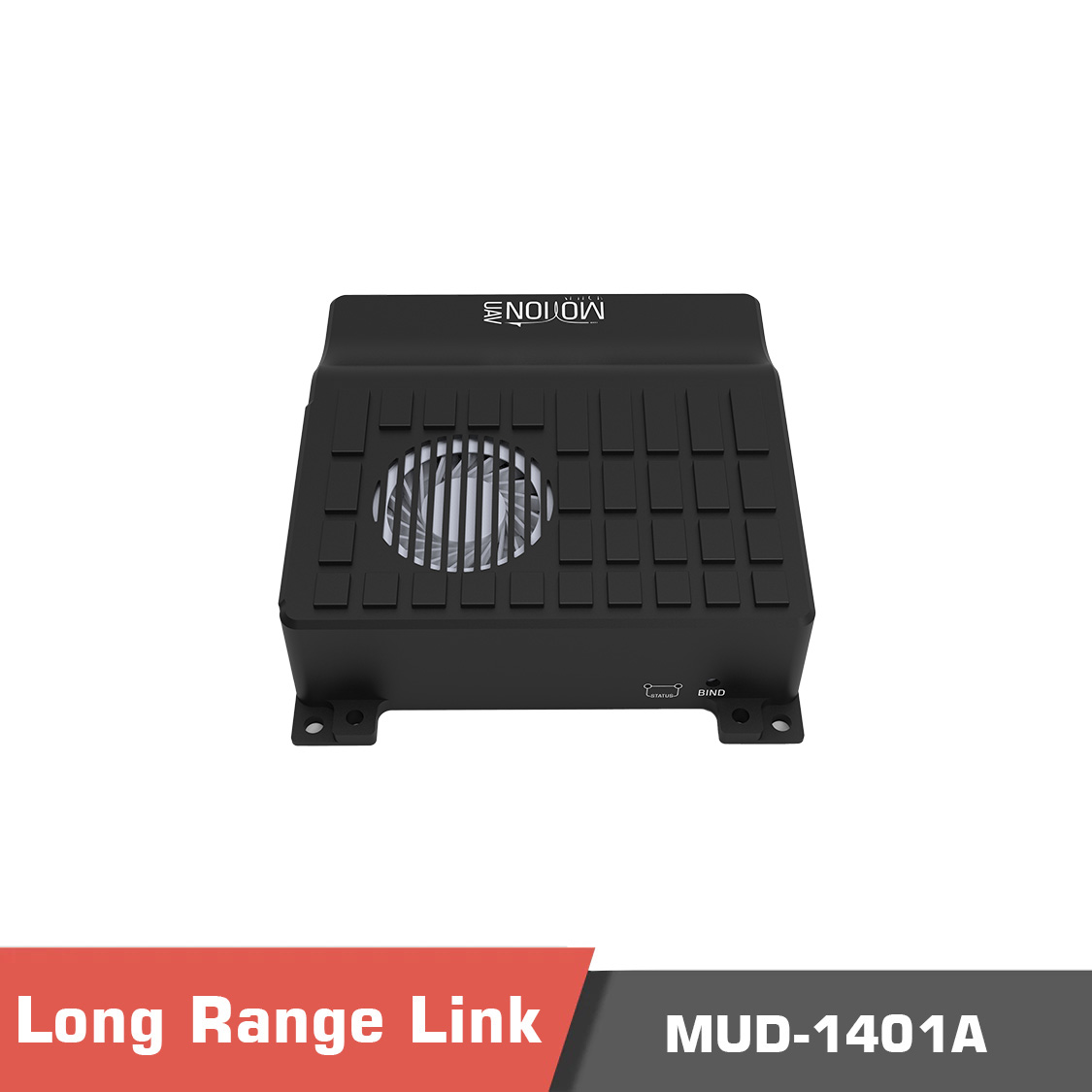

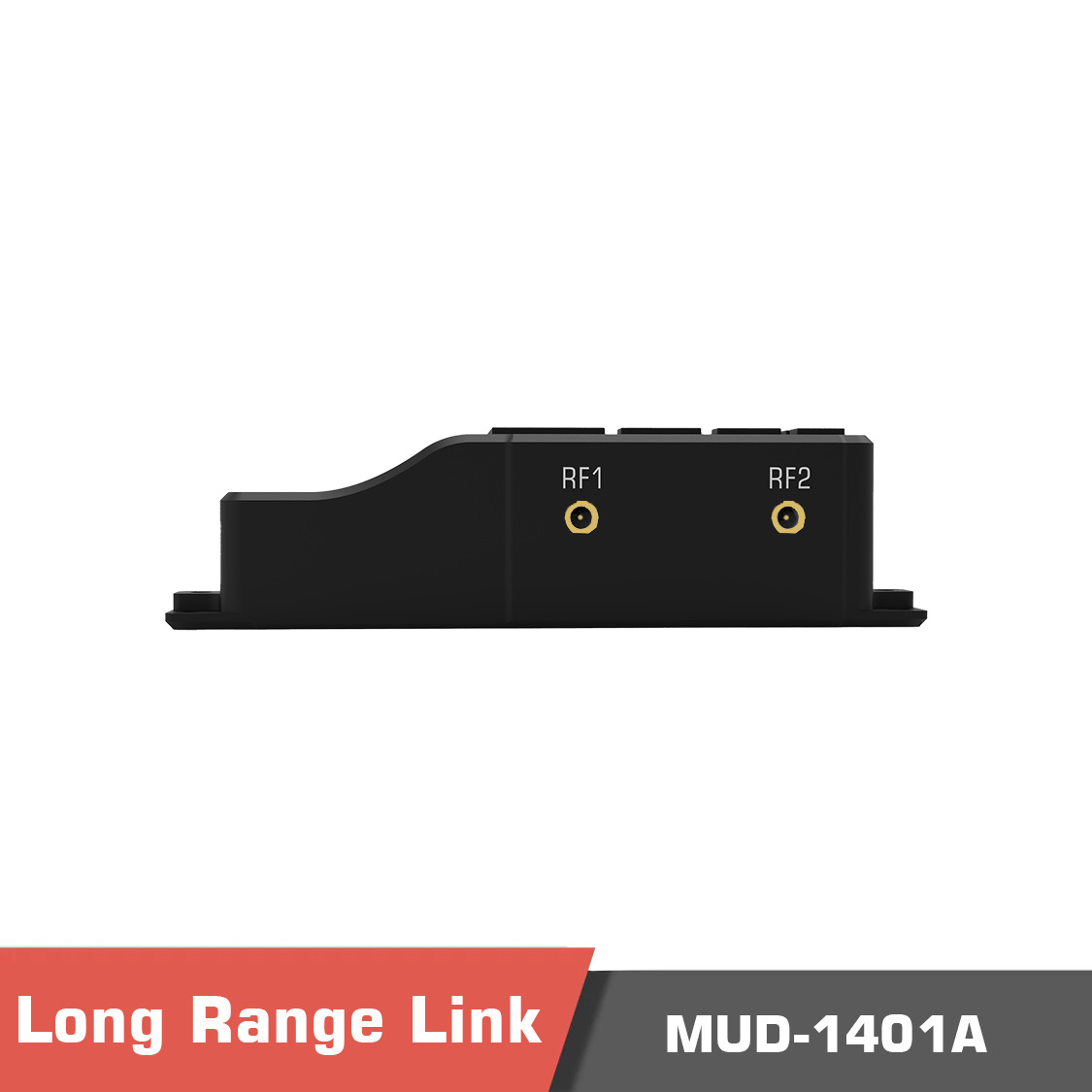

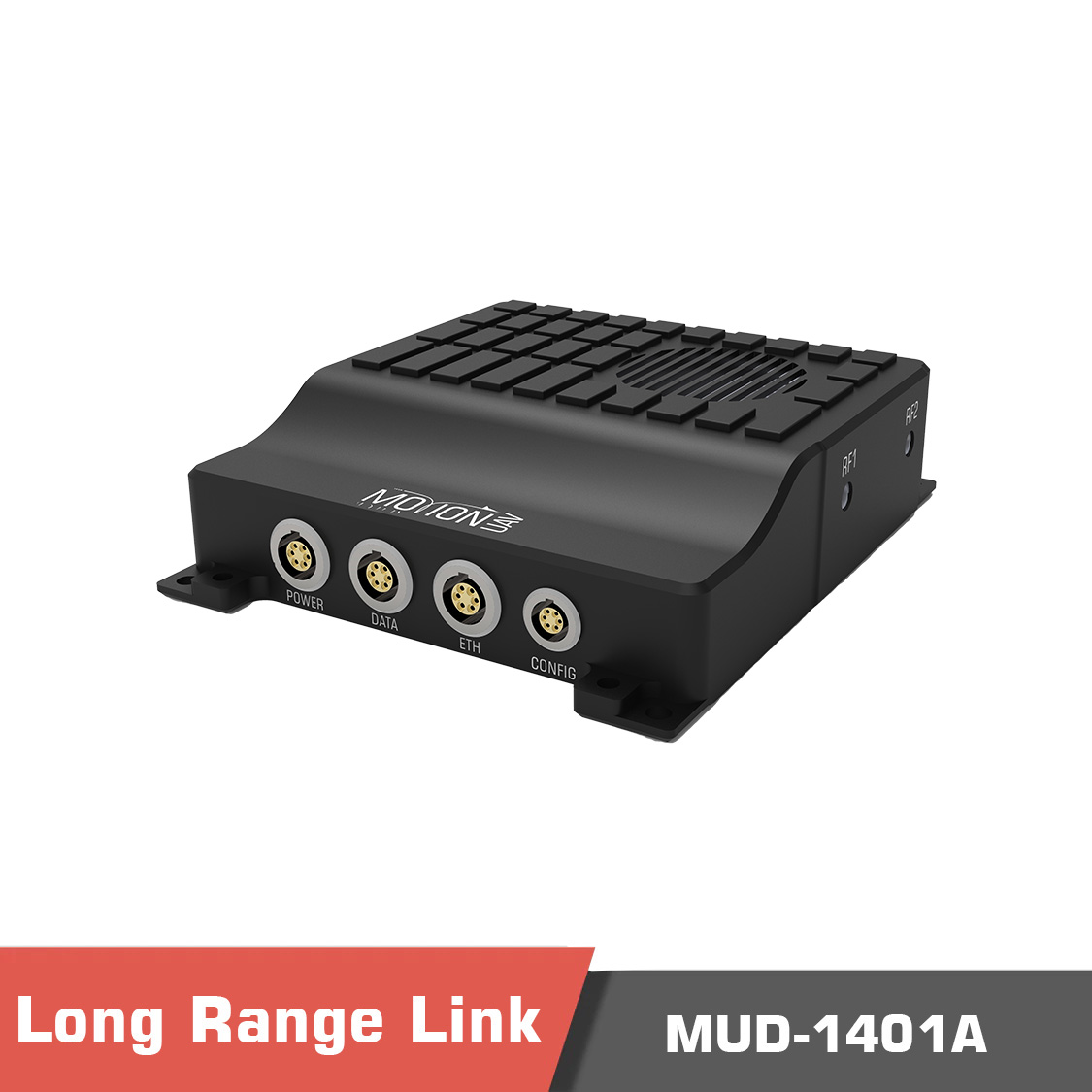

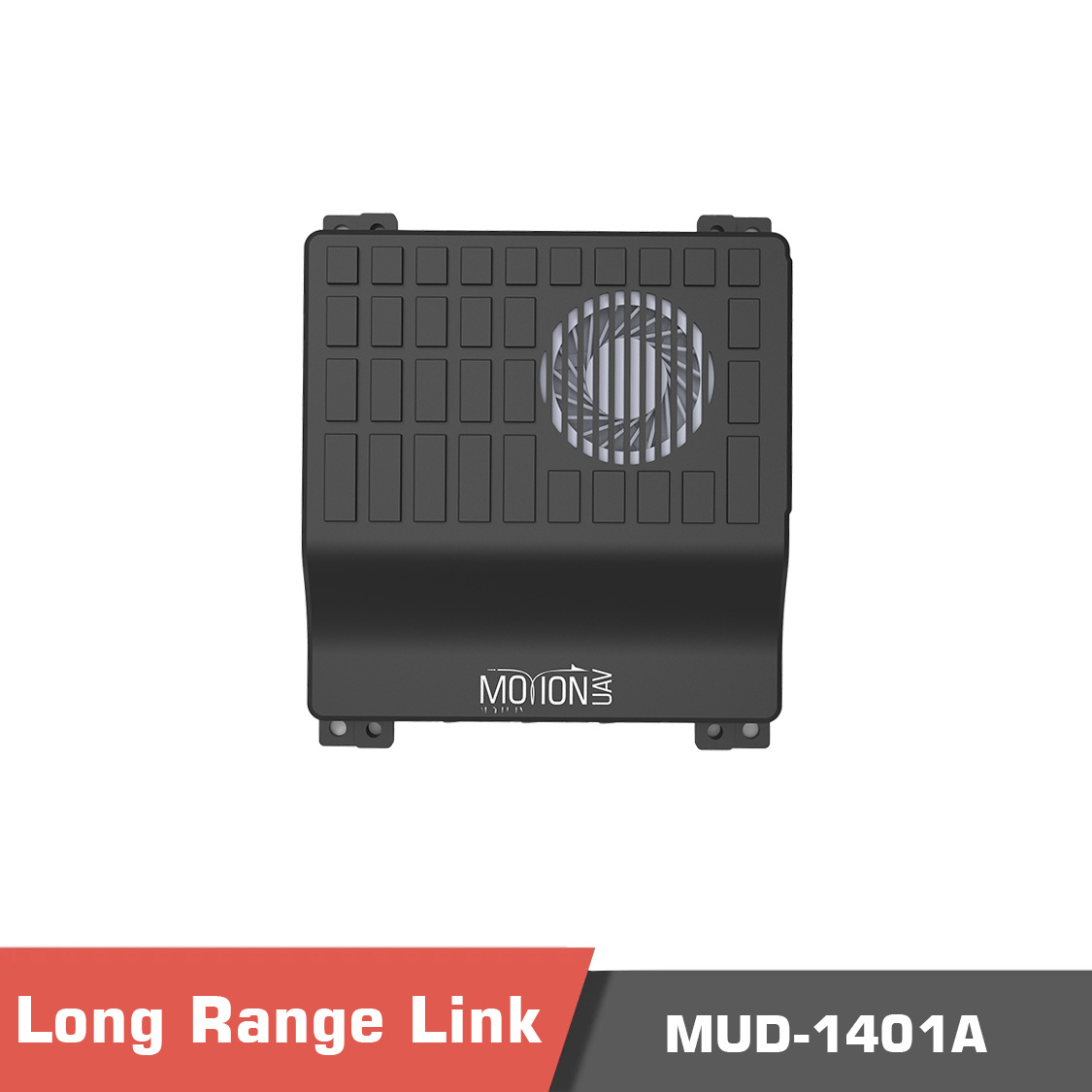

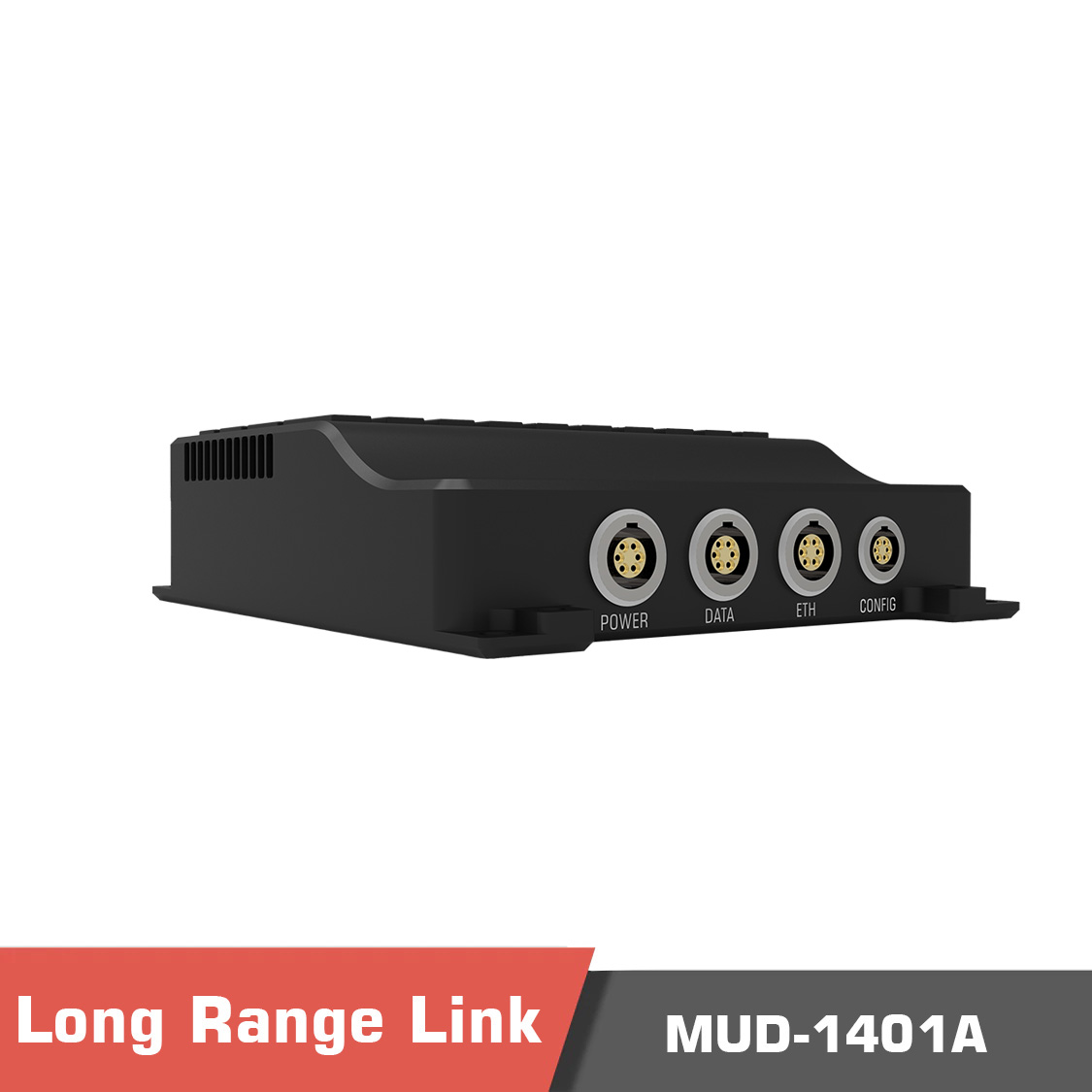

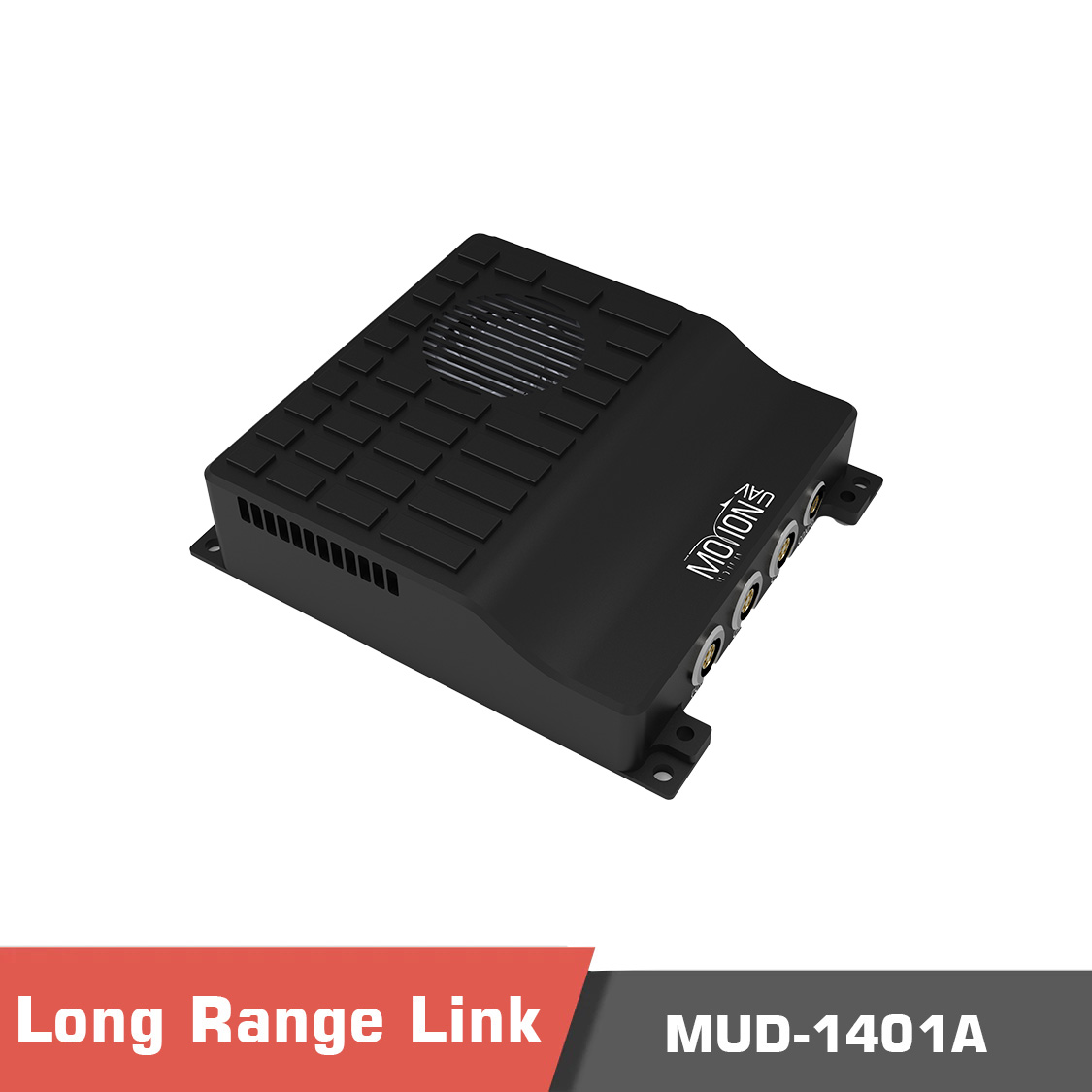

Compactness was a priority when designing MUD-1401A. Everything is packed in just an 80x79x24.5mm package, and the total weight is just 170g. Industrial LEMO connectors are used for the interfaces to bring ease of mind for the user in harsh environments. As well as telemetry transmission, image transmission, and radio control, this package includes everything you need to fly your drone. A great feature of the program is that it is compatible with many open-source flight controllers, like Pixhawk, APM, BetaFlight, etc. You can feed video input from your camera via Ethernet on the air unit. Your flight controller can be connected directly to the Telemetry and RC ports.

Consult Motionew Online Shop to see the full range of our products. Moreover, if you are interested in long-range wireless video you can visit the video and data link page.

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

FAQ – MotionUAV MUD-1401A 1.4GHz/2.4GHz Long Range Digital Link

1. What are the key specifications of the MotionUAV MUD-1401A?
The MUD-1401A is a dual-band (1.4GHz/2.4GHz) HD data and video transmission system designed for UAVs. It integrates an Analog Devices AD936x transceiver, enabling interference-free communication up to 30 km. The system provides a downlink throughput of 2.3–15.3 Mbps (10 MHz bandwidth) and an uplink throughput of 115,200 bps (2.5 MHz bandwidth).

2. What software and hardware interfaces are supported?
It is compatible with open-source Ground Control Station (GCS) software, including QGroundControl and Mission Planner. The system connects via Ethernet or USB, supporting video, telemetry, and control data transfer. RC range extension is available through SBUS and PPM outputs.

3. What is the latency and performance profile of the system?
The MUD-1401A achieves latency below 200 ms, depending on the input video device. It ensures stable, low-latency HD video transmission with minimal signal loss, making it ideal for real-time UAV control and monitoring.

4. What payment options are available for purchasing the MUD-1401A system?
Motionew accepts credit/debit cards, PayPal, and bank wire transfers. For corporate or OEM orders, proforma invoices can be issued for direct bank transactions.

5. Is OEM customization available?
Yes. Motionew provides OEM customization for frequency tuning, connector types, branding, and enclosure design. Engineering teams can assist with system integration into custom UAV platforms. Contact the sales department for MOQ and delivery lead times.

6. Are datasheets and setup guides provided?
Yes. Motionew offers technical datasheets, wiring diagrams, and configuration manuals for both the air and ground units. Additional engineering support is available for GCS integration, antenna setup, and system calibration.
