X17 GNSS, anti-jamming and anti-interference GNSS

4,170.00 $

Payment Methods:

Payment methods - x17 gnss - motionew - 14
Description

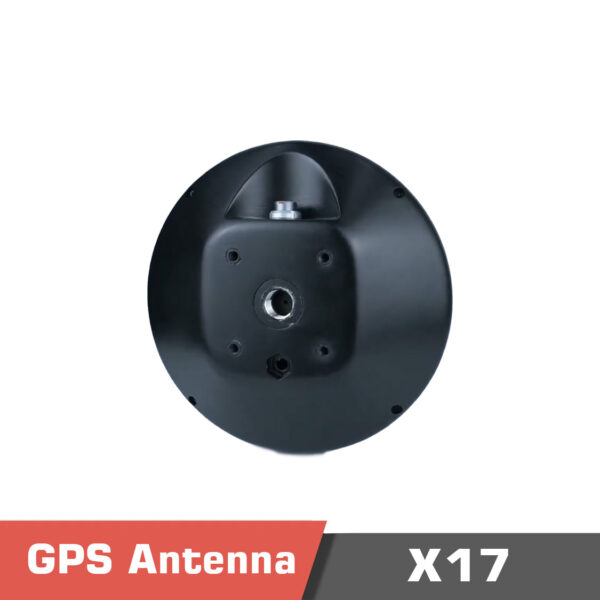

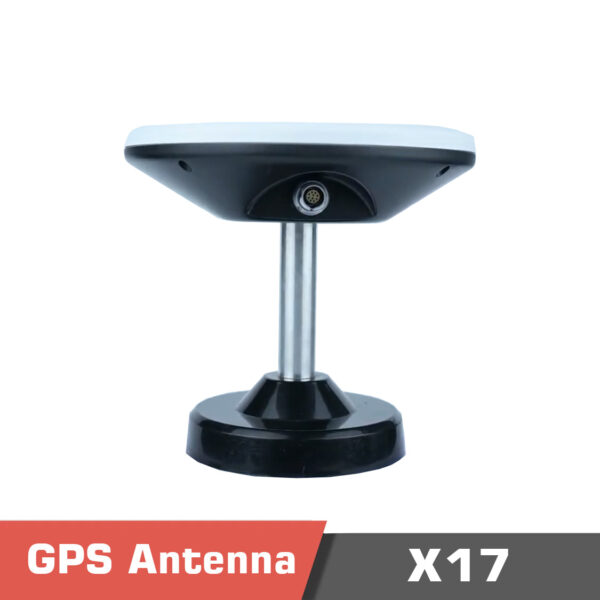

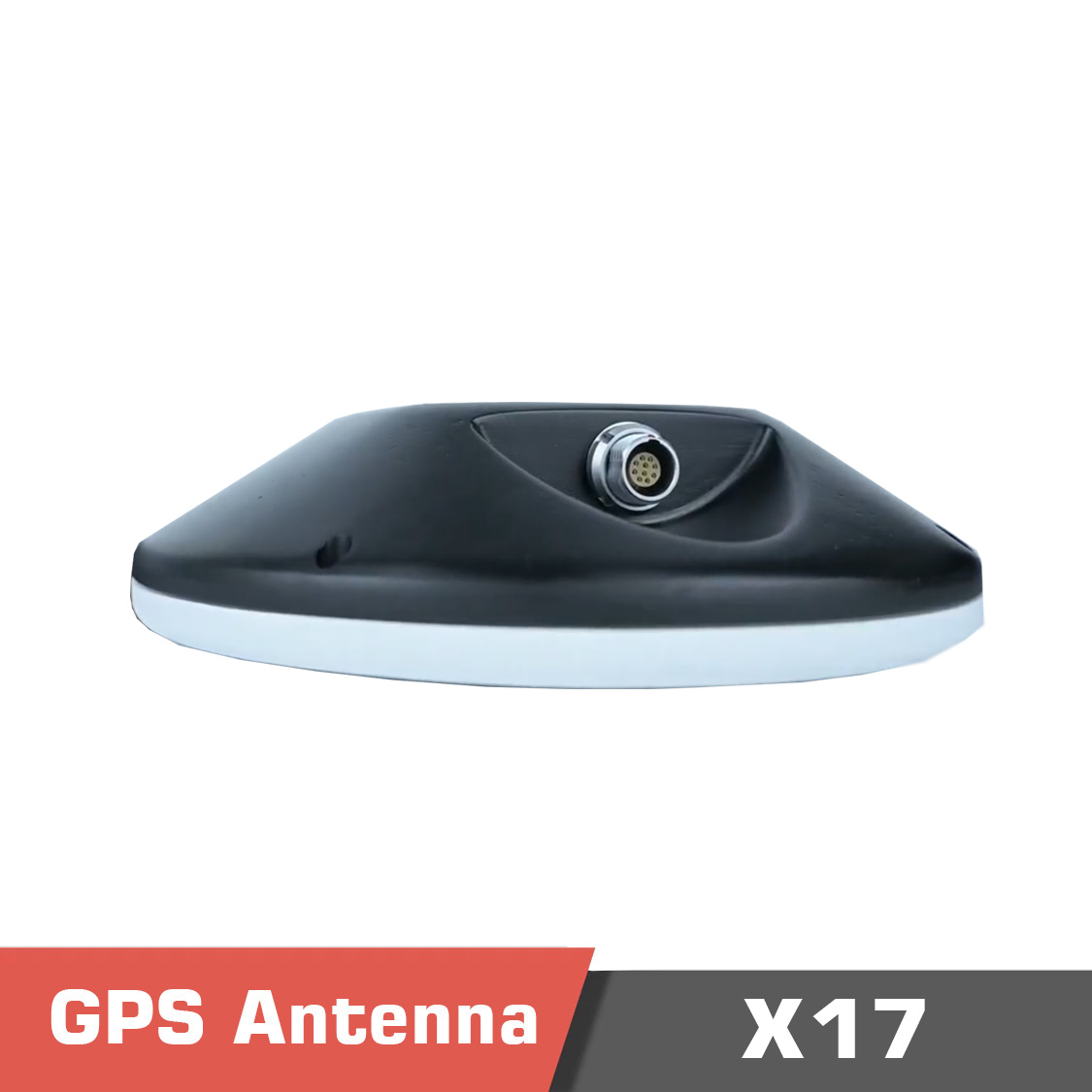

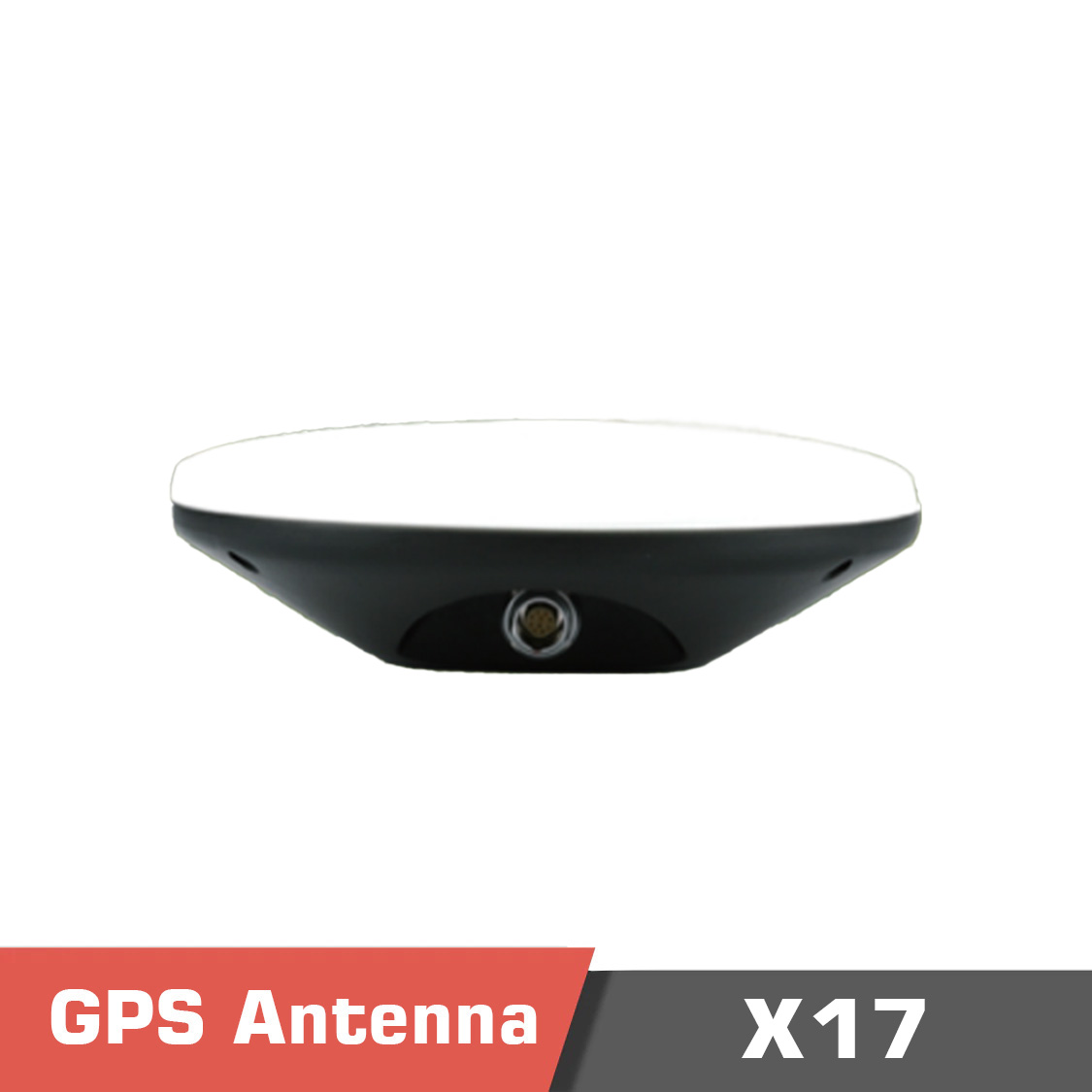

X17 anti-jamming and anti-interference GNSS Introduction

The X17 GNSS is an aerial GNSS receiver designed to deliver high gain and low wind resistance. With a compact size, elegant design, high sensitivity, and low power consumption, it significantly enhances positioning accuracy and performance for high-speed moving carriers.

This versatile receiver finds extensive application in navigation scheduling, tracking monitoring, measurement, and control systems. It is particularly ideal for high-speed mobile systems and high-precision vehicle operations.





X17. 1 - x17 gnss - motionew - 5 X17. 2 - x17 gnss - motionew - 6 X17. 3 - x17 gnss - motionew - 7 X17. 4 - x17 gnss - motionew - 8 X17. 5 - x17 gnss - motionew - 9



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Specifications

Antennaย Specifications
Frequency Range(MHz) GPS:L1C/A, L1PY, L2C, L2P, L5

SBAS:EGNOS, WAAS, GAGAN, MSAS, SDCM (L1, L5)

BDS:B1I, B1C, B2a, B2I, B2b,B3I

GLONASS:L1CA, L2CA, L2P, L3 CDMA

Galileo:E1, E5a, E5b, E5 AltBoc,E6

Navic:L5

QZSS:L1C/A, L1C/B, L2C, L5

Tracking performance (C/N0 threshold) Tracking Sensitivity: 20 dB-Hz
Capture Sensitivity: 33 dB-Hz
positioning time Cold Start: <45s
Warm Start: <20s
Recapture: 1s
RTK status Horizontal Position Accuracy: 0.6cm+0.5ppm
Vertical Position Accuracy: 1cm+1ppm
Initialization time: 7s
Other positioning states (level / vertical) SPP: 1.2m / 1.9m
SBAS: 0.6m / 0.8m
DGNSS: 0.4m / 0.7m
timing accuracy xPPS output: 5ns
Event Accuracy: <20ns
baud 115200- 4M bps (default 115200bps)
Frequency of data updates Positioning: 100Hz
Measurement: 100Hz

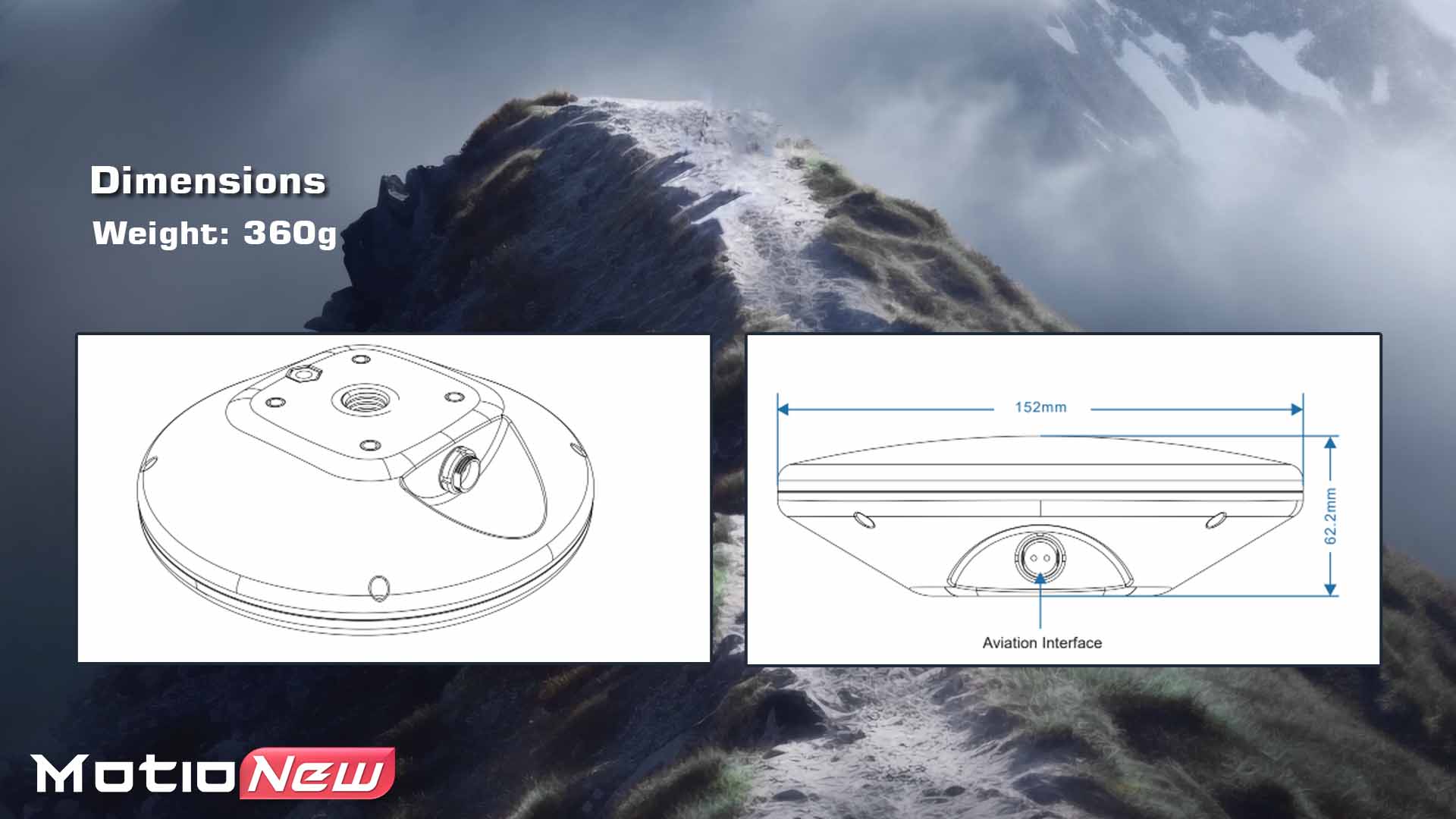

Weight 360g



Product contents

Product contents

Pleaseย contact usย for more information.

Documents

Documents

Pleaseย contact usย for more information.

Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “X17 GNSS, anti-jamming and anti-interference GNSS”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

3 − 2 =

Specification:

Weight 1 kg
Dimensions 11 × 11 × 6 cm
bundle

BT-M110SLD (SMA)

,

BT-M110SLD (TNC)

,

BT-M90SD (SMA)

,

BT-M90SD (TNC)

,

BT-M110SLB (SMA)

,

BT-M110SLB (TNC)

,

no base (SMA)

,

no base (TNC)

,

no cable BT-208
