HGV-906U 800MHz / 900MHz 6dBi Omnidirectional Antenna

123.00 $

Description

HGV-906U 800/900 MHz 6 dBi Omnidirectional Antenna

The HyperLink HGV-906U is a high-performance omnidirectional antenna designed for the 800MHz / 900MHz ISM band. It is ideally suited for multipoint, Non-Line of Sight (NLOS), and mobile applications where high gain and wide coverage are desired. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links, LPWAN/IoT/M2M, and 800 MHz as well as 900MHz Cellular band applications.

You can match this antenna with modules working in the 900MHz band like MotionUAV P900 or MotionUAV P900 V2. Installing it on the ground side, it can ensure long-range operations of up to 60km in different applications.

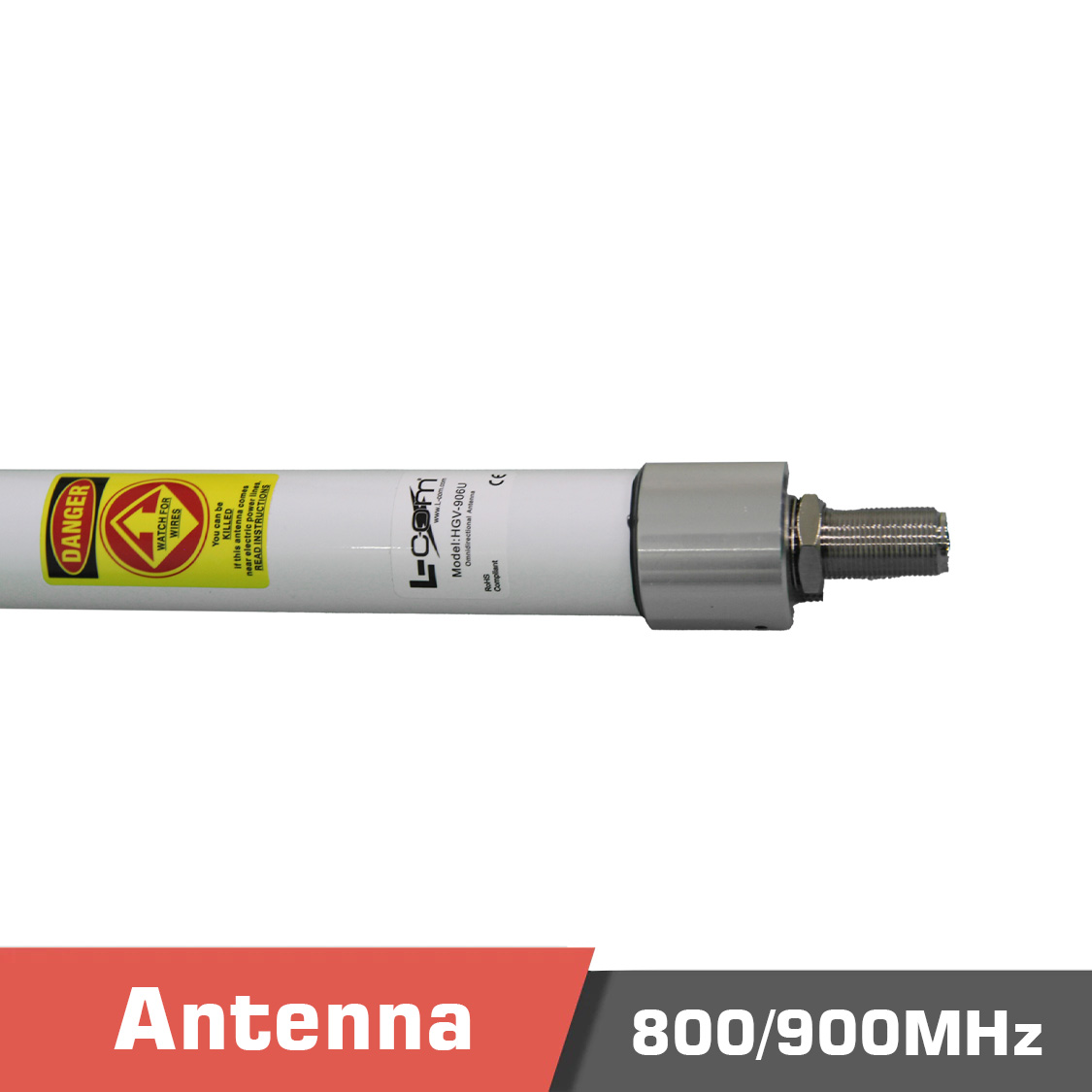

This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure. Included with the HGV-906U is a mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0″ in diameter.

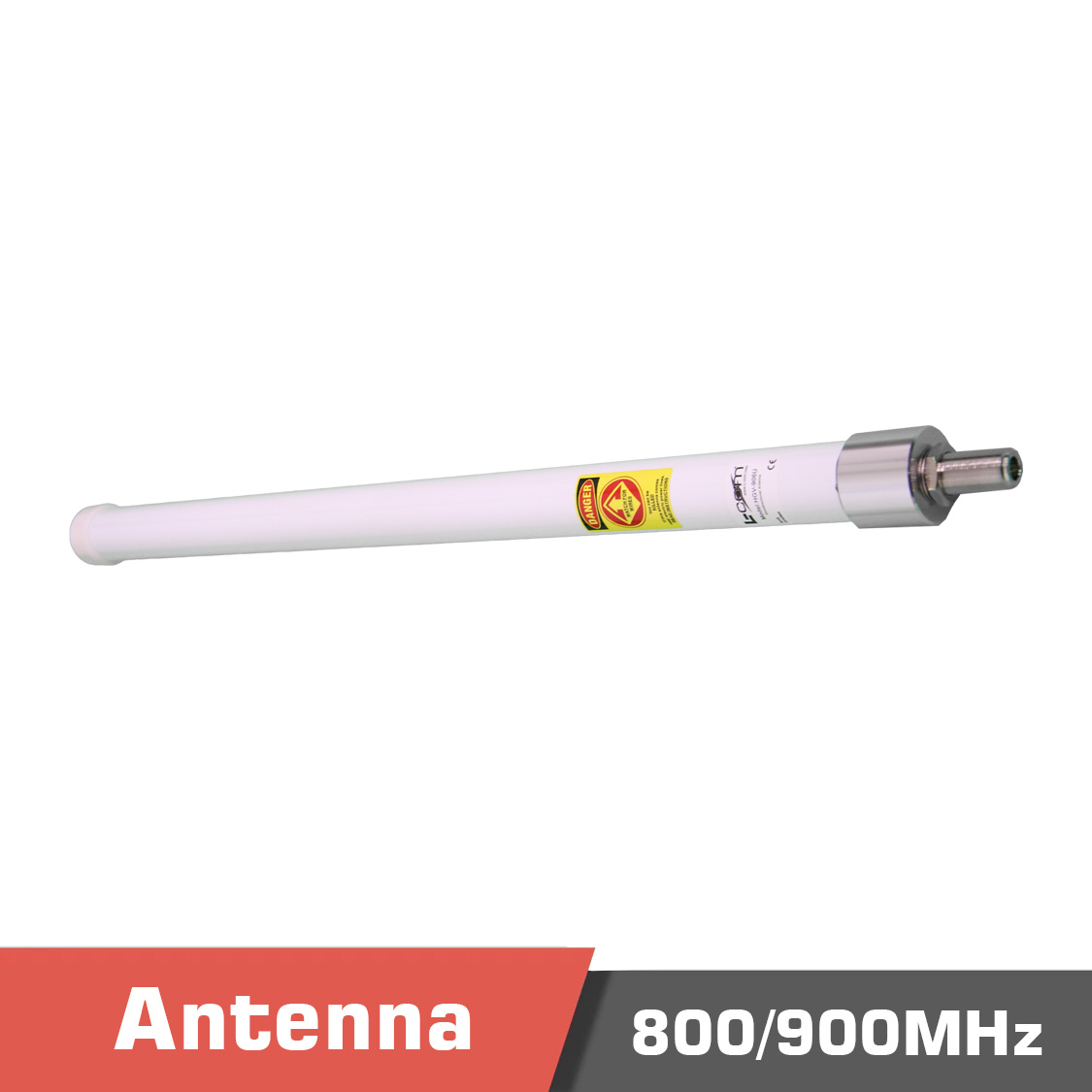

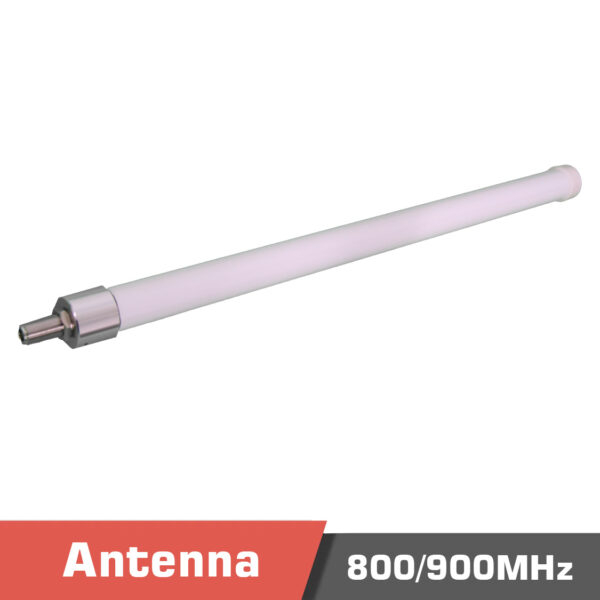

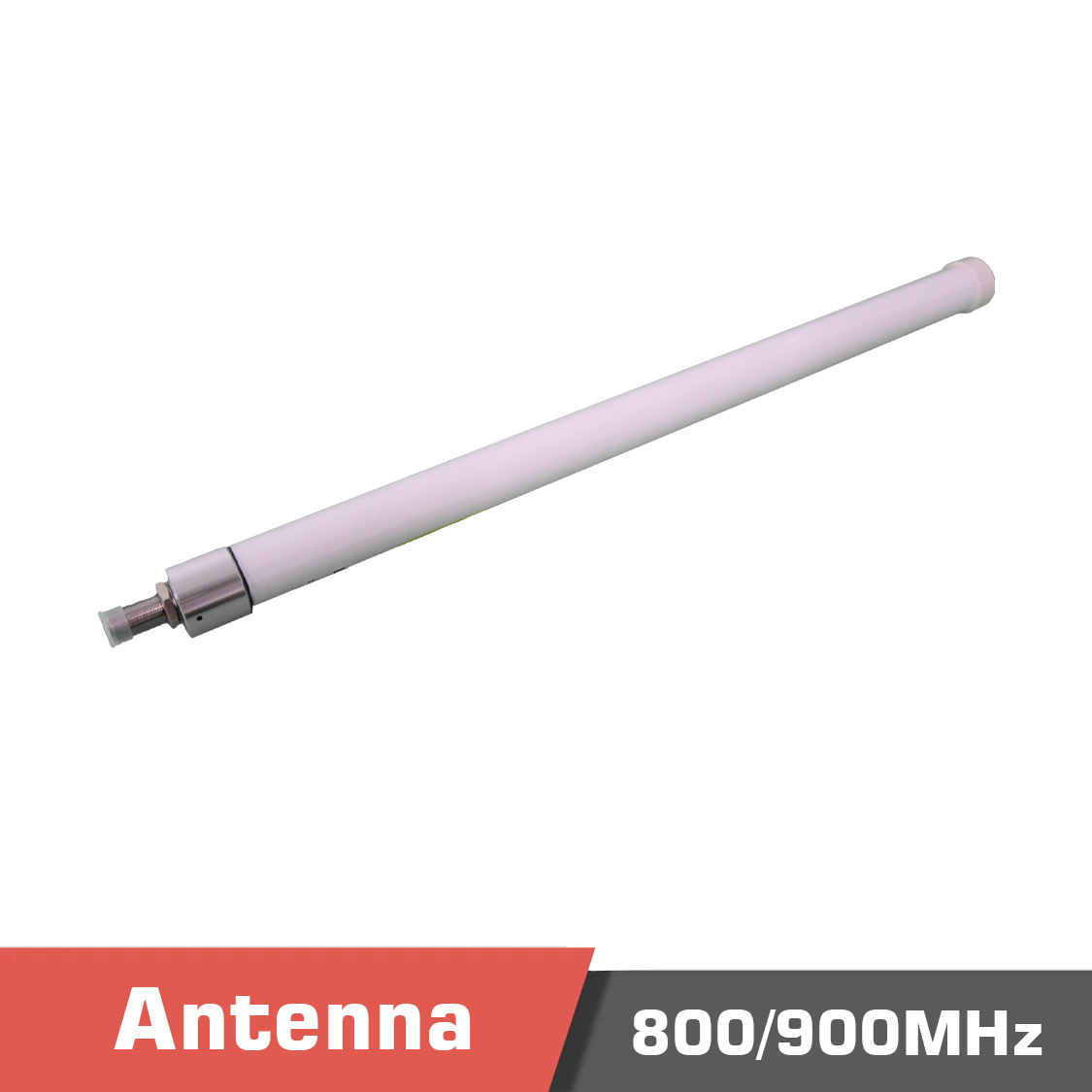

This omni antenna’s construction features a rugged 1.3″ diameter white high-intensity fiberglass radome for durability and aesthetics. It is designed for all-weather operation.

Hgv-906u L com hgv 906u. 2 - hgv-906u,omnidirectional antenna,wireless lan,scada,lpwan/iot/m2m,wireless video links,900mhz,900mhz cellular band applications,800mhz,ism band,long-range data link,long-range antenna,long-range video link,telemetry,unmanned aerial vehicle,panel antenna,automatic antenna tracker,aat,fiberglass antenna mast,6dbi omnidirectional antenna - motionew - 7 L com hgv 906u. 3 - hgv-906u,omnidirectional antenna,wireless lan,scada,lpwan/iot/m2m,wireless video links,900mhz,900mhz cellular band applications,800mhz,ism band,long-range data link,long-range antenna,long-range video link,telemetry,unmanned aerial vehicle,panel antenna,automatic antenna tracker,aat,fiberglass antenna mast,6dbi omnidirectional antenna - motionew - 8 L com hgv 906u. 4 - hgv-906u,omnidirectional antenna,wireless lan,scada,lpwan/iot/m2m,wireless video links,900mhz,900mhz cellular band applications,800mhz,ism band,long-range data link,long-range antenna,long-range video link,telemetry,unmanned aerial vehicle,panel antenna,automatic antenna tracker,aat,fiberglass antenna mast,6dbi omnidirectional antenna - motionew - 9 L com hgv 906u. 5 - hgv-906u,omnidirectional antenna,wireless lan,scada,lpwan/iot/m2m,wireless video links,900mhz,900mhz cellular band applications,800mhz,ism band,long-range data link,long-range antenna,long-range video link,telemetry,unmanned aerial vehicle,panel antenna,automatic antenna tracker,aat,fiberglass antenna mast,6dbi omnidirectional antenna - motionew - 10 L com hgv 906u. 6 - hgv-906u,omnidirectional antenna,wireless lan,scada,lpwan/iot/m2m,wireless video links,900mhz,900mhz cellular band applications,800mhz,ism band,long-range data link,long-range antenna,long-range video link,telemetry,unmanned aerial vehicle,panel antenna,automatic antenna tracker,aat,fiberglass antenna mast,6dbi omnidirectional antenna - motionew - 11

Additional information

Weight 1.5 kg
Dimensions 60 × 5 × 5 cm

Specifications

Mechanical Specifications

Frequency 824~960 MHz
Gain 6 dBi
Vertical Beam Width 30 Degrees
Horizontal Beam Width 360 Degrees
Impedance 50 Ohm
Max. Input Power 100 Watts
VSWR < 1.5:1 Avg.



Electrical Specifications

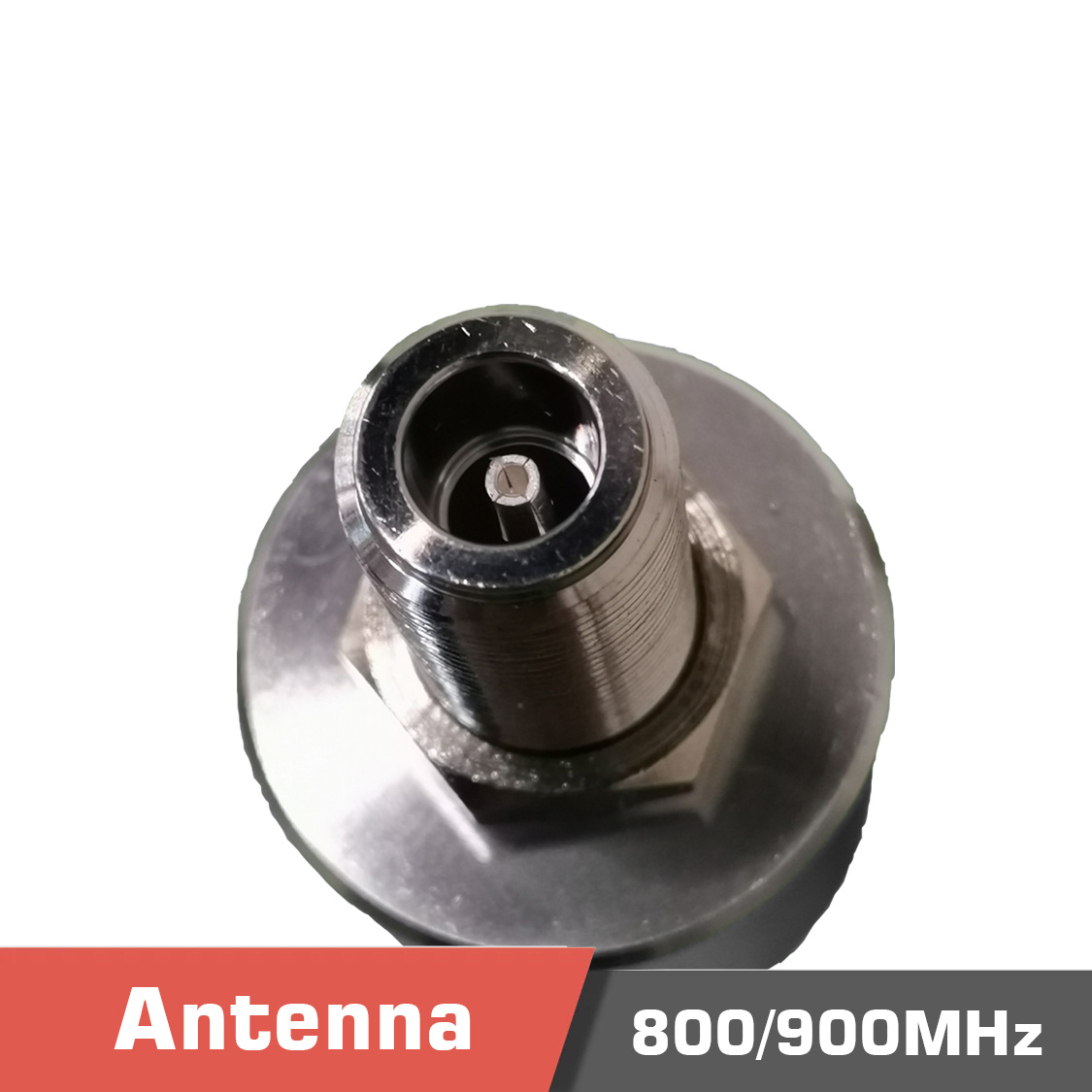

Connector Integral N-Female
Weight 2.4 lbs. (1.1 Kg)

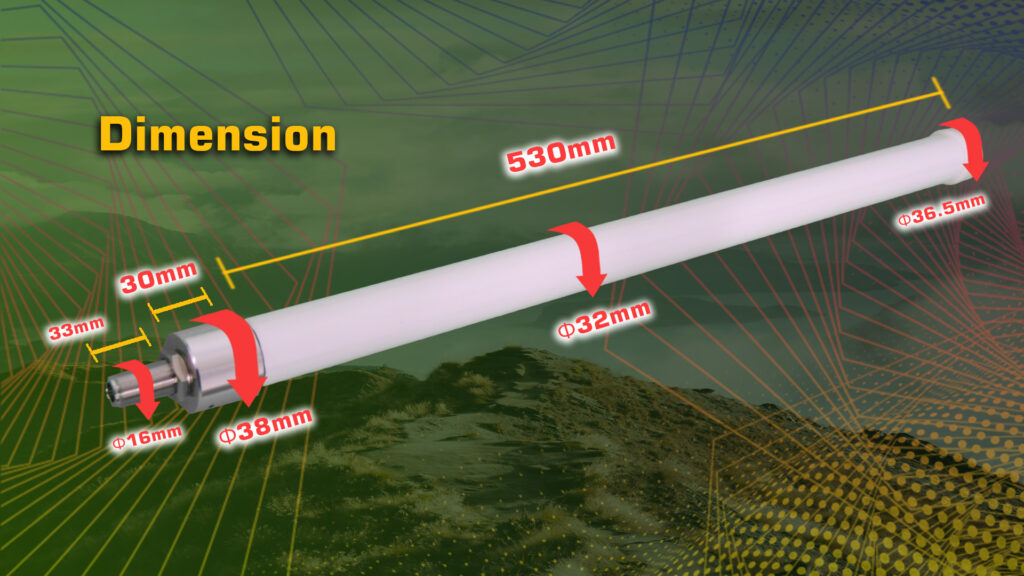

Length 23.6 in. (600 mm)
Diameter 1.3 in. (33 mm)
Radome Material White Fiberglass
Mounting Mast Size 1.2 to 2 in. Dia. (31.7 to 50.8 mm dia.)
Polarization Vertical
Operating Temperature -40° C to 85° C (-40° F to 185° F)
Rated Wind Velocity 108 MPH
RoHS Compliant Yes

Documents

Click here to download the user manual

Click here to download the datasheet

Product contents

1 set of HGV-906U antenna

1 set of mast mounting kit including heavy-duty steel bracket and a pair of U-bolts
