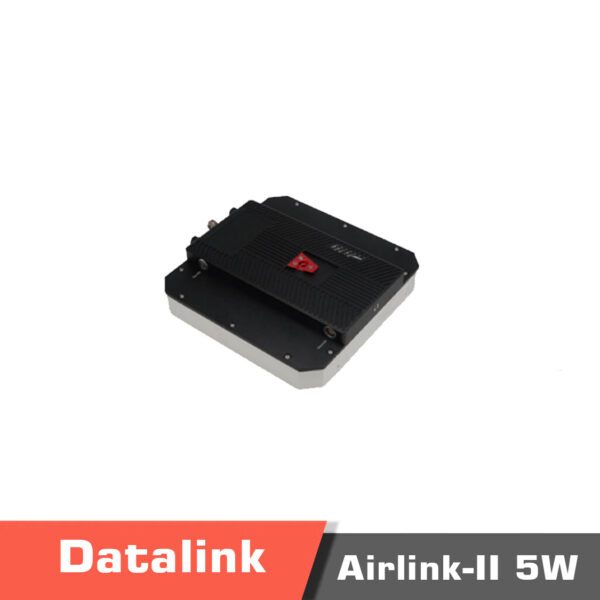

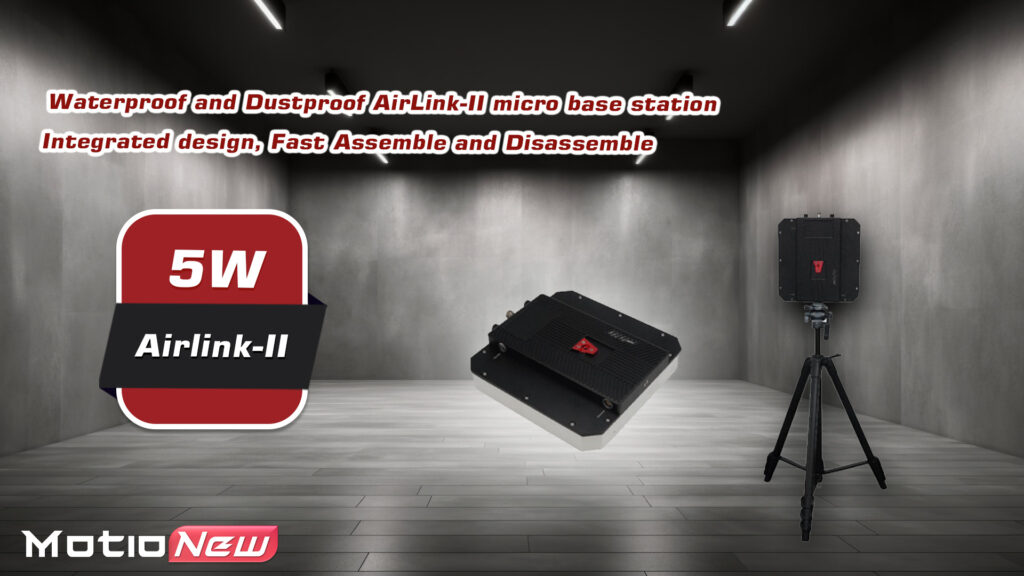

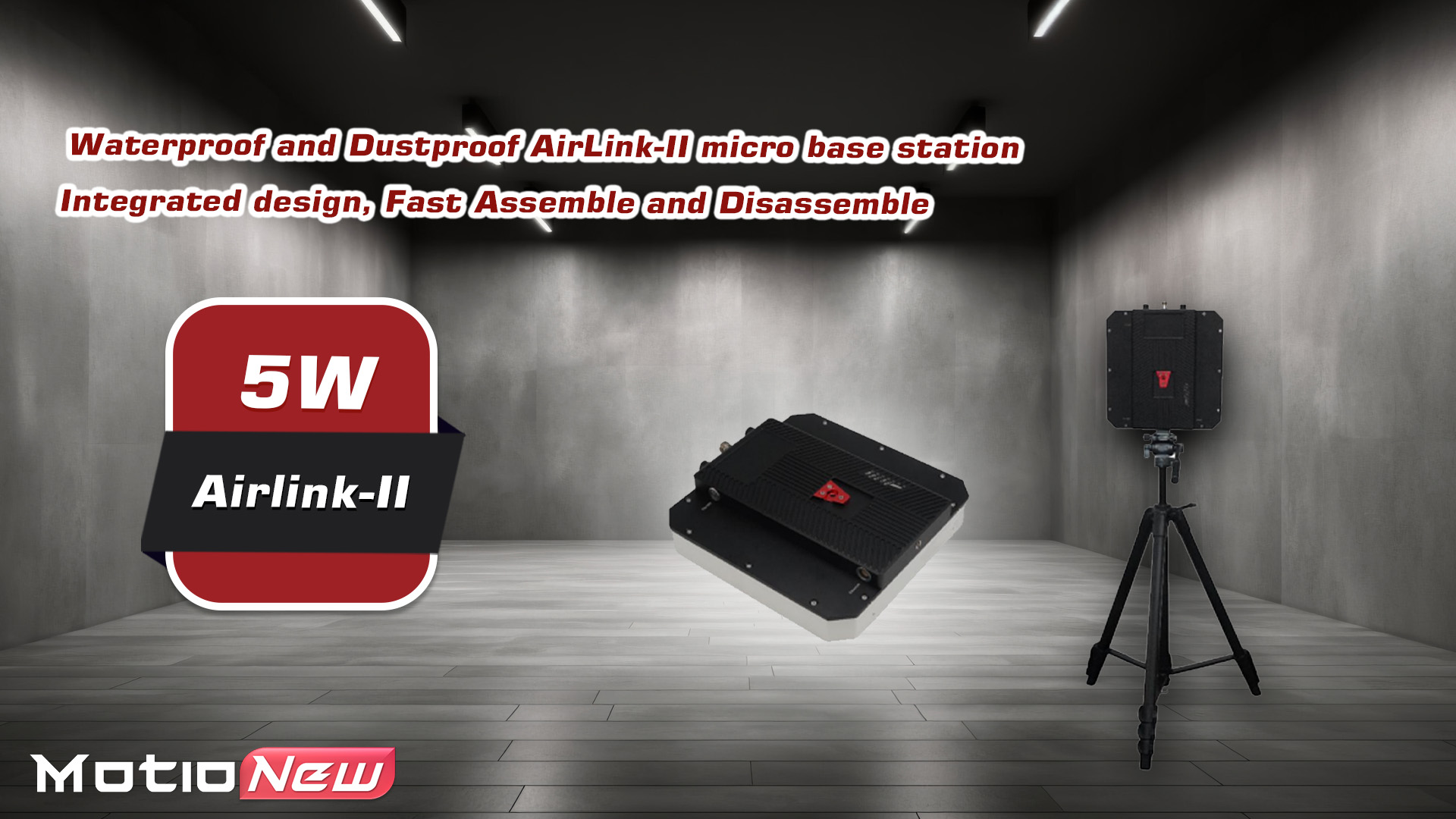

AirLink II 5W | WiFi data interface | Integrated All-in-one, IP53 level protection

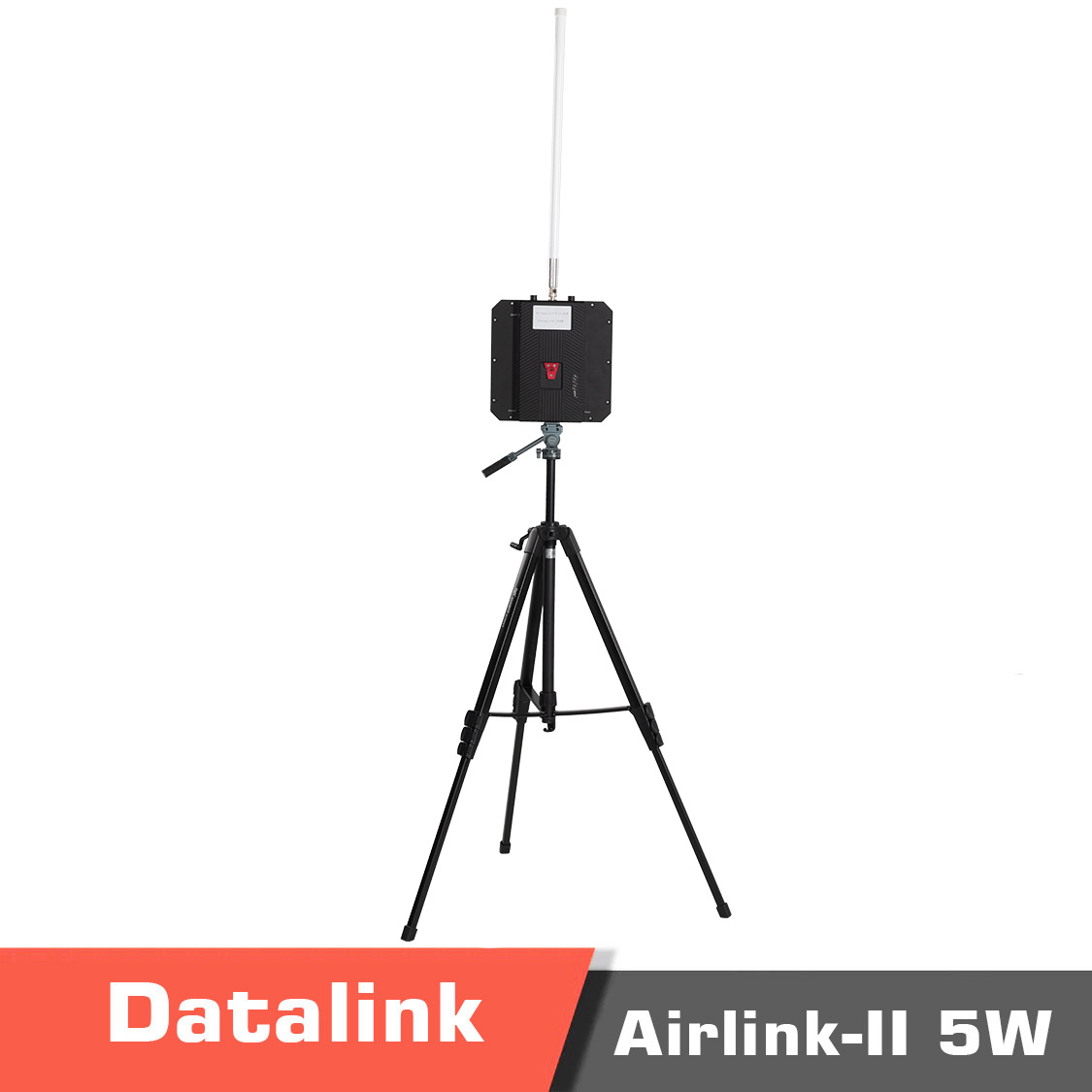

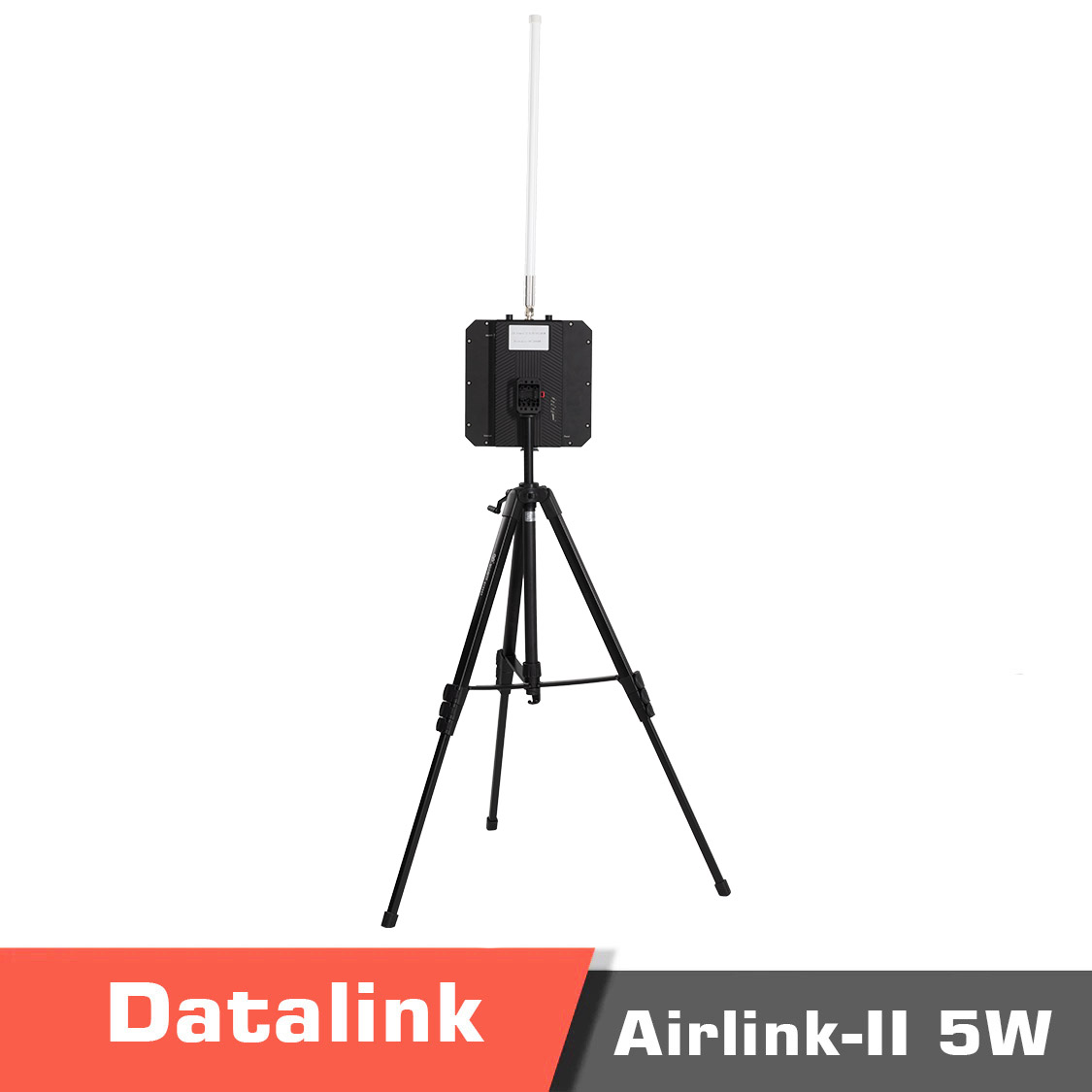

Airlink-II adopts a directional + omnidirectional antenna combination scheme. Therefore, Airlink-II usually has better transmission performance than the first version of Airlink. Airlink-II can support a maximum transmission distance of 60KM with 2W transmission power, 100KM with 5W/8W transmission power, 150KM with 10W transmission power, and 200KM with 20W transmission power.

PRODUCT FEATURE

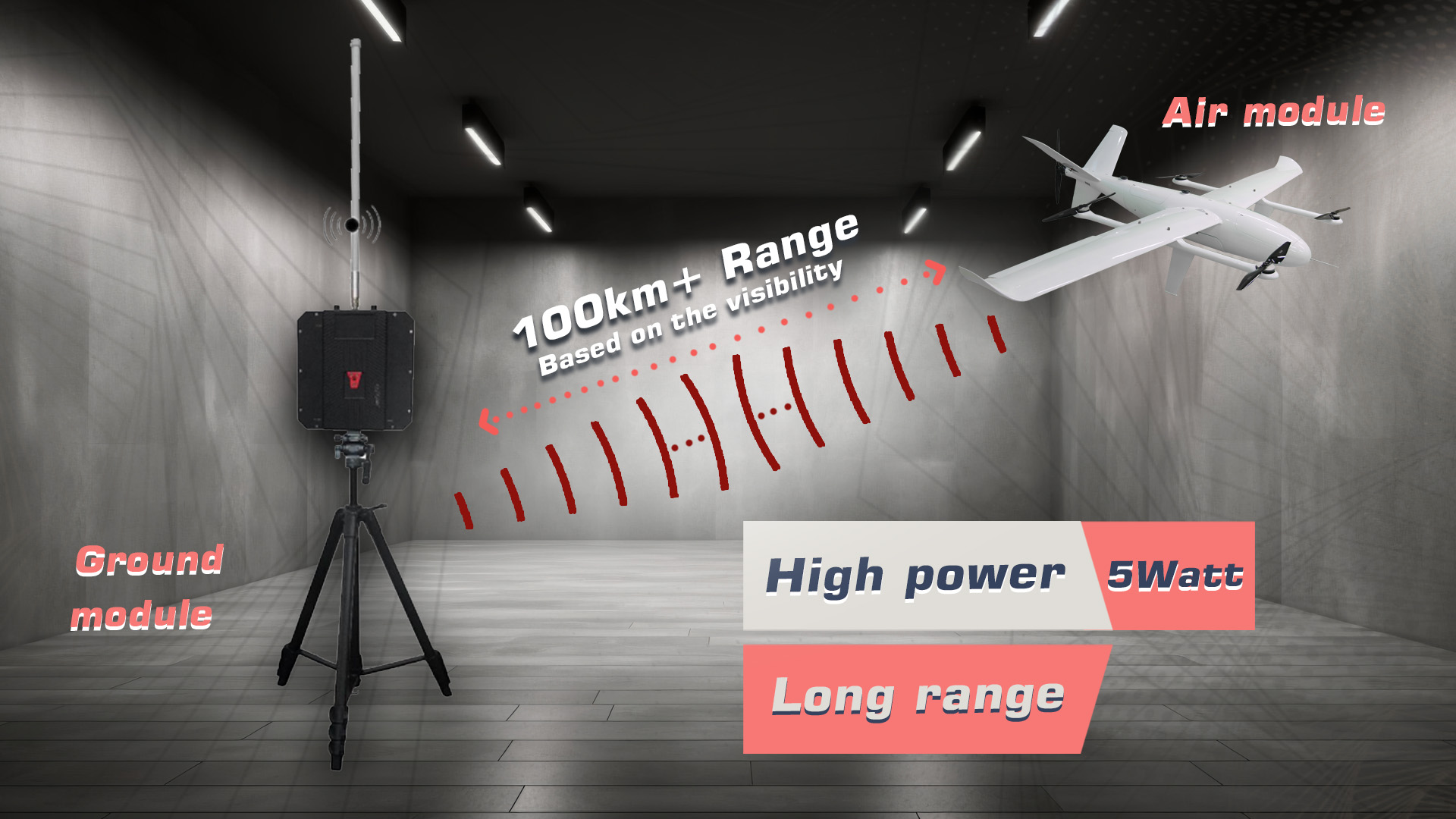

• Support long-distance transmission: Air to ground 100km (LOS).
• Supports large bandwidth transmission:  Up to 17Mbps@10MHz
• Supports automatic relay transmission: Supports automatic repeater addition.

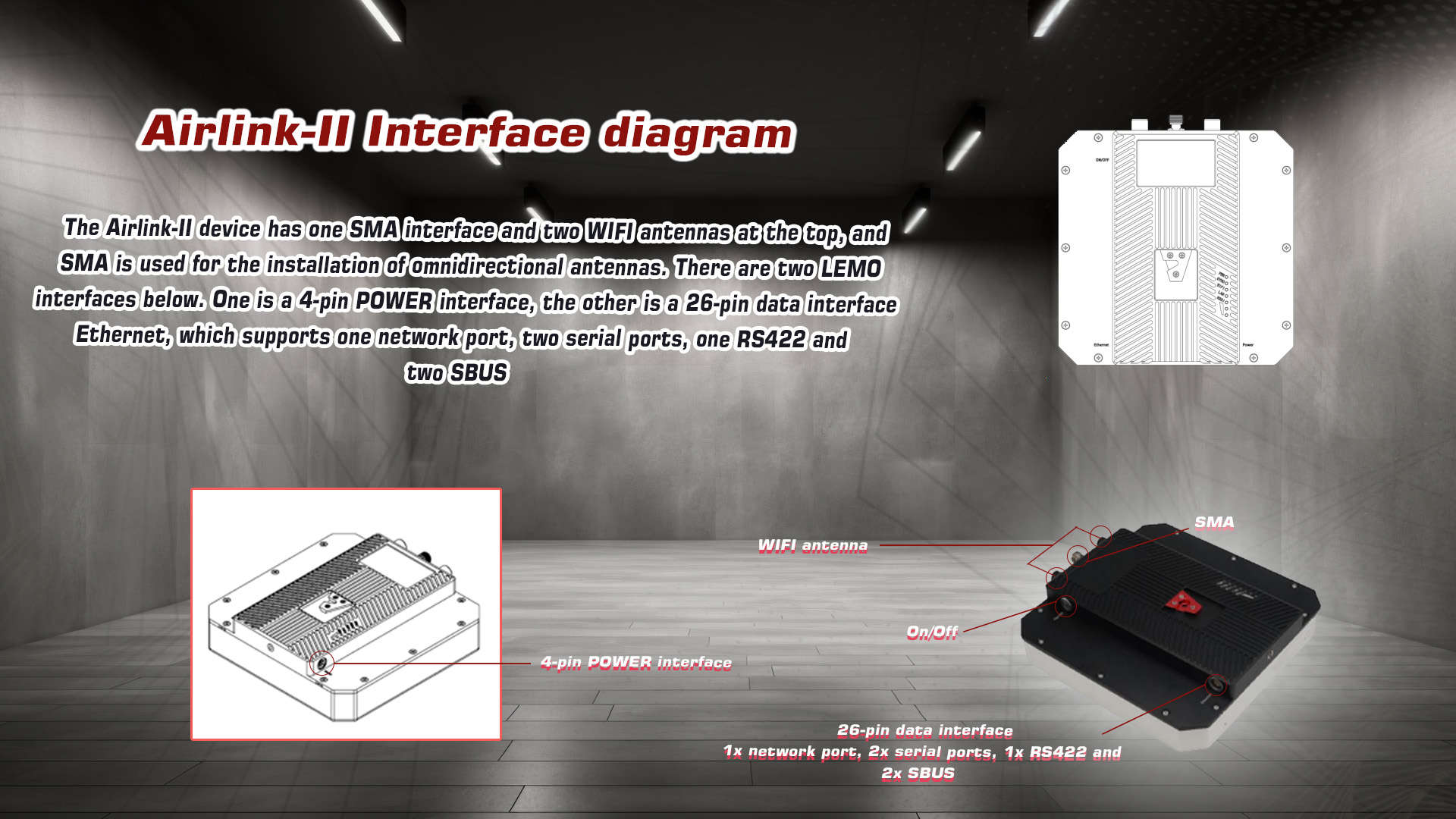

• Supports multi-interface design: Ethernet, WI-FI, RS232, TTL, RS422, SBUS.
• Supports automatic frequency selection: Automatic detection of interference signals, real-time selection of the optimal frequency point.
• Supports automatic retransmission: Automatic retransmission of sudden error data to improve data reliability.
• Supports adaptive stream: The channel modulation mode is automatically adjusted according to the signal quality in real time.
• Supports automatic power control: Close range automatic adjustment of transmission power, reduce power consumption.
• Supports automatic antenna selection: According to the occlusion situation, the optimal antenna transmission is selected in real time.
• Supports upstream and downstream dynamic allocation: The upstream and downstream bandwidth ratio can be automatically allocated based on the data volume in real time.
• Supports the coexistence of multiple sets: Supports simultaneous operation of multiple devices.
• Supports the frequency matching function: It can be used by software and hardware for frequency pairing.
• Supports IP53 level protection: Rainwater and dust proof design.

FAQ – AirLink II 5W Long Range Digital Data Link

1. What are the key specifications of the AirLink II 5W system?
The AirLink II 5W is a long-range digital data transmission system for UAV and UGV communication. It supports air-to-ground transmission up to 100 km with 5W RF power, offering a maximum bandwidth of 17 Mbps @10 MHz for real-time video and telemetry.

2. What interfaces and connectivity options does it provide?
It features Ethernet, Wi-Fi, RS232, RS422, and TTL ports, along with SBUS signal compatibility. This multi-interface design enables simultaneous video, telemetry, and control data transmission.

3. What are the major improvements over the previous AirLink version?
The AirLink II adopts a directional + omnidirectional antenna combination, improving transmission stability and coverage. It also supports automatic relay (repeater) transmission, allowing extended communication distances beyond direct line-of-sight.

4. What payment methods are accepted for purchasing the AirLink II 5W?
Motionew accepts credit/debit cards, PayPal, and wire transfers. For OEM or corporate clients, proforma invoices can be arranged for direct bank transactions.

5. Is OEM or system customization available?
Yes. Motionew offers OEM customization, including frequency tuning, power configuration, enclosure branding, and connector modifications. Contact the sales department for MOQ and delivery timelines.

6. Are datasheets and technical documents provided?
Yes. Motionew supplies datasheets, wiring diagrams, configuration manuals, and integration guides. Additional engineering support is available for network setup, antenna alignment, and system calibration.
