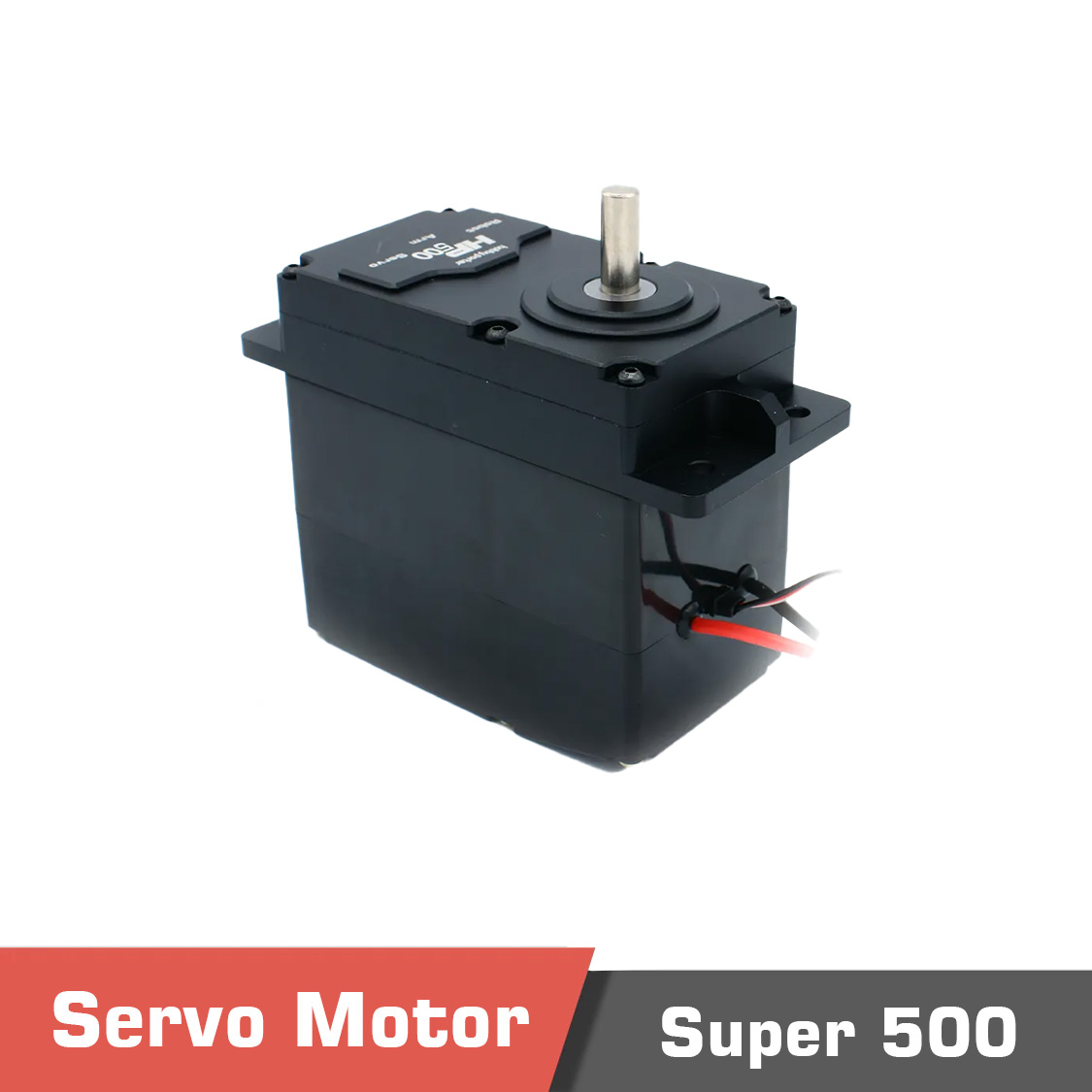

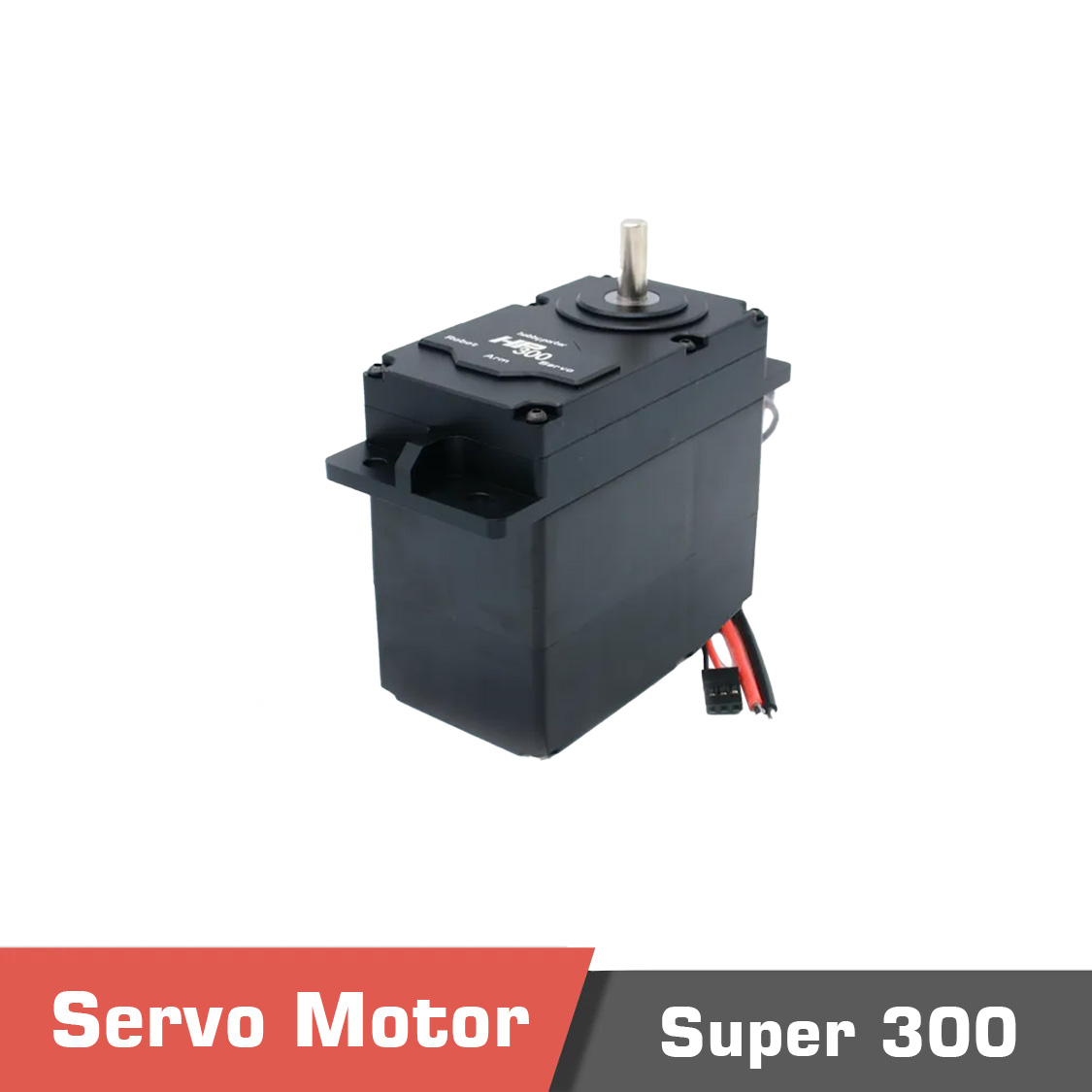

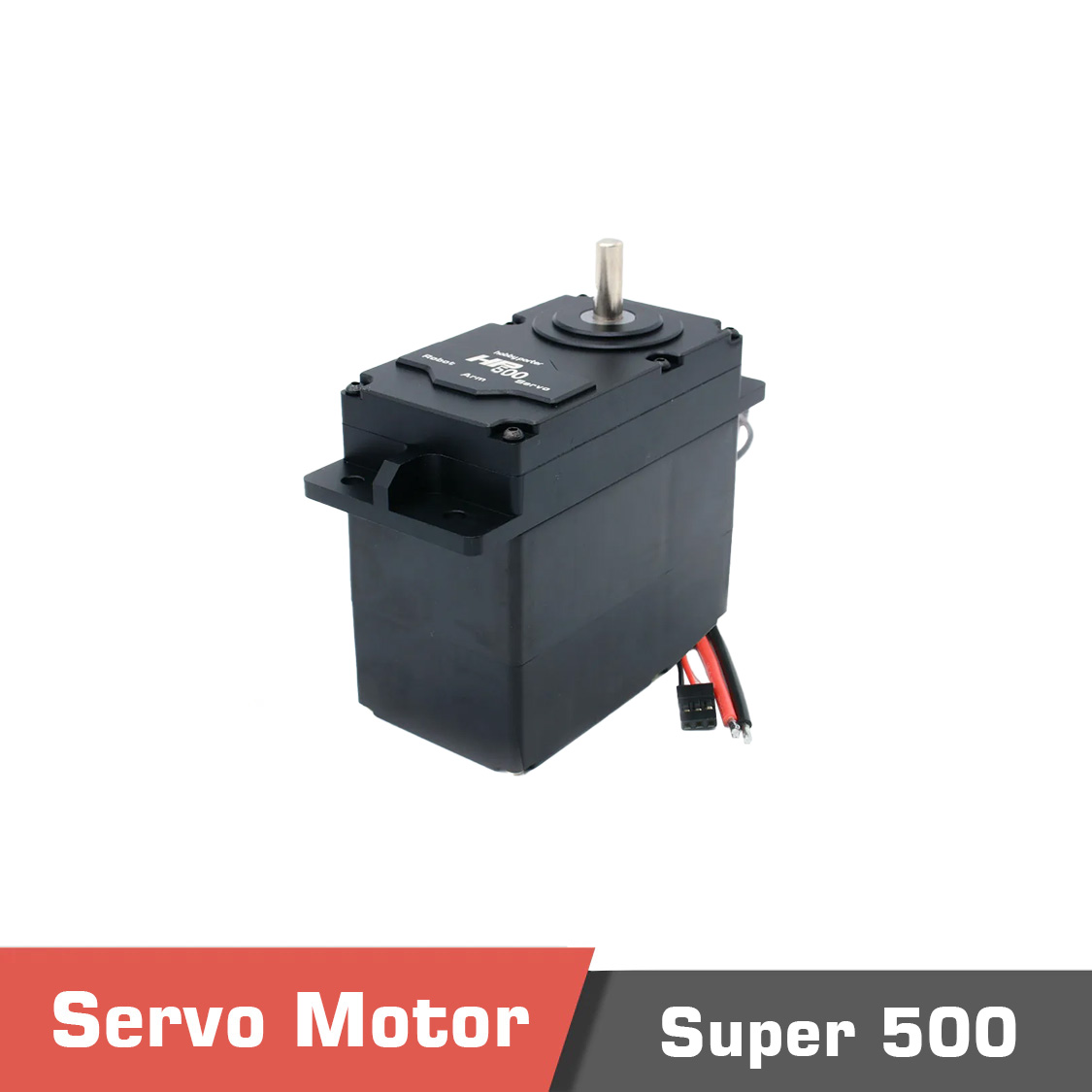

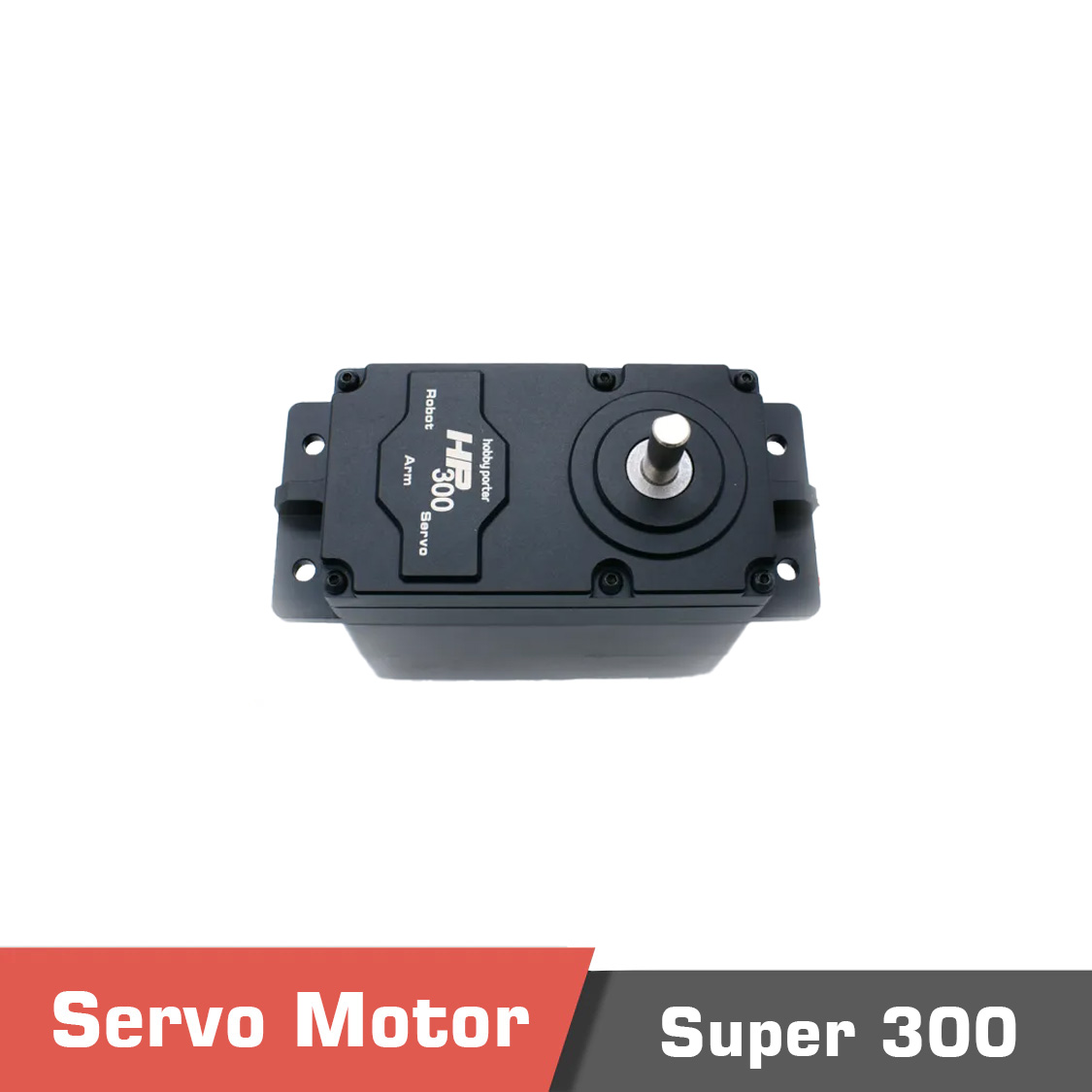

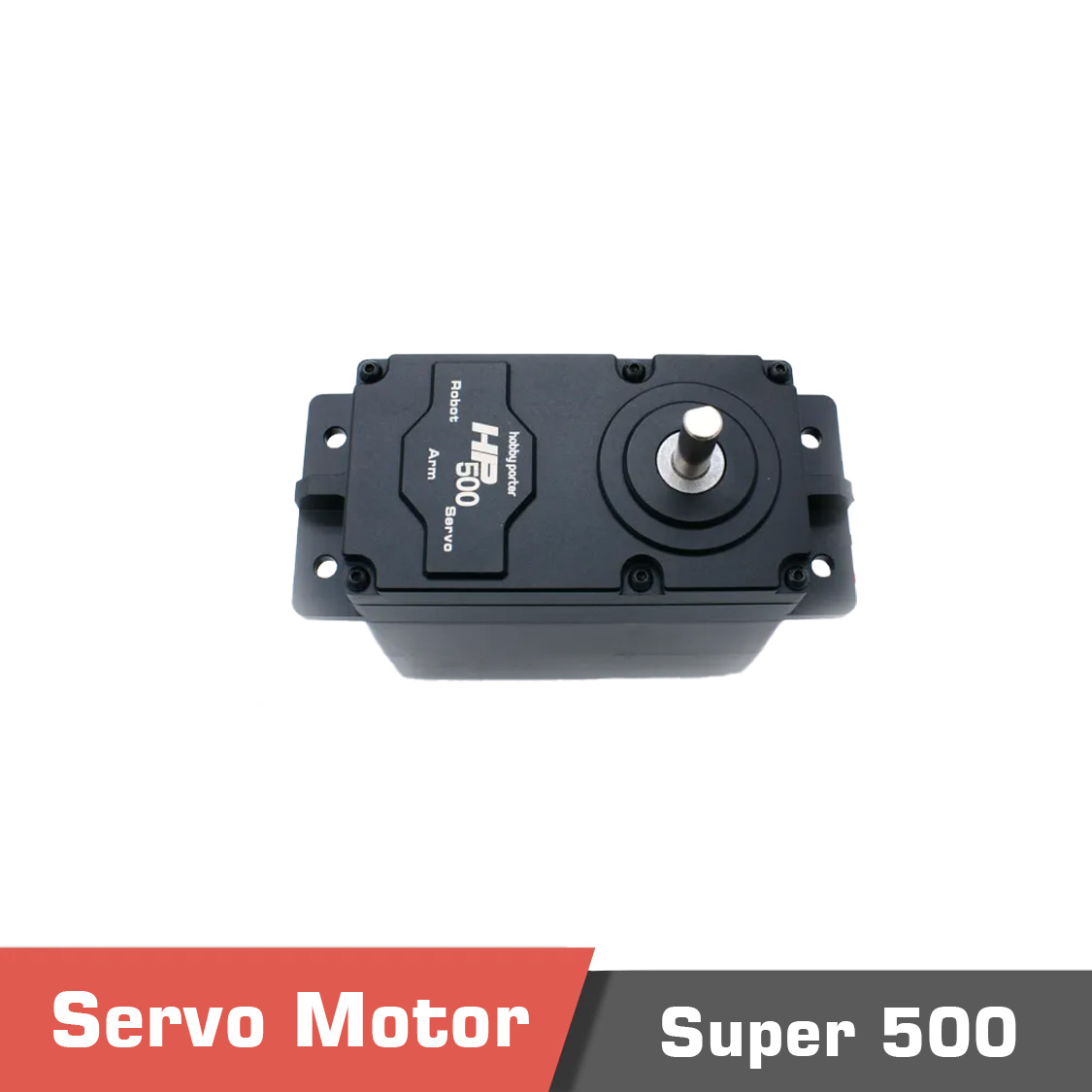

SUPER 300/ SUPER 500 High Torque Metal Servo

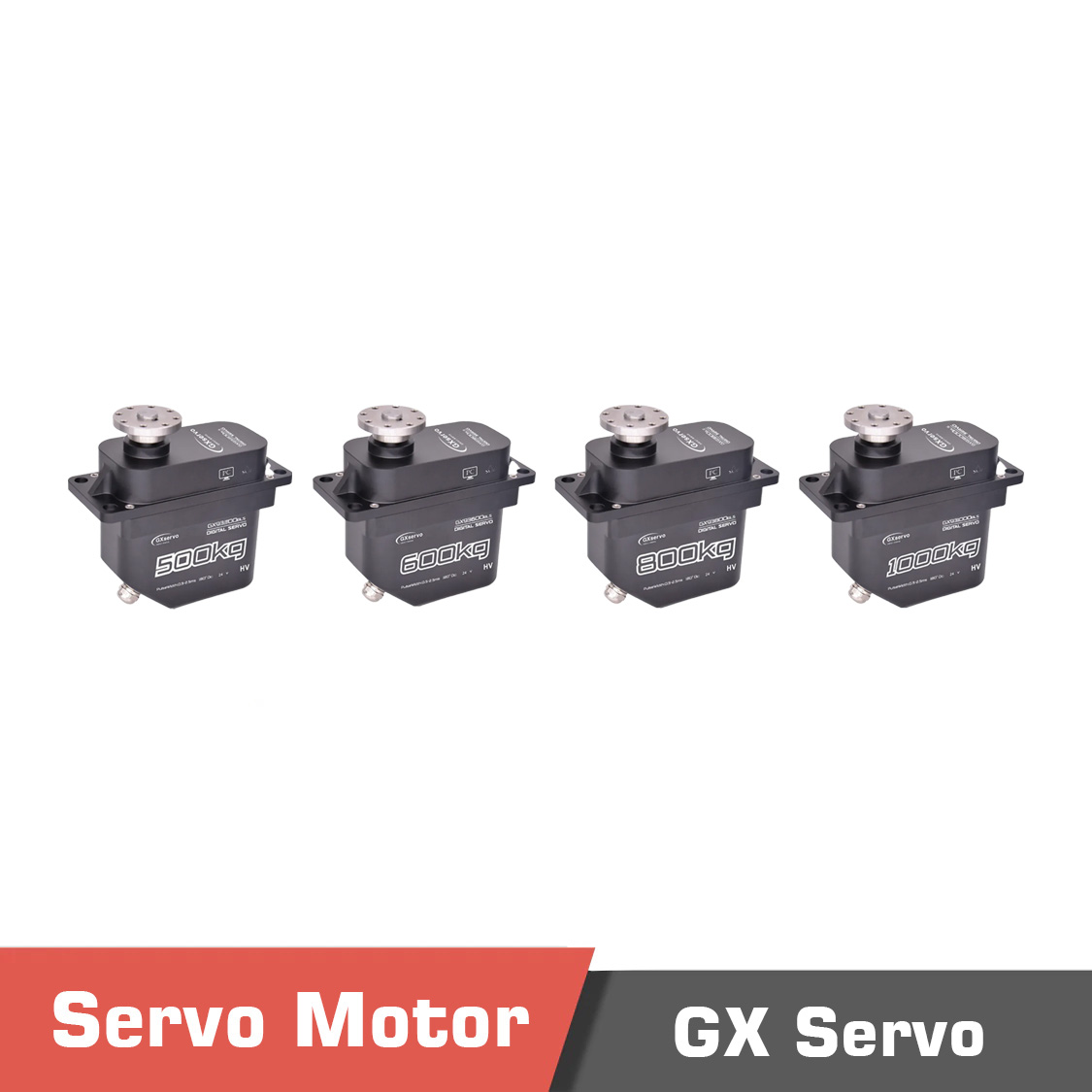

Note: SUPER 300 and SUPER 500 are discontinued. Please check GX series servo as replacement.

The super 300 / super 500 are high torque servo motors with 300kg.cm and 500kg.cm torque respectively. Torque ratings are measured at 1cm from the spline axis. These servos are perfectly compatible with most remote-control systems available on the market. The exclusive power stabilization technology ensures that the servos continue to work reliably. If the servos become overloaded, the overload protection will prevent damage allowing the load to be removed and the servo to continue normal operation again. This circuit can stably control the servo to work in the safe torque ranges. This servo has its own BEC 5V output and can directly supply power to the receiver.

The servo control board does away with the traditional method of detecting the position of the rotating shaft with a potentiometer and uses imported original magnetic encoders providing precision position feedback.

Non-contact position detection offers longer service life, by eliminating mechanical wear and no failures from dust or oil buildup. It supports a 1-2ms PWM pulse signal to control the servo motors, the same standard that is used to control most of the servo motors in the market. Alternatively, an analog voltage signal control in the range of 0-5V can be used to control the servo. It has an optional 360-degree working mode, in which the speed of the steering gear can be controlled.

If you have any questions regarding our products, use the contact us page to consult our engineering team.

FAQ – Super 300 / Super 500

1. What are the main specifications of the Super 300 and Super 500 models?
The Super 300 and Super 500 are high-performance power distribution and signal modules designed for UAVs, robotics, and industrial control systems. Both models provide stable voltage output, low signal interference, and high current capacity, making them suitable for demanding propulsion and sensor applications.

2. What are the differences between the Super 300 and Super 500 models?

• Super 300: Optimized for medium UAVs or robotic systems, supporting up to 300A peak current.

• Super 500: Designed for heavy-lift or industrial platforms, capable of handling up to 500A peak current and offering enhanced cooling and durability.

3. How should these units be installed for optimal performance?
Both models should be mounted on a vibration-resistant platform with adequate airflow or passive cooling. Ensure correct cable orientation and secure all power terminals using anti-loosening fasteners to prevent signal loss or overheating.

4. What payment options are available for purchasing Super 300/500 modules?
Motionew accepts credit/debit cards, PayPal, and bank wire transfers. For corporate or bulk buyers, proforma invoicing is available for streamlined transactions.

5. Does Motionew offer OEM or custom configurations for Super 300/500 units?
Yes. OEM customization is available for connectors, cabling, labeling, and casing. Clients can request custom configurations to fit their UAV or industrial system requirements. Please contact the Motionew sales team for MOQ and lead time details.

6. Are datasheets and technical documentation available for the Super 300/500?
Yes. Motionew provides datasheets, wiring schematics, and installation guides upon request or via the product page. Additional technical support is available for integration and testing assistance.
