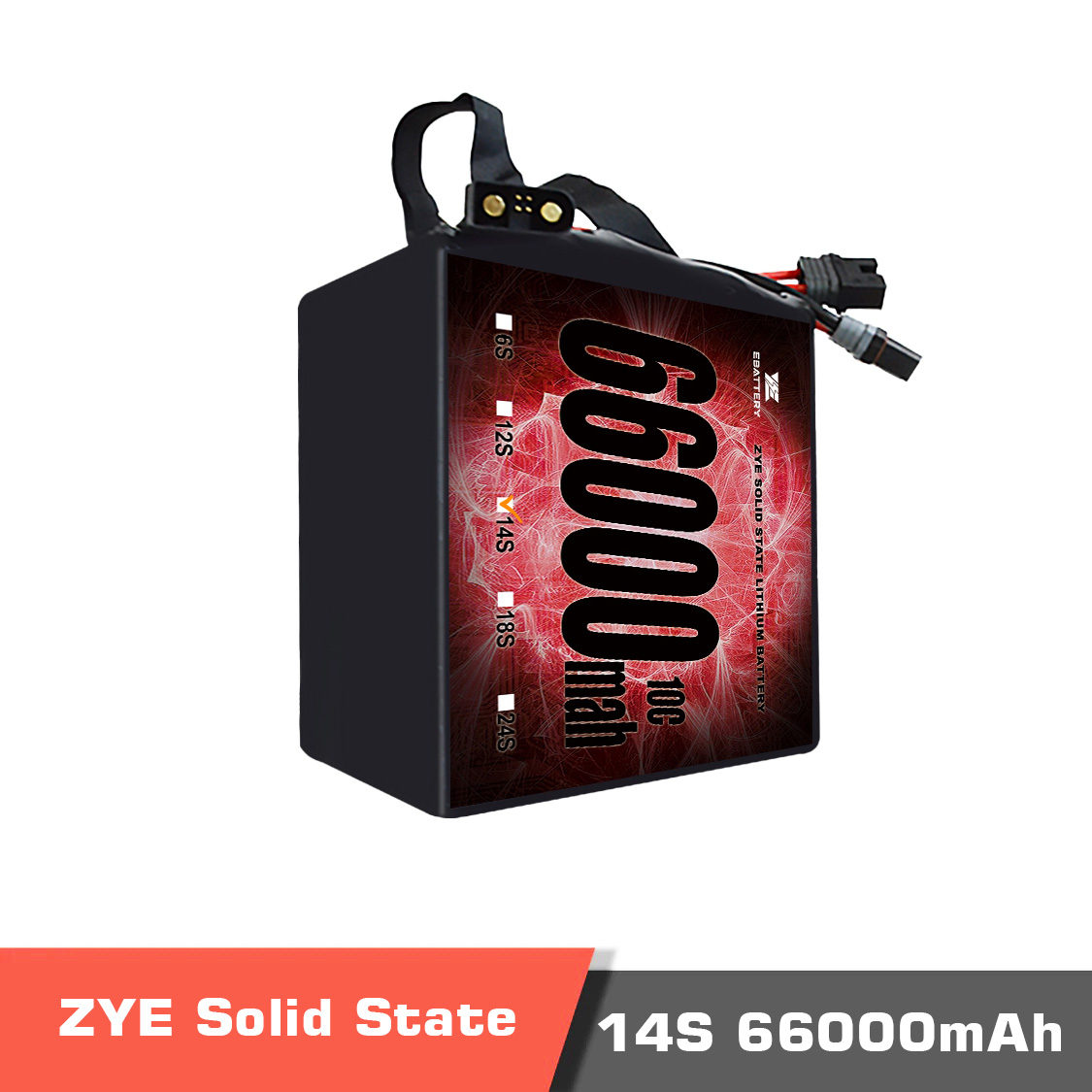

ZYE Power Ultra HV battery 14s 66000mAh-Semi Solid-State Battery

2025.00 $

PayPal
Visa
Master

Description

Important Note: Due to the pure battery shipping limitations you need to get confirmation first. Please contact us before placing the order.

General Specifications

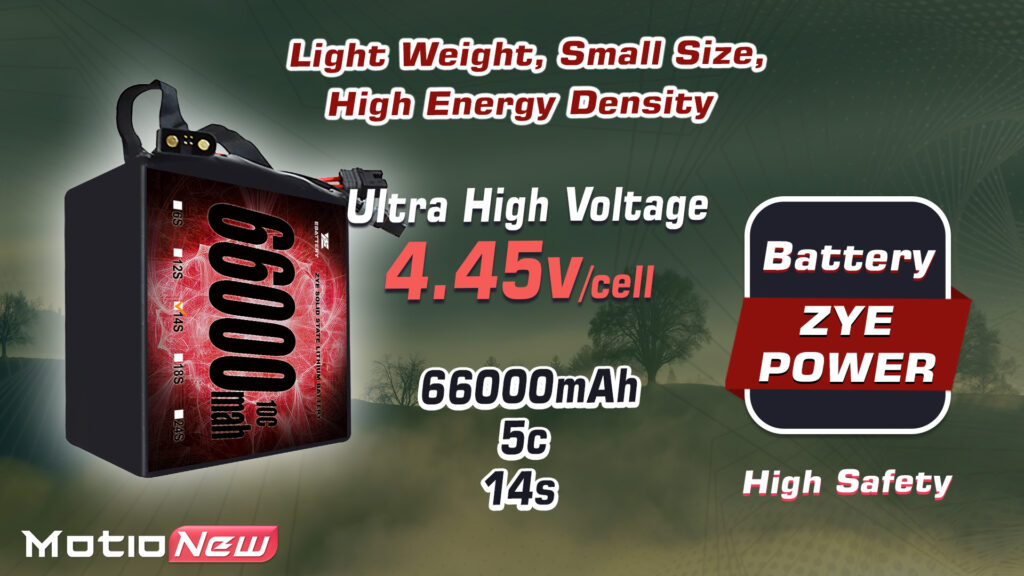

ZYE Power Ultra HV battery 14S 66000mAh Ultra HV semi solid-state battery is only 12.30kg, with 298Wh/kg energy density. The continuous discharge rate is 3C (198A) and the peak discharge rate is 5C (330A).

The ZYE Power Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.

Advantages of battery 14s 66000mAh

Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 14s 66000mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

Battery 14s 66000mah specificationsBattery 14s 66000mah general specifications Improved cycle life of battery 14s 66000mah



For a comprehensive reading of related products, please visit the Motionew website.

Additional information

Weight 13.5 kg
Dimensions 28 × 18 × 16 cm

Specifications

Voltage Nominal: 55.3V, Full: 62.3V
Cell Voltage 4.45v/cell
Capacity 66000mAh
Continuous Discharge Rate 3C (198A)
Max./Peak Discharge Rate 5C (330A)
Energy 298 Wh/kg
Size 250x163x142mm
Weight 12.30kg

Product contents

1x Ultra Solid-state Battery 14s 66000mAh
