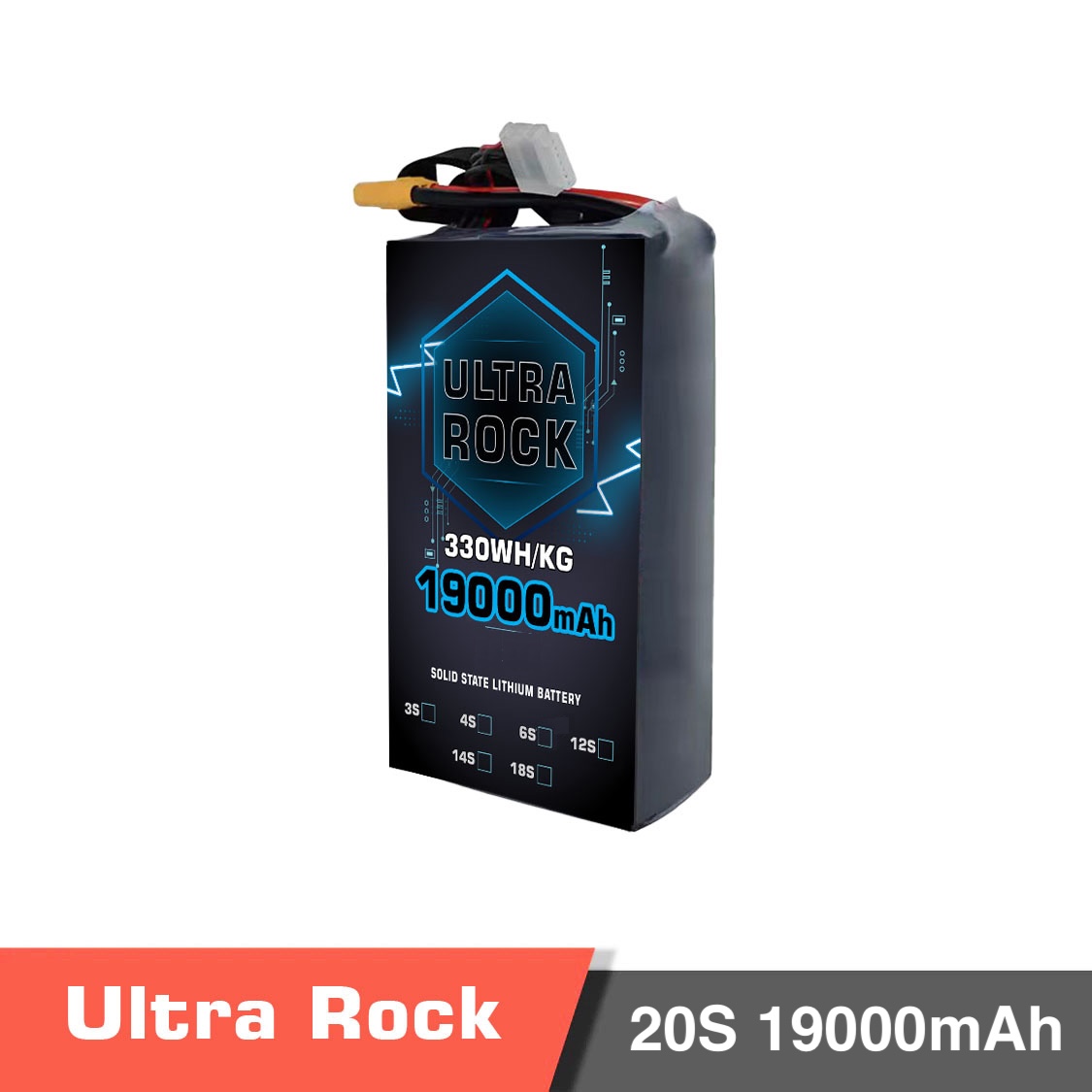

Semi Solid-State Battery with BMS | Model Ultra Rock Ultra HV battery 20s 19000mAh 330Wh/kg Energy Density 15C discharge Rate with BMS
970.00 $
Payment Methods:
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **
General Specifications
Ultra HV battery 20S 19000mAh Ultra HV semi solid-state battery is only 5.2kg, with 330Wh/kg pack energy density, and Standard Current discharge rate is 5C, Continuous current discharge rate is 7C and Peak current discharge rate is 15C.
The Ultra Rock Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.
Advantages of battery 20s 19000mAh
Compared to traditional semi solid-state Li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Battery 20s 19000mAh applications
Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
| Voltage | Nominal: 79V, Full: 89v |
| Cell Voltage | 4.45v/cell |
| Capacity | 19000mAh |
| Standard Discharge Rate | 5C |
| Continuous Discharge Rate | 7C |
| Max.Discharge | 15C |
| Energy | 330Wh/kg |
| Size | 250*77*195mm |
| Weight | 5200g |
Product contents
Product contents
1x Ultra Rock Solid-state Battery 20s 19000mAh with BMS
Documents
Documents
All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.
Please contact us for more information.
Reviews
You must be logged in to post a review.
| Battery cells |
20S |
|---|---|
| Battery Dimensions |
250*77*195mm |
| Battery Continuous C rate |
7C |
| Battery Energy Density |
330Wh/kg |
| Battery Max Peak C rate |
15C |
| Battery Type |
ULiHV |
| Battery Weight |
5200g |
| Battery Nominal Voltage |
3.95 |
| Battery Full Voltage |
4.45v |
