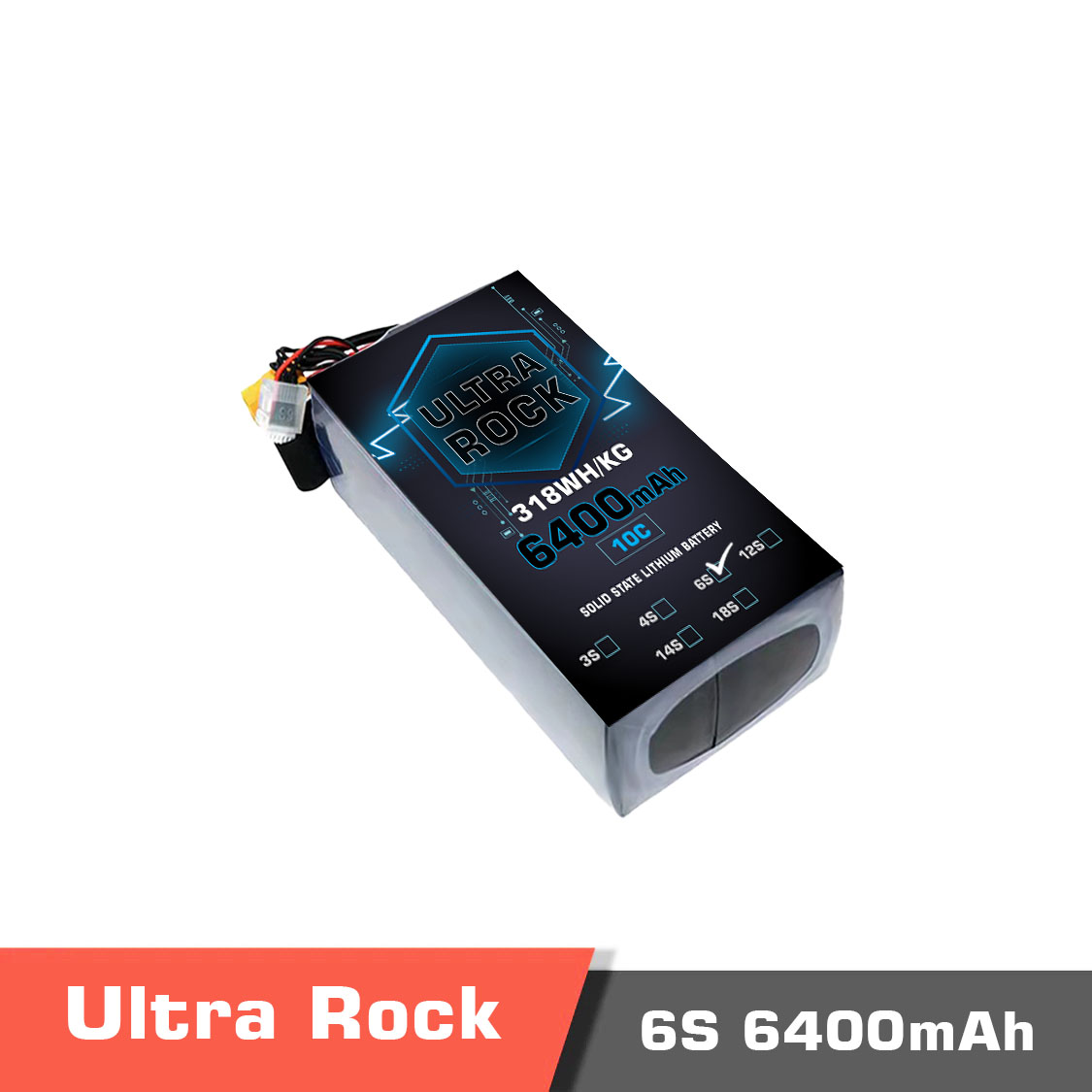

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 6s 6400mAh 318Wh/kg Energy Density 10C discharge Rate

117.00 $

Payment Methods:

Description

Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.

** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **

Semi-solid-state battery products


General Specifications

Ultra HV battery 6S 6400mAh Ultra HV semi solid-state battery is only 0.475kg, with 318Wh/kg pack energy density, and Standard Current discharge rate is 3C, Continuous current discharge rate is 5C and Peak current discharge rate is 10C.

The Ultra Rock Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 10C.

Advantages of battery 6s 6400mAh

Compared to traditional semi solid-state Li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 6s 6400mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

For a comprehensive reading of related products, please visit the Motionew website.

6400 6s. 1 - ultra hv battery 6s 6400mah 318wh/kg energy density 10c discharge rate - motionew - 1 6400 6s. 2 - ultra hv battery 6s 6400mah 318wh/kg energy density 10c discharge rate - motionew - 2 6400 6s. 3 - ultra hv battery 6s 6400mah 318wh/kg energy density 10c discharge rate - motionew - 3

Specifications

Specifications



Voltage Nominal: 23.7V, Full: 26.7V
Cell Voltage 4.45v/cell
Capacity 6400mAh
Standard Discharge Rate 3C
Continuous Discharge Rate 5C
Max./Peak Discharge Rate 10C
Energy 318Wh/kg
Size 69*37*100mm
Weight 475g



Product contents

Product contents

1x Ultra High Voltage Solid-state Battery 6s 6400mAh

Documents

Documents

All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.

Please contact us for more information.



Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 6s 6400mAh 318Wh/kg Energy Density 10C discharge Rate”

Specification:

Battery cells

6S

Battery Capacity

6400mAh

Battery Energy Density

318wh/kg

Battery Dimensions

69*37*100mm

Battery Continuous C rate

5C

Battery Max Peak C rate

10C

Battery Type

ULiHV

Battery Nominal Voltage

3.95v

Battery Full Voltage

4.45v

Battery Weight

475g
